鲁西北潘店重磁异常带矽卡岩型铁矿精细找矿方向——来自广域电磁法深部找矿的启示

doi:10.11720/wtyht.2024.1157

Abstract
Figure/Table
References
Related Citation (1)

Download: PDF (4258 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

Significant aeromagnetic and gravity anomalies were found in the ultra-deep coverage zone of the Pandian area in the northwestern Shandong Province. Through systematic verification of gravity and magnetic anomalies, a breakthrough in prospecting for deep skarn iron deposits has been achieved through several boreholes around the Pandian gravity-magnetic anomaly zone. However, the gravity-magnetic anomaly zone spreads extensively and its characteristics cannot directly indicate the prospecting target, thus some boreholes failed to find ores or revealed poor ore-finding conditions. Hence, to accurately delineate the ore-forming location in the gravity-magnetic anomaly zone and achieve a further breakthrough in ore prospecting, this study conducted the wide-field electromagnetic (WFEM) sounding in the verified Pandian gravity-magnetic anomaly zone. Combining the drilling verification, this study delineated the deep ore-forming interval of skarn iron deposits in the deep coverage zone and the favorable structural plane for ore-forming, suggesting the deep fine-scale prospecting targets.

Key words： Pandian area skarn iron deposit gravity-magnetic anomaly zone wide-field electromagnetic sounding fine-scale prospecting target

Received: 10 April 2023 Published: 16 April 2024

ZTFLH:

P631

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Guo-Qiang GUO
	Ya-Dong LI
	Yang WANG
	Jia-Bin YU
	Run-Sheng WANG
	Xiao-Feng GAO
	Da-Ming ZHANG
	Dong-Ning HU
	Lei FANG
	Wei-Fang GUO

Cite this article:

Guo-Qiang GUO,Ya-Dong LI,Yang WANG, et al. Fine-scale prospecting targets of skarn iron deposits in the Pandian gravity-magnetic anomaly zone of northwestern Shandong Province: Insights from deep prospecting using the wide-field electromagnetic method[J]. Geophysical and Geochemical Exploration, 2024, 48(2): 327-333.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2024.1157 OR https://www.wutanyuhuatan.com/EN/Y2024/V48/I2/327

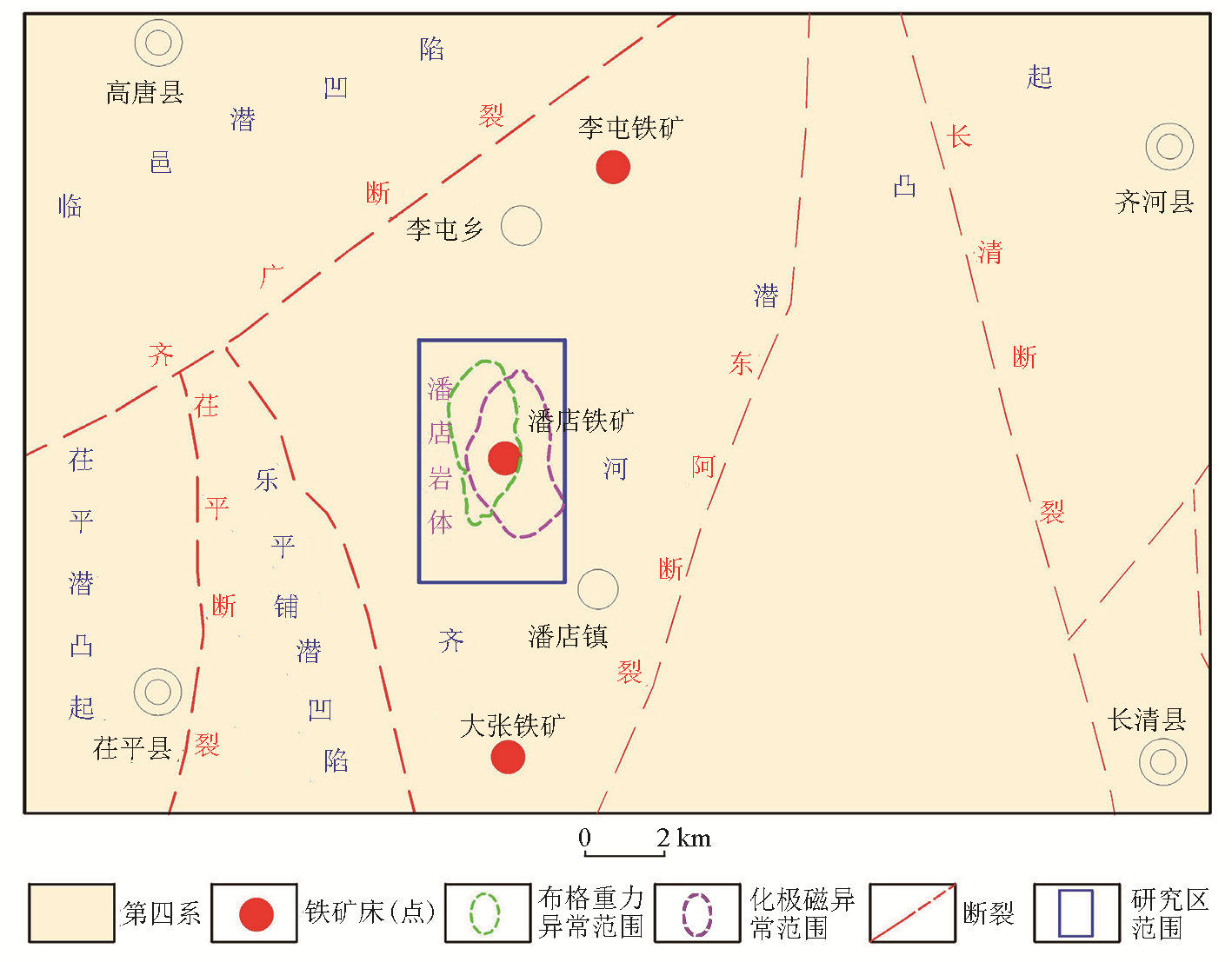

Geological structure diagram of the study area

Statistical of electrical and physical characteristics in the study area

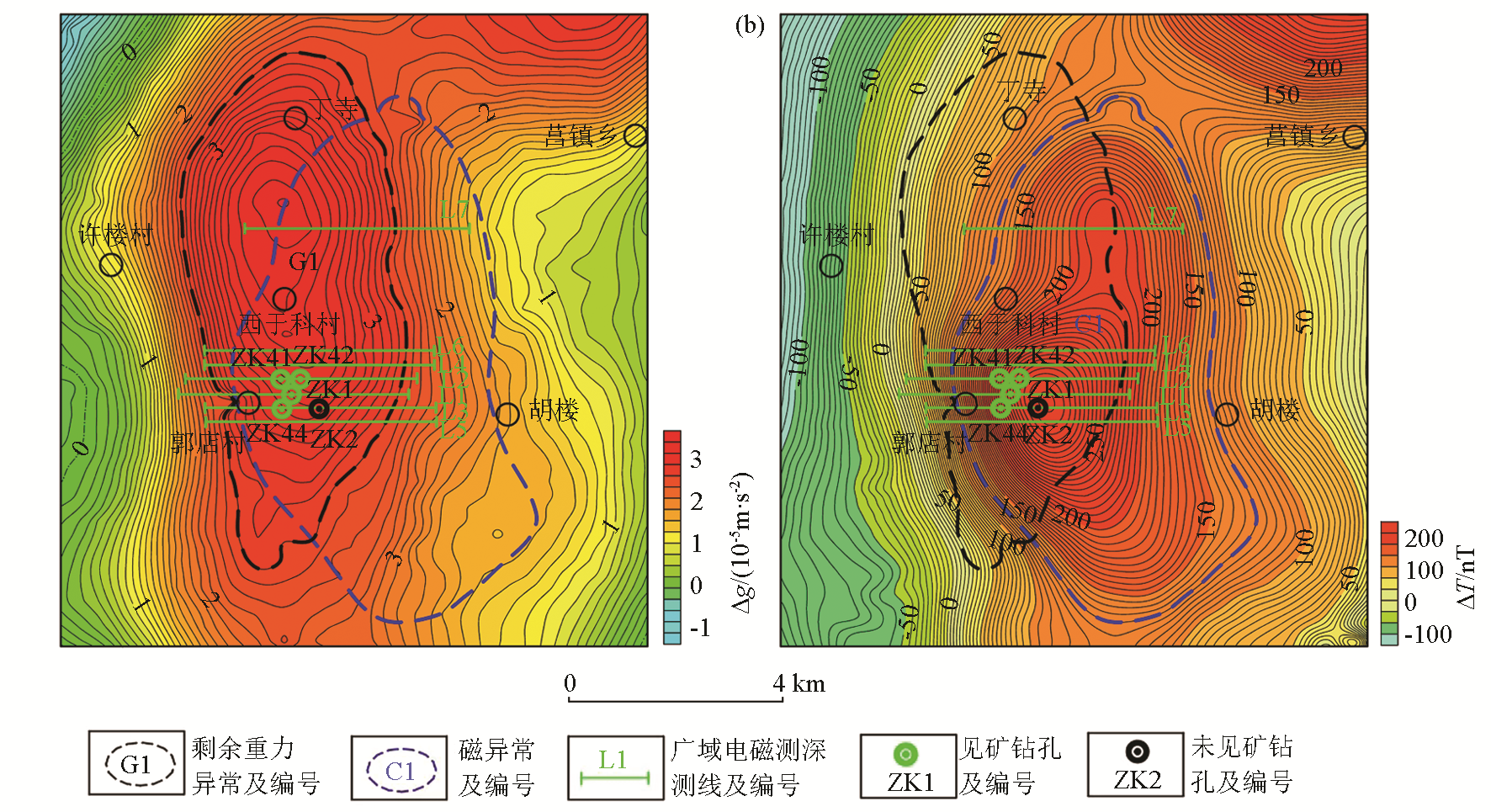

Pandian gravity and magnetic anomaly
a—residual gravity anomaly; b—aeromagnetic pole anomaly

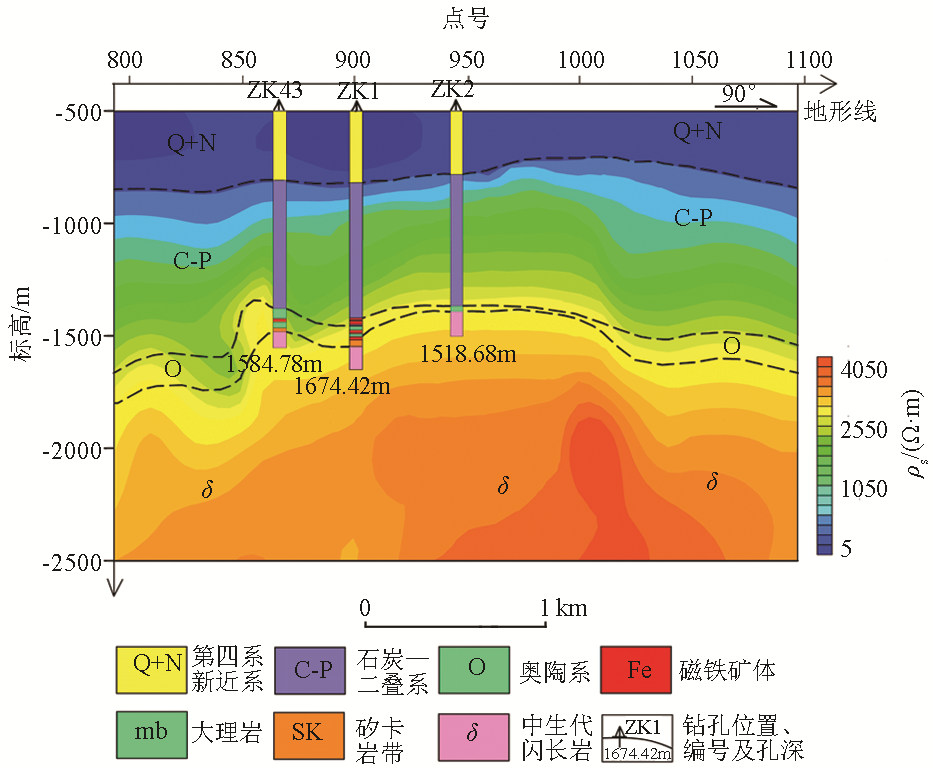

Comprehensive inference map of wide-area electromagnetic sounding profile L1

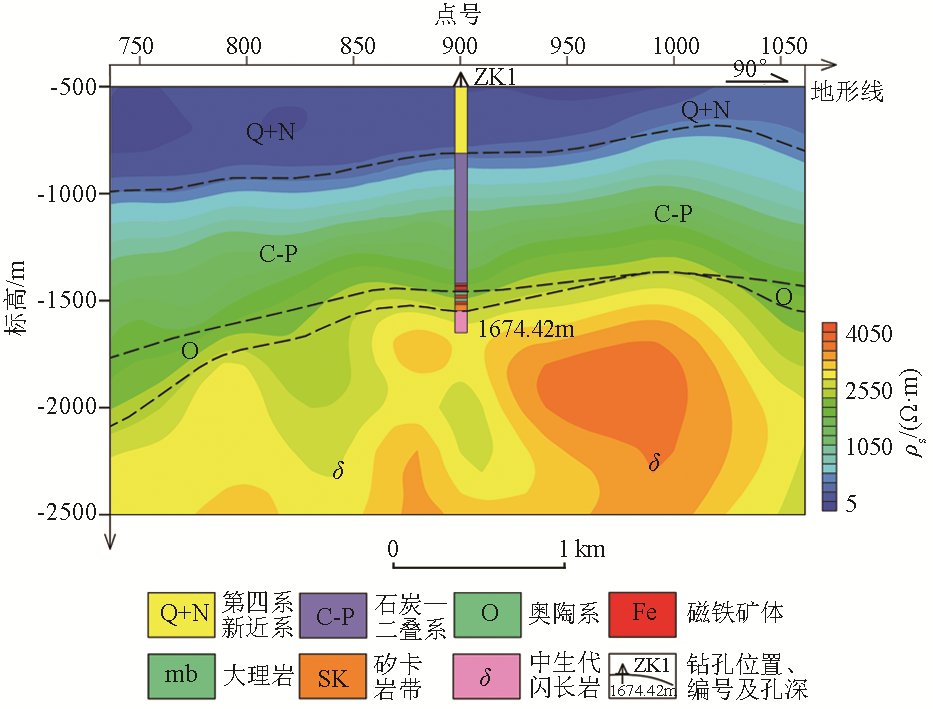

Comprehensive inference map of wide-area electromagnetic sounding profile L2

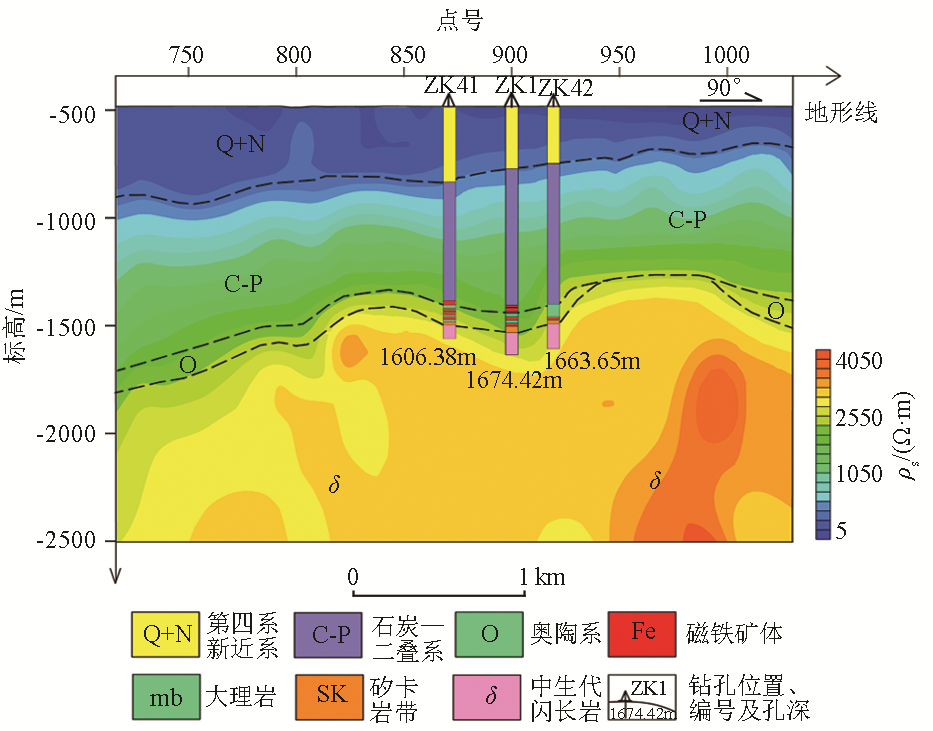

Comprehensive inference map of wide-area electromagnetic sounding profile L3

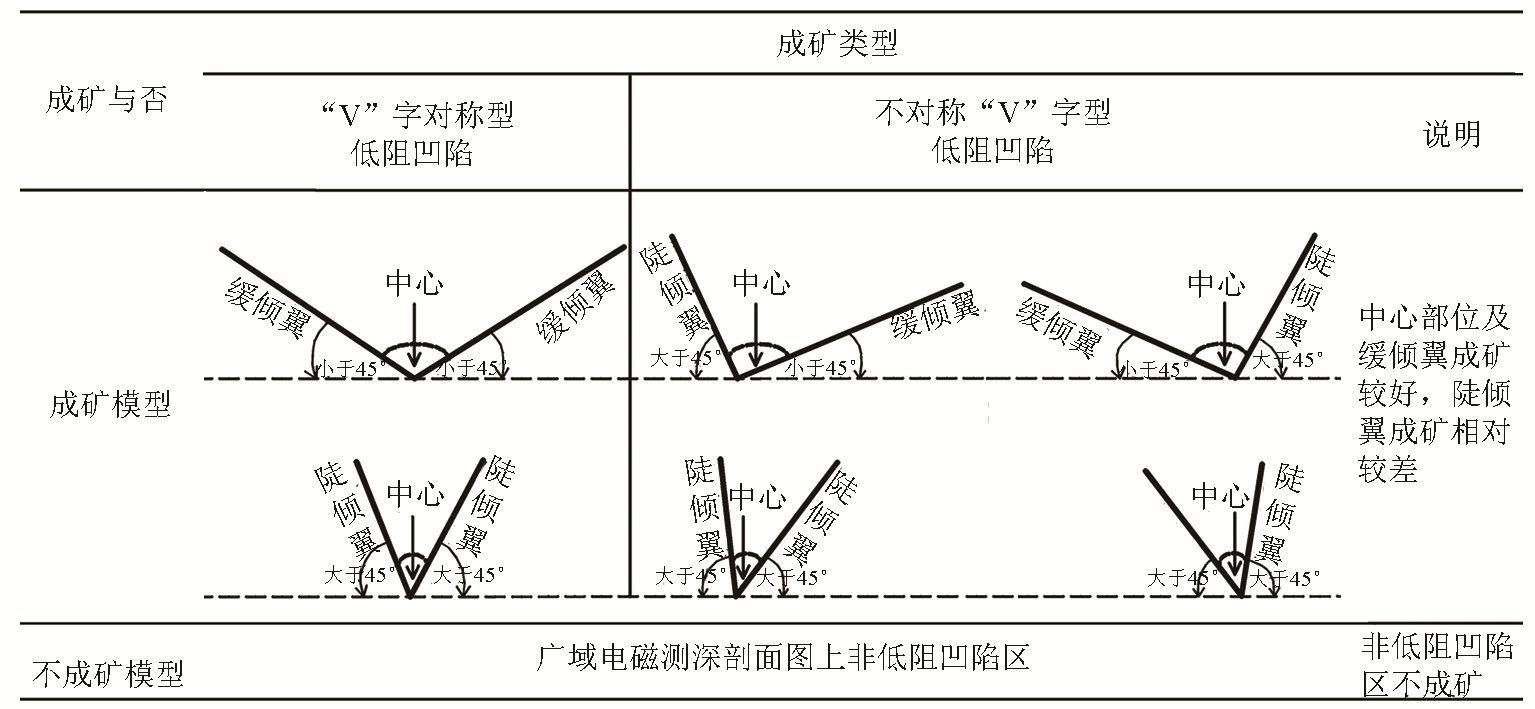

Metallogenic model of skarn iron ore
