基于借线遥控电极阵列的二维/三维电法勘探

doi:10.11720/wtyht.2024.0170

Abstract
Figure/Table
References
Related Citation (4)

Download: PDF (3061 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

The telecontrol electrode array is a new type of electrode array for power supply and observations that utilizes the carrier waves of the power-supply and measurement wires used in conventional electrical prospecting to transmit signals. By remotely controlling a series of coded electrode switches between various wires and their connections, this array allows for orderly power supply and measurements. This array enables flexible spacings between electrodes and the gradual expansion of the distances between power supply electrodes via remote control, thus achieving a gradient-based sounding array. The borrowing-line remote controller can be used combined with single-channel, multi-channel, and high-density resistivity instruments, and the combined arrays can perform 2D/3D electrical prospecting more effectively. Followed by the brief introduction of the principle of the borrowed-line telecontrol electrode array, this study discusses the applications and examples of this array and several combined arrays in the resistivity method and induced polarization (IP).

Key words： electrode array borrowing line remote control gradient sounding arbitrary quadrupole

Received: 15 April 2024 Published: 08 January 2025

ZTFLH:

P631

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Wei-Zhong GE
	Bing-He LIANG
	Jian-Dong GAO
	Yu-Zeng Lv
	Long CHEN

Cite this article:

Wei-Zhong GE,Bing-He LIANG,Jian-Dong GAO, et al. 2D/3D electrical exploration based on borrowing-line telecontrol electrode arrays[J]. Geophysical and Geochemical Exploration, 2024, 48(6): 1437-1447.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2024.0170 OR https://www.wutanyuhuatan.com/EN/Y2024/V48/I6/1437

Remote control with wire

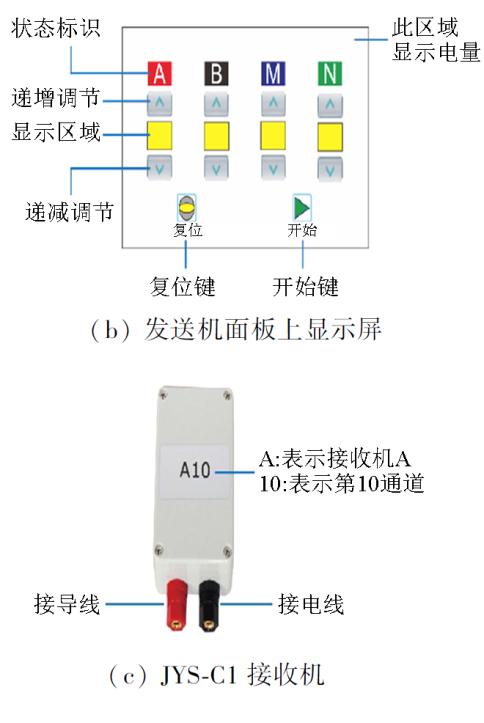

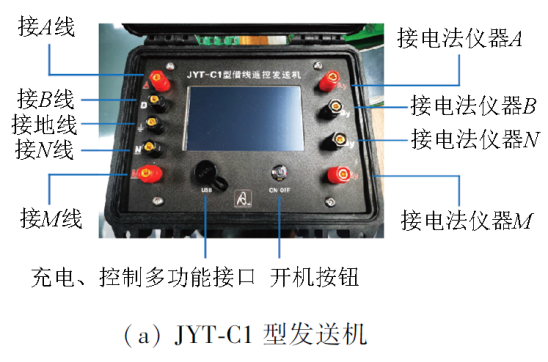

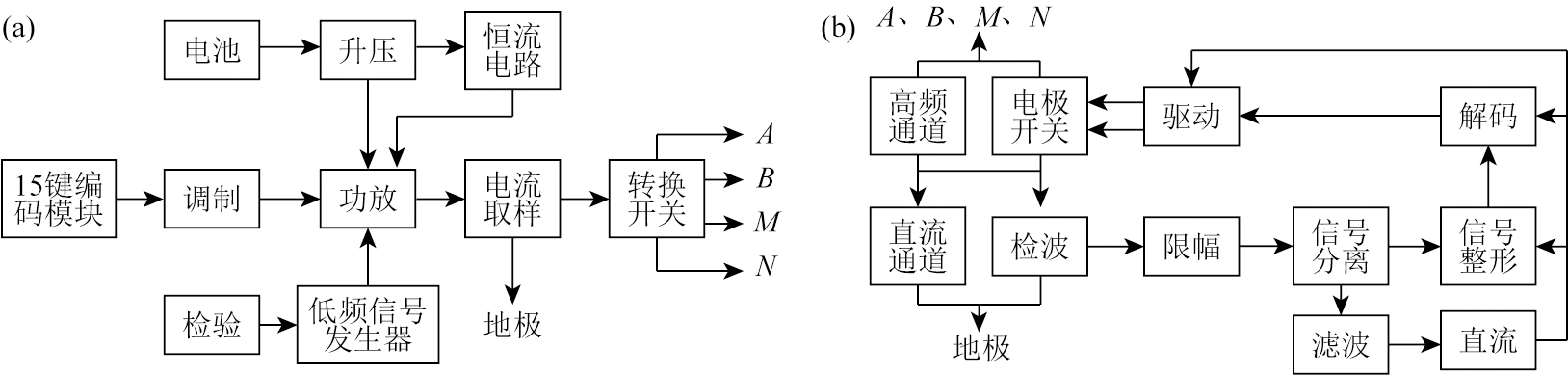

Structure design of remote transmitter(a) and receiver(b)

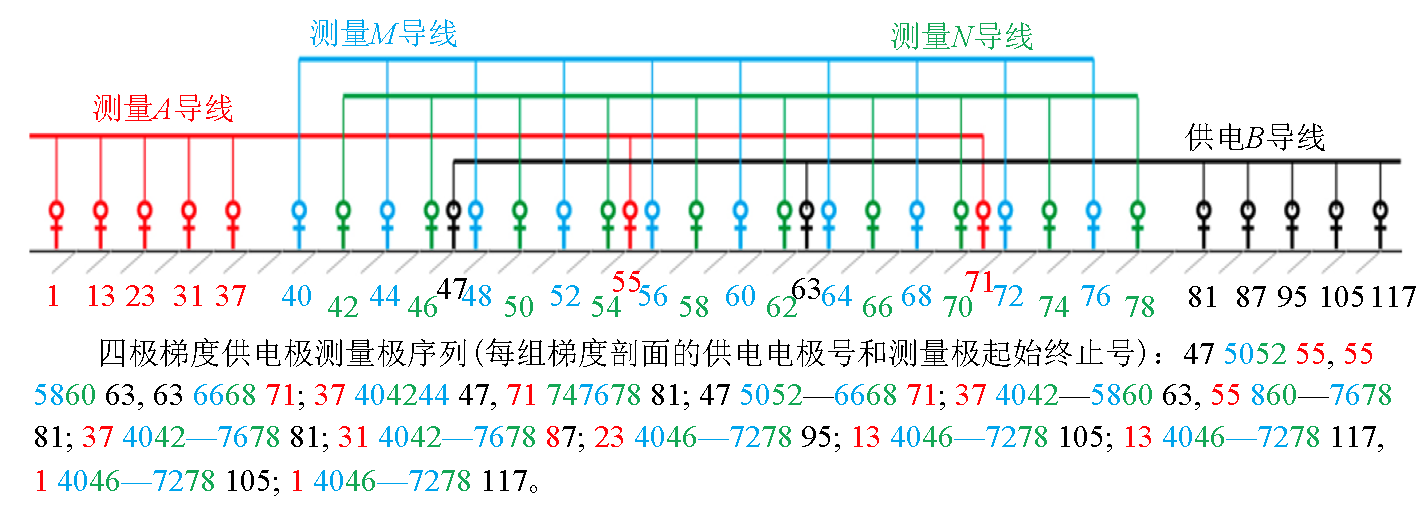

Schematic diagram of remote electrode array and gradient electrode sequence of GS

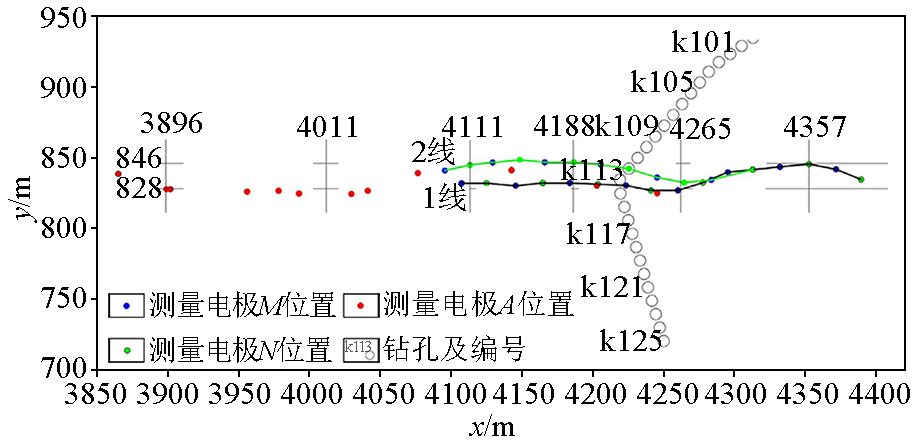

Layout plan of boreholes and measuring line electrodesresistivity inversion

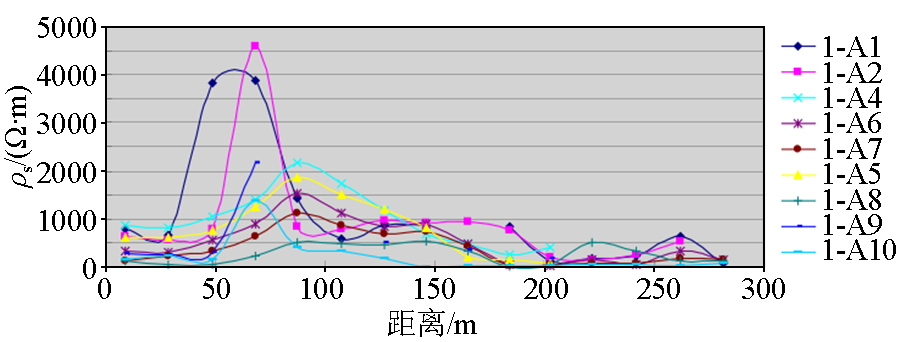

Apparent resistivity curves of line1 profile

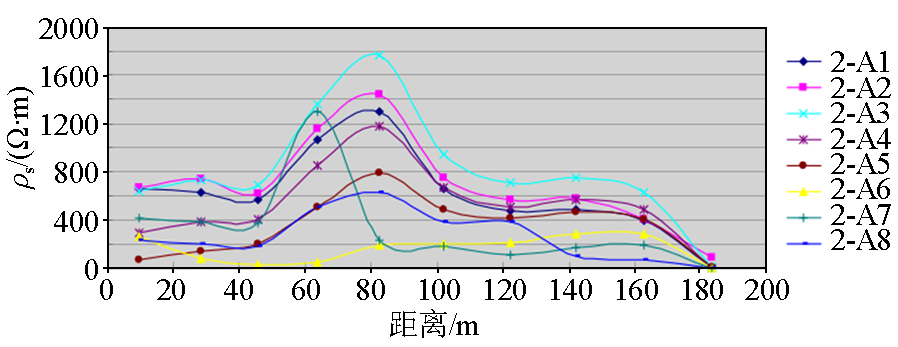

Apparent resistivity curves of line2 profile

Section images of GS resistivity inversion

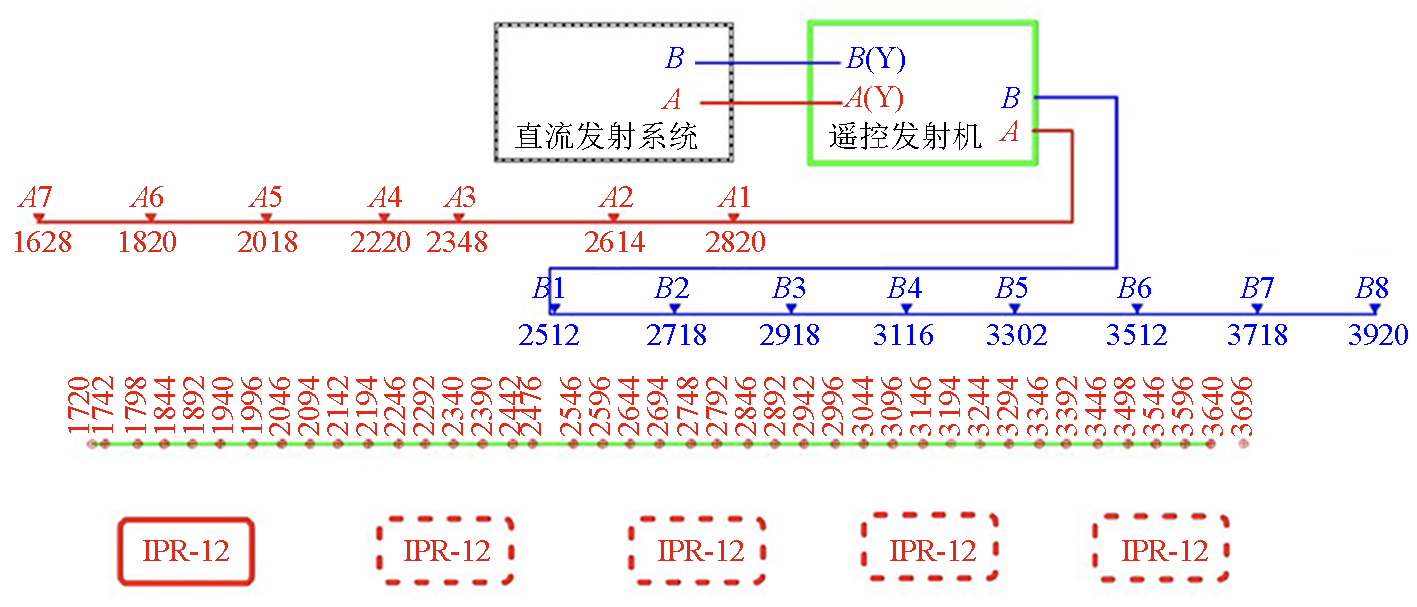

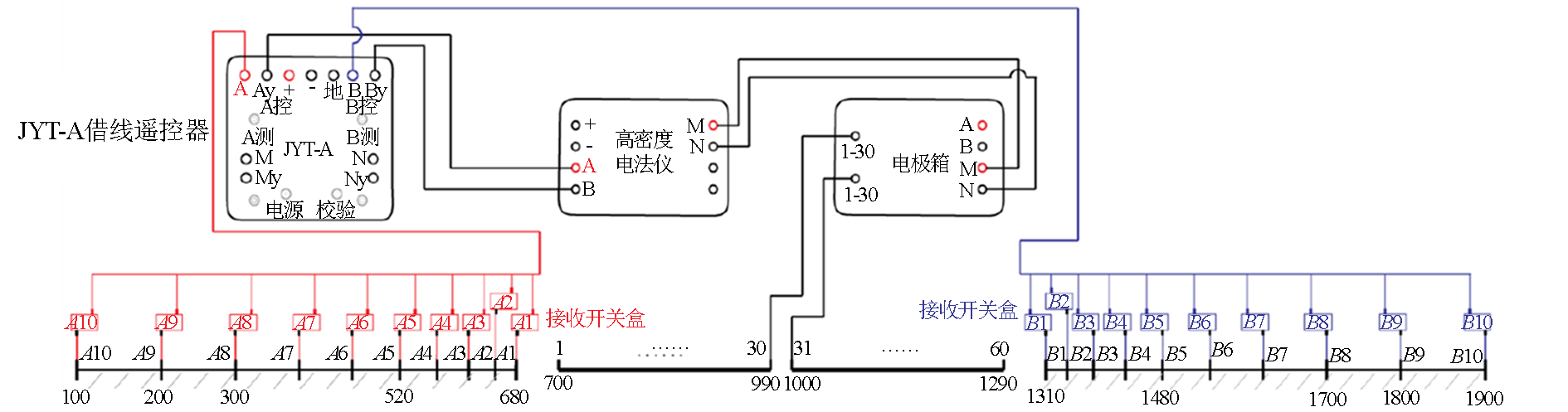

The combination of remote power supply array and IPR-12 IP meter

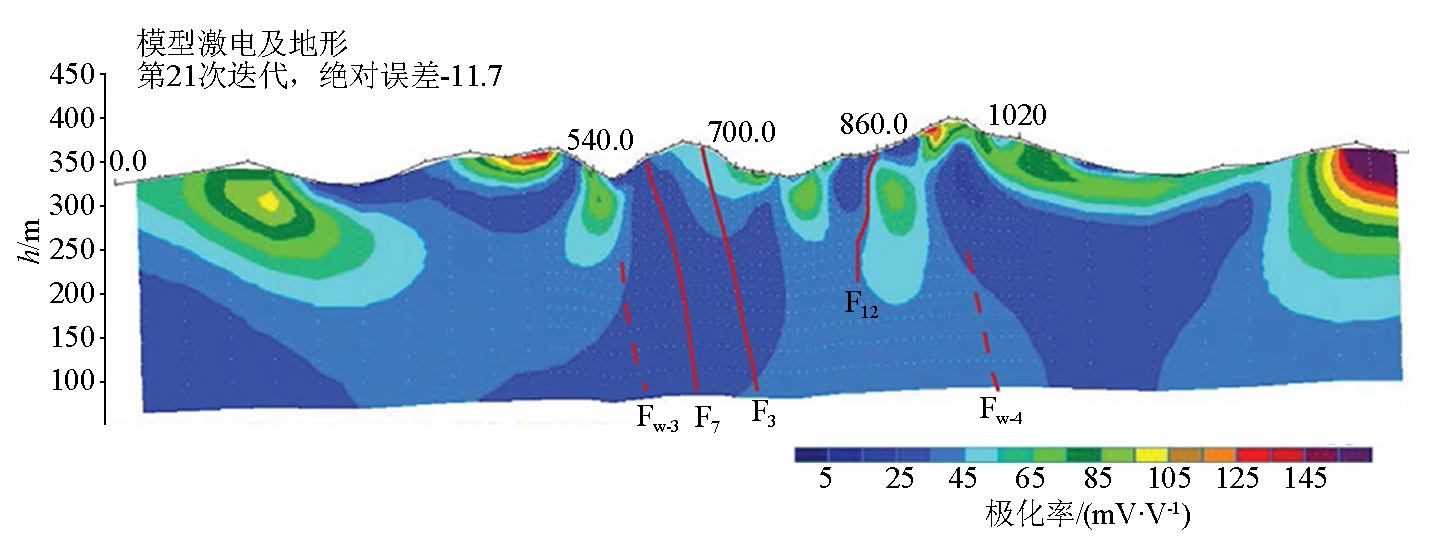

2D inversion image of Z2 line gradient IP sounding in Huayang lead-zinc mine

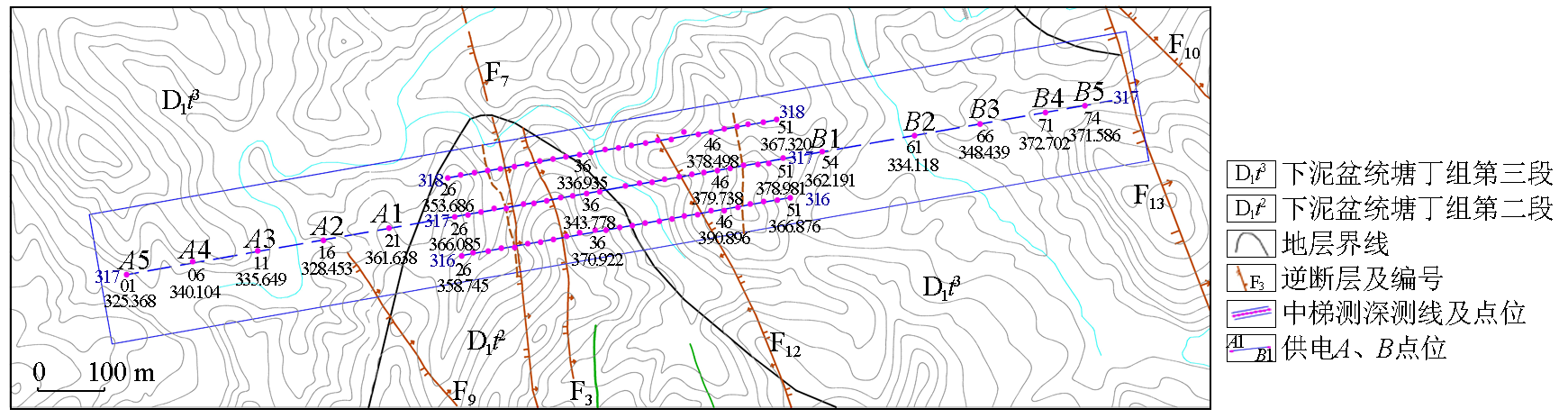

3D distribution plane of IP sounding in Bancai mining area

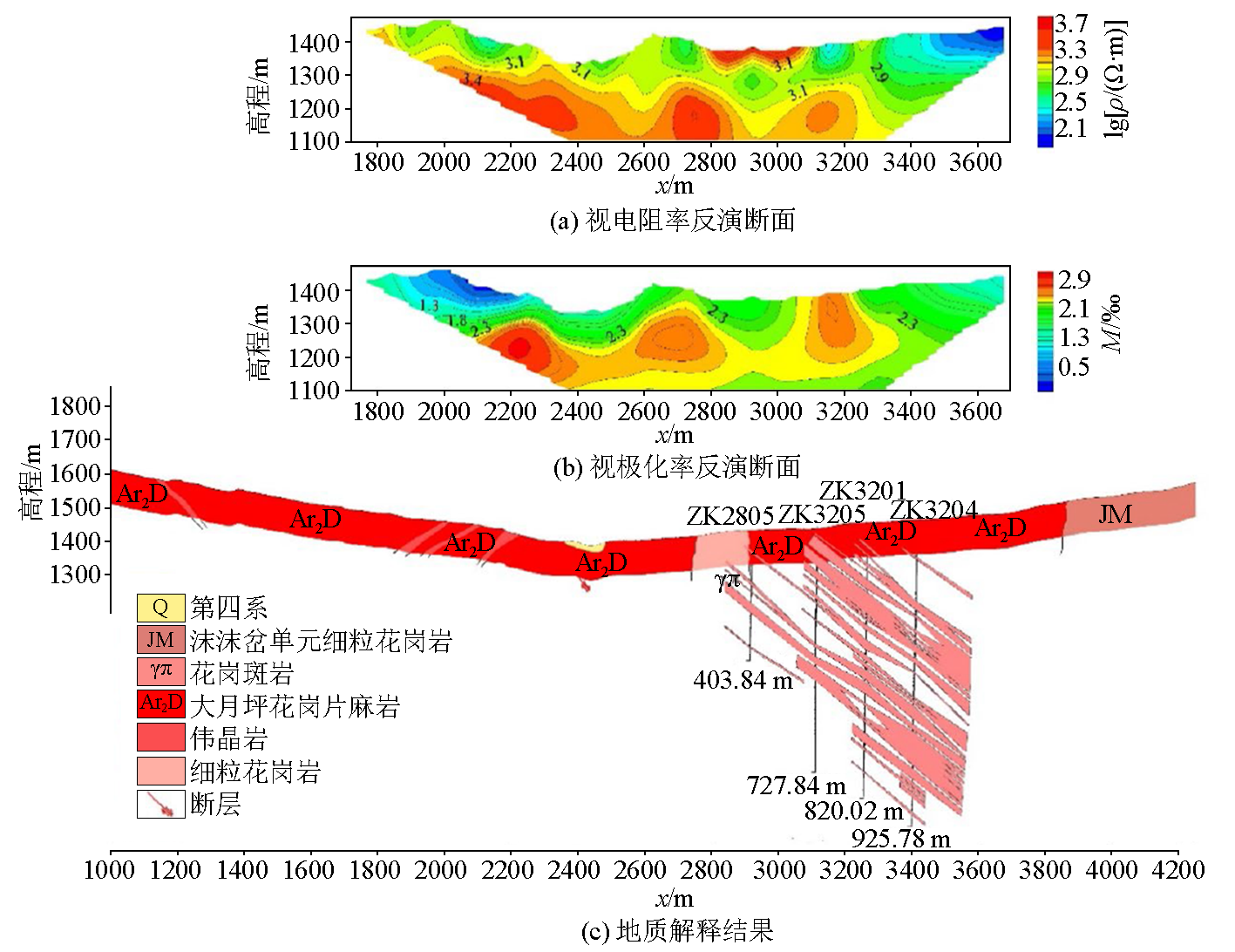

2D inverse polarizability profile image of the main survey line of Bancai mining area

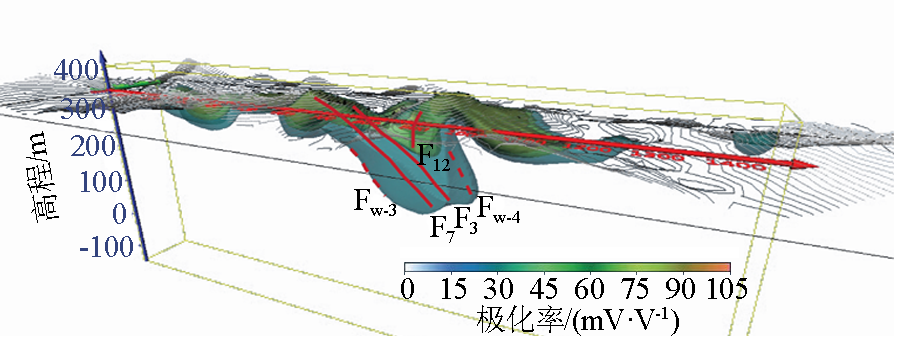

3D inverse polarizability image of Bancai mining area

Schematic diagram of high-density array and remote power supply array by the 2D ultra-deep high-density method

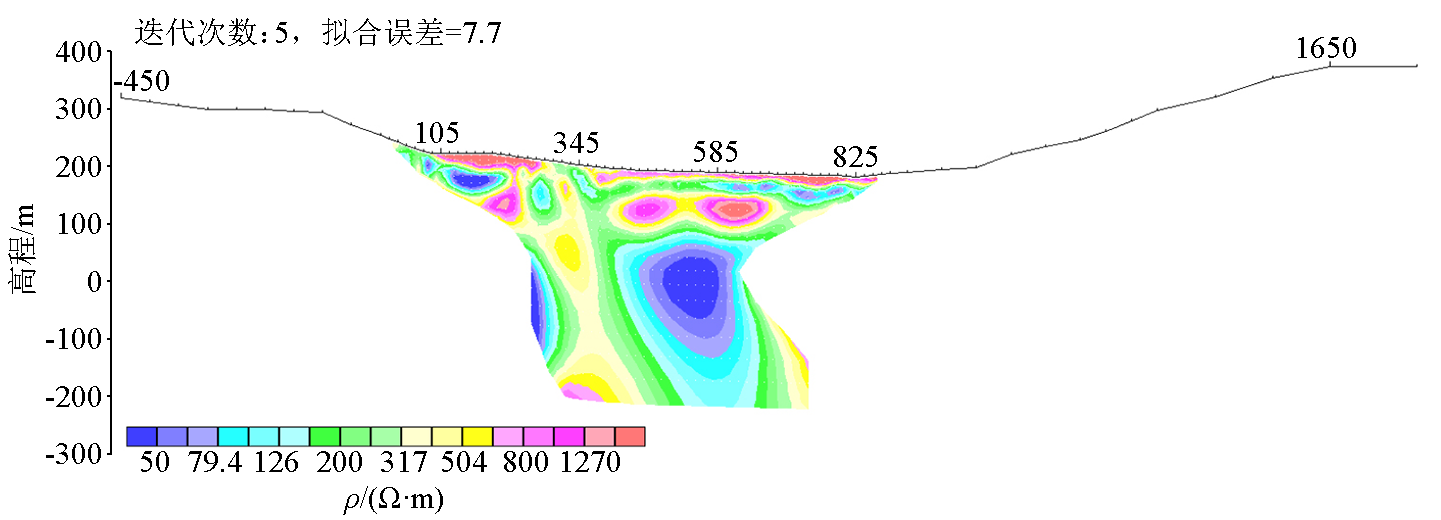

Resistivity inversion image based on 2D ultra-deep high-density electrical data of Hongshui line 31 in Hainan Province

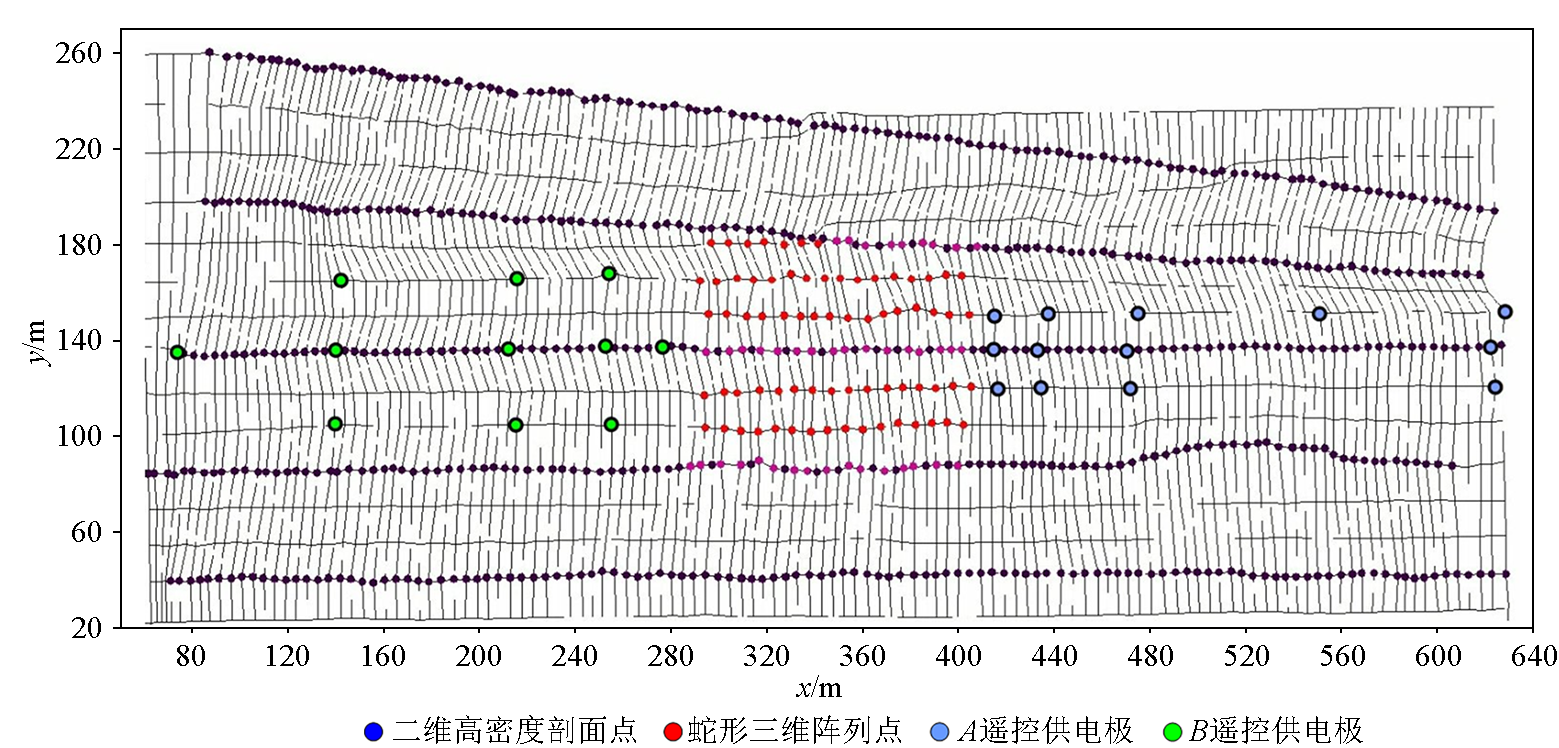

2D sections, 3D electrode array and finite element grid plan in karst area

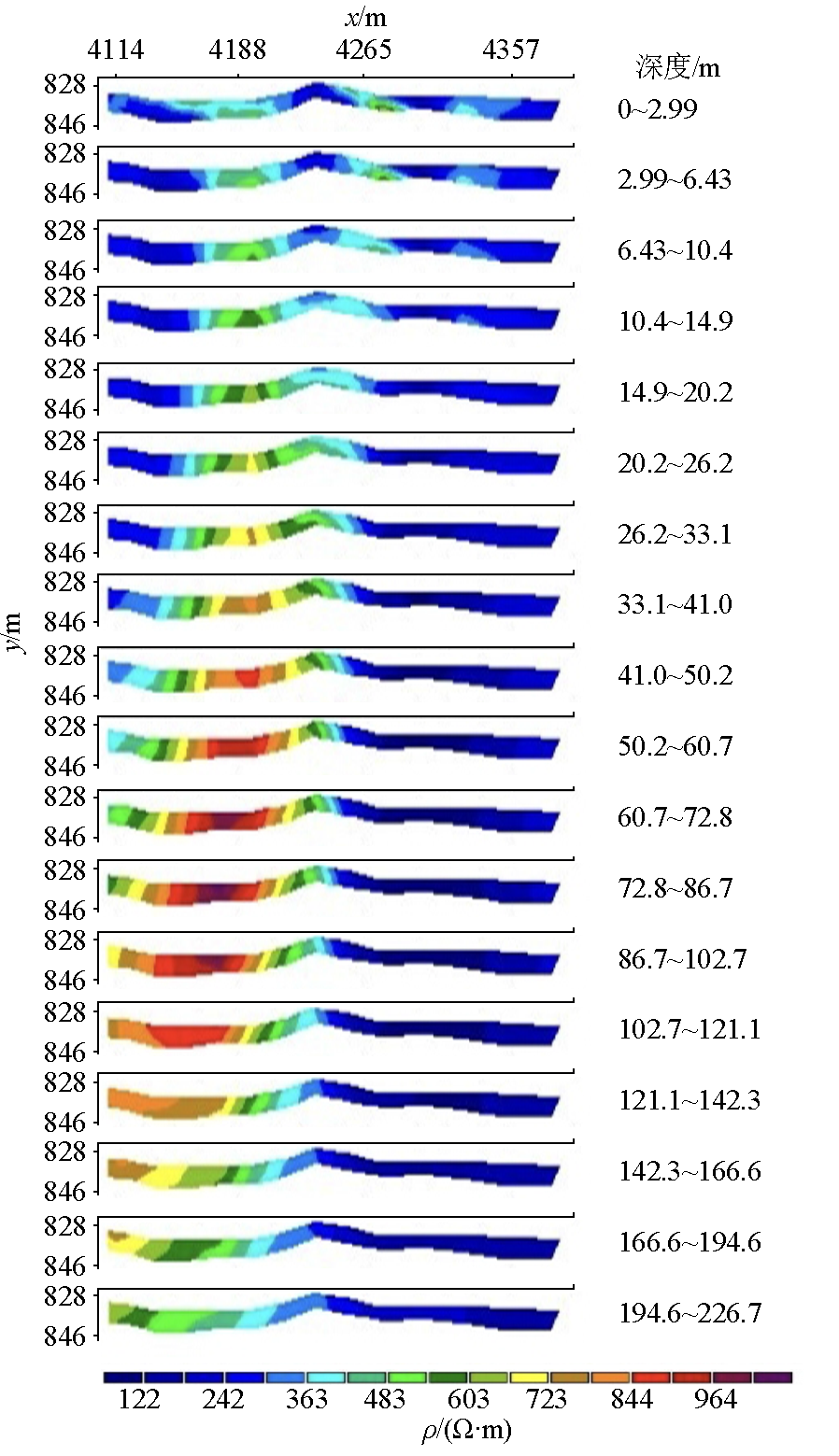

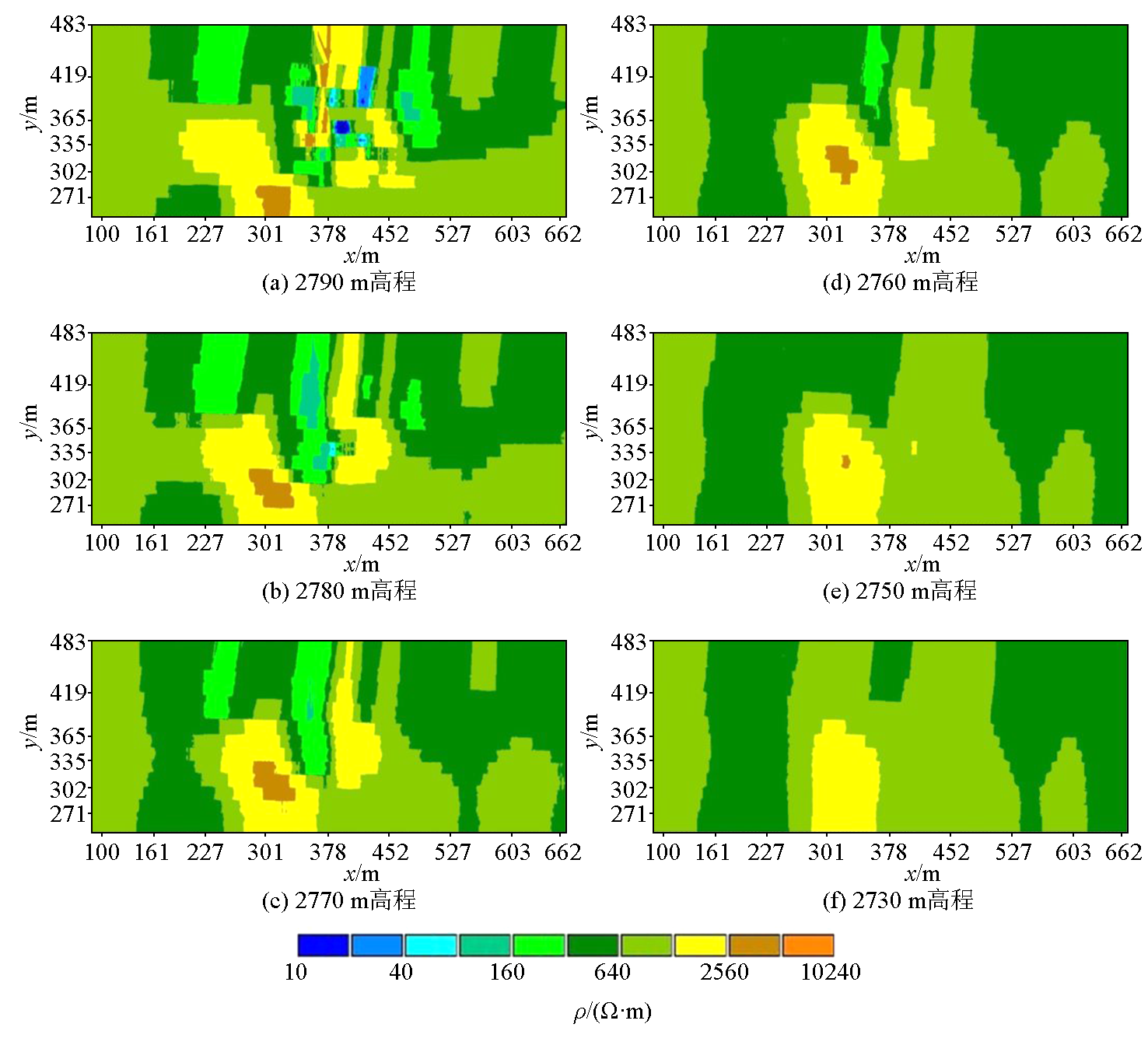

3D inverse resistivity plane slice image from 2D+3D data

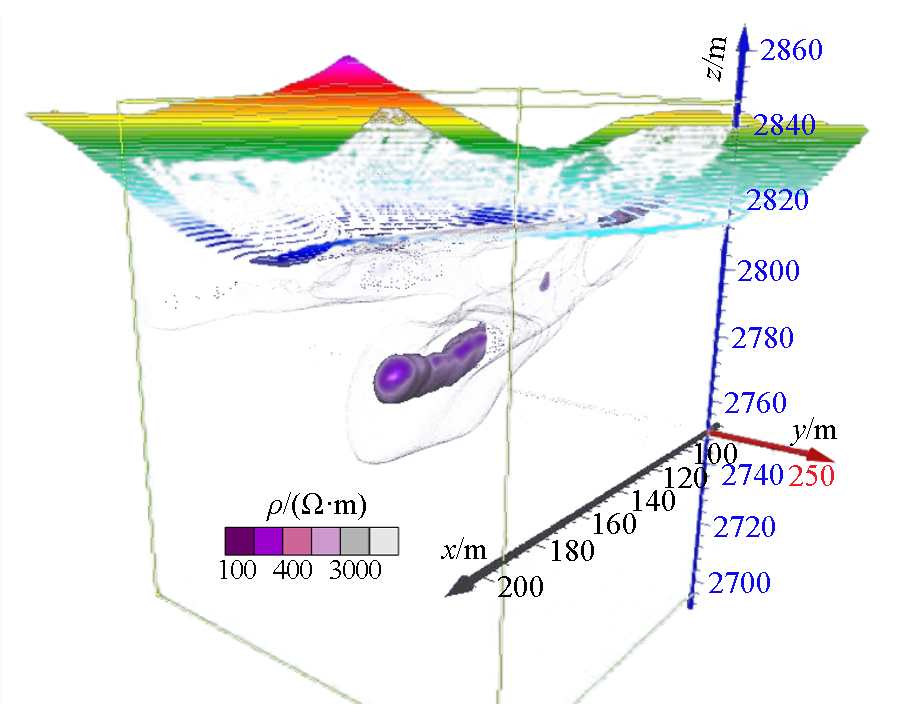

3D inversion resistivity image of 3D surveying data

[1]	葛为中. 电阻率法新理念[C]// 中国地球物理学会第22届年会, 2006.
[1]	Ge W Z. New concepts in resistivity method[C]// Proceedings of the 22^nd Annual Meeting of the Chinese Geophysical Society, 2006.
[2]	葛为中. 电测深布极装置及观测方式的变革[C]// 中国地球物理学会第23届年会, 2007.
[2]	Ge W Z. Transformation of electrode arrangement and observation method in electrical sounding[C]// Proceedings of the 23^rd Annual Meeting of the Chinese Geophysical Society, 2007.
[3]	葛为中, 吕玉增, 丁云河. 梯度电测深剖面法及其应用[J]. 物探与化探, 2011, 35 (2):206-211.
[3]	Ge W Z, Lyu Y Z, Ding Y H. The gradient sounding profile method and its application[J]. Geophysical and Geochemical Exploration, 2011, 35 (2):206-211.
[4]	吕玉增, 葛为中, 彭苏萍. 多极距中梯观测与反演研究[J]. 物探与化探, 2013, 37 (1):92-97
[4]	Lyu Y Z, Ge W Z, Peng S P. A study of multiple electrode distance central gradient survey and inversion[J]. Geophysical and Geochemical Exploration, 2013, 37 (1):92-97.
[5]	Dahlin T, Zhou B. Multiple-gradient array measurements for multichannel 2D resistivity imaging[J]. Near Surface Geophysics, 2006, 4(2):113-123
[6]	高建东, 高勇, 杜利明, 等. 四极梯度电测深野外实测剖面对比研究[C]// 华东六省一市地学科技论坛, 2013.
[6]	Gao J D, Gao Y, Du L M, et al. Comparative study on field measured profiles of four-Electrode gradient electrical sounding[C]// Proceedings of the Geological Science and Technology Forum of Six Eastern Provinces and One City, 2013.
[7]	邱光辉, 尹学爱, 张启生, 等. 四极梯度测深在智利某铜矿区的应用[J]. 物探与化探, 2018, 42 (6):1059-1063.
[7]	Qiu G H, Yin X A, Zhang Q S, et al. The application of quadrupole gradient sounding to a certain copper mine in Chile[J]. Geophysical and Geochemical Exploration, 2018, 42 (6):1059-1063.
[8]	Wang J L, Lin P R, Wang M, et al. Three-dirnensional tomography using high-power induced polarization with the similar central gradient array[J]. Applied Geophysics, 2017, 14(2):291-300,324.
[9]	梁炳和. 电法勘探电极多通道遥控器的研制[J]. 企业科技与发展, 2010, 20:68-70
[9]	Liang B H. Development of a multi-channel remote controller for electrical prospecting electrodes[J]. Enterprise Science and Technology Development, 2010, 20:68-70.
[10]	梁佳会, 葛为中, 梁炳和. 电法勘探电极阵列借线遥控器:CIV201711013579.5[P]. 2021-03-06.
[10]	Liang J H, Ge W Z, Liang B H. Electrical exploration click array borrowing remote control:CN201711013579.5[P]. 2021-03-06.
[11]	高建东. GDF高密度电法二维正反演软件及模型测试结果[C]// 中国地球物理学会第23届年会, 2007.
[11]	Gao J D. GDF high-density electrical method 2D forward and inverse software and model test results[C]// Proceedings of the 23rd Annual Meeting of the Chinese Geophysical Society, 2007.
[12]	Loke M H, Kiflu H, Wilkinson P B, et al. Optimized arrays for 2D resistivity surveys with combined surface and buried arrays[J]. Near Surface Geophysics, 2015, 13(5):505-517.
[13]	黄智伟, 单片无线发射与接收电路设计[M]. 西安: 西安电子科技大学出版社, 2009.
[13]	Huang Z W. Design of single-chip wireless transmission and reception circuit[J]. Xi’an: University of Electronic Science and Technology Press, 2009.
[14]	杜树春. 数字集成电路:原理、测试与应用[M]. 北京: 化学工业出版社, 2023.
[14]	Du S C. Digital integrated circuits:Principles,testing,and applications[M]. Beijing: Chemical Industry Press, 2023.
[15]	梁炳和, 葛为中. 多通道电阻率仪的研制和应用[J]. 华北水利水电学院学报, 2010, 31(4):116-119.
[15]	Liang B H, Ge W Z. Development and application of multi-channel resistivity instruments[J]. Journal of North China Institute of Water Conservancy and Hydroelectric Power, 2010, 31(4):116-119.
[16]	杨兴沐, 黄卓雄, 葛为中, 等. 遥控电极阵列拓展高密度电阻率法勘探深度研究[J]. 物探与化探, 2016, 40(1):73-77.
[16]	Yang X M, Huang Z X, Ge W Z, et al. Research on electrical resistivity imaging with telecontrol electrode array in surveying depth[J]. Geophysical and Geochemical Exploration, 2016, 40(1):73-77.
[17]	葛为中, 梁炳和, 高建东, 等. 遥控电极阵列和二/三维超深高密度电法的研究[C]// 中国建筑学会工程勘察分会工程物探专业委员会第14届全国工程物探与岩土工程测试学术大会, 2015.
[17]	Ge W Z, Liang B H, Gao J D, et al. Research on remote control electrode array and two/three-dimensional ultra-deep high-density electrical method[C]// Proceedings of the 14^th National Conference on Engineering Geophysics and Geotechnical Engineering Testing of the Engineering Geophysical Professional Committee of the China Building Society, 2015.
[18]	冉军林, 刘俊岩. 组合激电测深装置的应用与研究[J]. 物探与化探, 2018, 42,(6):1259-1263.
[18]	Ran J L, Liu J Y. The application and study of induced polarization group device[J]. Geophysical and Geochemical Exploration, 2018, 42(6):1259-1263.
[19]	Wang J, Zhang X P, Du L Z, et al. Comparing methods of 3D acquisition of simulated multi-electrode resistivity data using TOPSIS[J]. Journal of Applied Geophysics, 2018, 159:631-639.
[20]	Nobahar M, Salunke R, Alzeghoul O E, et al. Mapping of slope failures on highway embankments using electrical resistivity imaging (ERI),unmanned aerial vehicle (UAV),and finite element method (FEM) numerical modeling for forensic analysis.[J]. Transportation Geotechnics, 2023, 40:100949.
