应力效应下页岩动静态弹性各向异性特征

doi:10.11720/wtyht.2024.0014

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (6062 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

The static elastic parameters are crucial for shale oil and gas production and fracturing through water injection. Under stress effects, anisotropy exerts significant impacts on the dynamic and static elastic characteristics of shales. Investigating the dominant factors and mechanisms controlling reservoirs' dynamic and static elastic characteristics is a burning key scientific problem in shale oil and gas production and fracturing through water injection. Based on triaxial compression tests combining mechanics and acoustics for shales under different pressurization methods, this study delved into the impacts of anisotropy on the compressional/shear wave (P-and S-wave) velocities and macromechanical properties of shales, and the response patterns of dynamic and static elastic characteristics of shales. The results are as follows: (1) With an increase in the pressure, the dynamic and static Young's moduli of shales increase at a gradually decelerating rate, finally tending to be stable; (2) At certain bedding angles, the dynamic and static Young's moduli are positively correlated, with the former higher than the latter, whereas the dynamic and static Poisson's ratios manifest a subtle correlation; (3) The dynamic and static stiffness coefficients of shales increase with the confining pressure. The P-wave-related dynamic stiffness coefficients C₁₁ and C₃₃ display more significant changes than the S-wave-related dynamic stiffness coefficients C₄₄ and C₆₆; (4) The dynamic and static anisotropies of shales also increase with the confining pressure. The results of this study reveal the response mechanisms of the dynamic and static elastic characteristics of shales while providing crucial mechanical parameters for the exploitation and hydraulic fracturing of shale oil and gas reservoirs, thus demonstrating significant scientific research value.

Key words： shale anisotropy elastic property static modulus formation pressure

Received: 15 January 2024 Published: 08 January 2025

ZTFLH:

P631.4

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Hui-Yuan BIAN
	Xin ZANG
	Di ZHANG
	Cheng-En ZHANG
	Xiao-Min NIE
	Yin-Ting WU

Cite this article:

Hui-Yuan BIAN,Xin ZANG,Di ZHANG, et al. Impacts of anisotropy on the dynamic and static elastic characteristics of shales under stress effects[J]. Geophysical and Geochemical Exploration, 2024, 48(6): 1664-1673.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2024.0014 OR https://www.wutanyuhuatan.com/EN/Y2024/V48/I6/1664

23]
">

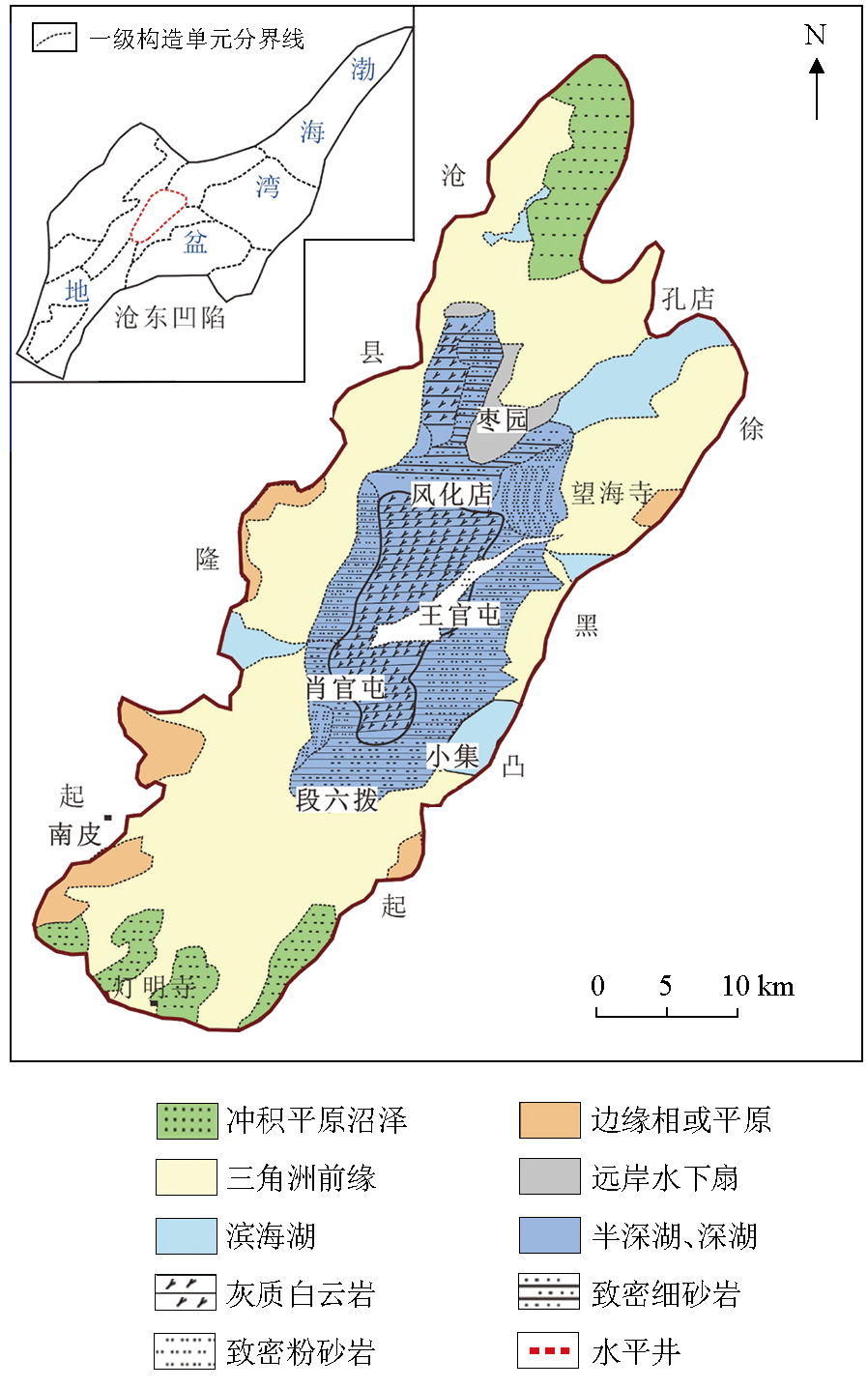

Sedimentary system of the second member of Kongdian Formation, Cangdong Depression^[23]

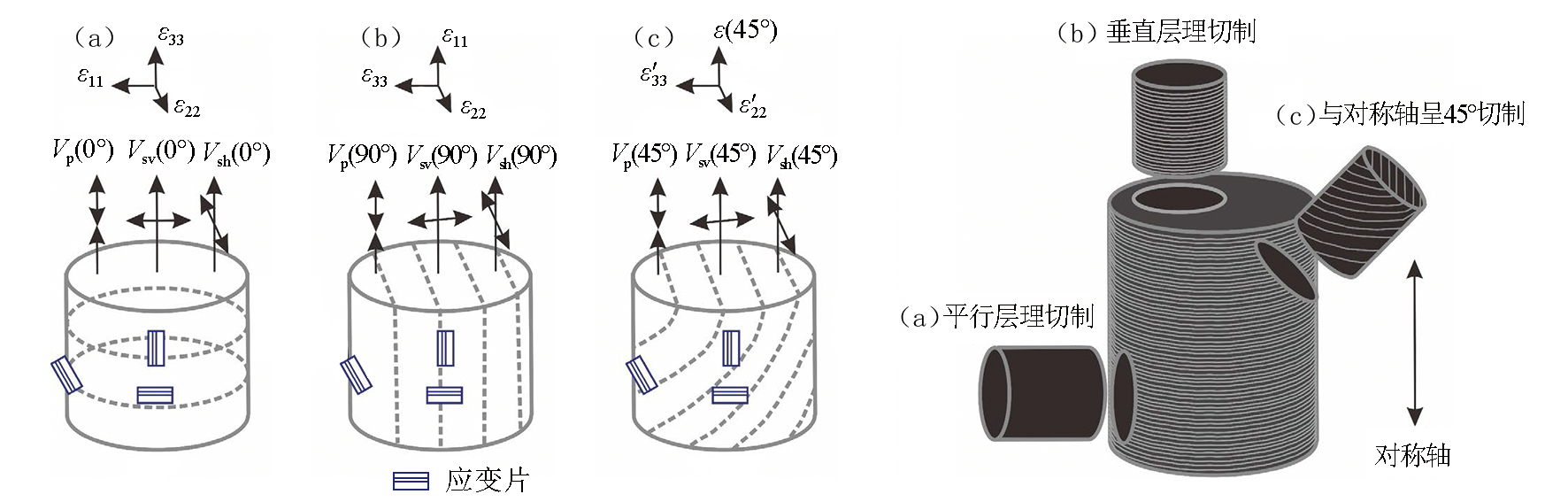

Orientation of shale coring at different angles

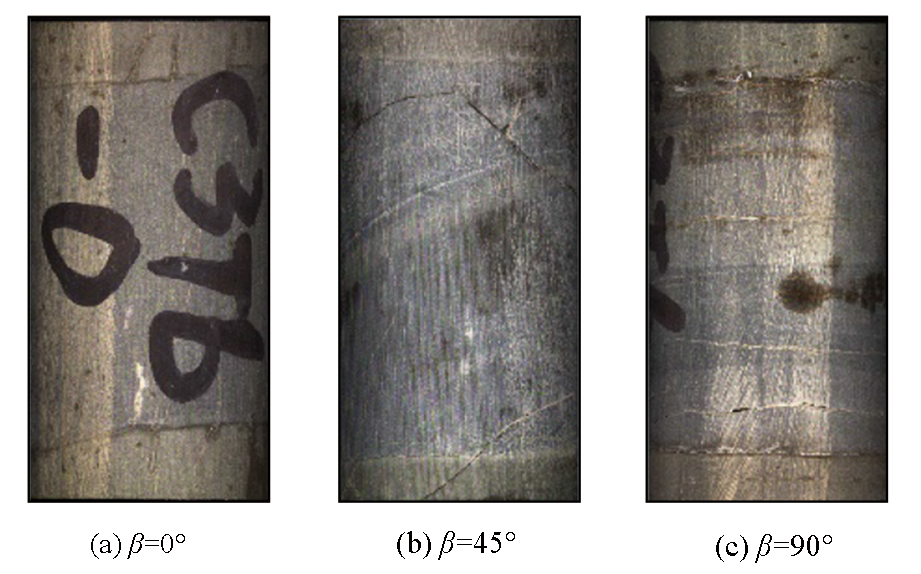

Optical scanning of shale at different bedding angles

Basic parameters of shale oil samples in the second member of kongdian Formation,Cangdong Depression

Mineral groups of shale samples %

Clay content table of shale samples

Photos of thin sections of shale samples

Flow chart of rock sample acoustical and mechanical joint measurement principle

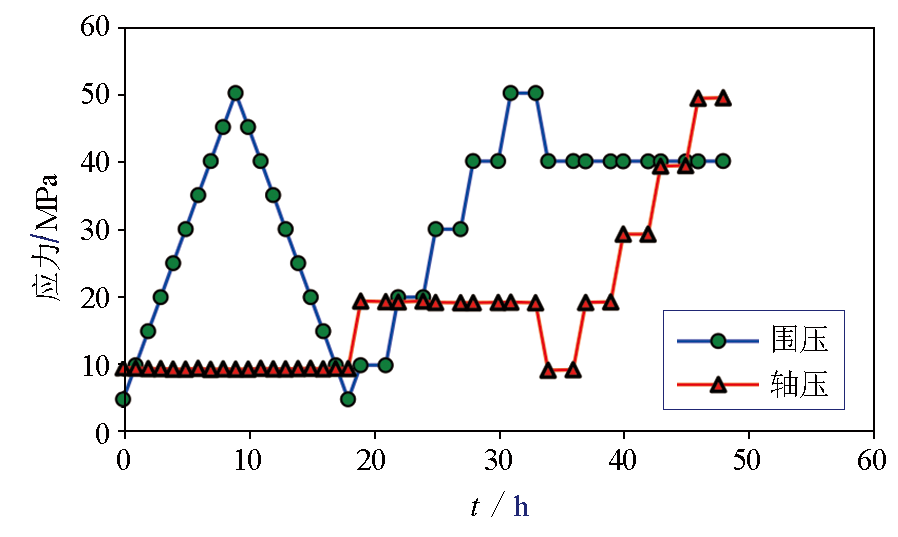

Stress loading path and dynamic and static elastic parameter test diagram

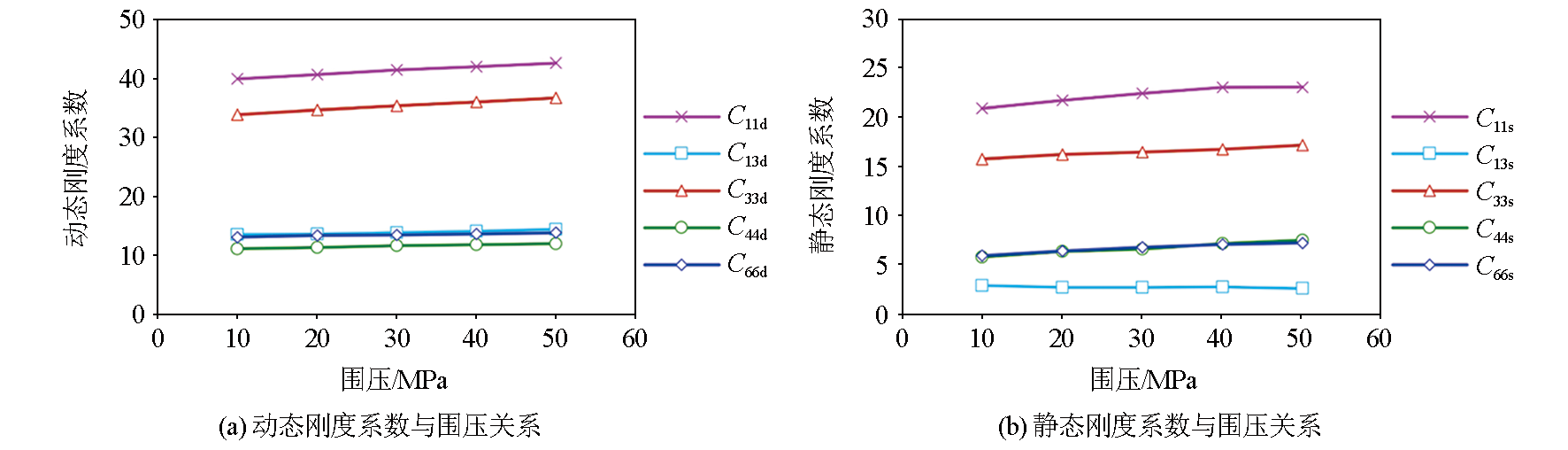

Relation between stiffness coefficient and confining pressure

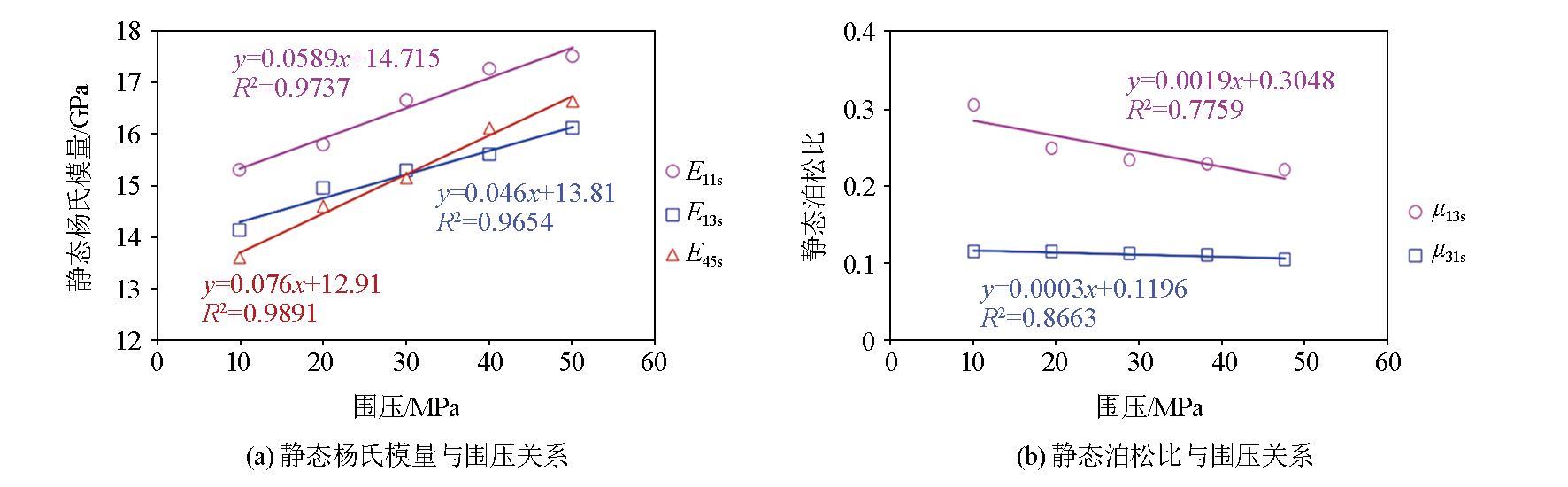

Relationship between static elastic parameters and confining pressure

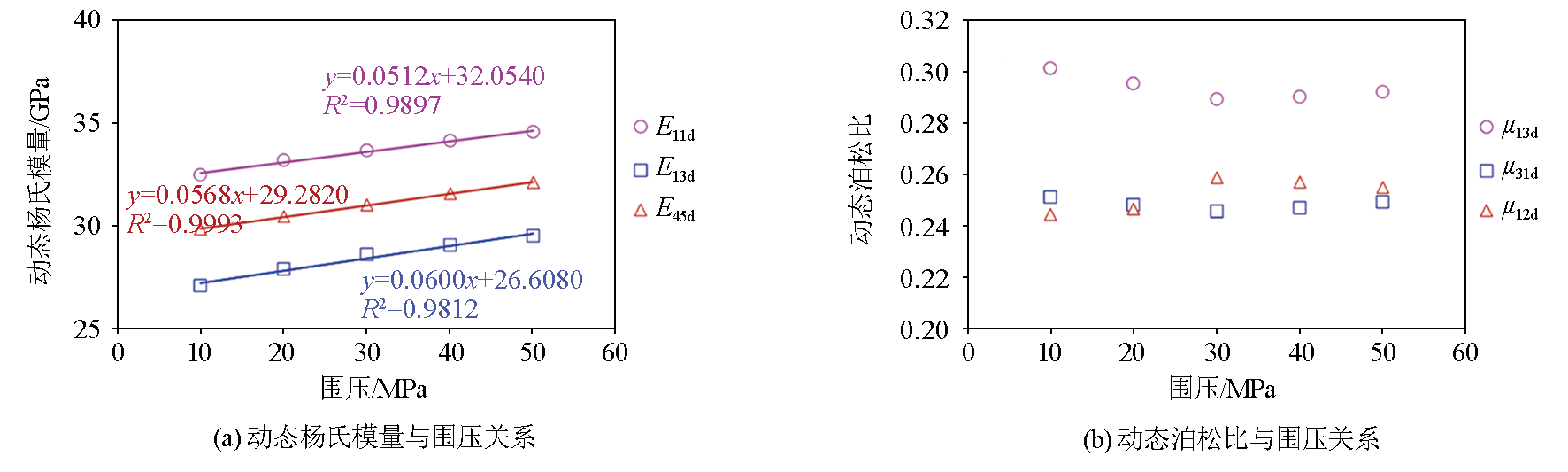

Relationship between dynamic elastic parameters and confining pressure

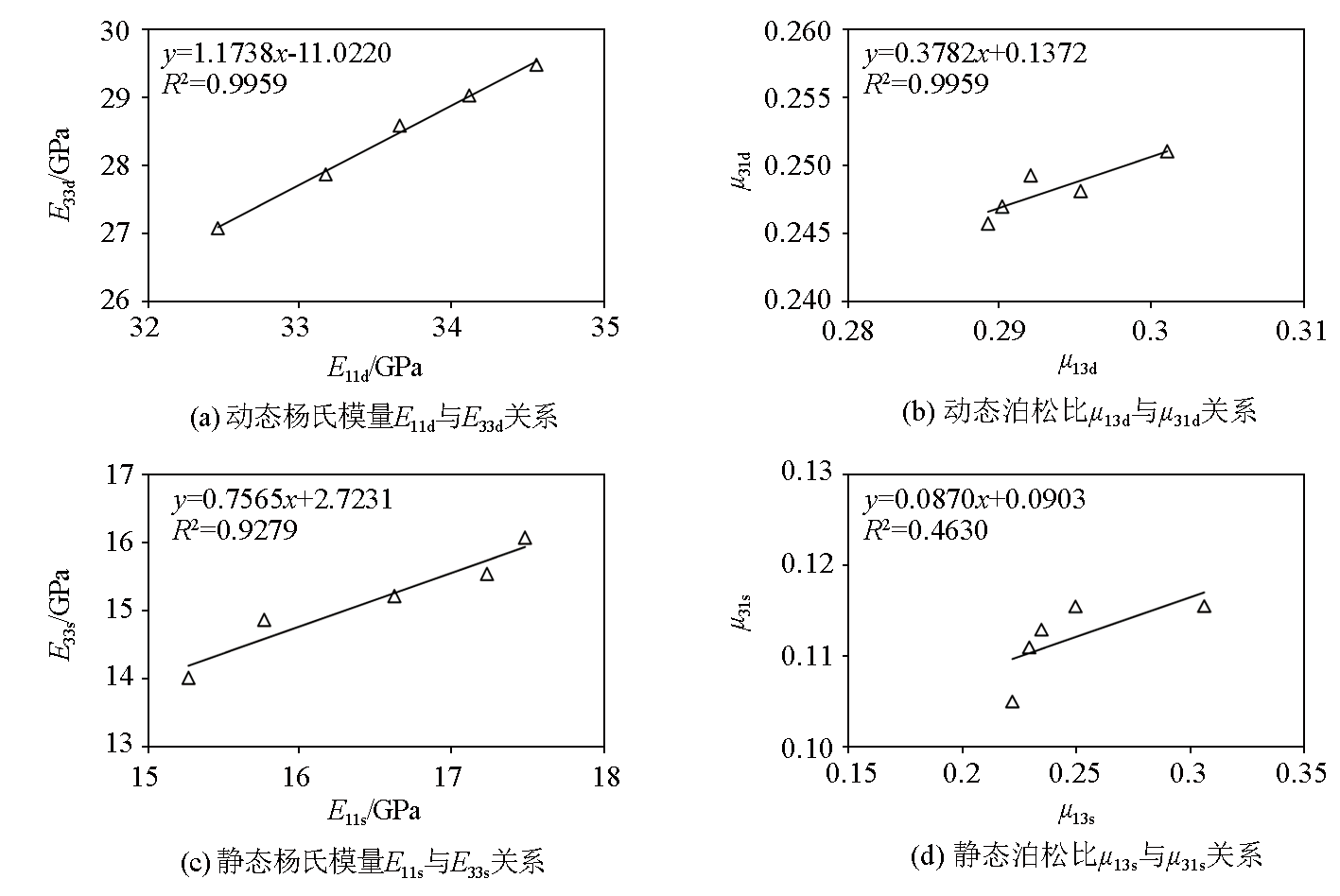

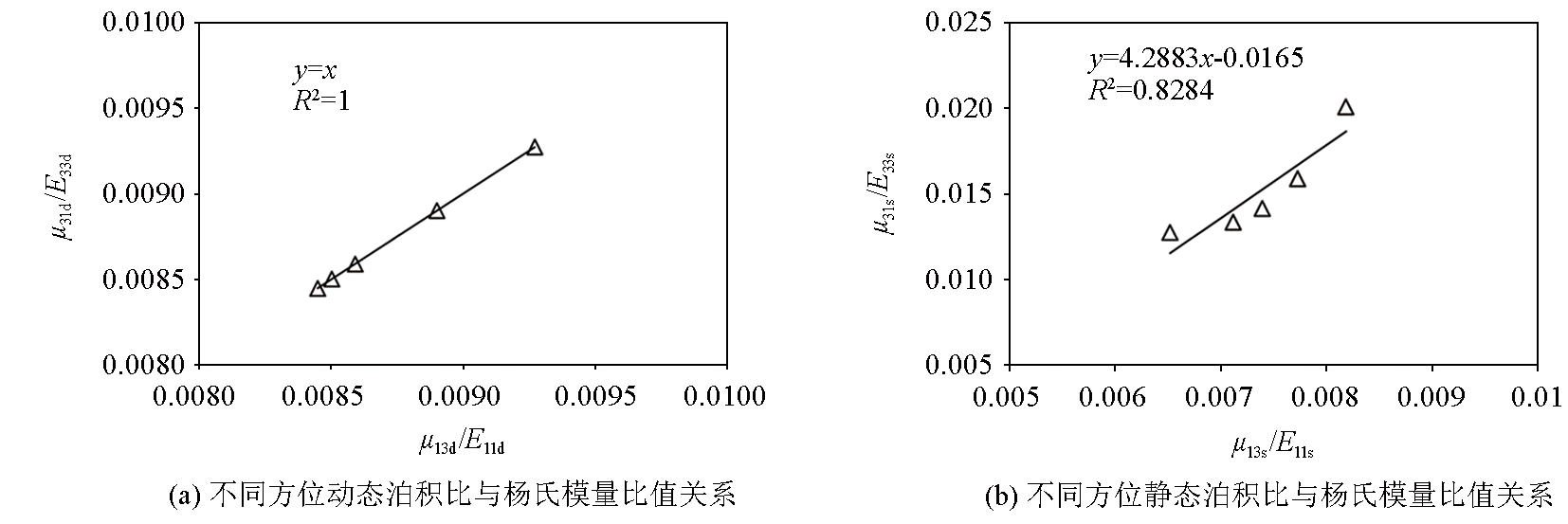

Dynamic and static elastic parameter relationships in different directions

Relationship of dynamic and static elastic parameters

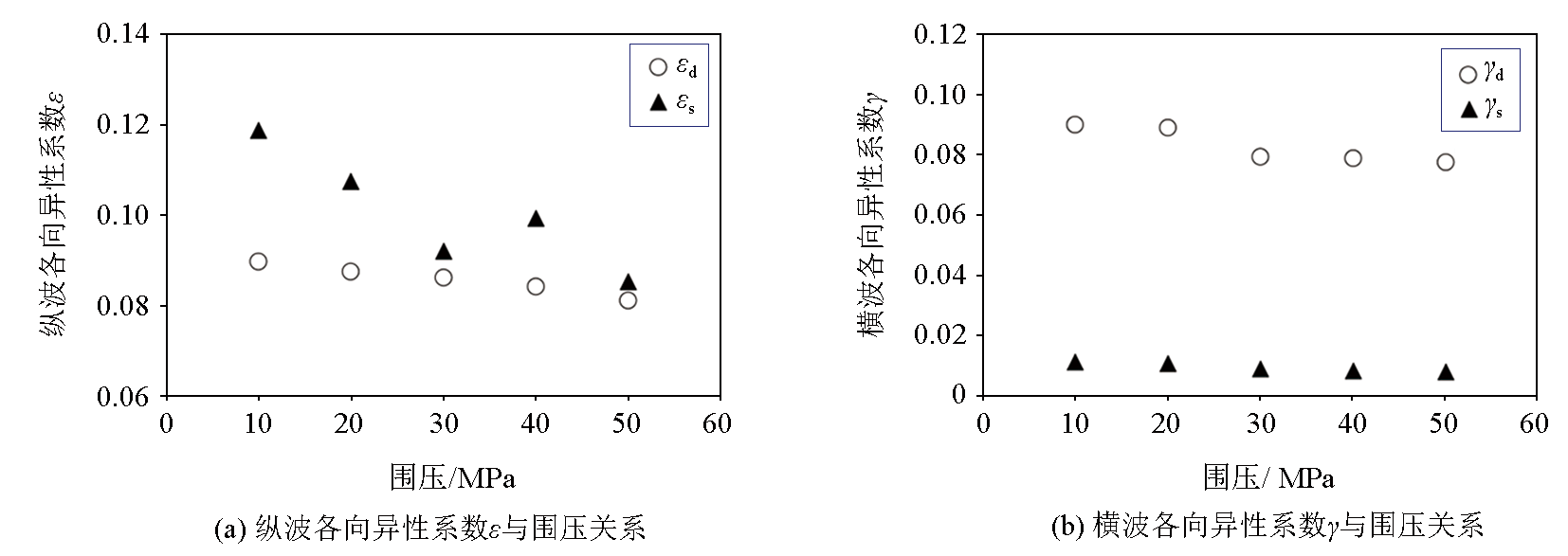

Relationship between dynamic and static anisotropy coefficient and confining pressure

[1]	Wang Y, Zhao L X, Han D H, et al. Anisotropic dynamic and static mechanical properties of organic-rich shale:The influence of stress[J]. Geophysics, 2021, 86(2):C51-C63.
[2]	Gong F, Di B R, Zeng L B, et al. Static and dynamic linear compressibility of dry artificial and natural shales under confining pressure[J]. Journal of Petroleum Science and Engineering, 2020, 192:107242.
[3]	Bustin A M M, Bustin R M. Importance of rock properties on the producibility of gas shales[J]. International Journal of Coal Geo-logy, 2012, 103:132-147.
[4]	Sone H, Zoback M D. Mechanical properties of shale-gas reservoir rocks:Part 1:Static and dynamic elastic properties and anisotropy[J]. Geophysics, 2013, 78(5):D381-D392.
[5]	Barree R D, Cox S A, Miskimins J L, et al. Economic optimization of horizontal-well completions in unconventional reservoirs[J]. SPE Production & Operations, 2015, 30(4):293-311.
[6]	Jin Y, Chen K P, Chen M. Analytical solution and mechanisms of fluid production from hydraulically fractured wells with finite fracture conductivity[J]. Journal of Engineering Mathematics, 2015, 92(1):103-122.
[7]	Zhang F S, Damjanac B, Maxwell S. Investigating hydraulic fracturing complexity in naturally fractured rock masses using fully coupled multiscale numerical modeling[J]. Rock Mechanics and Rock Engineering, 2019, 52(12):5137-5160.
[8]	Holt R M, Fjær E, Stenebråten J F, et al. Brittleness of shales:Relevance to borehole collapse and hydraulic fracturing[J]. Journal of Petroleum Science and Engineering, 2015, 131:200-209.
[9]	Vahid S, Ahmad G. Hydraulic fracture initiation from a wellbore in transversely isotropic rock[C]// 45^thUS Rock Mechanics/Geomechanics Symposium,OnePetro, 2011.
[10]	Bian H Y, Wang F, Zhang C G, et al. A new model between dynamic and static elastic parameters of shale based on experimental studies[J]. Arabian Journal of Geosciences, 2019, 12(19):609.
[11]	Canady W. A method for full-range Young’s modulus correction[C]// SPE.The Woodlands,Texas,USA, 2011.
[12]	Dong Y, Lu N, McCartney J S. Scaling shear modulus from small to finite strain for unsaturated soils[J]. Journal of Geotechnical and Geoenvironmental Engineering, 2018, 144(2):04017110.
[13]	Hornby B E, Schwartz L M, Hudson J A. Anisotropic effective-medium modeling of the elastic properties of shales[J]. Geophysics, 1994, 59(10):1570-1583.
[14]	Kaarsberg E A. Introductory studies of natural and artificial argillaceous aggregates by sound-propagation and X-ray diffraction methods[J]. The Journal of Geology, 1959, 67(4):447-472.
[15]	Zhao L X, Qin X, Zhang J Q, et al. An effective reservoir parameter for seismic characterization of organic shale reservoir[J]. Surveys in Geophysics, 2018, 39(3):509-541.
[16]	Johnston D H. Physical properties of shale at temperature and pressure[J]. Geophysics, 1987, 52(10):1391-1401.
[17]	Miller D, Plumb R, Boitnott G. Compressive strength and elastic properties of a transversely isotropic calcareous mudstone[J]. Geophysical Prospecting, 2013, 61(2):315-328.
[18]	Liu Q, Liang B, Sun W J, et al. Experimental study on the difference of shale mechanical properties[J]. Advances in Civil Engineering, 2021,(1):1-14.
[19]	Li C B, Zou B B, Zhou H W, et al. Experimental investigation on failure behaviors and mechanism of an anisotropic shale in direct tension[J]. Geomechanics and Geophysics for Geo-Energy and Geo-Resources, 2021, 7(4):98.
[20]	Davarpanah S M, Ván P, Vásárhelyi B. Investigation of the relationship between dynamic and static deformation moduli of rocks[J]. Geomechanics and Geophysics for Geo-Energy and Geo-Resources, 2020, 6(1):29.
[21]	边会媛, 王飞, 张永浩, 等. 储层条件下致密砂岩动静态弹性力学参数实验研究[J]. 岩石力学与工程学报, 2015, 34(S1):3045-3054.
[21]	Bian H Y, Wang F, Zhang Y H, et al. Experimental study of dynamic and static elastic parameters of tight sandstones under reservoir conditions[J]. Chinese Journal of Rock Mechanics and Engineering, 2015, 34(S1):3045-3054.
[22]	王飞, 边会媛, 张永浩, 等. 不同温压下页岩动态与静态弹性模量转换研究[J]. 石油与天然气地质, 2018, 39(5):1048-1055.
[22]	Wang F, Bian H Y, Zhang Y H, et al. Experimental study on dynamic and static elastic modulus conversion forshale under different temperatures and pressures[J]. Oil & Geology, 2018, 39(5):1048-1055.
[23]	赵贤正, 周立宏, 蒲秀刚, 等. 湖相页岩滞留烃形成条件与富集模式——以渤海湾盆地黄骅坳陷古近系为例[J]. 石油勘探与开发, 2020, 47(5):856-869.
[23]	Zhao X Z, Zhou L H, Pu X G, et al. Formation conditions and enrichment model of retained petroleum in lacustrine shale:A case study of the Paleogene in Huanghua depression,Bohai Bay Basin,China[J]. Petroleum Exploration & Development, 2020, 47(5):856-869.
[24]	马霄一, 李呈呈, 白俊, 等. 基于超声测试的页岩岩石物理特征分析[J]. 石油地球物理勘探, 2021, 56(4):801-808,673.
[24]	Ma X Y, Li C C, Bai J, et al. Analysis of physical characteristics of shale rock based on ultrasonic testing[J]. Oil Geophysical Prospecting, 2021, 56(4):801-808,673.
