| Karst exploration in urban complex environments based on electrical resistivity tomography: A case study of Beihuan New Village in Guigang City |
QIN Jian-Wen1( ), JIANG Xiao-Teng2, XIE Gui-Cheng2, SUN Han-Wu2, HE Liu1, SUN Huai-Feng2() |
1. Guangxi Geological Environment Monitoring Station,Guigang 537110,China
2. Geotechnical and Structural Engineering Research Center,Shandong University,Jinan 250061,China |
|
|
|
|
Abstract In recent years,surface karst collapse has frequently occurred in Beihuan New Village,Guigang City,Guangxi,severely threatening the life and property safety of local residents.This study analyzed the distribution of karst in the study area using electrical resistivity tomography (ERT) and delineated zones with strong groundwater runoff,aiming to guide the prevention and control of karst collapse.First,this study conducted numerical simulations to guide the preparation of the field exploration scheme and provide a reference for the analysis of the results measured in the field.Then,it explored the zones with shallow groundwater runoff in Beihuan New Village,delineating 11 zones with potential karst collapse and inferring one major runoff zone and three minor runoff zones.Finally,this study compared the exploration profiles with borehole logs.The comparison and verification results show that ERT has high precision and reliability and can play a significant role in the exploration of urban surface karst collapse.
|
|
Received: 01 June 2022
Published: 27 April 2023
|
|
|
|
|
|
|
Overview of physical geography of the study area

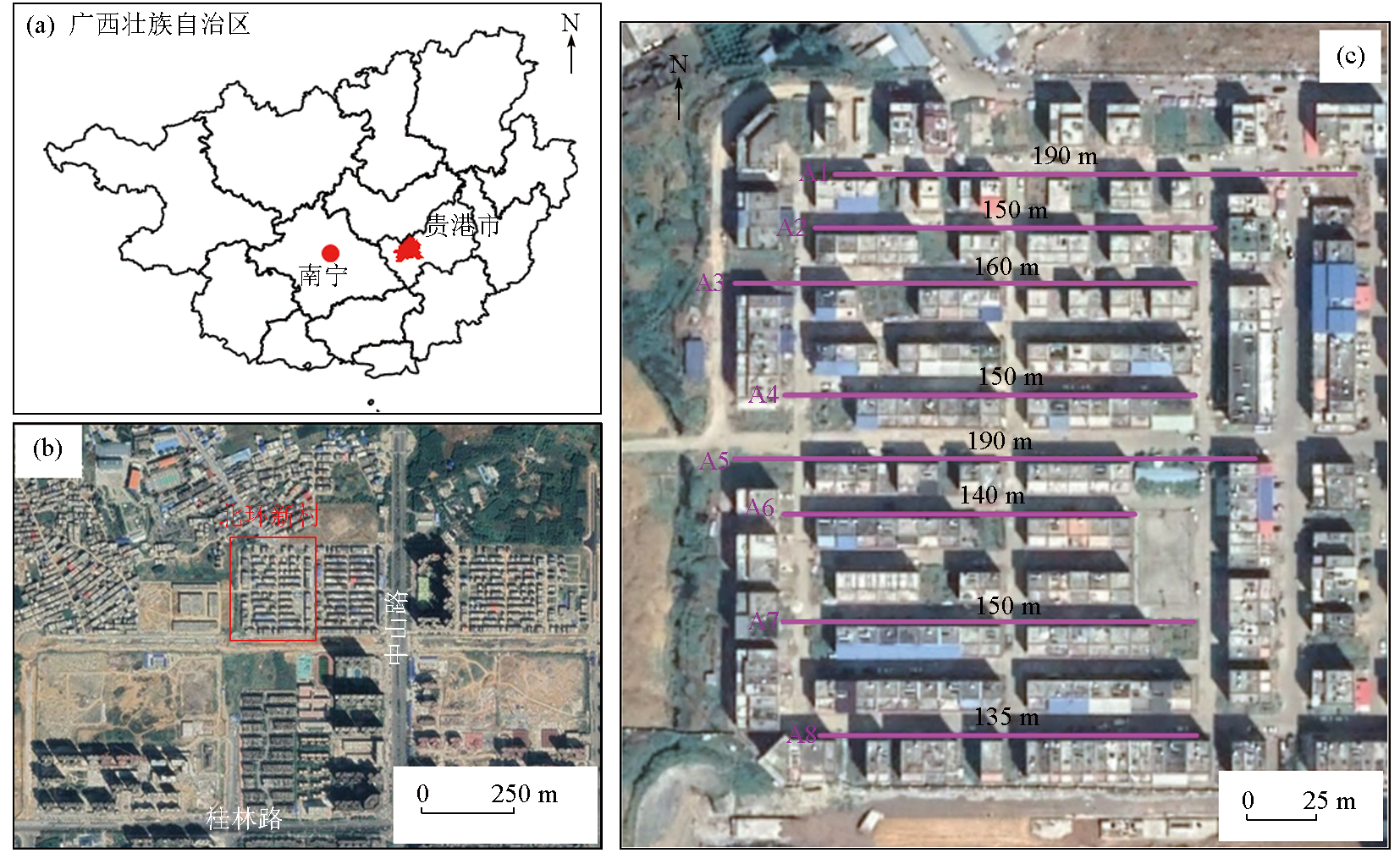

a—location of Guigang City;b—location of the Beihuan New Village;c—the survey lines distribution map in the study area
|
|

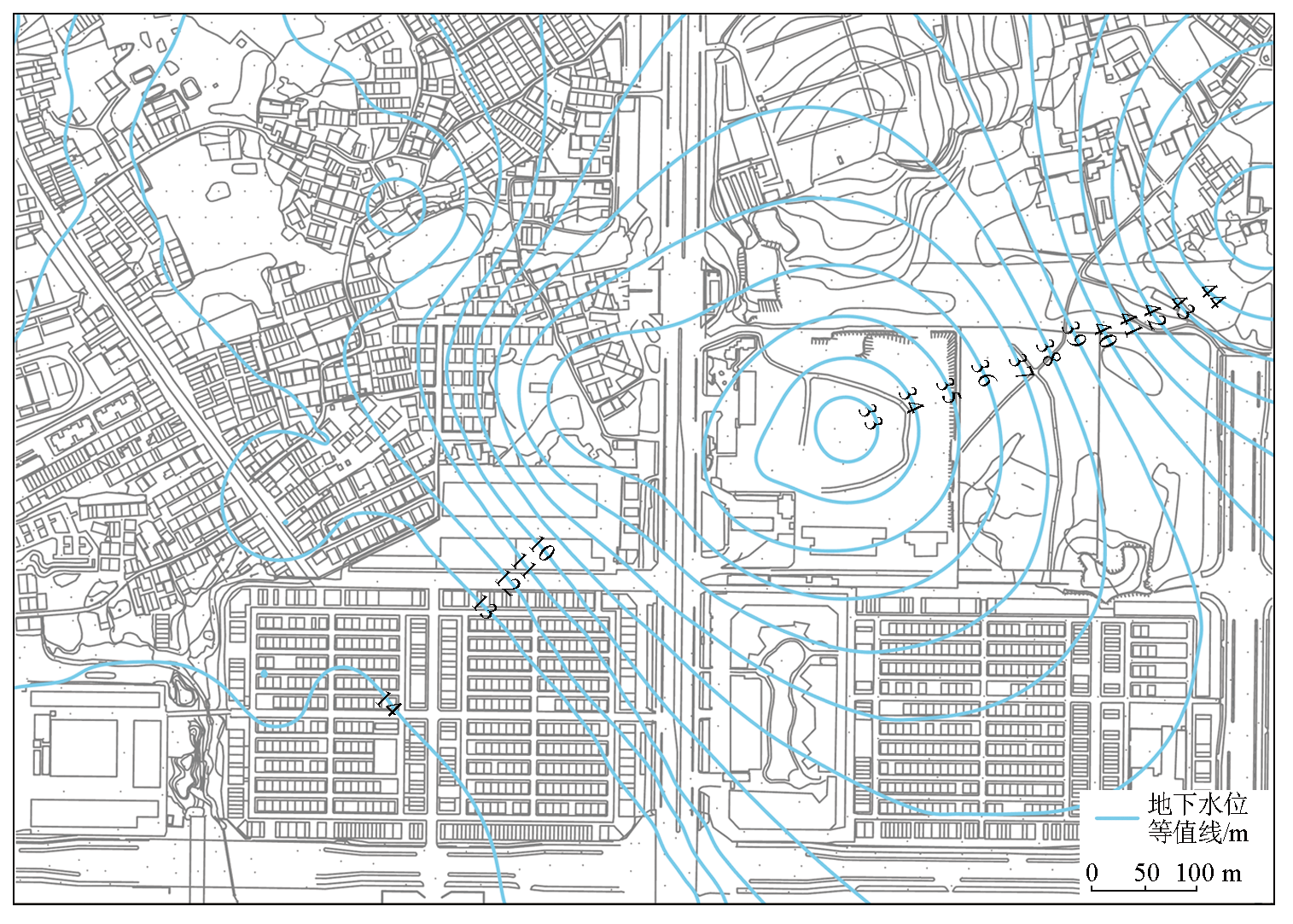

Contour map of groundwater level in the study area (May 8, 2021)
|
| 岩性 | 电阻率
范围/(Ω·m) | 岩性 | 电阻率
范围/(Ω·m) | | 灰岩 | 500~10 000 | 溶洞(空洞) | >10 000 | | 白云岩 | 300~10 000 | 溶洞(泥质充填) | <30 | | 黏土 | 30~100 | 地下水 | 50~150 | | 溶洞(充水) | <50 | 空气 | >10 000 |
|
Correspondence between rock and resistivity values
|
|

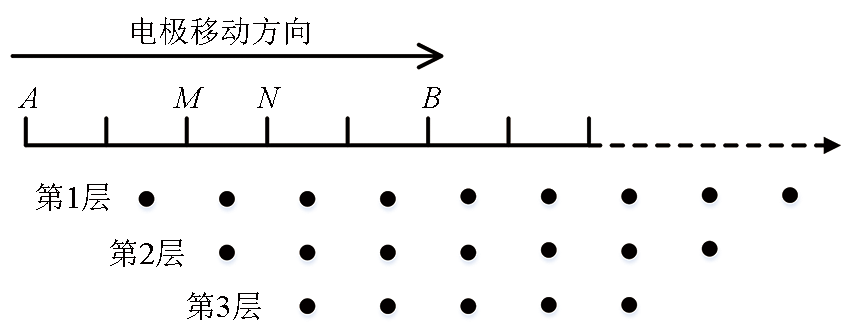

Schematic of the Wenner array
|
|

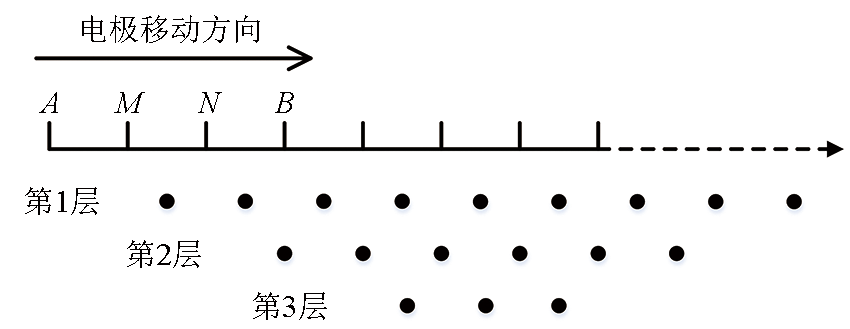

Schematic of the Schlumberger array
|
|

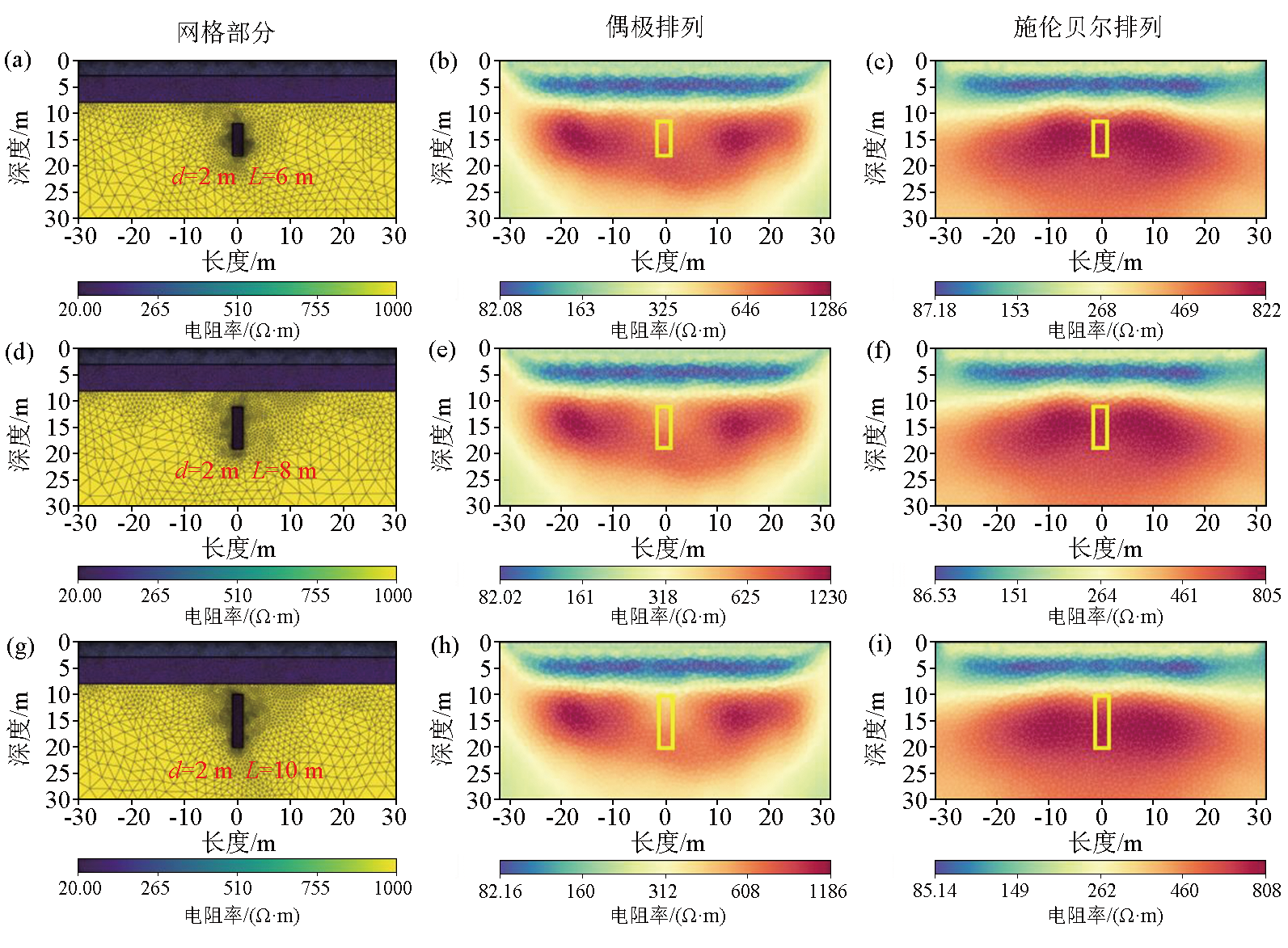

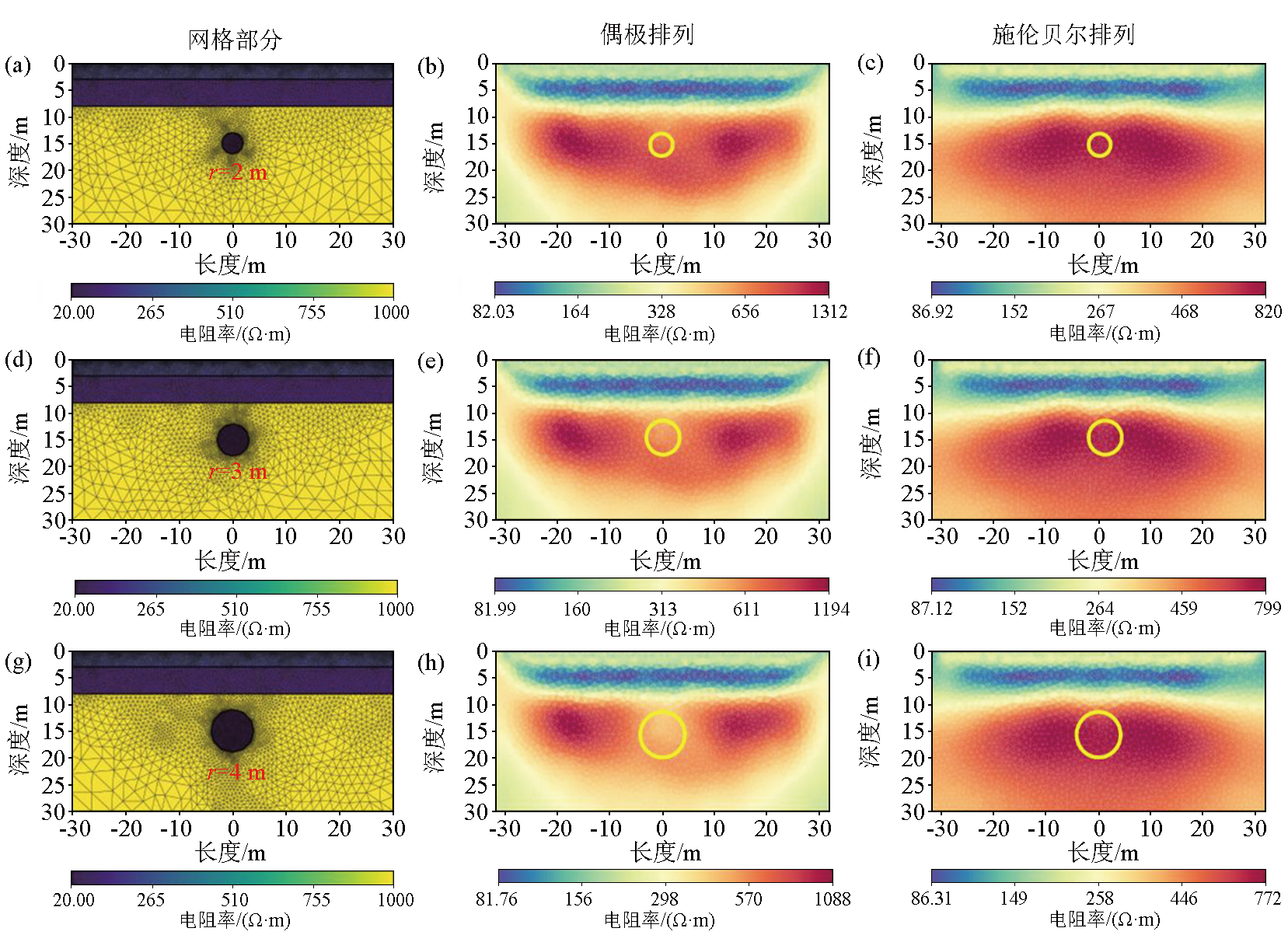

Numerical simulation results of filled karst caves
|
|

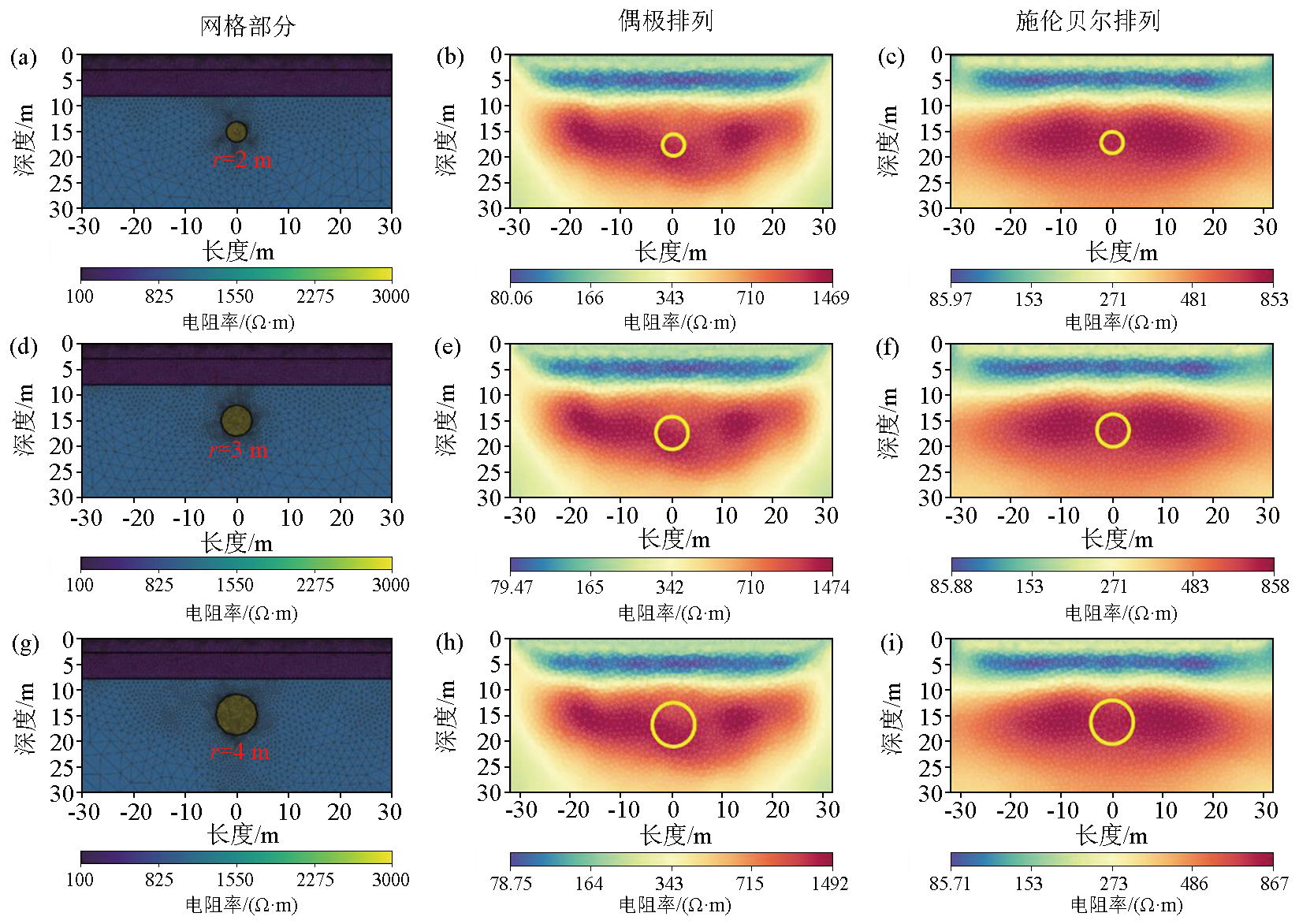

Numerical simulation results of empty karst caves
|
|
Numerical simulation results of karst fracture zones
|
|

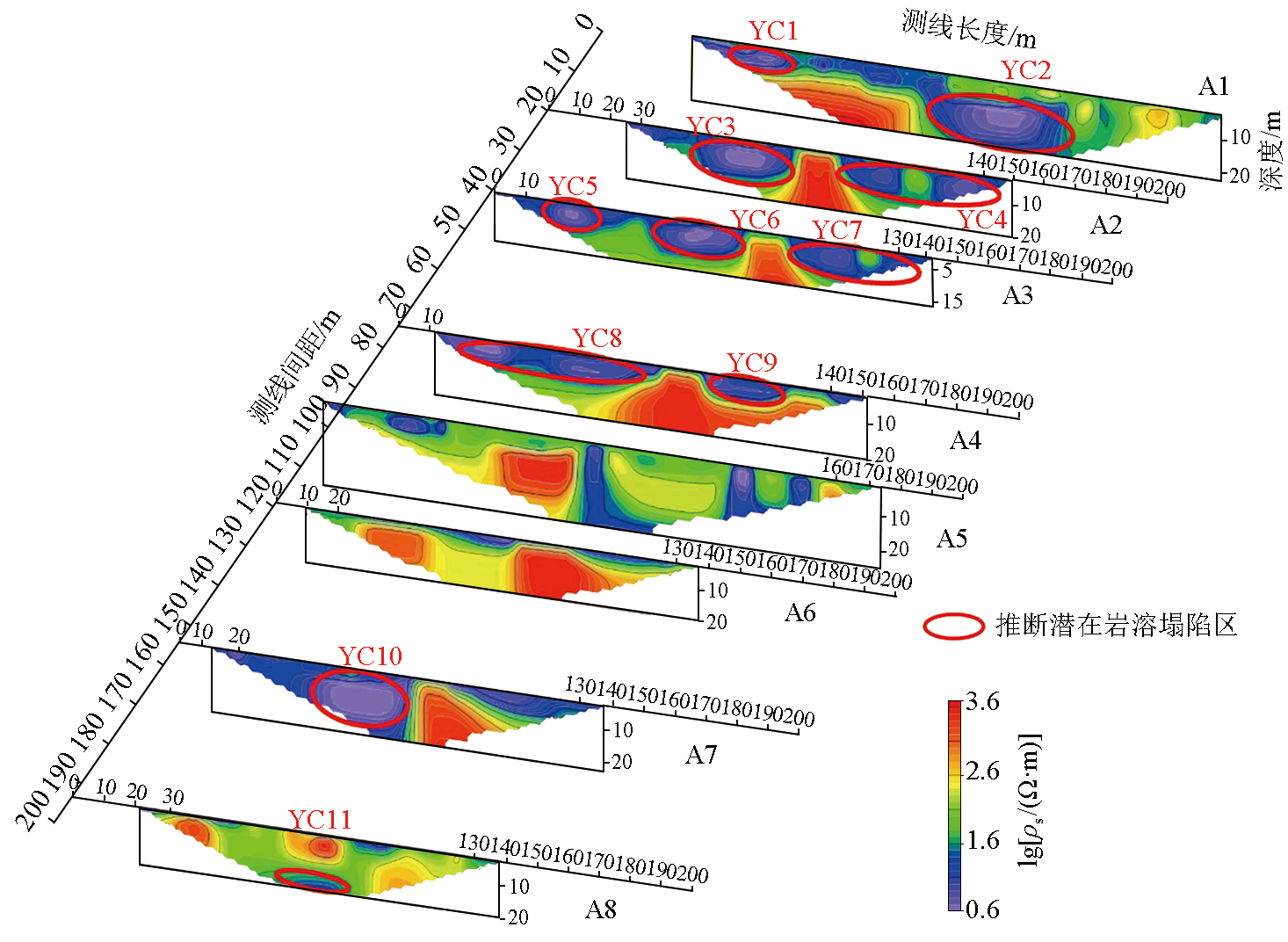

Resistivity inversion proposed 3D imaging and inferred map of potential karst collapse zones
|
|
Inferred map of shallow surface groundwater runoff zones
|
|

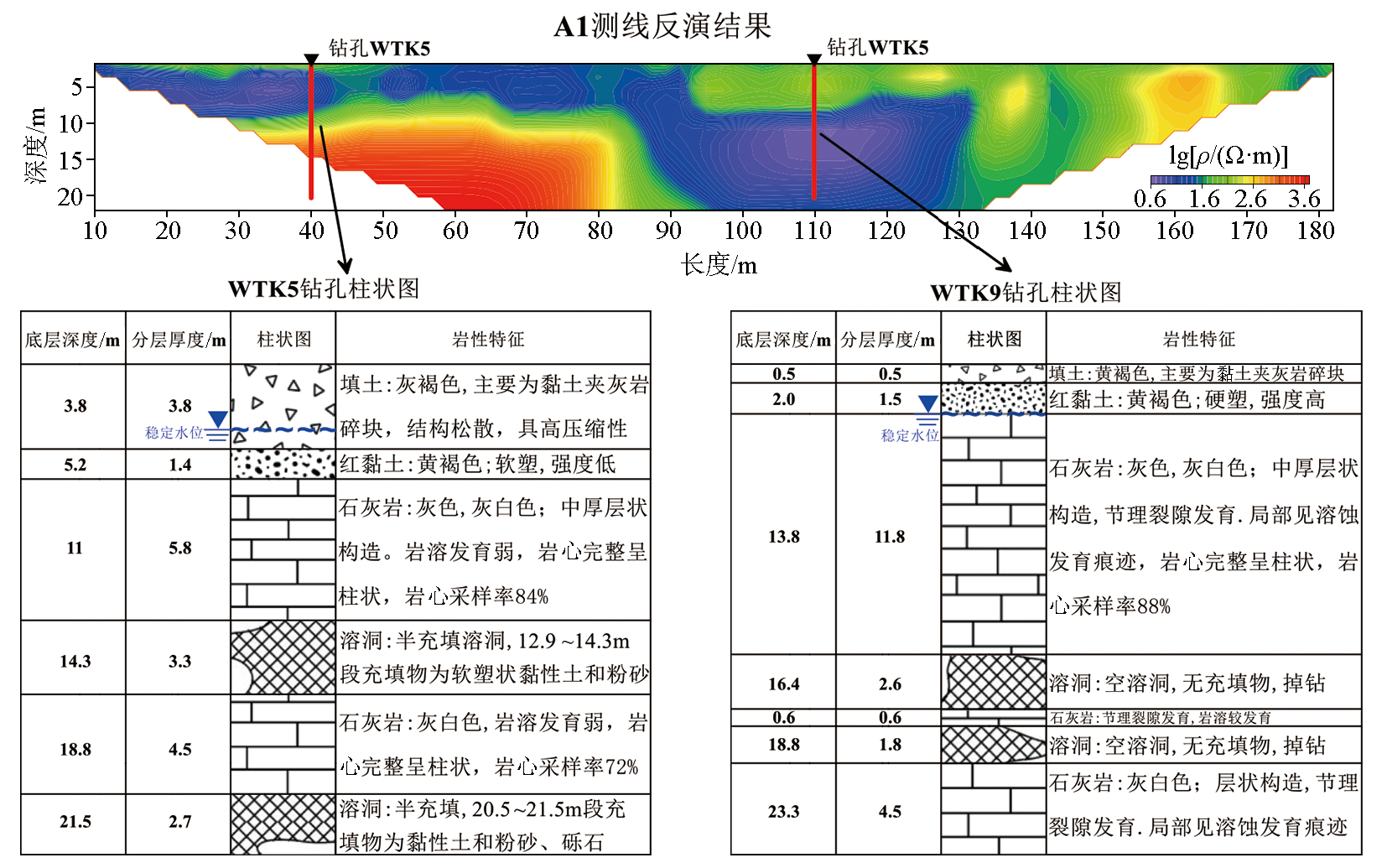

Resistivity inversion results and borehole verification graph
|
