综合物探方法在滨海县月亮湾地热资源勘查中的应用

doi:10.11720/wtyht.2023.1205

Abstract
Figure/Table
References
Related Citation (9)

Download: PDF (6825 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

This study explored the geothermal resources in Yueliangwan, Binhai County, Jiangsu Province using the controlled source audio-frequency magnetotellurics (CSAMT) method and the wide-field electromagnetic method. Through the auxiliary correction of near-field and transition-field curves, as well as the inversion based on the CSAMT data, this study obtained the electrical structure information of underground geothermal resources in the Binhai port. Meanwhile, this study acquired the information on the underground geometric structure using the microtremor exploration method. By comprehensively analyzing the interpretation results of three kinds of geophysical data, this study obtained the geothermal model of the study area and determined the locations of the anomalies. A geothermal well with a depth of 2 919 m was drilled in the study area, obtaining water yield of 2 171 m³/d with a water temperature of 51 ℃. The high consistency between the results from the comprehensive geophysical exploration and the geological and geothermal well data indicates that the comprehensive geophysical exploration method can improve the reliability of geothermal exploration results.

Key words： exploration of geothermal resources controlled source audio-frequency magnetotelluric method wide-field electromagnetic method microtremor survey comprehensive geophysical exploration methods

Received: 22 April 2022 Published: 27 April 2023

ZTFLH:

P631

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Jun-Cheng WANG
	Zhen-Guo ZHAO
	Shi-Yin GAO
	Chuan-Gen LUO
	Lin LI
	Ming-Zuan XU
	Yong LI
	Guo-Jing YUAN

Cite this article:

Jun-Cheng WANG,Zhen-Guo ZHAO,Shi-Yin GAO, et al. Application of a comprehensive geophysical exploration methods in the exploration of geothermal resources in Yueliangwan, Binhai County[J]. Geophysical and Geochemical Exploration, 2023, 47(2): 321-330.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2023.1205 OR https://www.wutanyuhuatan.com/EN/Y2023/V47/I2/321

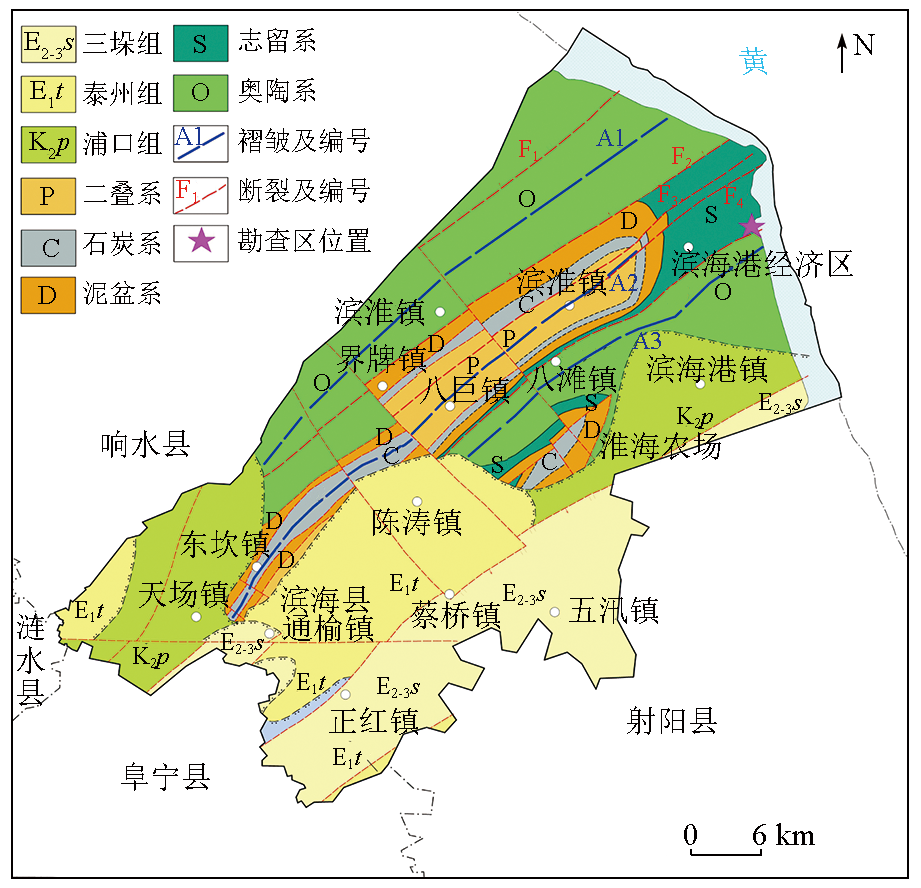

Regional geological structure map of the research area

Statistics of formation rock resistivity parameters

Location map of survey line

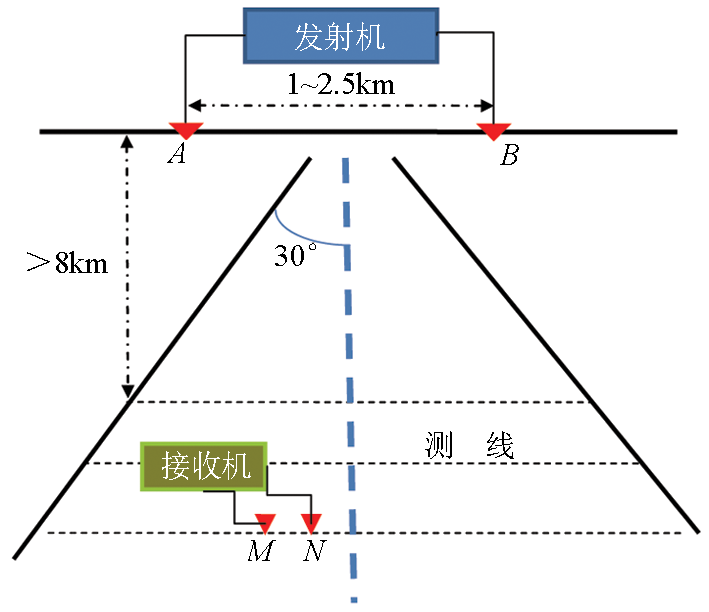

Working diagram of CSAMT or WFEM

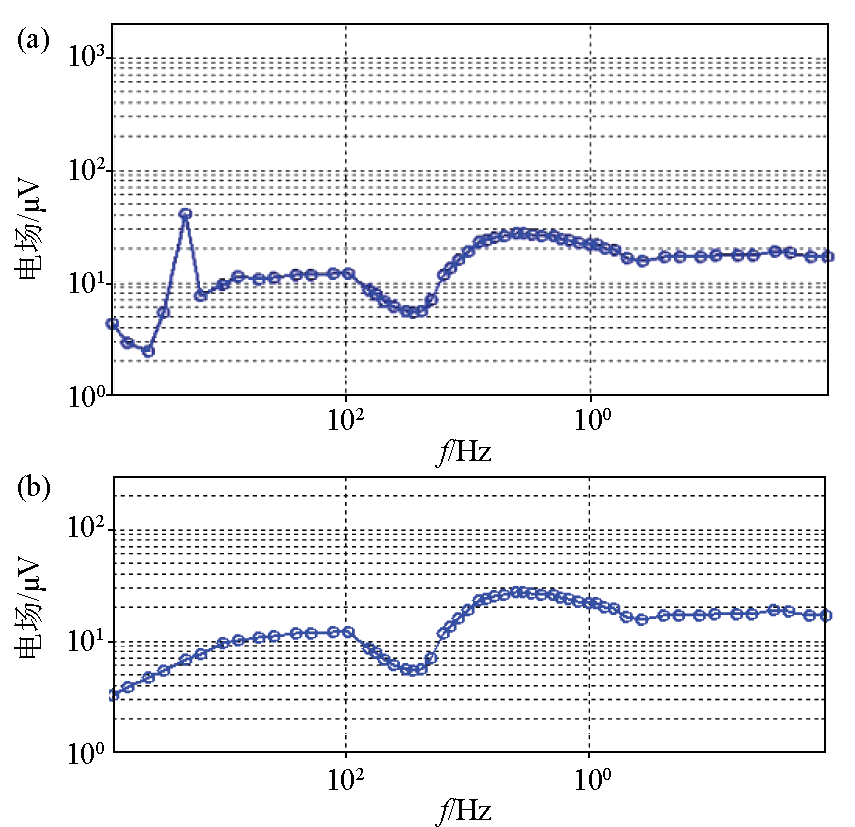

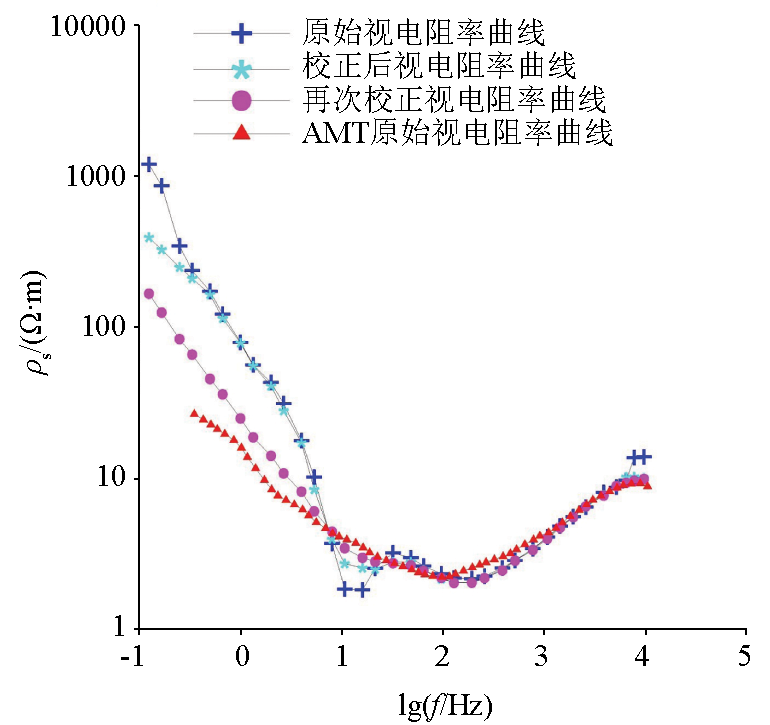

Curve comparison before and after correction

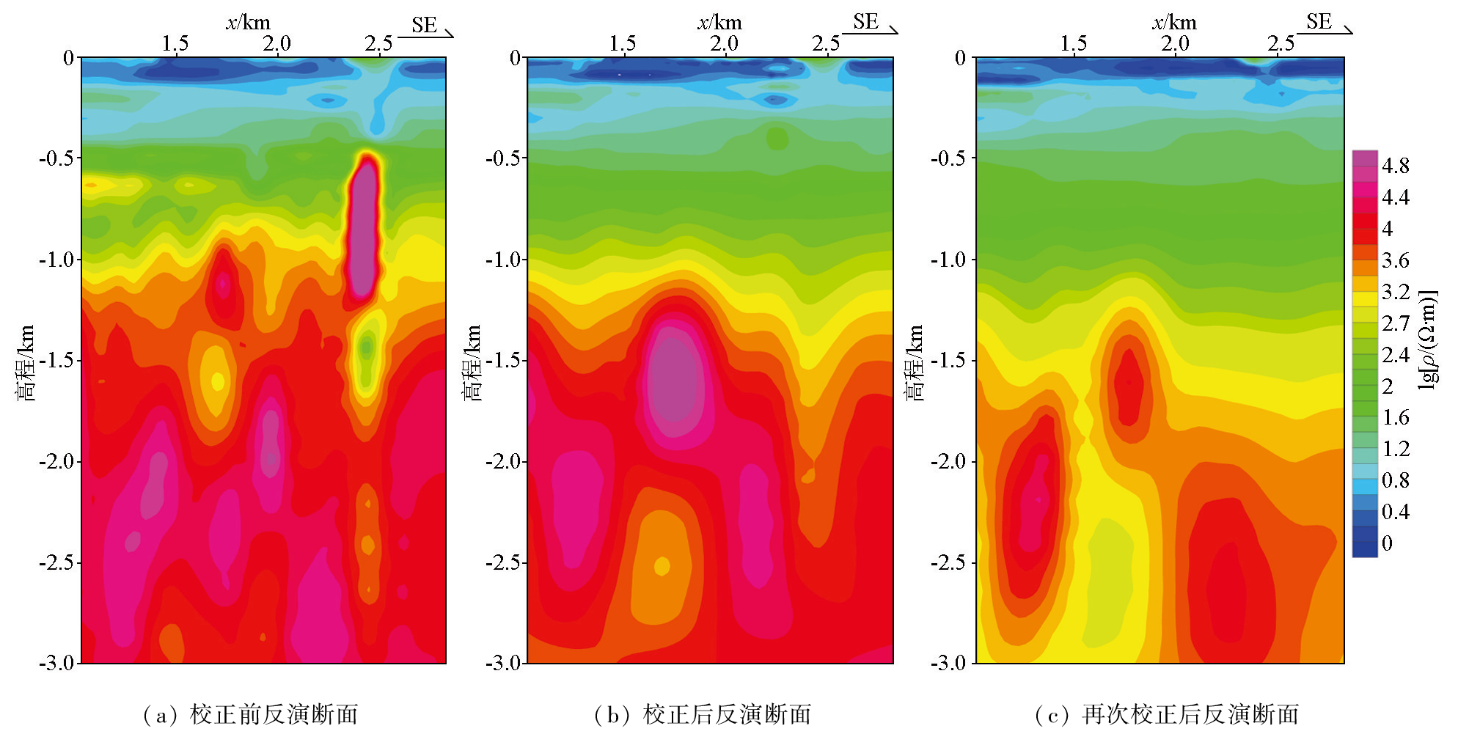

Comparison diagram before and after correction of L2

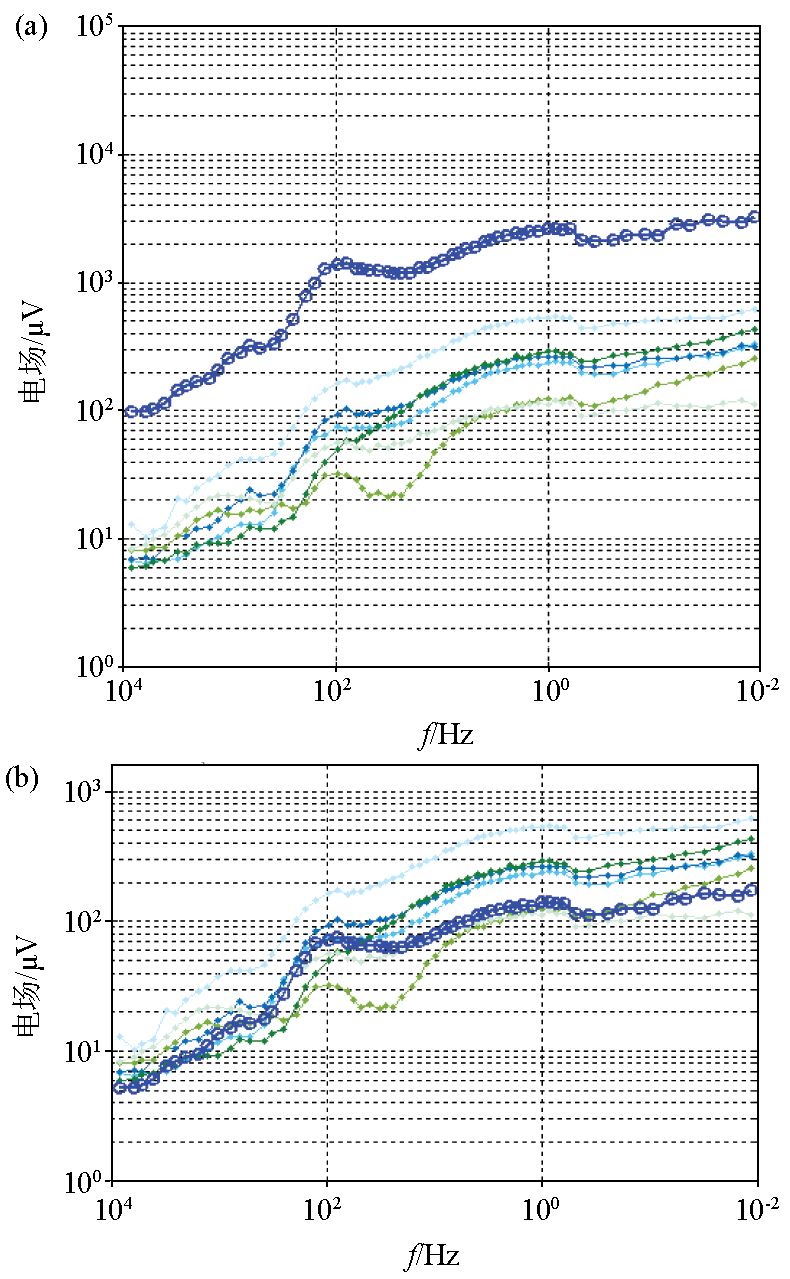

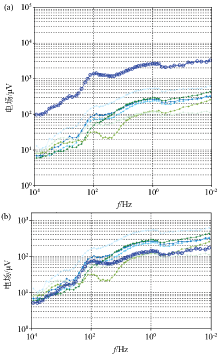

Denoising processing
a—before denoising;b—after denoising

Static correction
a—before correction;b—after correction

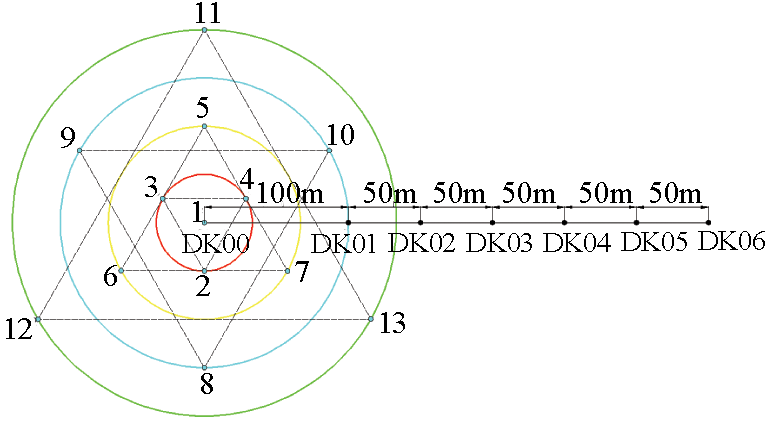

Observation diagram of quadruple circular array

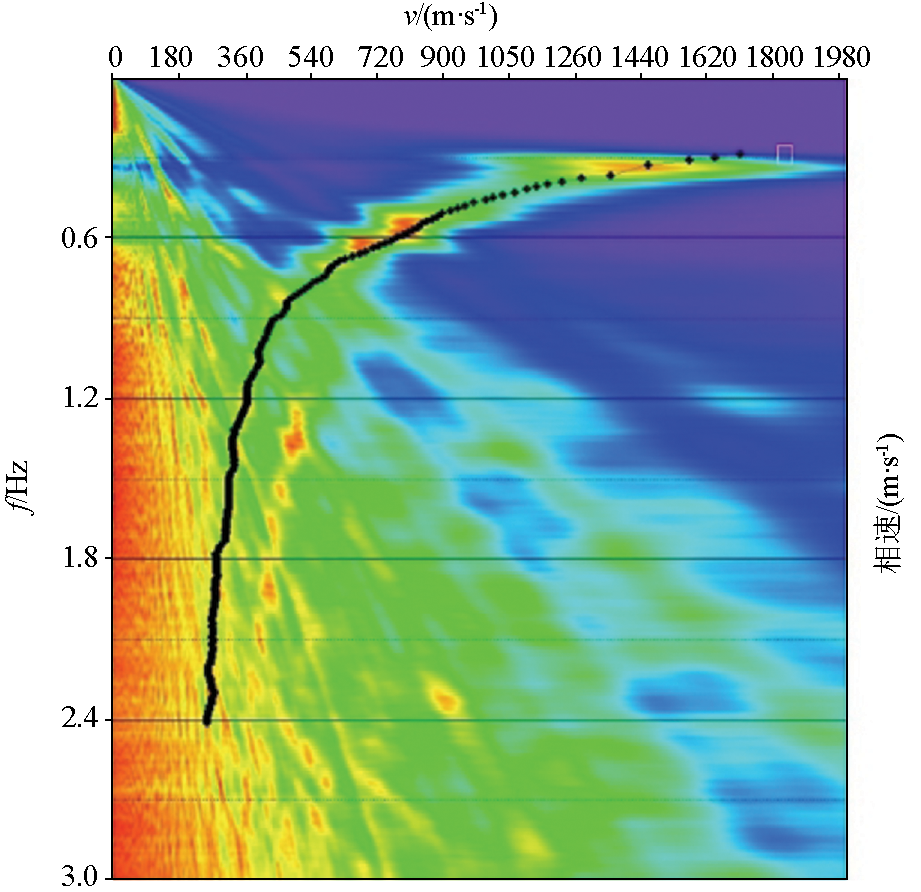

Dispersion curve of point DK01

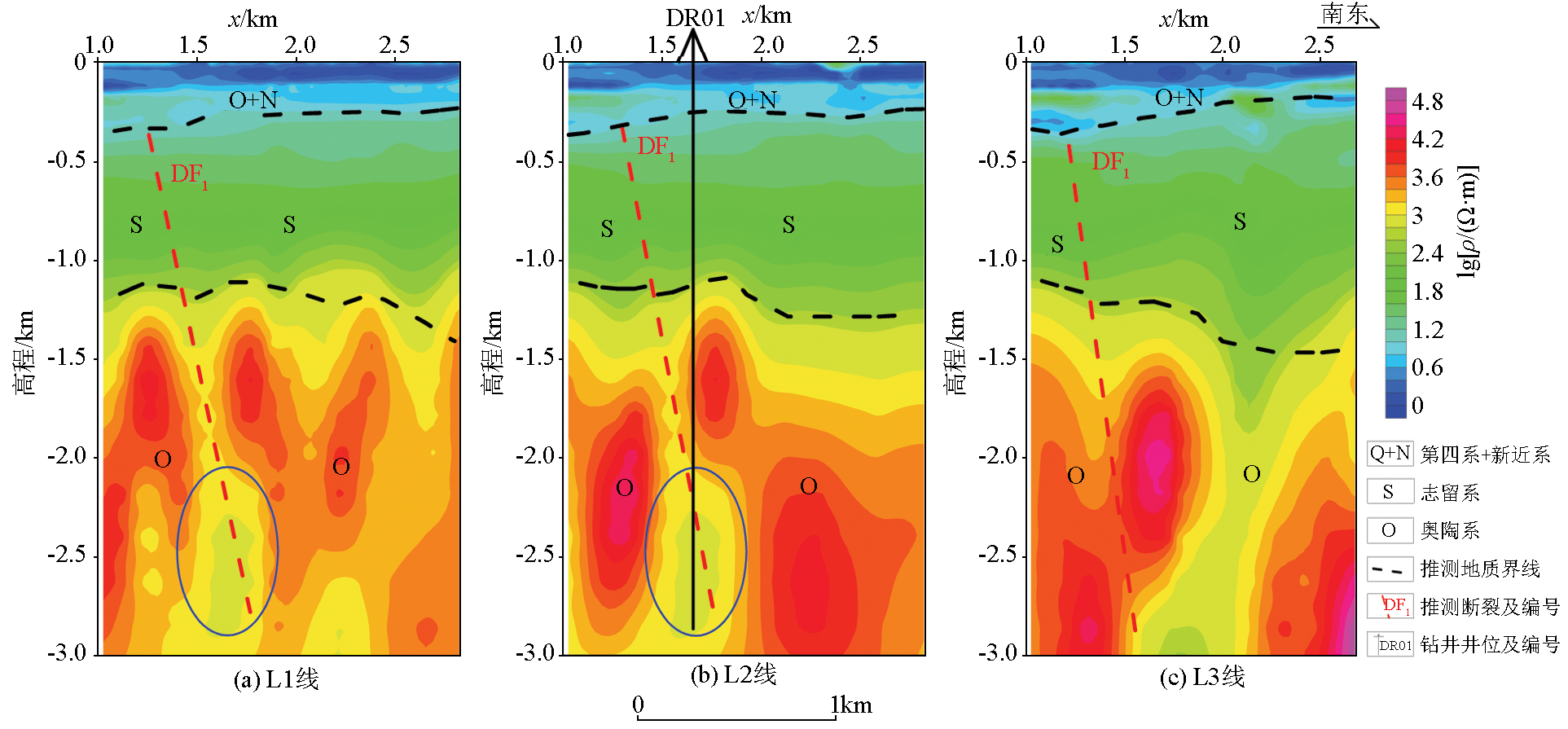

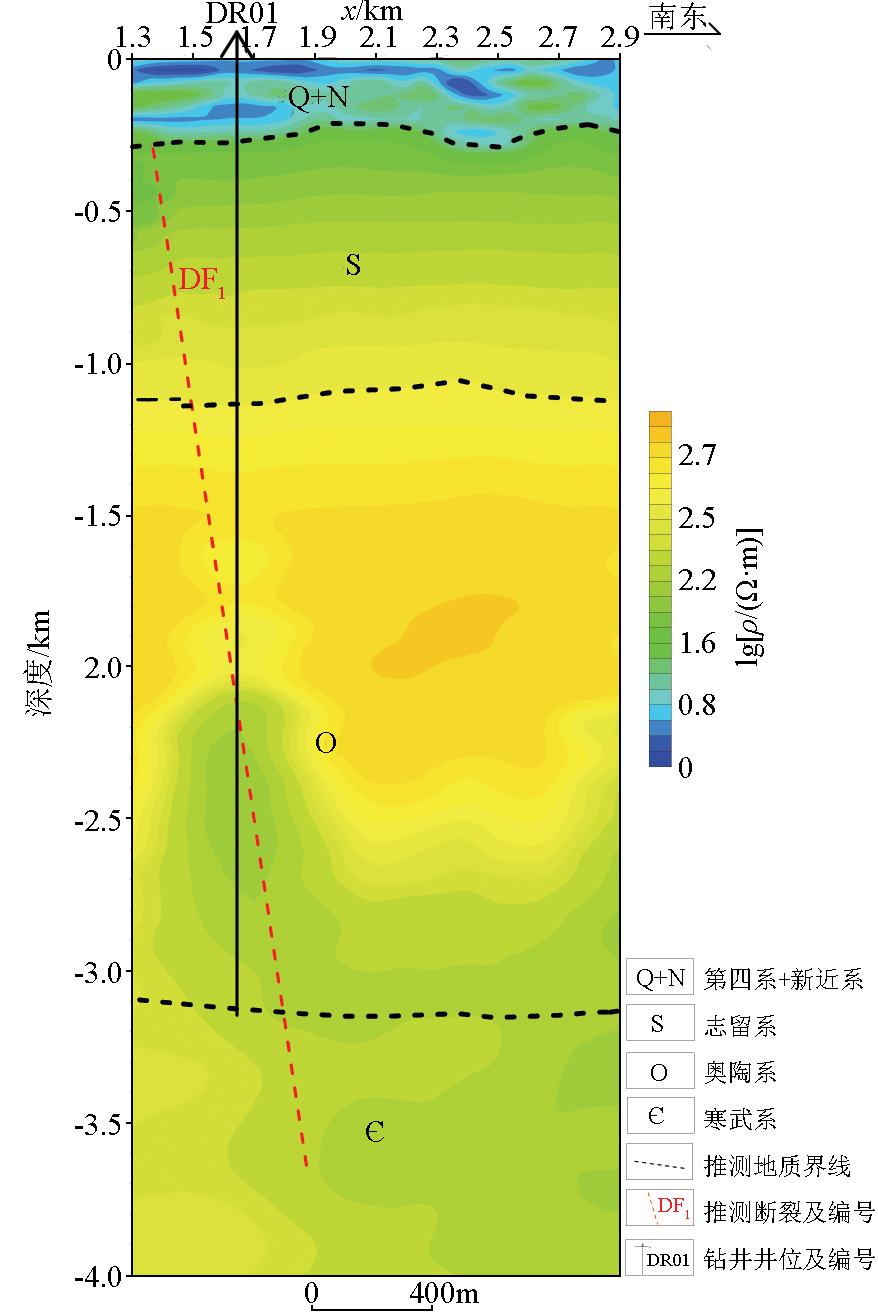

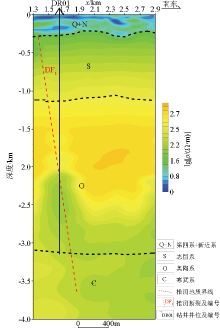

Comprehensive interpretation profile of CSAMT

Comprehensive interpretation profile of WFEM of L2

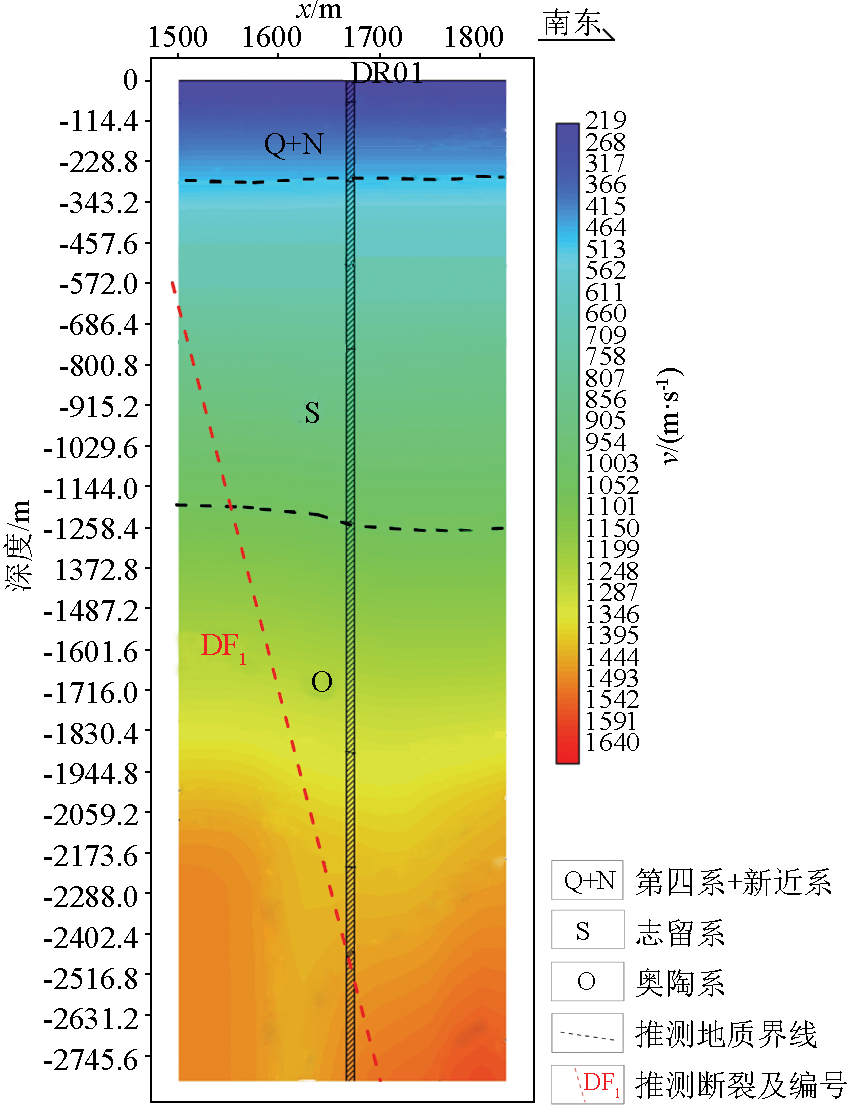

Interpretation Section of fretting detection

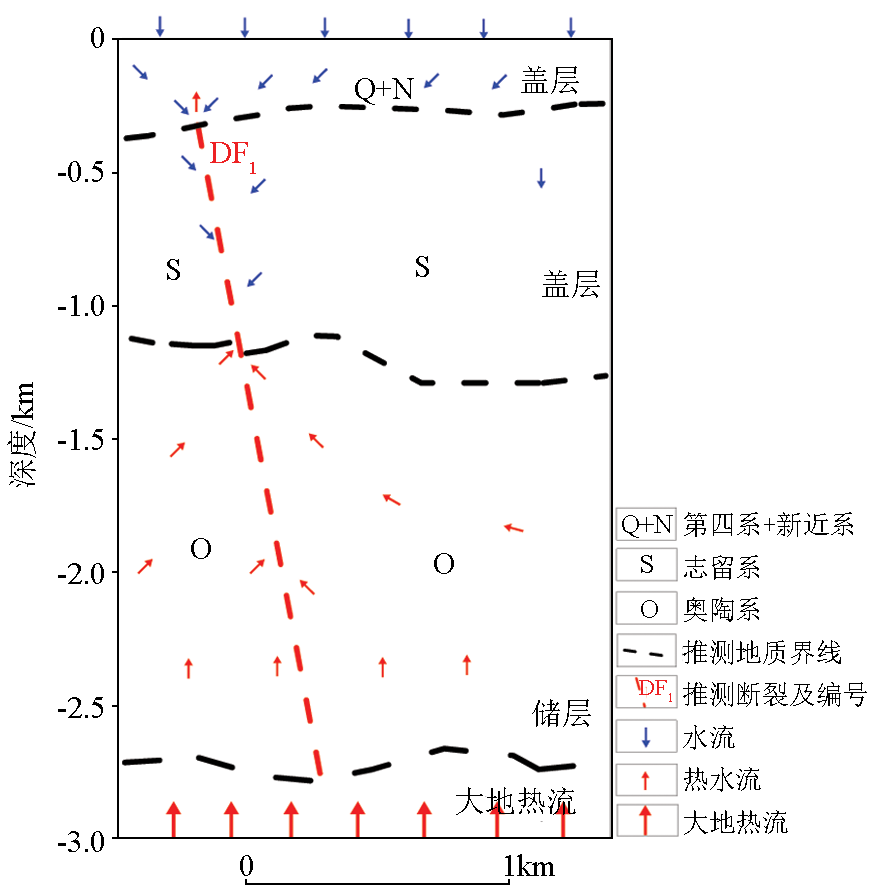

Conceptual diagram of prediction geothermal model of rearch area

Statistics of drilling conditions of geothermal well

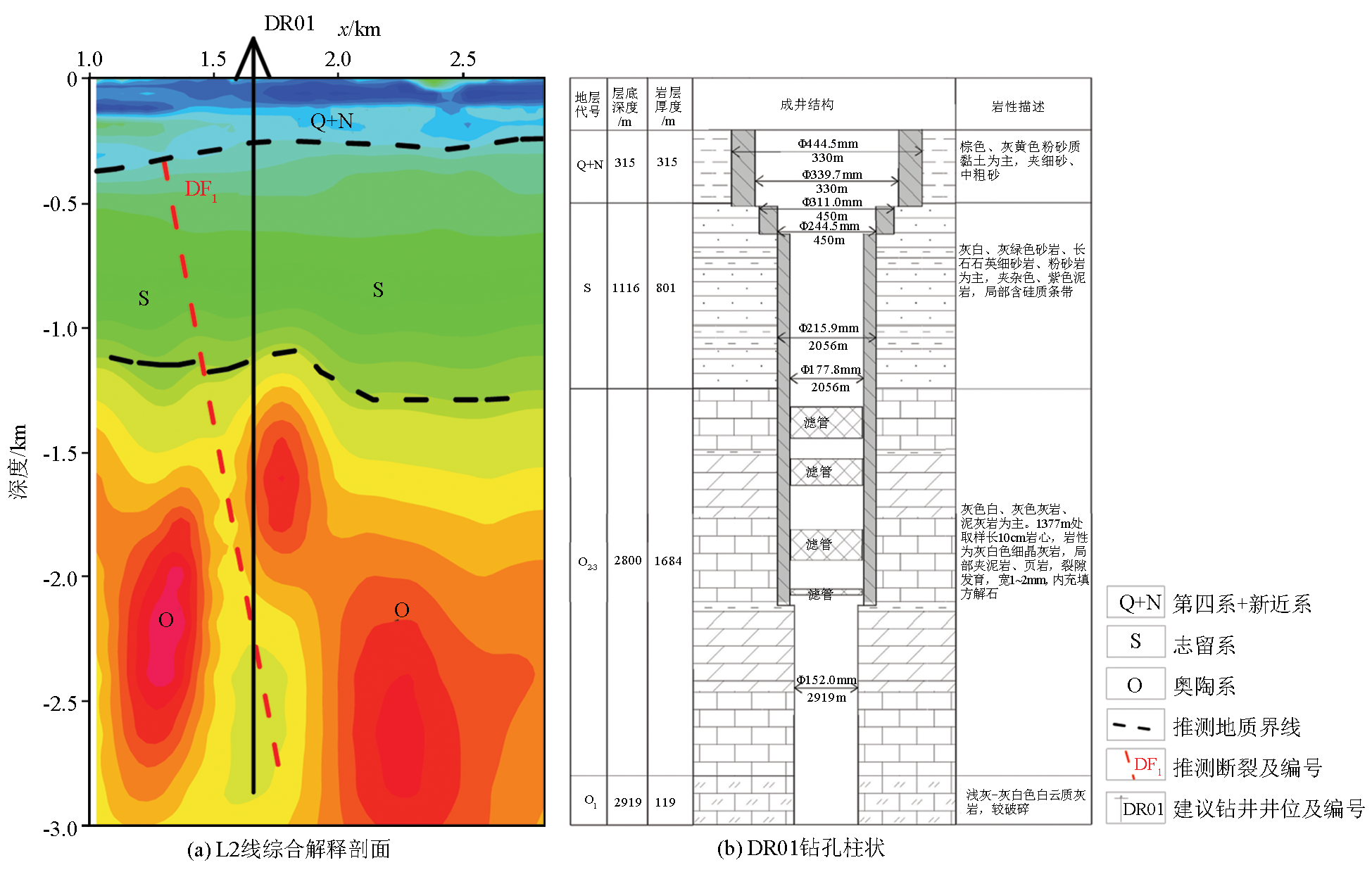

The comparison diagram of comparative chart of CSAMT and borehole verification
