超声提取—离子选择电极法测定化肥样品中的氟

doi:10.11720/wtyht.2023.1150

Abstract
Figure/Table
References
Related Citation (7)

Download: PDF (624 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

As shown by the geochemical survey of national land quality, the land with excess fluorine in China covers an area of about 315 000 km². As an element closely related to human health, fluorine has received wide attention and has been studied. Especially in recent years, the high-fluorine fertilizers used in agricultural activities have become a potential source of fluorine in soils. Moreover, the circulation and migration patterns of fluorine in soils, animals, and plants are yet to be further investigated. To prepare for a new round of national soil survey and modern health-related geological survey, it is necessary to develop a method to accurately determine the fluorine content in chemical fertilizers. Through experiments, this study compared four methods for sample decomposition, namely the extraction methods based on HCl boiling, NaOH molten water, and the Na₂O₂ molten water and the HCl ultrasonic extraction method at room temperature. The results show that the optimal method for sample pretreatment is to extract and decompose samples using ultrasound and HCl at room temperature, adjust the acidity using NaOH-H₂SO₄, and take sodium citrate as the ion buffering agent. Through investigation, the ultrasonic extraction time and temperature were determined to be 20 min and 20 ℃, respectively. The main quality parameters of the method were determined under the optimal sample pretreatment conditions, including the limit of detection of 1.63×10^-6, the precision of 0.98%, and the recovery rate of 91%~108%. The results of this study show that the pretreatment of this method is simple, fast, and easy to operate. With the mode of establishing standard curves in sections, the quality parameters determined can fully meet the requirements for the analysis of chemical fertilizers.

Key words： ion selective electrode method fluorine chemical fertilizer ultrasonic extraction

Received: 30 March 2022 Published: 05 July 2023

ZTFLH:	O657.1
	X830.2

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Bin LIU
	Jin-Li XU
	Xue-Miao DU
	Rui-Ling TANG
	Peng-Peng ZHANG
	Jin-Feng BAI
	Lin-Song YU
	Fang WAN

Cite this article:

Bin LIU,Jin-Li XU,Xue-Miao DU, et al. Determination of fluorine content in chemical fertilizer samples using the ultrasonic extraction-ion selective electrode method[J]. Geophysical and Geochemical Exploration, 2023, 47(3): 775-781.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2023.1150 OR https://www.wutanyuhuatan.com/EN/Y2023/V47/I3/775

Comparison of fluorine content in different melting methods

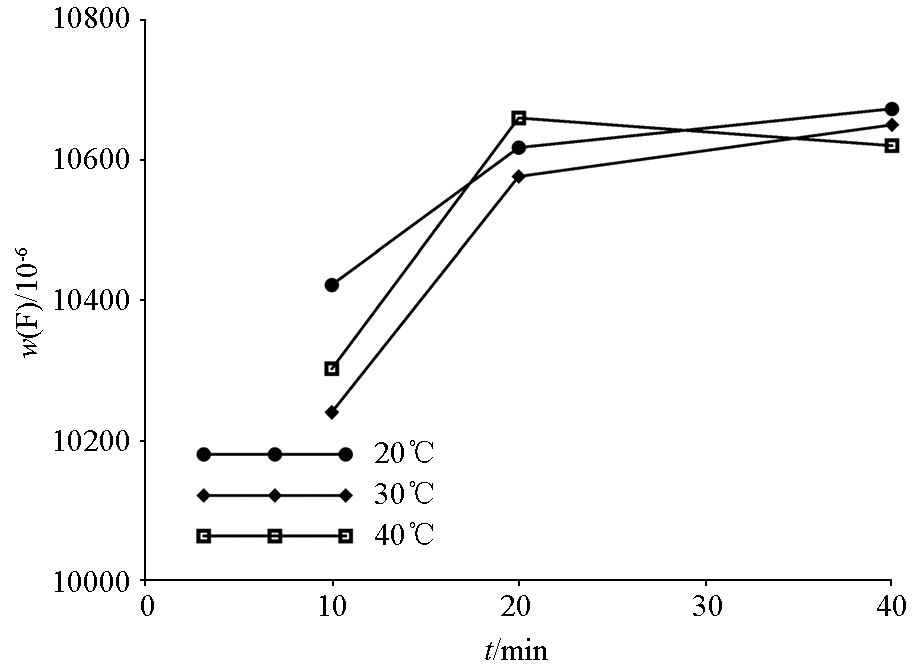

Comparison of fluorine extraction under different ultrasonic conditions

Recovery rate of different types of chemical fertilizers

Comparison of determination results between this artical method and national standard method

Comparison of fluorine content of various types of chemical fertilizers

[1]	何令令, 何守阳, 陈琢玉, 等. 环境中氟污染与人体氟效应[J]. 地球与环境, 2020, 48(1):87-93.
[1]	He L L, He S Y, Chen Z Y, et al. Fluorine pollution in the environment and human fluoride effect[J]. Earth and Environment, 2020, 48(1):87-93.
[2]	李静, 谢正苗, 徐建明, 等. 我国氟的土壤健康质量指标及评价方法的初步探讨[J]浙江大学学报, 2005, 31(5):593-597.
[2]	Li J, Xie Z Y, Xu J M, et al. Preliminary study on guideline on soil health quality index of fluorine and method of its evaluation in China[J]. Journal of Zhejiang University, 2005, 31(5):593-597.
[3]	Rajbala A, Sane A S, Zope J, et al. Oxidative stress in children with endemic skeletal fluorosis[J]. Panminerva Medica, 1997, 39(3):165-168.
[4]	杨忠芳, 余涛, 李敏, 等. DZ/T 0295—2016土地质量地球化学评价规范[S].
[4]	Yang Z F, Yu T, Li M, et al. DZ/T 0295—2016 Specification of land quality geochemical assessment[S].
[5]	李凤嫣, 蒋天宇, 余涛, 等. 环境中氟的来源及健康风险评估研究进展[J]. 岩矿测试, 2021, 40(6):793-807.
[5]	Li F Y, Jiang T Y, Yu T, et al. Reviewon sources of fluorine in the environment and health risk assessment[J]. Rock and Mineral Analysis, 2021, 40(6):793-807.
[6]	李永华, 王五一, 侯少范. 我国地方性氟中毒病区环境氟的安全阈值[J]. 环境科学, 2002, 23(4):1l8-122.
[6]	Li Y H, Wang W Y, Hou S F. Safety threshold of fluorine in endemic fluorosis regions in China[J]. Environmental Science, 2002, 23(4):1l8-122.
[7]	李明琴, 刘远明, 廖丽萍. 贵州地氟病与碘缺乏病区环境中氟和碘的研究[J]. 环境科学研究, 2001, 14(6):44-46.
[7]	Li M Q, Liu Y M, Liao L P. Fluorine and iodine in the environment in epidemic fluorosis and iodine deficiency area in Guizhou[J]. Research of Environmental Sciences. 2001, 14(6):44-46.
[8]	涂成龙, 何令令, 崔丽峰, 等氟的环境地球化学行为及其对生态环境的影响[J]. 应用生态学报, 2019, 30(1):21-29.
[8]	Tu C L, He L L, Cui L F, et al. Environmental and geochemical behaviors of fluorine and its impacts on ecological environment[J]. Chinese Journal of Applied Ecology, 2019, 30(1):21-29.
[9]	潘自平, 刘新红, 孟伟, 等. 贵阳中心区土壤氟的地球化学特征及其环境质量评价[J]. 环境科学研究, 2019, 31(1):87-94.
[9]	Pan Z P, Liu X H, Meng W, et al. Geochemical characteristics of fluorine in soils and its environmental quality in central district of Guiyang[J]. Research of Environmental Sciences, 2018,31 (l):87-94.
[10]	谷海峰, 栾文楼, 杜俊, 等. 冀中南平原土壤氟地球化学特征及其控制因素[J]. 物探化探 2011, 35(3):388-392.
[10]	Gu H F, Luan W L, Du J, et al. Fluorine geochemistry of soil in central South Hebei plain and its controlling factors[J]. Geophysical and Geochemical Exploration, 2011, 35(3):388-392.
[11]	孙明山, 孙忠萍, 牛朝红, 等. 离子色谱法对生活饮用水中氟、氯、硫酸根、硝酸根阴离子的测定[J]. 农业与技术, 2007, 27(2):89-90.
[11]	Sun M S, Sun Z P, Niu C H, et al. Determination of fluoride,chlorine,sulfate and nitrate anions in drinking water by ion chromatography[J]. Agriculture and Technology, 2007, 27(2):89-90.
[12]	曾江萍, 李小莉, 张楠, 等. 粉末压片制样—X射线荧光光谱法测定锂云母中的高含量氟[J]. 岩矿测试, 2019, 38(1):71-76.
[12]	Zeng J P, Li X L, Zhang N, et al. Determination of high concentration of fluorine in lithium mica by X-ray fluorescence spectrometry with pressed-powder pellets[J]. Rock and Mineral Analysis, 2019, 38(1):71-76.
[13]	张玉明, 石庆. 氟试剂分光光度法测定氟化物的方法分析[J]. 水文, 2002, 22(6):50-53.
[13]	Zhang Y M, Shi Q. Method analysis of fluoride reagent spectrophotometric determination of fluoride[J]. Journal of China Hydrology, 2002, 22(6):50-53.
[14]	叶家瑜, 江宝林. 区域地球化学勘查样品分析方法[M]. 北京: 地质出版社, 2004.
[14]	Ye J Y, Jiang B L. Analysis method of regional geochemical exploration samples[M]. Beijing: Geological Publishing House, 2004.
[15]	李清彩, 赵庆令, 张洪民, 等. 离子选择性电极电位法测定钼矿石和钨矿石中氟[J]. 理化检验:化学分册, 2011, 47(8):932-934.
[15]	Li Q C, Zhao Q L, Zhang H M, et al. Potentiometric determination of fluoride in ores of molybdenum and tungsten with fluoride ion-selective electrode[J]. Physical Testing and Chemical Analysis:Chemical Analysis, 2011, 47(8):932-934.
[16]	邓海文, 吴代赦, 陈成广. 碱熔一氟离子选择性电极法测定土壤氟含量[J]. 地球与环境, 2007, 35(3):284-287.
[16]	Deng H W, Wu D S, Chen C G. Determination of fluorides in soils by the alkaline meling-fluoride ion-selective electrode method[J]. Earth and Environment, 2007, 35(3):284-287.
[17]	胡小玲, 李莉. 离子选择电极法测定植物叶片中的氟[J]. 化学分析计量, 2008, 17(3):48-49.
[17]	Hu X L, Li L. Determination of fluoride in plant leaves by ion-selective electrode method[J]. Chemical Analysis and Meterage, 2008, 17(3):48-49.
[18]	肖细炼, 刘彬, 陈燕波, 等. 干法灰化—碱熔—离子选择性电极法测定植物样品中氟[J]. 理化检验:化学分册, 2017, 53(8):968-971.
[18]	Xiao X L, Liu B, Chen Y B, et al. Determination of fluorine in plant samples by dry ashing alkali fusion ion selective electrode[J]. Physical Testing and Chemical Analysis:Chemical Analysis, 2017, 53(8):968-971.
[19]	胡红美, 郭远明, 孙秀梅, 等. 离子选择电极法测定生活饮用水中氟化物[J]. 中国无机分析化学, 2019, 3(3)13-16.
[19]	Hu H M, Guo Y M, Sun X M, et al. Determination of fluoride in drinking water by ion selective electrode method[J]. Chinese Journal of Inorgainic Analytical Chemistry, 2019, 3(3)13-16.
[20]	赵庆武. 改良离子选择电极法测定水样中氟化物[J]. 应用化工, 2010, 39(11):1780-1782.
[20]	Zhao Q W. Improved ion selective electrode determination of fluoride in water samples[J]. Applied Chemical Industry, 2010, 39(11):1780-1782.
[21]	李静, 关玉春, 王琳. 碱熔—离子选择电极法测定固体废物中氟[J]. 冶金分析, 2021, 41(8):84-90.
[21]	Li J, Guan Y C, Wang L. Determination of fluorine in solid waste by alkali fusion-ion selective electrode method[J]. Metallurgical Analysis, 2021, 41(8):84-90.
[22]	尤素荔. 离子选择电极法测定水中氟化物[J]. 福建环境, 2001, 18(4):42-43.
[22]	You S L. Monitoring the water's fluoride by ion selective electrode[J]. Fujian Environment, 2001, 18(4):42-43.
[23]	赵彦玲, 朱兰兰, 王璐, 等. 南极磷虾中氟含量的两种测定方法优化与比较[J]. 食品研究与开发, 2014, 35(9):100-103,119.
[23]	Zhao Y L, Zhu L L, Wang L, et al. Comparison of two methods for the determination of fluorine content in Antarctic krill[J]. Food Research and Development, 2014, 35(9):100-103,119.
[24]	王芳, 王海峰, 徐建, 等. 高温燃烧水解—离子色谱法测定煤中氟和氯[J]. 化学分析计量, 2016, 25 (4): 27-30.
[24]	Wang F, Wang H F, Xu J, et al. Determination of fluorine and chlorine in coal by high temperature combustion hydrolyzing-ion chromatography[J]. Chemical Analysis and Meterage, 2016, 25 (4): 27-30.
[25]	Noguchi Y, Zhang L, Maruta T, et al. Simultaneous determination of fluorine,chlorine and bromine in cement with ion chromatographyafterpyrolysis[J]. Analytica Chimica Acta, 2009, 640(1/2):106-109.
[26]	赵怀颖, 孙德忠, 曾亚萍, 等. 高温燃烧水解—离子色谱法测定植物样品中的氟[J]. 岩矿测试, 2011, 30(6):761-767.
[26]	Zhao H Y, Sun D Z, Zeng Y P, et al. Quantification of fluorine in plants by high temperature combustion hydrolysis-ion chromatography[J]. Rock and Mineral Analysis, 2011, 30(6):761-767.
[27]	赵怀颖, 孙德忠, 吕庆斌. 燃烧水解—离子选择性电极法测定植物样品中氟含量的方法改进[J]. 岩矿测试, 2010, 29(1):39-42.
[27]	Zhao H Y, Sun D Z, Lyu Q B. Determination of flouride in plant samples by combustion hydrolysis-ion selective electrode method[J]. Rock and Mineral Analysis, 2010, 29(1):39-42.
[28]	韩张雄, 马娅妮, 刘琦, 等. 微波消解—离子选择电极法测定植物样品中氟离子的实验条件优化[J]. 岩矿测试, 2016, 35(4):397-401.
[28]	Han Z X, Ma Y N, Liu Q, et al. Optimal conditions for determination of fluoride in plant samples by microwave digestion coupled with ion selective electrode method[J]. Rock and Mineral Analysis, 2016, 35(4):397-401.
[29]	吴勣, 孙明星, 高运川, 等. 离子色谱法测定化肥中六种阴离子[J]. 理化检测:化学分册, 2011, 47(1):24-26.
[29]	Wu J, Sun M X, Gao Y C, et al. IC determination of 6 anions in chemical fertilizers[J]. Physical Testing and Chemical Analysis:Chemical Analysis, 2011, 47(1):24-26.
[30]	丁方军, 张娟, 林建, 等. GB/T 32954—2016化肥中氟化物的测定——离子选择电极法[S].
[30]	Ding F J, Zhang J, Lin J, et al. GB/T 32954—2016 Determination of fluoride content for fertilizer-ion electrode method[S].
[31]	李红霞. 四元体系NaF-Na₃PO₄-NaOH-H₂O及其子体系离子浓度测定方法探究[J]. 冶金分析, 2020, 40(11):78-85.
[31]	Li H X. Study on determination method of ion concentration in quaternary NaF-Na₃PO₄-NaOH-H₂O system and its subsystems[J]. Metallurgical Analysis, 2020, 40(11):78-85.
