Primary halo characteristics on the top of the ore-bearing horizon in the Xiwan lead-zinc deposit in Anhui Province |
CHENG Pei-Sheng1,2, WANG Shu-Chao1,2, LI Zhuang1,2, GU Da-Nian1,2, ZHANG Jian-Ming1,2, DU Dong-Xu1,2 |
1. State Key Laboratory of Nuclear Resources and Environment, East China University of Technology,Nanchang 330013,China 2. Geological Exploration Technologies Institute of Anhui Province, Hefei 230031,China |
|
|
Abstract The Xiwan lead-zinc deposit in Anhui Province is located on the northern margin of the Luzong volcanic basin. This deposit is an overburden area, causing great difficulties with exploration. Based on the analysis results of borehole core samples, this study analyzed the characteristics of the primary halos of the Xiwan lead-zinc deposit. The results show that the mineralized zone and its roof and floor have significantly different contents and anomaly characteristics of elements. Specifically, brecciated limestones in the mineralized zone have high contents of elements such as Pb, Zn, Ag, As, Sb, Bi, Au, Cu, and Mo. These elements feature high anomaly intensity and large anomaly scales and have definite concentrations and component zoning. These element anomalies effectively reflect the characteristics of orebodies and significantly indicate the NE-trending extension of ore bodies. The volcanic rocks on the roof of the mineralized zone have high contents of elements such as As, Sb, Pb, Zn, and Ag. These elements feature weak anomalies without significant zoning. These element anomalies can only indicate the ore bodies near the sampling points. The anhydrites on the floor have low contents of the abovementioned elements, without significant anomaly. Therefore, As, Sb, Pb, Zn, Ag, and Mo are indicator elements of lead-zinc mineralization in the study area. The brecciated limestones in the mineralized zone have high element contents, forming anomalies with high intensity and large scales. Moreover, these anomalies are characterized by significant concentrations and component zoning and can clearly indicate the extension direction of ore bodies. The contents and anomaly characteristics of elements in the core samples collected from different metallogenic parts can guide the further prospecting of the mining area.
|
Received: 22 July 2021
Published: 03 January 2023
|
|
|
|
|
|

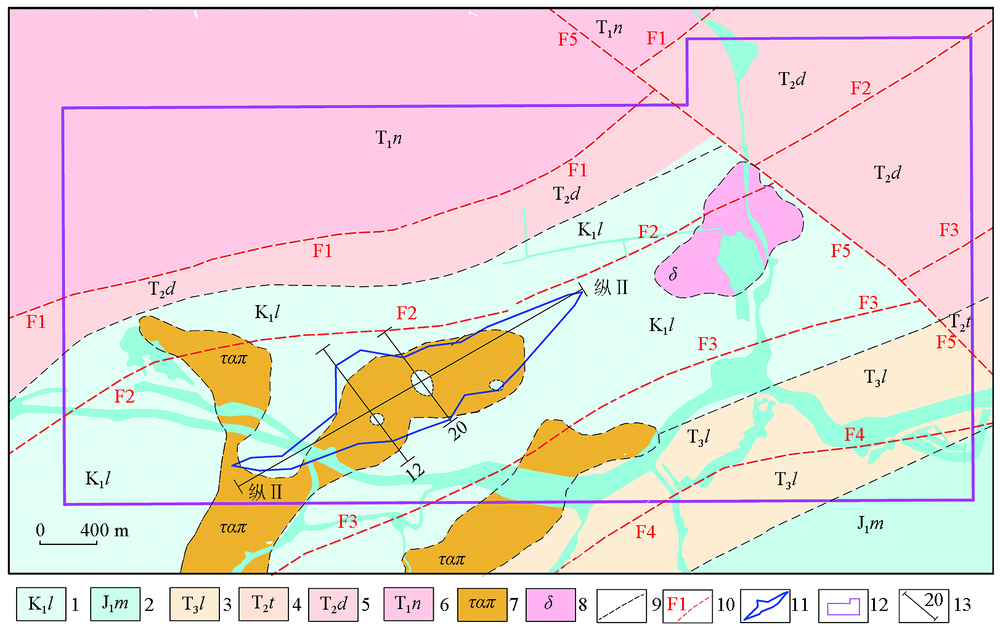

Bedrock geological map of Xiwan mining area 1—lower Cretaceous Longmenyuan formation;2—lower Jurassic Moshan formation;3—upper Triassic Lalijian formation;4—middle Triassic Tongtoujian formation;5—middle Triassic Dongma’anshan formation;6—lower Triassic Nanlinghu formation;7—trachyandesite porphyry;8—diorite;9—speculate on geological boundaries;10—speculative faults;11—horizontal projection of the orebody;12—scope of study area;13—exploration lines
|
|

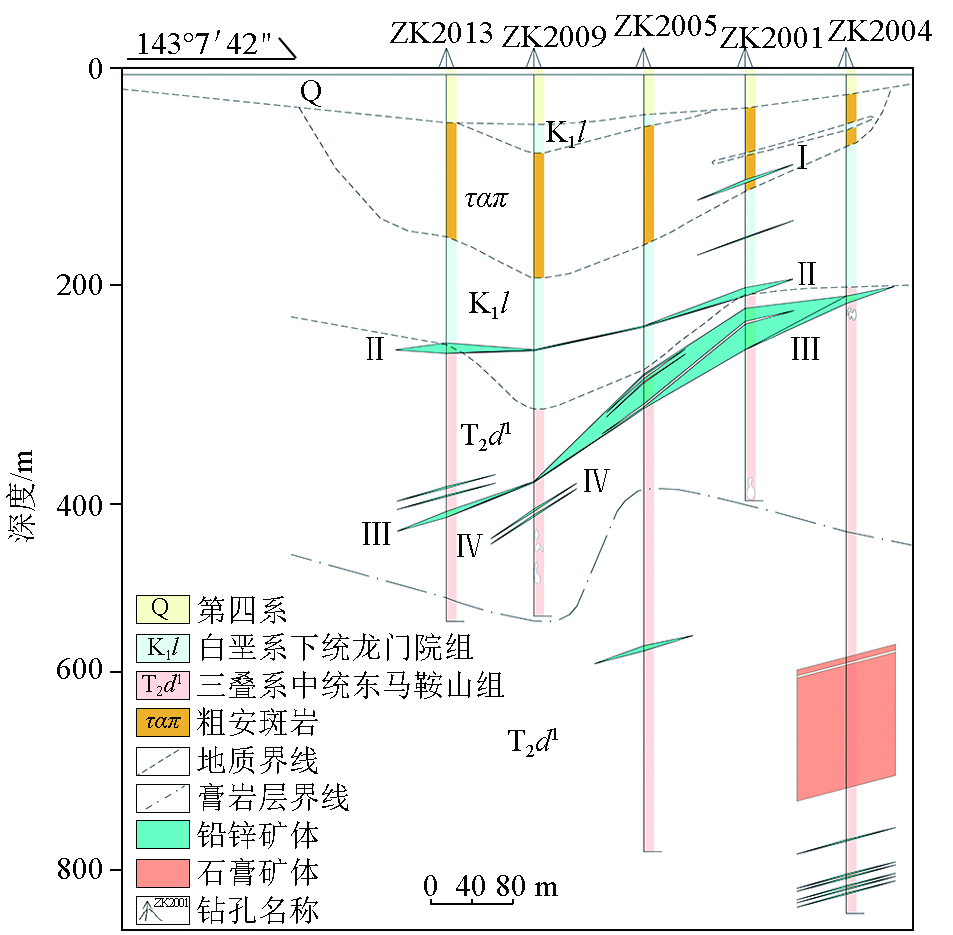

The 20 line geological profile of Xiwan Pb-Zn mine
|
|

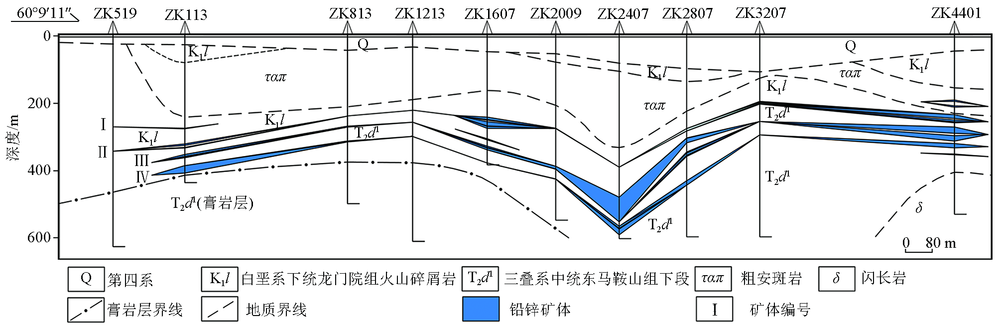

The Ⅱ line geological profile of Xiwan Pb-Zn mine
|
地质单元 | As | Sb | Bi | Zn | Cu | Mo | W | Pb | Ag | Au | 矿区龙门院组火山岩(C1) | 6.14 | 1.49 | 0.09 | 148.91 | 45.42 | 1.73 | 2.42 | 40.24 | 107.92 | 1.33 | 矿区东马鞍山组灰岩(C2) | 21.51 | 2.60 | 0.10 | 225.53 | 16.40 | 1.97 | 0.62 | 155.70 | 1612.66 | 0.61 | 矿区东马鞍山组硬石膏(C3) | 3.15 | 0.32 | 0.04 | 17.52 | 4.41 | 0.55 | 0.22 | 15.27 | 63.27 | 0.46 | 矿区平均含量 | 11.54 | 1.65 | 0.09 | 126.40 | 26.73 | 1.64 | 1.52 | 40.98 | 277.54 | 0.95 | 安徽省扬子地层区龙门院组(CK) | 3.38 | 1.03 | 0.13 | 140.00 | 18.61 | 0.44 | 1.42 | 17.57 | 61.43 | 2.29 | 安徽省扬子地层区东马鞍山组(CT) | 0.98 | 0.12 | 0.17 | 15.16 | 8.29 | 0.34 | 0.08 | 7.33 | 59.67 | 0.67 | 龙门院组浓集系数(C1/ CK) | 1.82 | 1.45 | 0.69 | 1.06 | 2.44 | 3.93 | 1.70 | 2.29 | 1.76 | 0.58 | 东马鞍山组灰岩浓集系数(C2/ CT) | 11.84 | 1.80 | 0.14 | 212.04 | 6.72 | 0.50 | 0.36 | 67.98 | 917.96 | 1.05 | 东马鞍山组硬石膏浓集 系数(C2/ CT) | 0.08 | 0.07 | 1.18 | 0.07 | 1.23 | 0.68 | 0.22 | 0.11 | 0.07 | 0.64 |
|
Statistical table of main lithologic element contents in Xiwan mining area
|
|

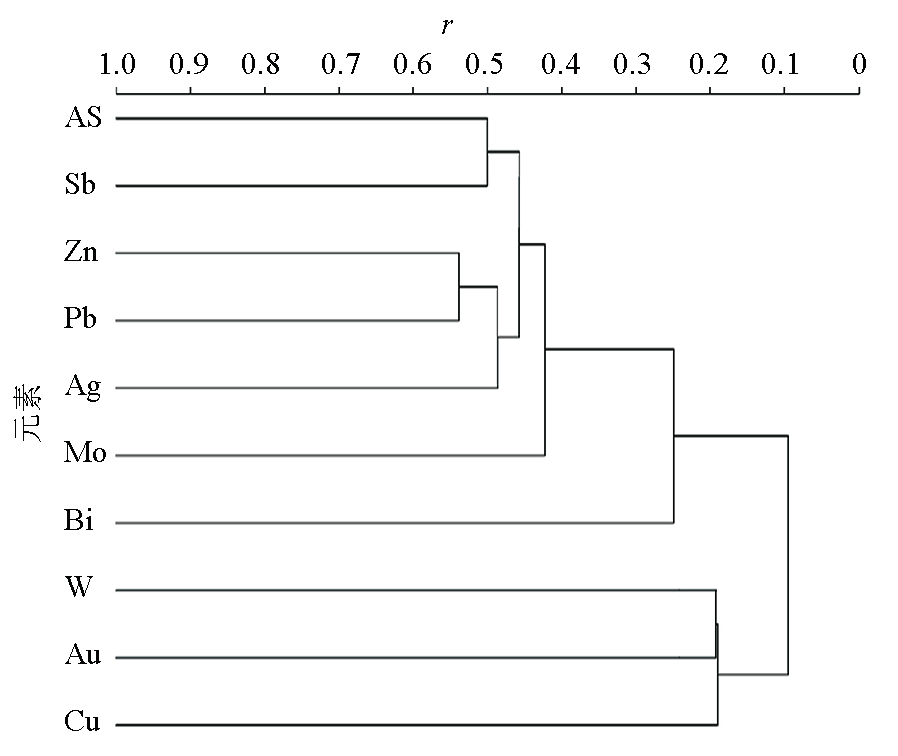

Element cluster analysis pedigree diagram
|
参数 | As | Sb | Pb | Zn | Ag | Mo | Bi | 异常下限 | 25 | 3 | 200 | 400 | 500 | 3 | 0.5 | 异常中带 | 50 | 6 | 400 | 800 | 1000 | 6 | 9 | 异常内带 | 100 | 9 | 800 | 1600 | 2000 | 9 | 40 |
|
List of threshold and anomaly zoning values
|
|

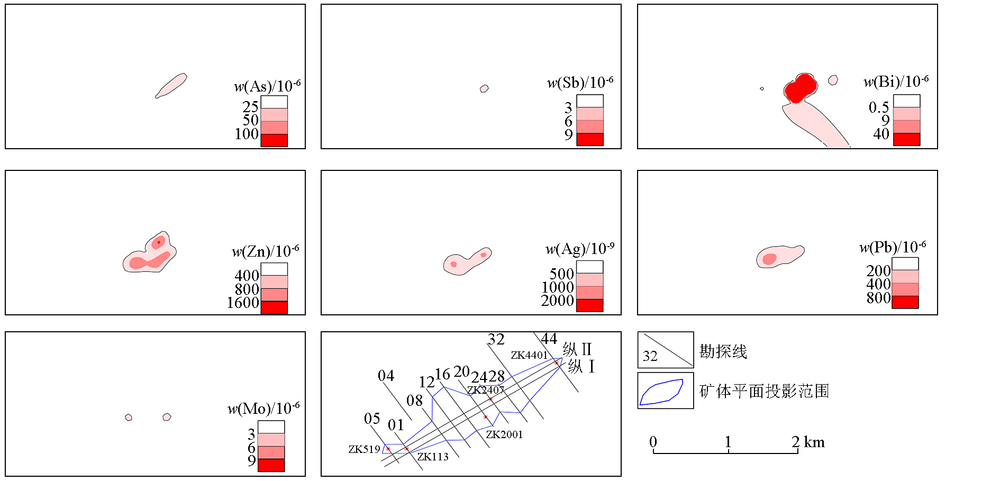

The first volcanic rock sample element anomaly diagram
|
|

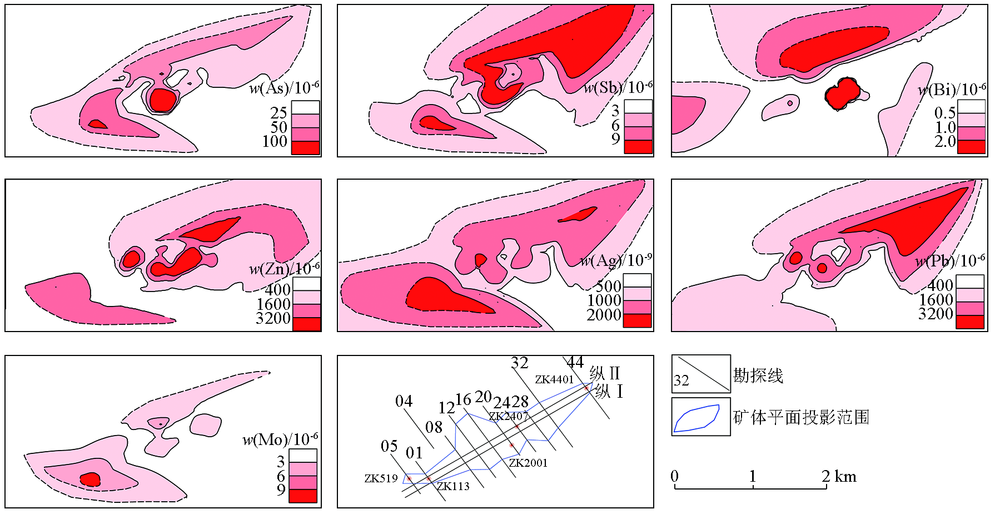

The first limestone sampleelement anomaly diagram
|
