基于非结构化有限元的三维井地电阻率法约束反演

doi:10.11720/wtyht.2022.0181

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (5887 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

The inversion of electromagnetic detection data is a typical ill-posed problem and is prone to cause a multiplicity of solutions of the inversion results. The ill-posedness is an inherent characteristic of inversion and is difficult to overcome without additional information. An effective way to solve this problem is constrained inversion. In this study, the Gauss-Newton - conjugate gradient (GN-CG) method was used to directly impose constraints on the inversion objective function. Specifically, the dielectric resistivity range was introduced into the inversion objective function as the prior information and constraints using the exterior penalty function method. Compared with the conventional three-dimensional resistivity inversion objective function, the objective function with inequality constraints can suppress the multiplicity of solutions in theory. As revealed by the testing results of various theoretical models, the three-dimensional borehole-to-surface resistivity inversion algorithm based on inequality constraints effectively improves the precision of inversion results, and the way of imposing inequality constraints using the penalty function method is feasible and effective.

Key words： borehole-to-surface resistivity method inversion GN-CG inequality constraint penalty function method

Received: 13 April 2022 Published: 03 January 2023

ZTFLH:

P631

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Zhi WANG
	Cheng WANG
	Si-Nan FANG

Cite this article:

Zhi WANG,Cheng WANG,Si-Nan FANG. Constraint inversion of three-dimensional borehole-to-surface resistivity based on unstructured finite element[J]. Geophysical and Geochemical Exploration, 2022, 46(6): 1431-1443.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2022.0181 OR https://www.wutanyuhuatan.com/EN/Y2022/V46/I6/1431

Sphere model structure and mesh division
a—diagram of the sphere model structure;b—diagram of spherical model meshing;c—diagram of source point and measuring point mesh refinement;d—diagram of mesh generation

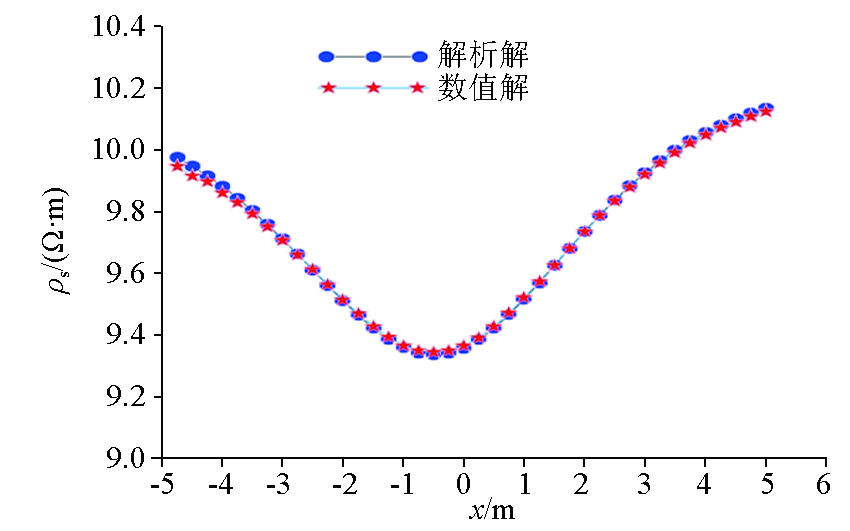

Comparison of analytical and numerical solutions of underground sphere

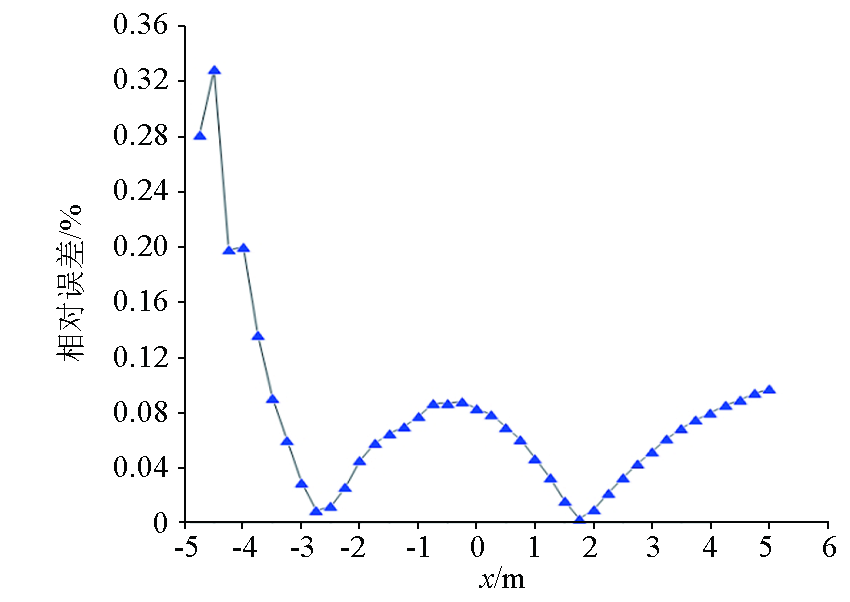

Relative error of analytical and numerical solutions

Cuboid model under flat terrain
a—xoy plane view of the model;b—xoz cross section view of the model;c—3D abnormal body model diagram;d—diagram of mesh refinement at measuring point;e—forward mesh;f—inversion mesh

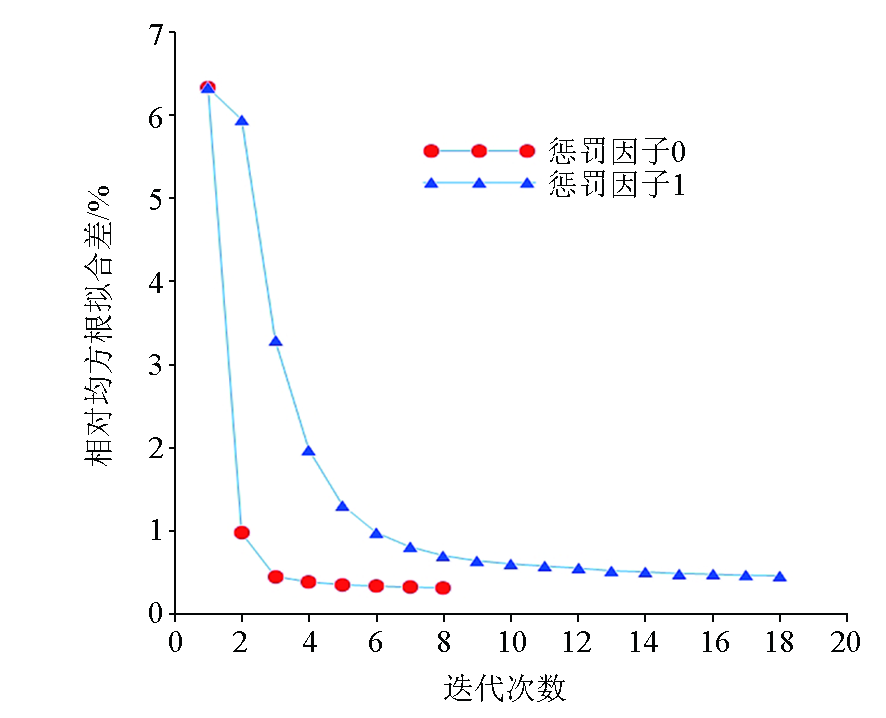

The relationship between the number of iterations and RMS

Ω · m); f—3D view of inversion results with inequality constraints(resistivity is less than 50

Ω · m

)
">

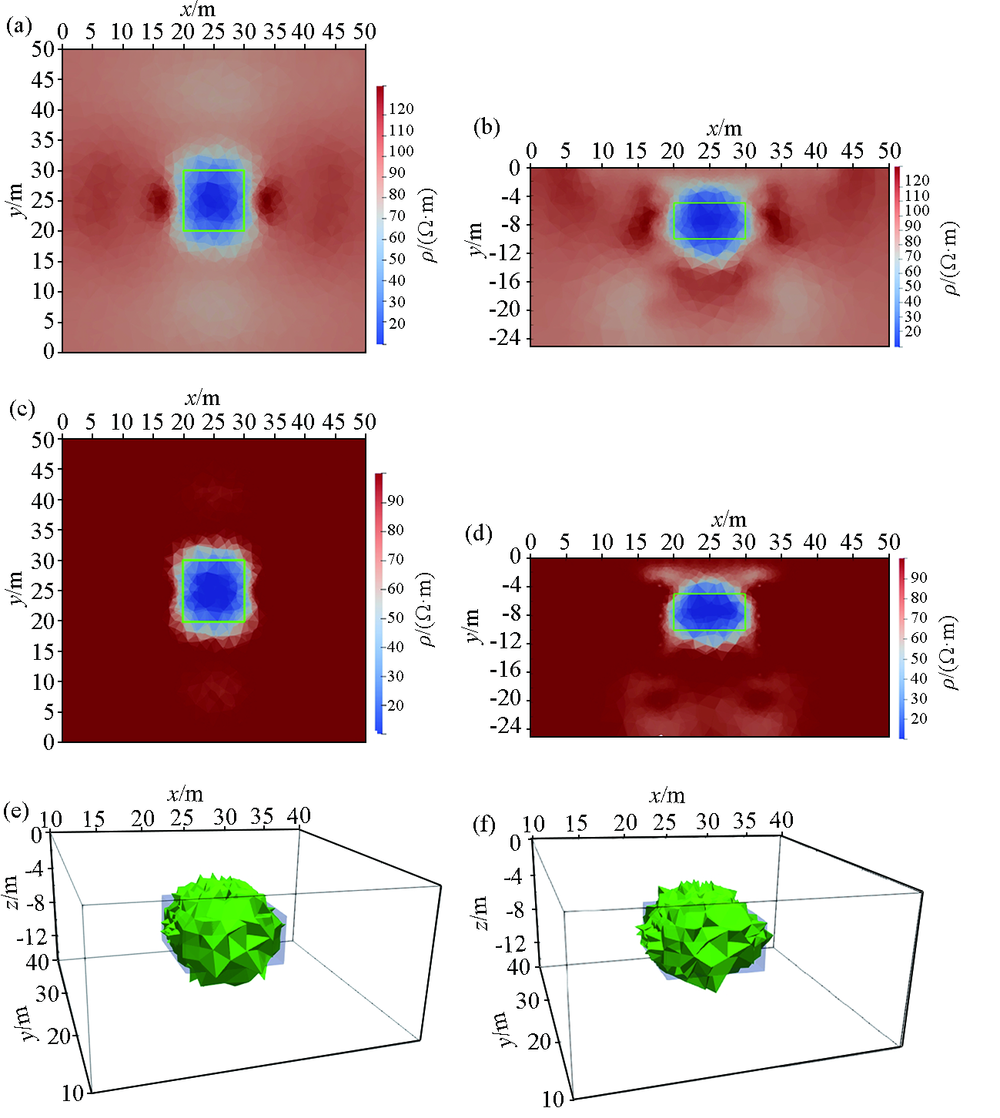

3D inversion results
a—traditional resistivity inversion results:horizontal slice xoy at z=-7 m; b—traditional resistivity inversion results:cross-section slice xoz at y=25 m; c—inversion results with inequality constraints:horizontal slice xoy at =-7 m; d—inversion results with inequality constraints:cross-section slice xoz at y=25 m; e—3D view of traditional resistivity inversion results(resistivity is less than 50

Ω · m

); f—3D view of inversion results with inequality constraints(resistivity is less than 50

Ω · m

)

长方体编号	电阻率/ $(Ω · m)$	尺寸/(m×m×m)
S1	200	$100 × 100 × 40$
S2	100	$100 × 100 × 40$
S3	2000	$350 × 50 × 40$
B1	2000	$350 × 100 × 200$
B2	100	$100 × 150 × 180$

Cuboid parameter

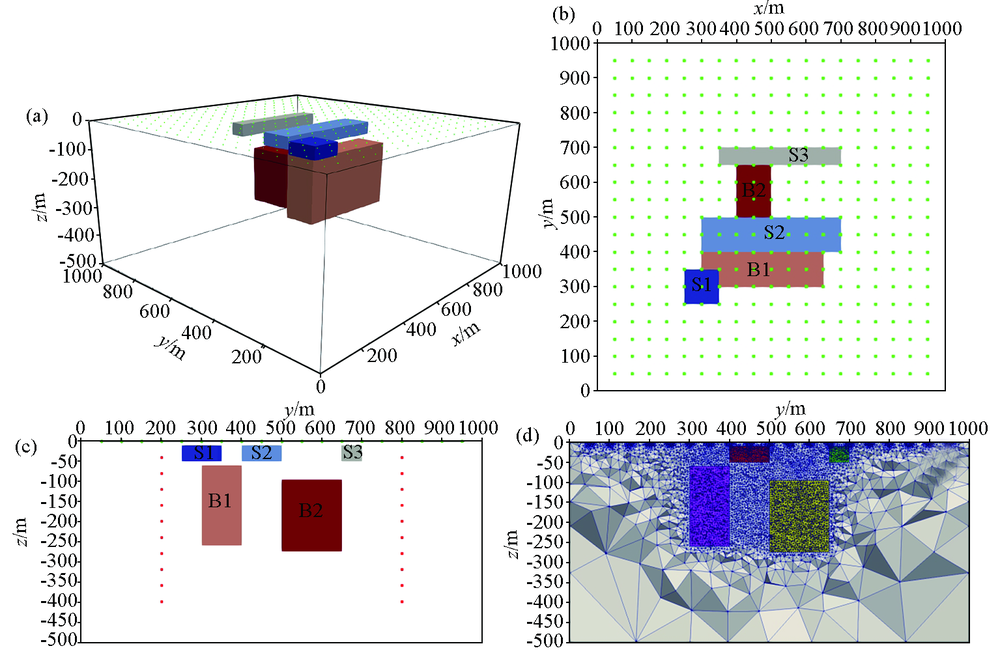

Diagram of abnormal body model location and mesh generation
a—location of 3D abnormal model;b—observation system of surface data;c—cross-section profile yoz; d—diagram of unstructured refinement mesh

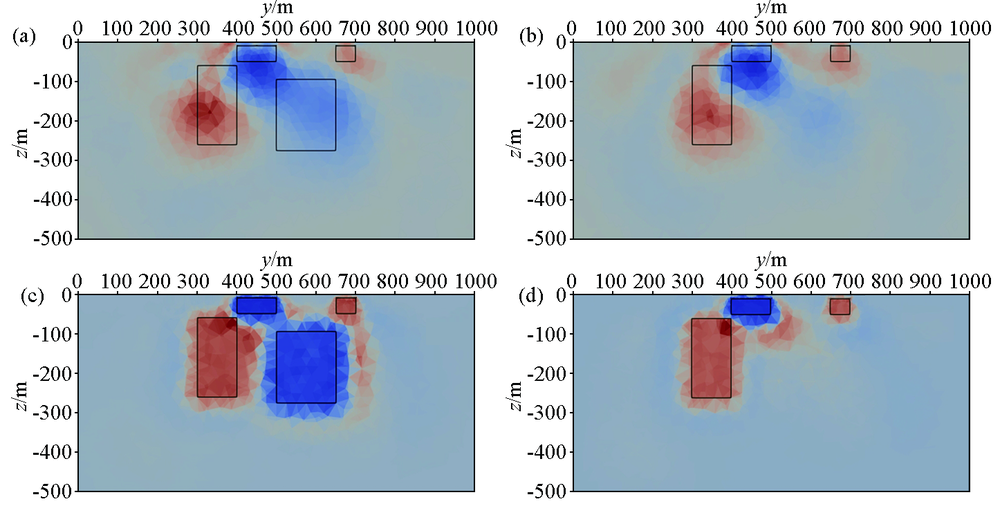

Traditional regularized inversion and constrained inversion results of well-surface with pole-pole device
a—traditional resistivity inversion results:cross-section profile yoz at x=400 m; b—traditional resistivity inversion results:cross-section profile yoz at x=600 m;c—constrained inversion: cross-section profile yoz at x=400 m;d—constrained inversion:cross-section profile yoz at x=600 m
