新疆维权银铜多金属矿地质—地球物理找矿模式及成矿模型

doi:10.11720/wtyht.2022.0055

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (7928 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

The Weiquan silver-copper polymetallic deposit has received extensive attention because of its unique genesis. This study analyzed the anomaly characteristics shown in the integrated gravity-magnetic-electrical geophysical planes and sections of the Weiquan silver-copper polymetallic deposit. Then, it obtained the interpretation model of geophysical anomalies through the forward and inverse calculations of the typical sections. Based on the distribution pattern of existing ore bodies and the metallogenic model summarized in previous studies, this study established the geological-geophysical prospecting mode of this area. Moreover, this study proposed the geological-geophysical prospecting model of this area, aiming to provide a basis for prospecting prediction.

Key words： Weiquan silver-copper polymetallic deposit geophysics prospecting mode prospecting prediction

Received: 10 February 2022 Published: 17 August 2022

ZTFLH:

P631

Corresponding Authors: Jiang Wen E-mail: 429031720@qq.com;jiangwen66@aliyun.com

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Jun Feng
	Wen Jiang
	Zheng Zhang

Cite this article:

Jun Feng,Wen Jiang,Zheng Zhang. Geophysical prospecting mode and metallogenic model of the Weiquan silver-copper polymetallic deposit in Xinjiang[J]. Geophysical and Geochemical Exploration, 2022, 46(4): 868-876.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2022.0055 OR https://www.wutanyuhuatan.com/EN/Y2022/V46/I4/868

10]
">

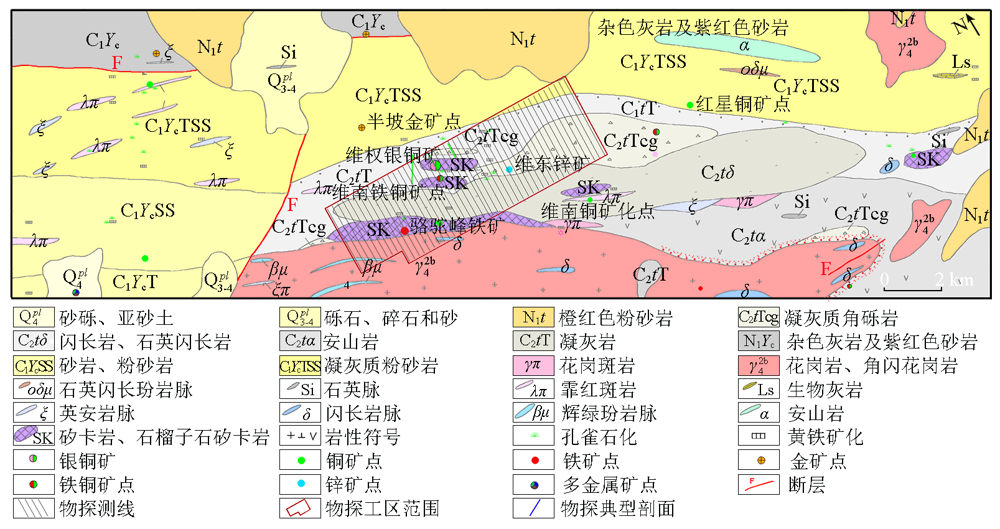

Geological and mineral map of the Weiquan area^[10]

Statistical table of physical properties in the Weiquan silver-copper polymetallic deposit

10]
">

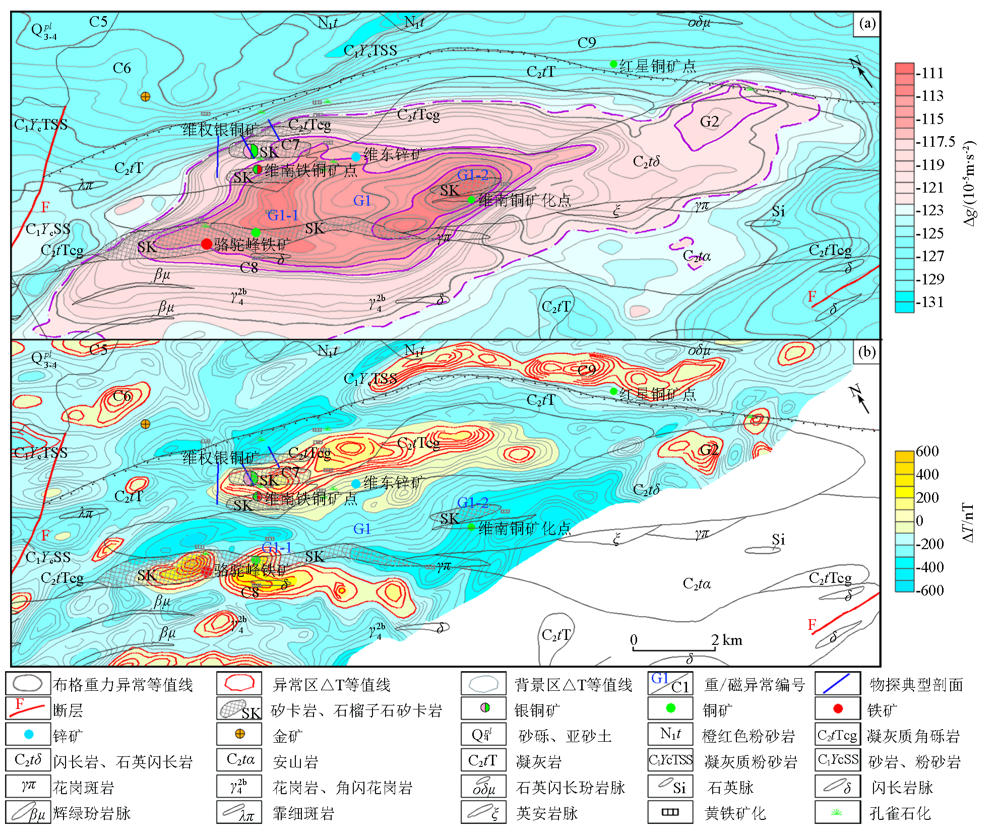

Plane figure of Bouguer gravity anomalies(a) and aeromagnetic anomalies(b) in the Weiquan area^[10]

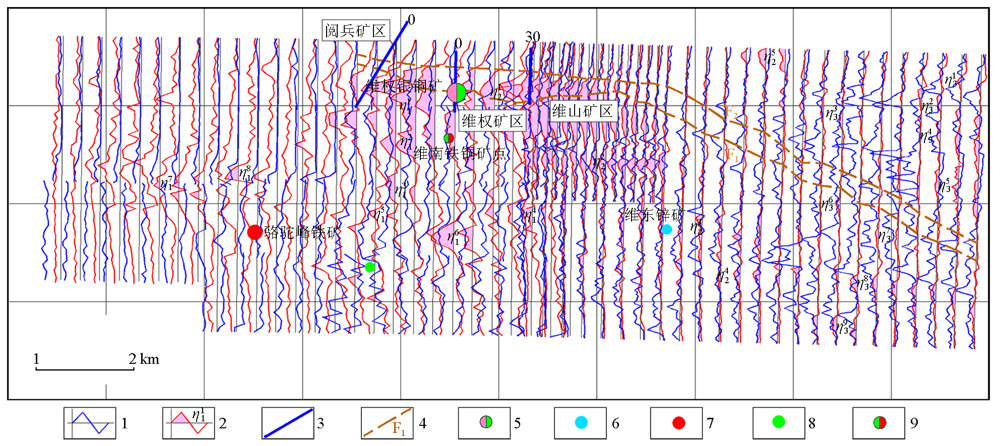

Sectional drawing in plane by IP method in central gradient array in the Weiquan area
1—apparent resistivity curve;2—apparent polarizability curve and code of anomaly;3—typical profiles for geophysical prospecting;4—inferred fault;5—copper-silver ore;6—zinc ore occurrence;7—iron ore occurrence;8—copper ore occurrence;9—copper-iron ore occurrence

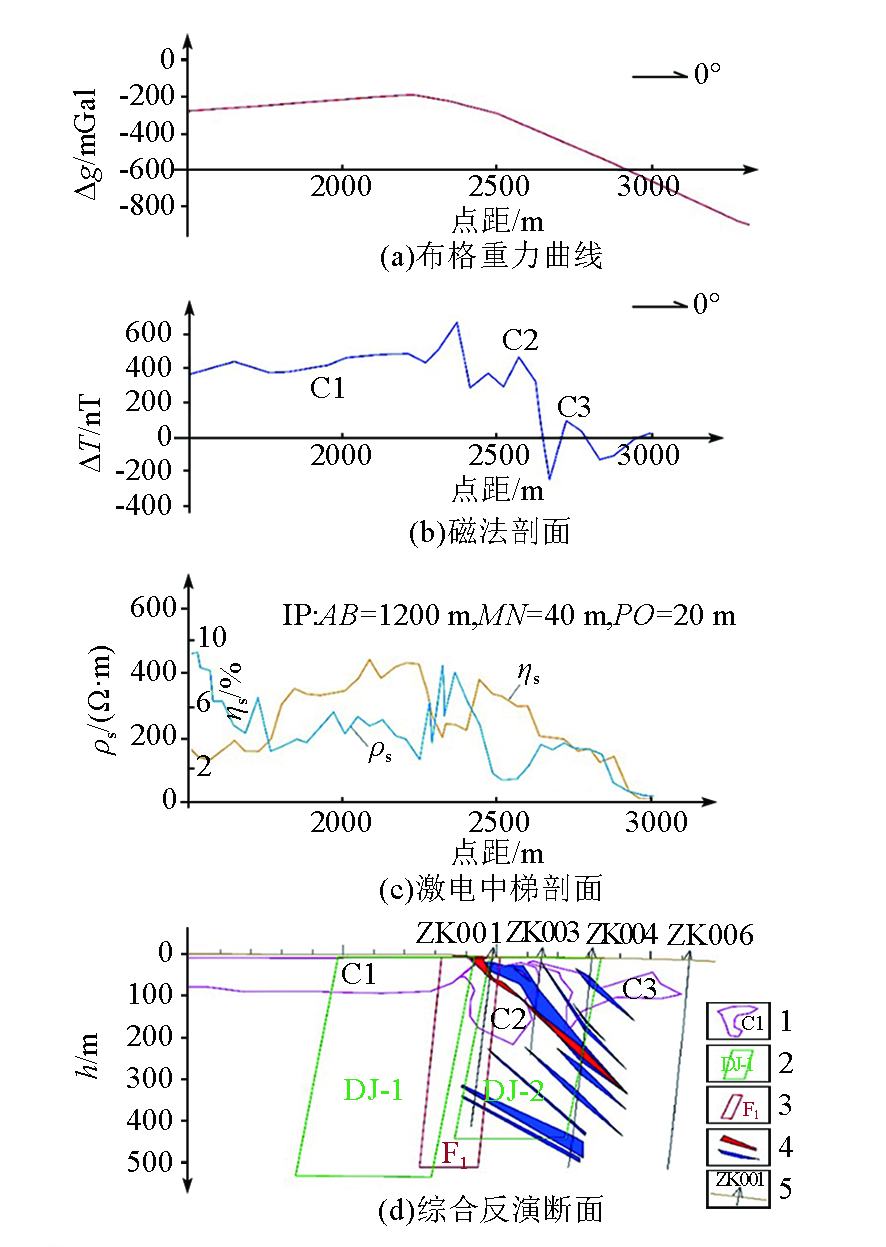

Diagram for models and profile anomalies by integrated geophysical prospecting on the Line 0 of the Weiquan mineral area
1—inverse high magnetic body and numbering;2—inverse high polarization body and numbering;3—IP intermediate gradient reflective high resistance tectonic zone;4—silver deposits in drilled holes and lead-zinc mineralizing deposits in drilled holes;5—the position and numbering of drilled holes

Table of the result for interpreted model on the Line 0 of the Weiquan mineral area

Table of the result for interpreted model on the Line 0 of the Yuebing mineral area

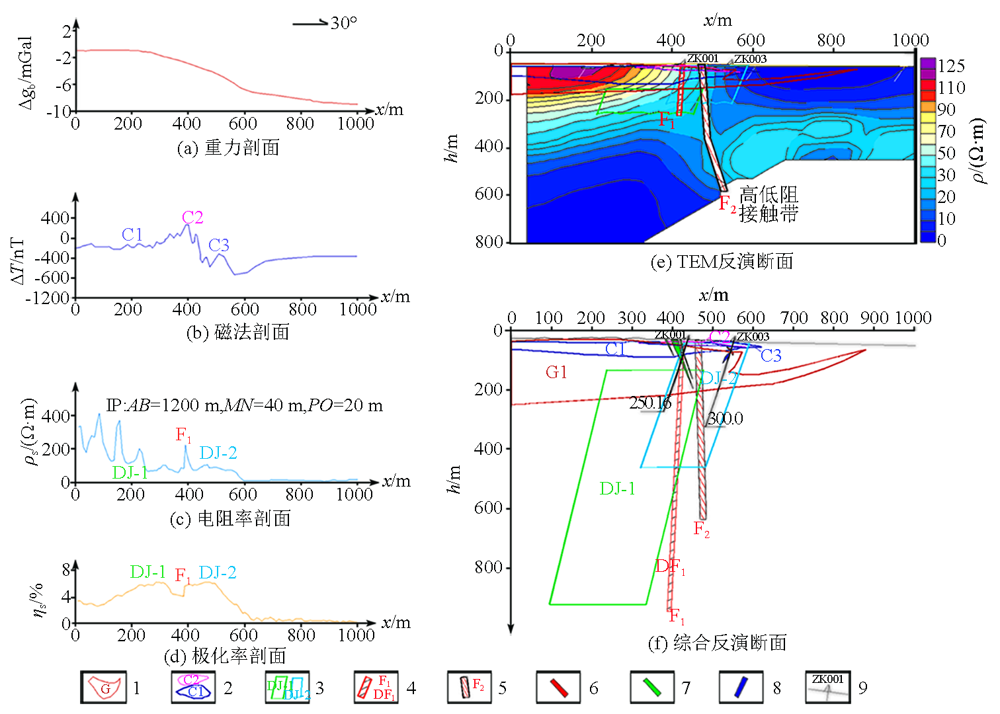

Diagram for models and profile anomalies by integrated geophysical prospecting on the Line 0 of the Yuebing mineral area
1—gravity inverse highly dense body ; 2—magnetic inverse high magnet and numbering;3—IP intermediate gradient inverse high polarization body and numbering ;4—IP intermediate gradient reflective high resistance tectonic zone(F₁);5—TEM reflective tectonic zone(F₂);6—silver deposits in drilled holes;7—copper deposits in drilled holes;8—lead-zinc mineralizing deposits in drilled holes;9—the position and numbering of drilled holes

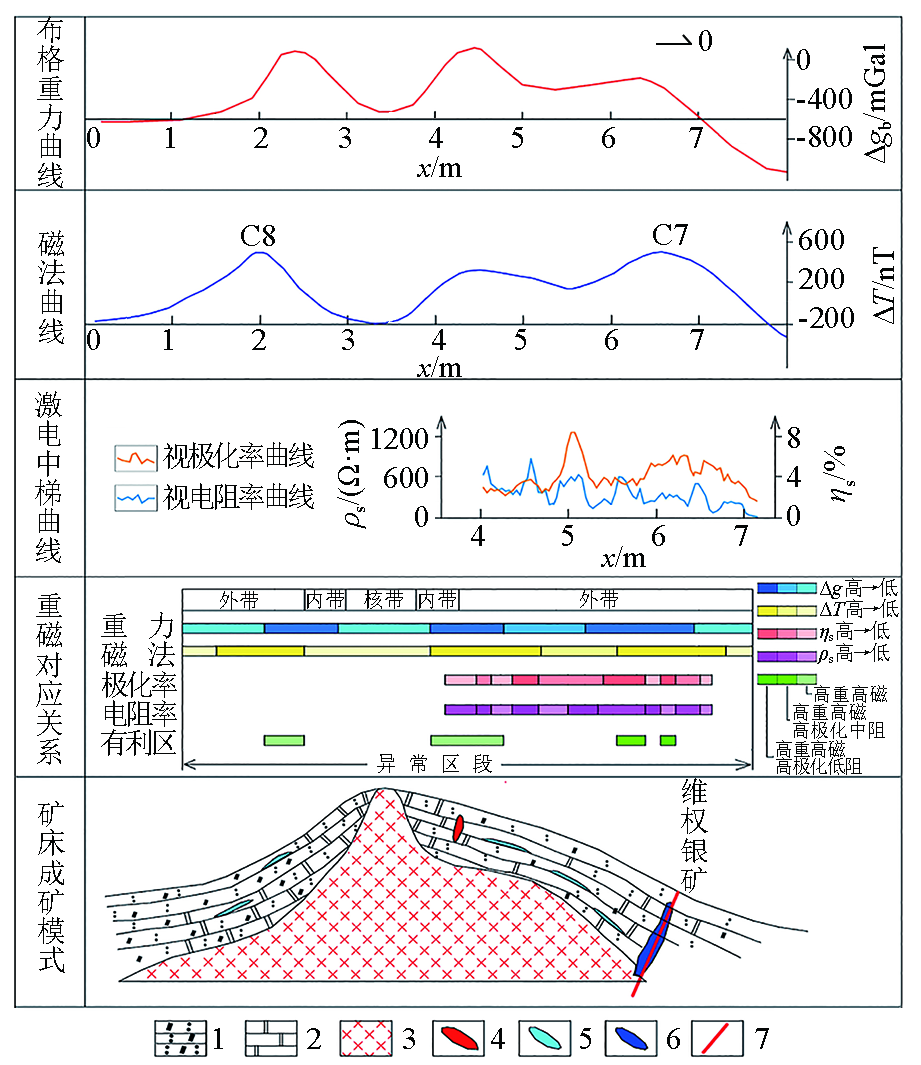

Correlation diagram of geophysical prospected anomalies in comparison with the geology and geophysics metallogenic model
1—volcanic sedimentary rock;2—volcanic sedimentary rock;3—acidic rock mass in Weiquan;4—iron mineralization;5—lead-zinc mineralization;6—copper-silver mineralization;7—secondary fault structure

[1]	秦跃群. 新疆首次发现中型银矿[J]. 新疆地质, 2001(4):67.
[1]	Qin Y Q. Medium-sized silver deposit has been firstly found[J]. Xinjiang Geology, 2001(4):67.
[2]	毛景文, 杨建民, 韩春明, 等. 东天山铜金多金属矿床成矿系统和成矿地球动力学模型[J]. 地球科学, 2002, 27(4):413-424.
[2]	Mao J W, Yang J M, Han C M, et al. Metallogenic systems of polymetallic copper and gold deposits and related metallogenic geodynamic model in Eastern Tianshan, Xinjiang[J]. Earth Science, 2002, 27(4):413-424.
[3]	曹晓明, 周贤旭, 钟浩. "就矿找矿"的认识与实践[J]. 东华理工大学学报:自然科学版, 2011, 34(1):51-56.
[3]	Cao X M, Zhou X X, Zhong H. The cognition and the practice of ore-prospecting nearby the existing deposits[J]. Journal of East China University of Technology:Natural Science, 2011, 34(1):51-56.
[4]	滕吉文. 强化第二深度空间金属矿产资源探查,加速发展地球物理勘探新技术与仪器设备的研制及产业化[J]. 地球物理学进展, 2010, 25(3):729-748.
[4]	Teng J W. Strengthening exploration of metallic minerals in the second depth space of the crust, accelerating development and industralization of new geophysical technology and instrumental equipment[J]. Progress in Geophysics, 2010, 25(3):729-748.
[5]	冯京, 高永宝, 王磊, 等. 新疆维权银多金属矿床地质特征及找矿方向[J]. 矿床地质, 2008, 27(5):559-569.
[5]	Feng J, Gao Y B, Wang L, et al. Geological characteristics and prospecting orientation of Weiquan silver-polymetallic deposit, Xinjiang[J]. Mineral Deposits, 2008, 27(5):559-569.
[6]	孟贵祥. 小热泉子铜矿区物探找矿效果及综合找矿模式[J]. 物探与化探, 2002, 26(1):35-41.
[6]	Meng G X. Affects of geophysical prospect and integrated prospecting model in Xiao Re Quan Zi copper deposits[J]. Geophysical and Geochemical Exploration, 2002, 26(1):35-41.
[7]	徐浩, 崔焕敏, 蔡煜琦, 等. 桃山—诸广岩体铀矿床地质—地球物理找矿模式探讨[J]. 东华理工大学学报:自然科学版, 2011, 34(4):315-322.
[7]	Xu H, Cui H M, Cai Y Q, et al. Study on Geology-geophysical Prospecting Model of Uranium Deposit of Taoshan-Zhuguangshan Rock[J]. Journal of East China University of Technology:Natural Science, 2011, 34(4):315-322.
[8]	蔡小苏, 蔡勋龙. 基于玛瑙山铁锰多金属矿综合地球物理找矿模式研究[J]. 中国金属通报, 2020(8):27-28.
[8]	Cai X S, Cai X L. Study on integrated geophysical prospecting model for Manaoshan mountain iron-manganese polymetallic deposit[J]. China Metal Bulletin, 2020(8):27-28.
[9]	姬厚贵, 郑健. 新疆鄯善县维权矿区普—详查报告[R]. 新疆地矿局第一地质大队, 2006.
[9]	Ji H G, Zheng J. Report on reconnaissance and preliminary exploration in Weiquan mineral area,Shanshan County,Xinjiang[R]. 2006.
[10]	孟贵祥, 庄道泽. 新疆鄯善县维权一带1∶5万电法试验报告[R]. 中国地质科学院矿产资源研究所, 2006.
[10]	Meng G X, Zhuang D Z. Report on test for electro-methods in 1∶50000 scale in Weiquan mineral area,Shanshan County,Xinjiang[R]. Institute of Mineral Resources Chinese Academy of Geological Sciences, 2006.
[11]	王龙生, 李华芹, 刘德权, 等. 新疆哈密维权银 (铜)矿床地质特征和成矿时代[J]. 矿床地质, 2005, 24(3): 280-284.
[11]	Wang L S, Li H Q, Liu D Q, et al. Geological characteristics and mineralization epoch of Weiquan silver (copper) deposit,Hami,Xinjiang,China[J]. Mineral Deposits, 2005, 24(3):280-284.
[12]	高永宝, 李文渊, 张照伟, 等. 新疆维权银多金属矿床成矿模式研究[J]. 矿物学报, 2007, 27(S1):255-257.
[12]	Gao Y B, Li W Y, Zhang Z W, et al. Study on metallogenic model in Weiquan silver polymetal ore deposit,Xinjiang[J]. Acta Mineralogica Sinica, 2007, 27(S1):255-257.
[13]	胡受溪, 周顺之, 刘孝善, 等. 矿床学[M]. 北京: 地质出版社, 1982.
[13]	Hu S X, Zhou S Z, Liu X S, et al. Mineral deposits[M]. Beijing: Geological Publishing House, 1982.
[14]	傅良魁. 激发极化法[M]. 北京: 地质出版社, 1982.
[14]	Fu L K. Induced polarization method[M]. Beijing: Geological Publishing House, 1982.
[15]	李金铭. 地电场与电法勘探[M]. 北京: 地质出版社, 2009.
[15]	Li J M. Geoelectro field and electro method exploration[M]. Beijing: Geological Publishing House, 2009.
