| Relationships between thermal structure characteristics and mineralization of the Xiangshan uranium ore field:A case study of the Zoujiashan deposit |
YIN Yong-Bing1,2( ), LI Hai-Ying3, LU Teng1,2, HAN Piao-Ping1,2, KONG De-Xu1,2, WAN Huan-Huan1,2, PANG Wen-Jing1,2, WU Zhi-Chun4 |
1. Nuclear Geology Brigade of Jiangxi Geological Bureau, Yingtan 335001, China
2. Jiangxi Energy and Mineral Geological Survey and Research Institute, Nanchang 330100, China
3. Mineral Exploration Institute of Jiangxi Geological Survey and Exploration Institute, Nanchang 330038, China
4. East China University of Technology, Nanchang 330000, China |
|
|
|
|
Abstract The Xiangshan ore field is the largest volcanogenic uranium ore field in China with abundant uranium resources and favorable geothermal geological conditions. However, few studies have been conducted on its thermal structure and mineralization characteristics,In order to solve this problem effectively. Taking the Zoujiashan super-large uranium deposit in the west of the ore field as a typical area, this study systematically investigated the thermal structure characteristics of the ore field, established the thermal structure model, and analyzed the relationships between heat generation and mineralization. The results are as follows. The thermal structure in the study area is of the hot-mantle and cold-crust type, which is in line with the characteristics of thermal structures in eastern China. The higher crustal heat flow in the area is closely related to the uranium source and uranium ore bodies, and the decay heat generation of radionuclides is the main source of the crustal heat flow. The thermal anomalies in the area are obviously controlled by faults, and the heat source is highly consistent with the uranium source. The geothermal gradient anomalies are one of the prospecting criteria of the area. Moreover, 4 ℃/100 m is the positioning marker of deposits, and the variation amplitude of geothermal gradients can be used as the positioning marker of rich and large ore bodies. This study provides effective technical support for the study of geothermal geology and metallogenic geology in this area.
|
|
Received: 26 January 2022
Published: 03 January 2023
|
|
|
|
|
|
|
Geological background and terrestrial heat flow distribution map of Xiangshan ore field
|
| 序号 | 地层代号 | 深度范围/m | 地温梯度/
(℃·km-1) | 热导率/
(W·m-1·K-1) | 实测热流值/
(mW·m-2) | 校正热流值/
(mW·m-2) | 资料来源 | | 1 | K1e2 | 100~260 | 20.17±0.8 | 3.25±0.2 | 65.6 | — | | 周文斌等,1992[9] | | 2 | K1d2 | 280~370 | 22.00±1.7 | 3.23±0.1 | 71.2 | 67.6 | | | 3 | K1e2 | 100~300 | 26.84±1.1 | 3.02 | 101.0 | 83.5 | | | 4 | K1e2 | 320~430 | 25.90±1.7 | 3.02 | 78.0 | 68.7 | | | 5 | K1e2 | 440~940 | 32.20±1.4 | 3.14±0.2 | 101.0 | 81.0 | |
|
Statistical table of regional terrestrial heat flow
|
|

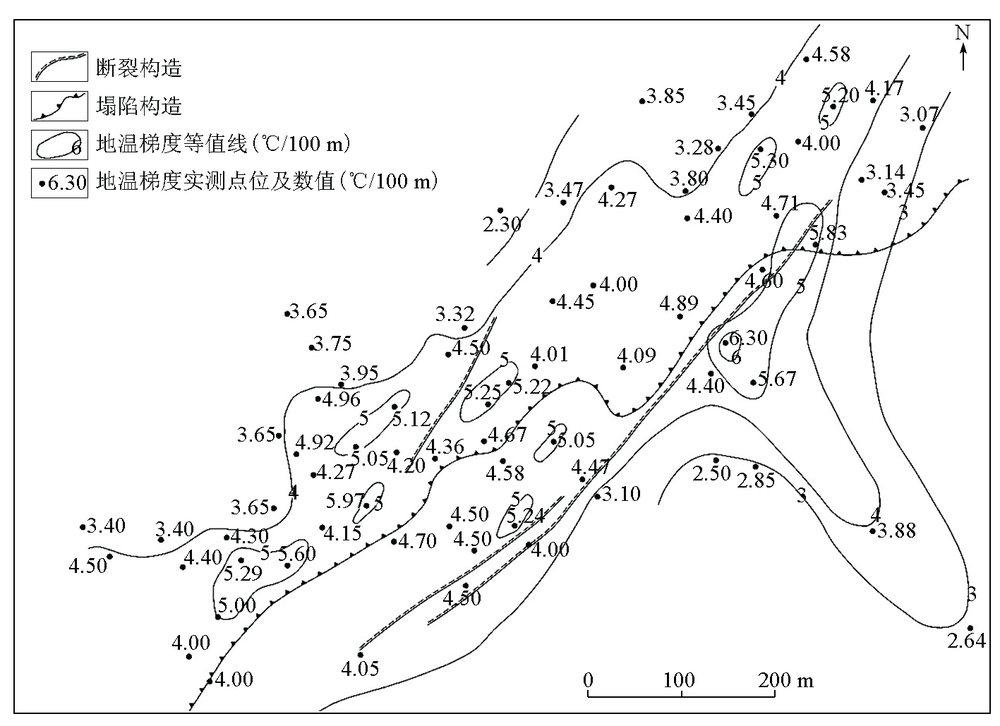

Plane contour map of geotemperature gradient of Zoujiashan deposit
|
| 结构层 | 顶界面深度/km | 底界面深度/km | Di/km | Vp/(km·s-1) | Ai/(μW·m-3) | qi/(mW·m-2) | 热流值/(mW·m-2) | | 地表 | — | — | — | — | — | — | 83.50(q0) | | 上地壳 | 0 | 0.89 | 0.89 | — | 4.39 | 3.91 | 79.59 | | 0.89 | 1.46 | 0.57 | — | 3.68 | 2.10 | 77.49 | | 1.46 | 6.12 | 4.66 | — | 1.51 | 7.04 | 70.45 | | 中地壳 | 6.12 | 10.83 | 4.71 | 5.92 | 1.32 | 6.22 | 64.23 | | 10.83 | 13.89 | 3.06 | 6.07 | 0.88 | 2.69 | 61.54 | | 13.89 | 16.69 | 2.80 | 6.09 | 0.83 | 2.32 | 59.22 | | 16.69 | 22.74 | 6.05 | 6.10 | 0.81 | 4.90 | 54.32 | | 下地壳 | 22.74 | 33.00 | 10.26 | 6.21 | 0.60 | 6.16 | 48.16 |
|
Calculation table of lithospheric thermal structure in the study area
|
|

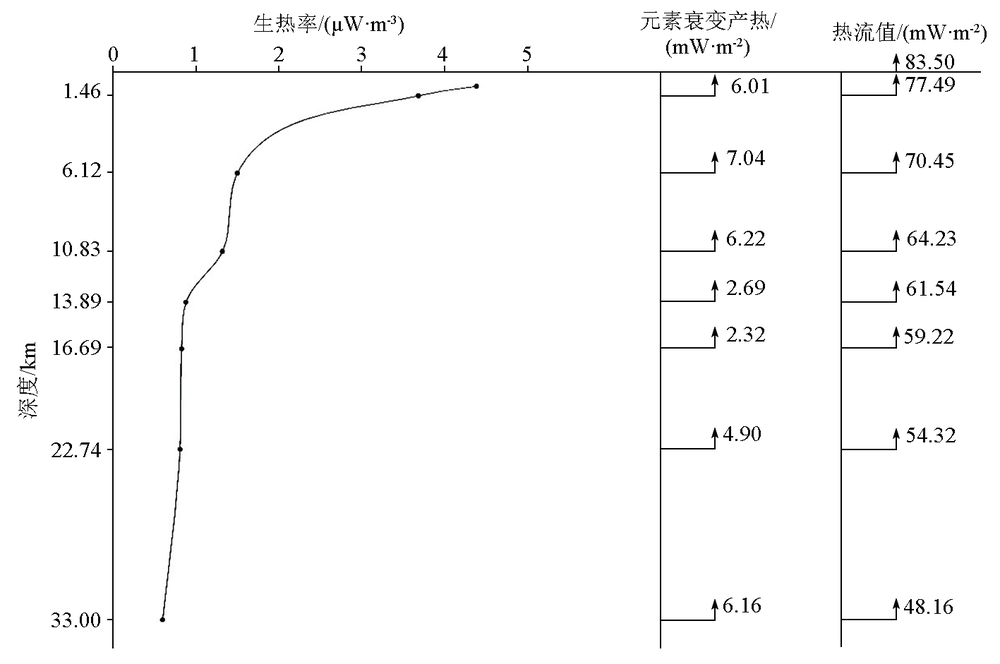

Heat generation rate model and thermal structure characteristics of the deposit
|
|

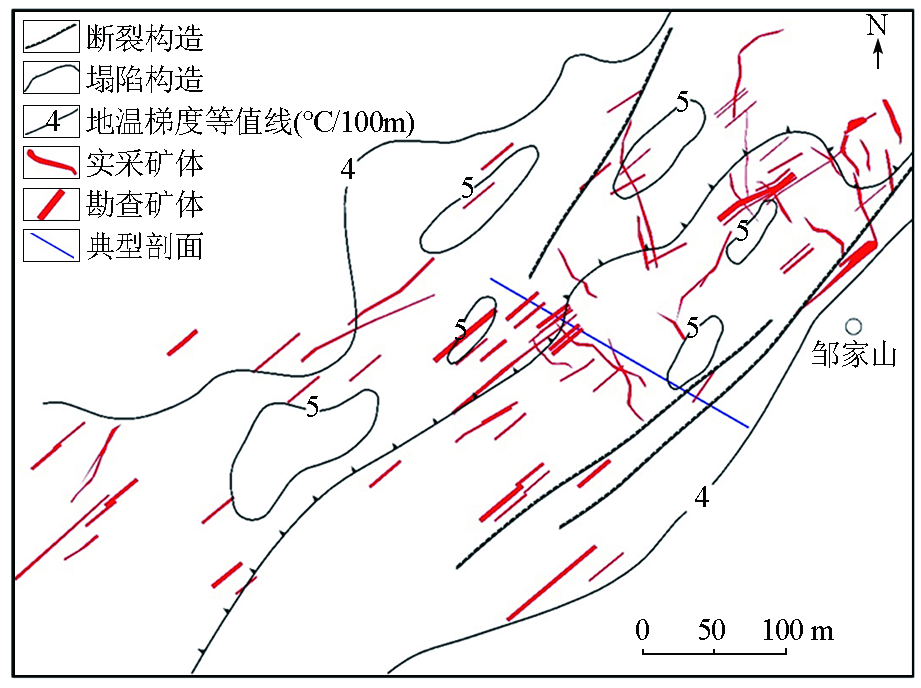

Plane projection of ground temperature and ore body in the study area
|
|

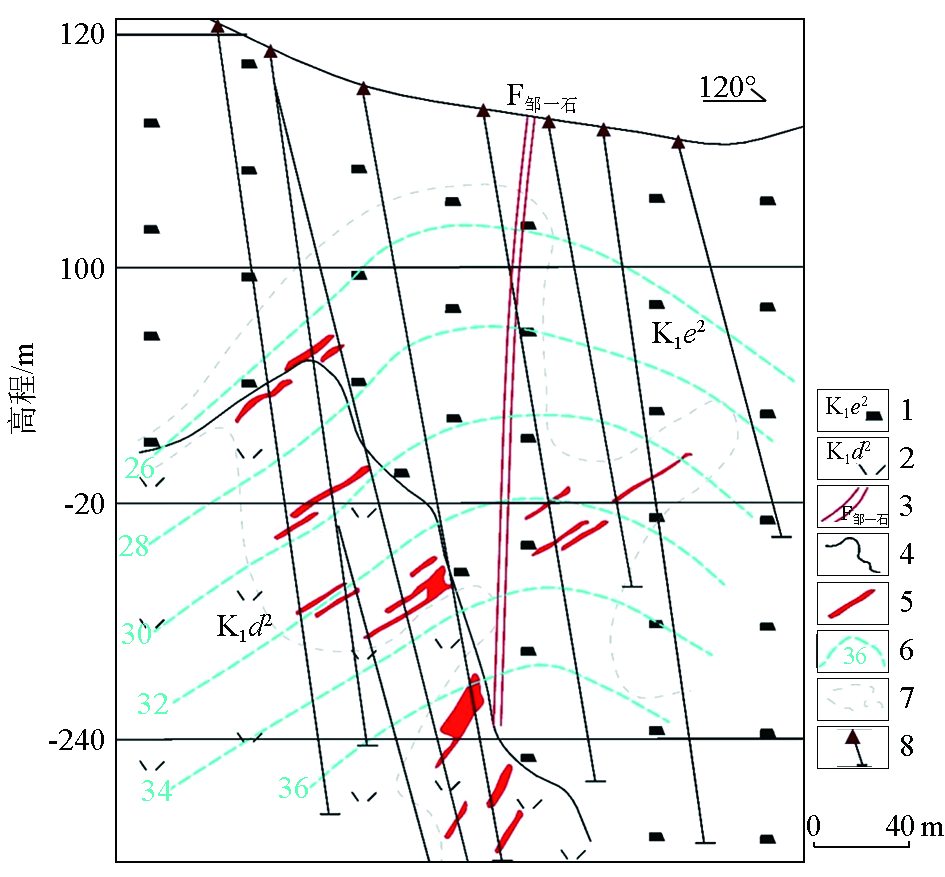

Profile of relationship between ground temperature and ore body in the study area
1—lower Cretaceous ehuling formation porphyry lava; 2—rhyolitic dacite of daguding formation in lower Cretaceous; 3—fault structure; 4—stratigraphic boundary; 5—industrial ore body; 6—geothermal isoline(℃); 7 —alteration zone range; 8—drill hole
|
