渤海油田渤中A构造太古宙潜山裂缝储层预测

doi:10.11720/wtyht.2021.2569

Abstract
Figure/Table
References
Related Citation (10)

Download: PDF (9647 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

Drilling has revealed that the Archean buried hill of BZ-A has great potential for natural gas exploration.In the target area,the metamorphic rock fracture reservoir in Archean buried hill has many problems such as great buried depth,strong heterogeneity of the reservoir and rapid lateral changes,which pose challenges to the exploration.Based on the study of the genetic mechanism of fractured reservoirs in buried hill,the authors comprehensively analyzed the features of the weathered fractured zone and the inner fractured zone,and established a targeted technical system for the description of fractured reservoirs in buried hill.For the weathered zone fractured reservoir,the pre-stack fracture reservoir porosity prediction technology based on the double-parameter was innovatively used,and the fracture reservoir porosity was predicted by the 3D elastic parameter analysis,and the distribution of the fractured reservoir in the weathered zone was finely described.For the inner fractured zone,the F-K domain coherence enhancement technique was used to improve the imaging of the buried hill.The method of edge enhanced crack detection based on clustering analysis was used to comprehensively characterize the distribution of reservoir in the inner fracture zone.Through the comprehensive application of targeted geophysical techniques, the exploration evaluation of BZ-A has been strongly promoted,thus providing a strong basis for the further exploration evaluation of the target area.

Key words： fracture reservoir Archean buried hill porosity prediction F-K coherence enhancement edge detection

Received: 05 December 2019 Published: 01 March 2021

ZTFLH:

P631.4

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Yao LI
	Xiao-Jie ZHANG
	Gong-Li LIU
	Min GONG

Cite this article:

Yao LI,Xiao-Jie ZHANG,Gong-Li LIU, et al. The prediction of Archean buried hill fracture reservoir in BZ-A structure of the Bohai oilfield[J]. Geophysical and Geochemical Exploration, 2021, 45(1): 37-45.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2021.2569 OR https://www.wutanyuhuatan.com/EN/Y2021/V45/I1/37

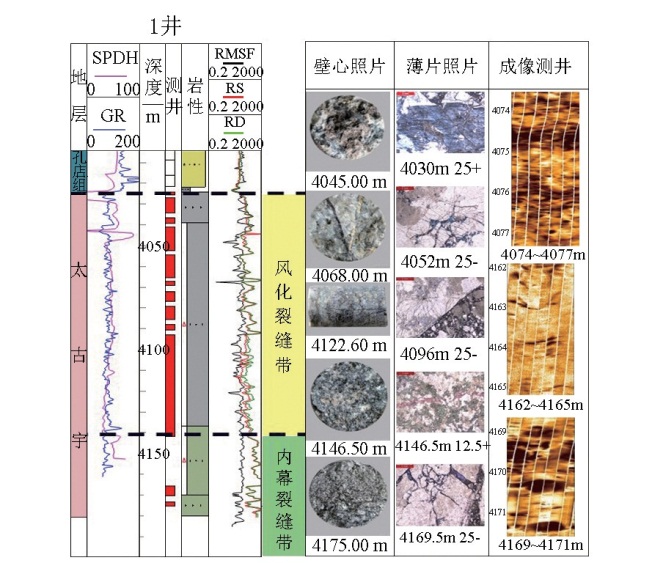

Zoning map of buried hill in well 1

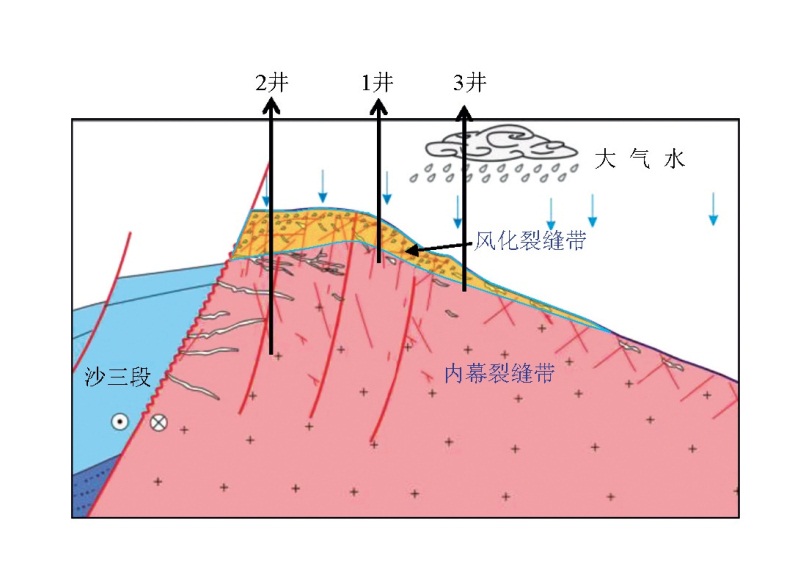

Fracture reservoir zoning pattern in buried hill

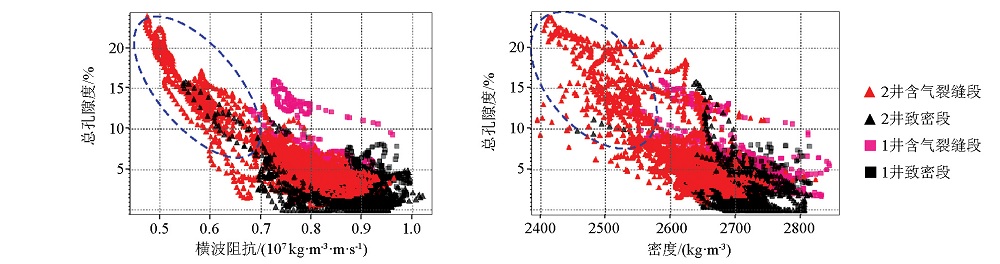

Well 1 and well 2 crossplot of elastic parameters

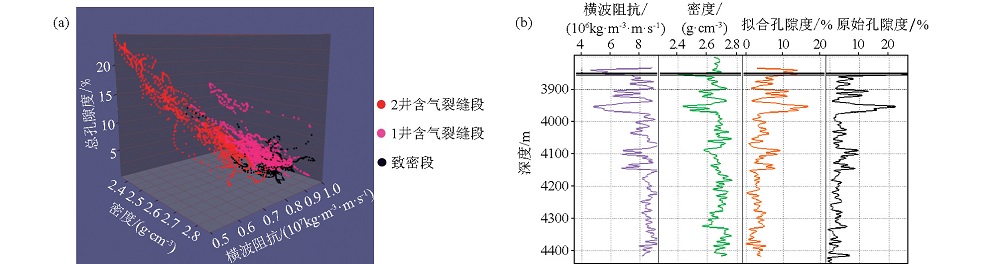

Fracture porosity fitting based on dual structure
a—3D elastic parameter analysis;b—prediction of fracture porosity curve

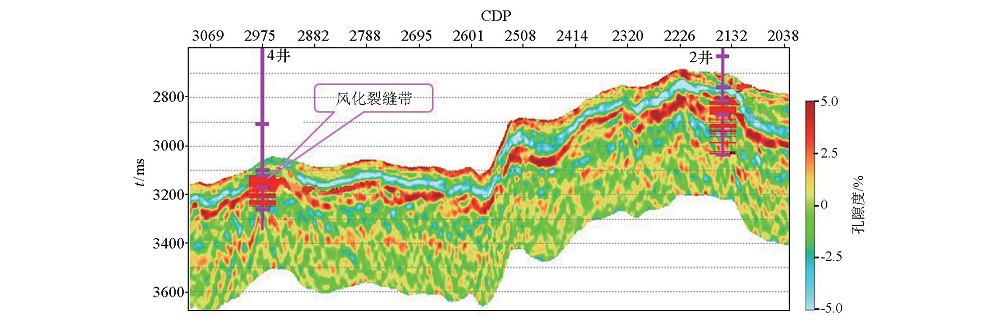

Porosity profile of pre-stack prediction

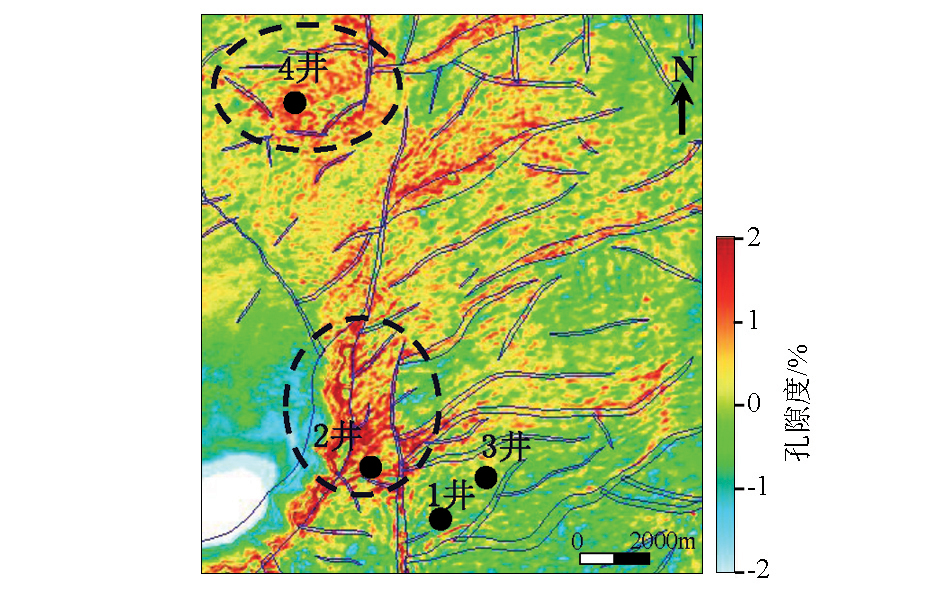

Plane attribute of the porosity

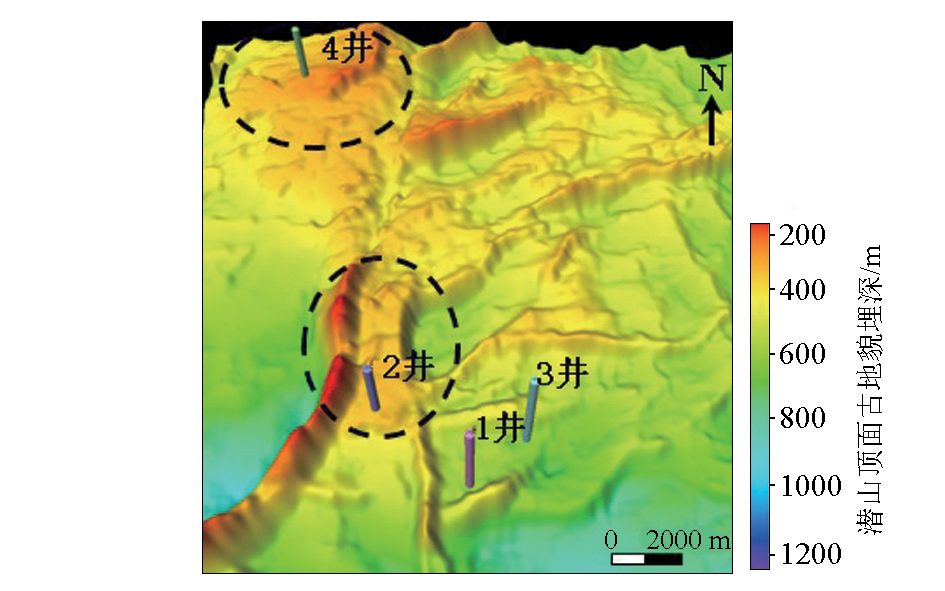

Paleogeomorphic map of buried hill top

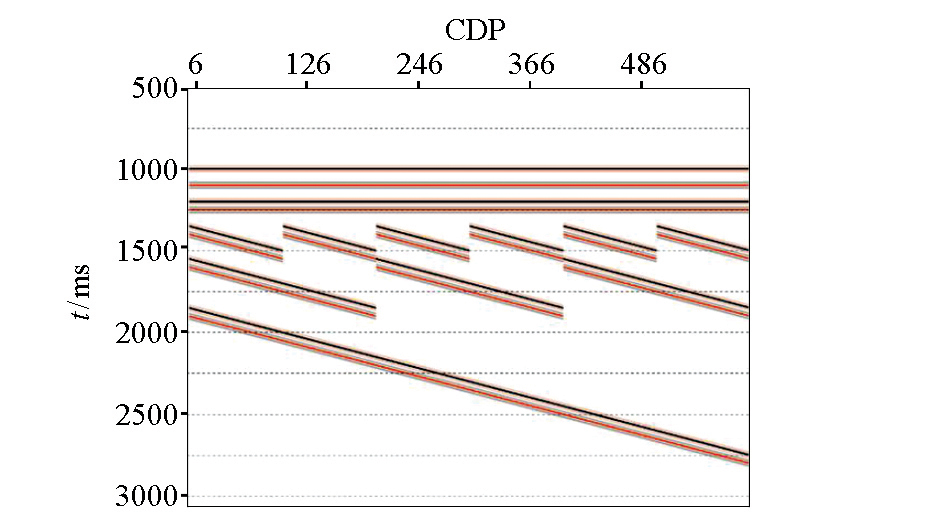

Noiseless model of steep reflection

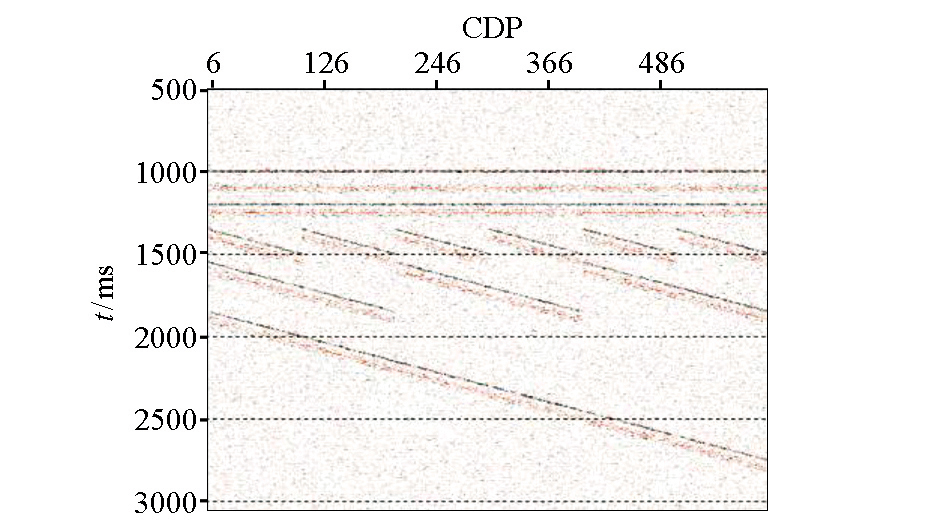

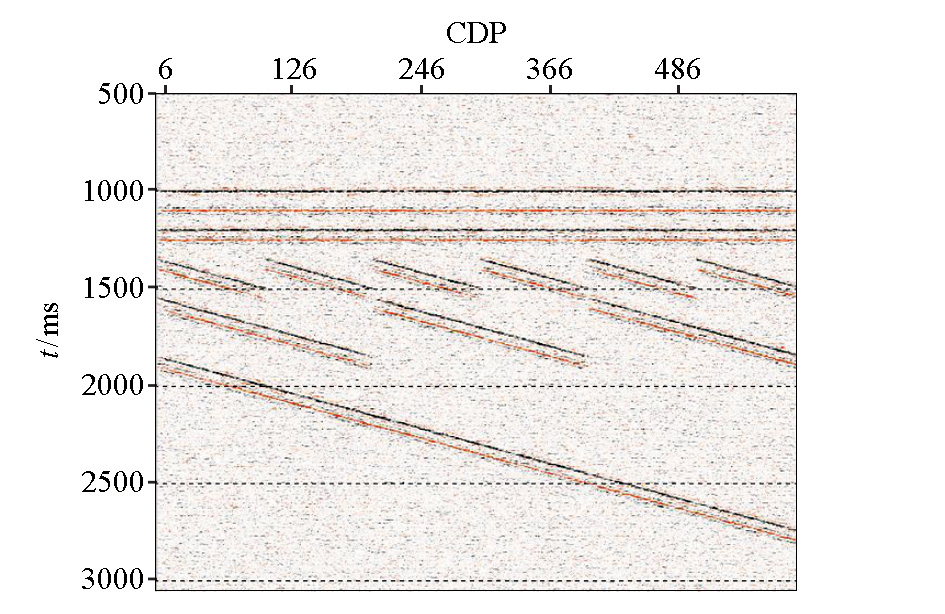

Noise model of steep reflection

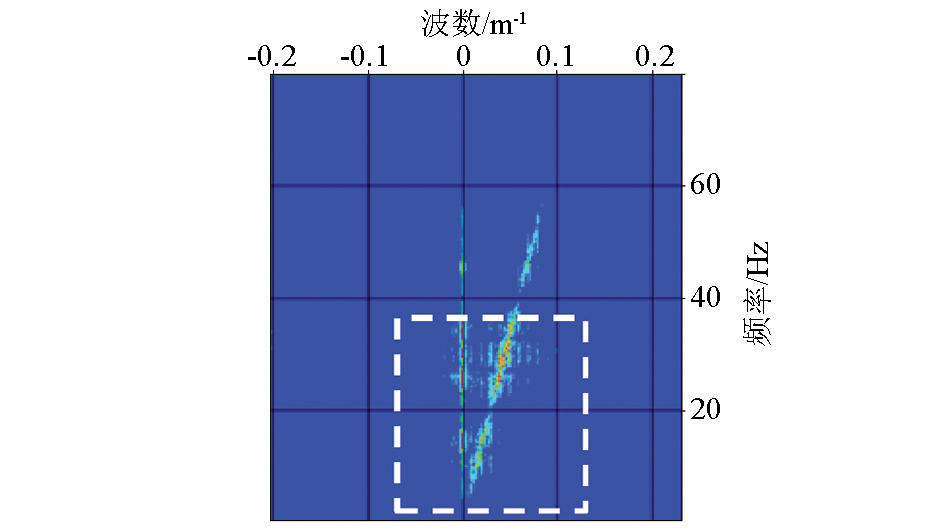

Noiseless model in F-K domain

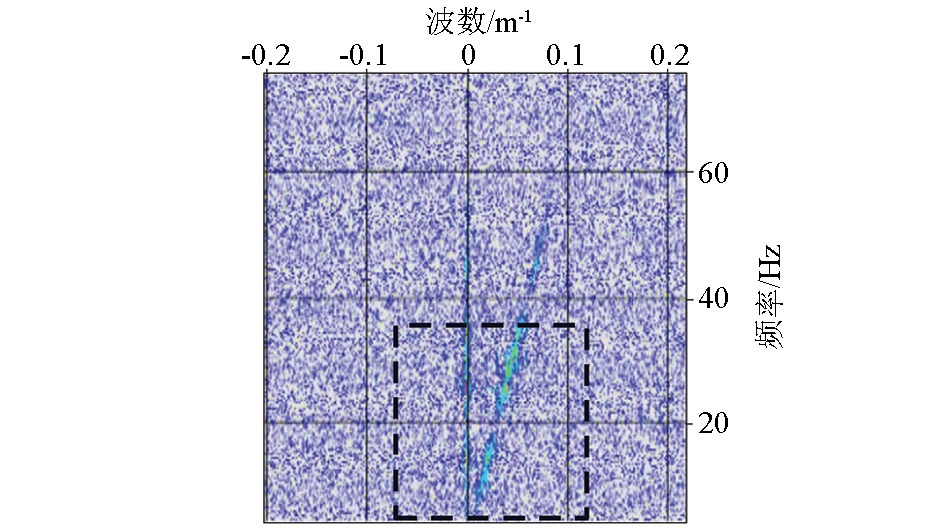

Noise model in F-K domain

F-K domain coherent enhanced model

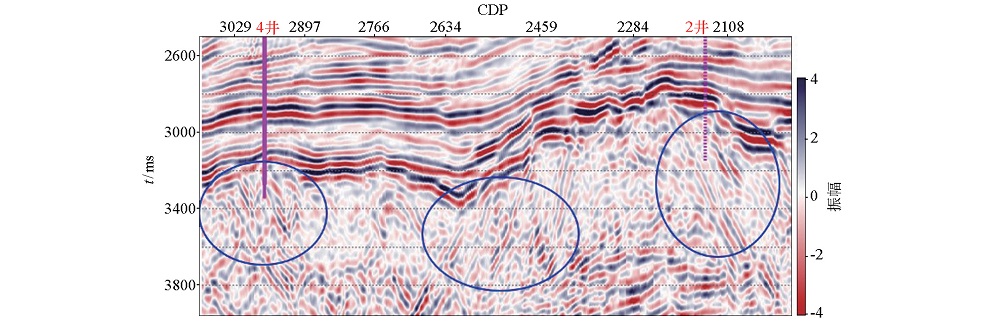

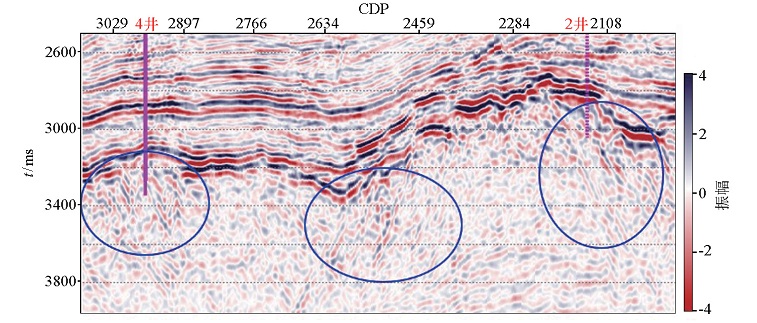

Seismic profile of original pure wave

Seismic profile after F-K domain coherent enhancement

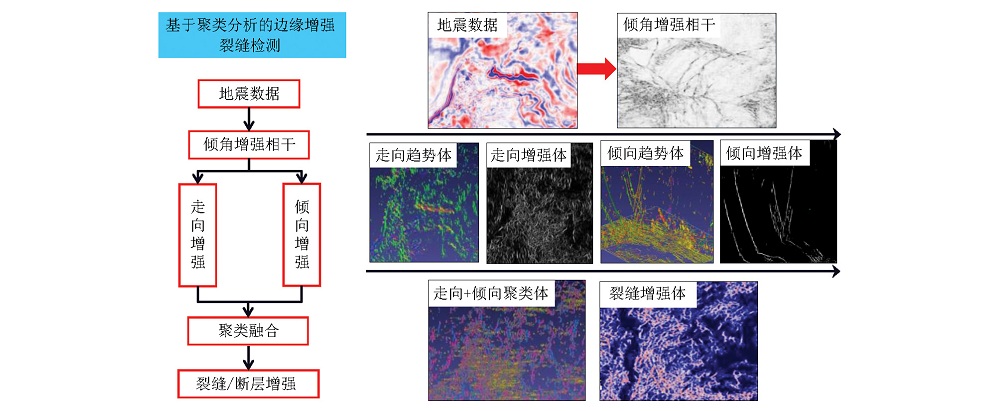

Flow of clustering analysis edge enhancement fracture detection

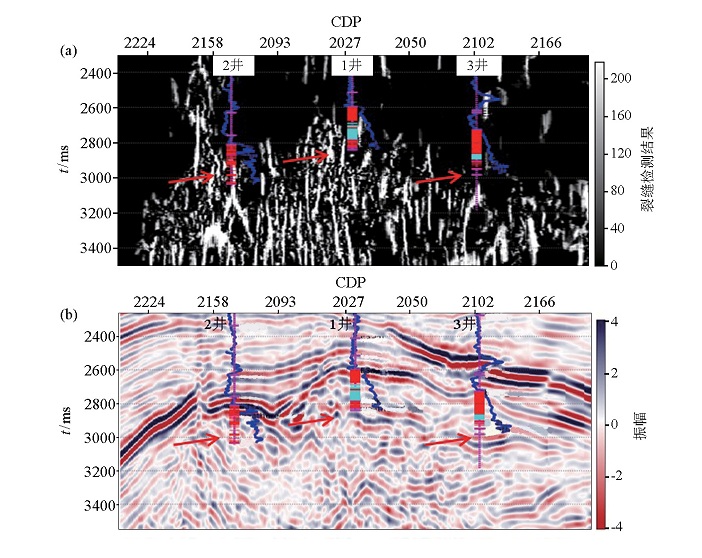

Result of bidirectional clustering edge enhancement fracture detection
a—profile of clustering edge enhancement fracture detection after F-K domain coherent enhancement;b—seismic profile after F-K domain coherent enhancement

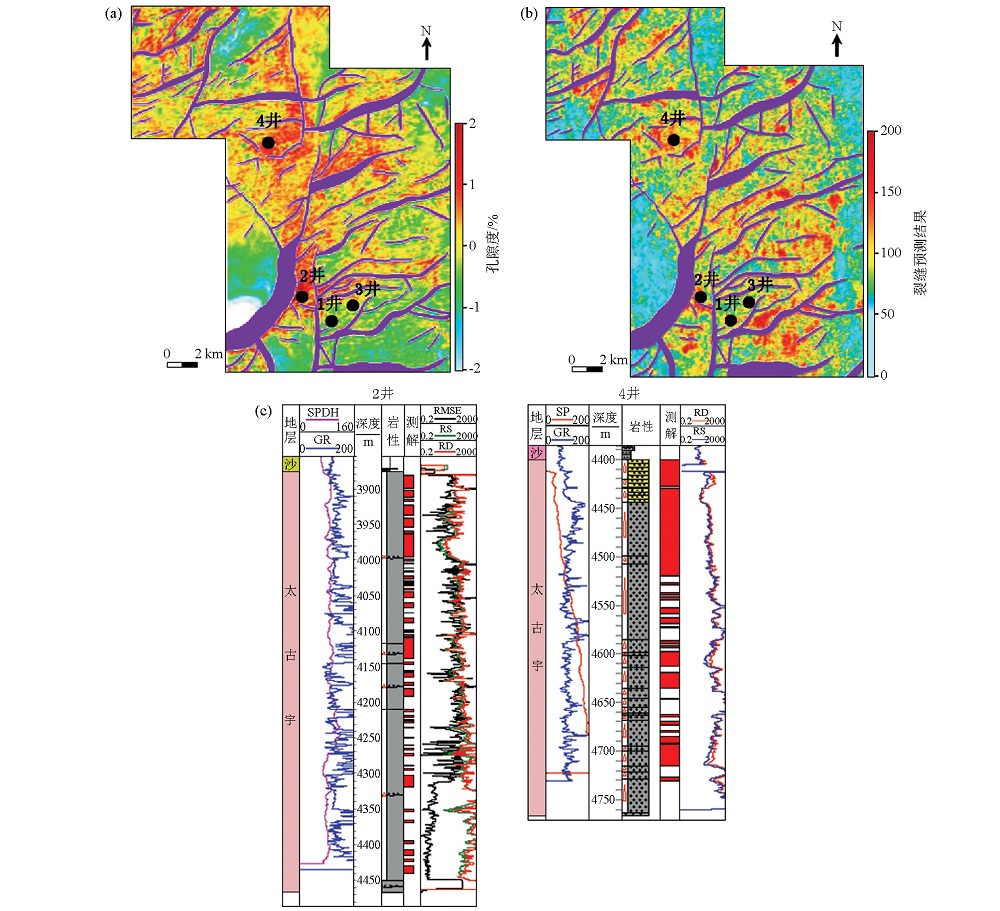

Comprehensive prediction effect of fractured reservoir in Archean buried hill
a—the distribution of the fractured reservoir in the weathered zone;b—the distribution of reservoir in the inner fracture zone;c—the drill bore column

[1]	刘振峰, 曲寿利, 孙建国, 等. 地震裂缝预测技术研究进展[J]. 石油物探, 2012,51(2):191-198.
[1]	Liu Z F, Qu S L, Sun J G, et al. Progress of seismic fracture characterization technology[J]. Geophysical Prospecting for Petroleum, 2012,51(2):191-198.
[2]	张吉昌, 刘增涛, 薛大力, 等. 变质岩潜山储层地震波组特征分析与应用[J]. 断块油气田, 2014,21(4):439-443.
[2]	Zhang J C, Liu Z T, Xue D L, et al. Analysis on seismic wave group features in metamorphic rock buried hill reservoir[J]. Fault-Block Oil & Gas Field, 2014,21(4):439-443.
[3]	韩雪芳, 朱筱敏, 董艳蕾. 辽东湾锦州25-1 南潜山变质岩储层四性特征研究[J]. 岩性油气藏, 2009,21(3):90-93.
[3]	Han X F, Zhu X M, Dong Y L. Four properties characteristics of JZ25-1S buried hill metamorphic reservoir in Liaodong Bay[J]. Lithologic Reservoirs, 2009,21(3):90-93.
[4]	周心怀, 史浩, 孙书滨, 等. 综合地震属性分析在JZS油气田太古界变质岩潜山储层预测中的应用[J]. 石油地球物理勘探, 2006,41(5):541-545.
[4]	Zhou X H, Shi H, Sun S B, et al. Application of comprehensive seismic attribute analysis in prediction of Archaean metamorphic rock buried-hill reservoir in JZS oil/gas field[J]. Oil Geophysical Prospecting, 2006,41(5):541-545.
[5]	石玉梅, 姚逢昌, 孙虎生, 等. 地震密度反演及地层孔隙度估计[J]. 地球物理学报, 2010,53(1):197-204.
[5]	Shi Y M, Yao F C, Sun H S, et al. Density invesion and porosity estimation[J]. Chinese Journal of Geophysics, 2010,53(1):197-204.
[6]	孙炜, 王彦春, 李梅, 等. 利用叠前地震数据预测火山岩储层裂缝[J]. 物探与化探, 2010,34(2):229-232.
[6]	Sun W, Wang Y C, Li M, et al. The detection of fractures in the volcanic reservoir with pre-stack seismic data[J]. Geophysical and Geochemical Exploration, 2010,34(2):229-232.
[7]	黄捍东, 汪佳蓓, 郭飞. 敏感参数分析在叠前反演流体识别中的应用[J]. 物探与化探, 2012,36(6):941-946.
[7]	Huang H D, Wang J B, Guo F. The application of sensitive parameters analysis to fluid identification based on pre-stack inversion[J]. Geophysical and Geochemical Exploration, 2012,36(6):941-946.
[8]	印兴耀, 曹丹评, 王保丽, 等. 基于叠前地震反演的流体识别方法研究进展[J]. 石油地球物理勘探, 2014,49(1):22-34,46.
[8]	Yin X Y, Cao D P, Wang B L, et al. Research progress of fluid discrimination with pre-stack seismic inversion[J]. Oil Geophysical Prospecting, 2014,49(1):22-34,46.
[9]	李尧. 基线差密度校正法的应用——以蓬莱9-1油田叠前反演处理为例[J]. 物探与化探, 2015,39(5):1020-1026.
[9]	Li Y. The application of density baseline differences correction — Taking the pre-stack inversion in the PL9-1 oilfield as an example[J]. Geophysical and Geochemical Exploration, 2015,39(5):1020-1026.
[10]	潘新朋, 张广智, 印兴耀. 岩石物理驱动的储层裂缝参数与物性参数概率地震反演方法[J]. 地球物理学报, 2018,61(2):683-696.
[10]	Pan X P, Zhang G Z, Yin X Y. Probabilistic seismic inversion for reservoir fracture and petrophysical parameters driven by rock-physics models[J]. Chinese Journal Geophysics, 2018,61(2):683-696.
[11]	傅旦丹, 林小竹, 李玉艳, 等. 三维地震勘探中强声波干扰的压制[J]. 石油物探, 2007,46(5):463-466.
[11]	Fu D D, Lin X Z, Li Y Y, et al. Suppression of strong acoustic interference in 3D seismic data[J]. Geophysical Prospecting for Petroleum, 2007,46(5):463-466.
[12]	闫立志, 景新义, 李刚, 等. F-K滤波在噪音减去法中的作用[J]. 海洋地质动态, 2006,22(10):28-32.
[12]	Yan L Z, Jing X Y, Li G, et al. The function of F-K filter in subtraction noise attenuation method[J]. Marine Geology Letters, 2006,22(10):28-32.
[13]	李宇, 韩立国, 叶林, 等. 基于F-K域和Curvelet-中值滤波联合去噪的混采数据分离方法[J]. 世界地质, 2017,36(2):609-615.
[13]	Li Y, Han L G, Ye L, et al. Blended acquisition data separation method based on F-K domain and Curvelet-median filter joint denoising[J]. Global Geology, 2017,36(2):609-615.
[14]	Marfurt K J. Robust estimates of 3D reflector dip and azimuth[J]. Geophysics, 2006,71(4):29-40.
[15]	Chopra S, Marfurt K J. Integration of coherence and volumetric curvature images[J]. The Leading Edge, 2010,29(9):1092-1107.
[16]	王连山, 朱庆忠, 董建海, 等. 三维多尺度边缘检测技术在古潜山裂缝性储层预测中的应用[J]. 特种油气藏, 2006,13(3):15-21.
[16]	Wang L S, Zhu Q Z, Dong J H, et al. Application of 3D multiple scale marginal detection technique in buried hill fractured reservoir prediction[J]. Special Oil and Gas Reservoirs, 2006,13(3):15-21.
[17]	陈波, 孙德胜, 朱筱敏, 等. 利用地震数据分频相干技术检测火山岩裂缝[J]. 石油地球物理勘探, 2011,46(5):610-613.
[17]	Chen B, Sun D S, Zhu X M, et al. Fracture detection in volcanic rocks using discreet frequency coherency cubes on full azimuth seismic data[J]. Oil Geophysical Prospecting, 2011,46(5):610-613.
[18]	谢风猛. 古潜山裂缝储层预测新方法[J]. 物探与化探, 2010,34(2):233-236.
[18]	Xie F M. The application of geometrical properties to predicting fracture type reservoirs[J]. Geophysical and Geochemical Exploration, 2010,34(2):233-236.
[19]	杨平, 李海银, 胡蕾, 等. 提高裂缝预测精度的解释性处理技术及其应用[J]. 石油物探, 2015,54(6):681-689.
[19]	Yang P, Li H Y, Hu L, et al. Interpretative processing techniques and their applications in improving fracture prediction accuracy[J]. Geophysical Prospecting for Petroleum, 2015,54(6):681-689.
[20]	尹川, 杜向东, 赵汝敏, 等. 小波分频倾角相干在复杂断裂解释中的应用[J]. 石油地球物理勘探, 2015,50(2):346-350.
[20]	Yin C, Du X D, Zhao R M, et al. Dip-steering similarity based on wavelet decomposition in complex fault interpretation[J]. Oil Geophysical Prospecting, 2015,50(2):346-350.
[21]	申有义, 田忠斌, 王建青, 等. 基于多尺度边缘检测技术的煤系灰岩裂缝分布预测[J]. 物探与化探, 2018,42(4):725-730.
[21]	Shen Y Y, Tian Z B, Wang J Q, et al. Fracture prediction of coal seam limestone based on multi-scale boundary detection method[J]. Geophysical and Geochemical Exploration, 2018,42(4):725-730.
