基于水合物指示因子的地震识别方法

doi:10.11720/wtyht.2021.2511

Abstract
Figure/Table
References
Related Citation (11)

Download: PDF (8354 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

Compared with the post-stack inversion,coupling features in impedance are complex.The pre-stack inversion can make full use of the information such as the amplitude and travel time and frequency of the prestack seismic data,more diverse logging data and geology,and yields geophysical parameters that are highly correlated with hydrate saturation.Seismic rock physics modeling of hydrate reservoirs is the basis for hydrate-oriented prestack inversion.Considering the microscopic pore structure and composition characteristics of hydrate reservoir rocks,this paper introduces SCA-DEM rock physics modeling methods.The influence of physicochemical parameters on the elastic characteristics of rock and its role in AVO characteristics are analyzed.The geophysical response of hydrates is discussed and a new hydrate seismic indicator is constructed.Seismic rock physics analysis shows that the indicator has a high correlation with hydrate saturation.Then,the seismic reflection equation based on hydrate indicator is derived and the feasibility analysis of the inversion is carried out. Finally, based on geological prior, we get the indicator using the actual pre-stack data and logging data in the Qiongdongnan sea of South China Sea.The real data application shows that the method has certain practicability and scientificity.

Key words： hydrate indicator rock physics pre-stack inversion Qiongdongnan area

Received: 13 November 2019 Published: 01 March 2021

ZTFLH:

P631.4

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Wei DENG
	Jin-Qiang LIANG
	Tong ZHONG
	Yu-Lin HE
	Miao-Miao MENG

Cite this article:

Wei DENG,Jin-Qiang LIANG,Tong ZHONG, et al. Hydrate identification based on hydrate indicator[J]. Geophysical and Geochemical Exploration, 2021, 45(1): 57-67.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2021.2511 OR https://www.wutanyuhuatan.com/EN/Y2021/V45/I1/57

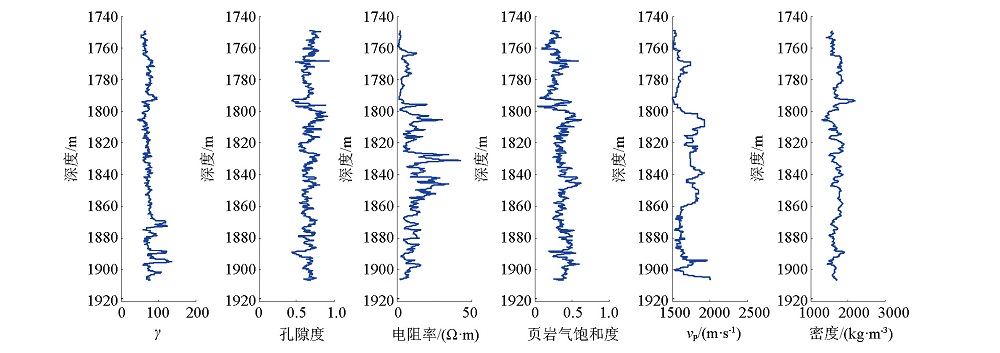

Log data of a typical hydrate-bearing well in Qiongdongnan area of South China Sea

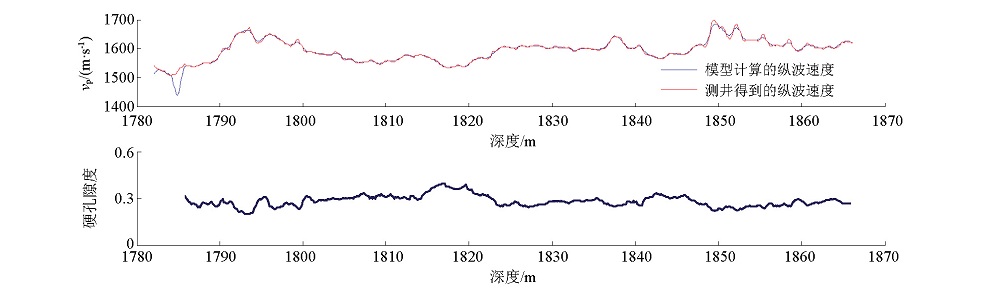

Modeling results with corresponding hard porosity

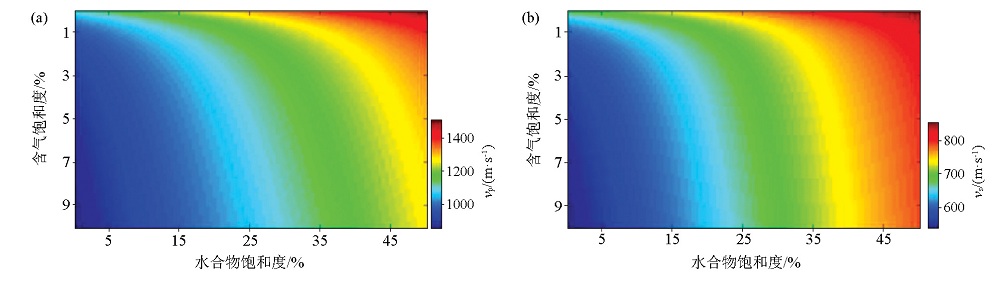

Velocity corresponding to different gas saturation and hydrate saturation when porosity is 45%

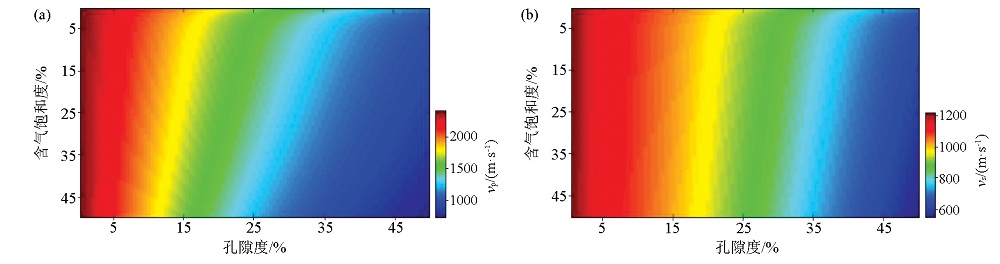

a—P-velocity corresponding to different gas saturation and hydrate saturation;b—S-velocity corresponding to different gas saturation and hydrate saturation

Velocity corresponding to different gas saturation and porosity
a—P-velocity corresponding to different gas saturation and porosity;b—S-velocity corresponding to different gas saturation and porosity

Velocity corresponding to porosity at different gas saturations

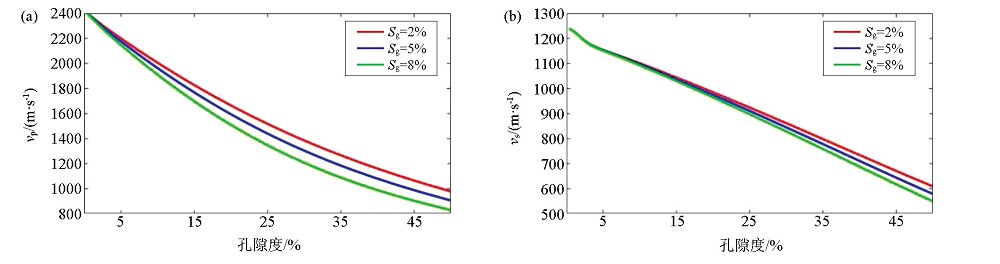

a—P-velocity corresponding to different porosity;b—S-velocity corresponding to different porosity

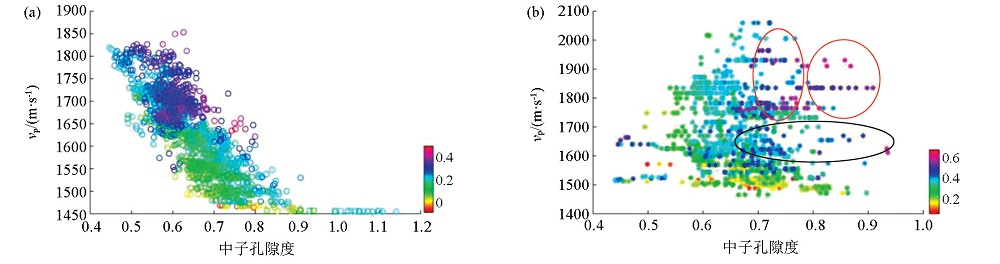

Typical high saturation hydrate and P-velocity corresponding to porosity with a no hydrate-bearing well in Qiongdongnan area of South China Sea
a—P-velocity corresponding to porosity in w1 well;b—S-velocity corresponding to porosity in w2 well

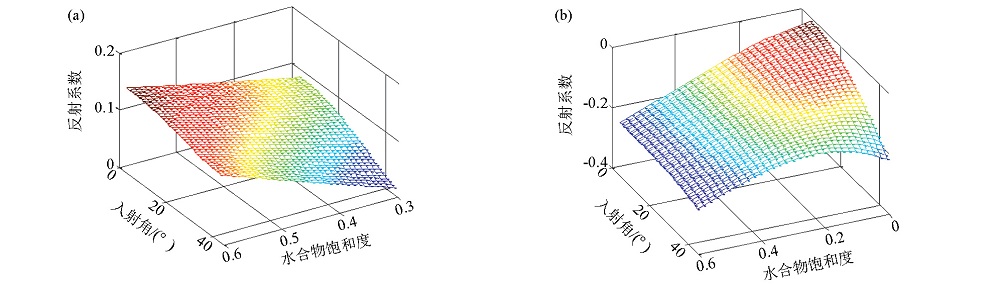

Modeled AVO at the hydrate top and bottom
a—AVO at the hydrate top;b—AVO at the hydrate bottom

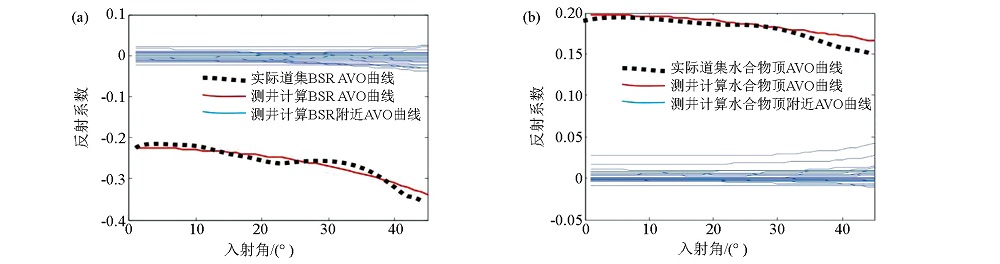

AVO at the hydrate top and bottom in w3 well
a—AVO at the hydrate bottom;b—AVO at the hydrate top

Relation between hydrate saturation and porosity

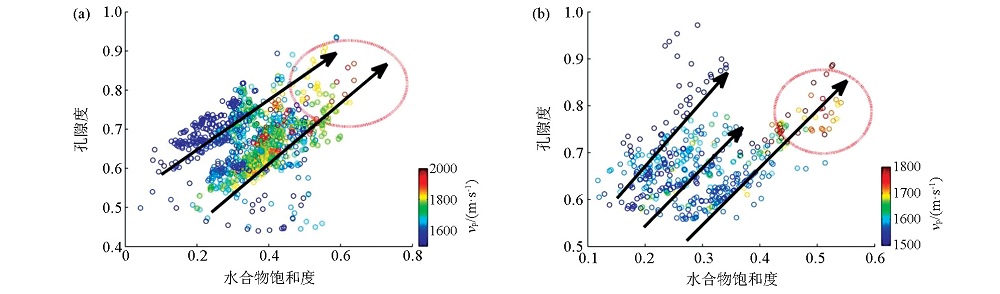

a—relation between hydrate stauration and porosity in w2 well;b—relation between hydrate stauration and porosity in w3 well

Crossplots of F^p and P-velocity and P-impedance in w2 well

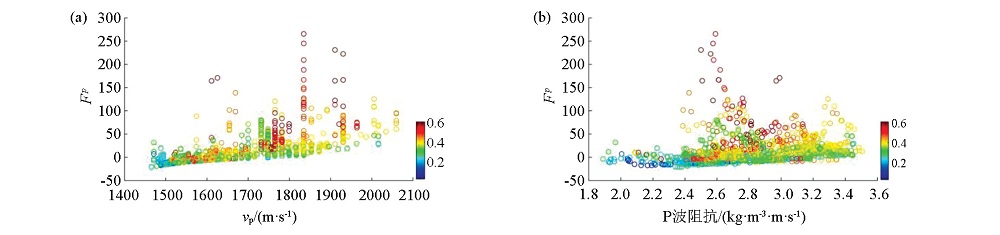

a—crossplot of F^p and P-velocity;b—crossplot of F^p and P-impedance

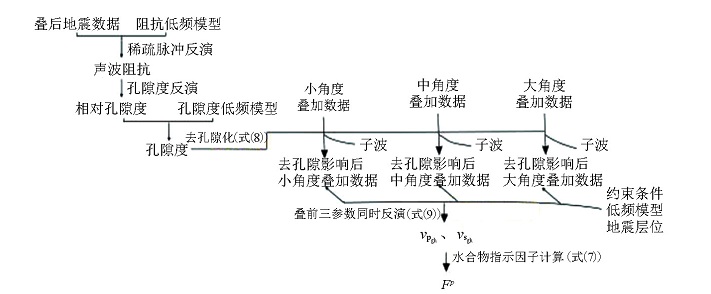

Flow chart of hydrate indicator inversion

The target seismic section in Qiongdongnan area

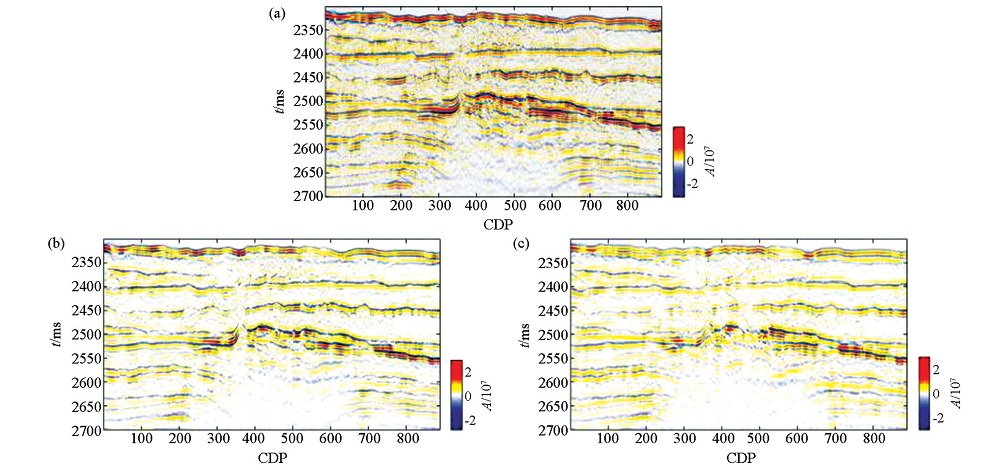

a—small angle partial angle stack seismic data(1°~10°);b—middle angle partial angle stack seismic data(11°~20°);c—big angle partial angle stack seismic data(21°~30°)

Inverted results of porosity

v?p(a) and

v ? s

(b)
">

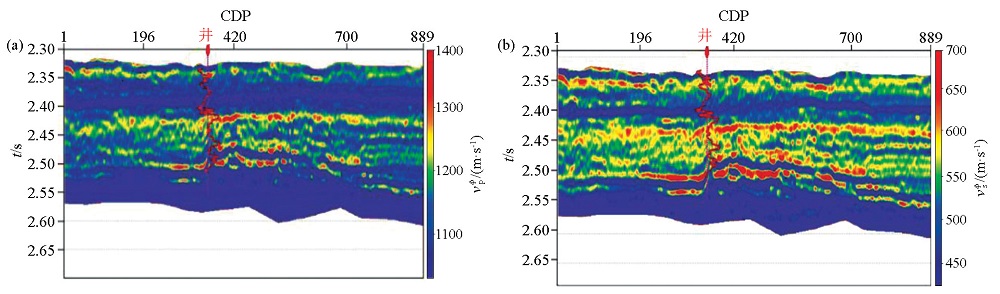

Inverted results of $v ? p$ (a) and $v ? s$ (b)

Inverted results of F^p

Relation between P-impedance and porosity reflection coefficient in Qiongdongnan area of South China Sea
a—relation between P-impedance and porosity in w1 well;b—relation between P-impedance and porosity in w2 well

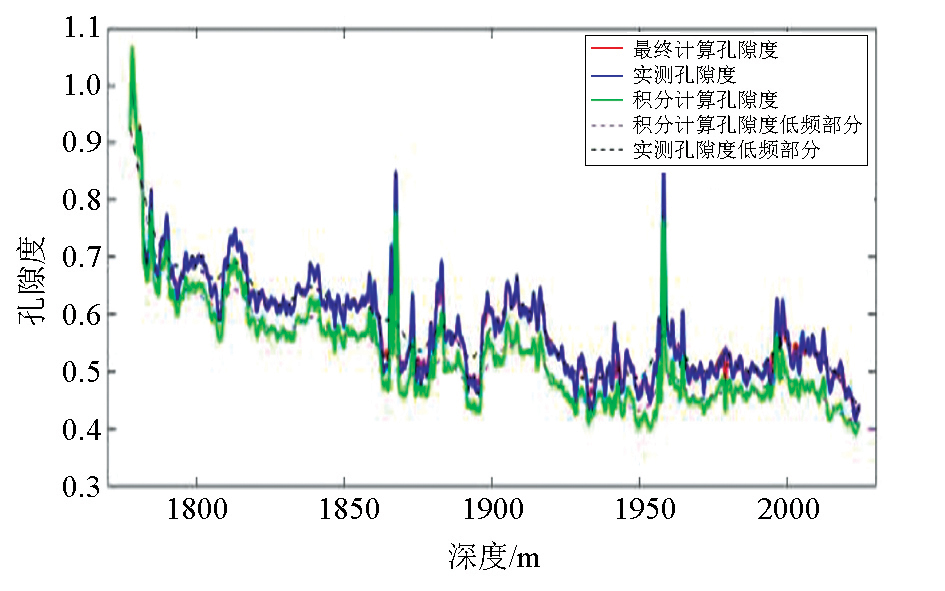

Inverted porosity in w1 well

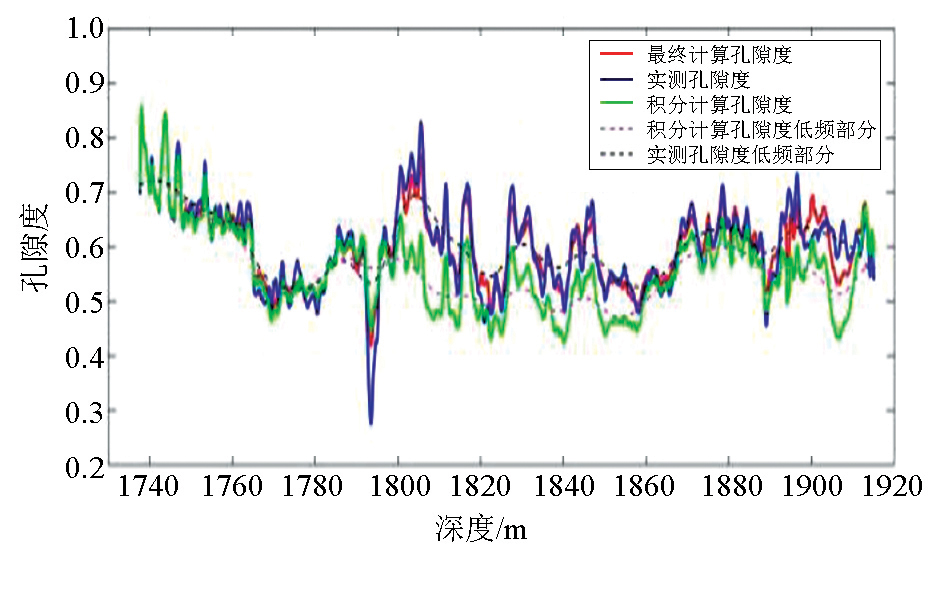

Inverted porosity in w2 well
