干旱荒漠区综合物化探方法寻找铜多金属矿

doi:10.11720/wtyht.2021.1237

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (4612 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

In order to study the combination of effective geophysical and geochemical prospecting methods in mineral inspection work in arid desert areas and to achieve regional mineral prospecting breakthroughs, the authors conducted the mineral survey work in an arid desert area in the Heiyingshan area of Inner Mongolia. Geophysical and geochemical methods were used in search for copper polymetallic deposits. Geological survey, high-power IP, high-precision magnetic survey at a scale of 1∶10 000 and thermomagnetic component soil measurement (1∶50 000) were carried out in the survey area. IP anomalies and magnetic anomalies were delineated, and characteristics of multi-element combination were revealed after data processing. The controllable source audio magnetotelluric sounding profiles were arranged in the locations of the IP anomalies and the anomaly concentration places of the elements to determine the downward distribution of the two high conductivity anomalies. The trench reveals that strong silicification, skarnization and malachite mineralization occur at the contact zone between the albite-actinolite-schist mixed with metamorphic quartz sandstone in the Gongpoquan Formation and the marble. The content of Cu and Ag in the samples reaches the boundarygrade. The ore-search prospects in the survey area are good and further work should be carried out.

Key words： arid desert area integrated method polymetallic deposit Inner Mongolia

Received: 30 April 2020 Published: 01 March 2021

ZTFLH:

P632

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Sheng-Ping GONG
	Gui-Fu LU
	Ming-Jie XI
	Sheng-Ming MA
	Wen-Li SU

Cite this article:

Sheng-Ping GONG,Gui-Fu LU,Ming-Jie XI, et al. The application of integrated geophysical and geochemical methods to the prospecting of copper polymetallic deposits in the arid desert area[J]. Geophysical and Geochemical Exploration, 2021, 45(1): 1-10.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2021.1237 OR https://www.wutanyuhuatan.com/EN/Y2021/V45/I1/1

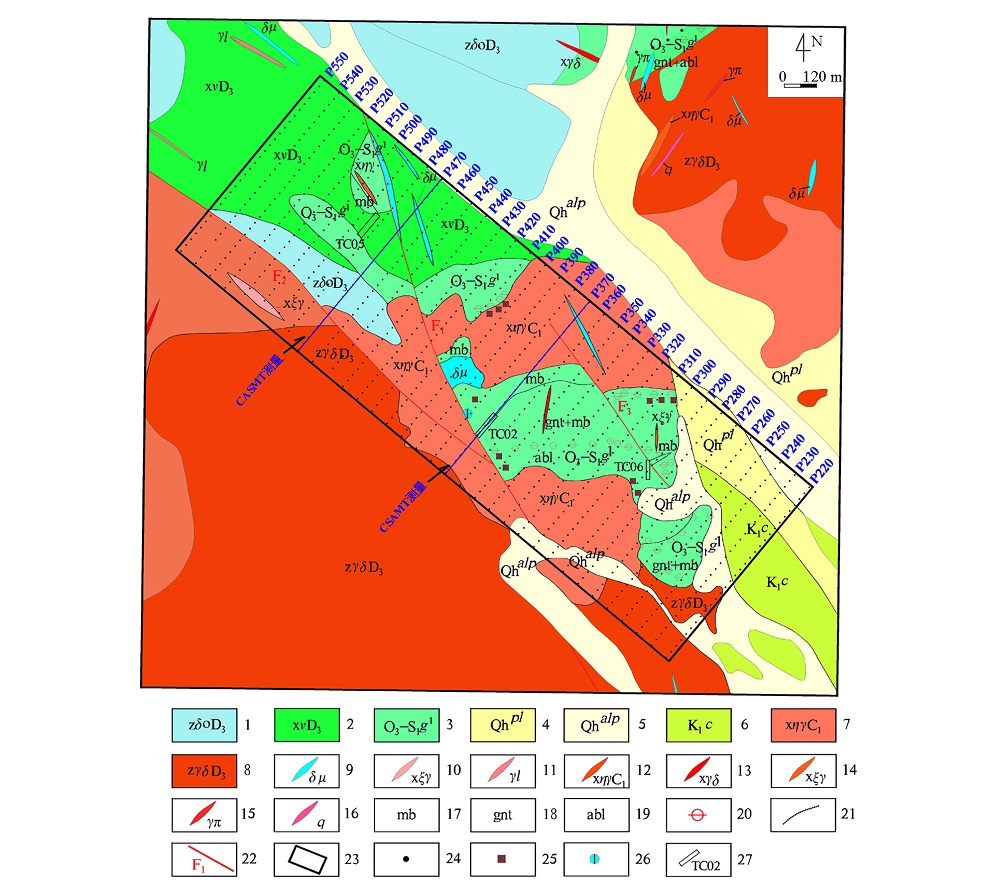

Geological map and work arrangement in the survey area
1—medium-grained quartz diorite; 2—fine-grained hornblende gabbro; 3—metagranite of the first member of Gongpoquan formation in upper Ordovician-lower Silurian; 4—sandy gravel, silt, fine sand of Quaternary Holocene; 5—alluvial deposits of Quaternary Holocene; 6—gravel-bearing sandy soil of Chijinbao formation of Mesozoic; 7—fine-grained monzonitic granite; 8—medium-grained granodiorite; 9—blue-gray diorite porphyrite vein;10—red meat fine-grained K-feldspar granite; 11—granite acelite; 12—fine-grained monzonite vein; 13—fine-grained granodiorite; 14—fine-grained syenogranite; 15—fine-grained granite porphyry vein; 16—quartz vein; 17—marble; 18—metagranite; 19—albite-actinolite-schist; 20—skarnization; 21—lithofacies boundary; 22—fault structure; 23—survey area; 24—geophysical and geochemical survey points; 25—limonite mineralization; 26—Cu-Zn mineralization station; 27—trough location and number

Physical properties of the rock

Fig.1,and Fig.3~Fig.6 are the same
">

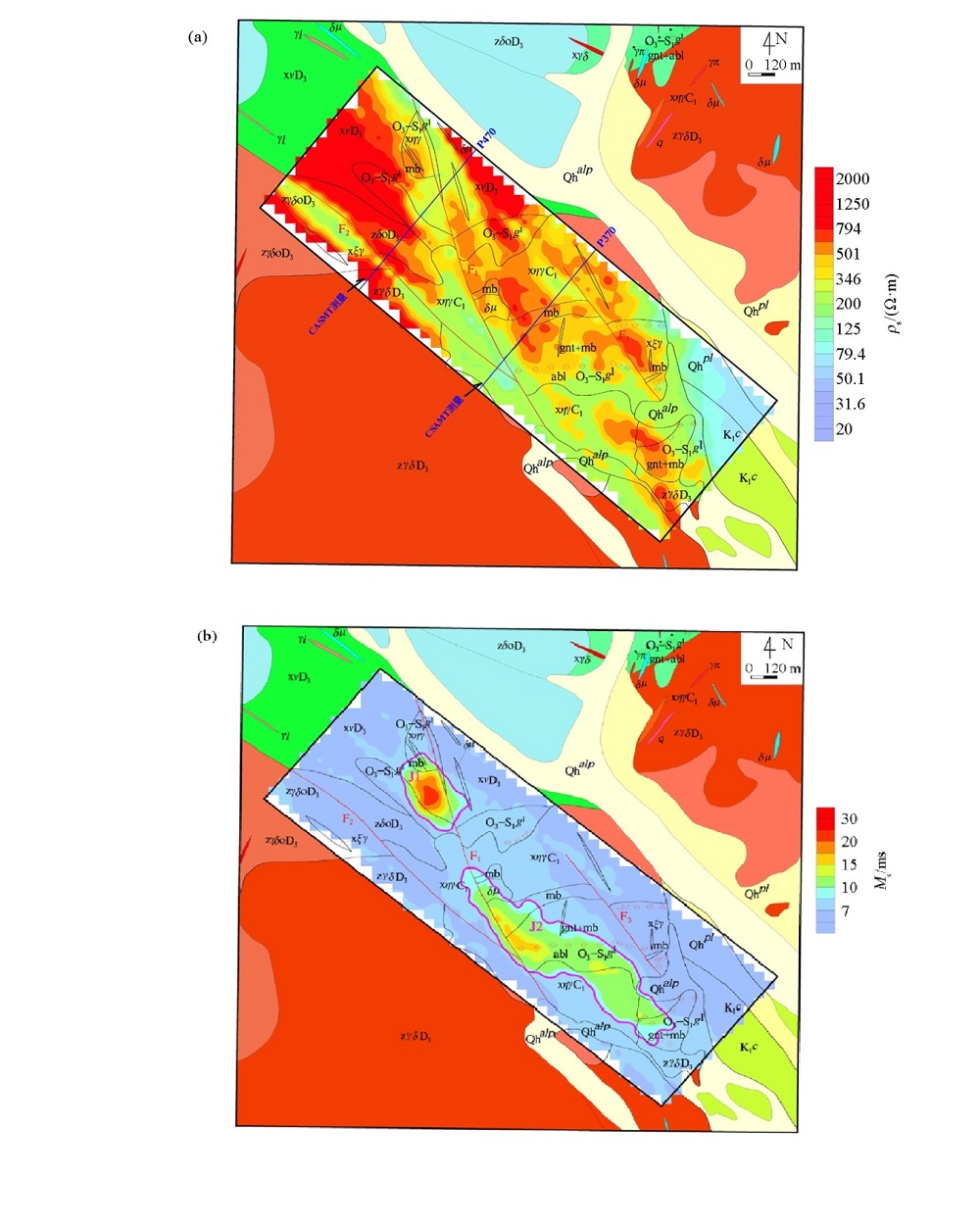

Contour maps of the apparent resistivity(a) and apparent chargeability(b) of the TDIP survey
a—the plan view of apparent resistivity;b—the plan view of apparent chargeability;the fracture is measured by geological means, and the geophysical color unit is only used in the survey area,the geological legend is shown in Fig.1,and Fig.3~Fig.6 are the same

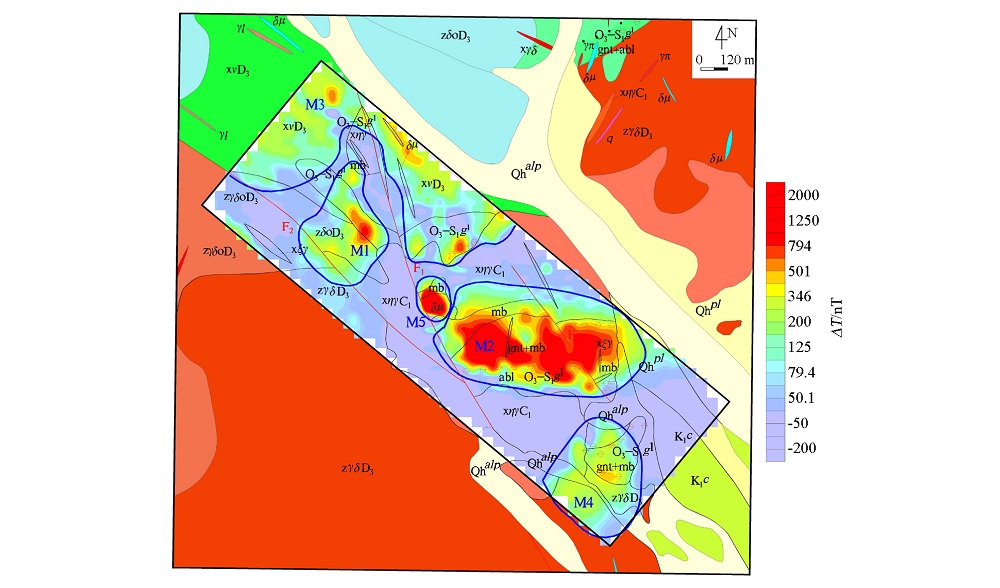

Contour map of magnetic anomalies after pole reduction

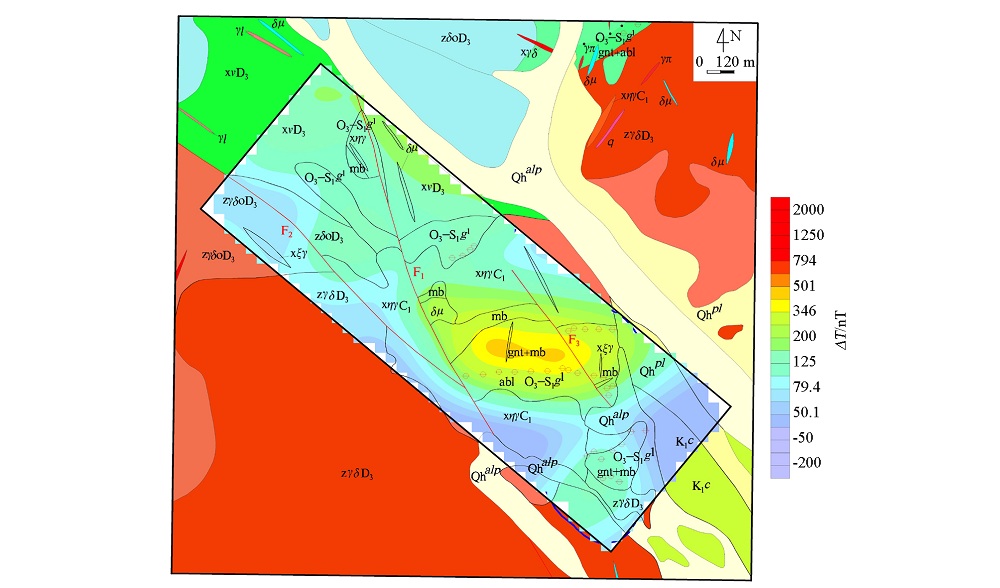

Contour map of magnetic anomalies after upward extension 200 m

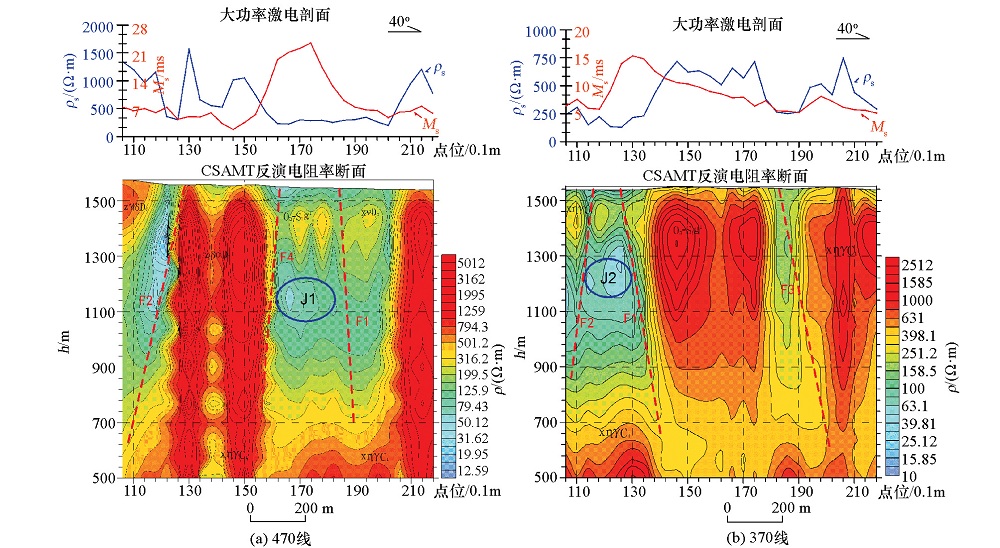

Integrated electrical survey profiles and inferred interpretation map of 470 line(a), 370 line(b)

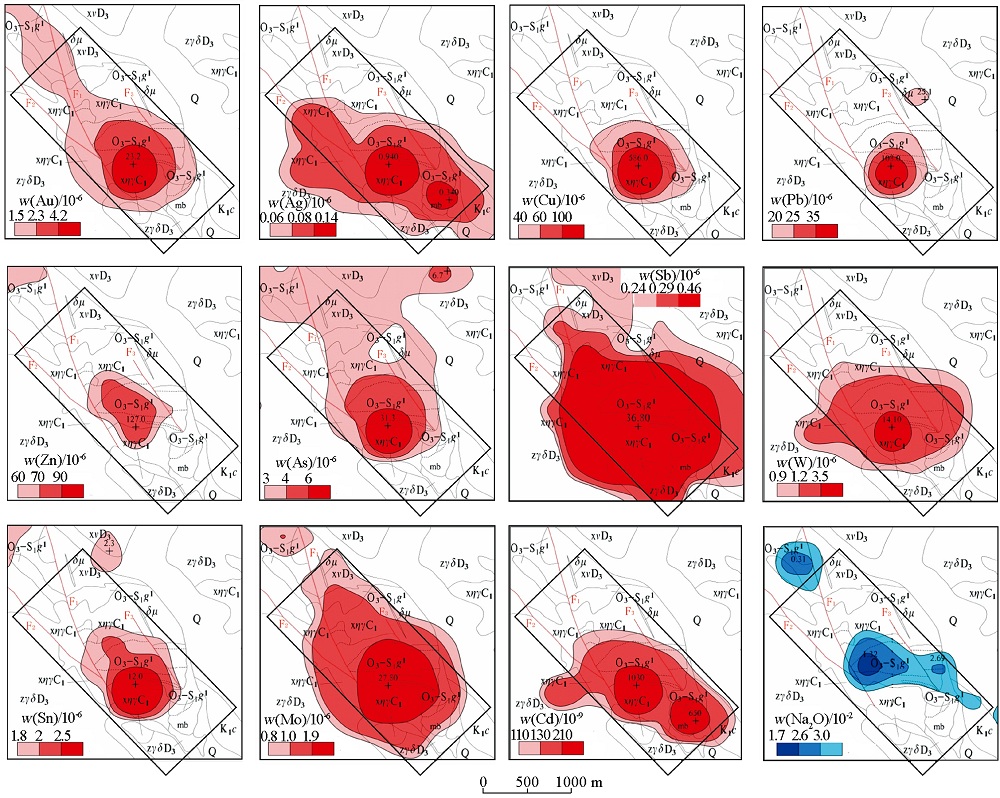

Analyze map of geochemical anomalies

Statistics of geochemical anomalies

Analysis results of the grooved samples in the survey area
