The research on the application of geological prediction technology to Zhangjihuai railway tunnel |
CAI Sheng |
China Railway Siyuan Survey and Design Group Co.,Ltd.,Wuhan 430063,China |
|
|
Abstract The geological conditions of Zhangjihuai railway is complex,the structure and karst are extensively developed,and hence the risk of construction is high.Based on the construction of Zhangjihuai railway,this paper expounds the difficulties,prediction principles and key geophysical techniques of the railway tunnel geological prediction,and summarizes a set of technologies for the railway tunnel geological prediction.The practical examples show that the five-step method is useful in geological prediction,the surface exploration data are important for dividing the key sections for macroscopic control,the long-distance prediction and short-distance prediction of geophysical exploration technology should be used together,and the advance drilling must be used to verify the geophysical exploration anomalies,so that the prediction work can be a closed-loop, which is conducive to avoiding risks and reducing false reports.The whole set of advanced forecast technologies of Zhangjihuai railway is feasible and useful,which is worthy of spreading.
|
Received: 07 May 2020
Published: 15 December 2021
|
|
|
|
|
步骤 | 方法 | 工作内容 | 作用 | 第一阶段 | 资料收集整理 | 施工前期资料收集,地勘资料再分析 | 理解隧道宏观地质情况 | 第二阶段 | 划分重点段落 | 结合第一阶段综合资料,划分风险等级,确定预报方案 | 明确预报工作重点,重点段落加强预报 | 第三阶段 | 长距离预报 | 通过TSP对100~150 m以内的大型构造、大型溶洞的识别与定位 | 对前方围岩进行宏观评价,为进一步探测提供靶区 | 第四阶段 | 中短距离预报 | 在TSP预报的异常段,布置中短距离探测方法 | 裂隙水探测采用瞬变电磁,其他异常体采用探地雷达进一步定位 | 第五阶段 | 超前钻探 | 超前水平钻孔对物探异常进行验证 | 钻探验证的异常进行施工预警 |
|
Five stages of geological prediction process
|
|

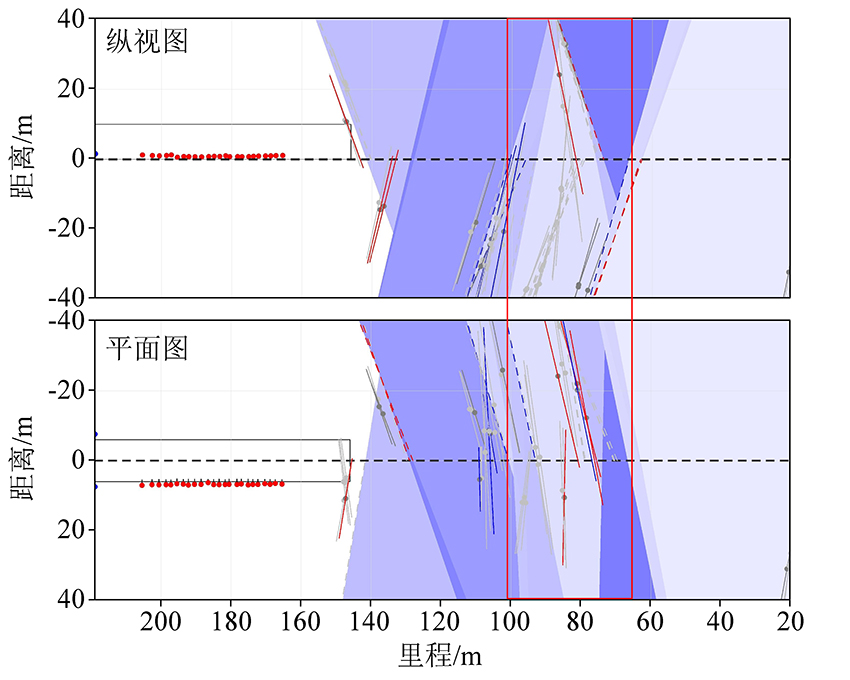

2D view of prediction result of TSP303 system
|
|

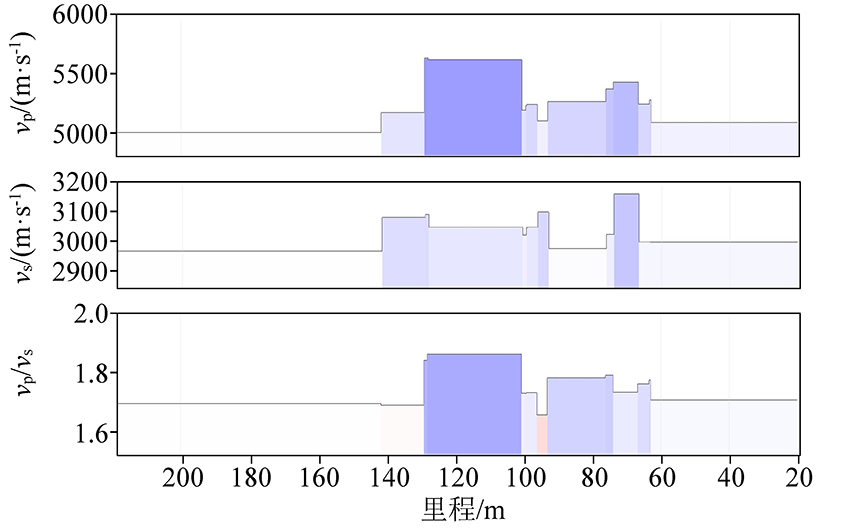

2D curves of rock property of TSP303 system
|
|

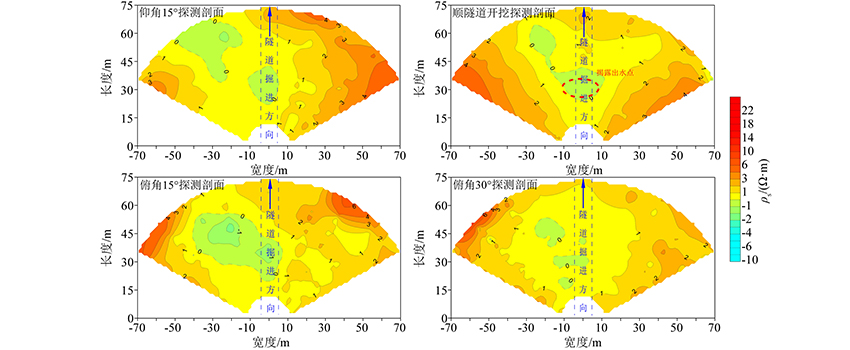

The iversion apparent resistivity profiles of TEM
|
|

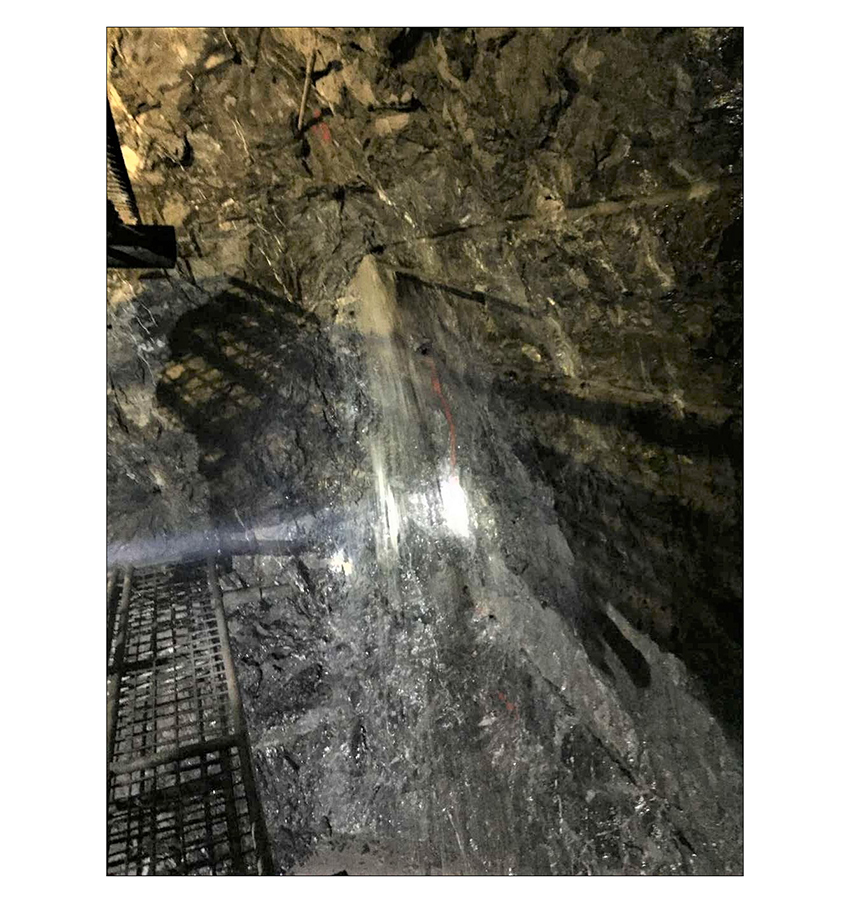

Photos of water gushing in the face of the tunnel
|
|

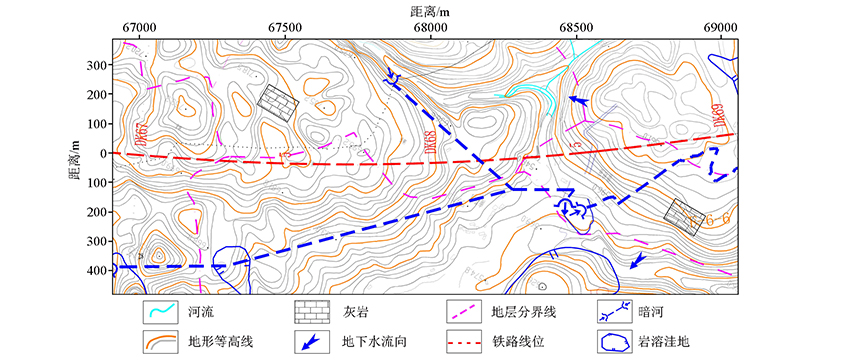

The development of karst of Yongshun tunnel
|
|

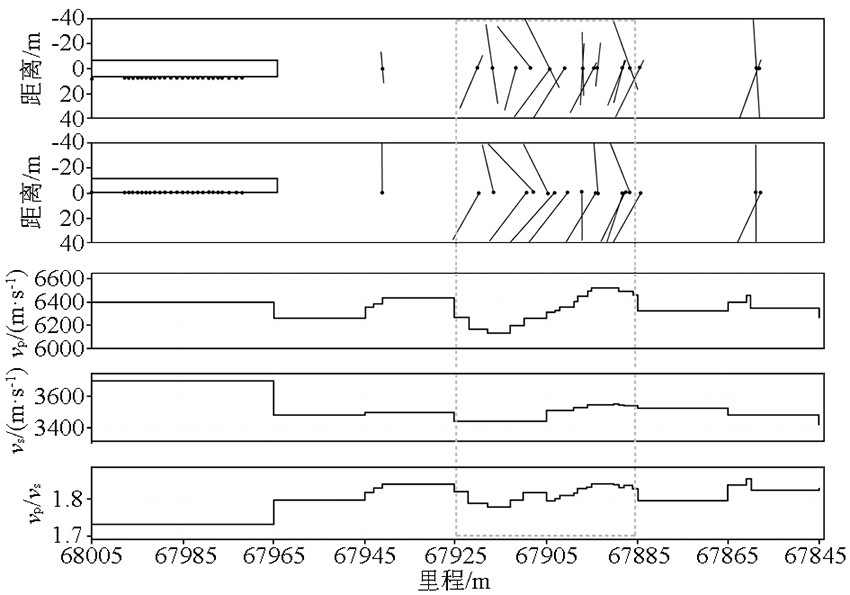

The prediction result and rock property of TETSP system
|
|

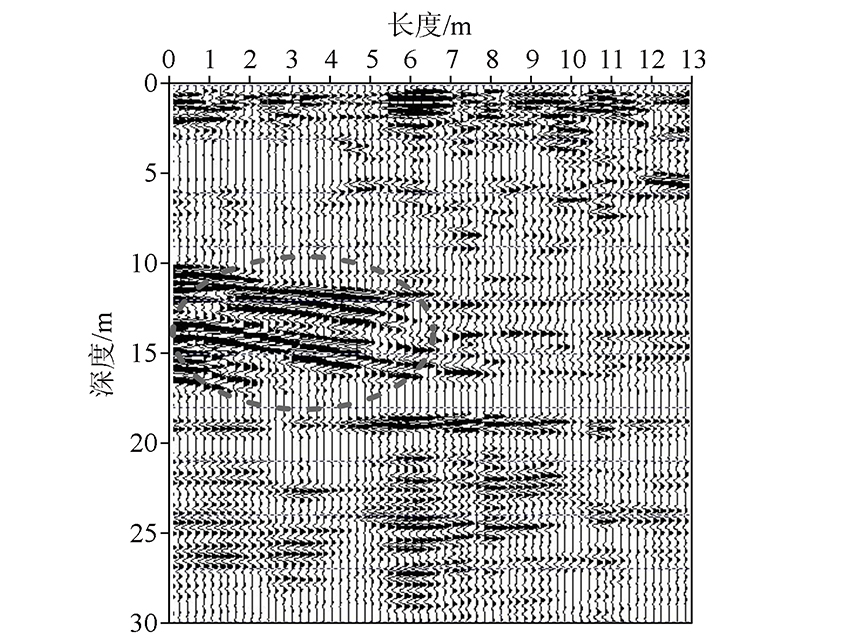

The waveform result of GPR
|
|

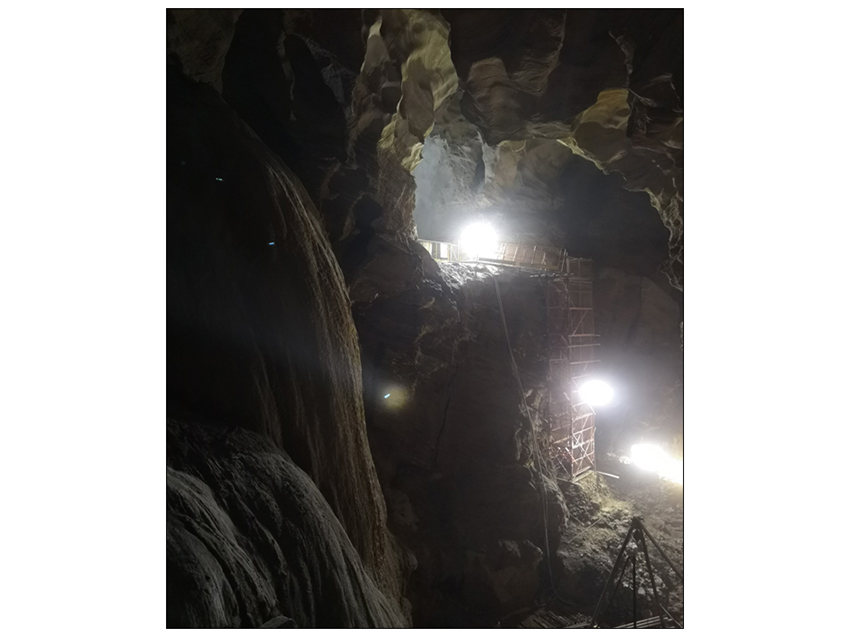

The exposed karst cave of Yongshun tunnel
|
