安丘—莒县断裂莒县盆地段浅层地震探测及意义

doi:10.11720/wtyht.2021.1187

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (6706 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

Anqiu-Juxian fault in the Tanlu fault zone is in a concealed state in the Juxian basin.Geophysical data in the basin is very insufficient,and the distribution and spatial geometric characteristics of the fault are not clear.In view of such a situation,the buried faults in the basin were detected by shallow seismic reflection detection,and the distribution characteristics of Anqiu-Juxian fault in the basin were preliminarily discussed and analyzed in combination with the study of Zheng Chuanbei and other research results.The results show that the Anqiu-Juxian fault is located in the Quaternary sediments of Juxian basin,with relatively shallow burial depth.The fault is characterized by compressional thrust and positive fault in some sections.The shallow seismic reflection profile shows the new geophysical evidence of Anqiu-Juxian fault in Juxian basin and provides geophysical reference for the overall evaluation of the fault.

Key words： Tanlu fault zone Anqiu-Juxian fault seismic reflection Juxian basin

Received: 21 April 2020 Published: 27 July 2021

ZTFLH:

P631.4

Corresponding Authors: LIN Song E-mail: smilevivi0821@163.com;ls6102212@163.com

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Wei WANG
	Song LIN
	Miao CHENG
	Chong JIN
	Hong-Wei ZHOU

Cite this article:

Wei WANG,Song LIN,Miao CHENG, et al. Shallow seismic exploration of the Anqiu-Juxian fault in Juxian Basin and its significance[J]. Geophysical and Geochemical Exploration, 2021, 45(3): 609-615.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2021.1187 OR https://www.wutanyuhuatan.com/EN/Y2021/V45/I3/609

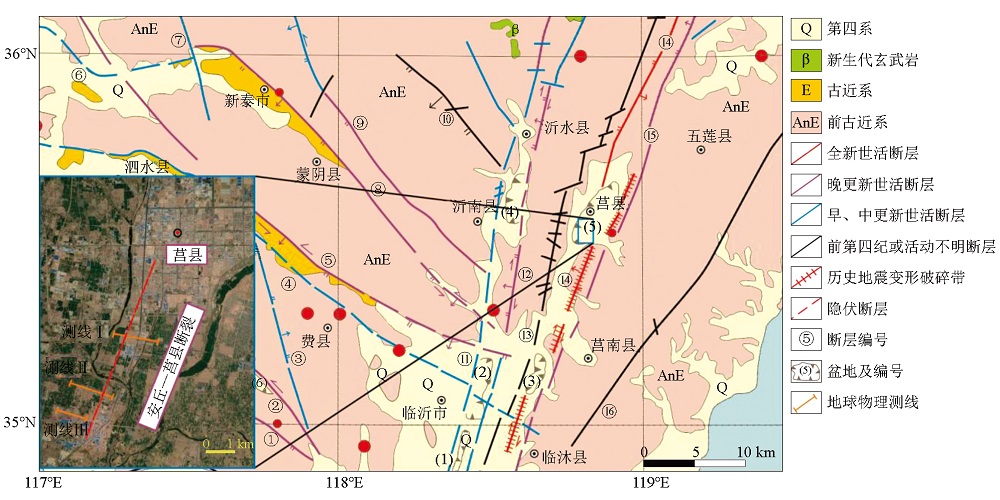

Regional geological structure diagram of the study area
fault number:①—Fushan fault;②—Cangni fault;③—Tongshi-Ganlin fault;④—Wensi fault;⑤—Mengshan piedmont fault;⑥—Xiazhuang-Anjiazhuang fault;⑦—Yangliudian fault;⑧—Xintai-Mengyin fault;⑨—Tongzhidian-Sunzudian fault;⑩—Mamuchi-Tongzhidian fault;?—Tangwu-Gegou fault;?—Yishui-Tangtou fault;?—Baifenzi-Fulaishan fault;?—Anqiu-Juxian fault;?—Changyi-Dadian fault;?—Xiangdi-Gaogezhuang fault
basin number:⑴—Lizhuang basin;⑵—Linyi basin;⑶—Banquan basin;⑷—Sucun basin;⑸—Juxian basin; ⑹—Baiyan basin

18])
F₁—Baifenzi-Fulaishan fault;F₂—Anqiu-Juxian fault;F₃—Changyi-Dadian fault
">

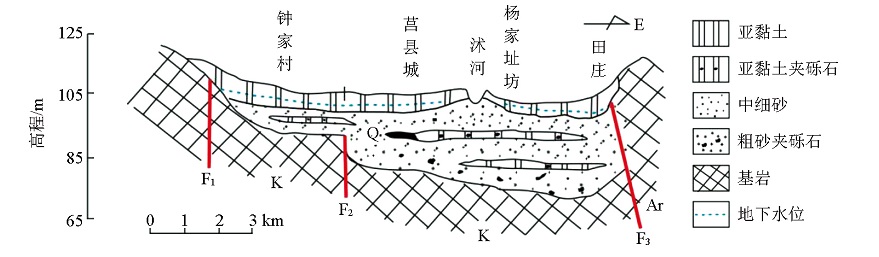

Geological section of Juxian fault depression(according to reference [18])
F₁—Baifenzi-Fulaishan fault;F₂—Anqiu-Juxian fault;F₃—Changyi-Dadian fault

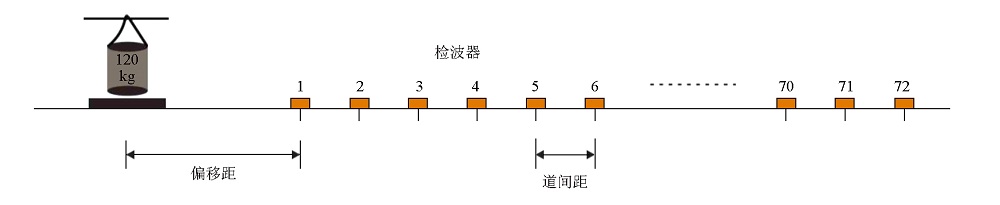

Schematic diagram of working method of shallow seismic reflection wave field method

Research on the data of measuring line in the area

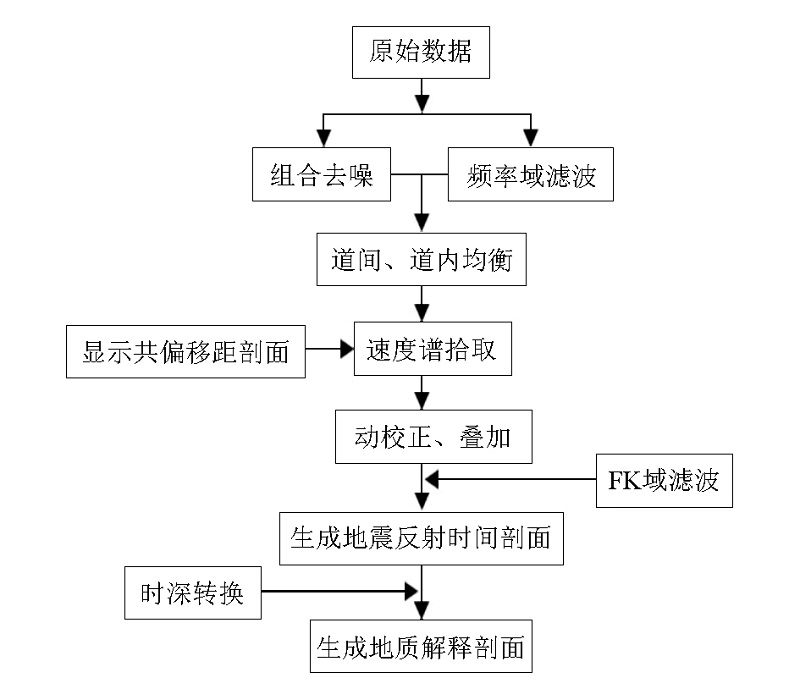

The reflection data processing

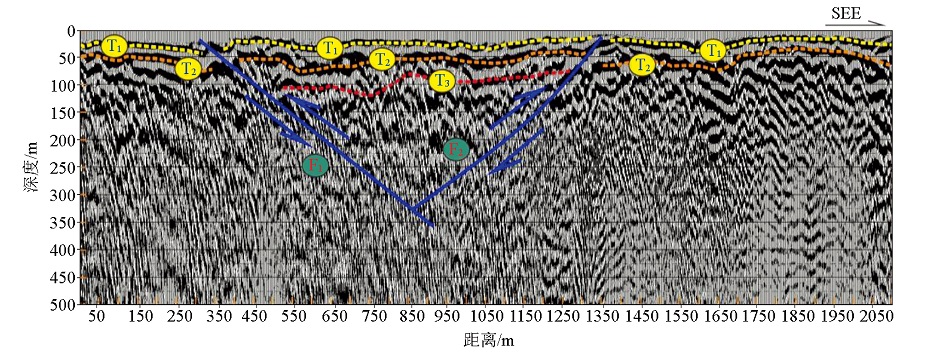

Interpretation of shallow seismic depth profile of line Ⅰ

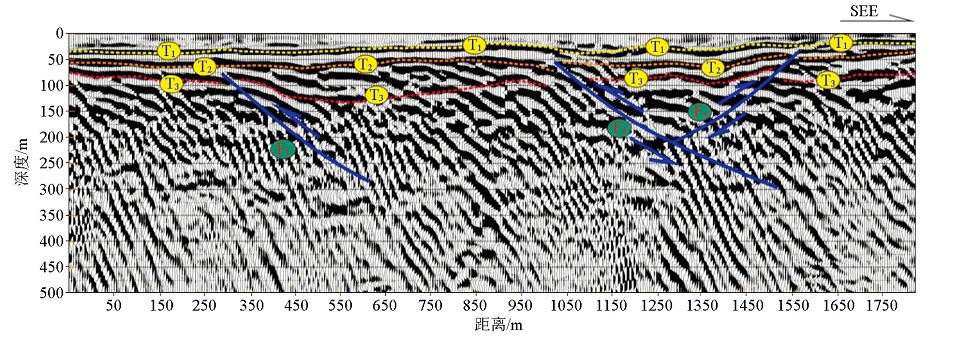

Interpretation of shallow seismic depth profile of line Ⅱ

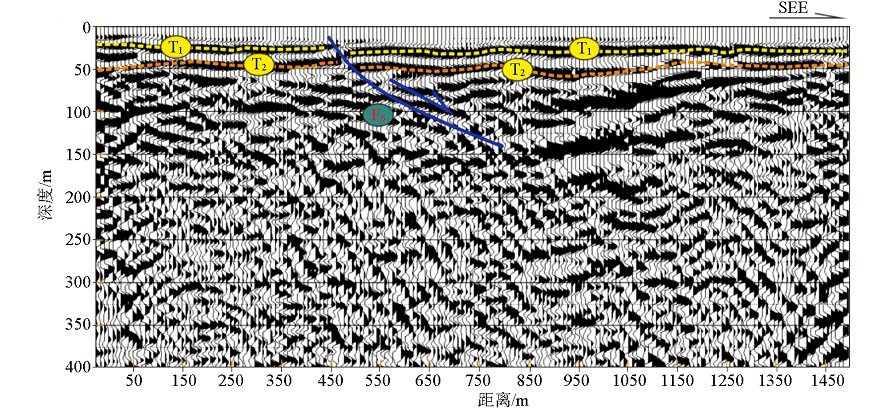

Interpretation of shallow seismic depth profile of line Ⅲ

[1]	Deng Q D, Zhang P Z, Ran Y K, et al. Basic characteristics of active tectonics of China[J]. Science in China Series D:Earth Sciences, 2003, 46(4):356-372.
[2]	高维明, 李家灵, 孙竹友. 沂沭大陆裂谷的生成与演化[J]. 地震地质, 1980, 2(3):11-18.
[2]	Gao W M, Li J L, Sun Z Y. Generation and evolution of Yishu continental rift[J]. Seismology and Geology, 1980, 2(3):11-18.
[3]	王志才, 贾荣光, 孙昭民, 等. 沂沭断裂带安丘—莒县断裂安丘—朱里段几何结构与活动特征[J]. 地震地质, 2005, 27(2):212-220.
[3]	Wang Z C, Jia R G, Sun Z M, et al. Geometric and active of Anqiu-Zhuli segment of the Anqiu-Juxian fault in the Yishu Fault Zone[J]. Seismology and Geology, 2005, 27(2):212-220.
[4]	管延新, 翟正宏, 李宗贤, 等. 沂沭断裂带安丘—莒县断裂昌邑段空间分布特征和活动性分析[J]. 海洋地质前沿, 2007, 23(2):17-19.
[4]	Guan Y X, Zhai Z H, Li Z X, et al. Spatial distribution characteristics and activity analysis of Changyi section of Anqiu Juxian fault in Yishu Fault Zone[J]. Marine Geology Letters, 2007, 23(2):17-19.
[5]	郑朗荪, 高维明, 郑传贝. 郯庐断裂带的分段与沂沭断裂的活动性[J]. 中国地震, 1988, 4(3):123-129.
[5]	Zheng L S, Gao W M, Zheng C B. Segmentation of Tanlu fault zone and the activity of Yishu Fault[J]. China Earthquake, 1988, 4(3):123-129.
[6]	方仲景, 计凤桔, 向宏发, 等. 郯庐带中段第四纪断裂活动特征与地震地质条件述评[J]. 地质科学, 1976, 11(4):354-366.
[6]	Fang Z J, Ji F J, Xiang H F, et al. Review of Quaternary fault activity characteristics and seismogeological conditions in the middle part of Tanlu belt[J]. Geosciences, 1976, 11(4):354-366.
[7]	李善邦. 中国地震[M]. 北京: 地震出版社, 1981.
[7]	Li S B. Earthquakes in China [M]. Beijing: Seimological Press, 1981.
[8]	高维明, 郑朗荪, 李家灵, 等. 1668年郯城8.5级地震的发震构造[J]. 中国地震, 1988, 6(3):15-21.
[8]	Gao W M, Zheng L S, Li J L, et al. Seismogenic structure of Tancheng m 8.5 earthquake in 1668[J]. China Earthquake, 1988, 6(3):15-21.
[9]	曹筠, 冉勇康, 许汉刚, 等. 郯庐断裂带江苏段安丘—莒县断裂全新世活动及其构造意义[J]. 地球物理学报, 2018, 61(7):2828-2844.
[9]	Cao J, Ran Y K, Xu H G, et al. Holocene activity of the Anqiu-Juxian fault on the Jiangsu segment of Tanlu fault zone and its tectonics implication[J]. Chinese Journal of Geophysics, 2018, 61(7):2828-2844.
[10]	张鹏, 张媛媛, 李丽梅, 等. 郯庐断裂带安丘—莒县断裂江苏段全新世活动的新证据[J]. 地震地质, 2019, 41(3):576-586.
[10]	Zhang P, Zhang Y Y, Li L M, et al. New evidence of Holocene activity in the Jiangsu Segment of Anqiu-Juxian fault of the Tanlu fault zone[J]. Seismological Geology, 2019, 41(3):576-586.
[11]	方盛明, 张先康, 刘保金, 等. 城市活断层地震勘探的最佳组合方法与应用研究[J]. 地震地质, 2006, 28(4):646-654.
[11]	Fang S M, Zhang X K, Liu B J, et al. Optimal combination method and application of seismic exploration for active faults in cities[J]. Seismological Geology, 2006, 28(4):646-654.
[12]	邓起东, 卢造勋, 杨主恩. 城市活动断层探测和断层活动性评价问题[J]. 地震地质, 2007, 29(2):189-200.
[12]	Deng Q D, Lu Z X, Yang Z E. Evaluation of active fault detection and fault activity in city[J]. Seismology and Geology, 2007, 29(2):189-200.
[13]	林松, 唐启家, 李媛, 等. 鄂西丹江口水库区域周边断裂构造解析及特征[J]. 地球科学, 2017, 42(10):1830-1841.
[13]	Lin S, Tang Q J, Li Y, et al. Analysis and characteristics of faults around Danjiangkou reservoir,West Hubei Provience[J]. Earth Science, 2017, 42(10):1830-1841.
[14]	林松, 王薇, 李媛, 等. 浅地震剖面揭露南秦岭隐伏断裂特征——以丹江断裂为例[J]. 大地测量与地球动力学, 2019, 39(3):221-225.
[14]	Lin S, Wang W, Li Y, et al. Shallow seismic profiles reveal the buried fault feature of Southern Qinling:A case of Danjiang fracture[J]. Journal of Geodesy and Geodynamics, 2019, 39(3):221-225.
[15]	马修刚, 周军, 蔡文渊, 等. 反射波成像与纵波径向速度成像在华北油田裂缝型碳酸盐岩储层勘探开发中的联合应用[J]. 物探与化探, 2020, 44(2):271-277.
[15]	Ma X G, Zhou J, Cai W Y, et al. The combined application of reflective wave imaging and P-wave velocity variation to the exploration and development offractured carbonate reservoirs of North China Oilfield[J]. Geophysical and Geochemical Exploration, 2020, 44(2):271-277.
[16]	徐建国, 徐华, 张涛, 等. 沂沭断裂带北段东支断裂的浅部构造特征及活动性[J]. 地质学报, 2019, 93(4):16-30.
[16]	Xu J G, Xu H, Zhang T, et al. Shallow tectonic characteristics and activity of the east branch fault in the Northern Segment of the Yishu Fault Zone[J]. Journal of Geology, 2019, 93(4):16-30.
[17]	许汉刚, 范小平, 冉勇康, 等. 郯庐断裂带宿迁段F_5断裂浅层地震勘探新证据[J]. 地震地质, 2016, 38(1):31-43.
[17]	Xu H G, Fan X P, Ran Y K, et al. Suqian F_5,Tancheng Lujiang fracture of shallow seismic exploration of new evidence[J]. Seismology and Geology, 2016, 38(1):31-43.
[18]	郑传贝, 郑朗荪. 沂沭断裂带第四纪盆地[J]. 中国地震, 1988, 4(3):163-168.
[18]	Zheng C B, Zheng L S. Quaternary basin of Yishu Fault Zone[J]. China Earthquake, 1988, 4(3):163-168.
[19]	钟南才, 侯治华. 安丘—莒县断裂莒县盆地段晚第四纪以来的活动特征[J]. 防灾科技学院学报, 2005, 7(4):7-11.
[19]	Zhong N C, Hou Z H. Characteristics of activities in the Juxian basin of Anqiu Juxian fault since Late Quaternary[J]. Journal of Disaster Prevention Science and Technology College, 2005, 7(4):7-11.
[20]	徐明才, 高景华, 刘建勋, 等. 应用于城市活断层调查的地震方法技术[J]. 中国地震, 2005, 21(1):17-23.
[20]	Xu M C, Gao J H, Liu J X, et al. Seismological methods and techniques applied to active fault investigation in cities[J]. Seismological of China, 2005, 21(1):17-23.
[21]	陈蜀俊, 刘锁旺, 姚运生, 等. 两郧断裂构造解析与第四纪滑动速率研究[J]. 大地测量与地球动力学, 2004, 24(3):60-66.
[21]	Chen S J, Liu S W, Yao Y S, et al. Research on structural analysis and Quaternary slip rate of Liangyun fault[J]. Journal of Geodesy and Geodynamics, 2004, 24(3):60-66.
[22]	王海燕, 高锐, 李秋生, 等. 青藏高原松潘—西秦岭—临夏盆地深地震反射剖面——采集、处理与初步解释[J]. 地球物理学报, 2014, 57(5):1451-1461.
[22]	Wang H Y, Gao R, Li Q S, et al. Deep seismic reflection profiling in the Songpan-West Qinling-Linxia Basin of the Qinghai-Tibet Plateau:date acquisition,date processing and preliminary interpretations Chinese[J]. Chinese Journal of Geophysics, 2014, 57(5):1451-1461.
[23]	孙家振. 地震地质综合解释教程[M]. 武汉: 中国地质大学出版社, 2002.
[23]	Sun J Z. Seismic geology interpretation [M]. Wuhan: China University of Geosciences Press, 2002.
