瞬变电磁法感应电压场与<i>B</i>场探测效果的数值计算对比分析

doi:10.11720/wtyht.2021.1087

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (7791 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

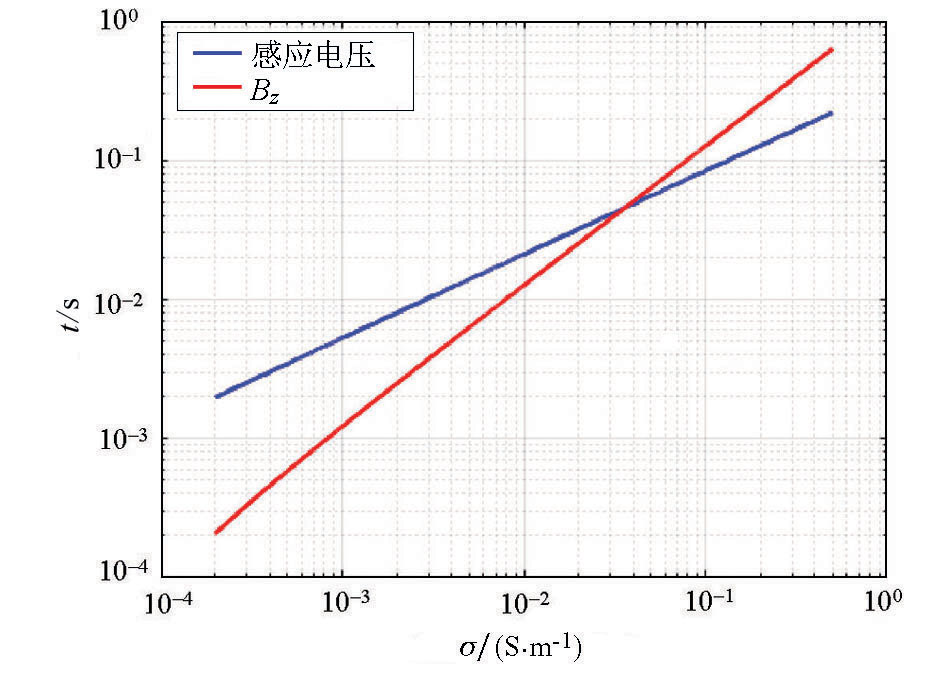

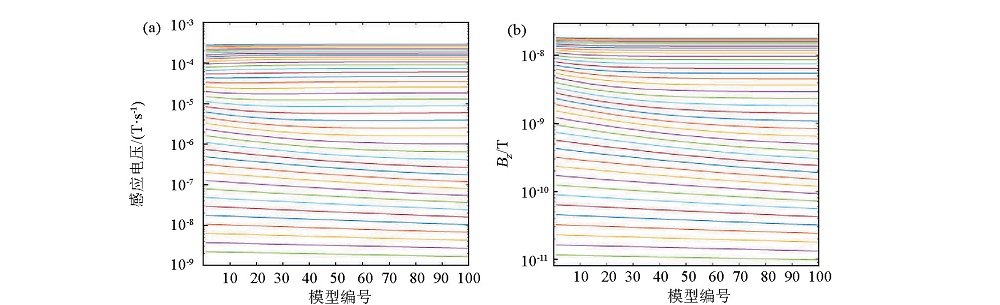

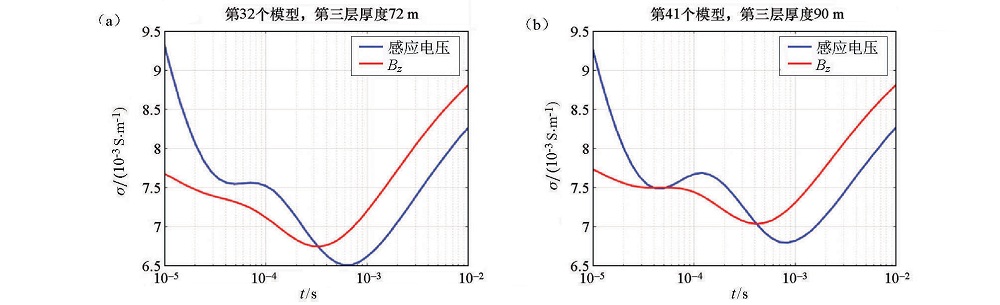

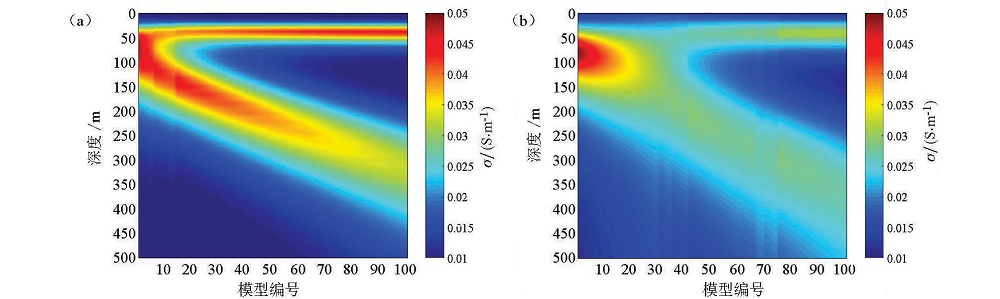

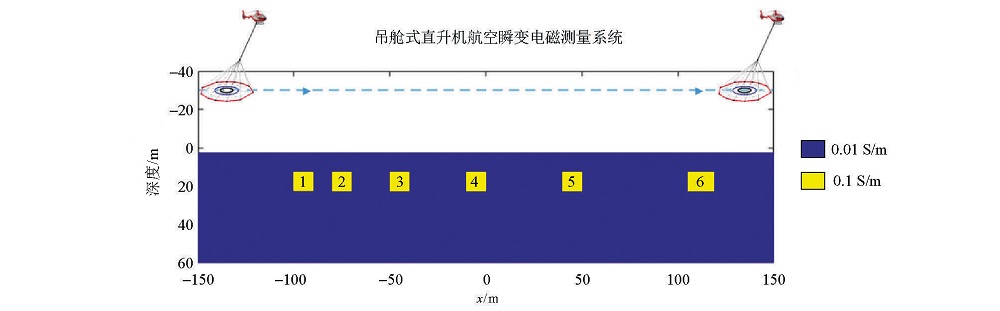

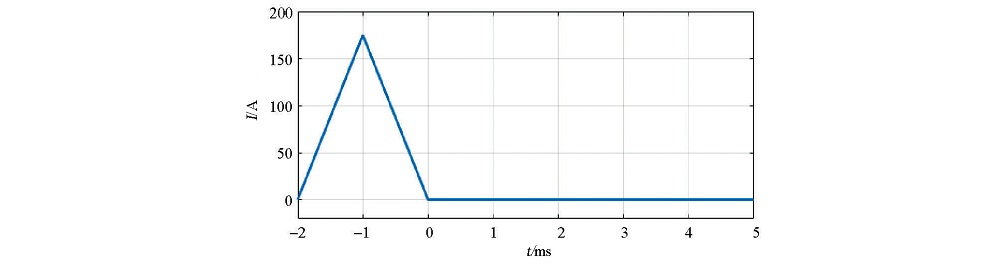

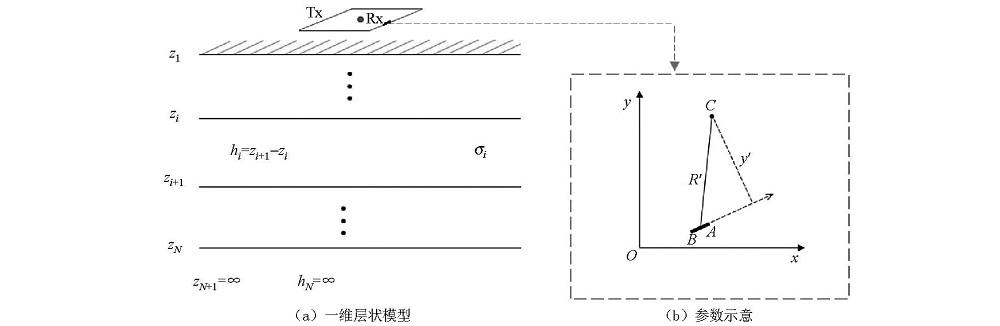

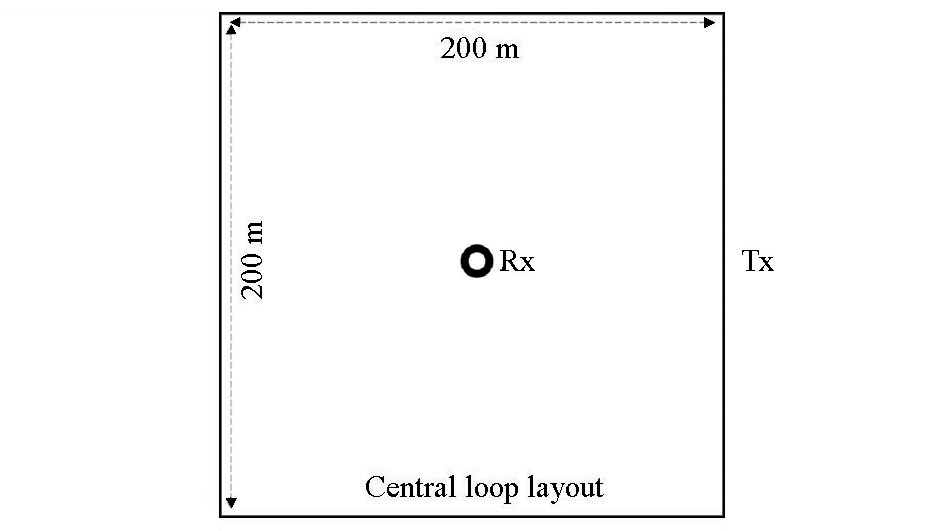

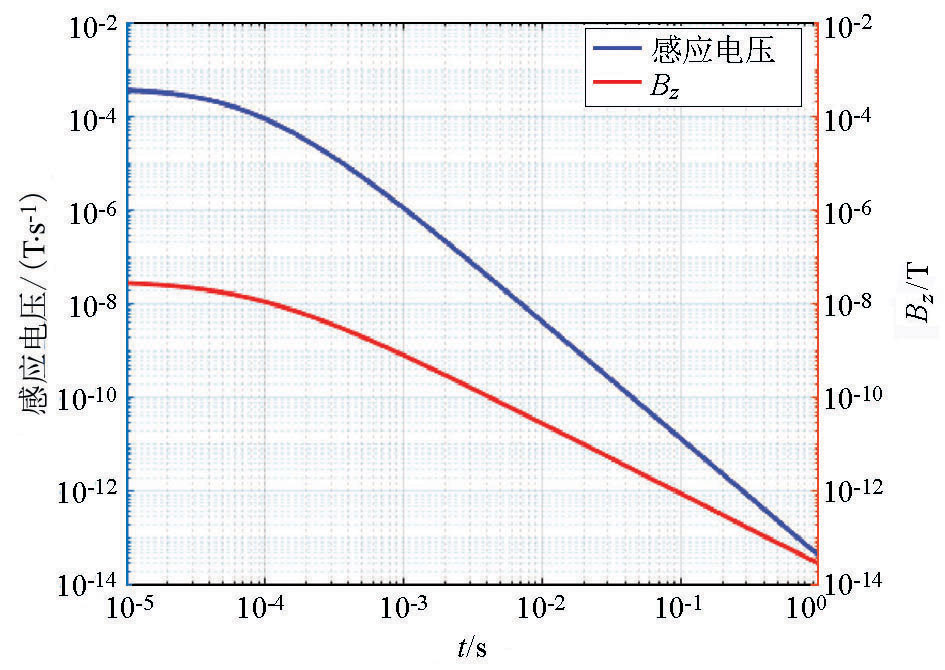

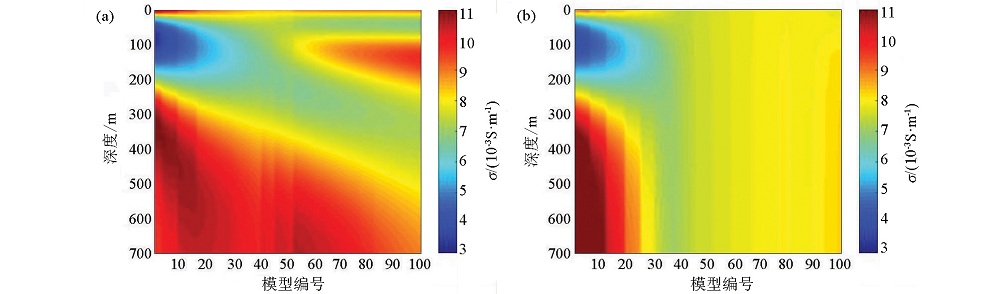

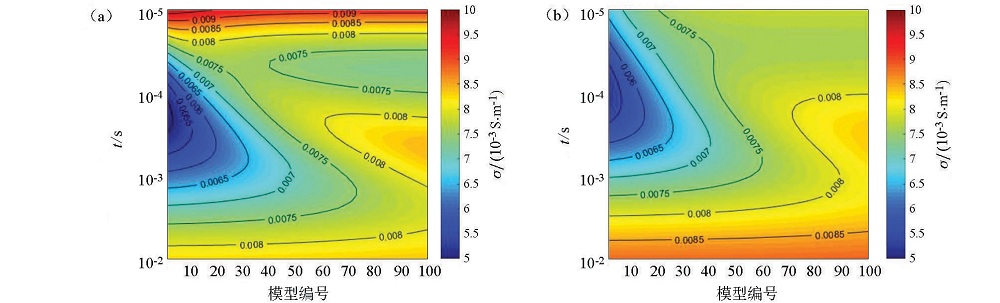

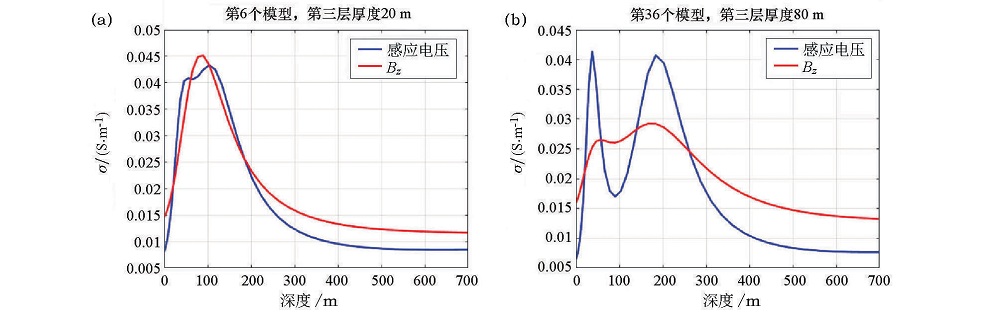

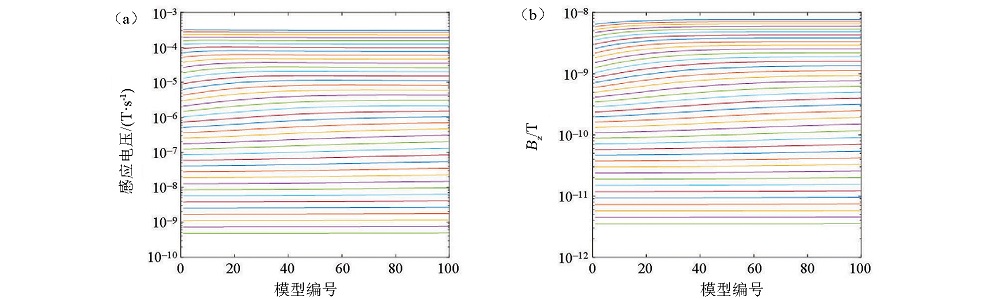

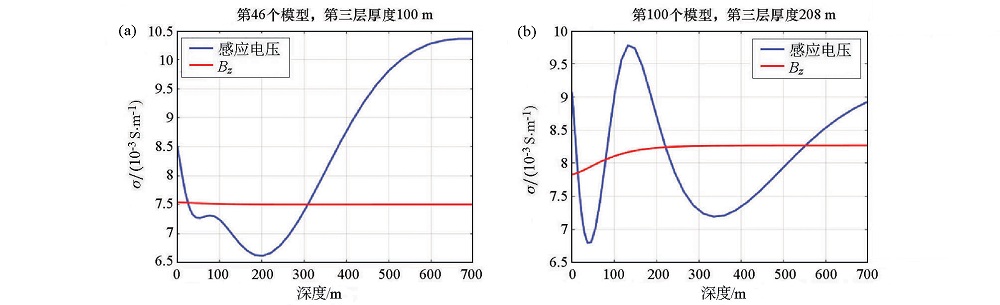

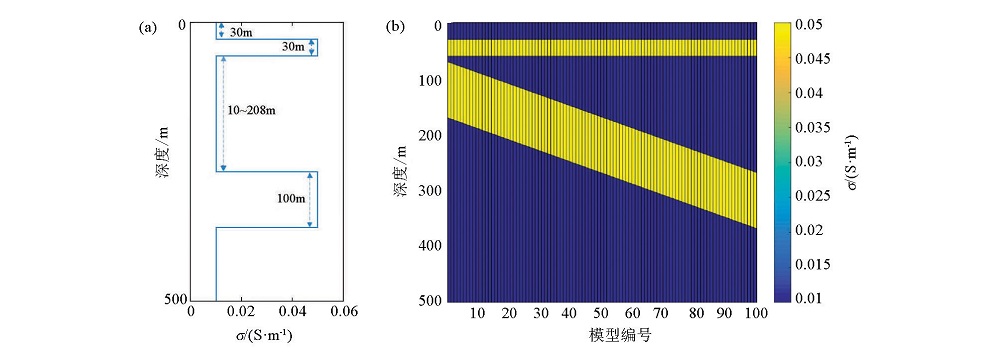

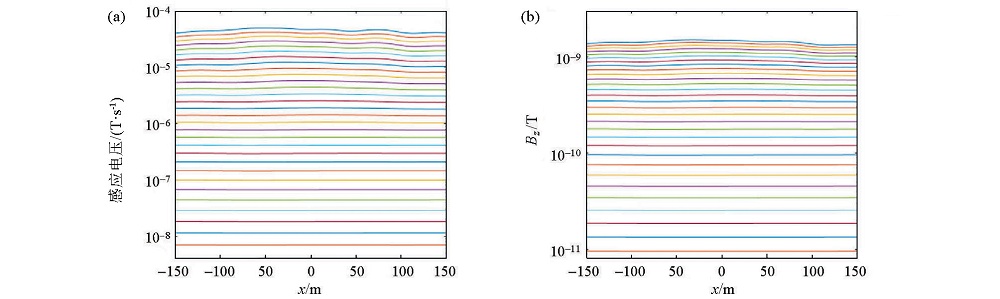

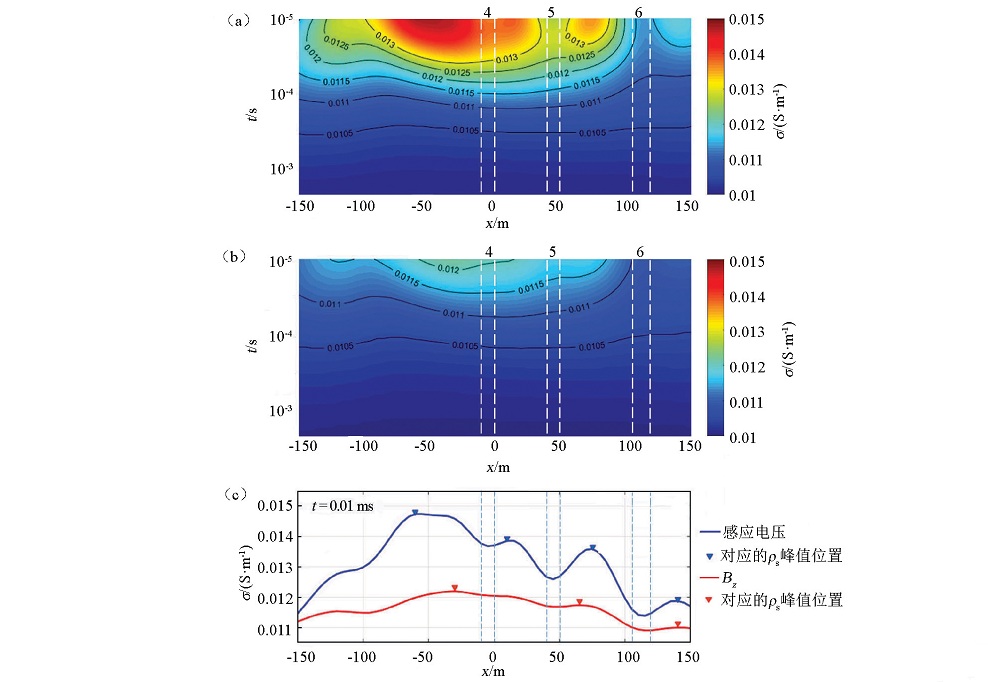

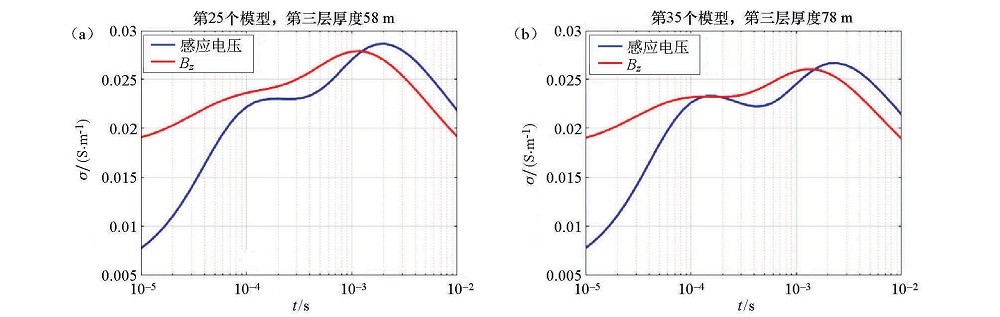

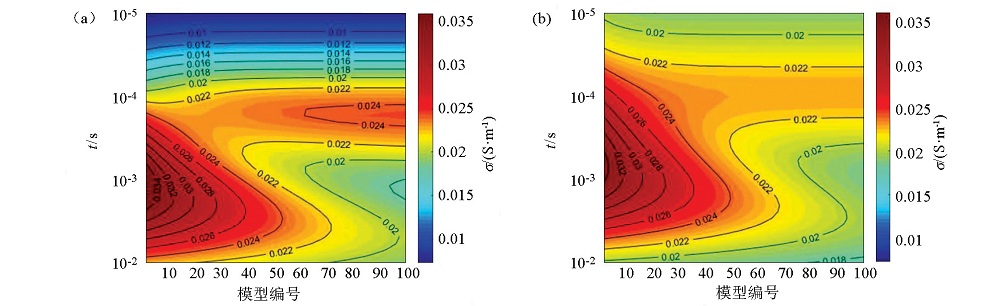

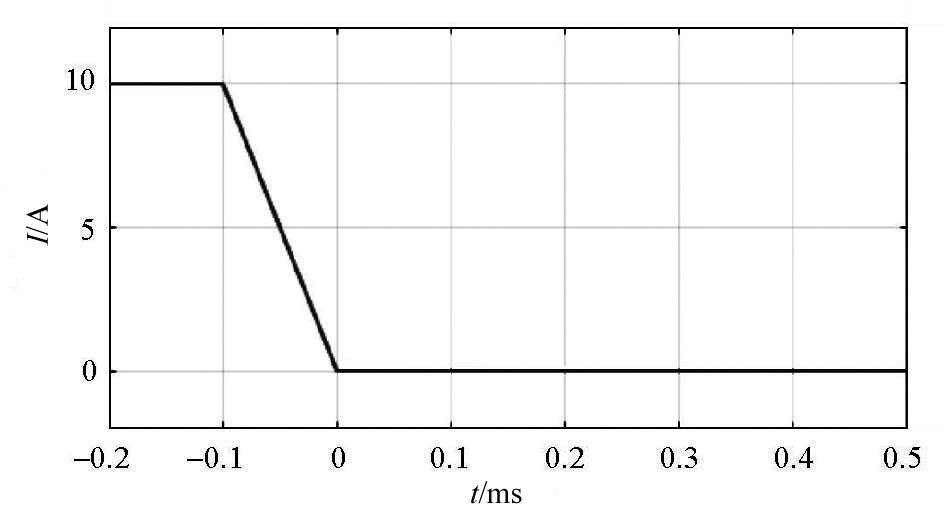

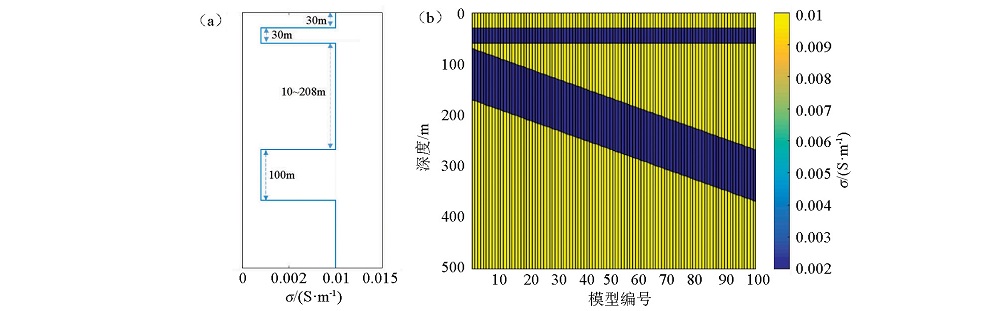

In this study, the authors compared the loop source transient electromagnetic sounding effect between the induced voltage data and B_z data obtained by one-dimensional and three-dimensional forward modelling. The longest effective delay time of the two types of data under the current data acquisition accuracy of mainstream hardware was analyzed through a comparison of multiple models; the longitudinal and horizontal resolutions of the two types of data were analyzed through a comparison of apparent conductivity and one-dimensional inversion. The results show that, under the data acquisition accuracy presumed in this study, only when an abnormal body with a conductivity ≥ 0.036 S/m exists in the model can the effective delay time of the B_z data be longer than the induced voltage data. Compared with the induced voltage data, the B_z data can sense the underground anomaly in advance, but are worse in longitudinal and horizontal resolutions. The recovery of resistivity by B_z data is also worse than that by the induced voltage data. In the actual field measurement, it is not recommended to record only the B_z field. If conditions are allowed, the induced voltage and the B_z field could be collected simultaneously to obtain an optimized solution.

Key words： transient electromagnetic method B field induced voltage apparent conductivity one-dimensional inversion resolution

Received: 26 February 2020 Published: 01 March 2021

ZTFLH:

P631

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Zhan-Hui LI
	Miao-Xin YANG
	Xue-Feng CAO

Cite this article:

Zhan-Hui LI,Miao-Xin YANG,Xue-Feng CAO. A numerical study of transient electromagnetic sounding effect using the induced voltage and the B field data[J]. Geophysical and Geochemical Exploration, 2021, 45(1): 114-126.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2021.1087 OR https://www.wutanyuhuatan.com/EN/Y2021/V45/I1/114

[1]	Ward S H, Hohmann G W. Electromagnetic theory for geophysical application[C]// SEG:Electromagnetic Methods in Applied Geophysics, 1987.
[2]	崔江伟, 薛国强, 陈卫营, 等. 电性源瞬变电磁B场全程视电阻率计算[J]. 地球物理学进展, 2015,30(6):2690-2697.
[2]	Cui J W, Xue G Q, Chen W Y, et al. Calculation of all-time apparent resistivity for B field due to electrical source TEM[J]. Progress in Geophysics, 2015,30(6):2690-2697.
[3]	王兴春, 张杰, 郑学萍, 等. 磁通门探头在瞬变电磁法勘探中的应用[J]. 物探化探计算技术, 2014,36(6):649-654.
[3]	Wang X C, Zhang J, Zheng X P, et al. Application of fluxgate sensor in TEM prospecting[J]. Computing Techniques for Geophysical and Geochemical Exploration, 2014,36(6):649-654.
[4]	Ji Y J, Du S Y, Xie L J, et al. TEM measurement in a low resistivity overburden performed by using low temperature SQUID[J]. Jounral of Applied Geophysics, 2016,135:243-248.
[5]	荣亮亮, 蒋坤, 裴易峰, 等. 适用于瞬变电磁勘探的低温超导磁传感器[J]. 仪器仪表学报, 2016,37(12):2672-2677.
[5]	Rong L L, Jiang K, Pei Y F, et al. Low-Tc SQUID sensor for time domain electromagnetic prospecting[J]. Chinese Journal of Scientific Instrument, 2016,37(12):2672-2677.
[6]	陈晓东, 赵毅, 张杰, 等. 高温超导磁强计在瞬变电磁法中的应用研究[J]. 地球物理学报, 2012,55(2):702-708.
[6]	Chen X D, Zhao Y, Zhang J, et al. The application of HTc SQUID magnetometer to TEM[J]. Chinese Journal of Geophysics, 2012,55(2):702-708.
[7]	Thomson S, Fountain D, Watts T. Airborne geophysics-evolution and revolution[C]// 5th Decennial International Conference on Mineral Exploration, 2007.
[8]	Smith R, Annan P. The use of B-field measurements in an airborne time-domain system: Part I. Benefits of B-field versus dB/dt data[J]. Exploration Geophysics, 1998,29:24-29.
[9]	Smith R, Annan P. Using an induction coil sensor to indirectly measure the B-field response in the bandwidth of the transient electromagnetic method[J]. Geophysics, 2000,65(5):1489-1494.
[10]	Wolfgram P, Thomson S. The use of B-field measurements in an airborne time-domain system-Part II: examples in conductive regimes[J]. Exploration Geophysics, 1998,29:225-229.
[11]	强建科, 罗延钟, 汤井田, 等. 航空瞬变电磁法的全时域视电阻率计算方法[J]. 地球物理学进展, 2010,25(5):1657-1661.
[11]	Qiang J K, Luo Y Z, Tang J T, et al. The algorithm of all-time apparent resistivity for Airborne Thransient Electromagnetic (ATEM) survey[J]. Progress in Geophysics, 2010,25(5):1657-1661.
[12]	Li Z H, Huang Q H, Xie X B, et al. A generic 1D forward modeling and inversion algorithm for TEM sounding with an arbitrary horizontal loop[J]. Pure and Applied Geophysics, 2016,173(8):2869-2883.
[13]	Wang T, Hohmann G W. A finite-difference, time-domain solution for 3-dimensional electromagnetic modeling[J]. Geophysics, 1993,58(6):2105-2114.
[14]	邱稚鹏, 李展辉, 李墩柱, 等. 基于非正交网格的带地形三维瞬变电磁场模拟[J]. 地球物理学报, 2013,56(12):4245-4255.
[14]	Qiu Z P, Li Z H, Li D Z, et al. Non-orthogonal-grid based three dimensional modeling of transient electromagnetic field with topography[J]. Chinese Journal of Geophysics, 2013,56(12):4245-4255.
[15]	李展辉, 黄清华. 复频率参数完全匹配层吸收边界在瞬变电磁法正演中的应用[J]. 地球物理学报, 2014,57(4):1292-1299.
[15]	Li Z H, Huang Q H. Application of complex frequency shifted perfectly matched layer absorbing boundary conditions in transient electromagnetic method modeling[J]. Chinese Journal of Geophysics, 2014,57(4):1292-1299.
[16]	周建美, 刘文涛, 李貅, 等. 双轴各向异性介质中回线源瞬变电磁三维拟态有限体积正演算法[J]. 地球物理学报, 2018,61(1):368-378.
[16]	Zhou J M, Liu W T, Li X, et al. Research on the 3D mimetic finite volume method for loop-source TEM response in biaxial anisotropic formation[J]. Chinese Journal of Geophysics, 2018,61(1):368-378.
[17]	戴锐, 李展辉, 黄清华. 瞬变电磁法三维模型数据的一维反演效果研究[J]. 地球物理学进展, 2017,32(3):1121-1129.
[17]	Dai R, Li Z H, Huang Q H. Study of one-dimensional inversion effect on transient electromagnetic data of three-dimensional models[J]. Progress in Geophysics, 2017,32(3):1121-1129.
