三维Tesseroid网格模型重力异常正演方法及并行算法

doi:10.11720/wtyht.2021.0078

Abstract
Figure/Table
References
Related Citation (5)

Download: PDF (3253 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

The forward modeling of a 3D mesh model is the basis of gravity data inversion. High precision and high efficiency forward modeling is helpful to the improvement of the quality of inversion interpretation. In order to solve the problem of high precision and high efficiency gravity forward modeling based on a large-scale surface observation area, this paper presents the gravity anomaly forward modeling method and parallel algorithm of a 3D Tesseroid mesh model in the spherical coordinate system. The forward modeling uses the improved Gauss-Legendre Quadrature integration method to realize the high-precision gravity anomaly calculation based on a large-scale surface observation area, and also uses the MATLAB task parallel algorithm based on OpenMP to realize the high-efficiency forward modeling. The test on the 3D theoretical model and the Eastern China lithospheric model has verified the validity of the proposed method. This method can provide technical support for efficient large-scale gravity field simulation and 3D inversion.

Key words： spherical coordinate Tesseroid gravity forward modeling parallel computing surface observation

Received: 09 February 2021 Published: 21 December 2021

ZTFLH:

P631

Corresponding Authors: GUO Liang-Hui E-mail: 2010200038@cugb.edu.cn;guo_lianghui@163.com

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Bo WANG
	Liang-Hui GUO
	Ya-Tong CUI
	Xiang Wang

Cite this article:

Bo WANG,Liang-Hui GUO,Ya-Tong CUI, et al. The approach to gravity forward calculation of 3D Tesseroid mesh model and its parallel algorithm[J]. Geophysical and Geochemical Exploration, 2021, 45(6): 1597-1605.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2021.0078 OR https://www.wutanyuhuatan.com/EN/Y2021/V45/I6/1597

8]
">

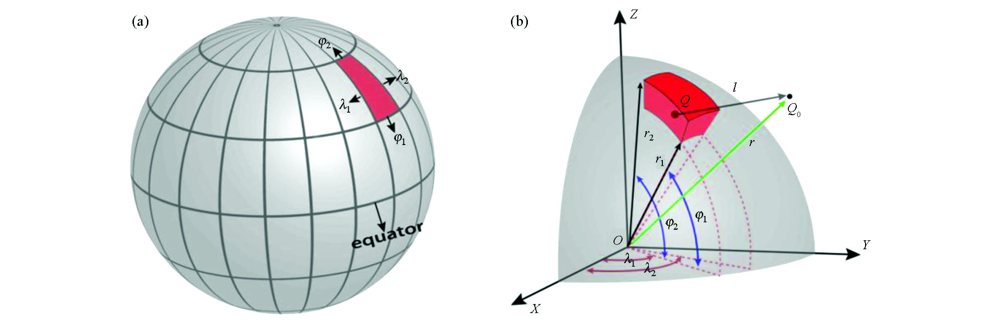

Tesseroid model diagram^[8]

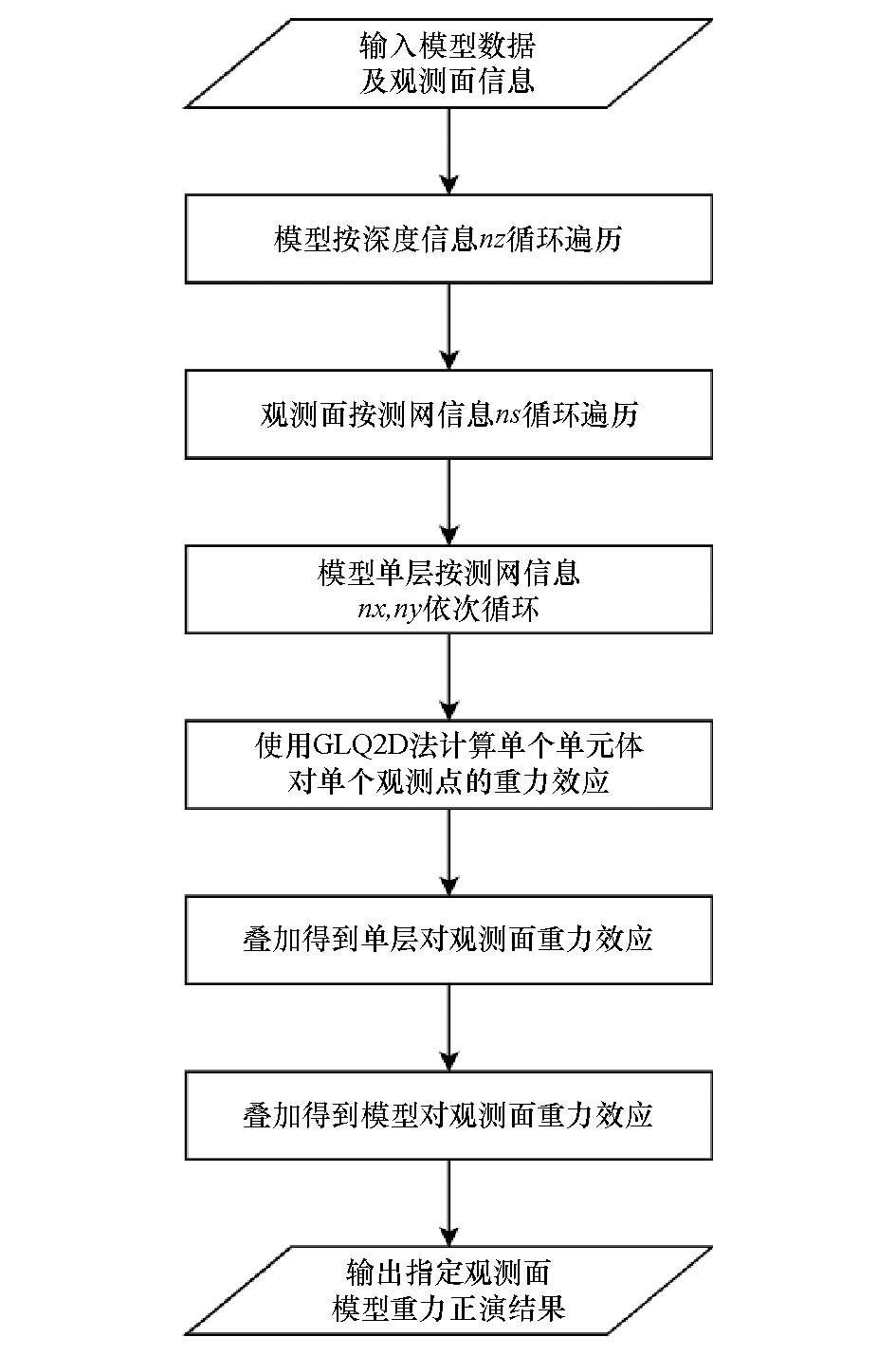

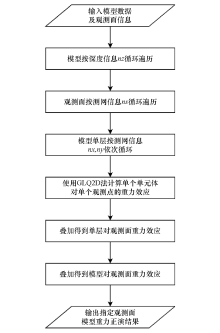

Serial flow chart of gravity forward modeling based on a 3-D Tesseroid mesh model

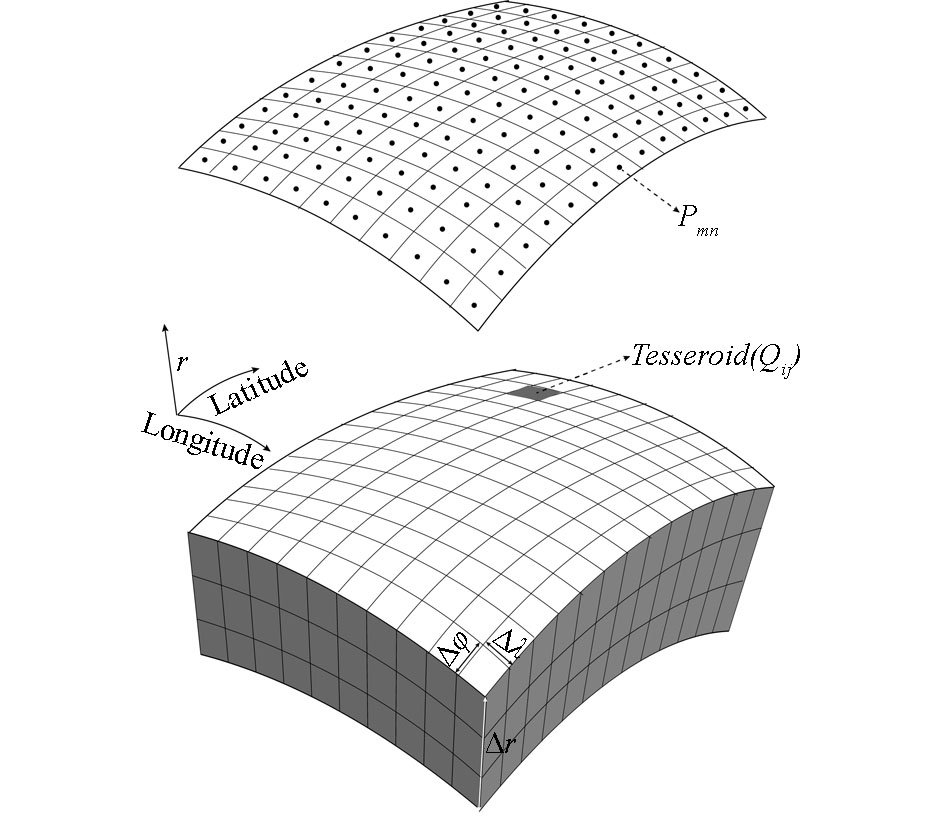

3-D Tesseroid mesh model

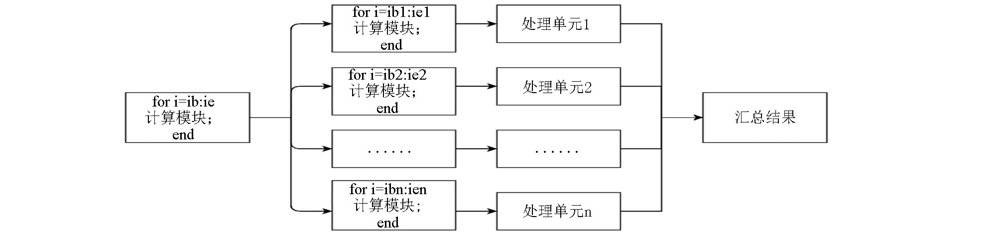

MATLAB parfor task parallel algorithm schematic

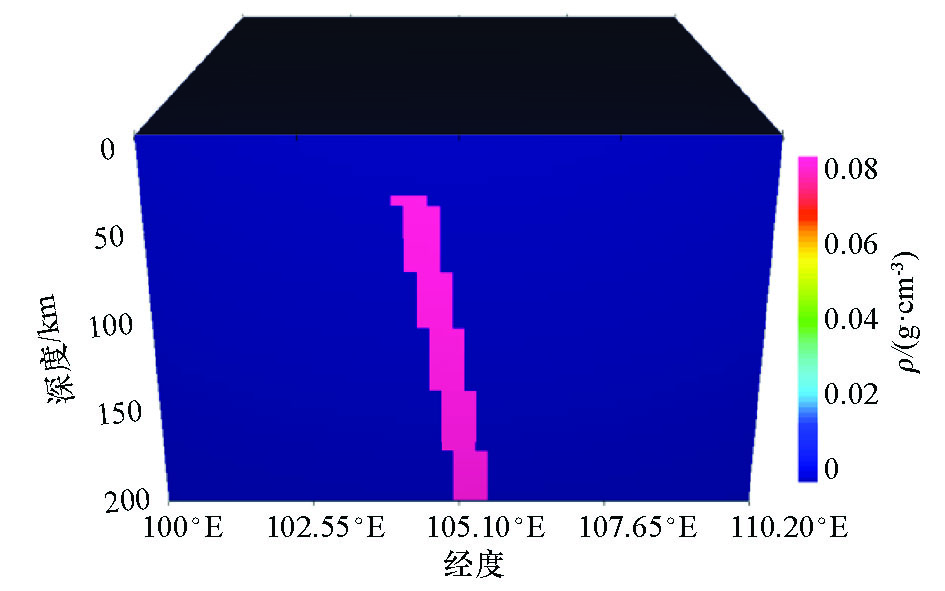

Three dimensional model of subduction zone

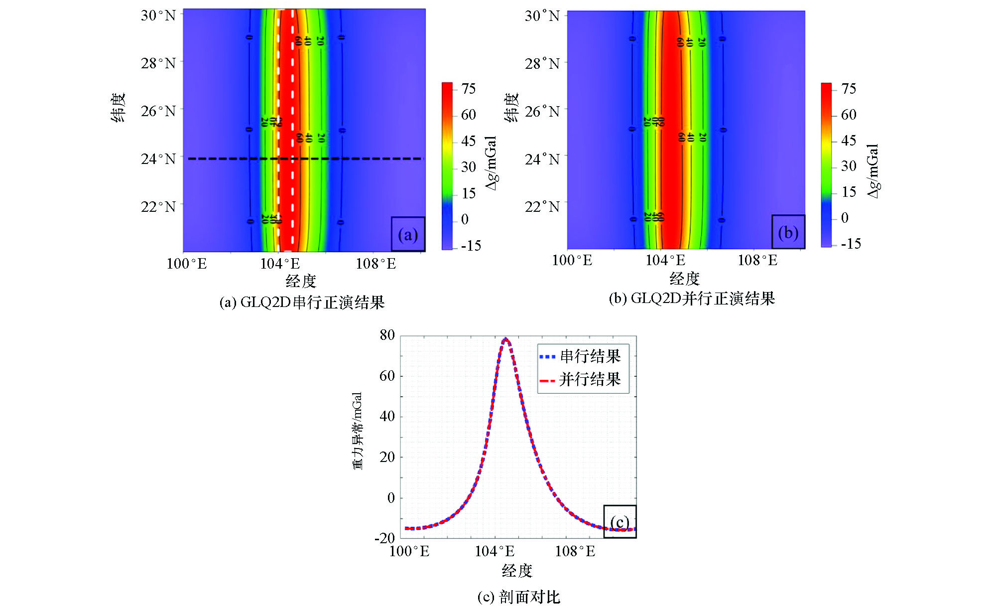

The comparison results between the GLQ2D serial and parallel forward modeling
Note: the white dotted box shows the position of the subduction zone projected onto the observation plane along the dip angle;the back dotted line is the position of the comparison profile

The efficiency comparison results of gravity forward modeling with different parallel cores

The efficiency comparison results of gravity forward modeling with different data volume models

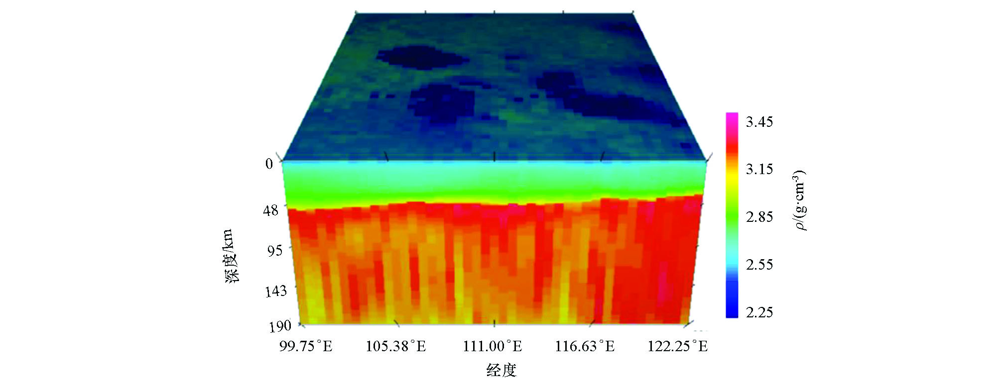

Three dimensional density model of Eastern China lithosphere

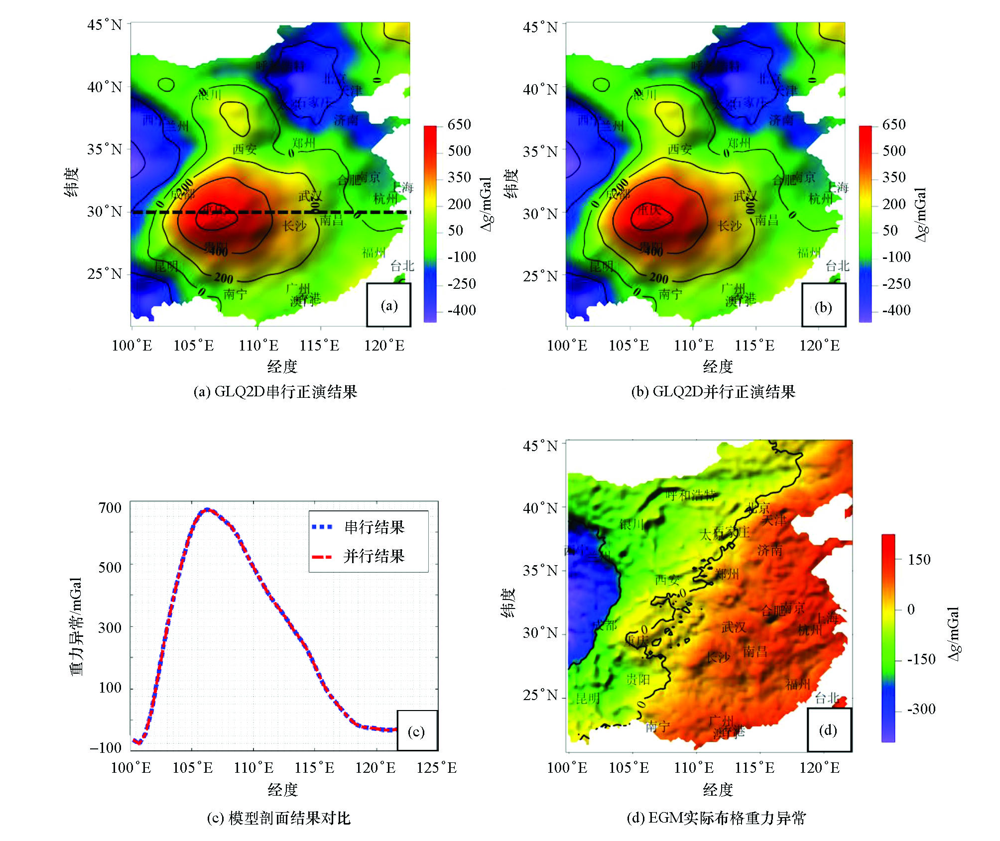

The comparison results of the Eastern China lithosphere density model
Note:the back dotted line is the position of the comparison profile

The efficiency comparison results of gravity forward modeling
