基于重、磁、电资料的陕西山阳池沟矿区找矿预测

doi:10.11720/wtyht.2021.0075

Abstract
Figure/Table
References
Related Citation (11)

Download: PDF (3960 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

In recent years, Northwest Nonferrous 713 General Team Co., Ltd. has successively carried out geophysic exploration work such as IP middle stage in Chigou ore rights area, and gained Many achievements, but the information about Chigou rock mass distribution, rock and ore controlling fault structure, rock contact zone and other information is not fully clarified. Based on the newly completed gravity, magnetic and electric comprehensive geophysical prospecting data of Chigou Cu-Mo deposit, combined with the existing geological and borehole data in the study area, gravity, magnetic force and AMT data were processed, and the characteristics of gravity and magnetic anomaly field in the area were comprehensively analyzed, the rock and ore controlling fault structure was delineated and the main magma invasion channel was found. The intrusion range of concealed rock mass closely related to mineralization was determined, and two concealed and semi-concealed rock masses were delineated. The geophysical field characteristics of concealed rock mass, contact zone of rock mass and mineralized body are clarified, and the contact zone of rock mass and stratum is the main metallogenic site. The favorable prospecting area is predicted, and the prospecting breakthrough is obtained through drilling verification. The research results have important reference significance for further exploration of copper and molybdenum deposits in this area.

Key words： Shanyang Chigou gravity, magnetic and electric anomaly concealed rock mass prospecting prediction

Received: 09 February 2021 Published: 15 December 2021

ZTFLH:

P631

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Rui-Feng DUAN
	Bing-Qiang YUAN
	Xu-Liang FENG
	Yang-Yang QIANG
	Ben-Ben DUAN
	Jin-Cheng XING
	Lei LIU

Cite this article:

Rui-Feng DUAN,Bing-Qiang YUAN,Xu-Liang FENG, et al. Prospecting prediction of Chigou mining area in Shanyang, Shaanxi Province based on gravity, magnetic and electric data[J]. Geophysical and Geochemical Exploration, 2021, 45(5): 1196-1207.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2021.0075 OR https://www.wutanyuhuatan.com/EN/Y2021/V45/I5/1196

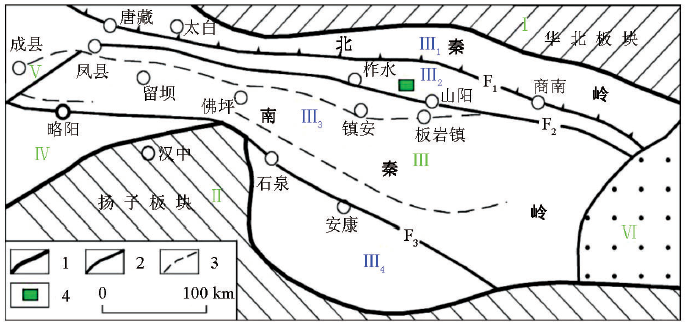

Tectonic location map of Chigou area
Ⅰ—North China plate;Ⅱ—Yangtze plate;Ⅲ—Qinling fold system;Ⅲ₁—Caledonian fold belt of North Qinling;Ⅲ₂—Lixian-Zhashui Variscan fold belt in South Qinling;Ⅲ₃—South Qinling Indosinian fold belt;Ⅲ₄—Beidabashan Caledonian fold belt;Ⅳ—Songfan-Ganzi fold system; Ⅴ—Huicheng depression;Ⅵ—Nanyang depression;F₁—Shangnan-Danfeng fault;F₂—Fengzhen-Shanyang fault;F₃—Shiquan-Ankang fault ;1—primary structural unit boundary;2—secondary tectonic unit boundary;3—fracture band;4—Chigou area

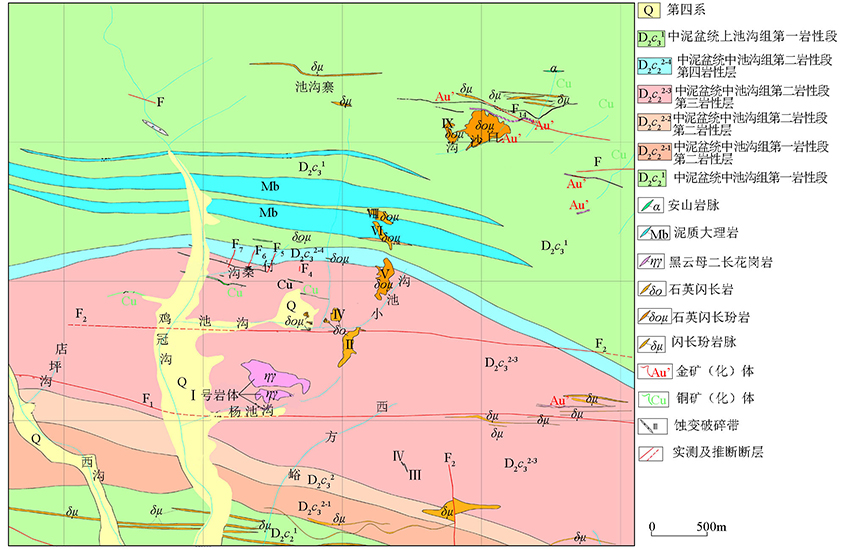

Geological map of Chigou area

Statistical table of rock and ore density in Chigou area

Statistical table of magnetic susceptibility of rocks and ores in Chigou area

Statistical table of electrical parameters of rocks and ores in Chigou area

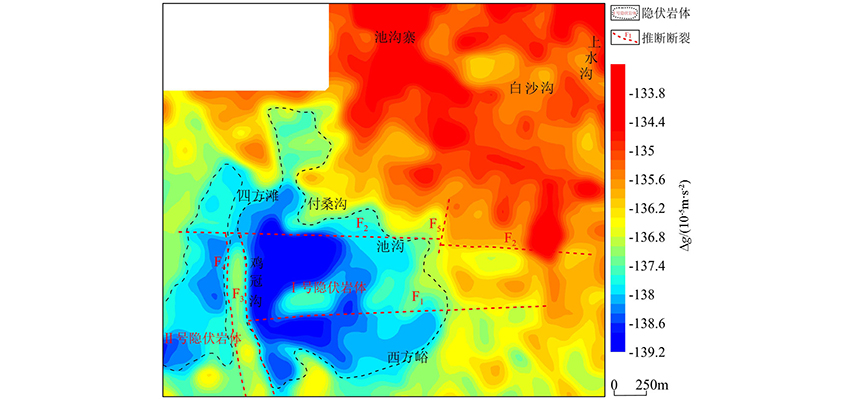

Contour map of bouguer gravity anomaly

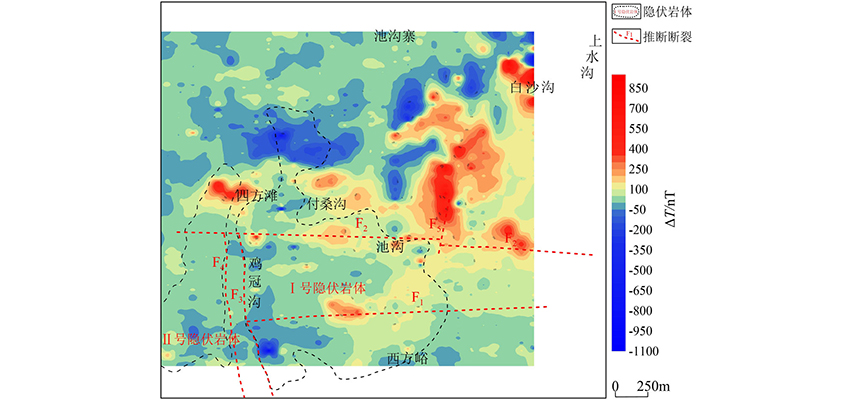

Superposition diagram of after depolarization magnetic ΔT anomaly and interpretation inference

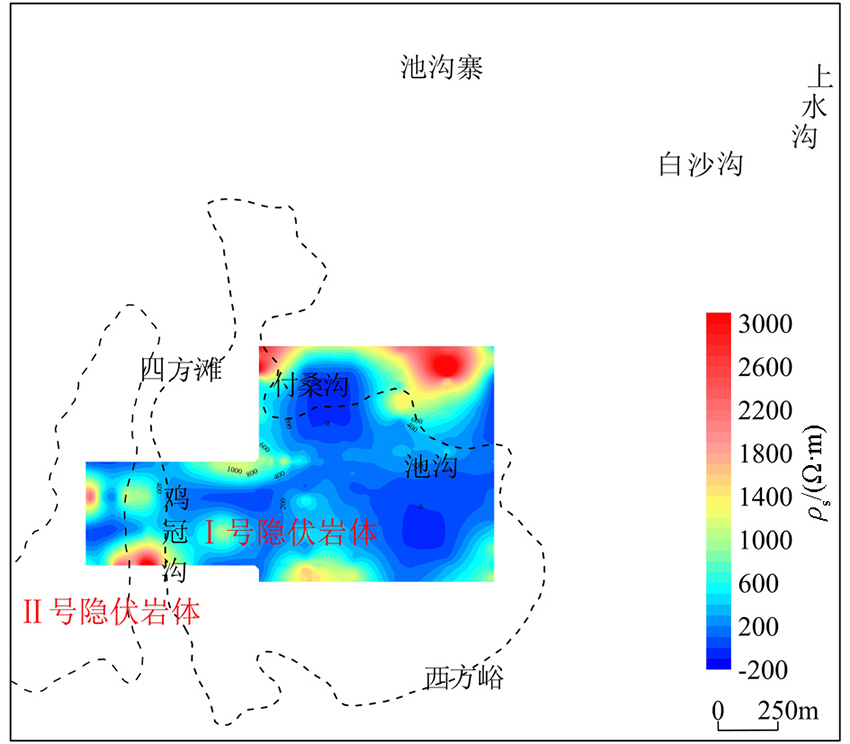

Apparent resistivity anomaly map of IP intermediate gradient

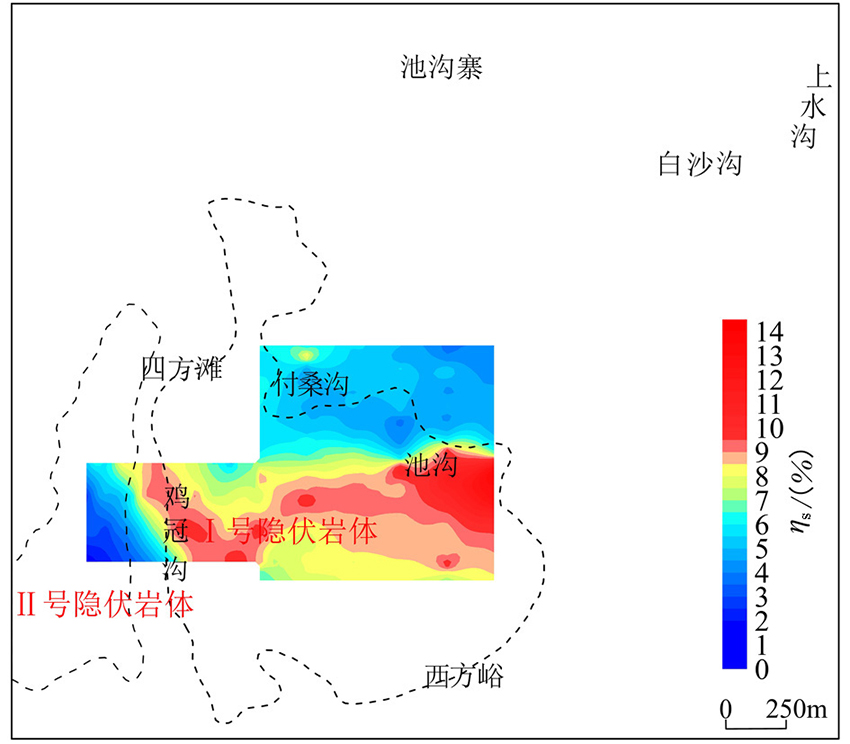

Apparent polarizability anomaly map of IP intermediate gradient

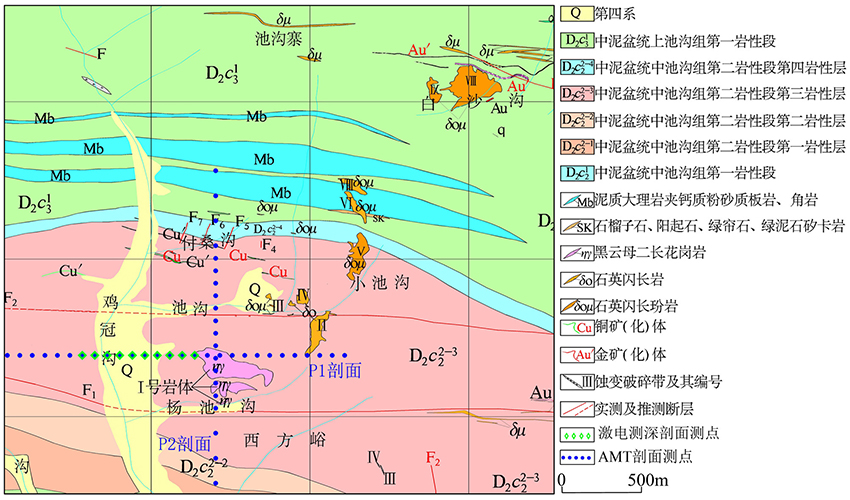

IP sounding and AMT profile location map

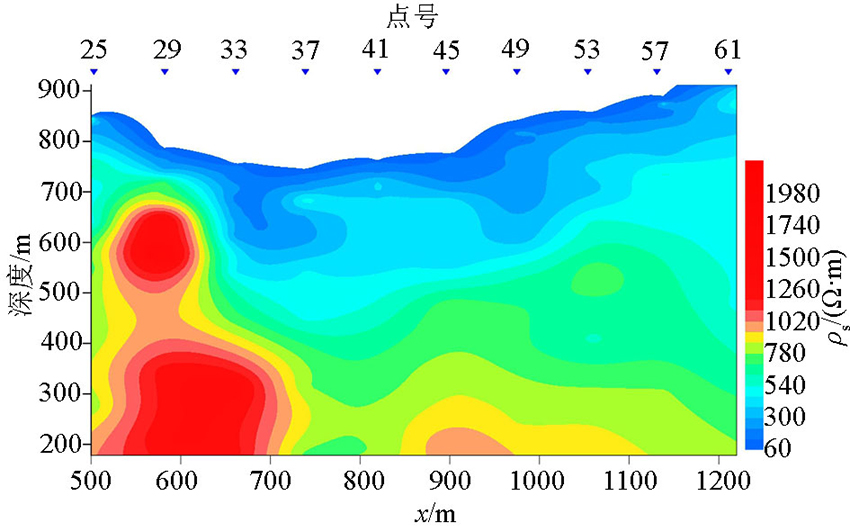

Apparent resistivity pseudosection of IP sounding in Jiguangou

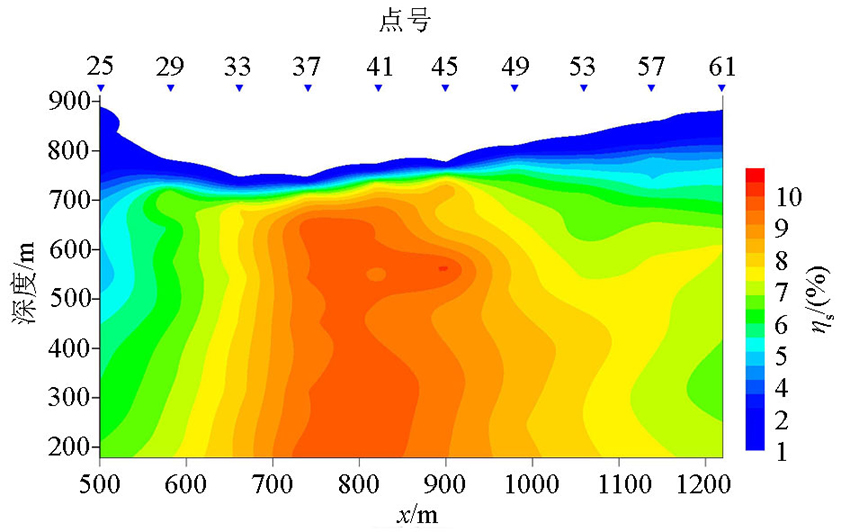

Apparent polarizability pseudosection of IP sounding in Jiguangou

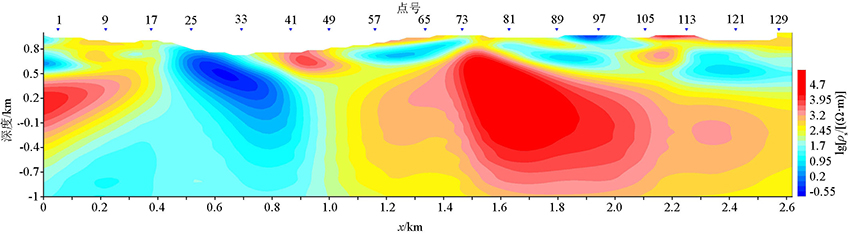

AMT profile inversion contour map

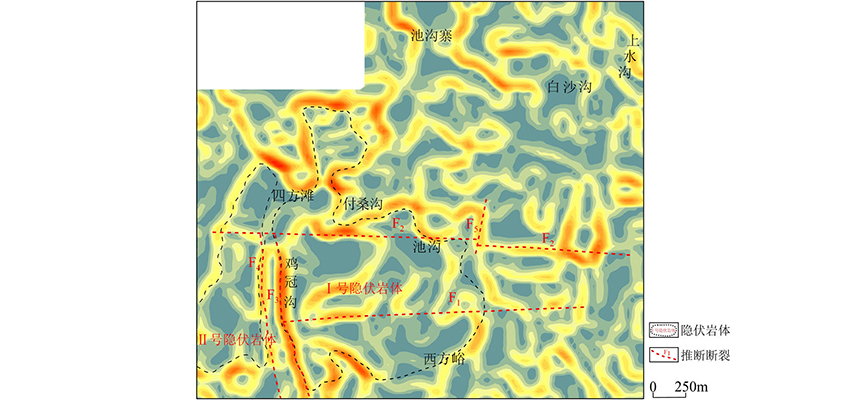

Superposition diagram of gravity anomaly level total gradient and interpretation inference

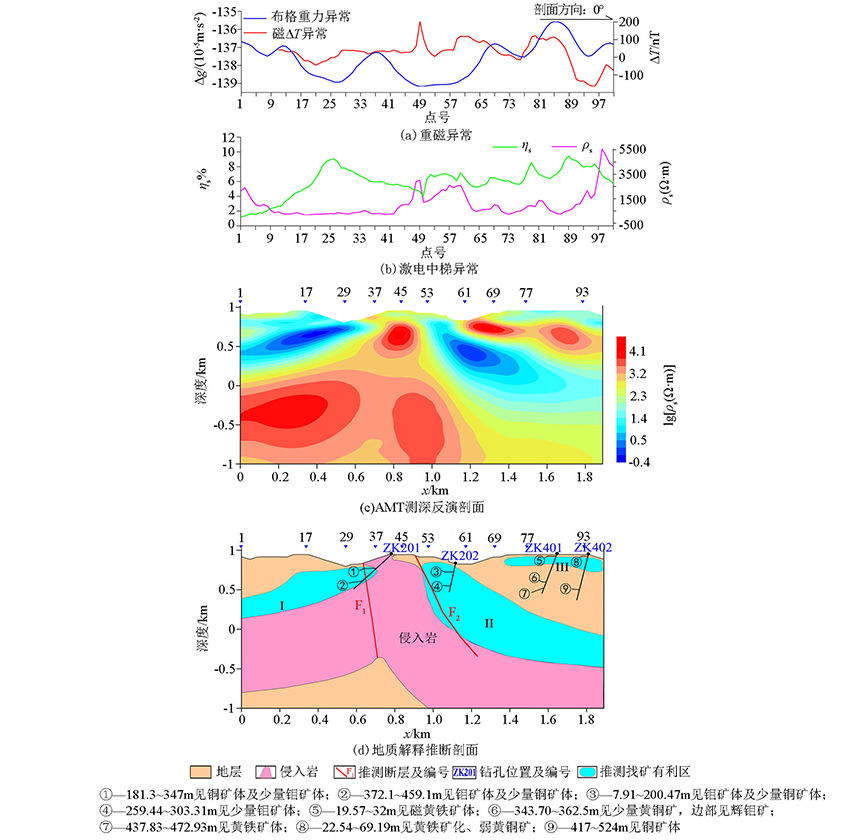

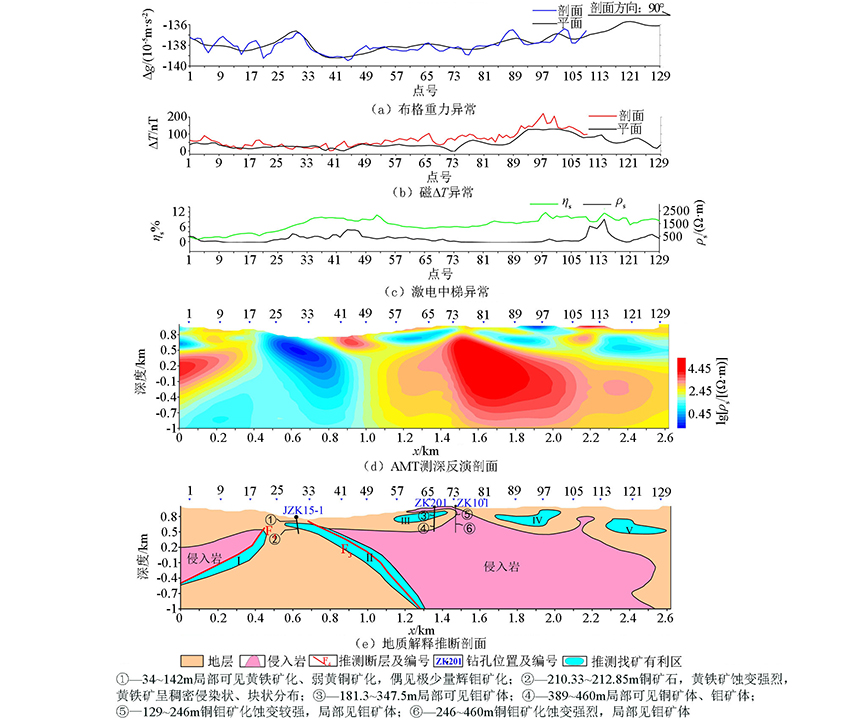

Comprehensive interpretation and inference map of profile P1

Comprehensive interpretation and inference map of profile P2

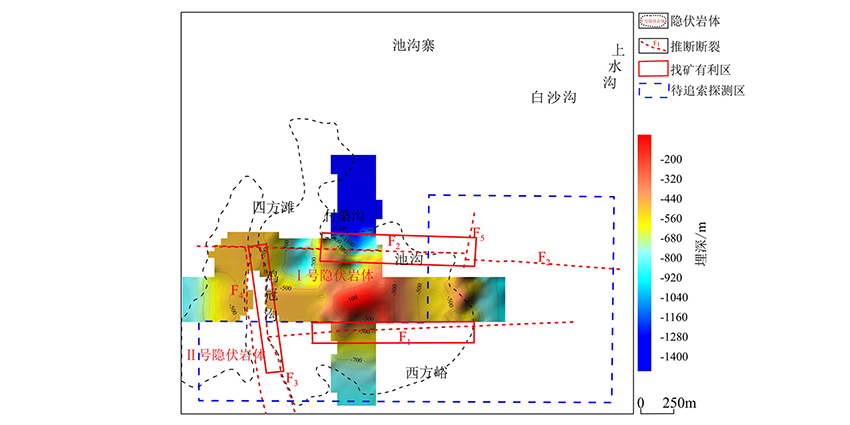

Superimposed map of favorable prospecting area and top buried depth of rock mass

[1]	张西社, 王瑞廷. 陕西省山阳县池沟地区斑岩成矿特征、成矿规律及找矿预测[J]. 西北地质, 2011, 44(2):73-74.
[1]	Zhang X S, Wang R T. Metallogenic characteristics, metallogenic regularity and prospecting prediction of porphyryin Chigou area, Shanyang County, Shaanxi Province[J]. Northwestern Geology, 2011, 44(2):73-74.
[2]	任涛, 王瑞廷, 王向阳, 等. 秦岭造山带柞水—山阳沉积盆地铜矿勘查思路与方法[J]. 地质学报, 2009, 83(11):1730-1738.
[2]	Ren T, Wang R T, Wang X Y, et al. Ideasand methods of copper explorationin Zhashui-Shanyang sedimentary basin of Qinling Orogenic Belt[J]. Acta Geologica Sinica, 2009, 83(11):1730-1738.
[3]	刘凯, 李剑斌, 任涛, 等. 陕西池沟斑岩型铜矿地质特征与找矿前景分析[J]. 矿产勘查, 2013, 4(1):26-32.
[3]	Liu K, Li J B, Ren T, et al. Analysis on geological characteristics and prospecting prospect of porphyry copper depositin Chigou, Shaanxi Province[J]. Mineral Exploration, 2013, 4(1):26-32.
[4]	任涛, 王瑞廷, 谢桂青, 等. 陕西池沟斑岩型含矿岩体地球化学特征、成岩时代及找矿意义[J]. 矿床地质, 2014, 33(4):807-818.
[4]	Ren T, Wang R T, Xie G Q, et al. Geochemical characteristics, diagenetic age and prospecting significance of porphyry type ore-bearing rock massin Chigou, Shaanxi Province[J]. Mineral Deposits, 2014, 33(4):807-818.
[5]	王备战, 王瑞廷, 王宏宇, 等. 陕西凤太矿集区深部铅锌矿产资源潜力及地球物理找矿方向[J]. 地球科学与环境学报, 2020, 42(6):801-818.
[5]	Wang B Z, Wang R T, Wang H Y, et al. Potential and geophysical prospecting direction of Pb-Zn mineral re-sourcesinthe deep area of Fengtai ore gathering area, Shaanxi, China[J]. Journal of Earth Sciences and Environment, 2020, 42(6):801-818.
[6]	屈利军, 王庆, 李波, 等. 综合物探方法在湖南香花岭矿田三合圩矿区深部成矿规律研究中的应用[J]. 物探与化探, 2020, 44(6):1313-1321.
[6]	Qu L J, Wang Q, Li B, et al. The application of multiple geophysical methods to the study of deep metallogenic regularity in the Sanhexu mining area, the Xianghualing orefield, Hunan Province[J]. Geophysical and Geochemical Exploration, 2020, 44(6):1313-1321.
[7]	吾守艾力·肉孜, 梁生贤, 焦彦杰. 重磁电多约束反演在矿体定位中的试验效果——以云南芦子园为例[J]. 地球物理学进展, 2016, 31(6):2682-2689.
[7]	W S A L·Rou-Zi, Liang S X, Jiao Y J. Experimental results of gravity, magnetic and electric multi-constraint inversionin orebody location: A case study of Luziyuan, Yunnan Province[J]. Progressin Geophysics, 2016, 31(6):2682-2689.
[8]	吾守艾力·肉孜, 梁生贤, 邹光富, 等. AMT与重力方法在云南芦子园地区隐伏岩体勘查中的应用[J]. 物探与化探, 2015, 39(3):525-529.
[8]	W S A L·Rou-Zi, Liang S X, Zou G F, et al. Application of AMT and gravity methodto concealed rock explorationin Luziyuan Area, Yunnan[J]. Geophysical and Geochemical Exploration, 2015, 39(3):525-529.
[9]	张国伟, 张本仁, 袁学城. 秦岭造山带与大陆动力学[M]. 北京: 科学出版社, 2001.
[9]	Zhang G W, Zhang B R, Yuan X C. Qinling orogenic beltand continental dynamics [M]. Beijing: Science Press, 2001.
[10]	王相, 唐荣扬, 李实, 等. 秦岭造山与金属成矿[M]. 北京: 冶金工业出版社, 1996.
[10]	Wang X, Tang R Y, Li S, et al. Qinling orogeny and metal mineralization [M]. Beijing: Metallurgical Industry Press, 1996.
[11]	谢桂青, 任涛, 李剑斌, 等. 陕西柞山盆地池沟铜钼矿区含矿岩体的U-Pb年龄和岩石成因[J]. 岩石学报, 2012, 28(1):15-26.
[11]	Xie G Q, Ren T, Li J B, et al. U-Pb age and petrogenesis of ore-bearing rock bodiesin Chigou Copper-molybdenum deposit area, Zhashan Basin, Shaanxi Province[J]. Acta Petrologica Sinica, 2012, 28(1):15-26.
[12]	朱华平, 祁思敬. 陕西柞山地区铜矿找矿突破口的选择[J]. 西北地质, 1997, 18(1):18-21.
[12]	Zhu H P, Qi S J. The choice of breakthrough point for copper prospecting in Zhashan area, Shaanxi Province[J]. Northwestern Geology, 1997, 18(1):18-21.
[13]	张西社. 南秦岭柞山地区铜矿成矿类型、成矿规律及找矿预测[J]. 地质与勘探, 2012, 48(4):728-741.
[13]	Zhang X S. Metallogenic types, metallogenic regularity and prospecting prediction of copper deposits in Zhashan area, South Qinling Mountains[J]. Geology and Prospecting, 2012, 48(4):728-741.
[14]	陈雷, 王宗起, 闫臻, 等. 秦岭山阳—柞水矿集区150~140 Ma斑岩—矽卡岩型CuMoFe(Au)矿床成矿作用研究[J]. 岩石学报, 2014, 30(2):415-436.
[14]	Chen L, Wang Z Q, Yan Z, et al. Study on the mineralization of 150~140 Ma Porphyry-skarn CuMoFe(Au) deposit in Shanyang-Zhashui Mine Concentration Area, Qinling[J]. Acta Petrologica Sinica, 2014, 30(2):415-436.
[15]	方维萱, 刘家军. 陕西柞—山—商晚古生代拉分断陷盆地动力学与成矿作用[J]. 沉积学报, 2013, 31(2):193-209.
[15]	Fang W X, Liu J J. Dynamics and mineralization of late Paleozoic Zha-Shan-Shang Pull-apart faulted basin in Shaanxi Province[J]. Acta Sedimentologica Sinica, 2013, 31(2):193-209.
[16]	王瑞廷, 李剑斌, 任涛, 等. 柞水—山阳多金属矿集区成矿条件及找矿潜力分析[J]. 中国地质, 2008, 35(6):1291-1298.
[16]	Wang R T, Li J B, Ren T, et al. Analysis of metallogenic conditions and prospecting potential of Zhashui-Shanyang polymetallic ore concentration area[J]. Geology of China, 2008, 35(6):1291-1298.
[17]	王瑞廷, 任涛, 孟德明, 等. 柞—山矿集区侵入岩与成矿[J]. 西北地质, 2012, 45(S):29-33.
[17]	Wang R T, Ren T, Meng D M, et al. Intrusive rocks and mineralization in Zha-Shan ore concentration area[J]. Northwestern Geology, 2012, 45(S):29-33.
[18]	祝新友, 王瑞廷, 汪东波, 等. 西秦岭铅锌金铜银矿床成矿模式研究及找矿预测[M]. 北京: 地质出版社, 2011.
[18]	Zhu X Y, Wang R T, Wang D B, et al. Study on metallogenic modeland prospecting prediction of Pb-Zn-Au-Cu-Au deposit in West Qinling [M]. Beijing: Geological Publishing House, 2011.
[19]	孟德明, 王瑞廷, 王鹏, 等. 柞水—山阳矿集区冷水沟铜钼矿成矿特征及成矿机制探讨[J]. 矿床地质, 2014, 33(4):833-844.
[19]	Meng D M, Wang R T, Wang P, et al. Discussionon metallogenic characteristics and metallogenic mechanism of Lengshuigou Copper-molybdenum depositin Zhashui-Shanyang ore concentration area[J]. Mineral Deposits, 2014, 33(4):833-844.
[20]	吴发富. 中秦岭山阳—柞水地区岩浆岩及其成矿构造环境研究[D]. 北京:中国地质科学院, 2013.
[20]	Wu F F. Study on magmatic rocks and metallogenic tectonic environment in Shanyang-Zhashuiarea, middle Qinling Mountains[D]. Beijing: Chinese Academy of Geological Sciences, 2013.
[21]	王瑞廷, 袁海潮, 孟德明, 等. 小秦岭地区金钼多金属矿成矿特征与找矿预测[J]. 地球科学与环境学报, 2014, 36(1):19-31.
[21]	Wang R T, Yuan H C, Meng D M, et al. Metallogenic characteristics and prospecting prediction of Au-Mo polymetallic deposit in Xiaoqinling area[J]. Journal of Earth Sciences and Environment, 2014, 36(1):19-31.
[22]	闫臻, 王宗起, 陈雷. 南秦岭山阳—柞水矿集区构造—岩浆—成矿作用[J]. 岩石学报, 2014, 30(2):401-414.
[22]	Yan Z, Wang Z Q, Chen L. Tectono-magmatic-mineralization in Shanyang-Zhashui ore concentration area, South Qinling Mountains[J]. Acta Petrologica Sinica, 2014, 30(2):401-414.
[23]	刘圣博, 罗士新, 刘磊, 等. 重磁综合推断中南地区隐伏的中酸性岩体[J]. 工程地球物理报, 2013, 10(6):805-813.
[23]	Liu S B, Luo S X, Liu L, et al. Inferred by gravity and magnetic synjournal the concealed intermediate-acid rock massin central and southern China[J]. Chinese Journal of Engineering Geophysics, 2013, 10(6):805-813.
