瞬变电磁法探测复杂状态下煤矿充水采空区物理模拟实验

doi:10.11720/wtyht.2021.0055

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (4751 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

After the formation of water-filled goaf in coal mines, the distribution patterns and locations are different and unclear. Therefore, it can easily cause serious water hazards. In order to accurately locate the water-filled goaf and study its electromagnetic response characteristics, the authors chose the Datong Majiliang coal mine as the engineering background, used acrylic glass shelves as the experimental platform, and took similar simulation materials as each rock layer to design the physical experiment of transient electromagnetic detection in the water-filled goaf under different water accumulation and existence situations of collapsed rock masses. The results demonstrate that, when the goaf is filled with water, the induced electromotive force curve will be affected by the low resistance effect during the attenuation process and produce an abnormal "upward" phenomenon, and the greater the water filling, the more obvious the abnormal amplitude is. The existence of collapsed rock mass will limitedly weaken the abnormal interference of low resistance. When the goaf is not filled with water, the induced electromotive force curve decays normally, and the impact of the collapsed rock mass is negligible.

Key words： transient electromagnetic method water-filled goaf physical simulation experiment decay electromotive force curve

Received: 28 January 2021 Published: 20 August 2021

ZTFLH:

P631.325

Corresponding Authors: FENG Guo-Rui E-mail: pxm2998944218@163.com;fguorui@163.com

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Xiao-Ming PEI
	Guo-Rui FENG
	Ting-Ye QI

Cite this article:

Xiao-Ming PEI,Guo-Rui FENG,Ting-Ye QI. Physical simulation experiment for detecting water-filled goaf of coal mine under complex conditions bases on transient electromagnetic method[J]. Geophysical and Geochemical Exploration, 2021, 45(4): 1055-1063.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2021.0055 OR https://www.wutanyuhuatan.com/EN/Y2021/V45/I4/1055

Formation distribution table of No.1 coal seam in Shendong coal mine

Proportion of similar mateials in rock layers

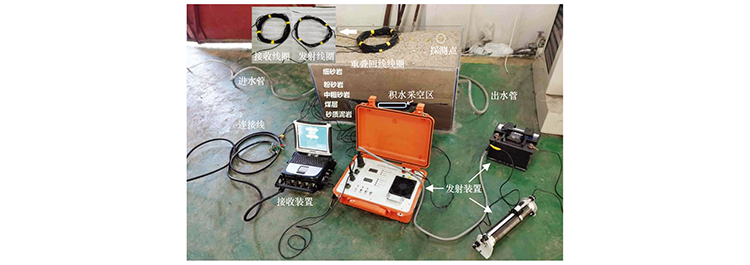

Schematic diagram of physical simulation model

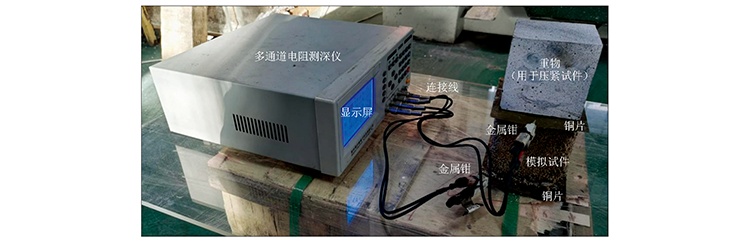

Schematic diagram of resistance test system

Electrical characteristics of similar simulated specimens

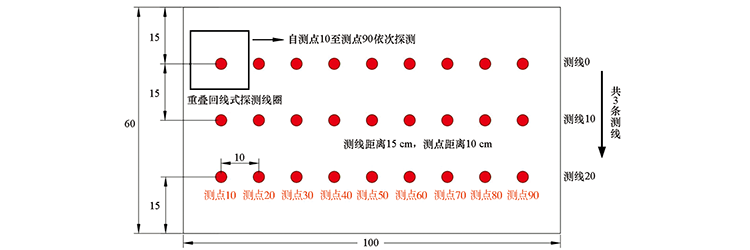

Layout of surveying lines and points

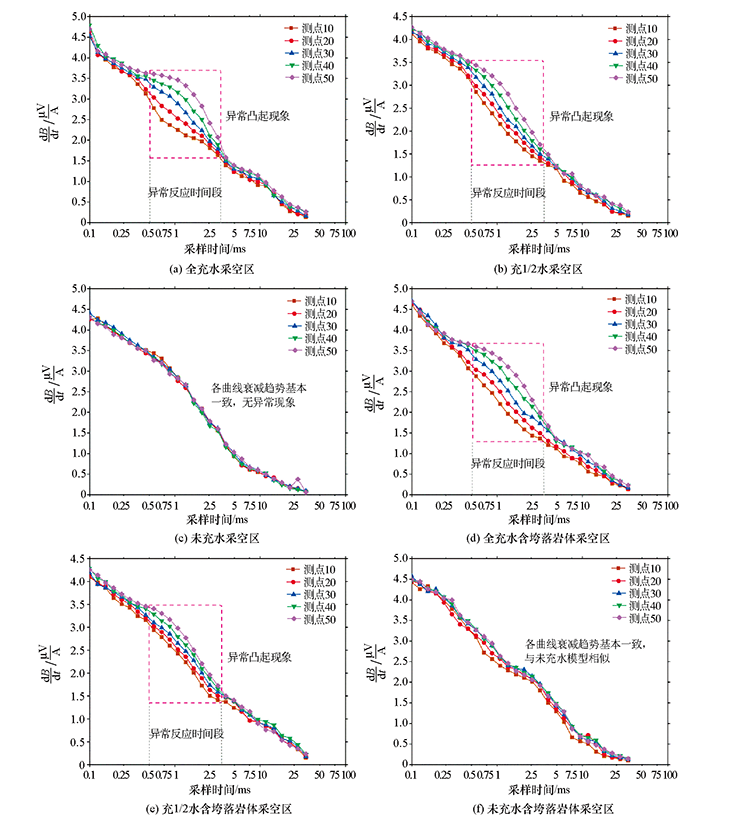

Curves of decay electromotive force of water-filled goaf in different states

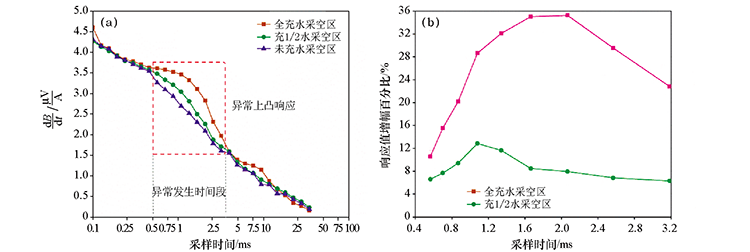

Attenuation electromotive force curves in goaf with different amounts of accumulated water(a) and the increase characteristics of induced electromotive force(b)

Response value of attenuation electromotive force in goaf with different water filling μV/A

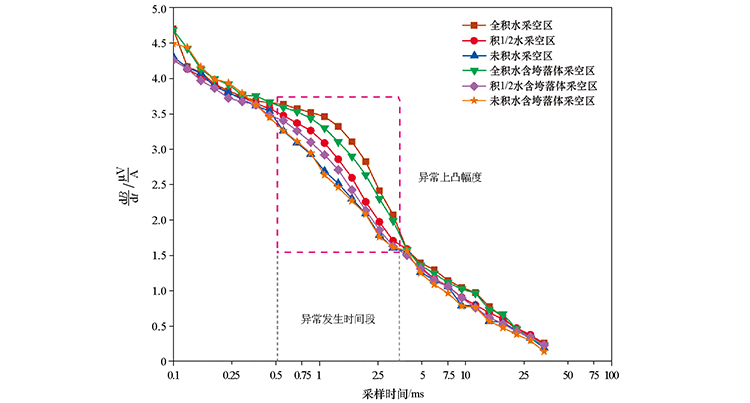

Curves of attenuation electromotive force in the water-filled goaf with different existence status of collapsed bodies

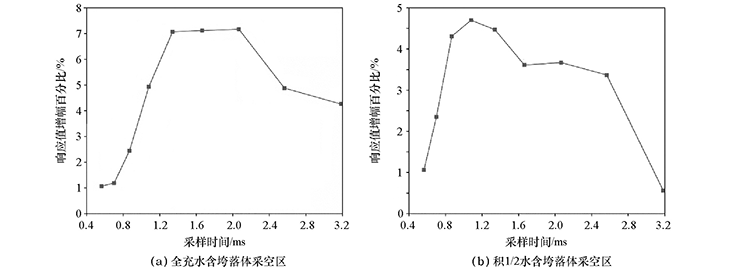

Response values of attenuation electromotive force of water-filled goaf in different the existence status of collapsed bodies μV/A

Amplitude reduction characteristics of attenuation electromotive force response under different water-filled conditions
