不同高度重力数据和井中重力数据融合反演研究

doi:10.11720/wtyht.2020.1578

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (1768 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

The essential factor for determining the effect of gravity 3D inversion is the observation data, which include the quality, quantity and location. In this paper, the regularized inversion method is used to study the influence of gravity data from different heights and well observations on the inversion results. First of all, gravity data of different heights are inverted separately to verify the relationship between the inversion effect and the height of the observation surface. Then, the gravity data of different heights are inverted together to verify the improvement effect of the joint inversion. On the basis of the beneficial effects of joint inversion, when multi-plane observation data are unavailable, continuation gravity data at different heights are obtained through continuation technology, and joint continuation data and observation data are inverted to improve the inversion effect. This applies to a variety of situations. For example, when only the ground observation gravity data are available, the down continuation data and ground observation gravity data are inverted jointly; when only the airborne observation gravity data are available, the down continuation data and airborne observation gravity data are inverted jointly. Finally, taking advantage of the fact that the measured data in the boreholes are closer to the anomaly, it is added to the inversion to further improve the vertical resolution.

Key words： different heights borehole data gravity joint inversion continuation

Received: 13 December 2019 Published: 29 December 2020

P631

Corresponding Authors: XIONG Sheng-Qing E-mail: gaoxiuhevip@163.com;842091616@qq.com;xsq@agrs.cn

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Xiu-He GAO
	Sheng-Qing XIONG
	Chang-Chun YU
	Si-Yuan SUN

Cite this article:

Xiu-He GAO,Sheng-Qing XIONG,Chang-Chun YU, et al. A study of joint inversion of gravity data from multi-planes and boreholes[J]. Geophysical and Geochemical Exploration, 2020, 44(6): 1361-1367.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2020.1578 OR https://www.wutanyuhuatan.com/EN/Y2020/V44/I6/1361

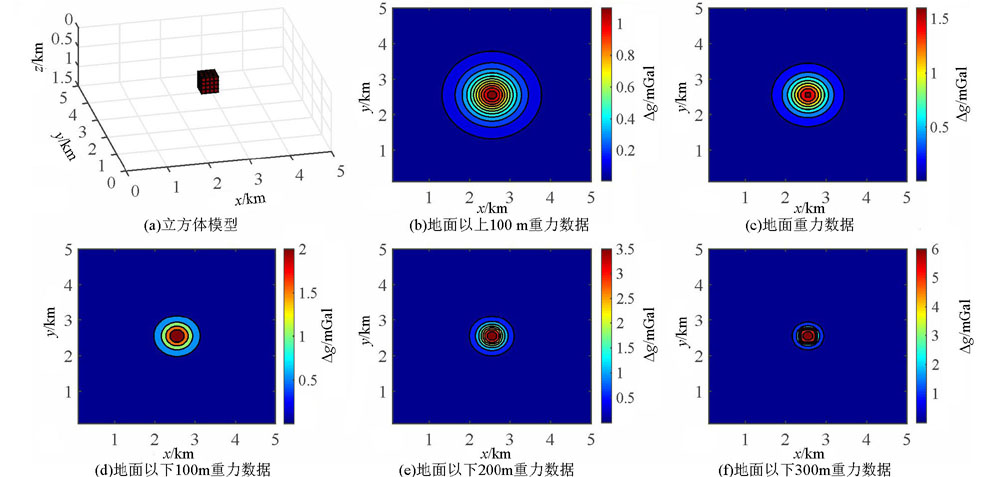

Cube model and its forward gravity data

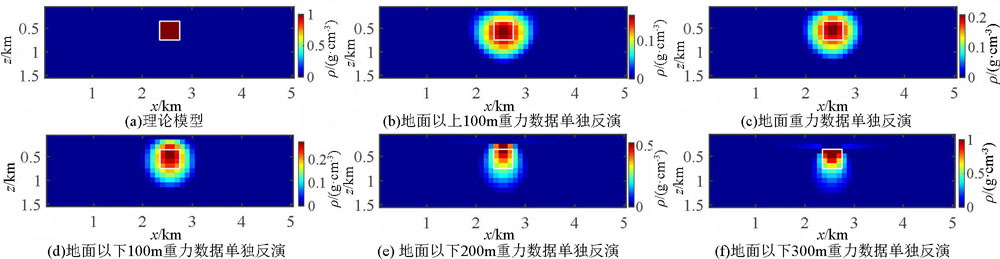

Vertical slices of inversion results of gravity data at different heights

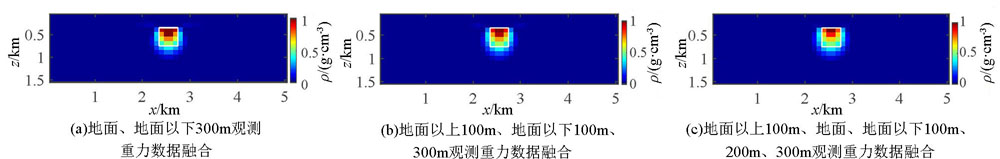

Vertical slices of inversion results of joint gravity data at different heights(y=2.5 km)

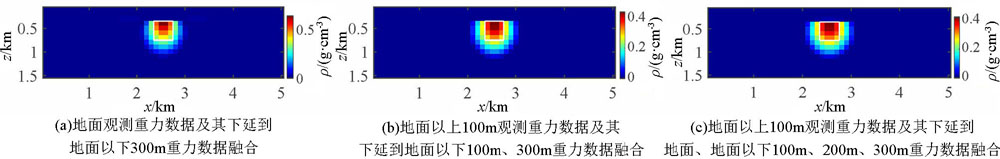

Inverted density models using the joint observed gravity and continuation gravity data(y=2.5 km)

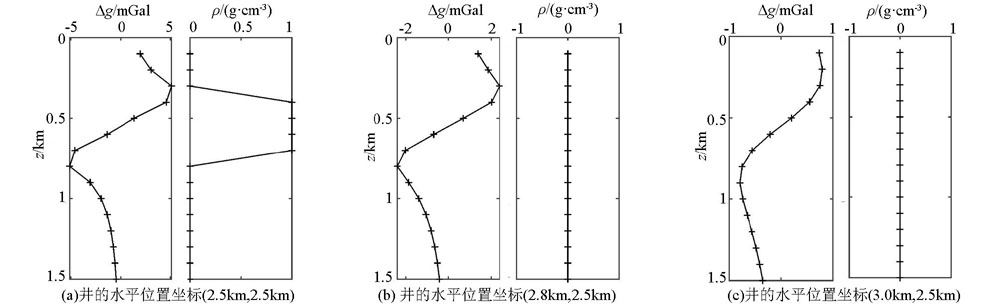

Well gravity and well density at different locations

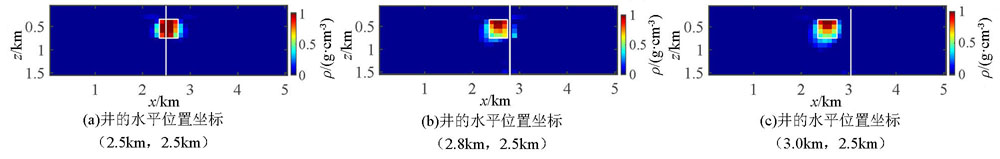

Recovered density models in the constraint of well data(the solid white line represents the drilling location)

Gravity data based on double prisms

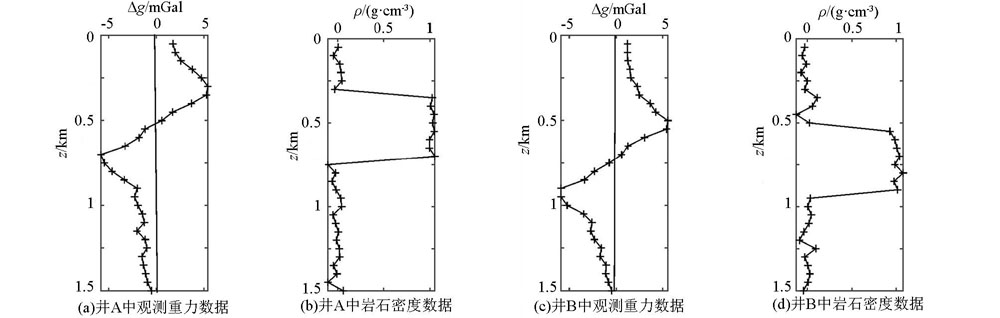

The simulated data observed in the wells

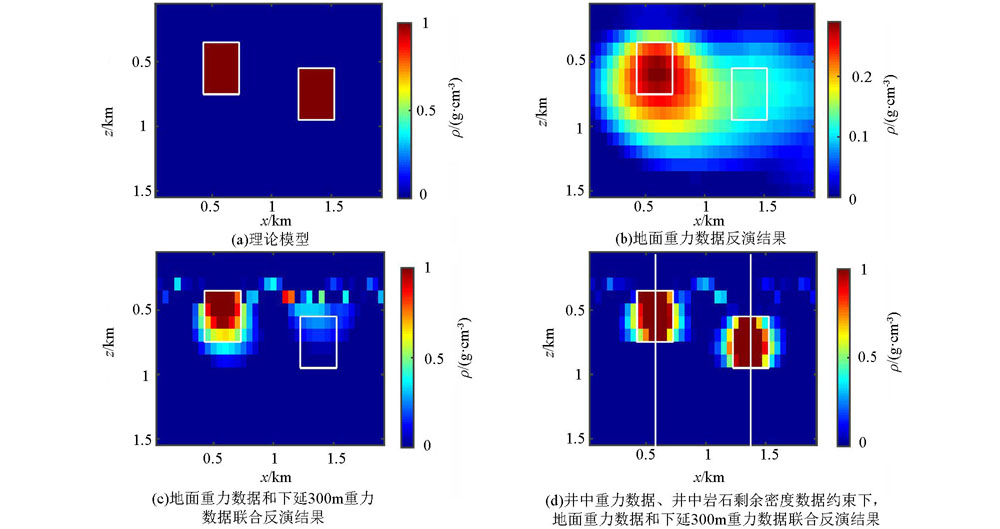

Recovered double-prism models(the solid white line represents the drilling location)
