| The application of wide field electromagnetic method to shale gas exploration in Wuling Mountain area: A case study of Tongzi area in northern Guizhou |
LI Di-Quan1,2,3( ), WANG Zhen-Xing1,2,3, HU Yan-Fang1,2,3, WANG Han1,2,3, SU Yu-Di1,2,3 |
1.School of Geosciences and Info-Physics, Central South University, Changsha 410083, China
2.Key Laboratory of Metallogenic Prediction of Nonferrous Metals and Geological Environment Monitoring(Central South University), Ministry of Education, Changsha 410083, China
3.Key Laboratory of non-ferrous and geological hazard detection, Changsha 410083, China |
|
|
|
|
Abstract After the major breakthrough in oil and gas was obtained from the Well Anye 1, the Ministry of Natural Resources increased the residual shale gas and oil and gas exploration and development of 7,800 square kilometers in the Wuling Mountain. The Wulong Mountain area has complex geological structures, undulating terrain and large areas of carbonate rock, which has led to great challenges to traditional oil and gas exploration methods based on seismic exploration. Wide field electromagnetic method has the characteristics of green, high efficiency and low cost, and hence has become one of the powerful methods for oil and gas exploration and is now being widely used in shale gas exploration in southern China. It is a favorable method for shale gas exploration in southern China. The strata in Tongzi Guizhou are relatively stable, and the organic carbon content in the upper Ordovician Wufeng-Lower Silurian Longmaxi Formation is high. Through surface sample collection and well logging data analysis, the organic shale in this formation shows obvious low resistivity characteristics, which has the physical conditions of electromagnetic exploration. The wide field electromagnetic method was used to carry out shale gas exploration in Tongzi area of northern Guizhou, which overcame the complex influence of topography, carbonate rocks and structure. It is found that the structure pattern of Tongzi area is characterized by "depression and uplift" from northeast to southwest. The spatial distribution characteristics of the Wufeng-Longmaxi Formation in the target layer were detected, and four favorable areas for shale gas exploration were delineated. The prediction of shale gas exploration target area by wide area electromagnetic method is expected to help realize the breakthrough of shale gas exploration and development from point to surface in Wuling Mountain area and promote the development of clean energy industry along the river.
|
|
Received: 06 December 2019
Published: 26 October 2020
|
|
|
|
|
|
|

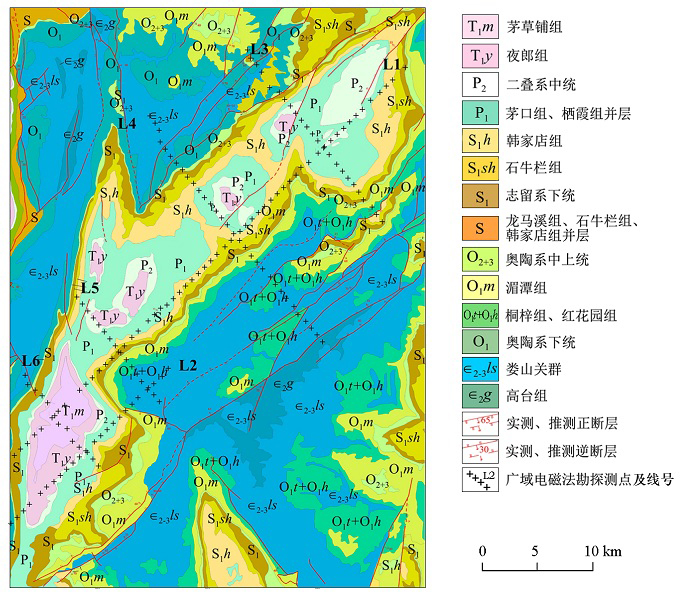

Layout of survey line in study area
|
|

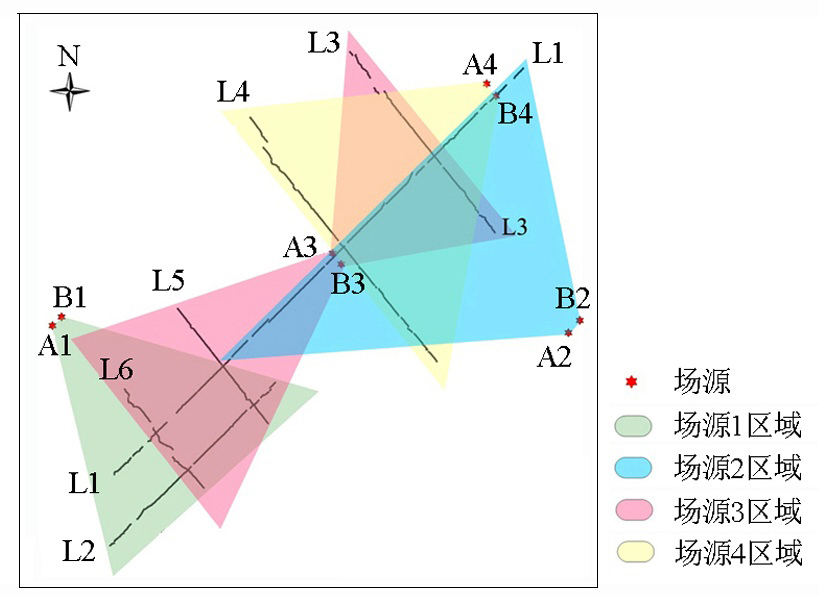

Layout of field source in study area
|
|

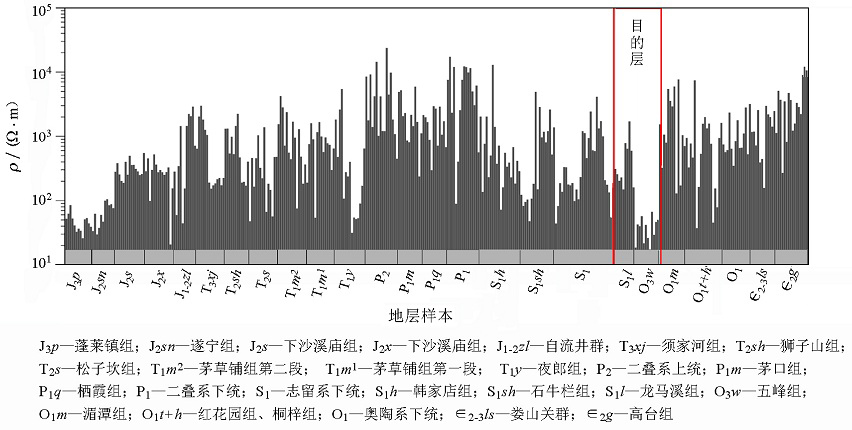

Stratum specimen resistivity measurement chart
|
|

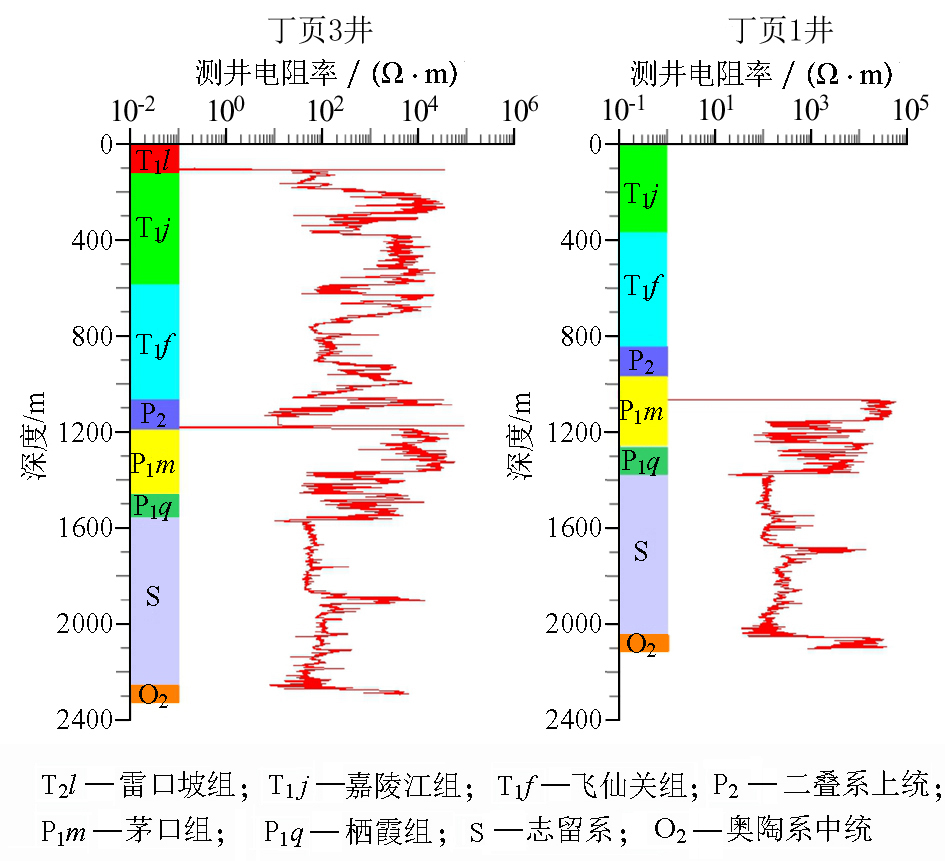

Resistivity logging curves
|
| 地层 | 主要岩性 | 范围/(Ω·m) | 平均值/(Ω·m) | 电性特征 | | 茅口组(P1m) | 灰岩 | 15.2~99 909.2 | 8 853.1 | 高阻 | | 栖霞组(P1q) | 灰岩、灰色黏土岩 | 8.6~15 714.7 | 2 074.4 | 高阻 | | 韩家店组(S1h) | 页岩、泥质砂岩、碎屑灰岩 | 11.3~176.1 | 39.7 | 低阻 | | 小河坝组(S1x) | 泥质石英粉砂岩夹页岩 | 17.9~88.1 | 29.1 | 低阻 | | 龙马溪组(S1l) | 泥质灰岩、钙质页岩互层、灰黄色页岩、黑色炭质页岩 | 4.4~96.8 | 25.2 | 低阻 | | 五峰组(O3w) | 泥质灰岩、黑色炭质页岩 | 7.1~73. 1 | 21.7 | 低阻 | | 临湘组(O3l) | 泥质灰岩 | 99.8~3 345.1 | 926.7 | 中高阻 | | 宝塔组(O2b) | 龟裂纹灰岩 | 606.6~4 595.7 | 1 661.1 | 高阻 | | 十字铺组(O2sh) | 微粒灰岩、泥质灰岩 | 987.5~8 080.6 | 2 212.1 | 高阻 |
|
Statistical table of physical properties of Wufeng-Longmaxi Formation and surrounding rocks
|
|

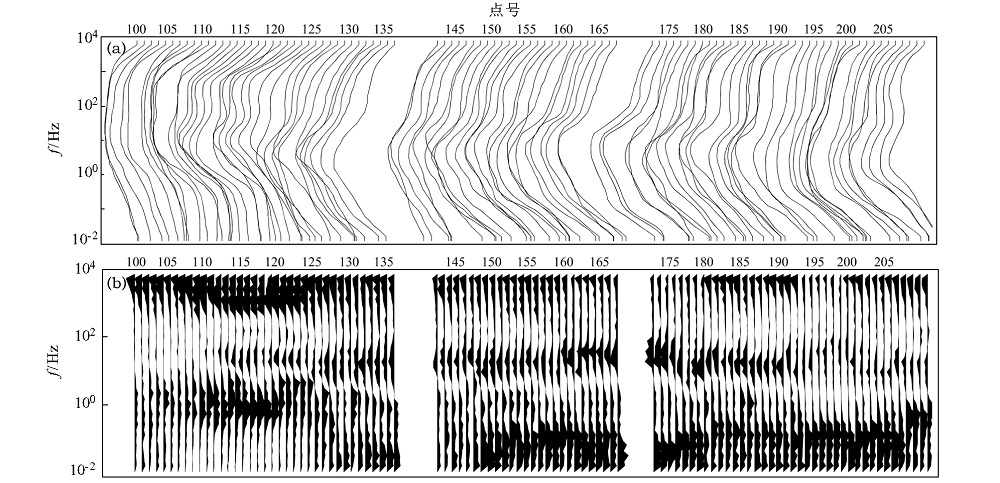

Raw data graph of L6 line (a) and quasi-seismic profile of L6 line(b)
|
|

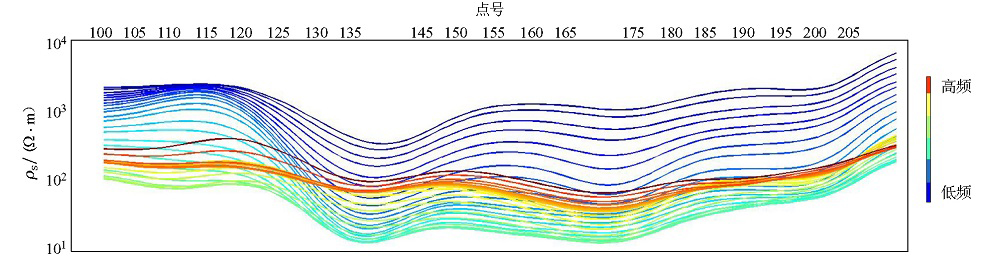

Equal frequency apparent resistivity curve of L6 line
|
|

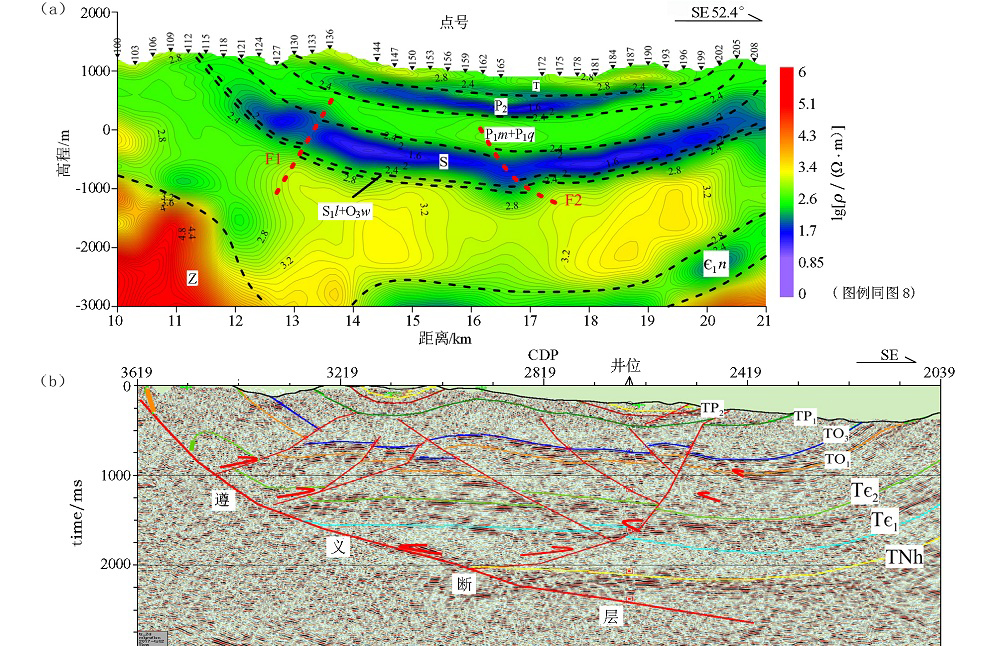

Inversion cross-section of L6 line(a) and seismic interpretation section(b)
|
|

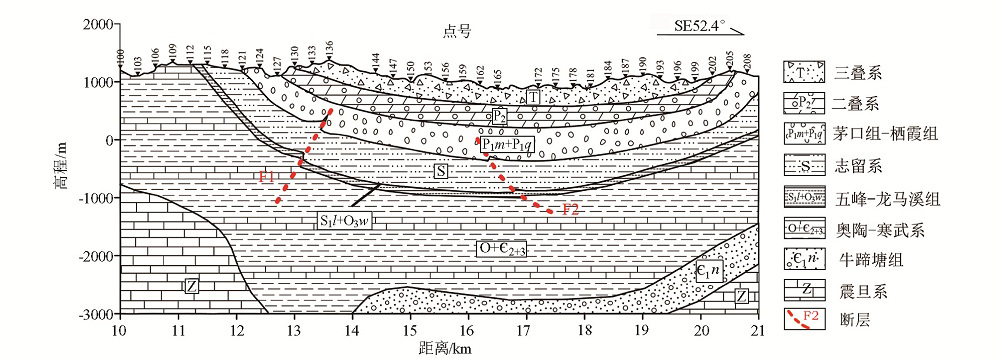

Geological interpretation profile of line L6
|
|

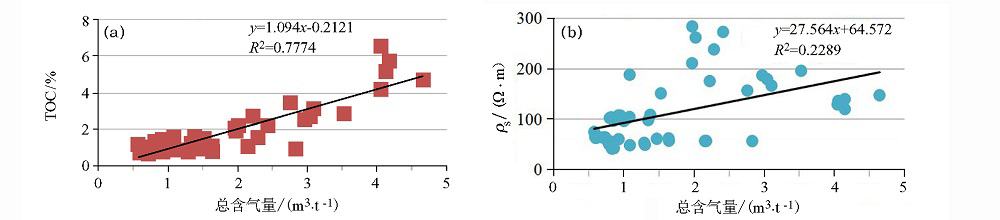

Relationship between gas content, TOC(a) and apparent resistivity(b) of Wufeng Formation—Longmaxi Formation in Well Dingye3
|
|

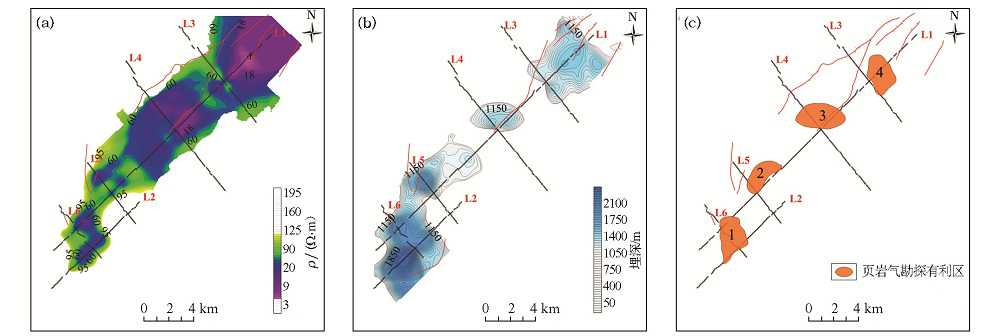

Target area resistivity (a), buried depth (b), comprehensive favorable area prediction result in exploration area (c)
|
