| TFEM multi-attribute image fusion hydrocarbon prediction technique and its application |
WANG Yong-Tao( ), YANG Zhan-Jun, WANG Xue-Hui, SHI Yan-Ling, YUN Zhi-Neng |
| BGP, China National Petroleum Corporation,Zhuozhou 072751, China |
|
|
|
|
Abstract The TFEM method has been widely applied to oil and gas exploration since it was introduced. Through comprehensive interpretation, the geological structure and hydrocarbon condition of subsurface can be well predicted using multi attribute information acquired from TFEM data. For the purpose of improving the accuracy and the reliability of prediction, the TFEM multi-attribute image fusion prediction technique has been developed, which uses "bright spot" from multi-attributes image fusion display based on RGB and HSL color model to indicate most potential oil and gas bearing area. This technique has been proved effective by application in several regions.
|
|
Received: 26 October 2019
Published: 26 October 2020
|
|
|
|
|
|
|

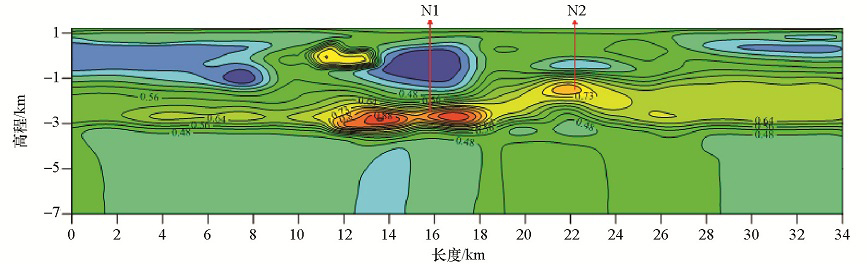

A TFEM polarizability profile in Tarim basin
|
|

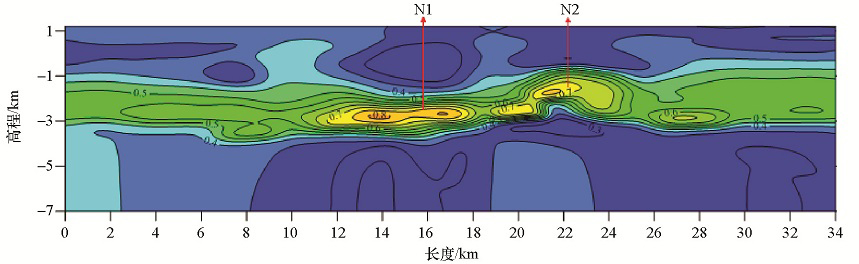

A TFEM time constant profile in Tarim basin
|
|

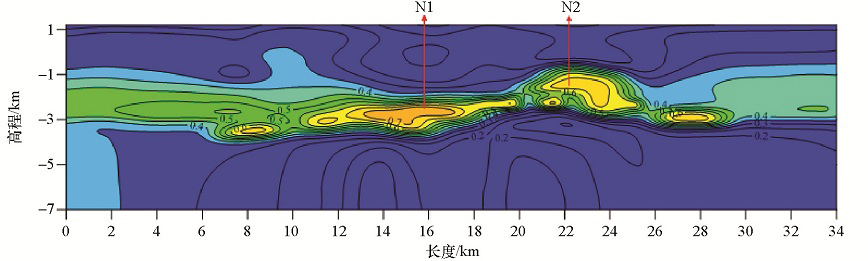

A TFEM frequency correlation coefficient profile in Tarim basin
|
|

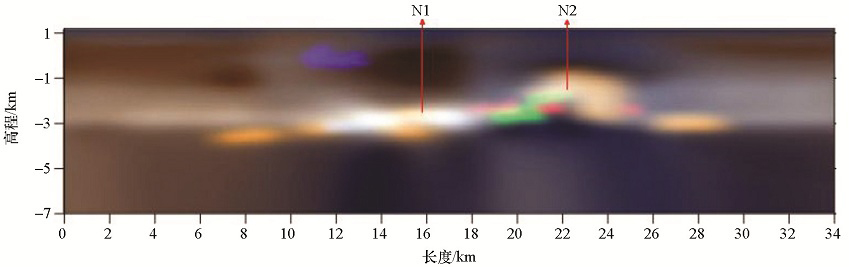

A TFEM RGB fusion diagram in Tarim basin
|
|

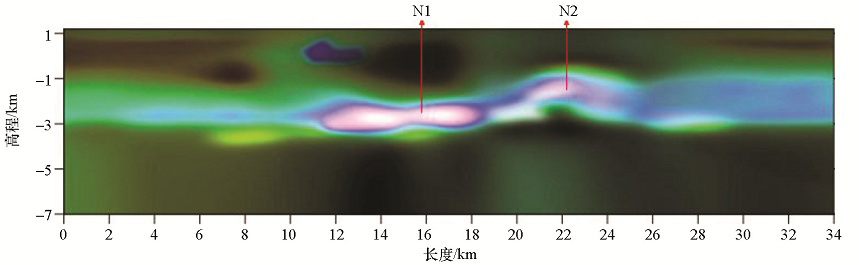

A TFEM HSL fusion diagram in Tarim basin
|
