TEM monitoring technology of CO2 injection and transport in coal seam |
Fang-Zhi CUI1,2, Tao ZHOU1,2, Bing ZHANG3 |
1. Geophysical Survey Party of Henan Coal Geology Bureau,Zhengzhou 450009,China 2. Henan Underground Engineering Exploration Information Engineering Technology Research Center,Zhengzhou 450009,China 3. China United Coalbed Methane Company, Beijing 100015,China |
|
|
Abstract The injection of CO2 into the coal seam changes the CO2 saturation of the coal seam.According to Archie's empirical formula,there are obvious differences in coal seam resistivity before and after CO2 injection,which provides conditions for TEM monitoring.In the development of coalbed methane in Shizhuang North Block,the electrical resistivity changes of coalbed methane before and after CO2 injection were monitored by TEM. The results show that the increase of electrical resistivity of coal seam can be caused by CO2 injection in coal seam, and can be monitored by TEM. At the same time,the induced voltage can directly reflect the change of formation electrical characteristics caused by CO2 injection.The equivalent resistivity from the surface to the coal seam is calculated by using the calculation formula of formation equivalent resistivity,and the transient electromagnetic sampling delay and the corresponding induced voltage of the formation near the coal seam are solved.The variation of induced voltage relative to background value reflects the change of formation electrical properties.The variation and rate of formation induced voltage caused by CO2 injection are analyzed and calculated.Combined with the error range,the range of CO2 migration enrichment zone can be inferred.
|
Received: 01 September 2019
Published: 24 June 2020
|
|
|
|
|
钻井 编号 | 测井深度/m (间隔0.05 m) | 煤层视 厚度/m | 未进行CO2注入 | | CO2注入使煤层电阻率增加2倍 | 底板上20 m 范围内地层 等效电阻率 变化率/% | 煤层等效 电阻率 /(Ω·m) | 煤层底板上20 m 范围内地层等效 电阻率/(Ω·m) | 煤层等效 电阻率 /(Ω·m) | 煤层底板上20 m 范围内地层等效 电阻率/(Ω·m) | SX006 | 1102 | 6.04 | 843.0 | 220.0 | 2528.8 | 231.5 | 5.23 | SX006-1 | 962 | 6.20 | 441.7 | 196.7 | 1325.2 | 224.0 | 13.88 | SX006-2 | 993 | 6.15 | 726.0 | 175.5 | 2178 | 184.9 | 5.36 |
|
Statistical table for calculating logging resistivity near coal seam of injection well
|
|

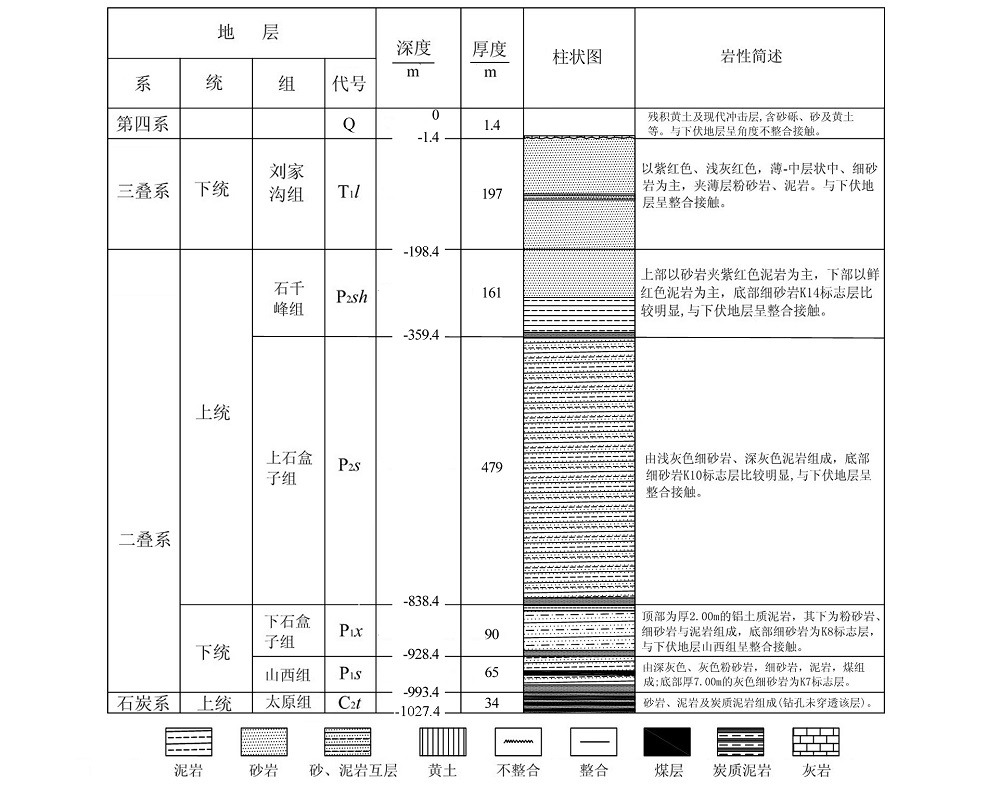

Formation column diagram of well SX006-1
|
|

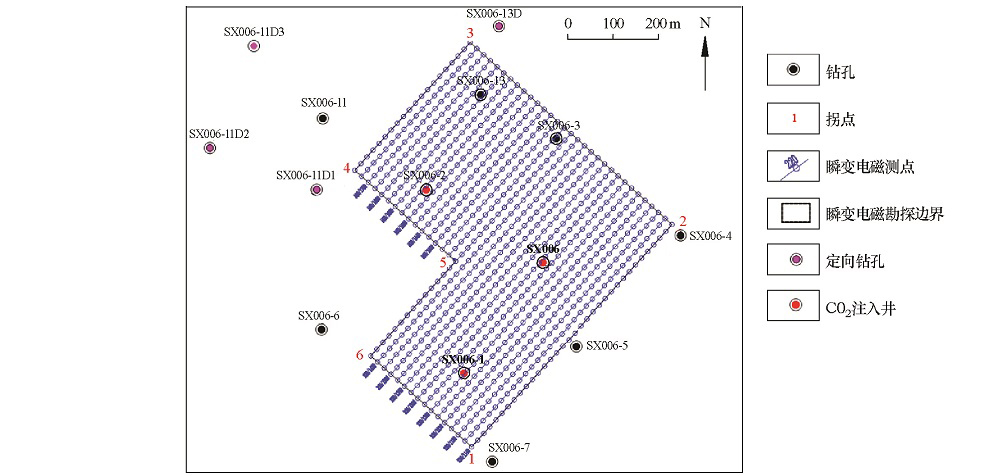

Schematic diagram of work layout in the study area
|
|

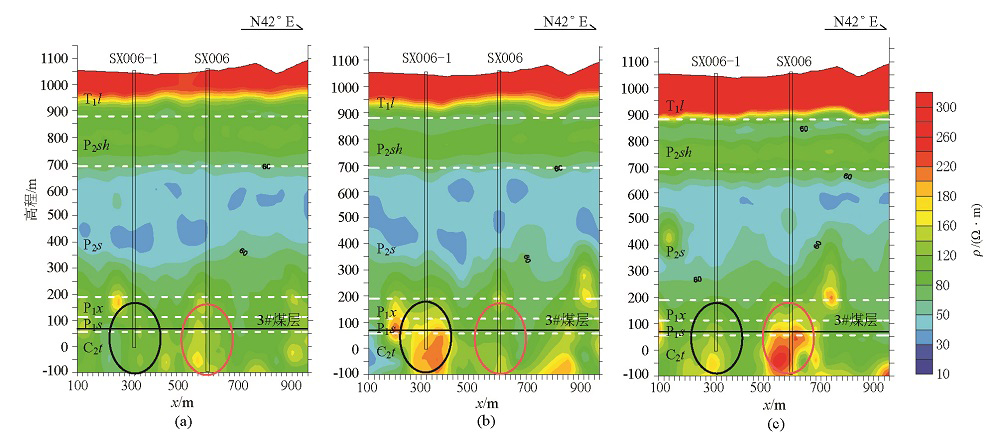

Line 1240 apparent resistivity section a—observation of background values in October 2011; b—observations after 700 tons of CO2 was injected into well SX006-1 in November 2013; c—in October 2015, after 1 619 tons of CO2 was injected into well SX006-1, the well was closed for 10 months,subsequent observation after 1 750 tons of CO2 was injected into well SX006.Ellipse area is abnormal area,same as below
|
|

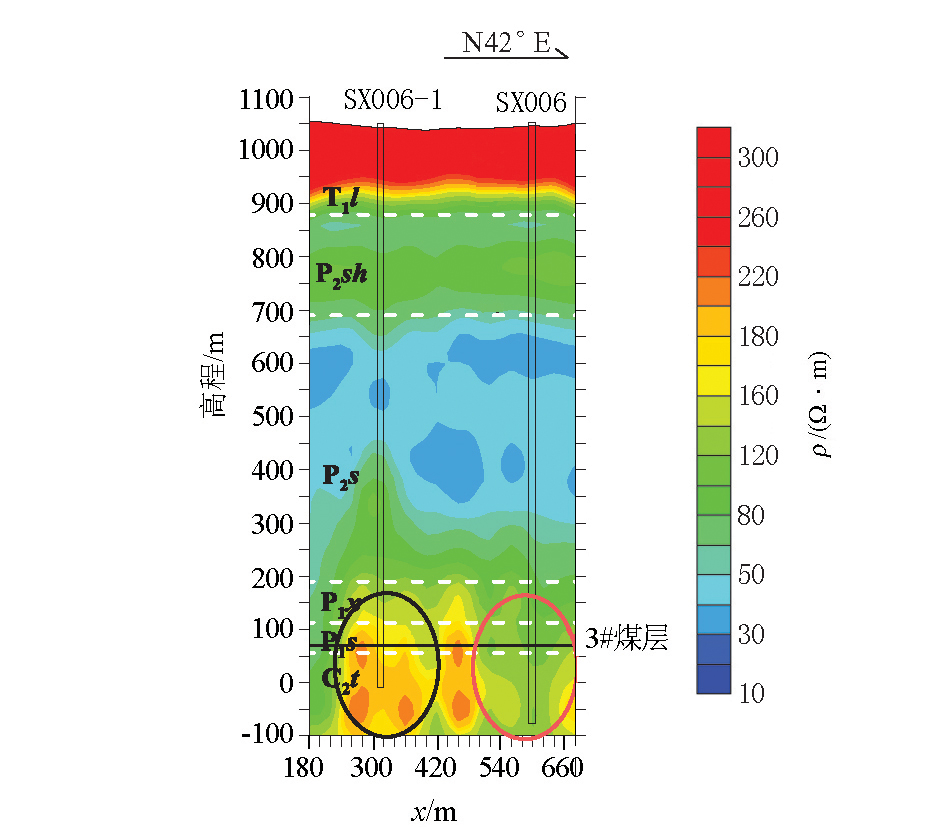

Line 1260 apparent resistivity section observation after 1 460 tons of CO2 was injected into well sx006-1 in November 2014
|
|

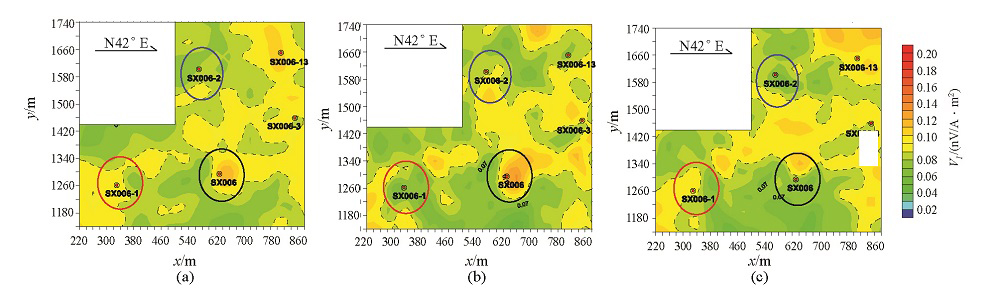

Planar contrast map of induced voltage in strata near coal seam a—observation of background values in October 2011; b—observations after 700 tons of CO2 was injected into well SX006-1 in November 2013; c—in October 2015, after injecting 1 619 tons of CO2 into well SX006-1, the well was closed for 10 months,subsequent observation after injecting 1 750 tons of CO2 into well SX006-2 and injecting 800 tons of CO2 into well SX006-2
|
|

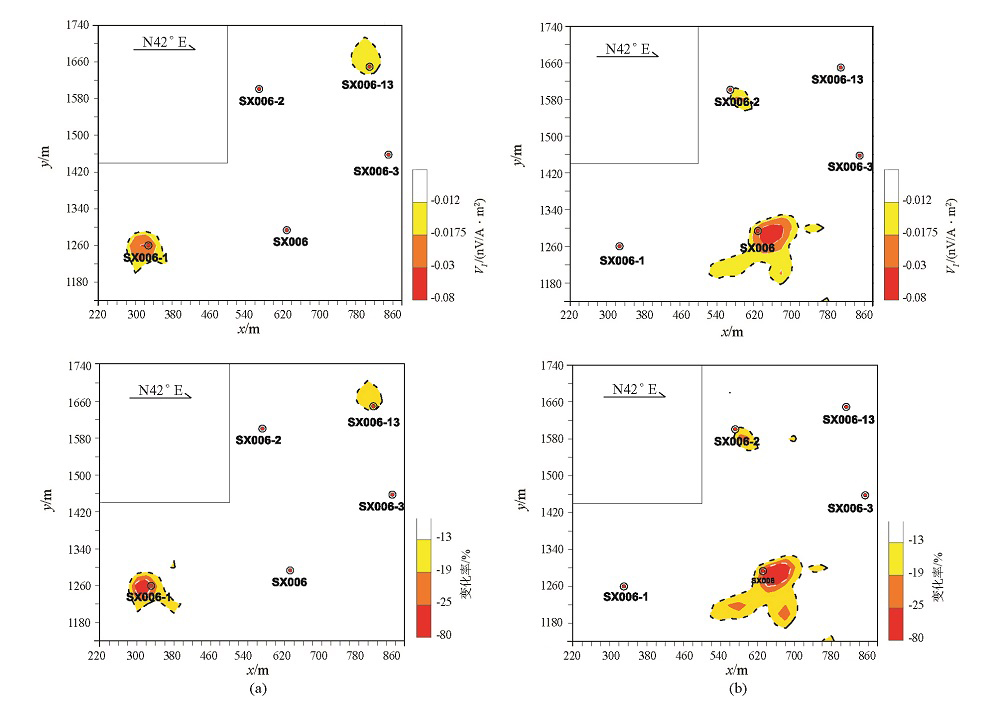

Plane diagram of relative variation of induced voltage of formation near coal seam to background value a—700 tons of CO2 was injected into well SX006-1 in November 2013; b—In October 2015, after injecting 1 619 tons of CO2 into SX006-1 well, the well was closed for 10 months,subsequent 1 750 tons of CO2 was injected into SX006 well and 800 tons of CO2 was injected into SX006-2 well
|
