The application of comprehensive geophysical exploration method to leakage detection of a reservoir |
Ji-Hua YAO1, Shi-Jun LUO2, Wen-Jie SONG1, Yuan LIU3, Wen-Gang ZHAO1, Hui-Zhu LYU1 |
1. Hunan Academy of Water Resources and Hydropower Sciences,Changsha 410007,China 2. Changsha County Key Engineering Administration Bureau,Changsha 410100,China 3. Hunan Baihe Water Conservancy Construction Co. Ltd.,Changsha 410007,China |
|
|
Abstract Influenced by normal fault F2 of right abutment,karst is extensively developed in a reservoir and, as a result, there exists the leakage problem. Although several anti-seepage treatments have been conducted,leakage problem still exists in the near-dam reservoir area,and the situation has been getting worse and worse. In this study. the seepage of the reservoir was detected by flow field method,natural electric field method and high density resistance method. According to the results obtained, comprehensive geophysical prospecting method can accurately obtain the location information of seepage source and seepage channel of the reservoir; the sealing quality of old tunnels is poor and there are leakage problems, which also leads to concentrated seepage and large-scale scattered immersion of the downstream side dam body; the low mountain body on the right bank of the dam has seepage entrance and may be connected with the spring water point at the foot of the downstream mountain; the F2 fault zone on the right abutment of the dam has poor imperviousness,and there exists a leakage passage connected with the concentrated seepage points at the outcrop of downstream faults.
|
Received: 29 August 2019
Published: 22 April 2020
|
|
|
|
|
|

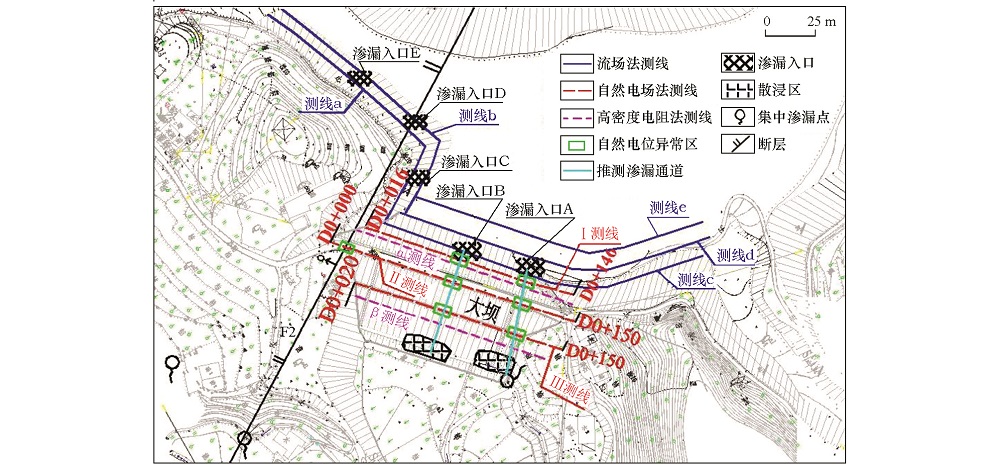

Site layout of geophysical survey line and schematic diagram of leakage inlet and outlet of reservoir dam area
|
地层 代号 | 块数 | 岩土名称 | 电阻率范围 /(Ω·m) | 平均电阻 率/(Ω·m) | Q4 | 18 | 含碎石粉质黏土 | 38.4~133.7 | 97.3 | ∈2+3 | 12 | 白云质灰岩 | 203.8~799.2 | 613.8 | ∈1q | 6 | 灰岩 | 426.5~1464.9 | 1227.4 |
|
Resistivity of rock and soil in engineering area
|
探测方法 | 主要仪器设备 | 探测目的 | 主要工作内容 | 流场法 | DB-3A堤坝管涌仪 | 库区渗漏进水口检查 | 在大坝及左坝肩山体近水面布设测线3条、右坝肩山体近水面布设2条 | 自然电场法 | DZD-6A 多功能直流电法(激电)仪 | 大坝及坝肩山体自然电位异常区探测 | 平行于大坝坝轴线布置3条测线 | 高密度电法 | DUK-2 高密度电法测量系统 | 大坝坝体、坝基渗漏通道及异常区探测 | 大坝坝体上布设2条测线,共计930个测点数据 |
|
Main detection methods and instruments
|
|

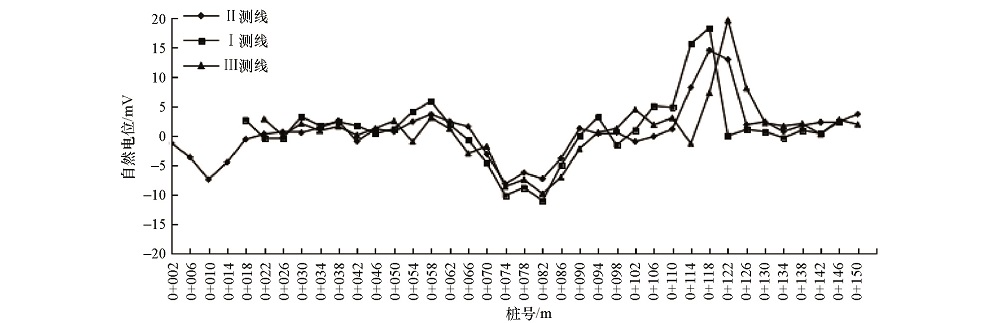

Spontaneous potential maps of dam lines Ⅰ,Ⅱ and Ⅲ
|
|

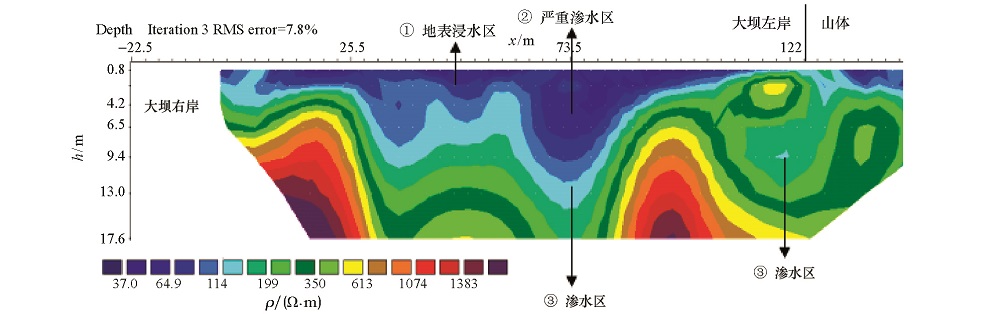

Inversion results of high density resistivity of α line
|
|

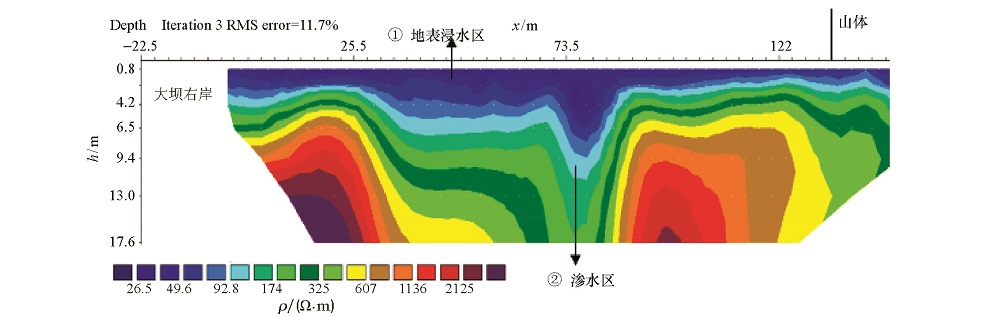

Inversion results of high density resistivity of β line
|
