The calculation method of full tensor geomagnetic gradient based on IGRF model |
Yang ZHONG, Yan-Wu GUAN, Jia-Qiang SHI, Feng XIAO |
College of Geo-Exploration Science and Technology,Jilin University,Changchun 130026,China |
|
|
Abstract The international geomagnetic reference field (IGRF) is a general international model for describing the earth’s main magnetic field. At present,this model can be used to calculate the seven elements of geomagnetic field at any point. However,with the development of aeronautical full tensor magnetic measurement technology,there is an urgent need for full tensor geomagnetic gradient data. In this paper,the calculation principle of the IGRF model is summarized and the expression of the full tensor geomagnetic gradient with spherical harmonic expansion is derived. The calculation of the seven elements of geomagnetic field and the full tensor geomagnetic gradient at any given point is realized. Comparing with the calculated data from the website of the National Oceanic and Atmospheric Administration of the United States (NOAA),the results are accurate and reliable. The contour map of the full tensor geomagnetic field in a region is drawn, and the results were in accordance with the Laplace equation. It provides the theoretical basis for the selection of learning flight working area and flight height in the aeromagnetic survey.
|
Received: 02 September 2019
Published: 24 June 2020
|
|
|
|
|
|

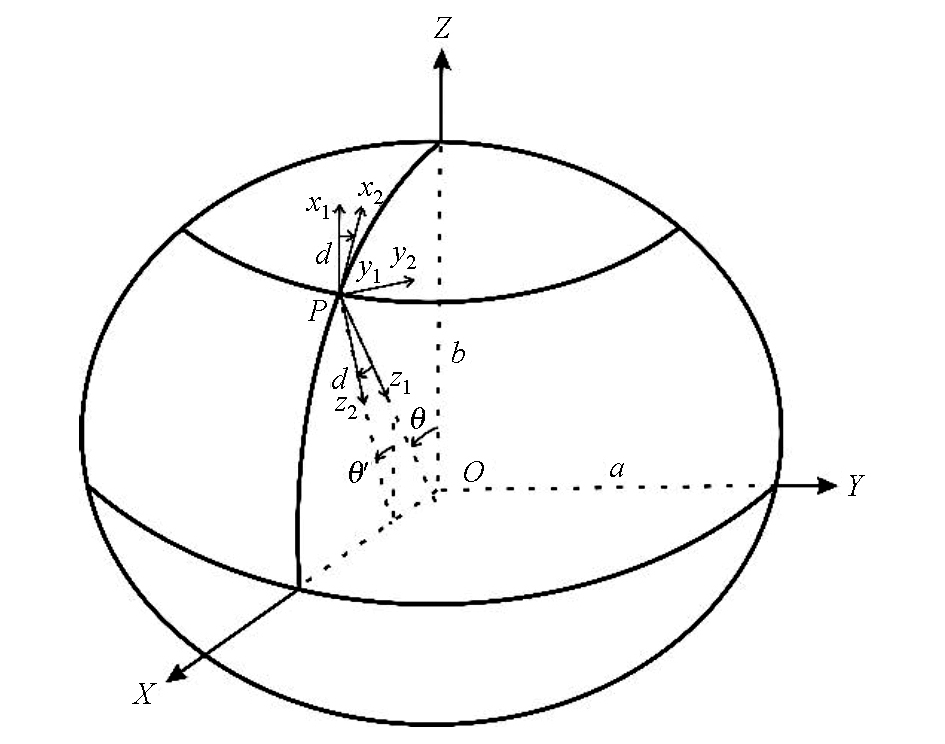

Geographic coordinate system and geocentric coordinate system
|
n | Pn(cosθ) | Pn(v) | 0 | 1 | 1 | 1 | cosθ | μ | 2 | (3cos2θ+1)/4 | (3v2-1)/2 | 3 | (5cos3θ+3cosθ)/8 | (5v3-3v)/2 |
|
Legendre polynomials of order 0~3
|
n | m | 伴随勒让德多项式 Pn,m(cosθ) | 高斯规格化伴随勒让德多项式 Pn,m(cosθ) | 施密特拟规格化伴随勒让德多项式 (cosθ) | 0 | 0 | 1 | 1 | 1 | 1 | 0 | cosθ | cosθ | cosθ | 1 | 1 | sinθ | sinθ | sinθ | 2 | 0 | (3cos2θ-1) | (3cos2θ-1) | (3cos2θ-1) | 2 | 1 | 3cosθsinθ | cosθsinθ | cosθsinθ | 2 | 2 | 3sin2θ | sin2θ | sin2θ | 3 | 0 | cosθ(5cos2θ-3) | cosθ(5cos2θ-3) | cosθ(5cos2θ-3) | 3 | 1 | sinθ(5cos2θ-1) | sinθ(5cos2θ-1) | sinθ(5cos2θ-1) | 3 | 2 | 15cosθsin2θ | cosθsin2θ | cosθsin2θ | 3 | 3 | 15sin3θ | sin3θ | sin3θ |
|
Order 0-3 adjoint Legendre polynomials
|
|

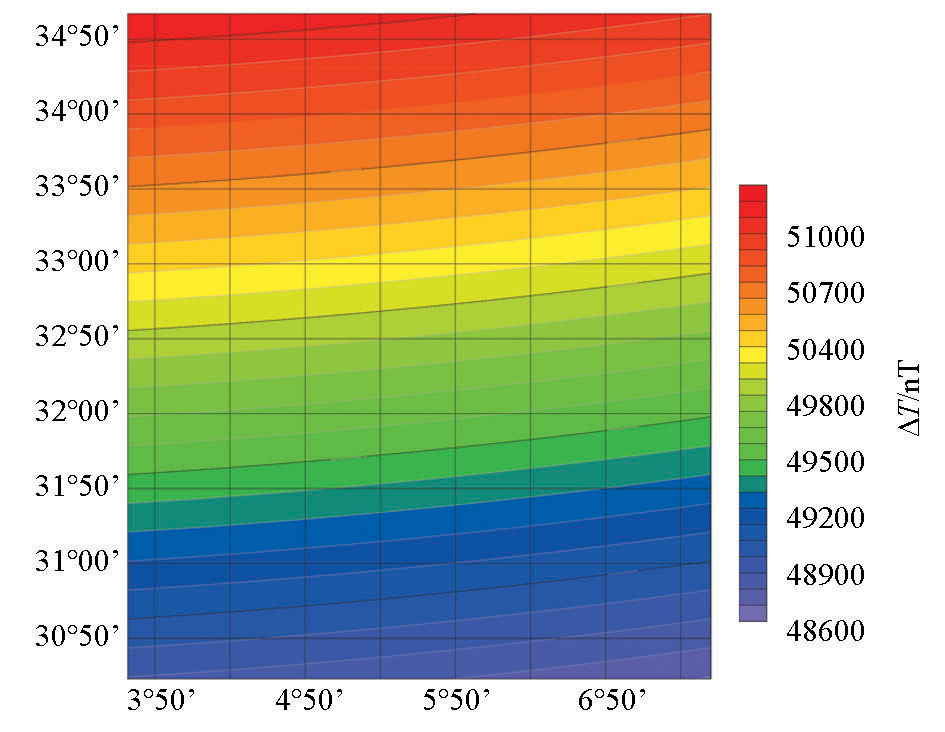

Contour map of the total geomagnetic field
|
|

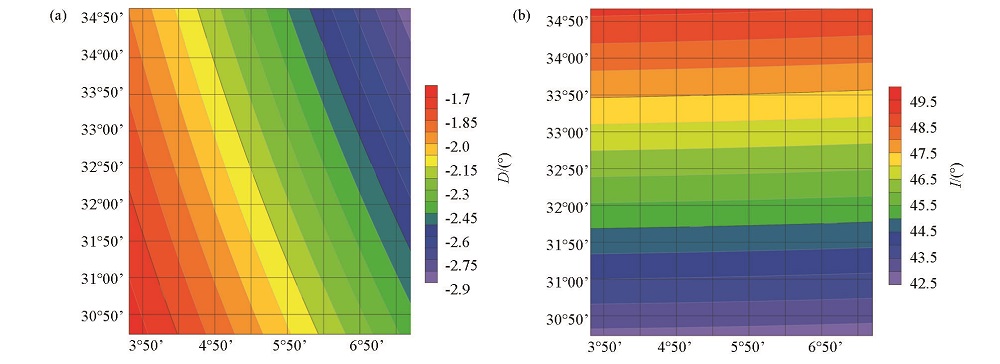

Contour map of geomagnetic field deviation(a) and dip angle(b)
|
|

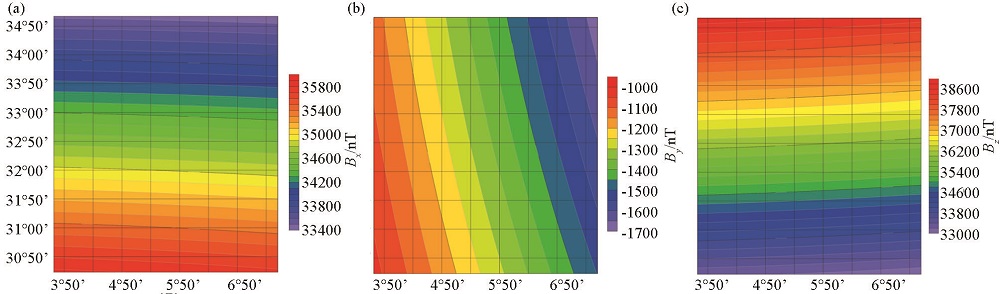

Three-component contour map of the geomagnetic field
|
|

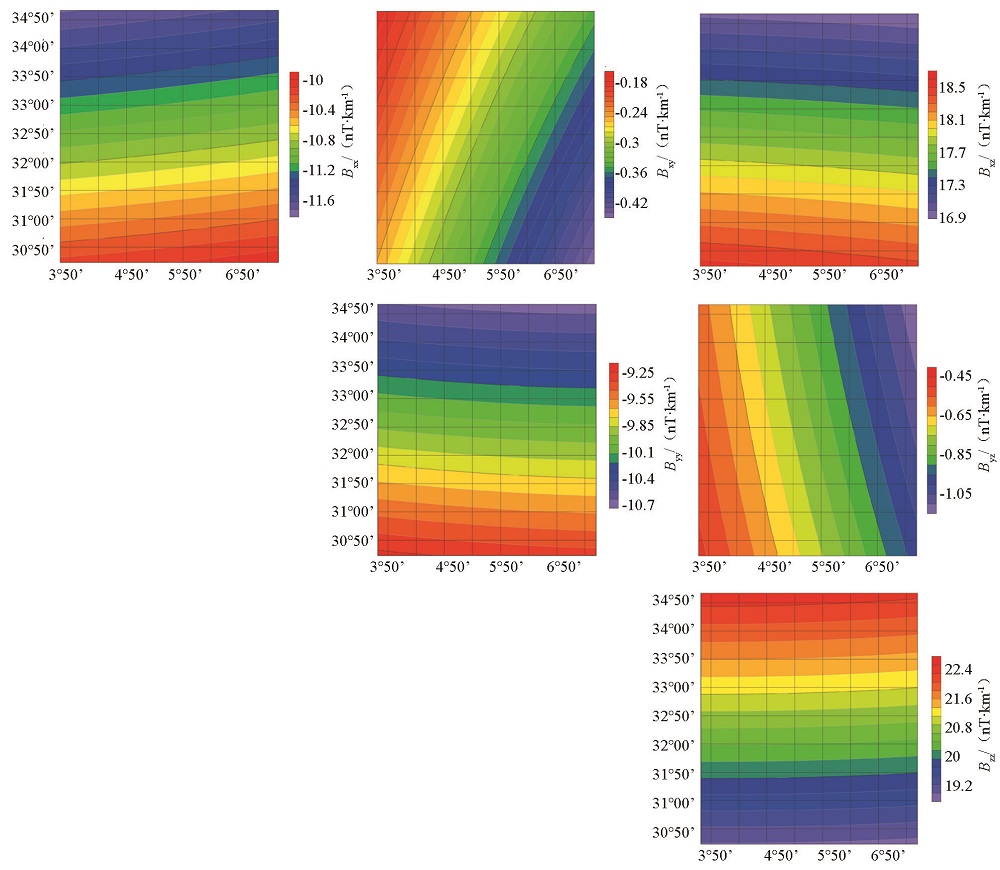

Full-tensor geomagnetic gradient contour map
|
|

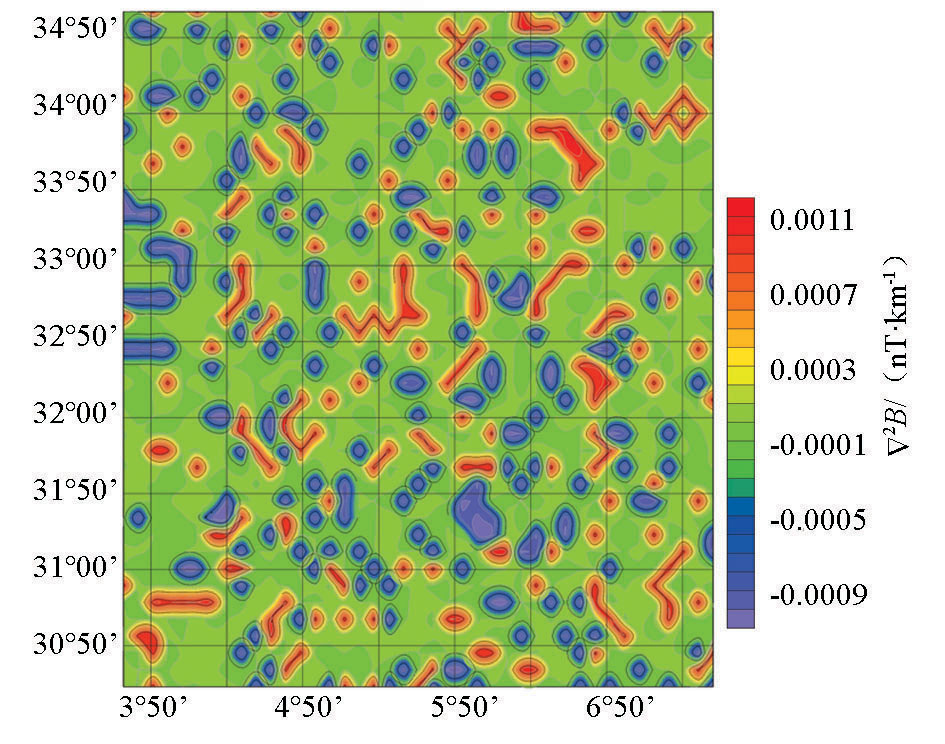

Contour map of the sum of the three tensor components on the main diagonal
|
城市 | 来源 | Bx/nT | By/nT | Bz/nT | Bh/nT | B/nT | D/° | I/° | 成都市 | 本文计算 | 33866.2 | -1213.9 | 37855.4 | 33887.9 | 50807.6 | -2.0528 | 48.1652 | NOAA | 33866.2 | -1213.9 | 37855.4 | 33887.9 | 50807.7 | -2.0529 | 48.1652 | 自贡市 | 本文计算 | 34644.5 | -1268.7 | 36051.7 | 34667.6 | 50015.7 | -2.0972 | 46.1212 | NOAA | 34644.5 | -1268.7 | 36051.7 | 34667.7 | 50015.8 | -2.0973 | 46.1212 | 泸州市 | 本文计算 | 34909.9 | -1334.7 | 35359.9 | 34935.3 | 49707.1 | -2.1895 | 45.346 | NOAA | 34909.9 | -1334.7 | 35359.9 | 34935.4 | 49707.2 | -2.1895 | 45.346 | 德阳市 | 本文计算 | 33580.9 | -1266.4 | 38443.8 | 33604.7 | 51060.8 | -2.1597 | 48.8424 | NOAA | 33580.9 | -1266.4 | 38443.8 | 33604.8 | 51060.8 | -2.1597 | 48.8424 | 最大绝对误差 | 0 | 0 | 0 | 0.1 | 0.1 | 0.0001 | 0 |
|
Table of point position magnetic field values in the test area
|
