A study of dispersion curves of Love waves in viscoelastic media and their application |
Bao-Wei ZHANG1,2, Jin DONG3, Hua WU4 |
1. Institute of Geophysical and Geochemical Exploration,Chinese Academy of Geological Sciences,Langfang 065000,China 2. National Center for Geological Exploration Technology,Langfang 065000,China 3. The Third Railway Survey and Design Institute Group Corporation,Tianjin 300251,China 4. School of Science,Chang'an University,Xi'an 710064, China |
|
|
Abstract At present,the geological situation of seismic exploration is becoming more and more complicated.With the continuous development of seismic exploration,especially for viscoelastic media,the technical requirements for surface wave exploration are getting higher and higher.Love wave refers to the horizontal polarization shear wave in the surface layer after repeated reflections at the boundary of the surface layer.Love wave detection is one of the shallow surface detection method.It is very convenient and has high detection precision.Therefore,the study of Love wave has important theoretical and practical significance.In this paper,the Love wave single shot record is simulated by high order finite difference method in the case of horizontal layered complex geological.The comparison of the dispersion curves with the theoretical dispersion curves proves that the method proposed in this paper is correct.The influence of the viscoelastic medium on the Love wave dispersion curve is also discussed.Then,the least squares inversion is used to verify this conclusion.This paper provides a more complete theoretical basis for the high-precision surface wave inversion method.Finally,the field data inversion results show that the proposed method is effective and practicable.
|
Received: 27 July 2019
Published: 24 June 2020
|
|
|
|
|
|

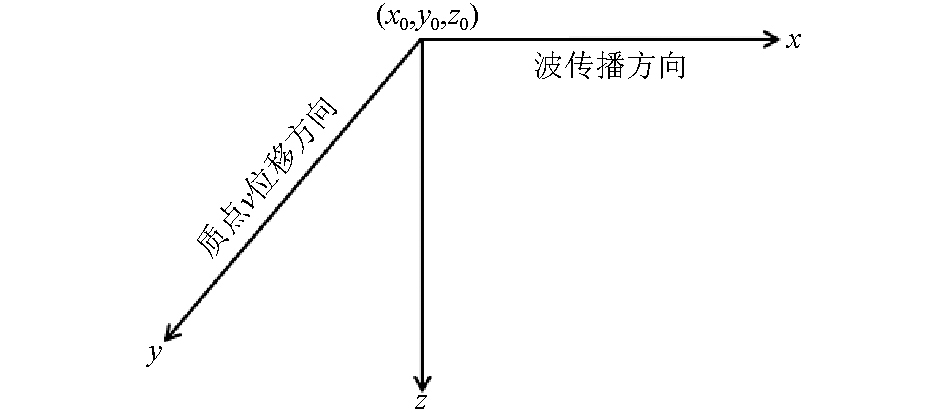

Horizontal uniform medium model
|
|

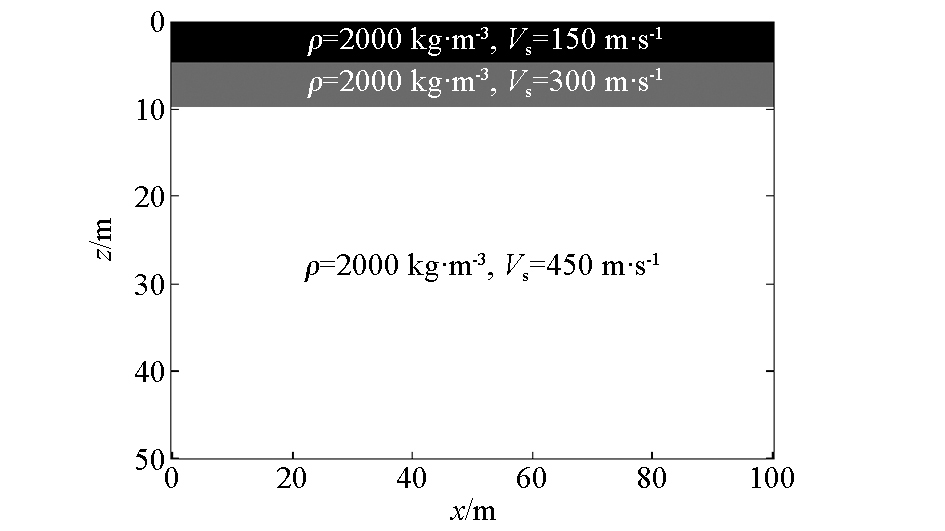

Three-layered model of increasing velocity
|
|

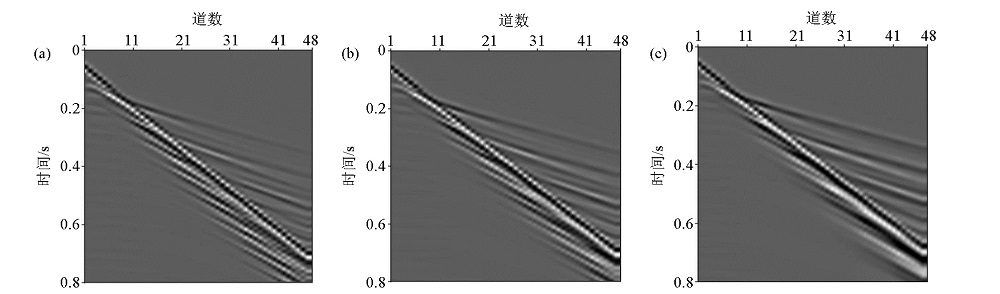

Comparison of the wave field record (horizontal component) for completely elastic medium and viscoelastic medium(Q=50、Q=20) a—completely elastic medium;b—viscoelastic medium with Q=50;c—viscoelastic medium with Q=20
|
|

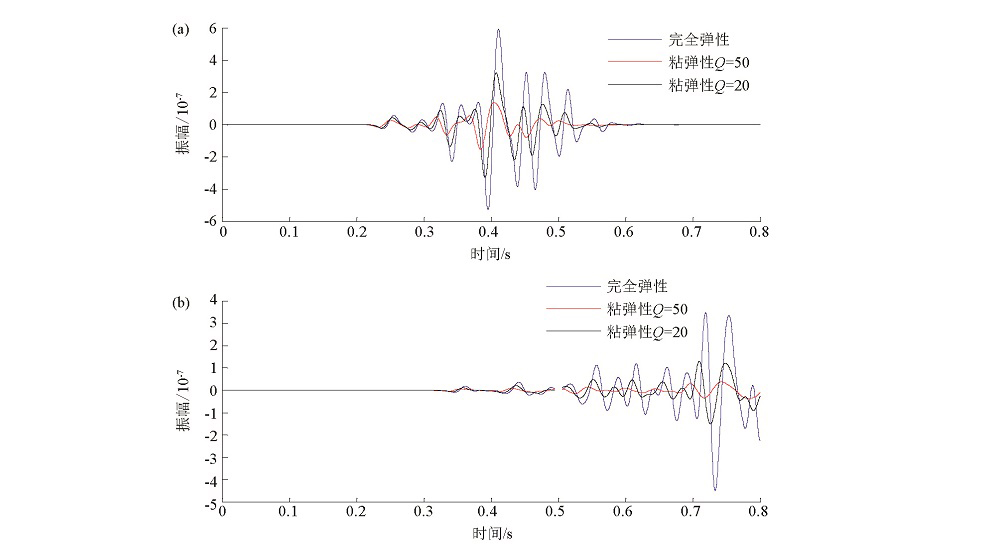

Comparison of single trace (horizontal component) waveform for completely elastic medium and viscoelastic medium(Q=50、Q=20) a—waveform comparison of the 25th trace;b—waveform comparison of the 48th trace
|
|

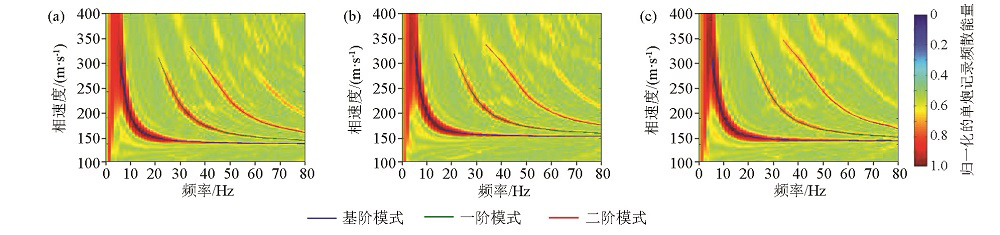

Comparison of theoretical dispersion curve and the dispersion energy in single shot record for completely elastic medium and viscoelastic medium a—completely elastic medium;b—viscoelastic medium with Q=50;c—viscoelastic medium with Q=20
|
|

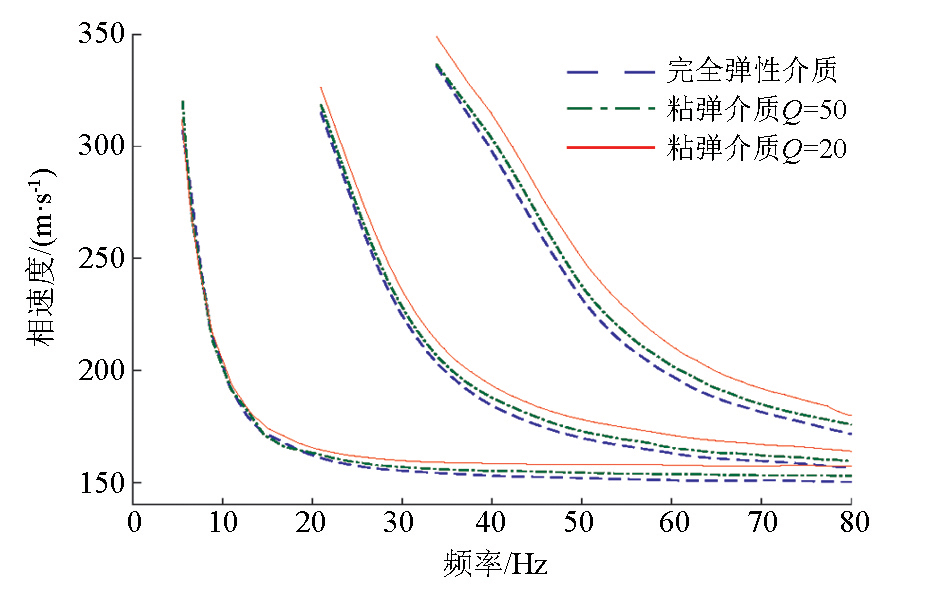

Comparison of theoretical dispersion curves for completely elastic medium and viscoelastic medium
|
|

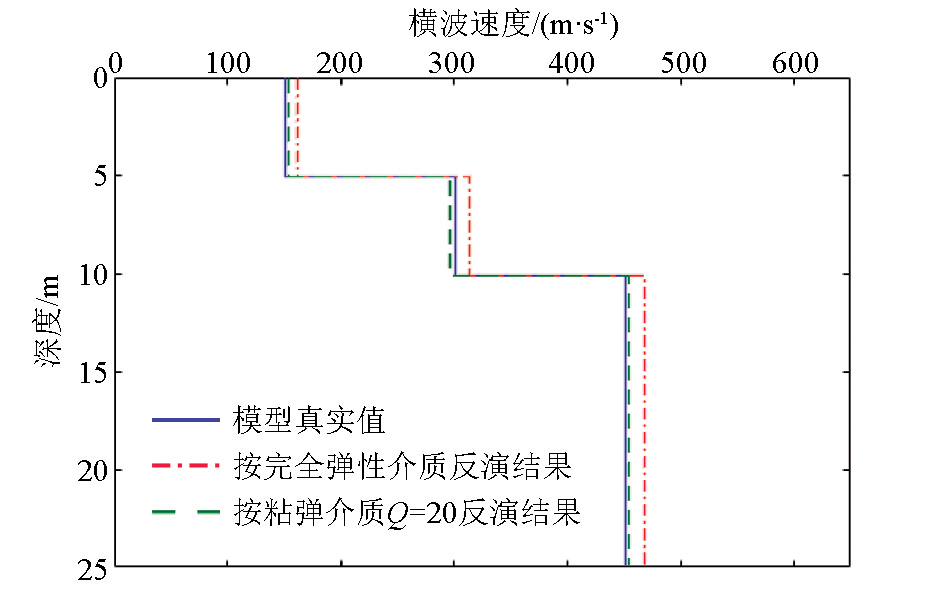

Shear wave velocity inversion results of theoretical dispersion curves
|
|

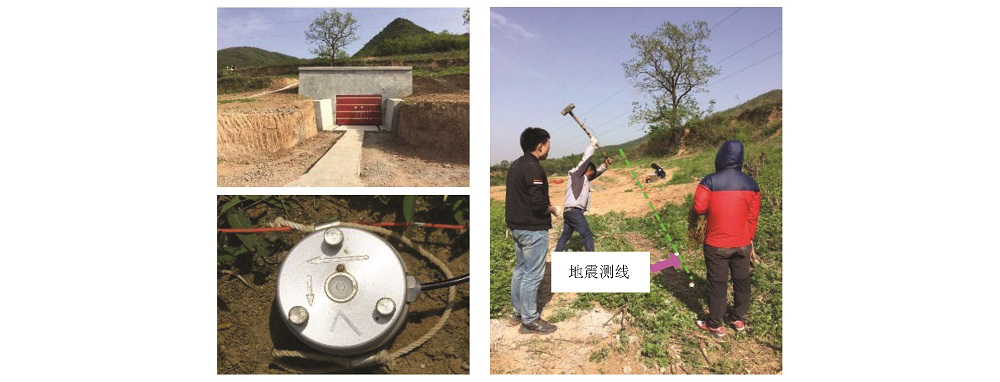

Field test scenario
|
|

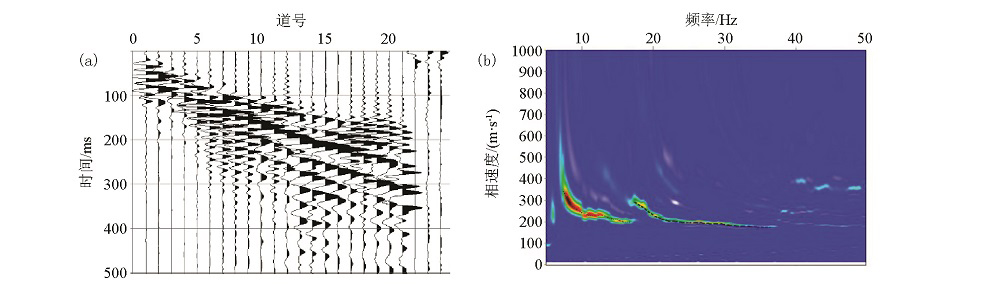

The first shot of field Love-wave record(a) and its dispersion curves(b)
|
|

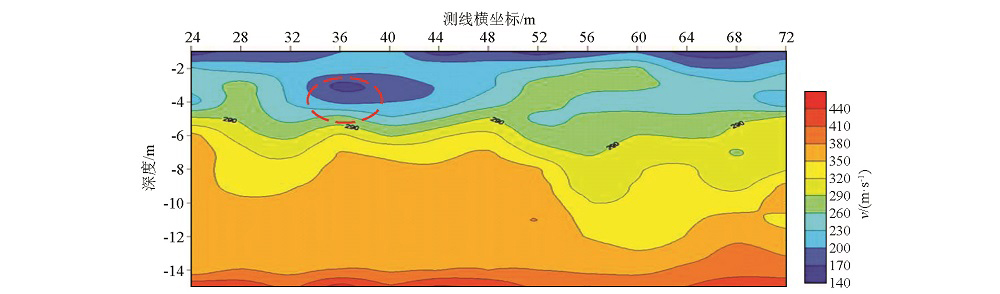

2-D shear wave velocity profile from the dispersion curve inversion of field data
|
