| The development and application of Au element analysis box for field geological samples |
| Wei ZHANG1,2, Yong-Hua WANG1, Guo-Zhong LIAO1 |
1. Chengdu Center of China Geological Survey, Chengdu 610082, China
2. School of Resources and Environment, University of Electronic Science and Technology of China, Chengdu 611731, China |
|
|
|
|
Abstract At present, the dilemma of long sample testing cycle, waiting and prompting reports is a common phenomenon. In the past three years, the mineral geological survey project in southwestern Guizhou Province mainly focused on Carlin-type gold deposits, and the project team introduced visual colorimetry which was proposed in the 1990s.Through repeated comparative tests, part of the method was improved and equipment was upgraded, then a set of integrated analysis box was developed, which is convenient for field transportation and use. Compared with the test results of the same samples in the laboratory, it is shown that the performance indicators can meet the needs of rapid qualitative judgment such as detection limit and test accuracy. These results prove that this means can effectively assist the frontline geologists in timely judging the newly discovered mineralization phenomena and new ore spots in the field investigation process, thus improving the effectiveness in gold prospecting work.
|
|
Received: 15 July 2019
Published: 22 April 2020
|
|
|
|
|
|
|

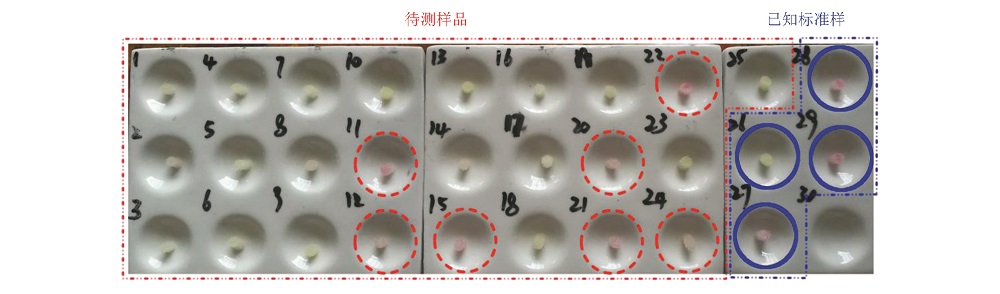

Photographs of “Colorimetric” Result in 1∶50,000 Mine Survey Area of a Carlin-type Gold Mine in the Southwest of Guizhou province
Note: No.1~25 is the sample to be tested, No.26~30 is the known standard sample(The contents of samples 26,27,28 and 29 are 0,20×10-9,50×10-9 and 80×10-9). When TMK is added, No. 11, 12, 15, 20, 21 and 24 begin to turn red. The higher the concentration of red, the higher the corresponding gold content.
|
|

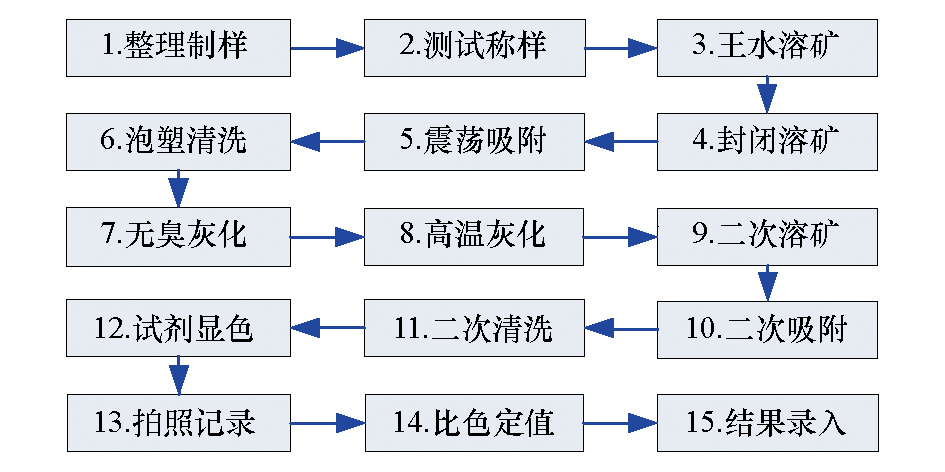

Test flow chart
|
已知标准样的金
元素含量 | 需称取标准样的质量
(GBW 07230) | | 10×10-9(0.01 g/t) | 0.075 g | | 20×10-9(0.02 g/t) | 0.150 g | | 50×10-9(0.05 g/t) | 0.376 g | | 80×10-9(0.08 g/t) | 0.602 g | | 100×10-9(0.1 g/t) | 0.752 g | | 200×10-9(0.2 g/t) | 1.503 g | | 500×10-9(0.5 g/t) | 3.759 g | | 800×10-9(0.8 g/t) | 6.015 g | | 1×10-6(1.0 g/t) | 7.519 g | | 2×10-6(2.0 g/t) | 15.038 g | | 5×10-6(5.0 g/t) | 37.594 g |
|
Table for weighing standard sample
|
| 序号 | 样品编号 | 比色法定
性测试 | 试验室
测试 | 定性
准确 | | 1 | D001-H1 | <10×10-9 | 0.816 | 是 | | 2 | D001-H2 | <10×10-9 | 1.11 | 是 | | 3 | D001-H3 | <10×10-9 | 0.758 | 是 | | 4 | D001-H4 | <10×10-9 | 1.3255 | 是 | | 5 | D001-H5 | <10×10-9 | 1.075 | 是 | | 6 | D001-H6 | <10×10-9 | 0.49 | 是 | | 7 | D001-H8 | <10×10-9 | 1.124 | 是 | | 8 | D002-H2-1 | <10×10-9 | 1.191 | 是 | | 9 | D002-H2-2 | <10×10-9 | 0.915 | 是 | | 10 | D002-H3 | <10×10-9b | 0.768 | 是 | | 11 | D006-H1 | <10×10-9 | 1.181 | 是 | | 12 | D006-H2 | <10×10-9 | 0.434 | 是 | | 13 | D007-H1 | <10×10-9 | 0.685 | 是 | | 14 | D007-H2 | <10×10-9 | 0.561 | 是 | | 15 | D007-H3 | <10×10-9 | 0.53 | 是 |
|
Statistical table of test results and qualitative accuracy for the same batch of samples
|
|

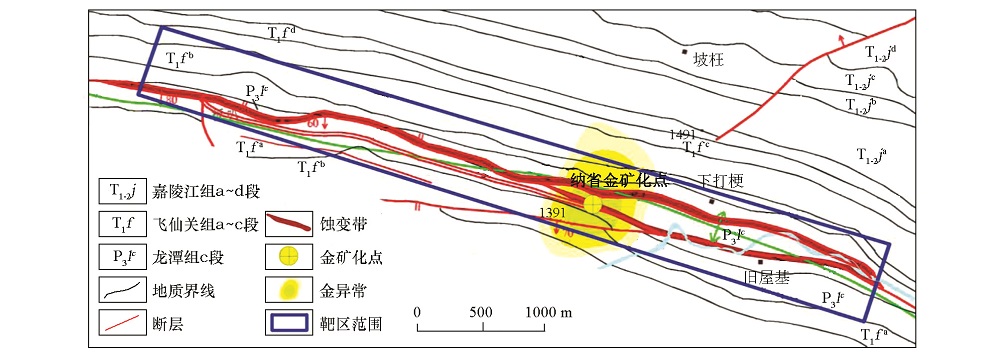

Comprehensive map of NaSheng gold prospecting target area in Maling
|
| [1] |
卢荫庥 . 一种用于化探金异常检查的痕量金的现场分析方法[J]. 物探与化探, 1990,14(6):464-469.
|
| [1] |
Lu Y X . An on-the-spot trace gold analytical method for reexamination of geochemical gold anomalies[J]. Geophysical and geochemical exploration, 1990,14(6):464-469.
|
| [2] |
徐晓光 . 野外快速测金—目视比色法[J]. 广西地质, 1998,11(4):65-67.
|
| [2] |
Xu X G . Rapid analysis of gold in field visual colorimetry[J]. Guangxi Geology, 1998,11(4):65-67.
|
| [3] |
黄晋荣, 李敏敏 . 野外快速测金新方法及其应用效果[J]. 华北地质矿产杂志, 1999,14(1):93-97.
|
| [3] |
Huang J R, Li M M . An new method for field quick Au test and its applied results[J]. Jour Geol&min Res North China, 1999,14(1):93-97.
|
| [4] |
刘万山 . 硫代米嗤酮比色法测定金[J]. 有色矿冶, 2001,17(4):42-43.
|
| [4] |
Liu W S . Determination of gold by thiomic-hler’s ketone colorimetric method[J]. Non-feerrous Mining and Metallurgy, 2001,17(4):42-43.
|
| [5] |
曹建勇 . 泡塑富集—硫代米蚩酮萃取微珠比色法在野外测金的应用[J]. 岩矿测试, 2006,25(2):193-194.
|
| [5] |
Cao J Y . Application of plastic foam precon-centration-TMK extraction microbead colorimetry in determination of gold in Field[J]. Rock and Mineral Analysis, 2006,25(2):193-194.
|
| [6] |
李勇 .野外黄金快速分析箱:中国, 01211728.5[P]. 2002-9-25.
|
| [6] |
Li Y . Field gold rapid analysis box: China, 01211728.5[P]. 2002-9-25.
|
| [7] |
樊勇, 修凤凤, 韩一帆 . 电感耦合等离子体质谱(ICP-MS)法测定地球化学样品中的痕量金[J]. 中国无机分析化学, 2017,7(2):18-21.
|
| [7] |
Fan Y, Xiu F F, Han Y F . Determina-tion of trace gold in geochemical samples by ind-uctively coupled plasma-mass spectrometry with water-Bath digestion[J]. Chinese Journal of Inorgan-ic Analytical Chemistry, 2017,7(2):18-21.
|
| [8] |
DZ/T 0074--93 岩金矿普查规范[S].
|
| [8] |
DZ/T 0074-93 Specifications for general survey of rock gold deposits[S].
|
| [9] |
中矿(天津)岩矿检测有限公司.检测报告(编号:2017(HT)-19)[R]. 2017.
|
| [9] |
Sinomine Rock & Mineral Analysis (Tianjin) Co.,Ltd. Test reports(2017(HT)-19)[R]. 2017.
|
| [10] |
高建华, 范文玉, 张林奎 . 地球化学快速评价方法在找矿靶区圈定中的应用[J]. 沉积与特提斯地质, 2007,27(4):7-10.
|
| [10] |
Gao J H, Fan W Y, Zhang L K . An application of the geochemical fast evaluation method to the delineation of the prospecting targets in Garze, Sichuan[J]. Sedimentary Geology and Tethyan Geology, 2007,27(4):7-10.
|
| [11] |
安国英 . 危机矿山找矿的地球化学方法技术研究[D].北京:中国地质大学(北京), 2006.
|
| [11] |
An G Y . The chemical exploration technics and methods for prospecting in the mines of reserve crisis[D].Beijing:China University of GeoSciences(Beijing), 2006.
|
| [12] |
廖国忠, 张伟, 梁生贤 , 等. 基于水系流域的地球化学异常分析方法——以1∶50000丫他幅水系沉积物分析为例[J]. 地质与勘探, 2018,54(2):315-324.
|
| [12] |
Liao G Z, Zhang W, Liang S X , et al. A geochemical anoamly analysis method based on river basins:An example of the Yata area[J]. Geology and Exploration, 2018,54(2):315-324.
|
| [13] |
廖国忠, 张伟, 吴文贤 , 等. 1∶50000水系沉积物地球化学勘查采样点位自动设计的方法研究[J]. 物探化探计算技术, 2018,40(5):689-694.
|
| [13] |
Liao G Z, Zhang W, Wu W X , et al. Research on the method of automatic design of sampling location in stream sedimentgeochemistry[J]. Computing Techniques for Geophysical and Geochemical Exploration, 2018,40(5):689-694.
|
| [14] |
李超岭, 于庆文, 杨东来 , 等. PRB数字地质填图技术研究[J]. 地球科学:中国地质大学学报, 2003,28(4):377-383.
|
| [14] |
Li C L, Yu Q W, Yang D L , et al. Research on PRB digital mapping techniques[J]. Earth Science:Journal of China University of Geosciences, 2003,28(4):377-383.
|
| [15] |
中矿(天津)岩矿检测有限公司.检测报告(编号:2017(HT )-43)[R]. 2017.
|
| [15] |
Sinomine Rock & Mineral Analysis (Tianjin) Co.,Ltd. Test reports(2017(HT)-43)[R]. 2017.
|
| [16] |
中矿(天津)岩矿检测有限公司.检测报告(编号:2018(HT)-15)[R]. 2018.
|
| [16] |
Sinomine Rock & Mineral Analysis (Tianjin) Co.,Ltd. Test reports(2018(HT)-15)[R]. 2018.
|
| [1] |
Hui-Min FAN, Xing AN, Jia-Sheng ZHANG, Qian-Hui BAI. Division of gold element prospecting area in Qinba region of Shaanxi Province and its geochemical characteristics[J]. Geophysical and Geochemical Exploration, 2018, 42(4): 682-688. |
| [2] |
TONG Jing, XIONG Sheng-Qing, ZHANG Wan, ZHU Wei-Ping, LIU Ying-Hui. Information management and services for Dajingpo airborne geophysical field test site[J]. Geophysical and Geochemical Exploration, 2016, 40(5): 1016-1020. |
|
|
|
|
