鄂尔多斯盆地合水地区延长组裂缝发育特征及控制因素

doi:10.11720/wtyht.2020.1355

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (6339 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

Based on the comprehensive utilization of drilling data,logging data and 2-D seismic data,the authors hold that the tight reservoir of Yanchang Formation in Heshui area of Ordos Basin has developed a complex fault system consisting of strike-slip faults,fault damage zones and small-scale fractures,which together affect the heterogeneity and flow capacity of underground reservoirs,thus having an important impact on oil and gas production.So faults,fault damage zones and natural small-scale fractures should be treated as a system to analyze the fracture characteristics of ultra-low permeability reservoirs.The authors hold that only considering small-scale fractures is obviously not comprehensive.This understanding has important implications for the study of fractures in ultra-low permeability reservoirs in Ordos Basin.

Key words： fracture fault damage zone strike slip fault Heshui area

Received: 08 July 2019 Published: 22 April 2020

P631.4

Corresponding Authors: Zhong-Ping ZHAO E-mail: eogt@qq.com

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Xue-Feng QU
	Zhong-Ping ZHAO
	Qi-Hong LEI
	Jian LIU
	Wu-Bin GAO

Cite this article:

Xue-Feng QU,Zhong-Ping ZHAO,Qi-Hong LEI, et al. Fracture development characteristics and controlling factors of Yanchang formation in Heshui area,Ordos Basin[J]. Geophysical and Geochemical Exploration, 2020, 44(2): 262-270.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2020.1355 OR https://www.wutanyuhuatan.com/EN/Y2020/V44/I2/262

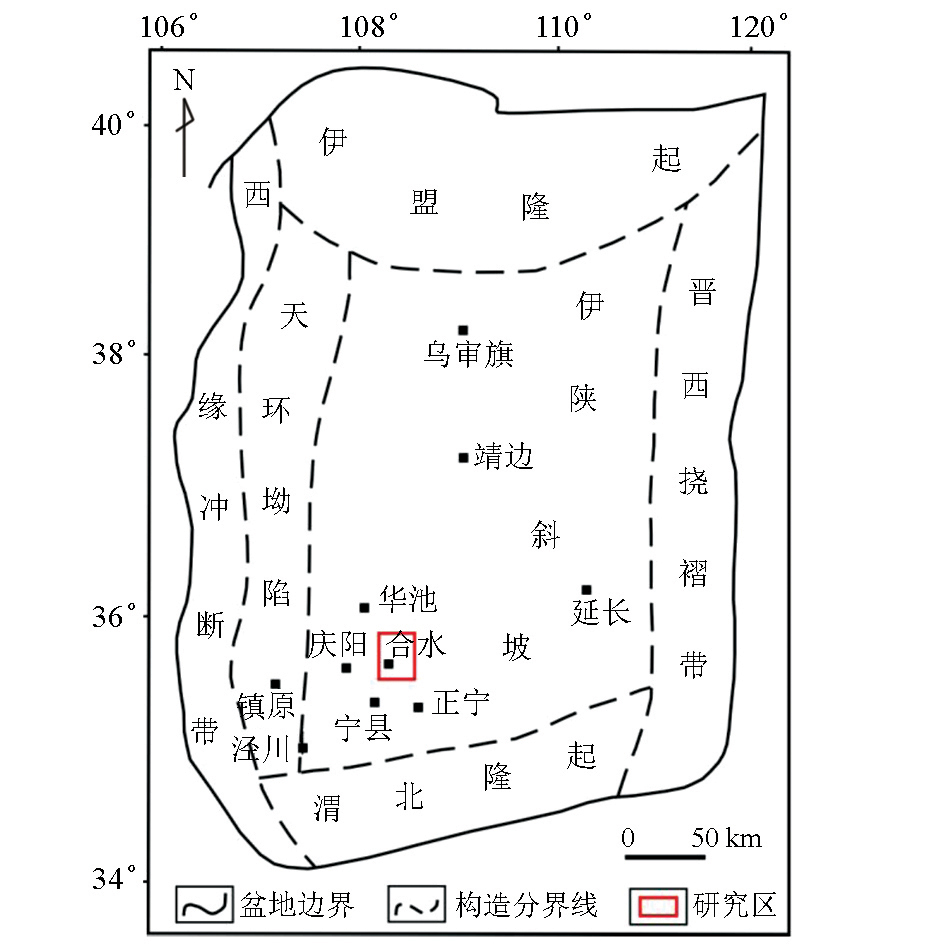

Schematic location of the study area

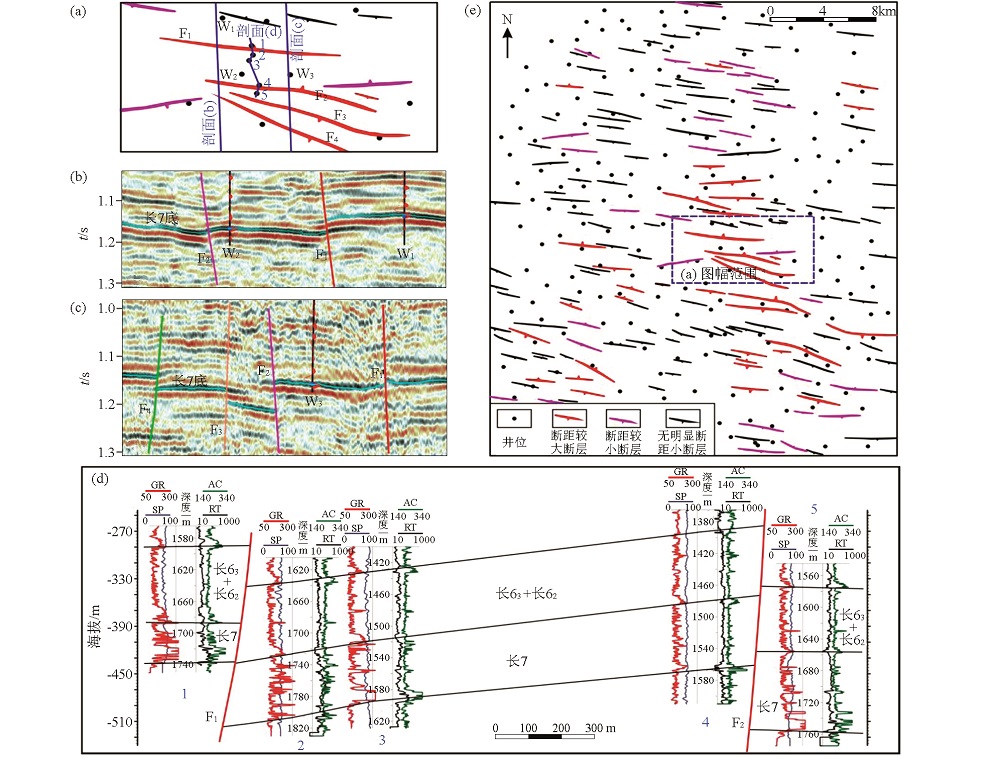

The faults development evidence and distribution map
a—fault distribution in development zone;b—2D seismic profile through the W₁ well;c—2D seismic profile through the W₃ well;d—Chang 6 formation correlation section from well 1 to well 5;e—fault distribution map at Chang 7 formation bottom in Heshui area

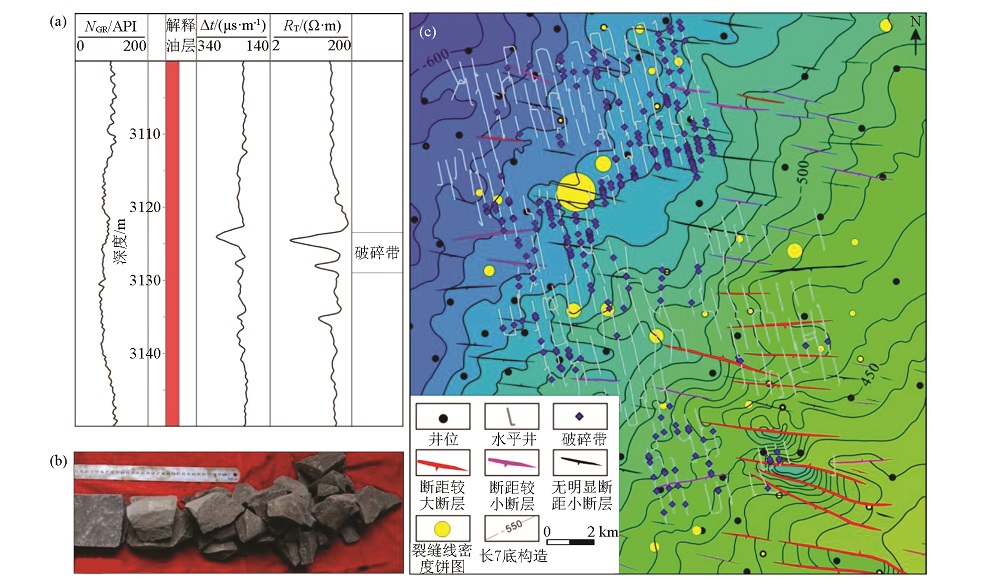

The characteristics of fault damage zone and its distribution in horizontal wells development area
a—log curve characteristics of fault damage zone;b—the cores of fault damage zone;c—the overlap map of the drilled fault damage zone in horizontal well development area and the structure map

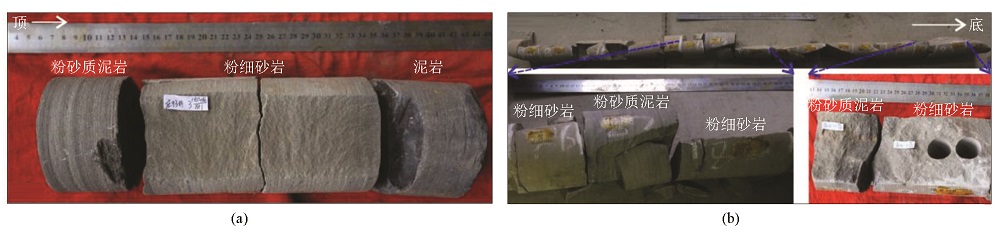

Two types of small-scale fractures
a—small-scale fractures controlled by lithologic interface;b—small-scale fractures associated with faults

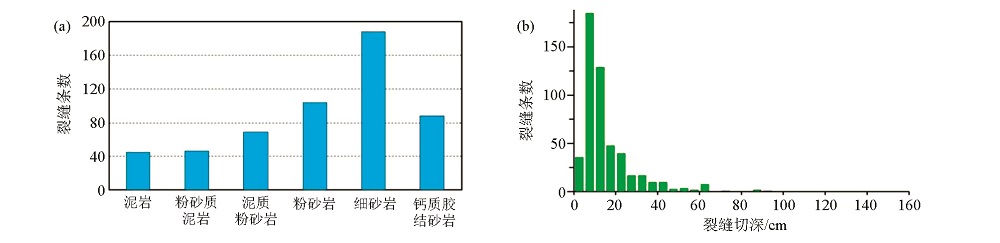

The relationship between fracture development degree and lithology and bed thickness
a—the relationship between fracture development and lithology;b—the histogram of fracture height

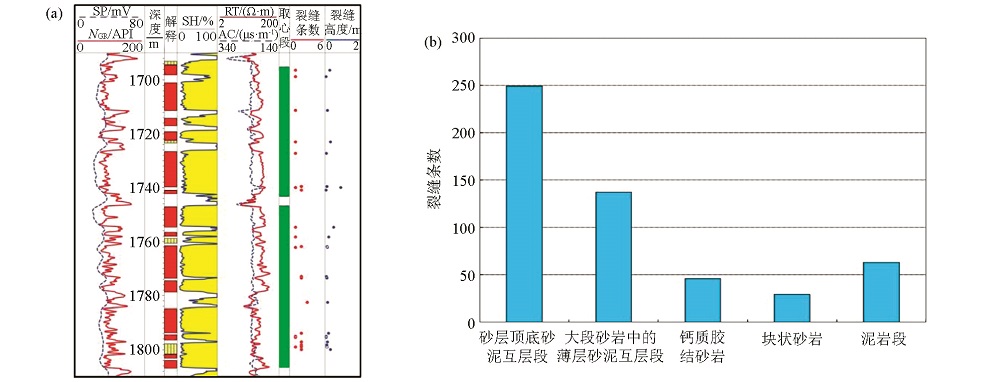

The longitudinal development characteristics of small-scale fractures and its distribution frequency in different zones
a—longitudinal distribution of natural fractures in a well;b—statistics on the distribution frequency of small scale fractures at different longitudinal position

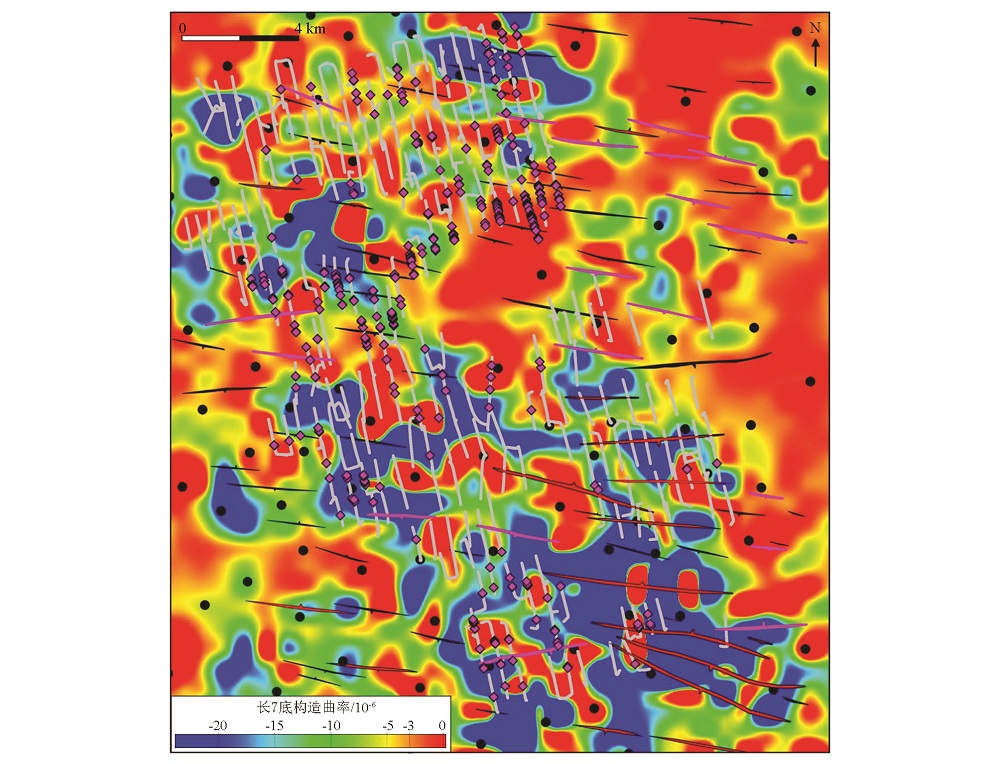

Overlapped map of the fault damage zones distribution and Chang7 bottom structure map in horizontal wells development area(legends are the same as figure3)

Statistics of small-scale fractures development degree in different curvature area
