Analytical algorithms of Jacobian matrix in one-dimensional Occam inversion of central loop transient electromagnetism based on all-time apparent ressivivity |
Song-Wei GUO1, Xiao-Pan LIU2, Kai ZHENG3, Lei ZHANG4 |
1. School of Earth Sciences and Resources, China University of Geosciences (Beijing) , Beijing 100083, China 2. Institute of Geology and Mineral Resources Exploration of Zhejiang Province, Hangzhou 310000, China 3. College of Geophysics and Petroleum Resources, Yangtze University, Wuhan 430100, China 4. Inner Mongolia Land Resources Exploration and Development Co., Ltd., Hohhot 010020, China |
|
|
Abstract In the current engineering application, one-dimensional inversion result of TEM sounding is still an important basis for geological interpretation. In order to improve the computational efficiency and accuracy of one-dimensional inversion, it is necessary to analytically derive Jacobian matrix of one-dimensional forward. In this paper, the analytical formulas of Jacobian matrix in one-dimensional forward of central loop transient electromagnetic based on all-time resisitivity are derived in detail. It is proved that the formulas are correct and worth adopting, as shown by testing one-dimensional Occam inversion of theoretical model and measured data.
|
Received: 08 July 2019
Published: 24 June 2020
|
|
|
|
|
|

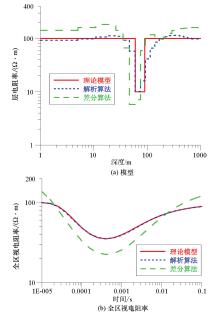

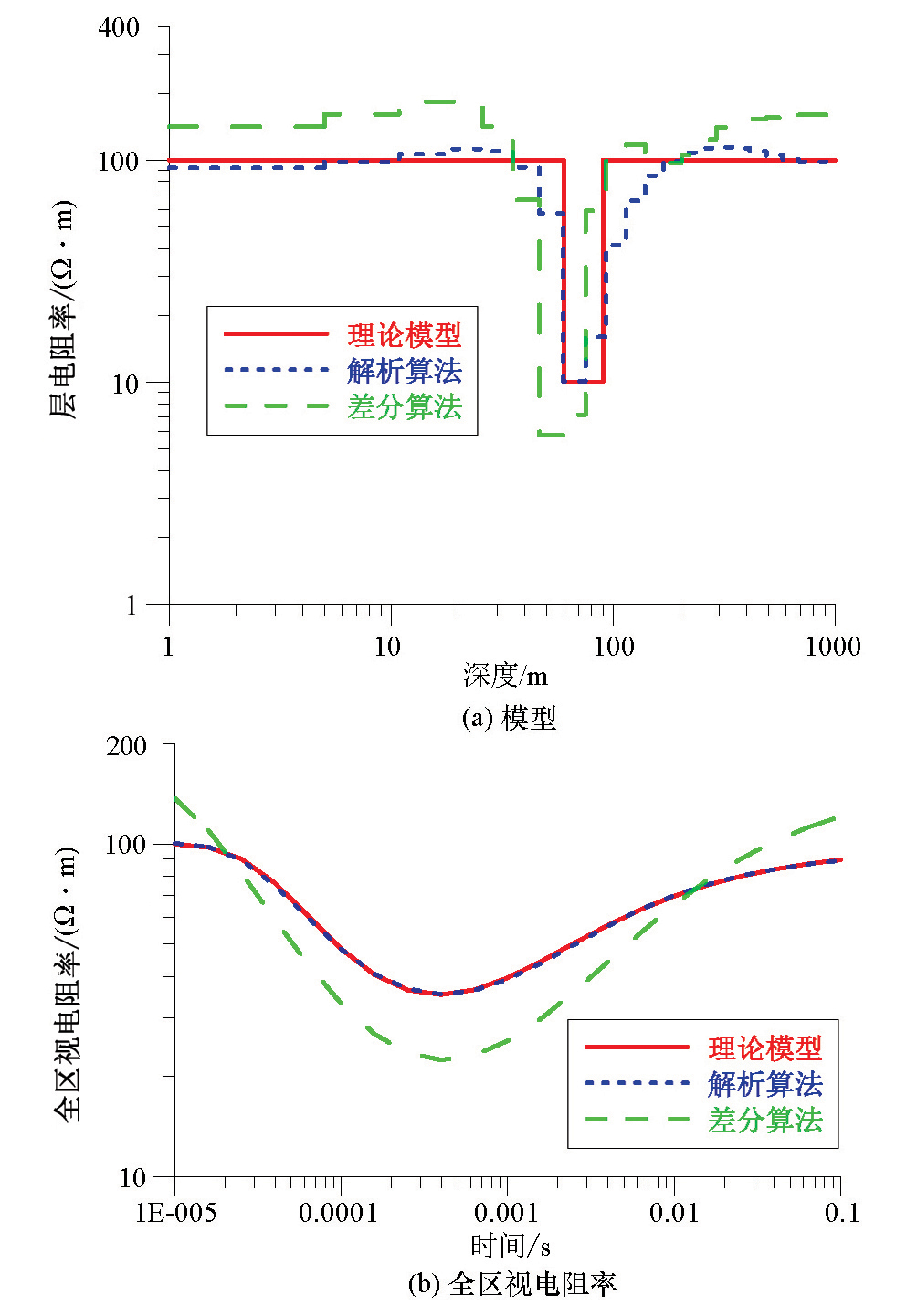

Comparison of H-type layered Model inversion results
|
| 解析算法 | 差分算法 | 拟合差 | 5.18 | 169.5 | 对数拉格朗日乘子 | -0.33 | -2.03 | 粗糙度 | 5956.51 | 18101.32 | 调用正演次数 | 56 | 93 | 计算时间/s | 28.34 | 44.45 |
|
Inversion result parameters of H-type layered model
|
|

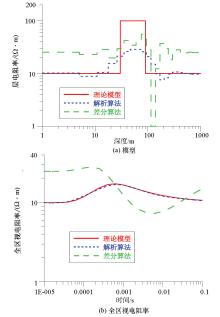

Comparison of K-type layered Model inversion results
|
| 解析算法 | 差分算法 | 拟合差 | 2.23 | 96.54 | 对数拉格朗日乘子 | -0.02 | -5.75 | 粗糙度 | 195.40 | 3229.25 | 调用正演次数 | 28 | 91 | 计算时间/s | 16.60 | 48.69 |
|
Inversion result parameters of K-type layered model
|
|

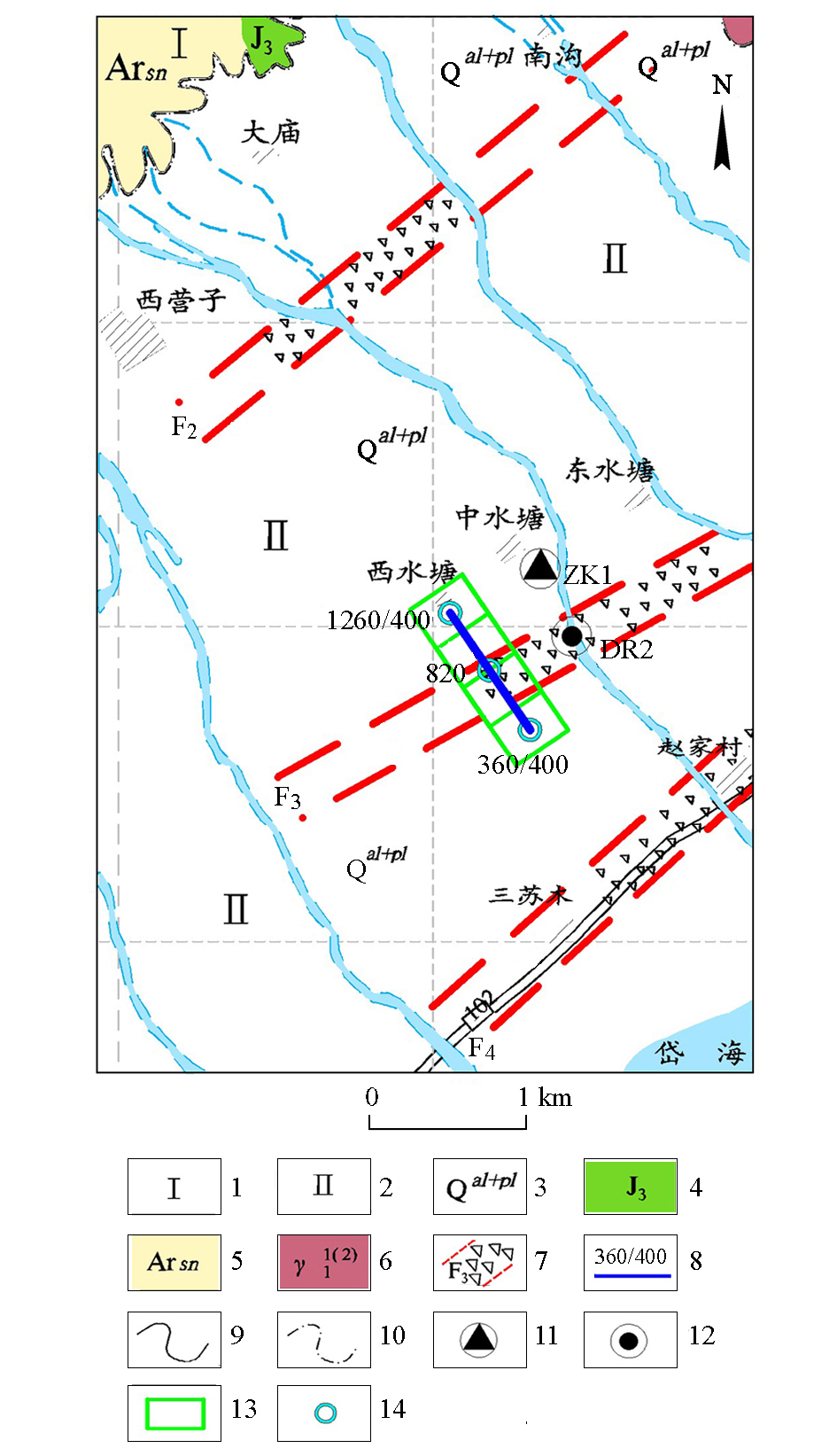

Geological map of work area 1—middle low mountain; 2—piedmont inclined plain; 3—Quaternary Holocene alluvial proluvial; 4—Jurassic volcanic rock; 5—Archaean Sanggan group gneiss; 6—Archaean porphyry like granite; 7—fracture fracture Fracture Zone; 8—test TEM sounding line; 9—geological boundary; 10—geomorphic boundary; 11—existing drilling;12—verification of geothermal drilling (DR2); 13—TEM emission line frame position; 14—TEM receiving coil position
|
|

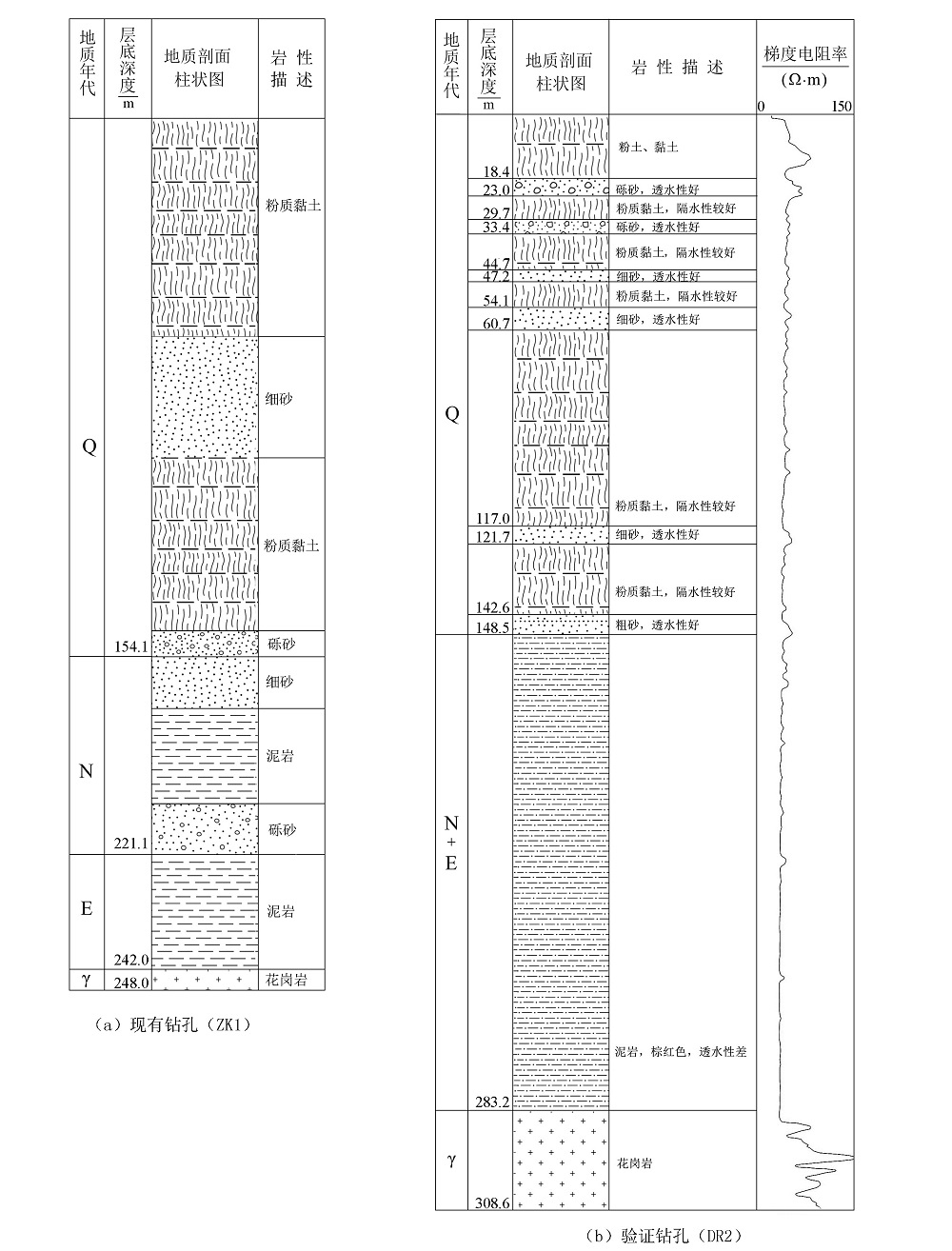

Borehole histogram of work area
|
|

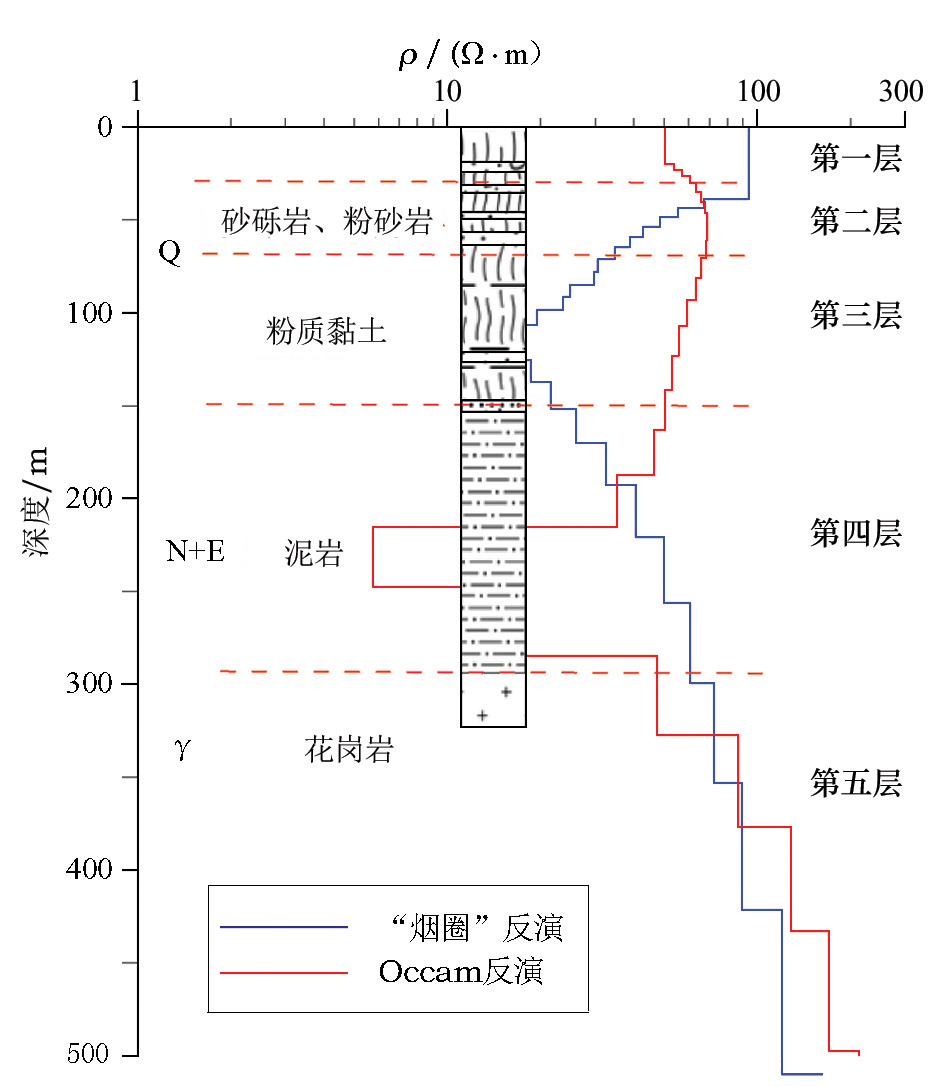

Inversion result of site 820 where is projectionposition of borehole
|
|

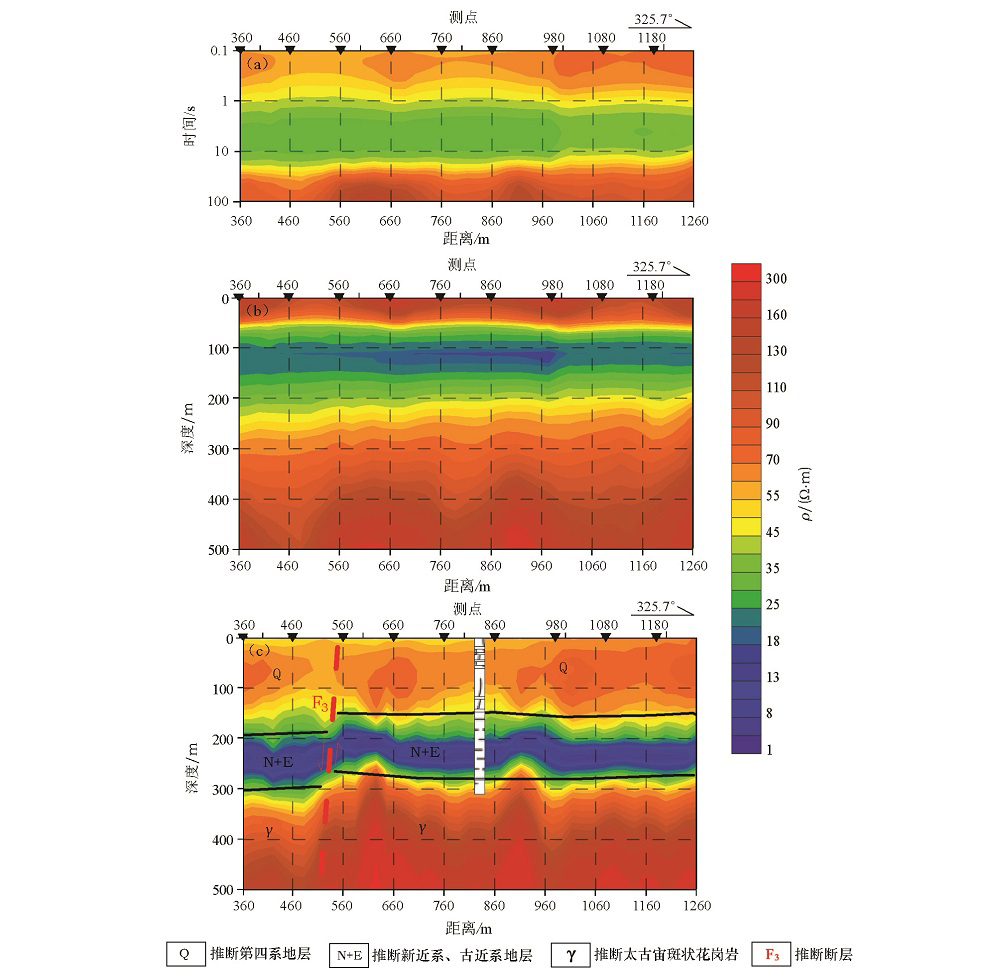

Comparison of TEM inversion sections of line 400 a—pseudo section; b—smoke ring inversion section; c—Occam inversion section
|
