Forward simulation of approximate vertical reflection method and its application to underground engineering |
Lei XU1,2, Si-Yuan WANG1,2, Jian-Qing ZHANG1,2, Wen-Zhong LI1,2, Peng LI1,2 |
1. Changjiang Geophysical Exploration & Testing Co.,Ltd.(Wuhan),Wuhan 430010,China 2. Changjiang Survey,Planning,Design and Research Co.,Ltd.,Wuhan 430010,China |
|
|
Abstract The approximate vertical reflection method is a seismic exploration technique with a minimum offset,which does not need a sufficiently large offset and is suitable for tunnel,roadway and other underground projects with narrow space.It can be used to locate and track medium and large geological structures such as faults and corrosion zones.Firstly,combined with the actual engineering situation,the tunnel and fault model are modeled,and the model parameters which are in accordance with the actual engineering are given.The forward simulation research is carried out,and the theoretical detection results of the fault are obtained.Then,approximate vertical reflection method detection is carried out three times in practical engineering by using forward simulation of seismic array parameters,and the results of forward simulation are compared and analyzed.Finally,the validity of approximate vertical reflection method in fault detection is proved by the actual excavation of tunnel.
|
Received: 10 June 2019
Published: 24 June 2020
|
|
|
|
|
|

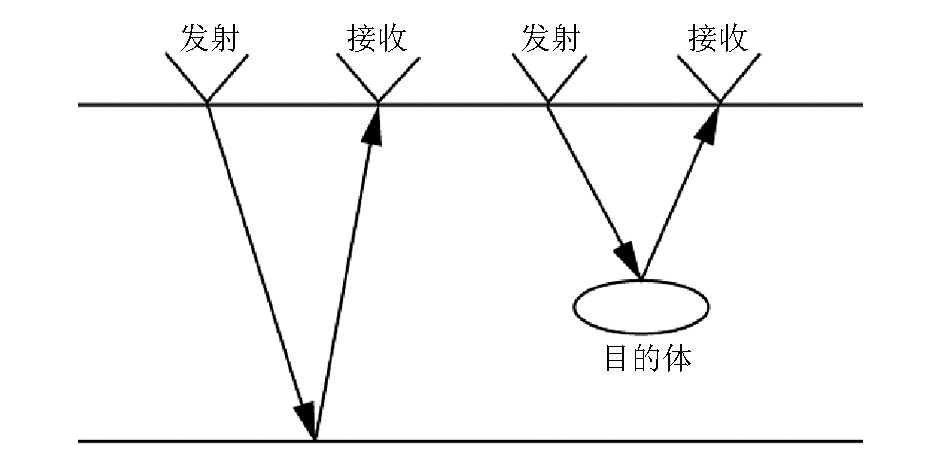

The principle sketch of vertical reflection method
|
岩石 | 密度/ (g·cm-3) | 纵波波速/ (m·s-1) | 波阻抗/ (kg·cm-2·s) | 土壤 | 1.10~2.00 | 200~800 | 22~160 | 黏土 | 1.50~2.20 | 1800~2400 | 270~530 | 砂岩 | 2.40~2.70 | 2300~4000 | 550~1100 | 灰岩 | 2.60~2.90 | 3000~5500 | 780~1600 | 玄武岩 | 2.80~3.10 | 4500~7500 | 1260~2300 | 水 | 1.00 | 1400~1600 | 140~160 |
|
Wave impedance parameters of typical rock
|
|

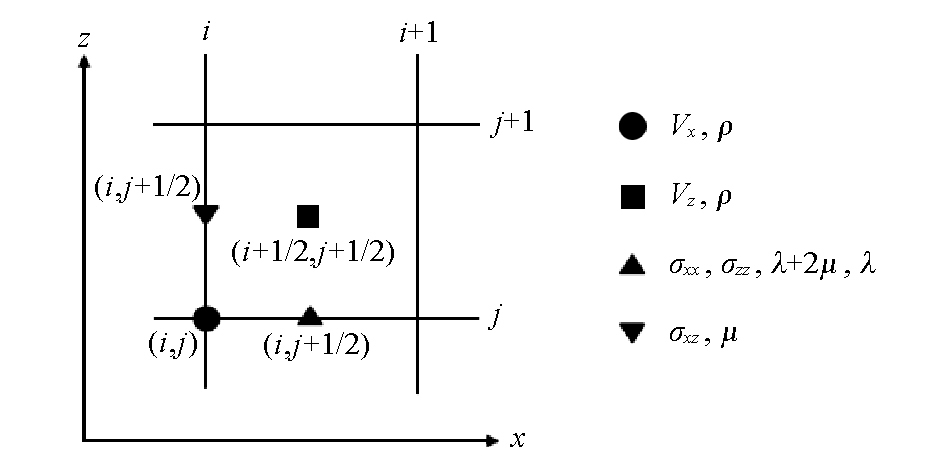

The sketch of staggered grids
|
|

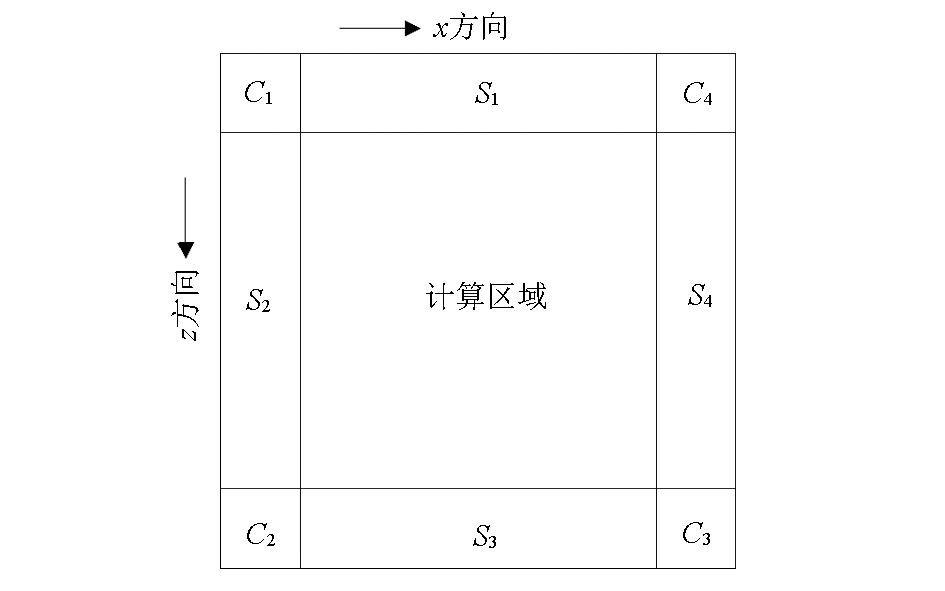

The sketch of perfectly matched layer
|
|

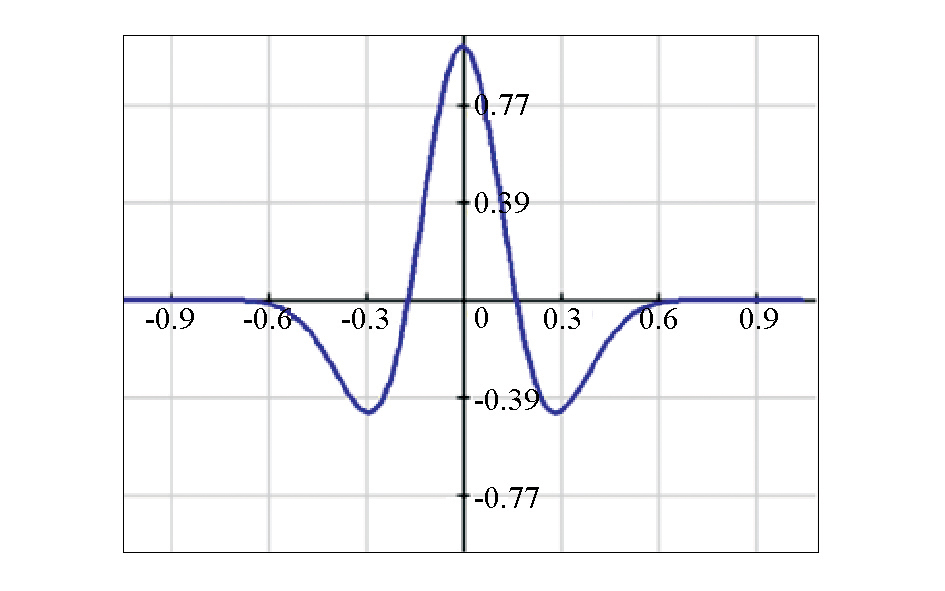

The sketch of 400 Hz ricker wavelet
|
|

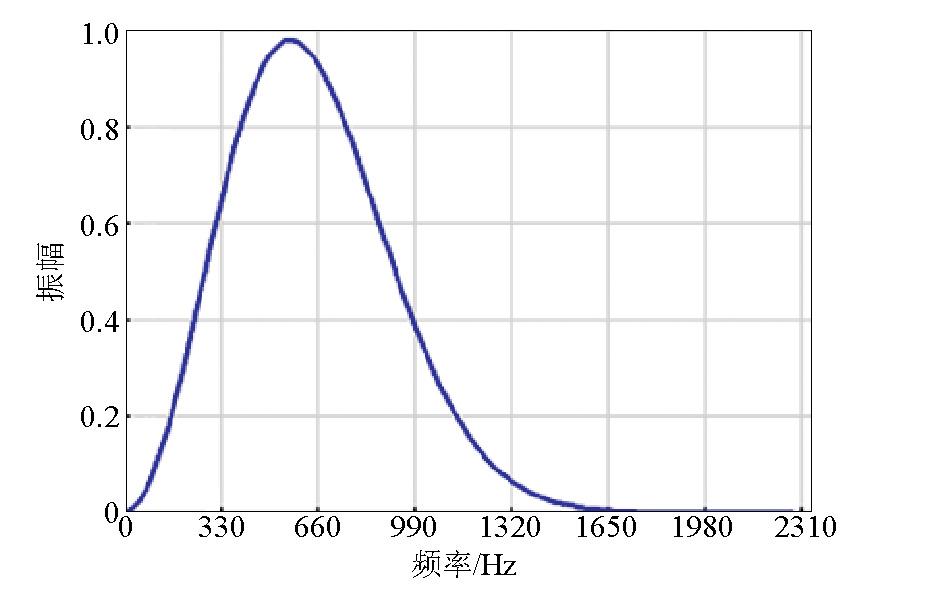

Amplitude spectrum of 400 Hz ricker wavelet
|
|

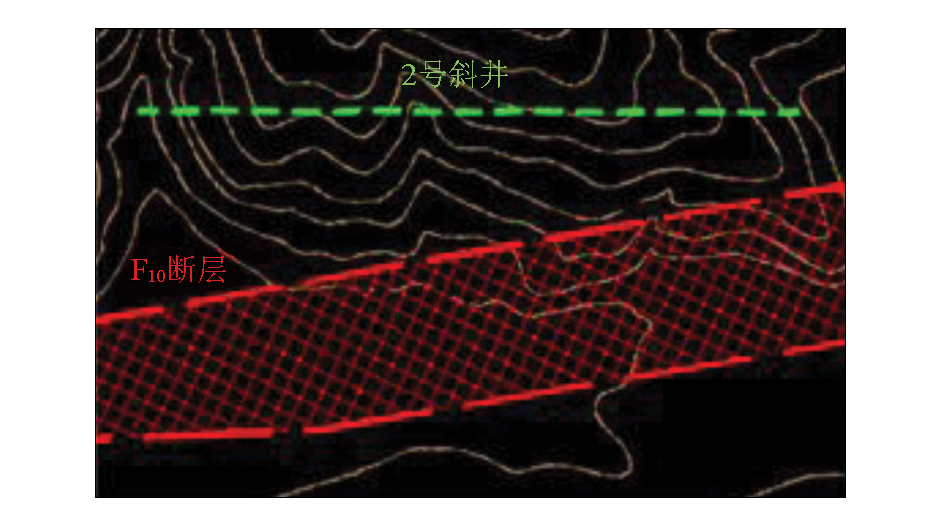

Engineering geological map of 2# inclined shaft
|
|

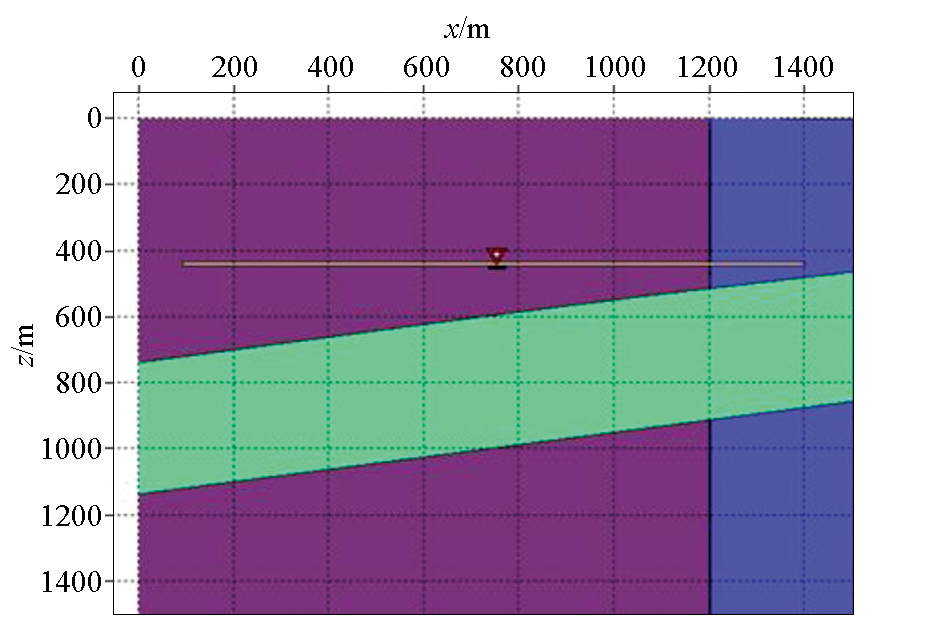

Sketch of forward modeling
|
|

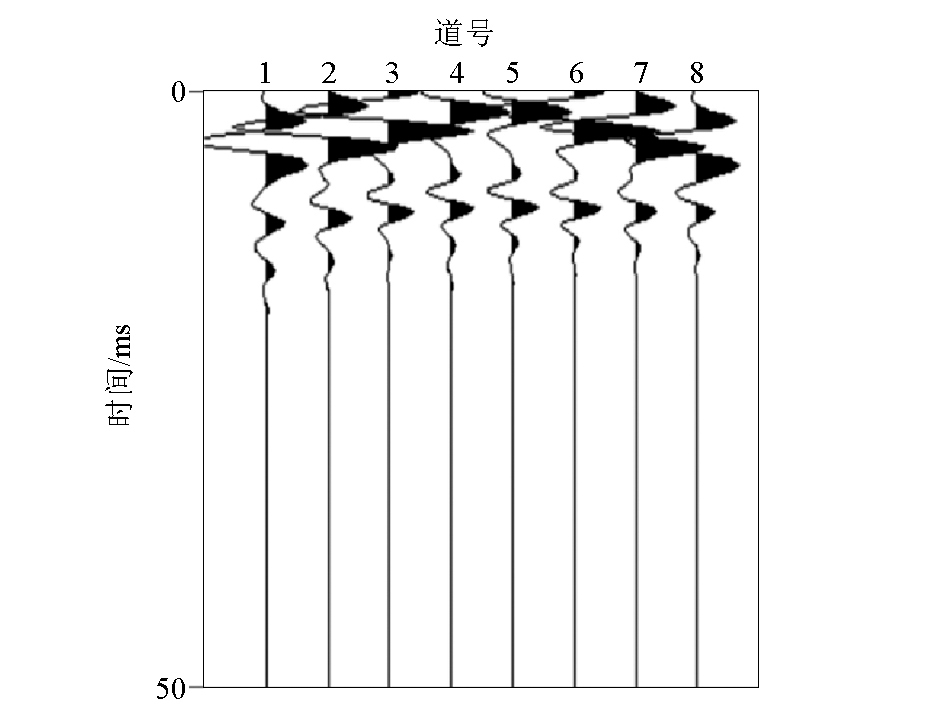

The result of the first forward simulation
|
|
The result of the second forward simulation
|
|
The results of the third forward simulation
|
|

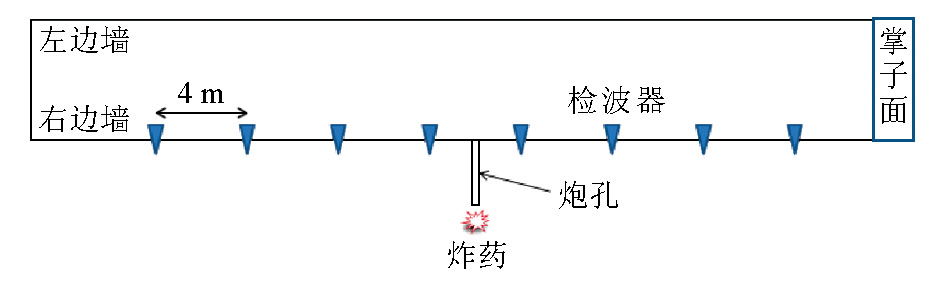

Schematic layout of vertical reflection method
|
|

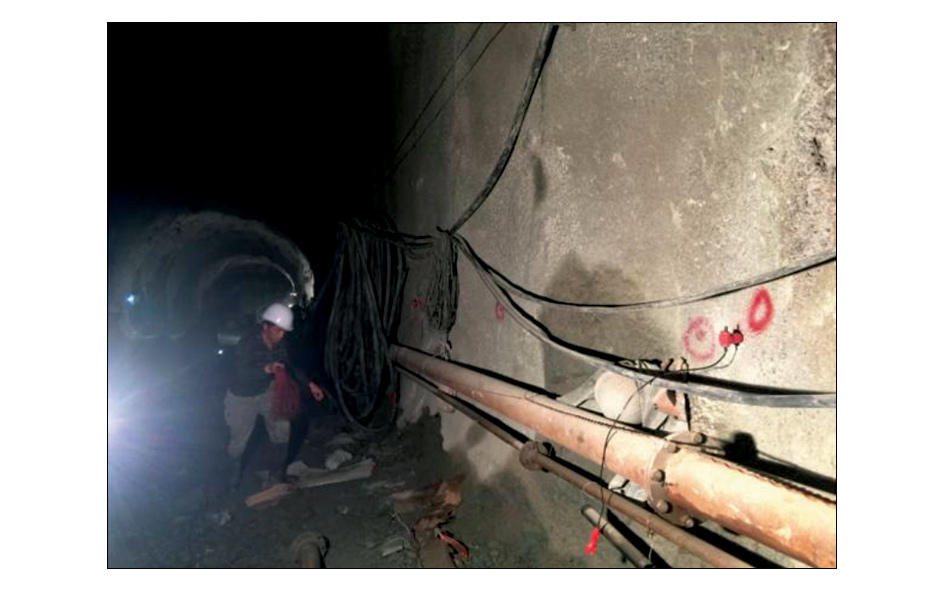

Field work photos
|
|

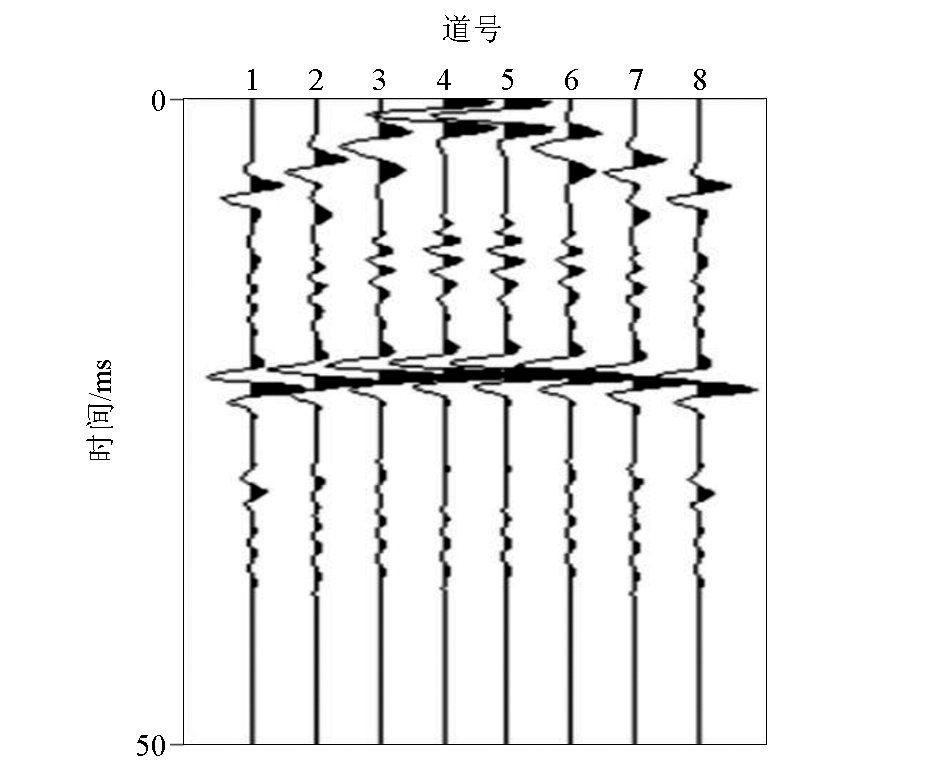

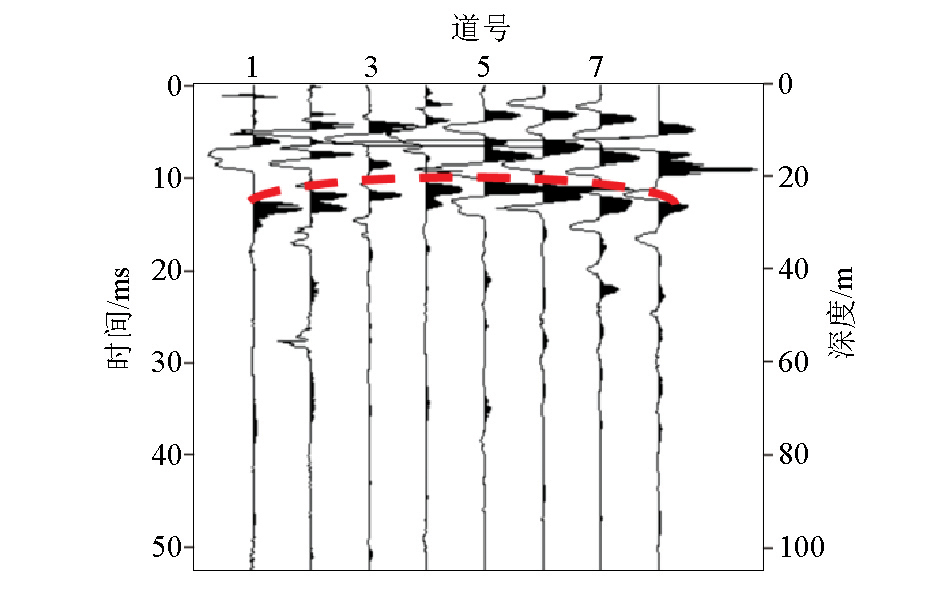

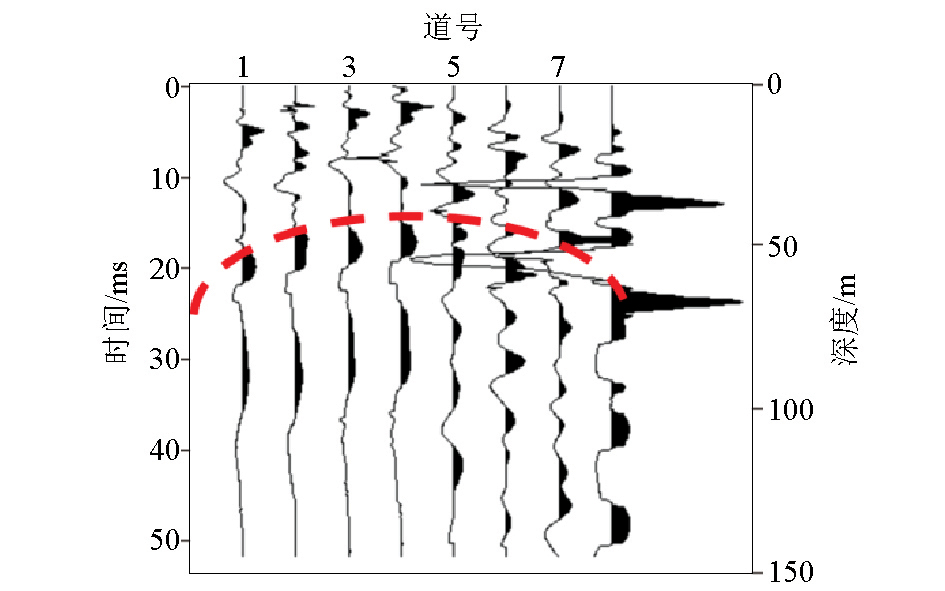

First detection result
|
|

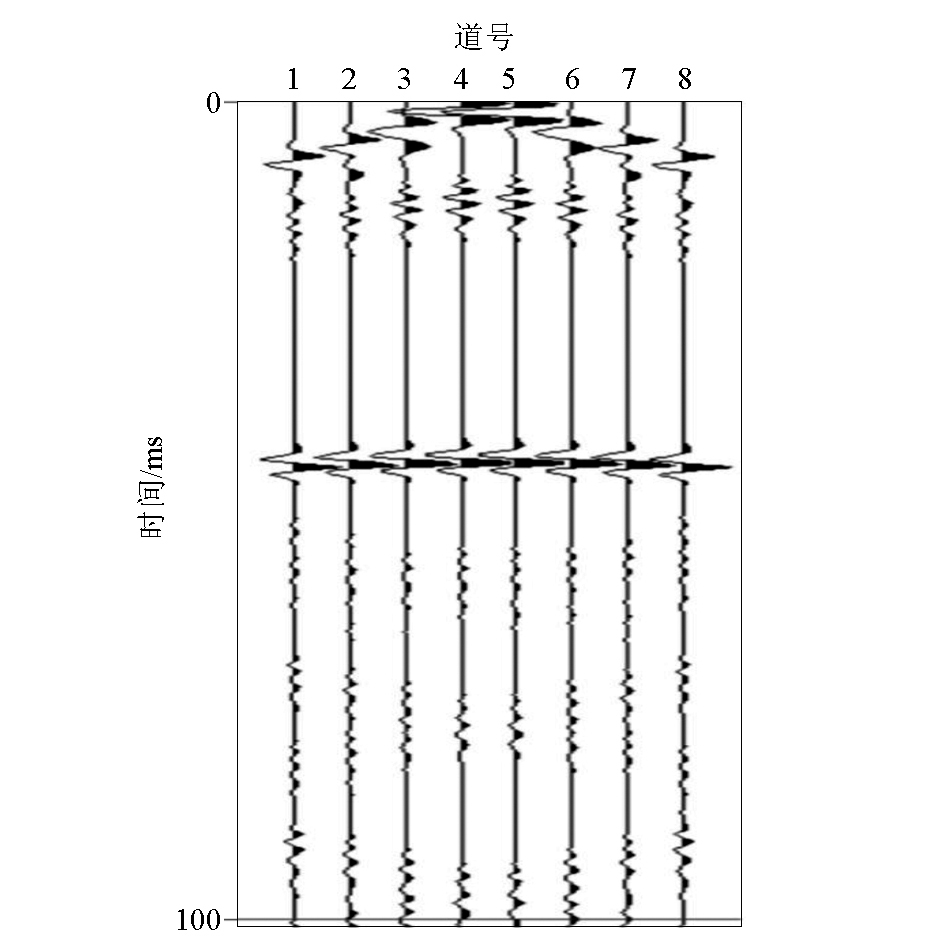

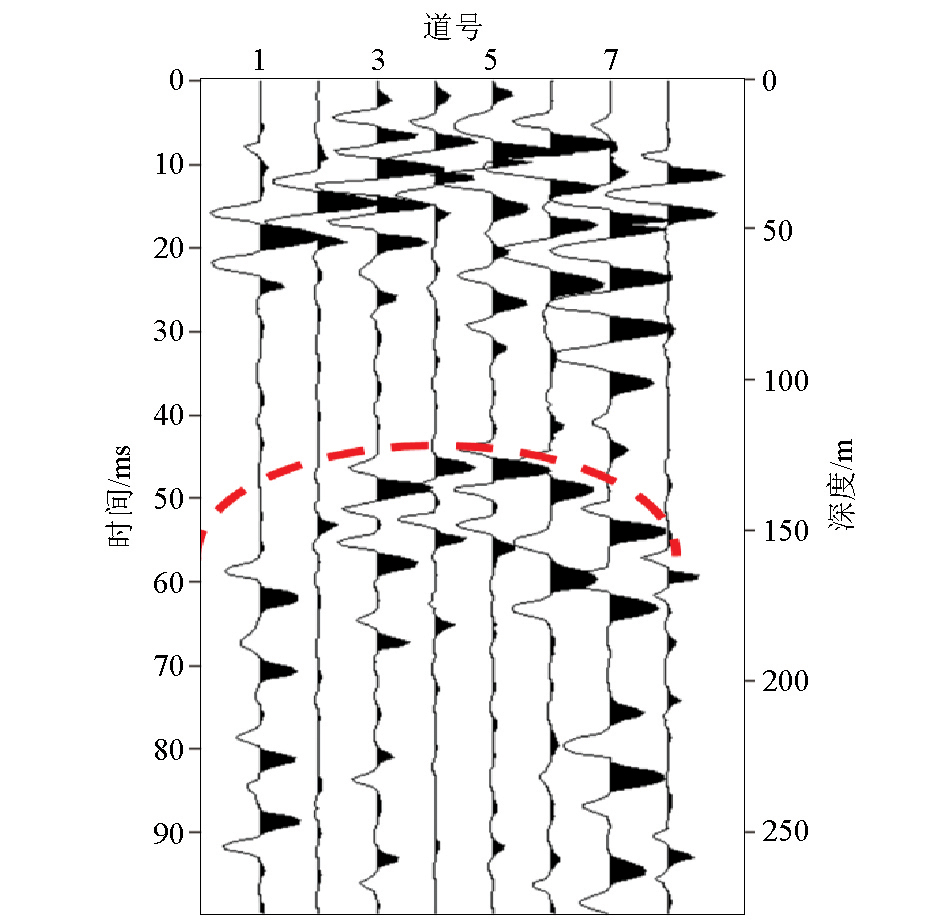

Second detection result
|
|
Third detection result
|
|

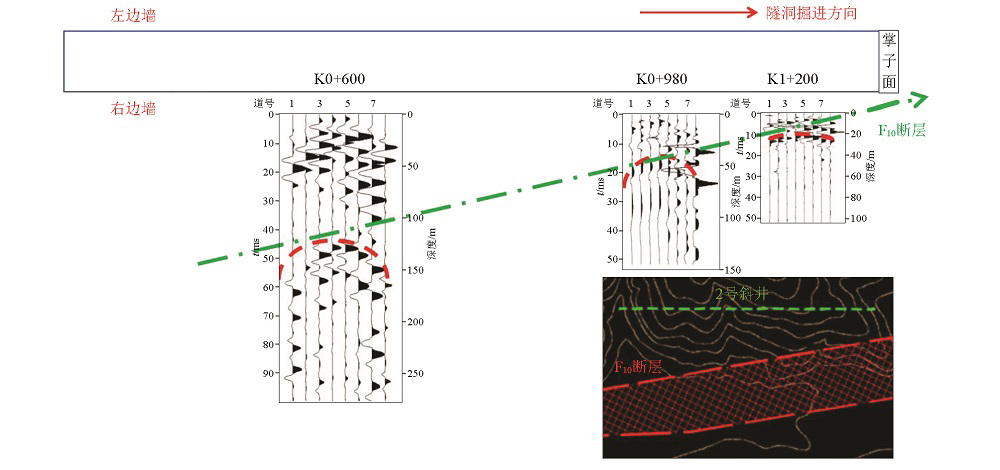

Comprehensive analysis chart of the three survey results
|
|

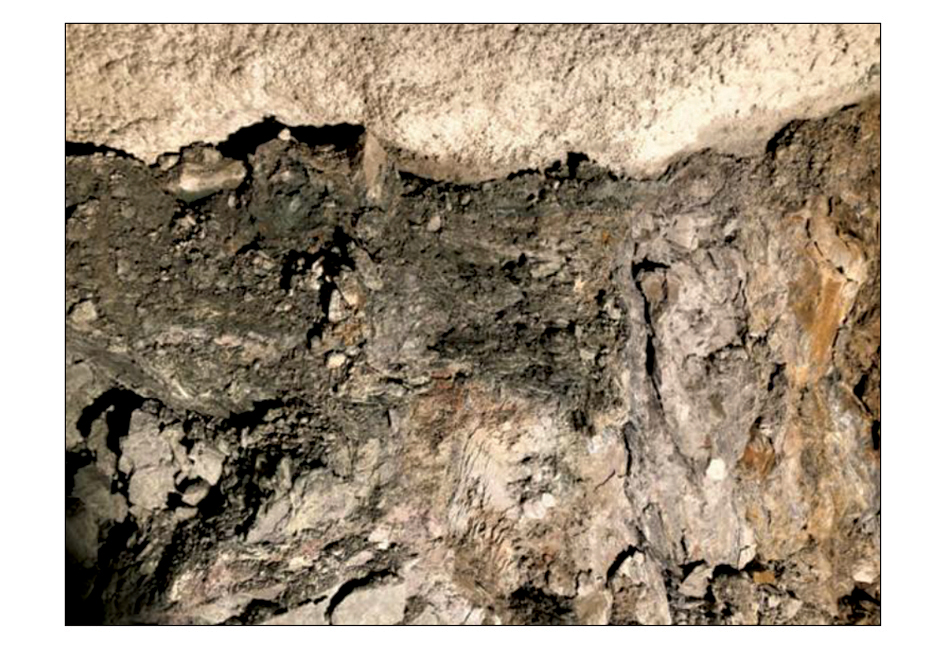

Right side wall rock photos
|
