The application of sensitive frequency seismic attributes to thin sand body prediction:Exemplified by Zhaoyuan area in Songliao Basin |
Peng AN, Zhi-Long YU, Zhuan LIU, Yun-Hai MA, Li LI, Feng-Xuan LIU |
Geological Research Center,BGP,Zhuozhou 072750,China |
|
|
Abstract In this paper,the channel sand body of Fuyu oil reservoir in Y5 well area of Zhaoyuan area in northern Songliao Basin was chosen as the research object.In view of the phenomena that the sand body thickness is thin,the lateral change is prominent,and the seismic response characteristics of the sand body of the same thickness are inconsistent,the authors adopted the time-frequency analysis technique based on the simulation analysis of the seismic response characteristics of the target sand body.The generalized S transform was used to optimize the sensitive frequency of different thicknesses and combined sand bodies in the frequency domain,and the data were reconstructed based on the sensitive frequency to eliminate the sand.The body and the seismic profile characteristics were inconsistent,and it was better to predict the sand body distribution by seismic attributes.The research results show that using the sensitive frequency to reconstruct the seismic attributes extracted by the data body can effectively improve the prediction accuracy of the thin-layer channel sand body and greatly reduce the risk of oilfield exploration and development.
|
Received: 10 June 2019
Published: 22 April 2020
|
|
|
|
|
|

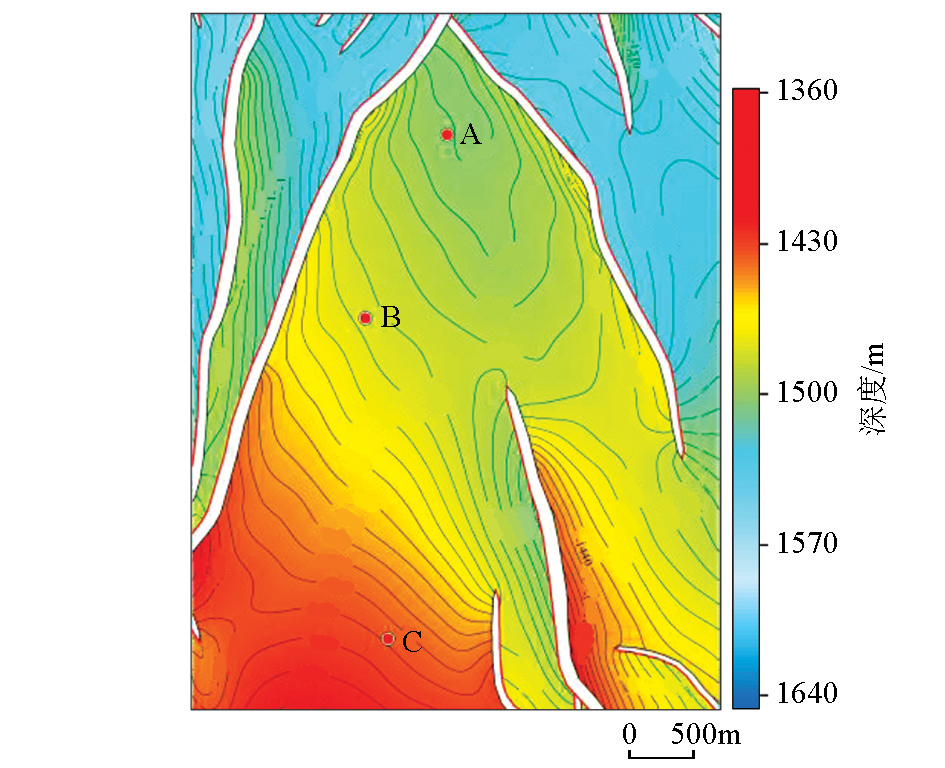

Top strcture map of FII1 formation in Y5 well area
|
|

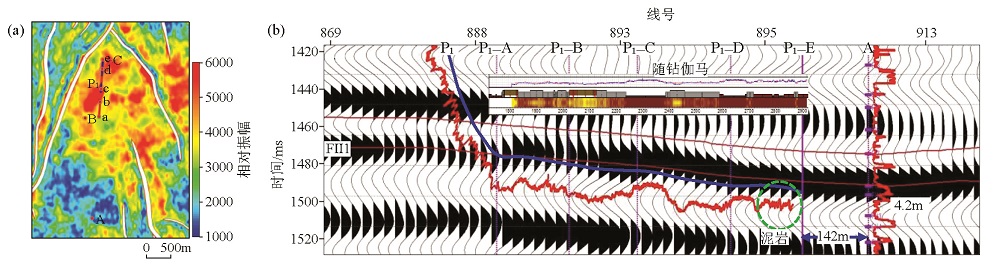

Analysis of drilling effect of FII1 small horizontal well a—amplitde attribute;b—cross P1 well-A well connected seismic section
|
|

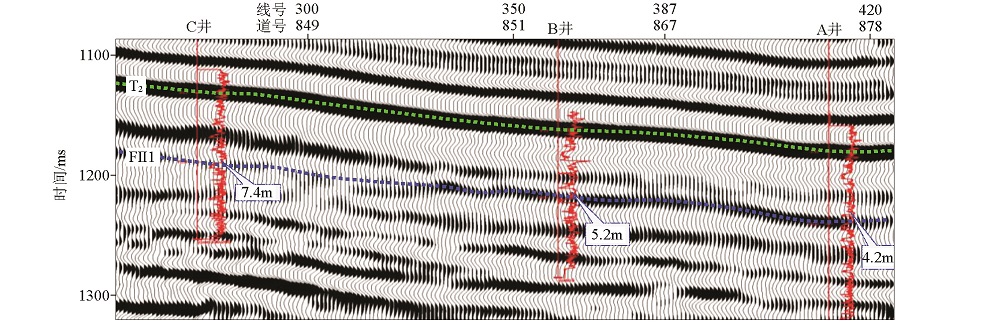

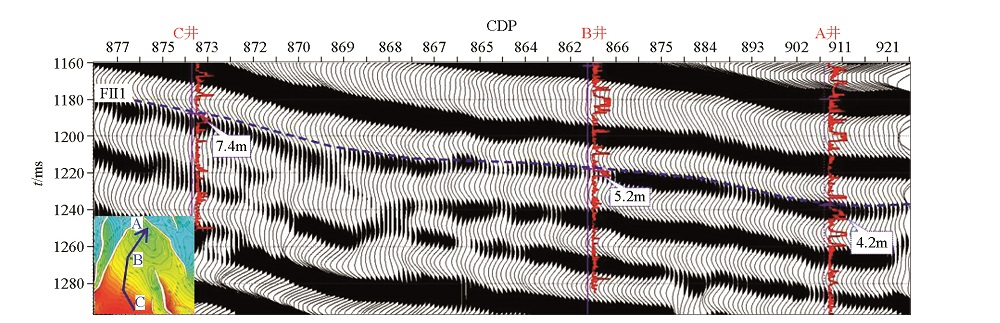

Cross three known well seicmic profiles
|
|

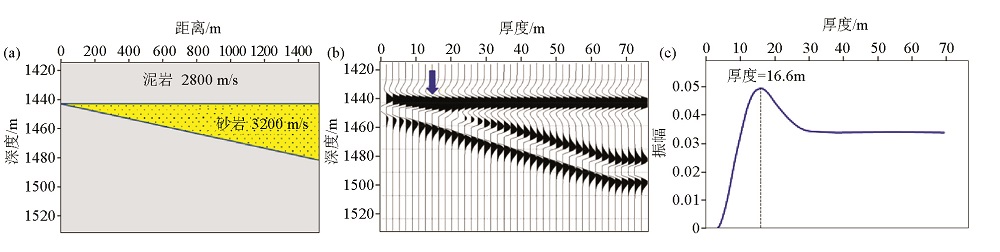

Wedge model forword performance map a—wedge geological model;b—wedge model forward profile;c—relation between amplitude and thickness
|
|

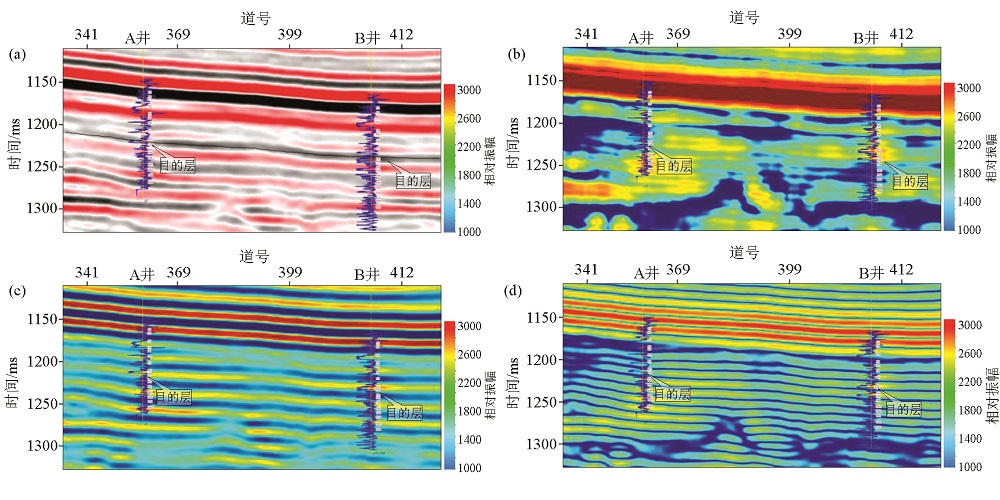

Comparison of seismic spectrum profiles by different spectral decomposition algorithms a—original seismic profile;b—STFT;c—SWT;d—GST
|
|

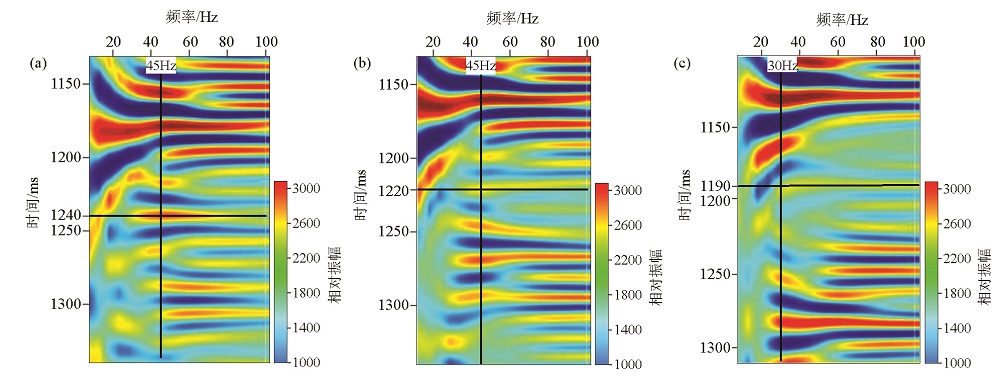

Three well-known wells based on generalized S-transformation time-frequency analysis results a—well A;b—well B;c—well C
|
|
Reconstructed seismic section through three well-known wells
|
|

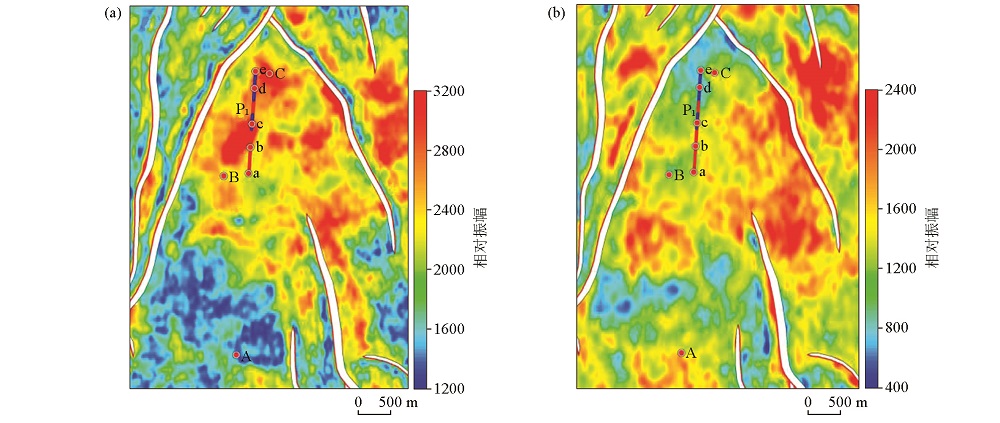

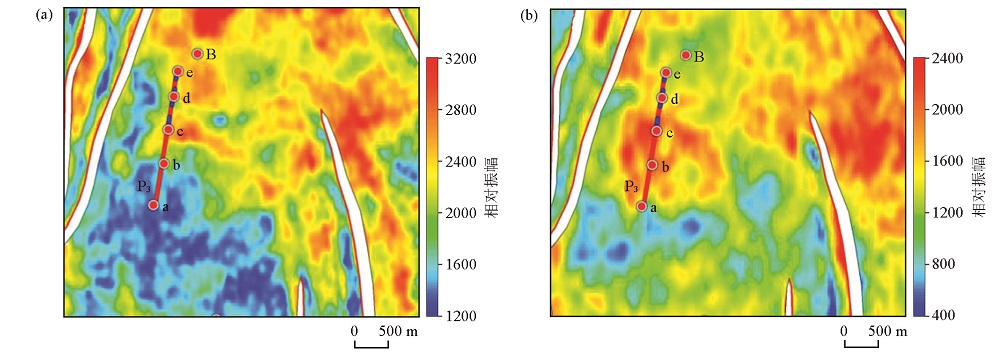

Comparison of sensitive frequency reconstruction volume and original data amplitude attribute a—original seismic amplitude attribute;b—sensitive frequency reconstruction data amplitude attribute
|
|

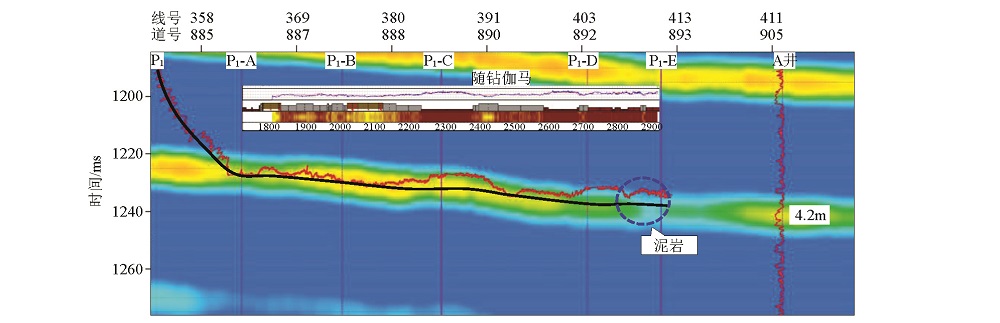

Cross-P1 well-A well sensitive frequency reconstruction profile
|
|

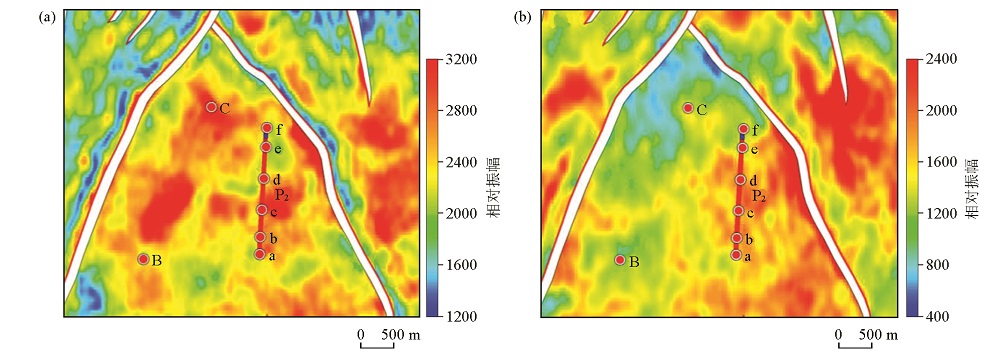

Comparison of the amplitude properties of the sensitive frequency reconstructed body and the original data in P2 well area a—original seismic amplitude attribute;b—sensitive frequency reconstruction data amplitude attribute
|
|
Comparison of the amplitude properties of the sensitive frequency reconstructed body and the original data in P3 well area a—original seismic amplitude attribute;b—sensitive frequency reconstruction data amplitude attribute
|
