Geochemical characteristics of selenium and cadmium in soil and crops in Enshi area |
Shi-Qi TANG1,2,3, Neng WAN4, Ming-Zhong ZENG4, Ke YANG1,2,3, Fei LIU1,2,3, Min PENG1,2,3, Kuo LI1,2,3, Zheng YANG1,2,3 |
1. Institute of Geophysical and Geochemical Exploration,Chinese Academy of Geological Sciences,Langfang 065000,China 2. Research Center of Geochemical Survey and Assessment on Land Quality,China Geological Survey,Langfang 065000,China 3. Key Laboratory of Geochemical Cycling of Carbon and Mercury in the Earth's Critical Zone,Chinese Academy of Geological Sciences,Langfang 065000,China 4. Hubei Geological Survey,Wuhan 430034, China |
|
|
Abstract The 1:25 million land geochemical survey conducted in Enshi area shows that the surface soil in Enshi area is rich in selenium, and the content of cadmium is also high. Based on the data of 3 950 surface soil samples and 362 crop samples in this area, the geochemical characteristics of selenium and cadmium, co-generation factors, and the capability of different types of crops for absorbing and enriching the two elements are discussed.The results show that the selenium and cadmium in the surface soil of Enshi area is associated with each other. The distribution of the two elements is mainly controlled by the Permian soil parent material, and the occurrence of selenium and cadmium is closely related to organic matter and sulfide in soil. Comparison of BCF of selenium and cadmium in different crops shows that ginkgo, corn and tea have higher absorption capacity for selenium than for cadmium, and hence these crops could be used as the preferred crops for the development of selenium-enriched agricultural products in Enshi area. At the same time, the pH of the soil should also be considered. The medium alkaline soil may be more likely to avoid the risk of cadmium enrichment in agricultural products. In addition, selenium has a detoxifying effect on cadmium. Selenium-rich environment will significantly reduce the harm of cadmium to human body.
|
Received: 27 May 2019
Published: 24 June 2020
|
|
|
|
|
|

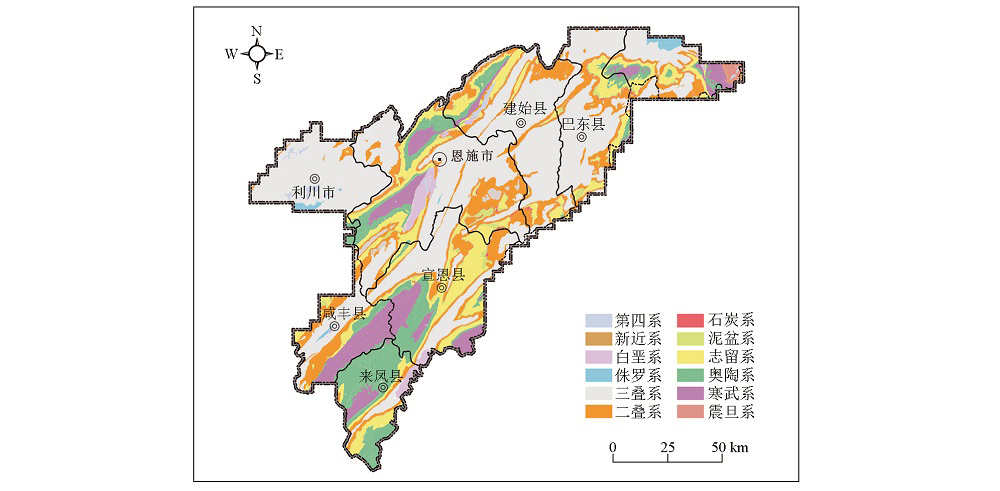

Stratigraphic map of the study area
|
Se判断标准[16] | | 恩施地区 | Cd判断标准[17] | | 恩施地区 | w(Se)/10-6 | 效应 | 面积/km2 | 比例/% | w(Cd)/10-6 | 效应 | 面积/km2 | 比例/% | ≤0.125 | 硒不足 | | 13.07 | 0.08 | pH≤7.5 | ≤0.30 | 无风险 | | 2101.58 | 12.86 | 0.125~0.175 | 潜在硒不足 | | 62.10 | 0.38 | | >0.30 | 有风险 | | 12410.89 | 75.95 | 0.175~0.40 | 足硒 | | 5737.33 | 35.11 | | | | | | | 0.40~3 | 富硒 | | 10110.18 | 61.87 | pH>7.5 | ≤0.60 | 无风险 | | 1249.36 | 7.65 | >3 | 硒中毒 | | 418.33 | 2.56 | | >0.60 | 有风险 | | 579.17 | 3.54 |
|
Determination criteria and results of soil selenium and cadmium in study area
|
|

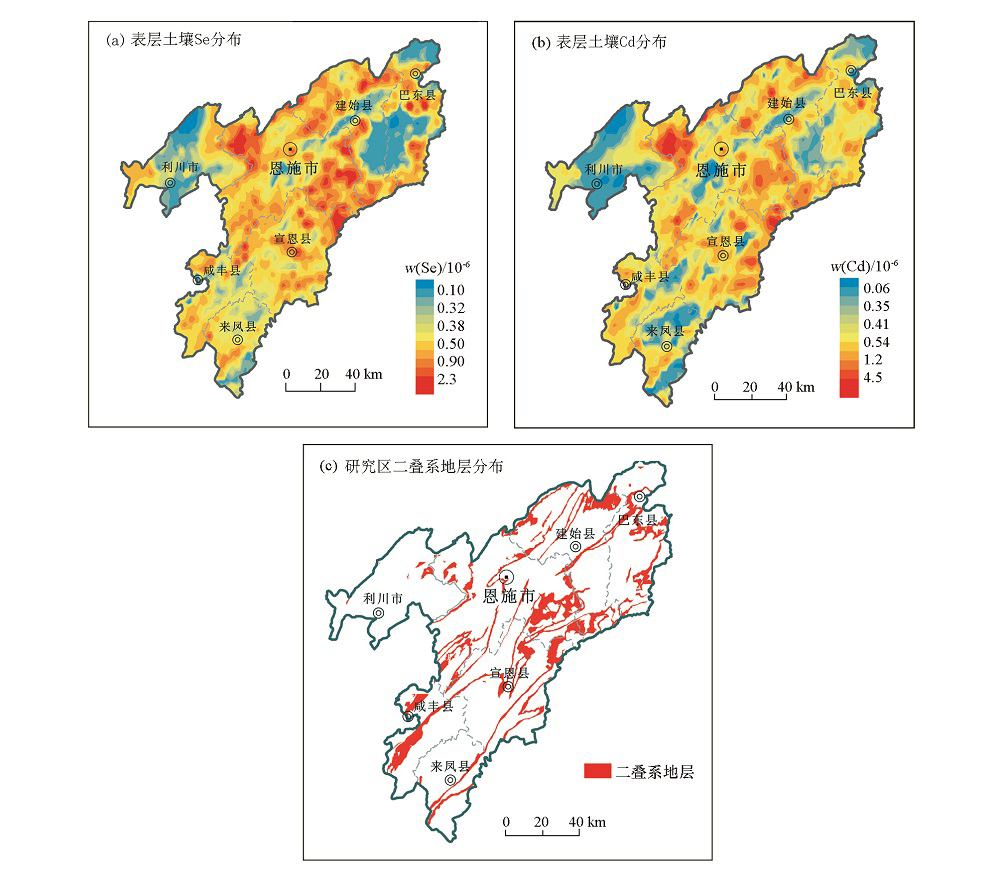

Distribution of selenium and cadmium in surface soil of the study area and its spatial relationship with the Permian strata
|
地质单元 | 第四系 | 白垩系 | 侏罗系 | 三叠系 | 二叠系 | 石炭系 | 泥盆系 | 志留系 | 奥陶系 | 寒武系 | 样本数 | 24 | 60 | 12 | 1861 | 590 | 37 | 119 | 461 | 436 | 276 | Se | 0.73 | 0.45 | 0.33 | 0.62 | 1.39 | 0.98 | 0.79 | 0.64 | 0.48 | 0.51 | Cd | 0.54 | 0.37 | 0.29 | 0.70 | 1.53 | 1.09 | 0.75 | 0.61 | 0.44 | 0.54 |
|
Statistical table of soil selenium and cadmium content in different geological units in the study area10-6
|
|

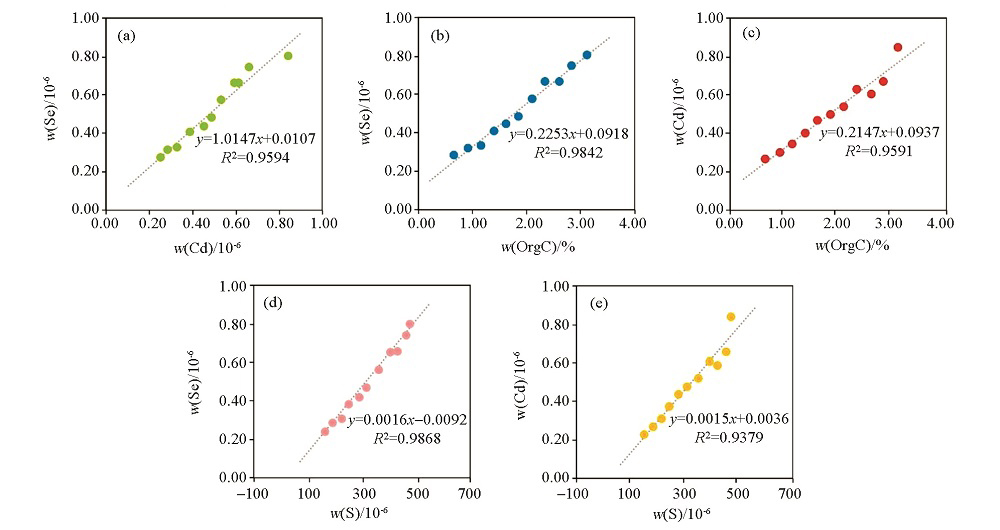

Correlation maps of different elements in soil
|
作物类别 | 样品数 | 平均值/10-6 | 含量范围/10-6 | Se | Cd | w(Se)/w(Cd) | Se | Cd | 早稻 | 18 | 0.078 | 0.236 | 0.331 | 0.028~0.156 | 0.005~0.826 | 玉米 | 120 | 0.475 | 0.156 | 3.045 | 0.018~7.421 | 0.002~2.644 | 红薯 | 38 | 0.020 | 0.056 | 0.357 | 0.002~0.084 | 0.002~0.645 | 辣椒 | 60 | 0.542 | 0.992 | 0.546 | 0.020~6.683 | 0.129~4.954 | 土豆 | 70 | 0.020 | 0.037 | 0.541 | 0.002~0.284 | 0.000~0.142 | 大蒜 | 20 | 0.066 | 0.449 | 0.147 | 0.034~0.272 | 0.059~2.501 | 茶叶 | 16 | 0.091 | 0.032 | 2.844 | 0.044~0.202 | 0.013~0.075 | 银杏 | 20 | 0.698 | 0.012 | 58.167 | 0.020~12.670 | 0.006~0.025 |
|
Table of characteristics of selenium and cadmium in different crops
|
|

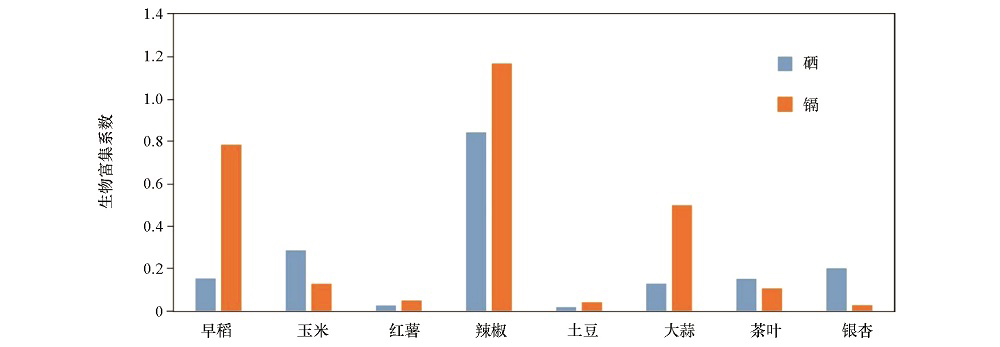

BCF comparison of selenium and cadmium of different crops in the study area
|
|

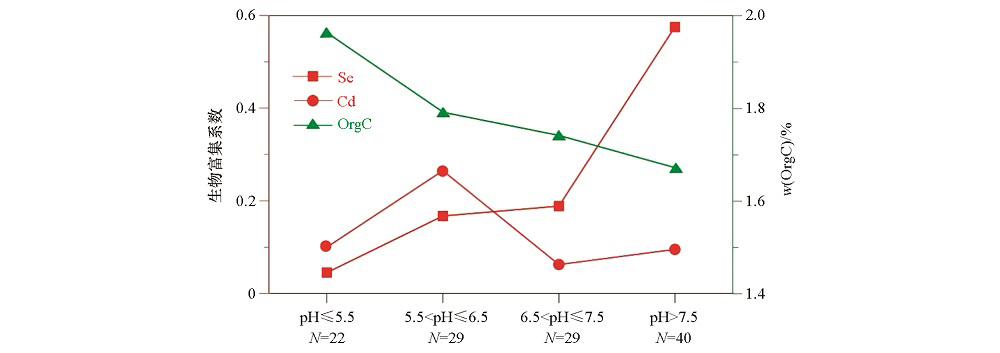

BCF comparison of selenium and cadmium in corn seeds in different pH ranges
|
[1] |
Rayman M P. The importance of selenium to human health[J]. Lancet, 2000,356(9225):233-241.
|
[2] |
Rotruck J T, Pope A L, Ganther H E, et al. Selenium: Biochemicalrole as a component of glutathione peroxidase[J]. Science, 1973,79(4073):88-90.
|
[3] |
杨礼茂. 鄂西南地区硒资源及其综合开发[J]. 地域研究与开发, 1998,7(4):72-76.
|
[3] |
Yang L M. Selenium resources and its comprehensive exploitation in the southwestern Hubei[J]. Areal Research and Development, 1998,7(4):72-76.
|
[4] |
杜丽娜, 余若祯, 王海燕, 等. 重金属镉污染及其毒性研究进展[J]. 环境与健康杂志, 2013,30(2):167-173.
|
[4] |
Du L N, Yu R Z, Wang H Y, et al. Research progress on heavy metal cadmium pollution and its toxicity[J]. Journal of environment and health, 2013,30(2):167-173.
|
[5] |
崔岩山, 陈晓晨. 土壤中镉的生物可给性及其对人体的健康风险评估[J]. 环境科学, 2010,32(2):403-408.
|
[5] |
Cui Y S, Chen X C. Bioavailability of soil cadmium and its health risk assessment[J]. Environmental science, 2010,32(2):403-408.
|
[6] |
Zhu J M, Zheng B S. Distribution of selenium in a mini-landscape of Yutangba, Enshi, Hubei Province, China[J]. Applied Geochemistry, 2001,16(11-12):1333-1344.
|
[7] |
Chang C Y, Yin R S, Wang X, et al. Selenium translocation in the soil-rice system in the Enshi seleniferous area, Central China[J]. Science of the Total Environment, 2019,669:83-90.
|
[8] |
Zhu J M, Han W L, Lei L, et al. Selenium speciation of Se-rich rocks from Yutangba of Enshi, China[J]. Goldschmidt Conference Abstracts, 2006,70(18):754.
|
[9] |
杨良策, 李明龙, 杨廷安, 等. 湖北省恩施市表层土壤硒含量分布特征及其影响因素研究[J]. 资源环境与工程, 2015,29(6):825-829.
|
[9] |
Yang L C, Li M L, Yang T A, et al. Study on distribution characteristics of selenium content of surface soil and its influencing factors in Enshi city,Hubei province[J]. Resources Environment & Engineering, 2015,29(6):825-829.
|
[10] |
郭宇, 鲍征宇, 马真真, 等. 湖北恩施地区土壤—植物系统中Se元素的地球化学特征[J]. 地质通报, 2012,31(1):151-155.
|
[10] |
Guo Y, Bao Z Y, Ma Z Z, et al. Geochemical characteristics of selenium in the soil-plants system of Enshi area, Hubei Province[J]. Geological Bulletin of China, 2012,31(1):151-155.
|
[11] |
朱建明, 左维, 秦海波, 等. 恩施硒中毒区土壤高硒的成因:自然硒的证据[J]. 矿物学报, 2008,28(4):397-400.
|
[11] |
Zhu J M, Zuo W, Qin H B, et al. An investigation on the source of soil Se in Yutangba Enshi: evidence from natural selenium[J]. Acta Mineralogica Sinica, 2008,28(4):397-400.
|
[12] |
Zhu J M, Zuo W, Liang X B, et al. Occurrence of native selenium in Yutangba and its environmental implications[J]. Applied Geochemistry, 2004,19:461-467.
|
[13] |
袁知洋, 项剑桥, 吴冬妹, 等. 恩施富硒土壤区主要农作物硒镉特征以及和根系土硒镉关系研究[J]. 资源环境与工程, 2017,31(6):706-712.
|
[13] |
Yuan Z Y, Xiang J Q, Wu D M, et al. The characteristics of selenium and cadmium in crops and its root soil in the area of Se and Cd-enriched soil in Enshi[J]. Resources Environment & Engineering, 2017,31(6):706-712.
|
[14] |
张光弟, 葛晓立, 张绮玲, 等. 湖北恩施地区硒地质地球化学环境背景[J]. 地球学报, 1998(1):59-67.
|
[14] |
Zhang G D, Ge X L, Zhang Q L, et al. Selenium geological and geochemical environmental background in Enshi,Hubei[J]. Acta Geoscientia Sinica, 1998(1):59-67.
|
[15] |
中国土壤元素背景值[M]. 北京: 中国环境科学出版社, 1990.
|
[15] |
Chinese soil element background value[M]. Beijing: China Environmental Science Press, 1990.
|
[16] |
谭见安. 中华人民共和国地方病与环境图集[M]. 北京: 科学出版社, 1989.
|
[16] |
Tan J A. Atlas of local diseases and environment of China[M]. Beijing: Science Press, 1989.
|
[17] |
中华人民共和国生态环境部. GB 15618-2018 土壤环境质量农用地土壤污染风险筛选值(试行)[S]. 2018.
|
[17] |
Ministry of Ecology and Environment of the People’s Republic of China. GB 15618-2018 Soil environmental quality screening value of soil pollution tisk for agricultural land (trial)[S]. 2018.
|
[18] |
Qin H B, Zhu J M, Su H. Selenium fractions in organic matter from Se-rich soils and weathered stone coal in selenosis areas of China[J]. Chemosphere, 2012(86):626-633.
|
[19] |
朱建明. 渔塘坝黑色富硒岩石中硒的赋存状态及其对局域环境的效应研究[D]. 贵阳:中国科学院地球化学研究所, 2001.
|
[19] |
Zhu J M. Occurrence of selenium in black selenium-enriched rock in Yutangba and its effect on local environment[D]. Guiyang: Institute of Geochemistry,Chinese Academy of Sciences, 2001.
|
[20] |
朱建明, 秦海波, 李璐, 等. 湖北恩施渔塘坝高硒土壤中硒的结合态[J]. 环境科学学报, 2008,28(4):772-777.
|
[20] |
Zhu J M, Qin H B, Li L, et al. Fractionation of selenium in high-Se soils from Yutangba, Enshi, Hubei[J]. Acta Scientiae Circumstantiae, 2008,28(4):772-777.
|
[21] |
王芳, 鲁力, 康健, 等. 恩施渔塘坝硒矿床中硒的赋存状态研究[J]. 资源环境与工程, 2016,30(2):244-247.
|
[21] |
Wang F, Lu L, Kang J, et al. Study on the Occurrence of Selenium in Yutangba of Enshi[J]. Resources Environment & Engineering, 2016,30(2):244-247.
|
[22] |
Li Z, Liang D L, Peng Q, et al. Interaction between selemium and soil organic matter and its impact on soil selenium bioavailability:A review[J]. Geoderma, 2017,295:69-79.
|
[23] |
韩文亮, 朱建明, 秦海波, 等. 恩施渔塘坝富硒碳质岩石中硒的形态分析[J]. 矿物学报, 2007,27(1):89-95.
|
[23] |
Han W L, Zhu J M, Qin H B, et al. Selenium Speciation in Se-rich Rocks at Yutangba[J]. Acta Mineralogica Sinica, 2007,27(1):89-95.
|
[24] |
Cary E E, Gissel-Nielsen G. Effect of fertilizer anions on the solubility of native and applied selenium in soil[J]. Soil Science Society of America Journal, 1973,37(4):187-190.
|
[25] |
杨忠芳, 余涛, 侯青叶, 等. 海南岛农田土壤Se的地球化学特征[J]. 现代地质, 2012,26(5):837-849.
|
[25] |
Yang Z F, Yu T, Hou Q Y, et al. Geochemical characteristics of soil selenium in farmland of Hainan island[J]. Geoscience, 2012,26(5):837-849.
|
[26] |
王月平, 张立, 崔玉军, 等. 宝清县东部土壤硒含量特征及其与土壤性质的关系[J]. 物探与化探, 2019,43(4):904-911.
|
[26] |
Wang Y P, Zhang L, Cui Y J, et al. Characteristics of selenium content in soil of eastern Baoqing County and its relationship with soil properties[J]. Geophysical and Geochemical Exploration, 2019,43(4):904-911.
|
[27] |
杨忠芳, 陈岳龙, 钱鑂, 等. 土壤pH对镉存在形态影响的模拟实验研究[J]. 地学前缘, 2005,12(1):252-260.
|
[27] |
Yang Z F, Chen Y L, Qian X, et al. A study of the effect of soil pH on chemical species of cadmium by simulated experiments. Earth Science Frontiers, 2005,12(1):252-260.
|
[28] |
张亚峰, 苗国文, 马强, 等. 青海东部碱性土壤中硒的形态特征[J]. 物探与化探, 2019,43(5):1138-1144.
|
[28] |
Zhang Y F, Miao G W, Ma Q, et al. Distribution characteristics of Se speciation of alkaline soil in eastern Qinghai[J]. Geophysical and Geochemical Exploration, 2019,43(5):1138-1144.
|
[29] |
毛大均, 郑宝山, 严文祥. 鄂西南石煤和石煤出露区土壤中硒与镉的含量[J]. 湖北预防医学杂志, 1999,10(2):1-2.
|
[29] |
Mao D J, Zheng B S, Yan W X. Contents of selenium and cadmium in soils of coal in the south of Hubei Province[J]. Hubei Journal of Preventive Medicine, 1999,10(2):1-2.
|
[30] |
牛静萍. 29对金属化合物对大白鼠游离肝细胞联合毒性的研究[J]. 环境与健康杂志, 1995,12(2):55-56.
|
[30] |
Niu L P. Study on the combined toxicity of 29 pairs of metal compounds on free hepatocytes in rats[J]. Journal of environment and health, 1995,12(2):55-56.
|
[31] |
杨忠芳. 湘鄂重金属高背景区1:5万土地质量地球化学调查与风险评价二级项目成果报告[R]. 中国地质大学(北京) 2019.
|
[31] |
Yang Z F. Achievement report of the second project of 1∶50,000 land quality geochemical survey and risk assessment in the heavy metal high background area of Hunan and Hubei[R]. China University of Geosciences(Beijing) 2019.
|
[32] |
杨克敌. 微量元素与健康[M]. 北京: 科学出版社, 2003.
|
[32] |
Yang K D. Trace elements and health[M]. Beijing: Science Press, 2003.
|
[33] |
宋明义, 岑静, 胡艳华, 等. 高镉地质环境富硒土壤特征及其生态效应[J]. 地球与环境, 2012,40(3):354-360.
|
[33] |
Study on the characteristics of selenium-rich soil geological environment with high contents of cadmium and its ecological effects[J]. Earth and environment, 2012,40(3):354-360.
|
