Characteristics and influencing factors of fluorine content in soils along the Guohe River in Anhui Province |
Peng-Fei LI, Fu-Rong CHEN, Guo-Qiang DU, Chun-Jun TAO, Chao LIU, Kun LIU |
Geological Survey Institute of Anhui Province, Hefei 230001,China |
|
|
Abstract The 0~20 cm surface soil, the horizontal profile soil and the 0~200 cm vertical profile soil samples were collected systematically to determine the content of soil fluoride and related indicators, and the distribution characteristics and influencing factors of soil fluorine content in surface soil and profile soil were studied. The results show that the fluorine content in the surface soil of the study area ranges from 448×10 -6 to 1 009×10 -6, with the average content being 685×10 -6. The distribution characteristics of fluorine content in surface soil are obviously restricted by geological and geomorphological conditions. The soil with high fluoride background (>730×10 -6) is concentrated in the sub-clay of Qhb group, and the landform is flood plain.The surface soil fluorine is positively correlated with TFe2O3 (r=0.76), Mn (r=0.79), CaO (r=0.66) and Al2O3 (r=0.59), and negatively correlated with w(SiO2)/w(Al2O3).In the vertical section, soil fluorine is mainly concentrated in 0~155 cm. Iron and manganese oxides are important factors that restrict the vertical distribution of soil fluorine.
|
Received: 06 May 2019
Published: 22 April 2020
|
|
|
|
|
|

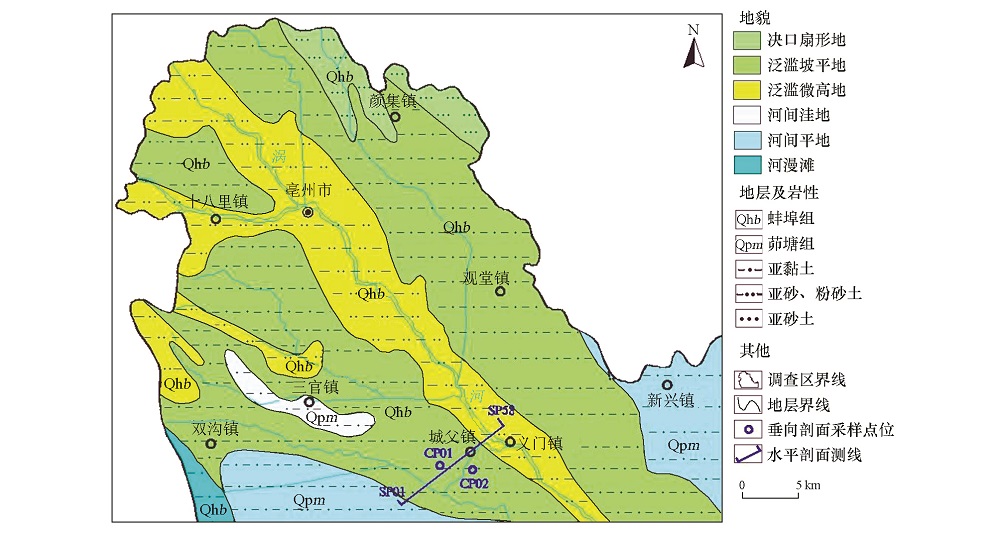

Sampling sites in the study area
|
指标 | 分析方法 | 检出限 | 报出率/% | 准确度 合格率/% | 精密度 合格率/% | 重复检验 合格率/% | F | 离子选择性电极法(ISE) | 50 | 100 | 100 | 100 | 100 | Mn | 质光谱法(ICP-AES) | 5 | 100 | 100 | 100 | 100 | SiO2 | X射线荧光光谱法(XRF) | 0.05 | 100 | 100 | 100 | 100 | Al2O3 | X射线荧光光谱法(XRF) | 0.05 | 100 | 100 | 100 | 100 | TFe2O3 | X射线荧光光谱法(XRF) | 0.05 | 100 | 100 | 100 | 100 | CaO | X射线荧光光谱法(XRF) | 0.05 | 100 | 100 | 100 | 100 | Corg | 容量法 (VOL) | 0.05 | 100 | 100 | 100 | 100 | pH | 离子选择性电极法(ISE) | 0.1 | 100 | 100 | 100 | 99.82 |
|
Parameters of the sample analysis quality
|
单元 | 微地貌 | 岩性 | 参数 | F | TFe2O3 | Mn | CaO | 有机质 | w(SiO2)/w(Al2O3) | pH | | | | 最小值 | 448 | 4.03 | 382 | 1.26 | 0.72 | 3.44 | 6.4 | | | | 最大值 | 1009 | 6.65 | 1003 | 7.93 | 3.05 | 5.80 | 8.7 | 全区 | | | 中位数 | 685 | 5.43 | 725 | 6.06 | 1.66 | 4.19 | 8.0 | (726件) | | | 平均值 | 685 | 5.37 | 717 | 5.69 | 1.75 | 4.31 | | | | | 标准离差 | 93.5 | 0.64 | 129.58 | 1.6 | 0.45 | 0.54 | 0.28 | | | | 变异系数 | 0.14 | 0.12 | 0.18 | 0.28 | 0.26 | 0.12 | 0.04 | 峁塘组 (Qpm) | 河间平地 (106件) | 亚黏土 | 中位数 | 591 | 4.86 | 541 | 2.72 | 1.91 | 4.72 | 7.8 | 平均值 | 601 | 4.93 | 561 | 2.99 | 1.93 | 4.73 | | 变异系数 | 0.14 | 0.11 | 0.23 | 0.52 | 0.19 | 0.12 | 0.06 | 河间洼地 (10件) | 亚黏土 | 中位数 | 605 | 5.10 | 607 | 3.75 | 1.43 | 4.52 | 8.1 | 平均值 | 643 | 5.23 | 630 | 4.16 | 1.42 | 4.39 | | 变异系数 | 0.16 | 0.09 | 0.17 | 0.33 | 0.19 | 0.08 | 0.01 | 蚌埠组 (Qhb) | 泛滥坡平地 (394件) | 亚黏土 | 中位数 | 721 | 5.81 | 792 | 6.65 | 1.71 | 3.94 | 8.0 | 平均值 | 729 | 5.73 | 785 | 6.34 | 1.83 | 4.00 | | 变异系数 | 0.11 | 0.08 | 0.12 | 0.17 | 0.25 | 0.08 | 0.02 | 泛滥微高地 (170件) | 亚砂、粉砂 | 中位数 | 637 | 4.76 | 651 | 5.83 | 1.40 | 4.78 | 8.1 | 平均值 | 641 | 4.87 | 666 | 5.85 | 1.48 | 4.69 | | 变异系数 | 0.11 | 0.11 | 0.13 | 0.13 | 0.25 | 0.10 | 0.02 | 决口扇形地 (33件) | 亚砂土 | 中位数 | 648 | 4.85 | 679 | 6.26 | 1.72 | 4.66 | 8.0 | 平均值 | 652 | 4.83 | 659 | 5.99 | 1.75 | 4.76 | 8.0 | 变异系数 | 0.09 | 0.08 | 0.11 | 0.12 | 0.19 | 0.09 | 0.02 | 河漫滩 (13件) | 亚黏土 | 中位数 | 796 | 5.63 | 709 | 5.69 | 2.33 | 3.98 | 7.8 | 平均值 | 778 | 5.70 | 745 | 5.67 | 2.24 | 4.00 | | 变异系数 | 0.06 | 0.05 | 0.11 | 0.18 | 0.09 | 0.06 | 0.02 |
|
Element content parameters of surface Layer soil along the Guohe River in Anhui Province
|
氟含量/10-6 | ≤400 | >400~500 | >500~550 | >550~700 | >700 | 分级 | 缺乏 | 边缘 | 适量 | 高 | 过剩 |
|
Classification standard of the soil fluorine content
|
|

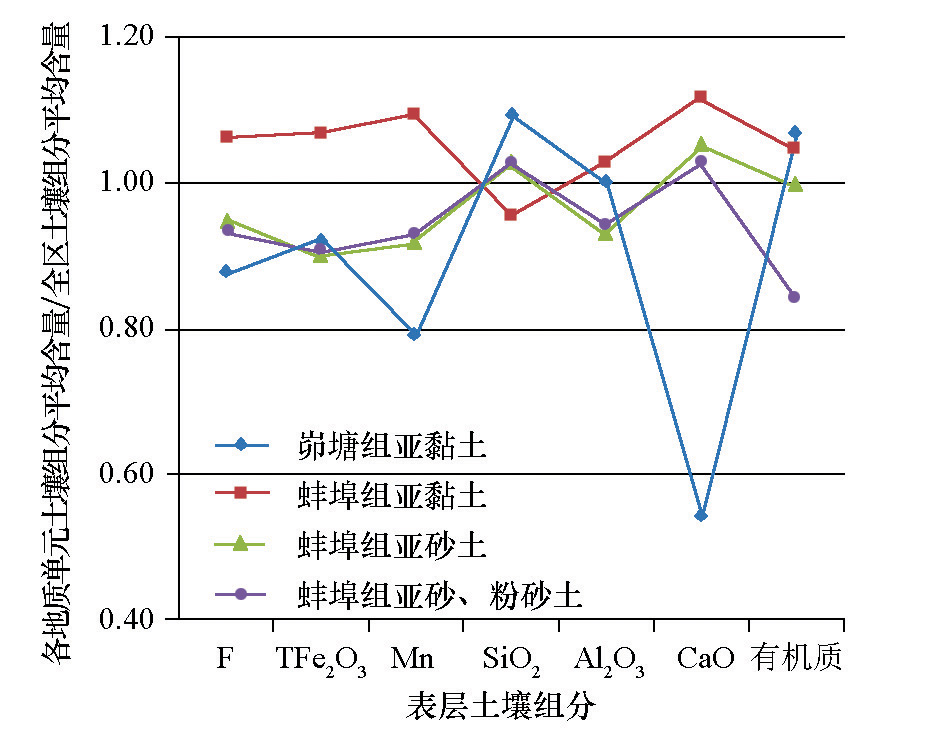

Distribution pattern of surface soil components in different geological backgrounds
|
指标 | F | TFe2O3 | Mn | Al2O3 | CaO | 有机质 | w(SiO2)/w(Al2O3) | pH | F | 1 | | | | | | | | TFe2O3 | 0.76** | 1 | | | | | | | Mn | 0.79** | 0.89** | 1 | | | | | | Al2O3 | 0.59** | 0.90** | 0.64** | 1 | | | | | CaO | 0.66** | 0.60** | 0.83** | 0.23 | 1 | | | | 有机质 | 0.24 | 0.37** | 0.23** | 0.39 | -0.04 | 1 | | | w(SiO2)/w(Al2O3) | -0.78** | -0.97** | -0.89** | -0.88** | -0.66** | -0.31 | 1 | | pH | 0.10 | 0.10 | 0.28 | -0.09 | 0.49** | -0.36 | -0.15 | 1 |
|
Correlation between surface soil fluorine and main indicators(n=726)
|
|

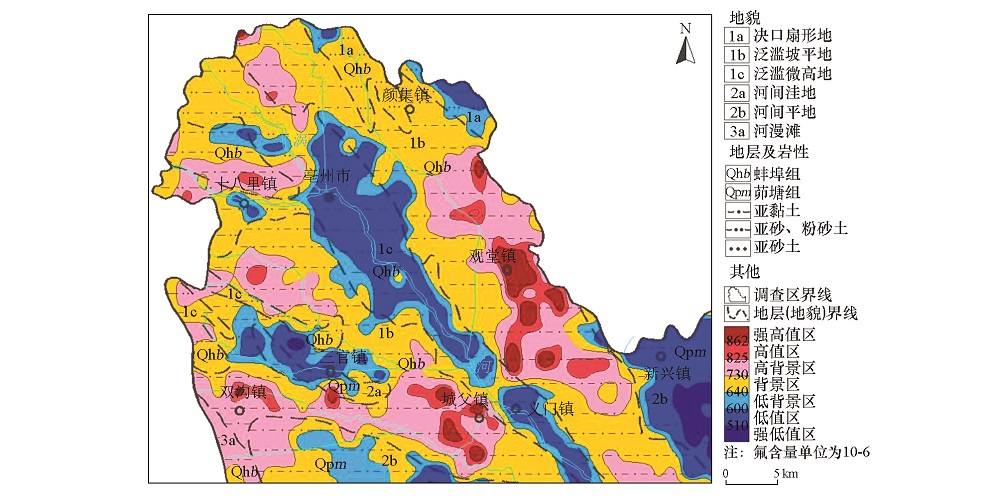

Fluorine geochemical distribution of surface soils along the Guohe River in Anhui Province
|
项目 | F含量累积频率 | ≤1.5% | 1.5%~15% | 15%~25% | 25%~75% | 75%~95% | 95%~98.5% | >98.5% | 含量/10-6 | ≤510 | 510~600 | 600~640 | 640~730 | 730~825 | 825~862 | >862 | 色区 | 强低值区 | 低值区 | 低背景区 | 背景区 | 高背景区 | 高值区 | 强高值区 |
|
Color division of soil fluorine geochemical
|
|

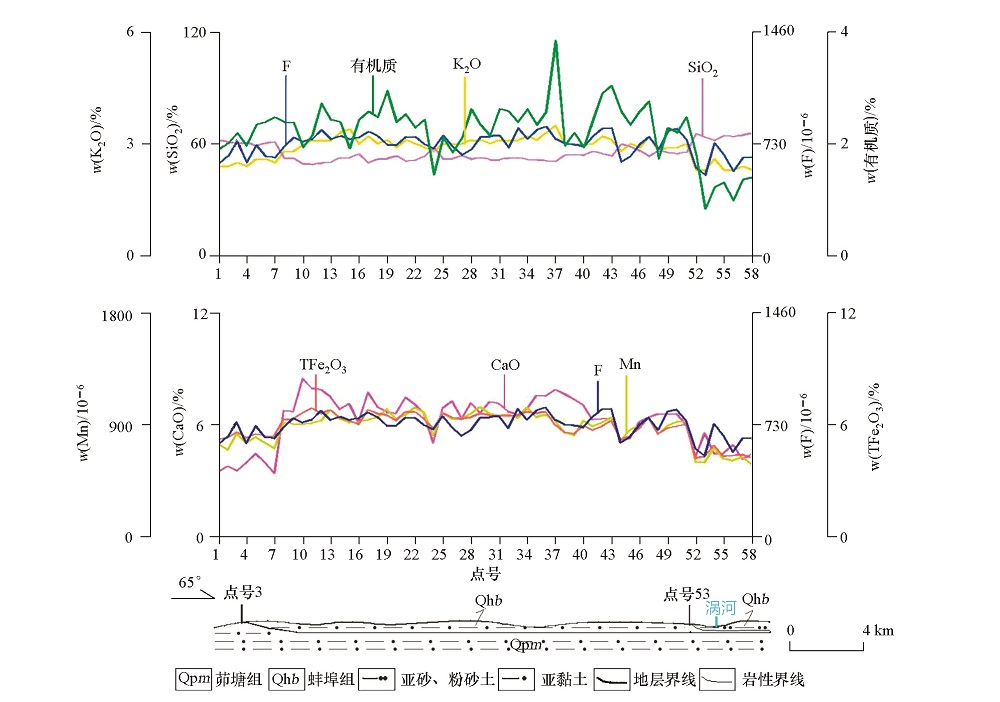

Distribution of elements and organic matter in horizontal profile soil
|
|

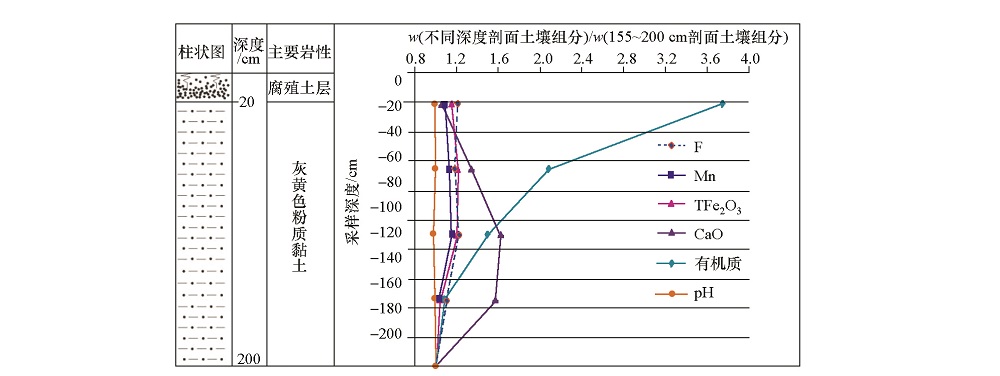

Vertical distribution of soil composition of section CP01
|
|

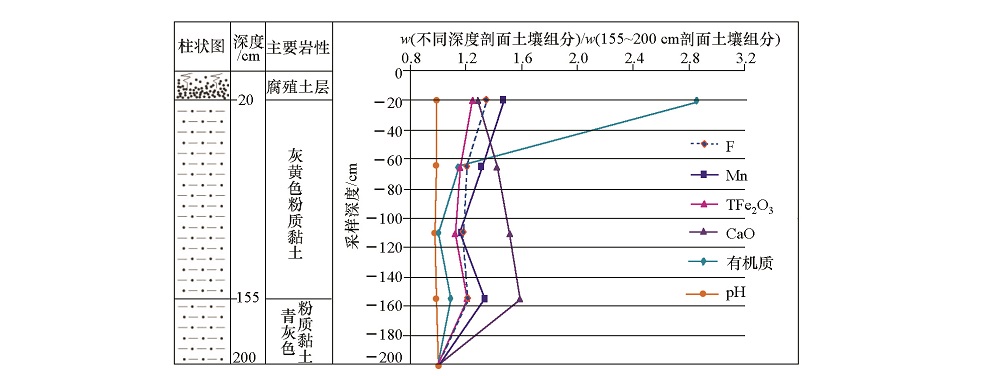

Vertical distribution of soil composition of section CP02
|
[1] |
张小磊, 何宽, 马建华 . 氟元素对人体健康的影响[J]. 微量元素与健康研究, 2006,23(6):66-67.
|
[1] |
Zhang X L, He K, Ma J H . Effects of fluoride on human health[J]. Studies of Trace Elements and Health, 2006,23(6):66-67.
|
[2] |
刘东生, 陈庆沐, 余志成 , 等. 我国地方性氟病的地球化学问题[J].地球化学, 1980(1):13-22.
|
[2] |
Liu D S, Chen Q M, Yu Z C , et al. Geochemical problems of endemic fluorosis in China[J].Geochimica, 1980(1):13-22.
|
[3] |
张乐升, 孙庆峰 . 关于地方性氟中毒防治工作探讨[J]. 中国现代药物应用, 2014,8(5):252-253.
|
[3] |
Zhang L L, Sun Q F . Discussion on the prevention and control of endemic fluorosis[J]. Chinese Journal of Modern Drug Application, 2014,8(5):252-253.
|
[4] |
杨金燕, 苟敏 . 中国土壤氟污染研究现状[J]. 生态环境学报, 2017,26(3):506-513.
|
[4] |
Yang J Y, Gou M . The research status of fluorine contamination in soils of China[J]. Ecology and Environmental Sciences, 2017,26(3):506-513.
|
[5] |
涂成龙, 何令令, 崔丽峰 , 等. 氟的环境地球化学行为及其对生态环境的影响[J]. 应用生态学报, 2019,30(1):21-29.
|
[5] |
Tu C L, He L L, Cui L F , et al. Environmental and geochemical behaviors of fluorine and its impacts on ecological environment[J]. Chinese Journal of Applied Ecology, 2019,30(1):21-29.
|
[6] |
莫春雷, 宁立波, 卢天梅 . 土壤中氟的垂向分布特征及其与岩性的关系[J]. 环境科学与技术, 2013,36(10):49-52.
|
[6] |
Mo C L, Ning L B, Lu T M . Vertical distribution characteristics of fluorine in the soil and its relationship with lithology[J]. Environmental Science & Technology, 2013,36(10):49-52.
|
[7] |
宋泽峰, 段亚敏, 蔡奎 , 等. 沧州地区氟元素在不同介质中的分布[J]. 中国环境监测, 2016,32(2):70-75.
|
[7] |
Song Z F, Duan Y M, Cai K , et al. Distribution of fluorine in multiple environmental media in Cangzhou,China[J]. Environmental Monitoring in China, 2016,32(2):70-75.
|
[8] |
秦樊鑫, 吴迪, 黄先飞 , 等. 高氟病区茶园土壤氟形态及其分布特征[J]. 中国环境科学, 2014,34(11), 2859-2865.
|
[8] |
Qin F X, Wu D, Huang X F , et al. Distribution characteristics and speciation of fluorine in tea Garden soils in the high fluoride area[J]. China Environmental Science, 2014,34(11), 2859-2865.
|
[9] |
潘自平, 刘新红, 孟伟 , 等. 贵阳中心区土壤氟的地球化学特征及其环境质量评价[J]. 环境科学研究, 2018,31(1):87-94.
|
[9] |
Pan Z P, Liu X H, Meng D , et al. Geochemical characteristics of fluorine in soils and its environmental quality in central district of Guiyang[J]. Research of Environmental Sciences, 2018,31(1) : 87-94.
|
[10] |
易春瑶, 汪丙国, 靳孟贵 . 华北平原典型区土壤氟的形态及其分布特征[J]. 环境科学, 2013,34(8):3195-3204.
|
[10] |
Yi C Y, Wang B G, Jin M G . Fluorine speciation and its distribution characteristics in selected agricultural soils of north China plain[J]. Environmental Science, 2013,34(8):3195-3204.
|
[11] |
刘金华, 王玉军, 杨靖民 , 等. 吉林省西部氟病区苏打盐碱土氟的赋存形态及分布特征[J]. 土壤, 2017,49(3):558-564.
|
[11] |
Liu J H, Wang Y J, Yang J M , et al. Fluorine speciation and distribution characteristics in sodic soil of fluorosis area in western Jilin Province[J]. Soils, 2017,49(3):558-564.
|
[12] |
袁立竹, 王加宁, 马春阳 , 等. 土壤氟形态与氟污染土壤修复[J]. 应用生态学报, 2019,30(1):10-20.
|
[12] |
Yuan L Z, Wang J N, Ma C Y , et al. Fluorine speciation in soil and the remediation of fluorine contaminated soil[J]. Chinese Journal of Applied Ecology, 2019,30(1) : 10-20.
|
[13] |
Li Y P, Wang S L, Nan Z R , et al. Accumulation, fractionation and health risk assessment of fluoride and heavy metals in soil-crop systems in northwest China[J]. Science of the Total Environment, 2019,663:307-314.
|
[14] |
徐冬生 . 淮北平原钙质结核土与高氟水的形成关系研究[R]. 合肥:合肥工业大学, 2010.
|
[14] |
Xu D S . Study on the relationship between calcareous concretion soil and the causes of high-fluorine groundwater in huaibei plain of AnHui Province[R]. Hefei : Hefei University of Technology, 2010.
|
[15] |
吴泊人, 王璐璐, 赵卫东 , 等. 安徽省淮北平原浅层地下高氟水分布规律及源分析[J]. 合肥工业大学学报:自然科学版, 2010,33(12):1862-1865.
|
[15] |
Wu B R, Wang L L, Zhao W D , et al. Distribution rule and sources analysis of high fluorine in shallow groundwater of Huaibei Plain, Anhui Province[J]. Journal of Hefei University of Technology, 2010,33(12):1862-1865.
|
[16] |
朱其顺, 许光泉, 王顺昌 , 等. 浅层地下水中氟的迁移试验研究——以安徽淮北平原为例[J]. 实验室研究与探索, 2013,32(3):34-37.
|
[16] |
Zhu Q S, Xu G L, Wang S C , et al. Migragation test of fluoride in shallow groundwater:A case study of Huaibei Plain,Anhui Province[J]. Research and Exploration in Laboratory, 2013,32(3):34-37.
|
[17] |
于群英, 李孝良, 汪建飞 , 等. 安徽省土壤氟含量及其赋存特征[J]. 长江流域资源与环境, 2013,22(7):915-921.
|
[17] |
Yu Q Y, Ci E, Yang L Z . Contents of different soil fluorine forms in North Anhui and their affecting factors[J]. Research and Exploration in Laboratory, 2007,18(6):1333-1340.
|
[18] |
于群英, 慈恩, 杨林章 . 皖北地区土壤中不同形态氟含量及其影响因素[J]. 应用生态学报, 2007,18(6):1333-1340.
|
[18] |
Yu Q Y, Li X L, Wang J F , et al. Content of fluorine and characteristics of fluorine forms in soils of AnHui Province[J]. Resources and Environment in the Yangtze Basin, 2013,22(7):915-921.
|
[19] |
张志丹, 罗香丽, 王继红 , 等. 吉林省主要土壤胶散复合体黏土矿物XRD物相研究[J]. 矿物学报, 2016,36(1):97-102.
|
[19] |
Zhang Z D, Luo X L, Wang J H , et al. Research on XRD phase for clay minerals in organo-mineral complex of major soil from Jilin Province, China[J]. Acta Mineralogica Sinica, 2016,36(1) : 97-102.
|
[20] |
邵宗臣, 陈家坊 . 土壤和氧化铁对氟化物的吸附和解吸[J]. 土壤学报, 1986,23(3):236-242.
|
[20] |
Shao Z C, Chen J F . Adsorption and desorption of fluoride by soil and iron oxide[J]. Acta Pedologica Sinica, 1986,23(3 ): 236-242.
|
[21] |
李日邦 . 土壤吸附氟的能力及其生态学意义[J]. 环境科学学报, 1991,11(3):263-268.
|
[21] |
Li R B . The ability of soil to absorb fluorine and its ecological significance[J]. Acta Scientiae Circumstantiae, 1991,11(3 ): 263-268.
|
