Research on energy leakage recovery of adaptive K-SVD |
Zhen HE1, Si-Yuan CAO2,3, Hua-Jie HAO4, Xu-Yuan DUAN5, 5, Yun-Pei ZHANG1 |
1. Exploration and Development Research Institute of PetroChina Xinjiang Oilfield Company,Karamay 834000,China 2. Institute of Geophysics,China University of Petroleum (Beijing) ,Beijing 102249,China 3. CNPC Geophysical Key Laboratory,China University of Petroleum (Beijing),Beijing 102249,China 4. Data Company Information Institute of PetroChina Xinjiang Oilfield Company,Karamay 834000,China 5. Xingang Branch Company of PetroChina Xinjiang Oilfield Company,Karamay 834000,China |
|
|
Abstract In view of the problem of residual signal (also known as energy leakage) in the noise profile of the existing conventional denoising method in the parameter selection,this paper proposes the energy leakage recovery method of adaptive K-SVD to achieve effective recycling of signals.Firstly,a high-quality sample is obtained by using traditional methods such as wavelet threshold and fx domain denoising to perform dictionary construction,and then the correlation coefficient matching criterion is introduced to sparsely decompose the residual profile so as to realize the secondary separation of random noise and residual effective signal.The experimental results show that the proposed algorithm can better balance the denoising and amplitude preservation of seismic signals and has adaptability.
|
Received: 21 June 2019
Published: 22 April 2020
|
|
|
|
|
|

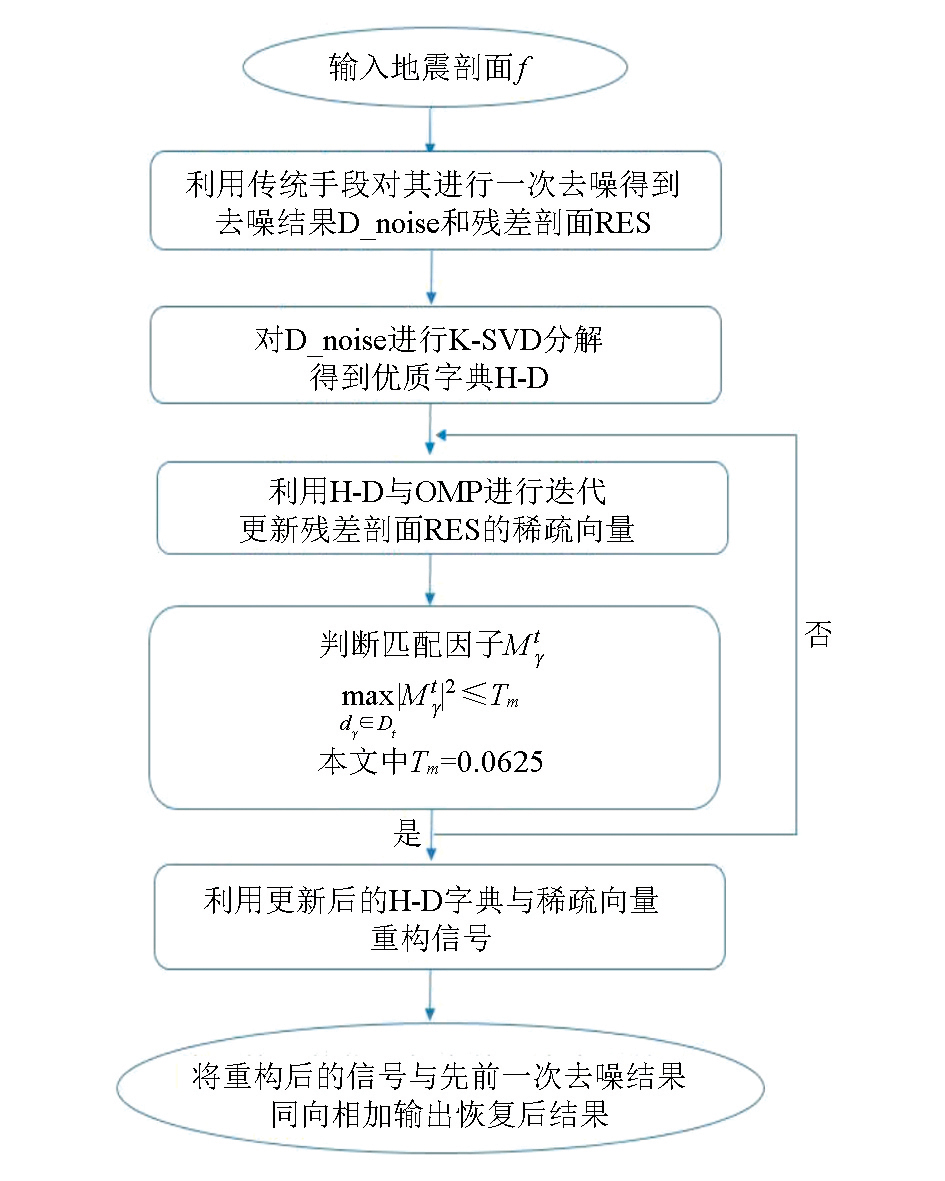

Algorithm flow chart
|
|

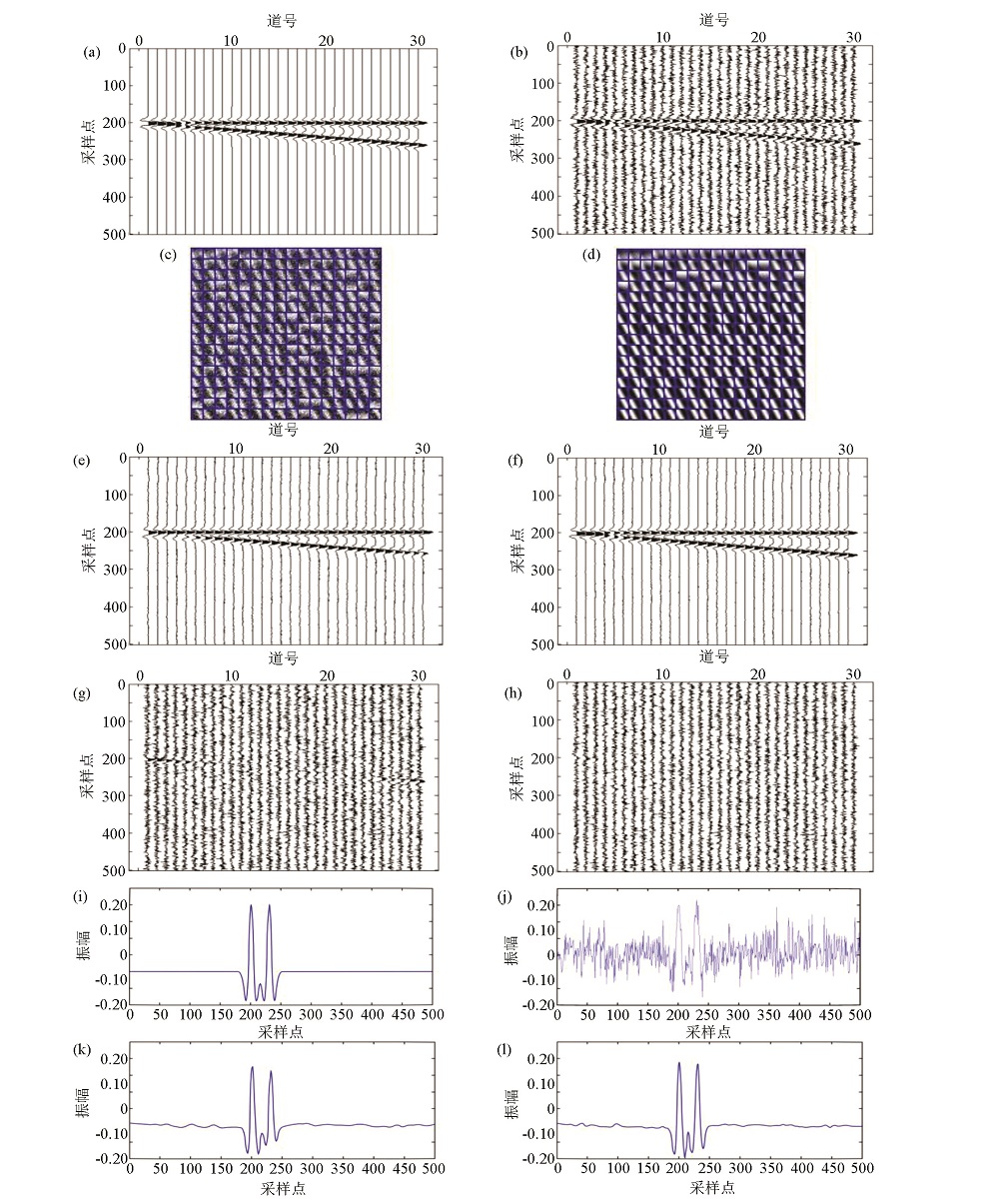

Wedge model test results a—wedge model;b—noise wedge model;c—dictionary constructed under noise;d—noise dictionary denoising profile;e—noise dictionary denoising profile;f—noiseless dictionary denoising profile;g—noise dictionary denoising residuals;h—noiseless dictionary denoising residuals;i—wedge model 15th signal;j—noise wedge model 15th;k—noise dictionary denoising after 15th;l—No15 after noiseless dictionary denoising
|
|

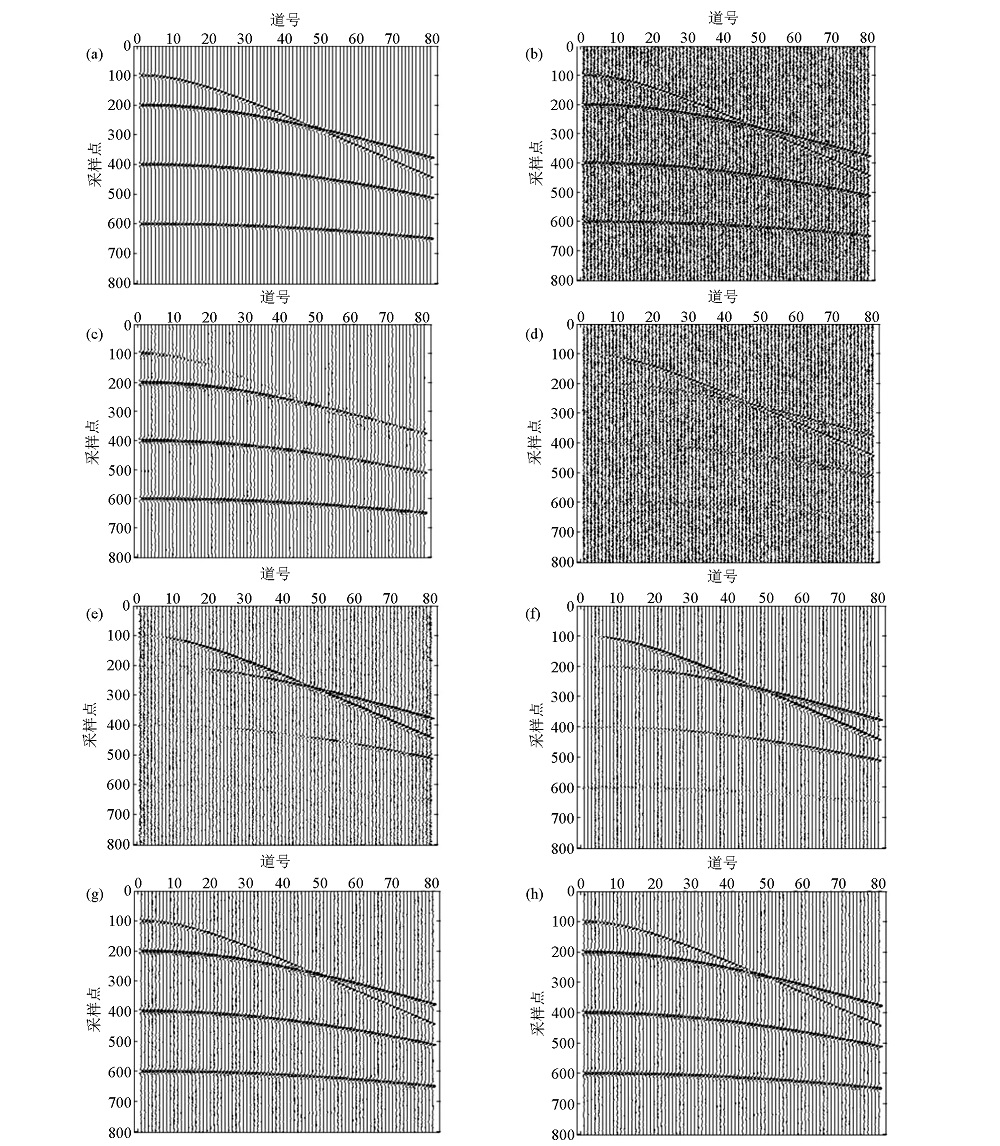

Tilt model section test results a—tilt model;b—charging tilt model;c—wavelet threshold denoising profile;d—wavelet threshold denoising residual;e—effective signal for normal sample separation;f—effective signal for good sample separation;g—ordinary sample energy recovery results;h—high quality sample energy recovery results
|
|

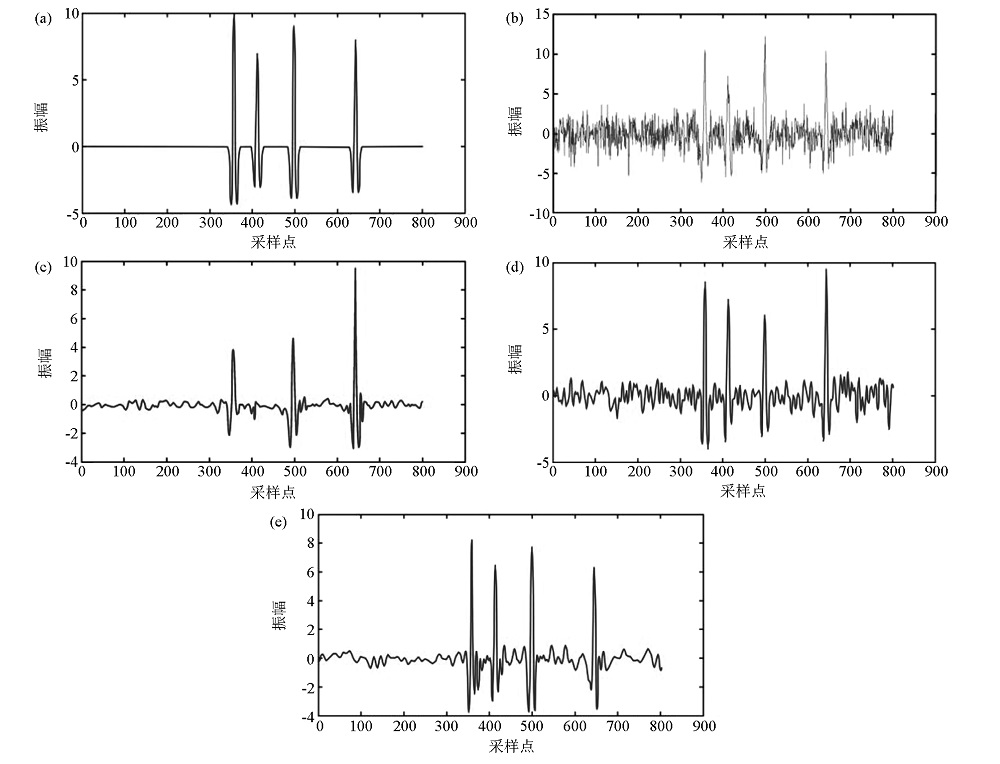

Test results of the 75th signal of tilt model a—tilt model;b—tilt model noise;c—wavelet threshold denoising result;d—normal sample energy recovery result;e—good sample energy recovery result
|
|

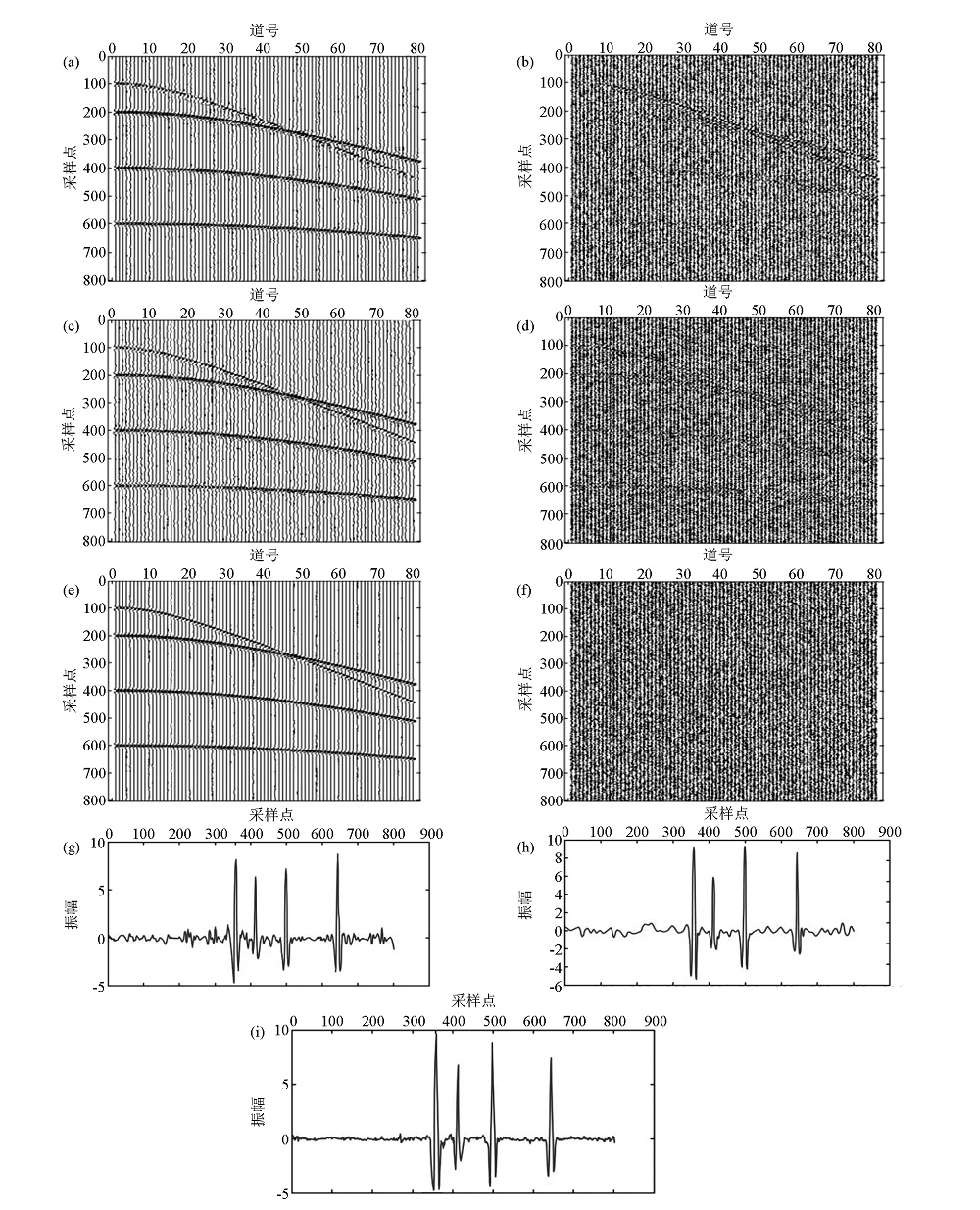

Result of the practical test of the method a—f-x domain denoising profile;b—f-x domain denoising residual;c—improved wavelet threshold denoising profile;d—improved wavelet threshold denoising residual;e—ASVD denoising proflie;f—ASVD denoising residual;g—f-x domain denoising energy recovery result(75th channel);h—improved wavelet threshold denoising energy recovery result(75th channel);i—ASVD denoising energy recovery result(75th channel)
|
|

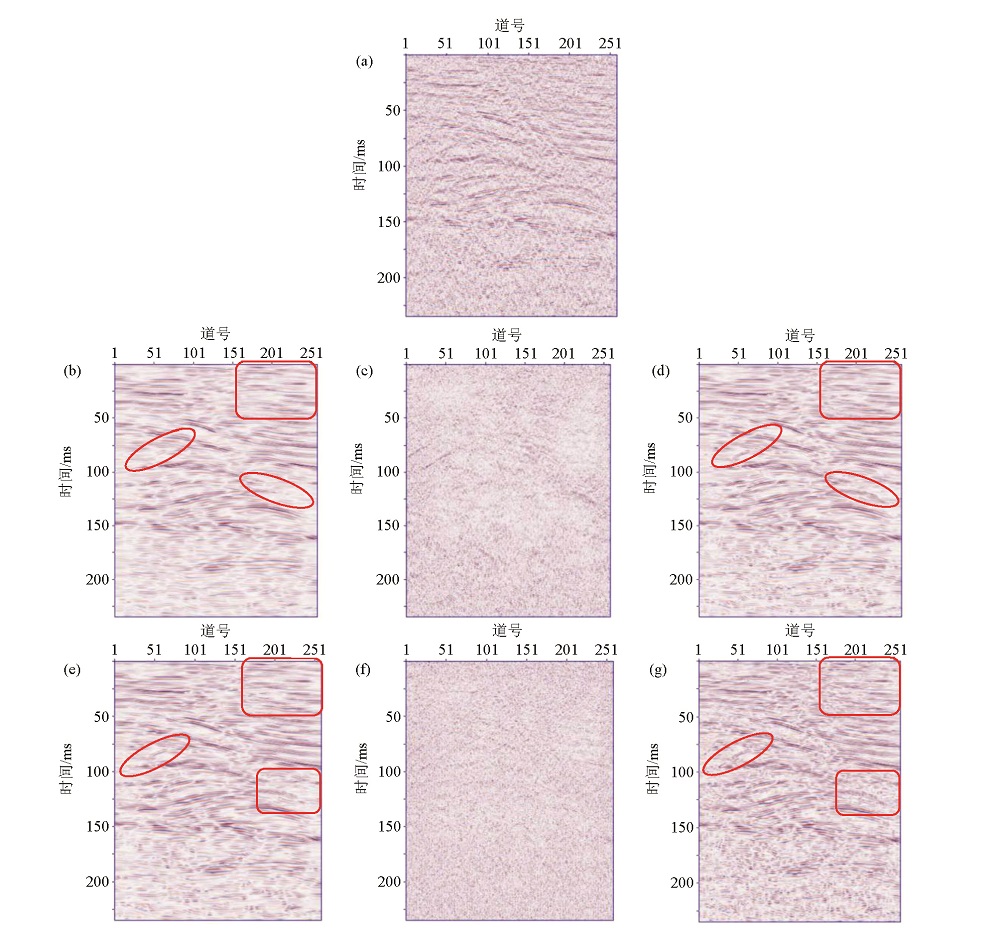

Actual data processing a—2D actual data in a region;b—f-x domain denoising profile;c—f-x domain denoising residual;d—f-x domain denoising recovery profile;e—ASVD denoising proflie;f—ASVD denoising residual;g—ASVD domain denoising recovery profile
|
