Effectiveness evaluation of ground geogas measurement survey in a loess-covered area:A case study of Chenjiacun area in Tongwei County, Gansu Province |
Qiang-Qiang LIN, Qi ZHENG, Yong-Hong SU |
The First Institute of Geology and Mineral Exploration, Gansu provincial Bureau of Geology and Mineral Exploration and Development,Tianshui 741020,China |
|
|
Abstract The regional metallogenic geological conditions of the study area are good. The Tongwei County is covered by Quaternary sediments. The traditional geochemical prospecting method is ineffective. In order to investigate the effectiveness of the geogas measurement method in loess-covered region, the authors selected the Chenjiacun area in Tongwei County to carry out effective experiment of the geogas measurement. The results revealed several geogas anomalies in the study area. The geogas anomalies are obvious, and the element correlation is good; in addition, they have good nesting and zoning relationships. Based on combining the geophysical data and verifying the conclusions in the field, the authors processed and analyzed the data. The geogas anomalies are in accord with the faults, mineralized bodies and geophysical anomalies in this area, and can clearly reflect the basic geological conditions of the loess-covered region. The result shows that the geogas measurement is effective in the loess-covered region, and it provides a new thinking for the prospecting in loess-covered region.
|
Received: 02 April 2019
Published: 24 June 2020
|
|
|
|
|
|

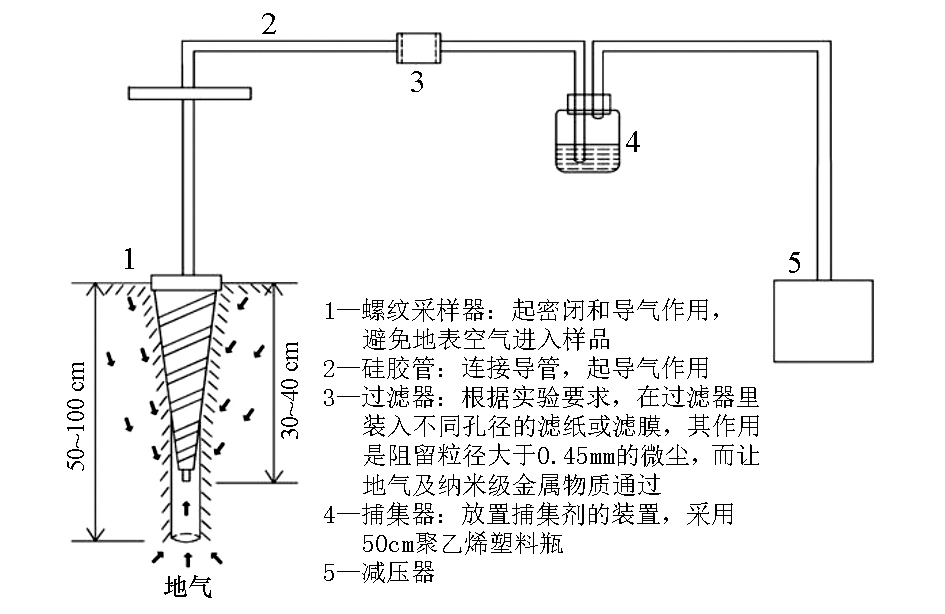

Geogas measurement sampling device
|
元素 | Er/% | 最小值 | 最大值 | 平均值 | Cu | 0.09 | 33.38 | 2.76 | Pb | 0.11 | 50.63 | 4.80 | Zn | 0 | 53.23 | 3.76 | Ni | 0.01 | 44.30 | 5.88 | Sn | 0.11 | 32.90 | 8.97 | Sb | 0.19 | 69.17 | 17.04 | W | 0.15 | 120.95 | 12.42 | Bi | 0.09 | 47.30 | 9.22 | Cd | 0.24 | 200.00 | 44.96 | Au | 0.07 | 200.00 | 73.16 |
|
Analysis results of repeated samples
|
元素 | 最小值 | 最大值 | 平均值 | Cu | 0.8173 | 1.6986 | 1.1415 | Pb | 0.1519 | 0.2581 | 0.1764 | Zn | 0.9914 | 10.3634 | 3.6235 | Ni | 0.3793 | 0.5383 | 0.4275 | Sn | 0.0568 | 0.4262 | 0.1058 | Sb | 0.0120 | 0.0478 | 0.0206 | W | 0.0126 | 0.0483 | 0.0211 | Bi | 0.0050 | 0.0094 | 0.0070 | Cd | 0.00001 | 0.0103 | 0.0025 | Au | 0.0003 | 0.0046 | 0.0016 |
|
Blank element analysis of geogas measurement collector
|
|

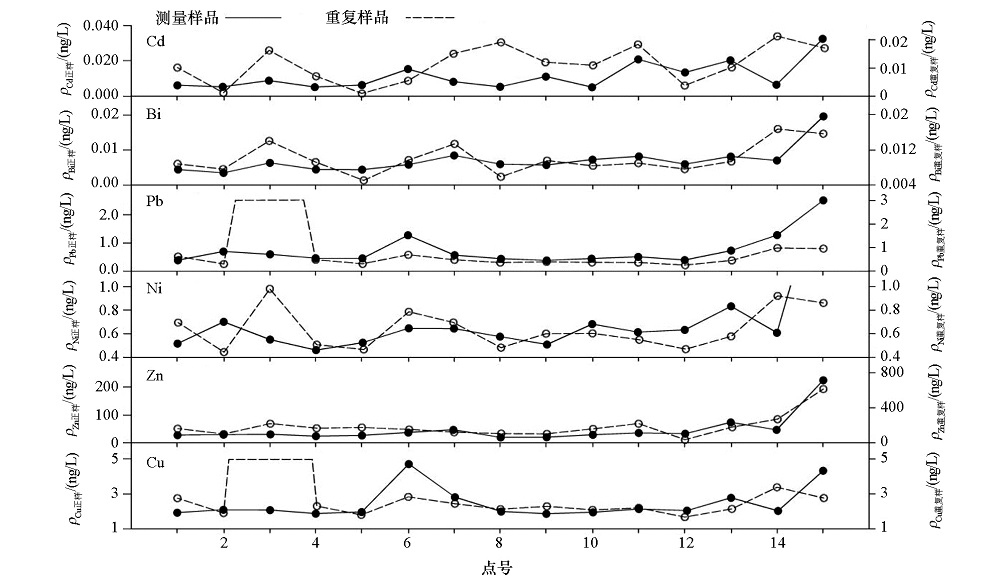

Comparison of the results of Cd-Bi-Pb-Ni-Zn-Cu on the line 19 of the geogas repeats
|
|

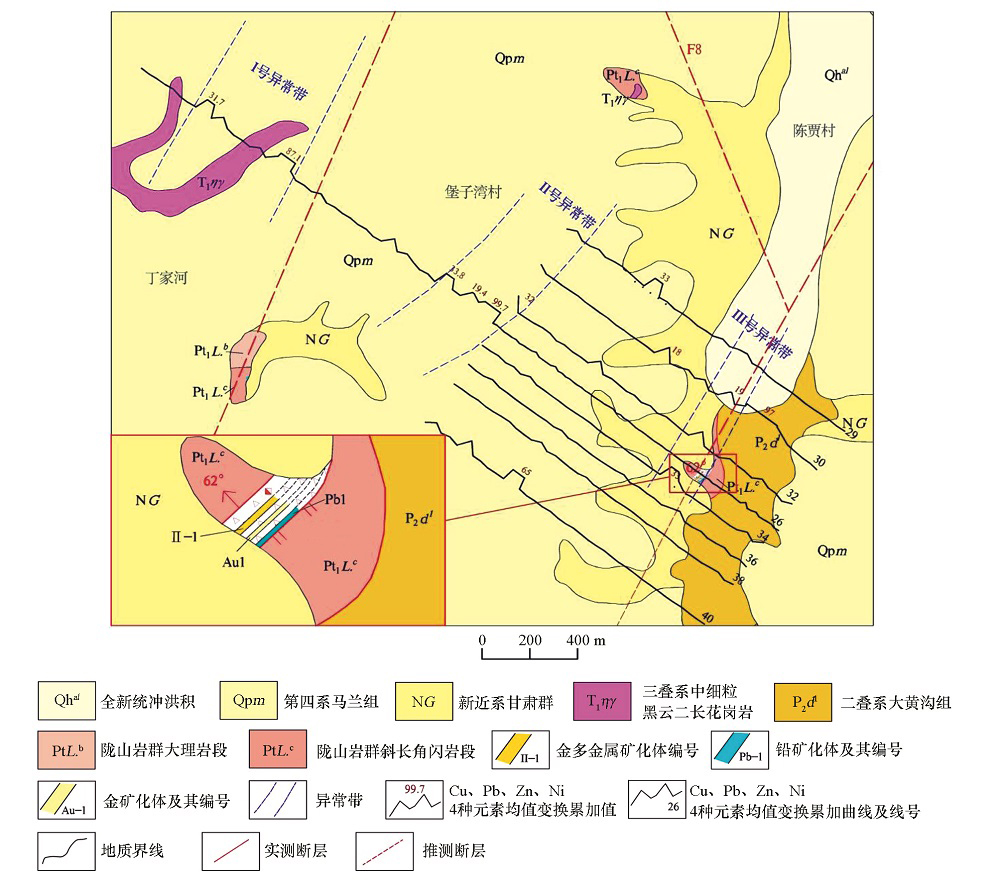

The plane profile of the cumulative transformation of the mean values of Cu, Pb, Zn and Ni in the area of Chenjiacun area
|
|

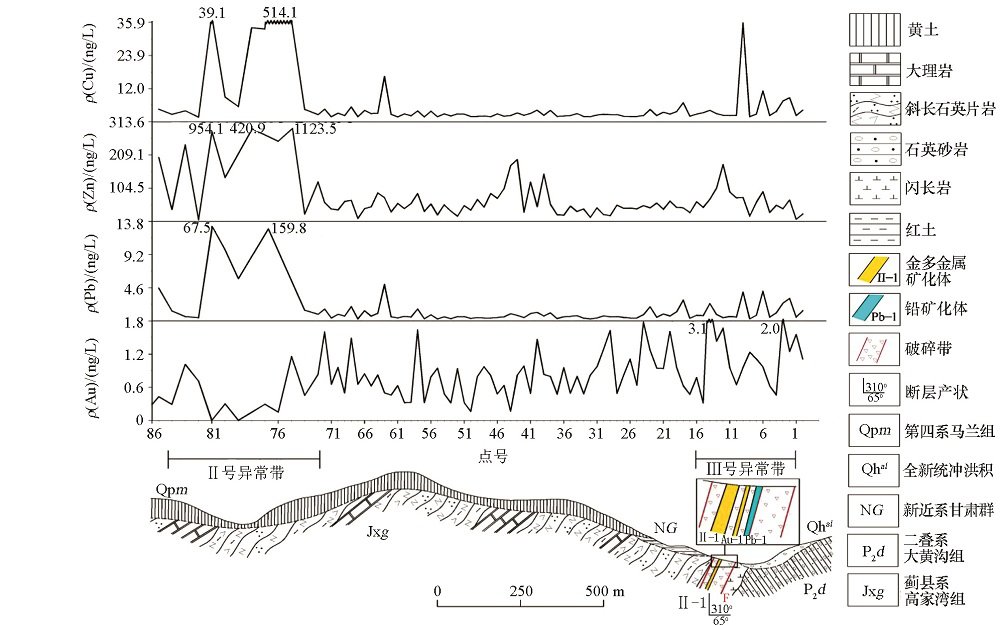

Ground gas measurement test results of Chenjiacun line 26
|
|

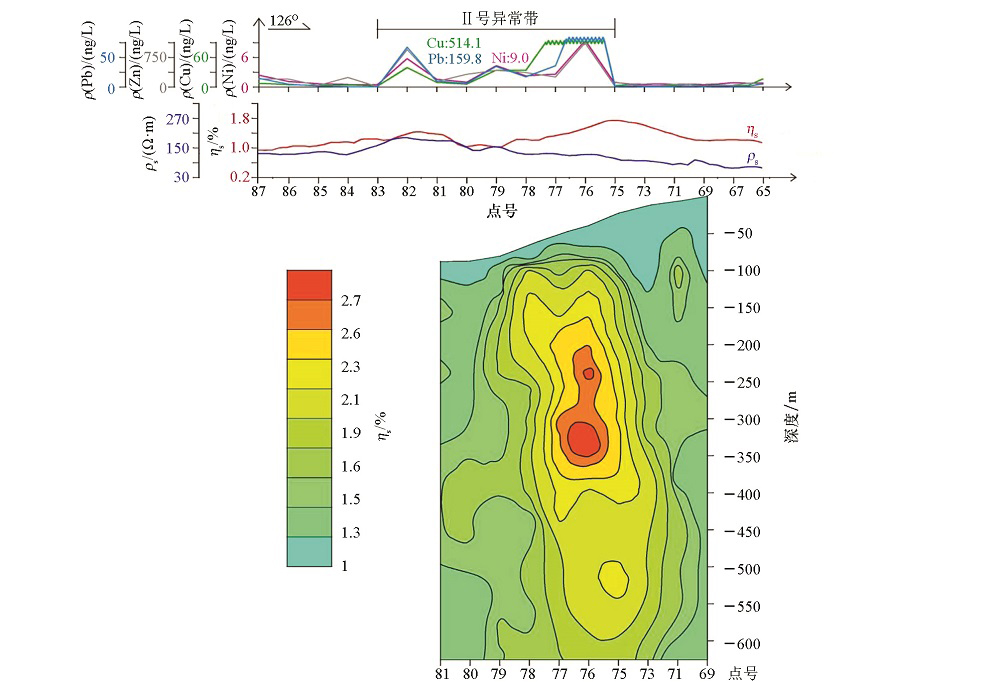

Comprehensive profiles of geogas, induced polarization mid-ladder and induced polarization sounding in Chenjiacun area
|
[1] |
刘应汉, 杨柯, 成杭新, 等. 地气测量在湖南锡田地区深部找矿中的应用与意义[J]. 物探与化探, 2018,42(2):234-240.
|
[1] |
Liu Y H, Yang K, Chen H X, et al. The application and significance of deep prospecting by using geogas survey in Xitian area,Hunan province[J]. Geophysical and Geochemical Exploration, 2018,42(2):234-240.
|
[2] |
叶荣, 王学求, 赵伦山, 等. 金窝子矿带戈壁覆盖区化探深穿透找矿方法研究[J]. 地质与勘探, 2003,39(6):90-93.
|
[2] |
Ye R, Wang X Q, Zhao L S, et al. Structure and genesis of Gobi-overburden and gold surface migration in the eastern Tianshan area[J]. Geology and Prospecting, 2003,39(6):90-93.
|
[3] |
罗齐彬, 杨亚新, 张叶, 等. 地气测量在隐伏铀矿找矿中的应用与现状[J]. 地球科学进展, 2018,33(1):75-84.
|
[3] |
Luo Q B, Yang Y X, Zhang Y, et al. Application and current status of geogas prospecting in concealed uranium deposits exploratio[J]. Advances in Earth Science, 2018,33(1):75-84.
|
[4] |
王磊, 韩润生, 王加昇. 地球化学勘查的新技术及发展趋势[J]. 物探与化探, 2015,39(4):686-690.
|
[4] |
Wang L, Han R S, Wang J S. The new technology and development trend of geochemical survey[J]. Geophysical and Geochemical Exploration, 2015,39(4):686-690.
|
[5] |
高玉岩, 汪明启, 夏修展, 等. 冲积平原区隐伏金属矿地气法试验研究[J]. 地质找矿论丛, 2011,( 3):345-349.
|
[5] |
Gao Y Y, Wang Ming-qi, Xia X Z, et al. Results of geogas test in exploring blind metallic deposits in alluvial plain[J]. Contributions to Geology and Mineral Resources Research, 2011,( 3):345-349.
|
[6] |
杨笑笑, 罗先熔, 文美兰, 等. 地电化学法在豫西崤山黄土覆盖区找矿中的应用——以洛宁县石龙山预查区为例[J]. 物探与化探, 2019,43(2):244-256.
|
[6] |
Yang X X, Luo X R, Wen M L, et al. The application of geo-electrochemical methods to prospecting in the loess-covered Xiaoshan Mountain,western Henan Province:A case study of the Shi long shan gold polymetallic ore prospecting area in Luoning County[J]. Geophysical and Geochemical Exploration, 2019,43(2):244-256.
|
[7] |
刘映东, 张必敏, 罗先熔. 地电化学在隐伏铜镍矿勘查中的应用及异常形成机理探讨[J]. 地质与勘探, 2017,53(4):0694-0703.
|
[7] |
Liu Y D, Zhang B M, Luo X R. Mechanism of geoelectrochemistry anomalies and application to prospecting of buried Cu-Ni deposits[J]. Geology and Exploration, 2017,53(4):0694-0703.
|
[8] |
王学求, 刘占元, 白金峰, 等. 深穿透地球化学对比研究两例[J]. 物探化探计算技术, 2005(3):250-255.
|
[8] |
Wang X Q, Liu Z Y, Bai J F, et al. Deep-penetrating geochemistry comparison studies of two concealed deposits[J]. Computing Techniques for Geophysical and Geochemical Exploration, 2005(3):250-255.
|
[9] |
王学求, 刘占元, 叶荣, 等. 新疆金窝子矿区深穿透地球化学对比研究[J]. 物探与化探, 2003,27(4):247-250,254.
|
[9] |
Wang X Q, Liu Z Y, Ye R, et al. Deep penetrating geochemistry: A comparative study in the Jinwozi gold ore district, Xinjiang[J]. Geophysical and Geochemical Exploration, 2003,27(4):247-250,254.
|
[10] |
王学求, 张必敏, 刘雪敏. 纳米地球化学:穿透覆盖层的地球化学勘查[J]. 地学前缘, 2012,19(3):101-112.
|
[10] |
Wang X Q, Zhang B M, Liu X M. Nanogeochemistry:Deep penetrating geochemical exploration through cover[J]. Earth Science Frontiers, 2012,19(3):101-112.
|
[11] |
王学求, 谢学锦, 卢荫庥. 地气动态提取技术的研制及在寻找隐伏矿上的初步试验[J]. 物探与化探, 1995,19(3):161-171.
|
[11] |
Wang X Q, Xie X J, Lu Y X. Dynamic collection of geogas and its preliminary application in search for concealed deposits[J]. Geophysical and Geochemical Exploration, 1995,19(3):161-171.
|
[12] |
任天祥, 刘应汉, 汪明启. 纳米科学与隐伏矿藏——一种寻找隐伏矿的新方法、新技术[J]. 科技导报, 1995(8):33-36.
|
[12] |
Ren T X, Liu Y H, Wang M Q. Nanoscience and concealed minerals — A new method and new technology for searching concealed minerals[J]. Science & Technology Review, 1995(8):33-36.
|
[13] |
童纯菡, 李巨初. 地气测量寻找深部隐伏金矿及其机理研究[J]. 地球物理学报, 1999,42:135-142-145-146.
|
[13] |
Tong C H Li J C. Geogas prospecting and its mechanismin the search for deep-seated or concealed gold deposits[J]. ChineseJournal of Geophysics, 1999,42(1):135-142-145-146.
|
[14] |
汪明启, 高玉岩, 张得恩, 等. 地气测量在北祁连盆地区找矿突破及其意义[J]. 物探与化探, 2006,30(1):7-12.
|
[14] |
Wang M Q, Gao Y Y, Zhang D E, et al. Breakthrough in mineral exploration using geogas survey in the basin area of northern Qilian region and its significance[J]. Geophysical and Geochemical Exploration, 2006,30(1):7-12.
|
[15] |
叶荣, 王学求, 赵伦山, 等. 戈壁覆盖区金窝子矿带深穿透地球化学方法研究[J]. 地质与勘探, 2004,(6):65-70.
|
[15] |
Ye R, Wang X Q, Zhao L S, et al. Deep penetration geochemistry methods in gobi-overburden terrain of the Jinwozi metallogenic belt[J]. Geology and Exploration, 2004,(6):65-70.
|
[16] |
张必敏, 王学求, 徐善法, 等. 盆地金属矿穿透性地球化学勘查模型与案例[J]. 中国地质, 2016,43(5):1697-1709.
|
[16] |
Zhang B M, Wang X Q, Xu S F, et al. Models and case history studies of deep-penetrating geochemical exploration for concealed deposits in basins[J]. Geology in China, 2016,43(5):1697-1709.
|
[17] |
王晓佳, 鲁美, 王振凯, 等. 申家窑金矿床地气测量异常特征[J]. 地质与勘探, 2016,52(4):667-677.
|
[17] |
Wang X J, Lu M, Wang Z K, et al. Anomalous characteristics of geo-gas measurements in Shenjiayao Gold Deposits[J]. Geology and Prospecting, 2016,52(4):667-677.
|
[18] |
徐善法, 刘汉彬, 王玮, 等. 深穿透地球化学方法在十红滩砂岩型铀矿中的试验研究[J]. 物探与化探, 2017,41(2):189-193.
|
[18] |
Xu S F, Liu H B, Wang W, et al. An experimental study of deep penetration geochemical technology in the Shihongtan uranium deposit[J]. Geophysical and Geochemical Exploration, 2017,41(2):189-193.
|
[19] |
尹冰川. 综合气体地球化学测量[J]. 物探与化探, 1997,21(4):241-246.
|
[19] |
Yin B C. Integrated geochemical gas survey[J]. Geophysical and Geochemical Exploration, 1997,21(4):241-246.
|
[20] |
万卫, 汪明启, 高玉岩, 等. 黄土覆盖区金属矿床地气元素特征及示踪研究[J]. 矿物岩石地球化学通报, 2016,35(6):1290-1297.
|
[20] |
Wan W, Wang M Q, Gao Y Y, et al. Tracing the source of metals in geogas from metal deposits in a loess-covered region[J]. Bulletin of Mineralogy, Petrology and Geochemistry, 2016,35(6):1290-1297.
|
[21] |
刘应汉, 孔牧, 孙忠军, 等. 纳米物质测量的液态捕集剂研究[J]. 物探与化探, 2003,27(6):455-457,464.
|
[21] |
Liu Y H, Kong M, Sun Z J, et al. The liquid collecting media for nanoscal material geochemical survey[J]. Geophysical and Geochemical Exploration, 2003,27(6):455-457,464.
|
[22] |
唐金荣, 杨忠芳, 汪明启, 等. 地气测量方法研究及应用[J]. 物探与化探, 2004,28(3):193-198.
|
[22] |
Tang J R, Yang Z F, Wang M Q, et al. Method and application of geogas measurements[J]. Geophysical and Geochemical Exploration, 2004,28(3):193-198.
|
|
|
|
