Abstract

Factor analysis and fractal modeling were combined to study the 1:50000 geochemical data of Heiyingshan, Inner Mongolia, so as to recognize ore-induced geochemical anomaly. First, sample factor analysis of 10 elements mainly includes three factors: F1 consists of Zn-Cd-(Cu), F2 consists of Ag-Mo-Cu-Bi, and F3 consists of Sn-As-Pb-Sb. Second, the F2 factor score is further modeled by Concentration-Area (C-A) factor model. The fractal fitting lines of four segments were obtained from the log-log graph of Area-F2 factor score, which represent "low background area without prospecting potential", "background area", "high background area" and "high prospecting potential area", respectively. In the subsequent prospecting work, several mineralizations and alterations were found in the "high prospecting potential area". Some conclusions have been reached: F2 factor reflects the hydrothermal metallogenic process and can be used as a comprehensive index for the spatial aggregation of major metallogenic elements in the study area. The C-A fractal model can accurately delineate the boundary of F2 factor "high metallogenic potential area". The "high metallogenic potential area" can be used as the basis for delineating the prospecting target.

Key words： factor analysis C-A fractal model ore-induced geochemical anomaly Heiyingshan, Inner Mongolia

Received: 20 March 2019 Published: 03 March 2020

P632

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Jing-Jing GONG
	Jian-Zhou YANG
	Sheng-Ming MA
	Lei SU

Cite this article:

Jing-Jing GONG,Jian-Zhou YANG,Sheng-Ming MA, et al. Recognition of ore-induced geochemical anomaly by combined factor and fractal analysis in Heiyingshan, Inner Mongolia[J]. Geophysical and Geochemical Exploration, 2020, 44(1): 122-131.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2020.1155 OR https://www.wutanyuhuatan.com/EN/Y2020/V44/I1/122

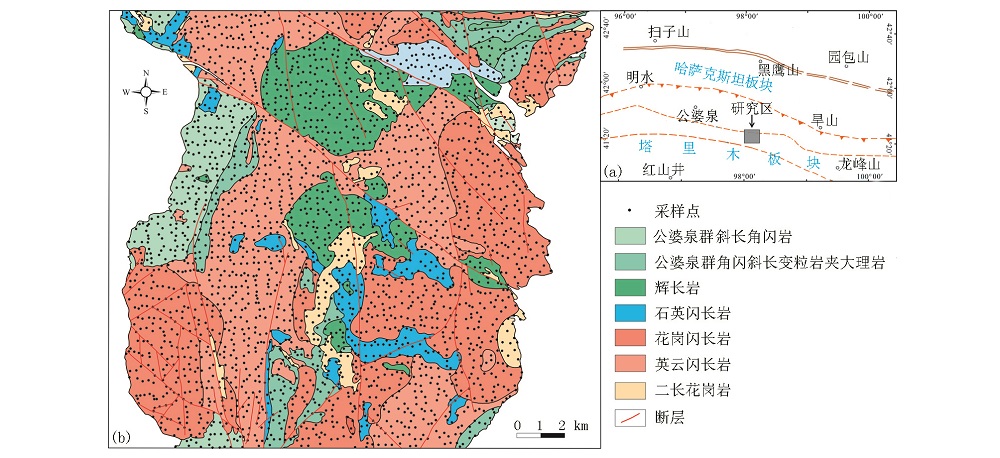

Geological setting of Heiyingshan area(a) and location of samples(b)

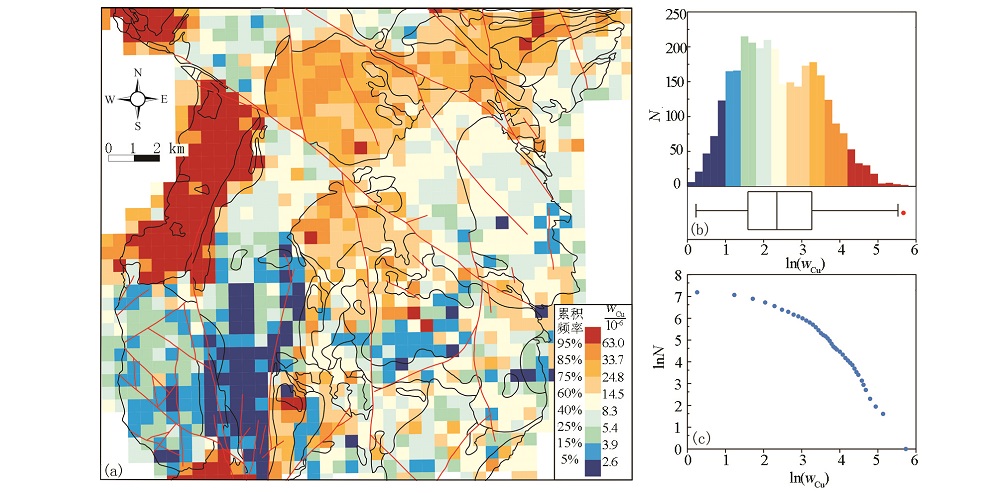

Geochemical map(a), Histogram(b) and concentration-quantity log-log plot of Cu in Heiyingshan area

Characteristic roots and total variance explained of R-factor analysis

Orthometric rotating factor loading matrix for the R-factor analysis

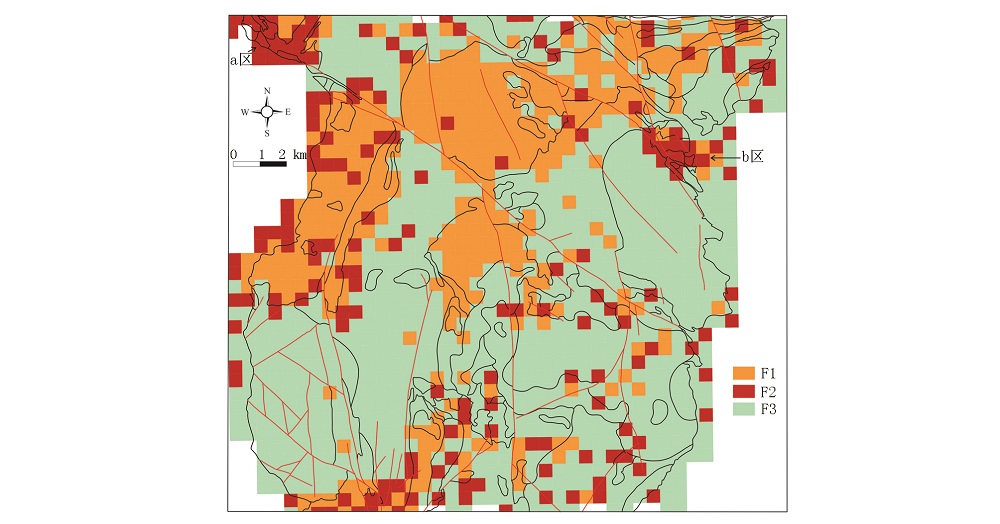

Geochemistry subdivisions map of factor score in Heiyingshan area

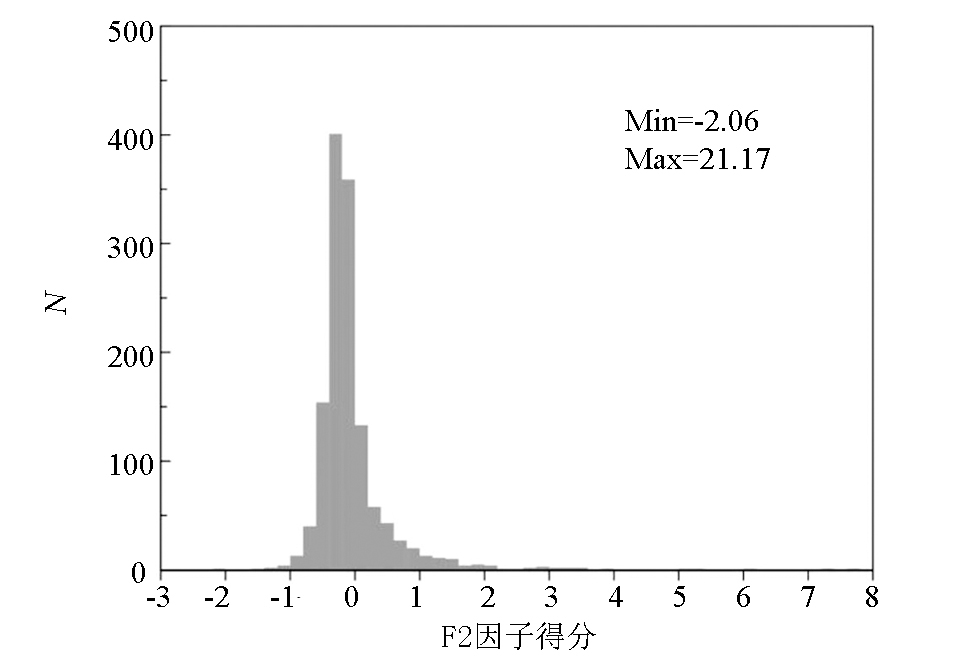

Histogram of F2 score

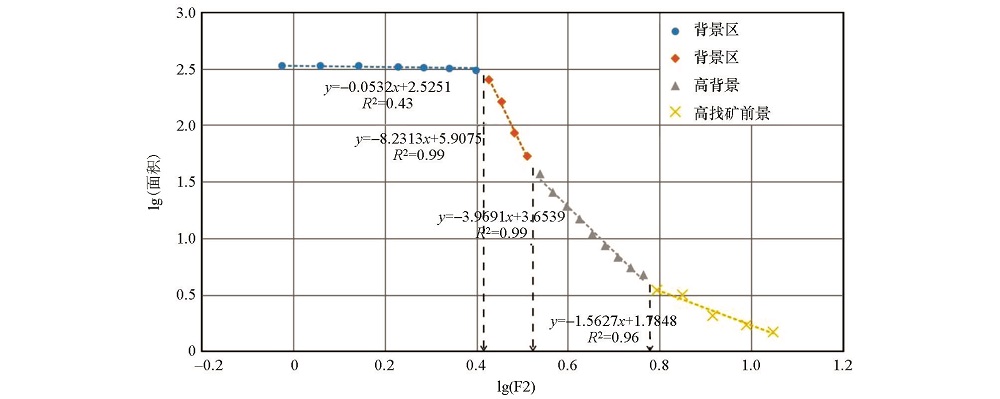

Log-log plot of the cumulative area versus F2 factor score

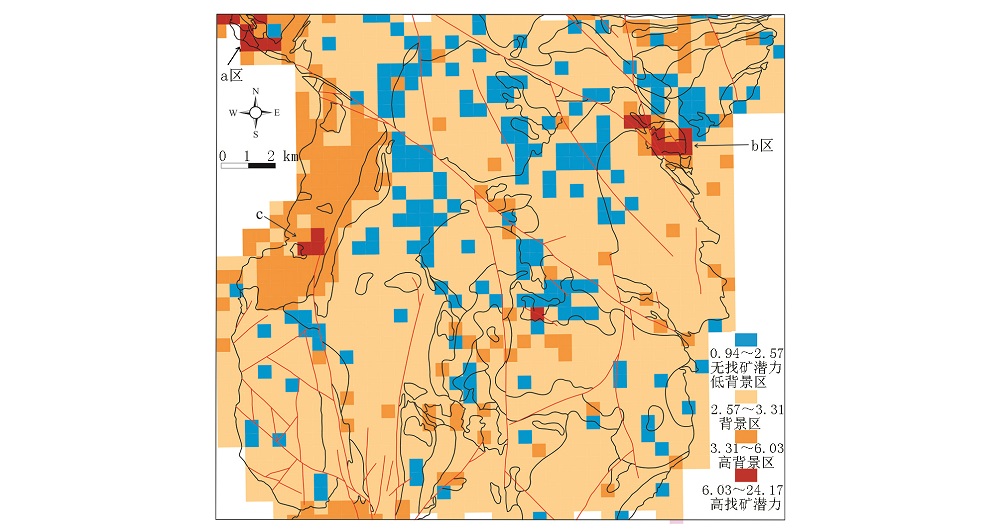

F2 factor score based on C-A fractal model

Fig.6
a—geology map; b—samples symbol anomaly map of Ag; c—samples symbol anomaly map of Mo; d—samples symbol anomaly map of Cu; e—samples symbol anomaly map of Bi; f—map of F2 socre;the lower limit of the anomaly is determined by taking the outlier value of the whole work area and taking the confidence coefficient of 1.6; the 4 levels of Ag, Mo, Cu, and Bi represent the background, anomalous outer band, anomalous middle band, and anomalous inner band
">

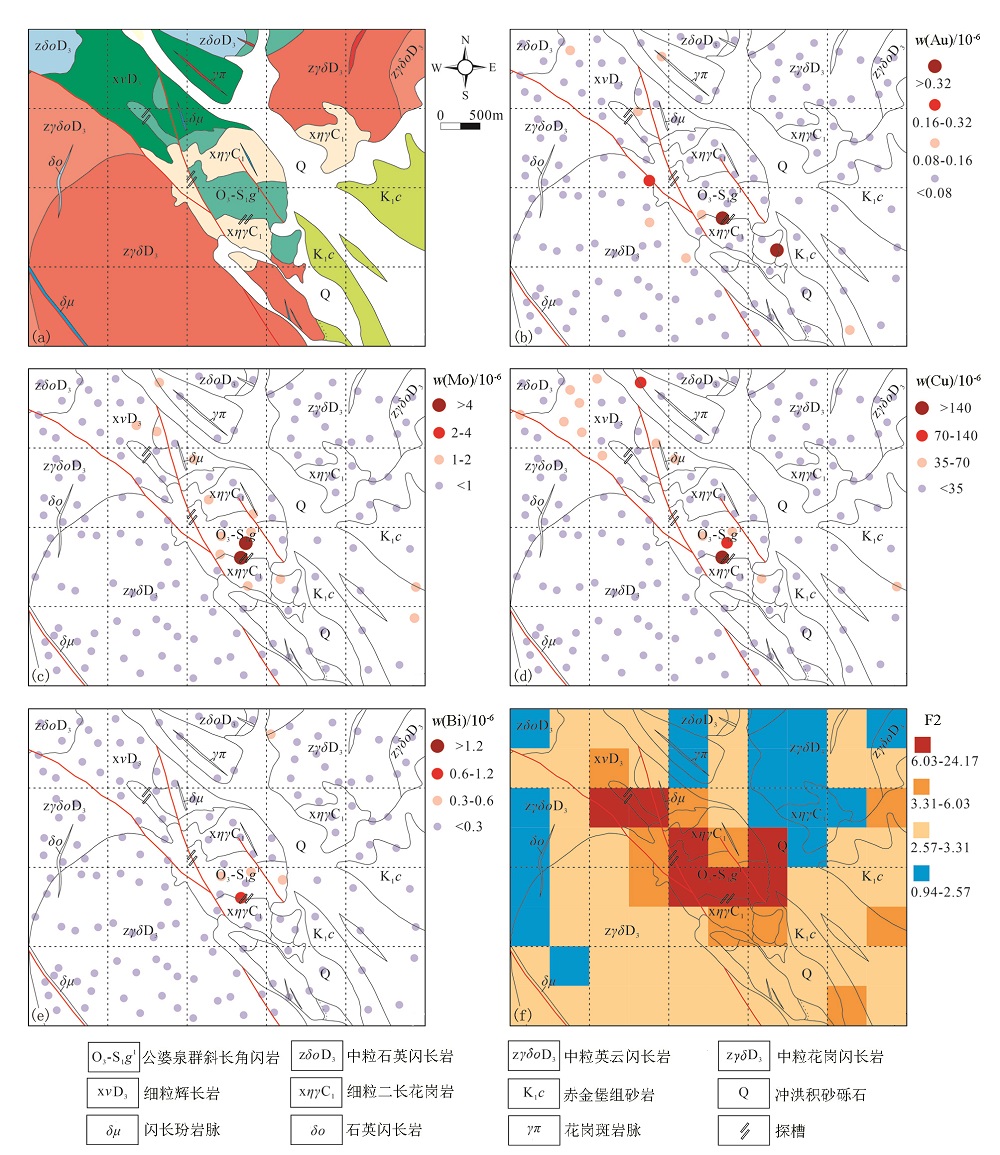

Geochemical analysis of area b in Fig.6
a—geology map; b—samples symbol anomaly map of Ag; c—samples symbol anomaly map of Mo; d—samples symbol anomaly map of Cu; e—samples symbol anomaly map of Bi; f—map of F2 socre;the lower limit of the anomaly is determined by taking the outlier value of the whole work area and taking the confidence coefficient of 1.6; the 4 levels of Ag, Mo, Cu, and Bi represent the background, anomalous outer band, anomalous middle band, and anomalous inner band

Fig. 6
">

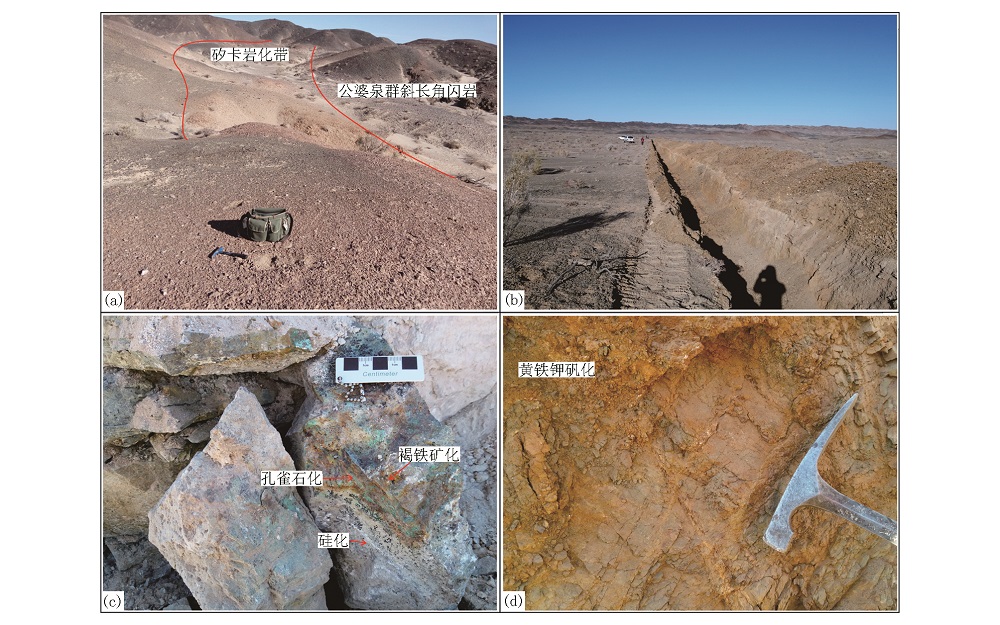

Photograph of mineralized alteration outcrop in area b in Fig. 6
