综合电法在岩溶山区地下水勘探中的应用——以湖南怀化长塘村为例

doi:10.11720/wtyht.2020.1089

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (3361 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

The hydrogeological conditions in karst mountainous areas are complex, and the distribution of groundwater may have different response characteristics to different geophysical methods. In this paper, the high density resistivity method and audio magnetotelluric method were synthetically used to study the application of groundwater exploration in Changtang Village, Huaihua area. The comprehensive exploration results are better indicate the anomalous characteristics and specific anomalous locations. The inferred results are basically consistent with the drilling results, and the maximum water inflow is greater than 146.88 m ³/d。The study results show that symmetrical four-pole sounding inversion can effectively respond to the changes of underground transverse resistivity, and the resistivity sounding curve (single branch curve) can be used to make stratification vertically, the results of stratification are basically consistent with the results of drilling.The audio magnetotelluric method has a large detection depth and can effectively respond to subsurface fault structures.

Key words： high density resistivity imaging audio magnetotelluric method Karst groundwater exploration

Received: 19 February 2019 Published: 03 March 2020

P631

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Jian-Qiang WU
	Ru-Yue ZHAO
	Fu-Ping GAN
	Wei ZHANG
	Yong-Liang LIU
	Chao-Qiang ZHU

Cite this article:

Jian-Qiang WU,Ru-Yue ZHAO,Fu-Ping GAN, et al. The application of electrical prospecting method to groundwater exploration in karst mountainous areas:A case study of Changtang Village, Huaihua area, Hunan Province[J]. Geophysical and Geochemical Exploration, 2020, 44(1): 93-98.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2020.1089 OR https://www.wutanyuhuatan.com/EN/Y2020/V44/I1/93

Strata in the survey area

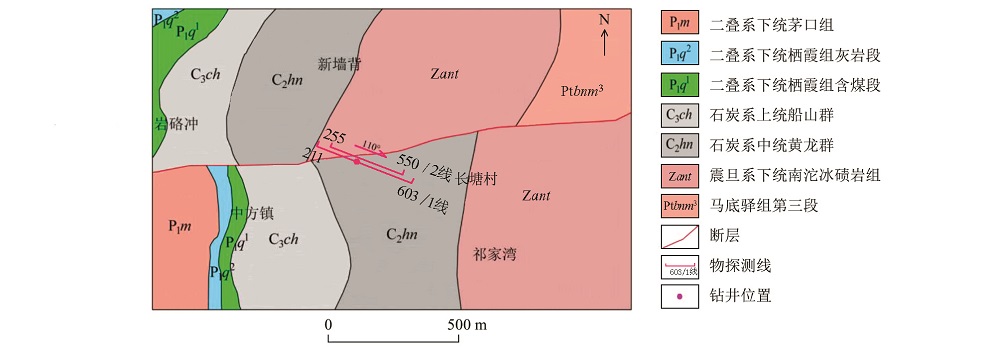

Hydrogeological map of measured area

Parameter of resistivity for various media

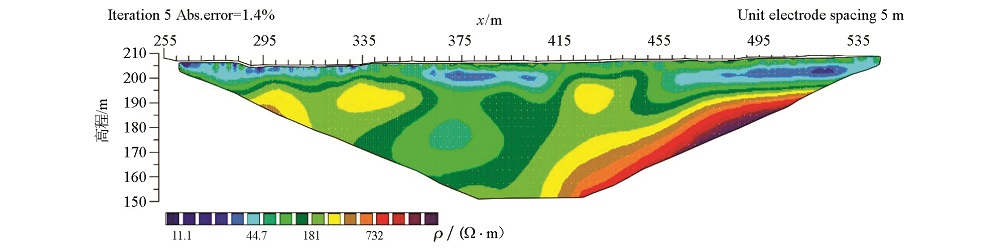

Profile showing symmetrical four-pole sounding inversion results of line 1

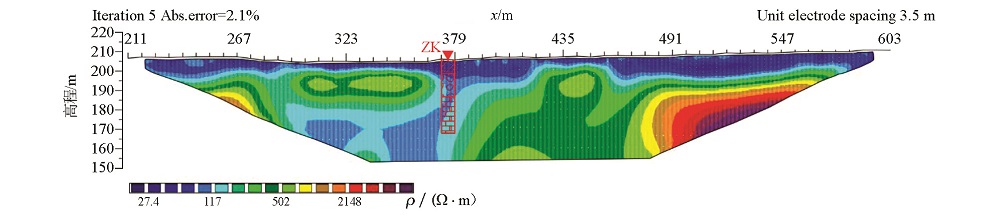

Profile showing symmetrical four-pole sounding inversion results of line 2

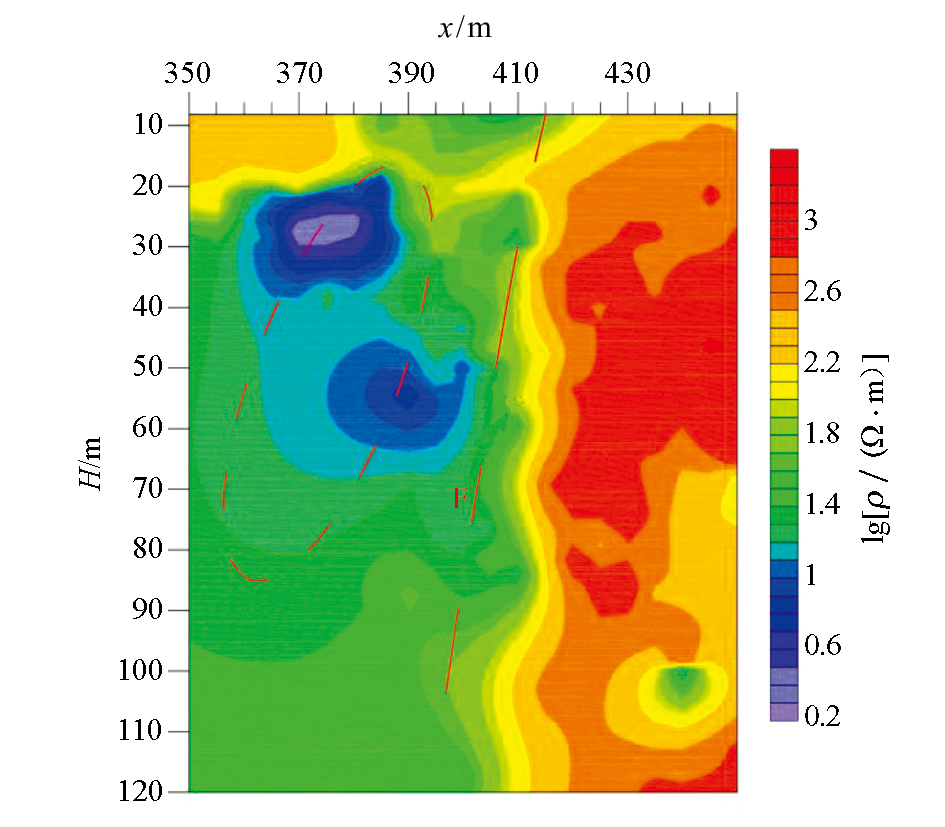

Profile showing audio magnetotelluric resistivity inversion of line 1

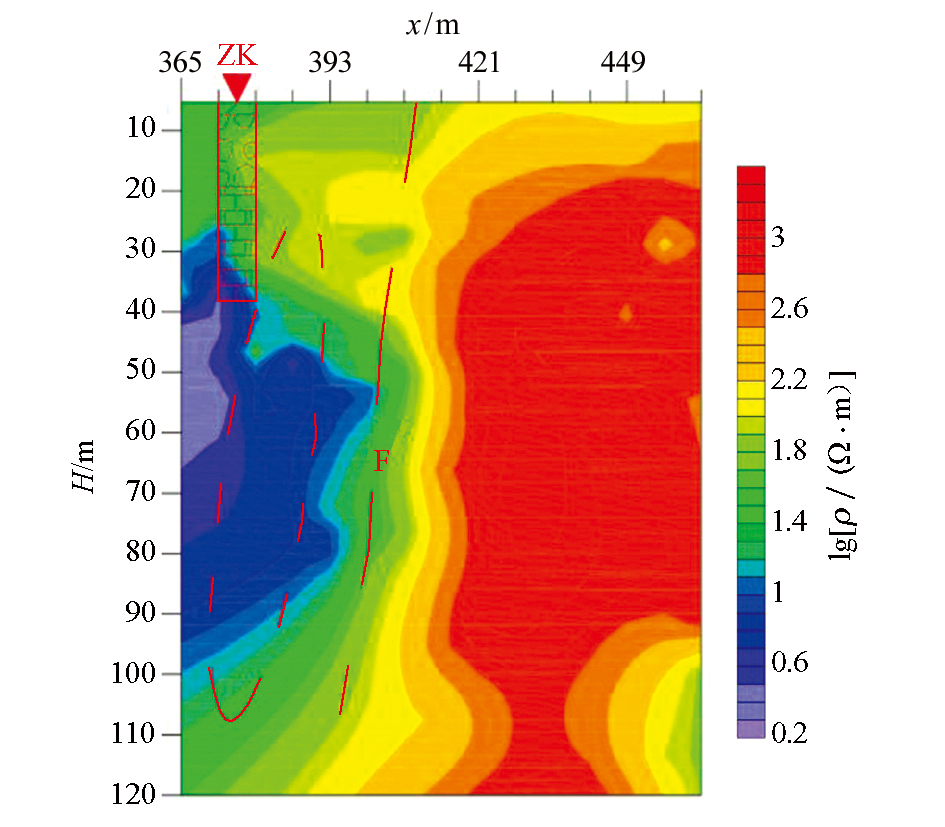

Profile showing audio magnetotelluric resistivity inversion of line 2

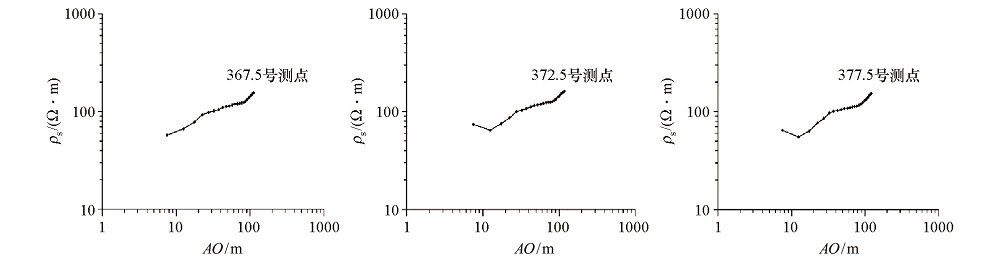

Three single apparent resistivity sounding curve of line 1 beside 375 m

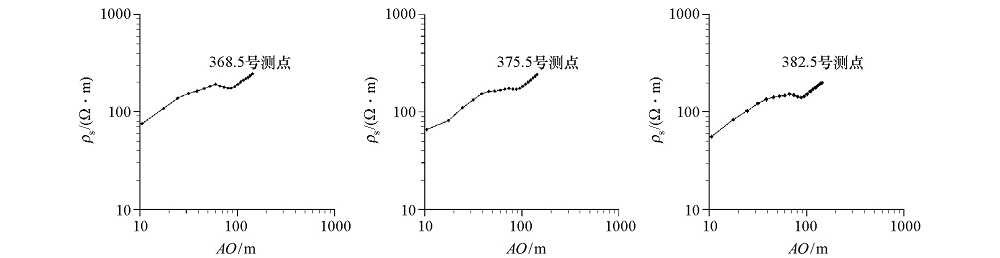

Three single apparent resistivity sounding curve of line 2 beside 375 m

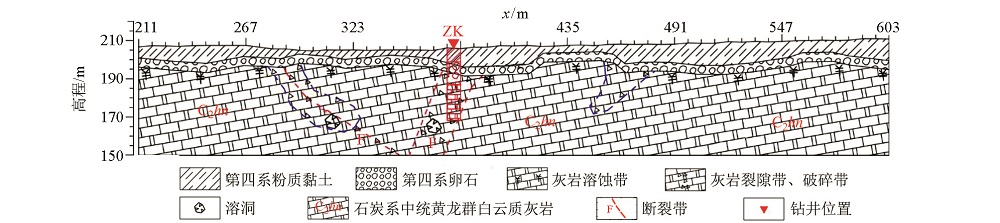

The profile of geological inference and interpretation of line 1
