Metallogenic specialization of late Jurassic S-type granites in middle-northern Jiuling Mountain in northwestern Jiangxi |
Sheng-Bing LIAO, Ping-Li CHU, Zheng DUAN, Wen-Cheng HUANG, Yan-Hui ZHU, Xu-Jie SHU |
Nanjing Institute of Geology and Mineral Resources, China Geological Survey, Nanjing 210016, China |
|
|
Abstract The zircon U-Pb geochronology, petrogeochemistry, zircon and biotite mineral geochemistry of biotite monzogranite (-porphyry) in Shimenlou area of northwestern Jiangxi province have been studied. The LA-ICP-MS zircon U-Pb 206Pb/ 238U weighted average ages of zircons from the biotite monzogranite (-porphyry) are in the range of 145.6~148.4 Ma, suggesting late Late Jurassic. The rock is common low fractionation S-type granite. The magma properties are moderately reductive (the ratio of Fe2O3/FeO = 0.18~0.19, the ratio of Ce 4+/Ce 3+ =14~158, log10(fO2)D=-22.4~-6.9, averaging -13.8 (> IW-3.6)), strong evolution (the ratio of K/Rb =153~206), low fractionation (the ratio of Rb/Sr =1.6~4.2) and low temperature (T(zircon)Ti = 619~881℃, averaging 750℃). The magma was derived from the magma source enriched area of the upper crust, which was formed by remelting and regenerating of the Neoproterozoic granitoids derived from the early Mesoproterozoic crustal material (Shuangqiao Mountain Group). The rock has the metallogenic material, time and spatial specialization and metallogenic possibility of forming tungsten deposit.
|
Received: 28 December 2018
Published: 25 October 2019
|
|
|
|
|
|

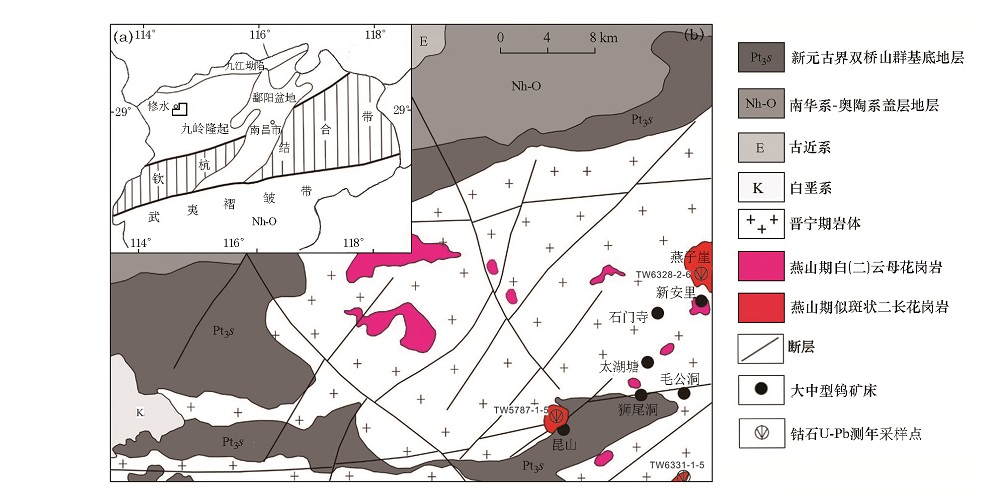

Tectonic position (a) and geological sketch(b) of the study area
|
分析 点号 | 元素含量/10-6 | Th/U | 同位素比值 | 同位素年龄/Ma | Th | U | 207Pb/206Pb | 1σ | 207Pb/235U | 1σ | 206Pb/238U | 1σ | 207Pb/235U | 1σ | 206Pb/238U | 1σ | 208Pb/232Th | 1σ | 南部中细粒黑云二长花岗岩(样品TW5787-1-5) | 1* | 129 | 883 | 0.15 | 0.0594 | 0.0014 | 0.5491 | 0.0167 | 0.0664 | 0.0013 | 444 | 11 | 414 | 8 | 323 | 16 | 2 | 101 | 1687 | 0.06 | 0.0465 | 0.0019 | 0.1481 | 0.0060 | 0.0229 | 0.0004 | 140 | 5 | 146 | 2 | 119 | 14 | 3 | 653 | 2712 | 0.24 | 0.0483 | 0.0011 | 0.1538 | 0.0037 | 0.0228 | 0.0002 | 145 | 3 | 145 | 2 | 181 | 7 | 4 | 698 | 2041 | 0.34 | 0.0520 | 0.0012 | 0.1660 | 0.0040 | 0.0228 | 0.0003 | 156 | 4 | 146 | 2 | 148 | 5 | 5* | 66 | 173 | 0.38 | 0.0639 | 0.0022 | 1.2019 | 0.0402 | 0.1358 | 0.0024 | 801 | 19 | 821 | 14 | 834 | 35 | 6* | 335 | 303 | 1.10 | 0.0500 | 0.0036 | 0.1832 | 0.0114 | 0.0275 | 0.0007 | 171 | 10 | 175 | 5 | 165 | 10 | 7 | 367 | 714 | 0.51 | 0.0492 | 0.0020 | 0.1570 | 0.0063 | 0.0229 | 0.0004 | 148 | 6 | 146 | 3 | 131 | 7 | 8 | 507 | 2186 | 0.23 | 0.0486 | 0.0014 | 0.1570 | 0.0047 | 0.0229 | 0.0003 | 148 | 4 | 146 | 2 | 145 | 6 | 9 | 378 | 1288 | 0.29 | 0.0501 | 0.0018 | 0.1601 | 0.0063 | 0.0229 | 0.0006 | 151 | 6 | 146 | 4 | 147 | 7 | 10* | 72 | 405 | 0.18 | 0.0636 | 0.0016 | 1.1045 | 0.0269 | 0.1240 | 0.0015 | 756 | 13 | 754 | 9 | 808 | 35 | 11* | 56 | 370 | 0.15 | 0.0639 | 0.0029 | 1.0888 | 0.0465 | 0.1223 | 0.0019 | 748 | 23 | 744 | 11 | 786 | 48 | 12* | 67 | 944 | 0.07 | 0.0667 | 0.0016 | 1.2760 | 0.0452 | 0.1361 | 0.0034 | 835 | 20 | 823 | 19 | 776 | 50 | 13 | 227 | 1435 | 0.16 | 0.0470 | 0.0019 | 0.1464 | 0.0051 | 0.0228 | 0.0003 | 139 | 5 | 145 | 2 | 152 | 6 | 14 | 1181 | 3106 | 0.38 | 0.0492 | 0.0015 | 0.1555 | 0.0052 | 0.0227 | 0.0004 | 147 | 5 | 145 | 2 | 148 | 5 | 15 | 652 | 3257 | 0.20 | 0.0488 | 0.0013 | 0.1552 | 0.0052 | 0.0229 | 0.0005 | 146 | 5 | 146 | 3 | 134 | 5 | 东部中粒黑云母二长花岗斑岩(样品TW6328-2-6) | 1 | 1182 | 825 | 1.43 | 0.0563 | 0.0027 | 0.1818 | 0.0101 | 0.0231 | 0.0006 | 170 | 9 | 147 | 4 | 157 | 6 | 2* | 119 | 366 | 0.33 | 0.0631 | 0.0015 | 1.1994 | 0.0280 | 0.1360 | 0.0015 | 800 | 13 | 822 | 9 | 858 | 29 | 3 | 470 | 1457 | 0.32 | 0.0517 | 0.0015 | 0.1689 | 0.0048 | 0.0235 | 0.0003 | 158 | 4 | 150 | 2 | 180 | 7 | 4* | 73 | 417 | 0.17 | 0.0650 | 0.0016 | 1.1186 | 0.0292 | 0.1239 | 0.0018 | 762 | 14 | 753 | 11 | 854 | 31 | 5* | 228 | 461 | 0.49 | 0.0642 | 0.0015 | 1.2129 | 0.0287 | 0.1360 | 0.0016 | 807 | 13 | 822 | 9 | 906 | 31 | 6* | 75 | 406 | 0.19 | 0.0650 | 0.0017 | 1.1213 | 0.0312 | 0.1241 | 0.0018 | 764 | 15 | 754 | 10 | 788 | 31 | 7☆ | 418 | 882 | 0.47 | 0.0820 | 0.0062 | 0.2752 | 0.0294 | 0.0230 | 0.0009 | 247 | 24 | 147 | 6 | 217 | 19 | 8 | 6037 | 3342 | 1.81 | 0.0563 | 0.0016 | 0.1789 | 0.0051 | 0.0231 | 0.0005 | 167 | 4 | 147 | 3 | 136 | 7 | 9* | 223 | 689 | 0.32 | 0.0617 | 0.0014 | 0.6553 | 0.0201 | 0.0760 | 0.0016 | 512 | 12 | 472 | 10 | 546 | 19 | 10 | 321 | 692 | 0.46 | 0.0496 | 0.0037 | 0.1559 | 0.0108 | 0.0230 | 0.0006 | 147 | 10 | 147 | 4 | 147 | 8 | 11* | 38 | 380 | 0.10 | 0.0641 | 0.0018 | 1.2072 | 0.0316 | 0.1359 | 0.0020 | 804 | 15 | 821 | 12 | 1126 | 68 | 12 | 355 | 402 | 0.88 | 0.0484 | 0.0027 | 0.1548 | 0.0090 | 0.0230 | 0.0006 | 146 | 8 | 147 | 4 | 164 | 10 | 13☆ | 927 | 434 | 2.14 | 0.0755 | 0.0043 | 0.2457 | 0.0141 | 0.0235 | 0.0006 | 223 | 12 | 150 | 4 | 129 | 6 | 14* | 70 | 761 | 0.09 | 0.0648 | 0.0013 | 1.2337 | 0.0273 | 0.1362 | 0.0016 | 816 | 12 | 823 | 9 | 780 | 29 | 15 | 66 | 255 | 0.26 | 0.0546 | 0.0052 | 0.1701 | 0.0137 | 0.0232 | 0.0009 | 159 | 12 | 148 | 6 | 185 | 24 | 东部中细粒黑云母二长花岗岩(样品TW6331-1-5) | 1 | 1001 | 1183 | 0.85 | 0.0569 | 0.0100 | 0.1747 | 0.0249 | 0.0225 | 0.0010 | 163 | 22 | 144 | 6 | 85.7 | 6 | 2 | 418 | 916 | 0.46 | 0.0524 | 0.0025 | 0.1677 | 0.0075 | 0.0230 | 0.0005 | 157 | 7 | 147 | 3 | 145 | 8 | 3☆ | 624 | 421 | 1.48 | 0.0783 | 0.0066 | 0.2803 | 0.0227 | 0.0260 | 0.0007 | 251 | 18 | 166 | 4 | 175 | 9 | 4* | 42 | 359 | 0.12 | 0.0672 | 0.0026 | 1.2518 | 0.0457 | 0.1338 | 0.0018 | 824 | 21 | 809 | 10 | 806 | 59 | 5 | 623 | 1629 | 0.38 | 0.0484 | 0.0028 | 0.1529 | 0.0080 | 0.0227 | 0.0004 | 144 | 7 | 145 | 3 | 139 | 7 | 6* | 38 | 332 | 0.11 | 0.0673 | 0.0017 | 1.2872 | 0.0353 | 0.1365 | 0.0019 | 840 | 16 | 825 | 11 | 836 | 42 | 7 | 453 | 1665 | 0.27 | 0.0546 | 0.0024 | 0.1752 | 0.0075 | 0.0229 | 0.0003 | 164 | 7 | 146 | 2 | 176 | 11 | 8☆ | 1095 | 6438 | 0.17 | 0.1291 | 0.0042 | 0.4139 | 0.0181 | 0.0224 | 0.0004 | 352 | 13 | 143 | 2 | 716 | 29 | 9* | 56 | 194 | 0.29 | 0.0674 | 0.0040 | 1.2900 | 0.0914 | 0.1350 | 0.0030 | 841 | 41 | 816 | 17 | 1106 | 99 | 10* | 66 | 639 | 0.10 | 0.0671 | 0.0015 | 1.2812 | 0.0303 | 0.1361 | 0.0019 | 837 | 14 | 823 | 11 | 875 | 35 | 11 | 384 | 400 | 0.96 | 0.0493 | 0.0023 | 0.1563 | 0.0073 | 0.0228 | 0.0004 | 147 | 6 | 145 | 2 | 158 | 6 | 12* | 199 | 628 | 0.32 | 0.0655 | 0.0018 | 1.2375 | 0.0319 | 0.1349 | 0.0016 | 818 | 15 | 816 | 9 | 836 | 25 | 13 | 629 | 931 | 0.68 | 0.0598 | 0.0028 | 0.1898 | 0.0073 | 0.0229 | 0.0005 | 176 | 6 | 146 | 3 | 167 | 8 | 14 | 615 | 827 | 0.74 | 0.0514 | 0.0022 | 0.1623 | 0.0062 | 0.0228 | 0.0004 | 153 | 5 | 146 | 2 | 148 | 6 | 15* | 176 | 731 | 0.24 | 0.0496 | 0.0020 | 0.1991 | 0.0080 | 0.0287 | 0.0005 | 184 | 7 | 182 | 3 | 195 | 12 |
|
Analysis data of LA-ICP-MS zircon U-Pb in the Late Jurassic biotite monzogranite in the study area
|
|

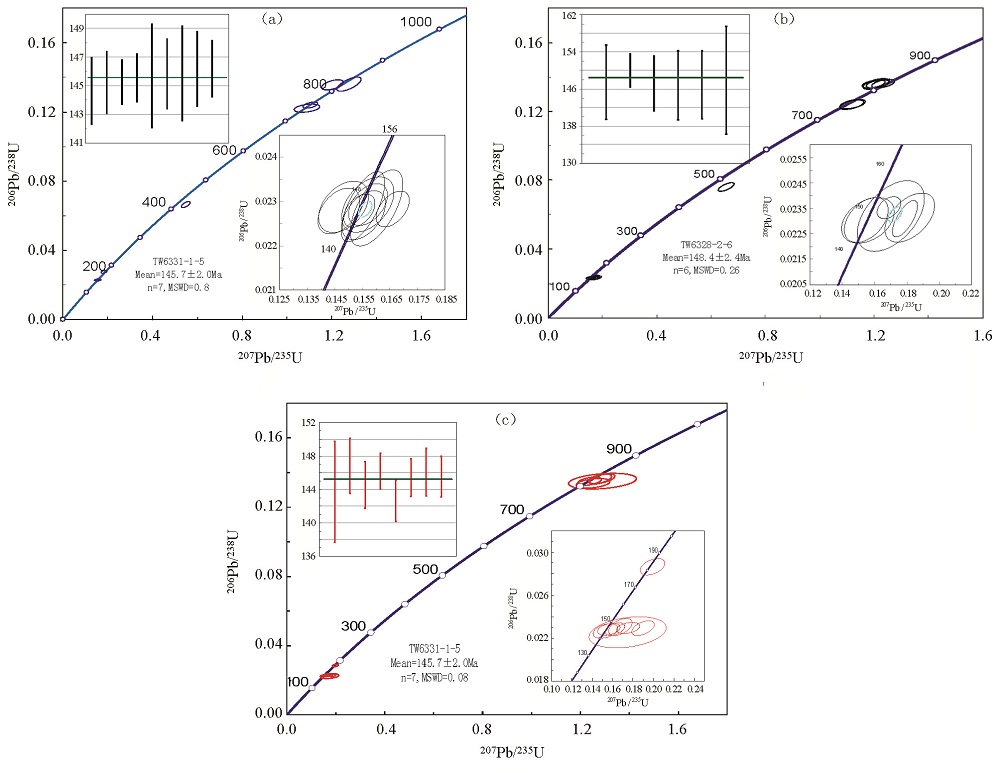

Harmonic map of zircon U-Pb age and weighted average diagram of biotite monzogranite
|
分析 点号 | Ti | La | Ce | Pr | Nd | Sm | Eu | Gd | Tb | Dy | Ho | Er | Tm | Yb | Lu | Y | 南部中细粒黑云二长花岗岩(样品TW5787-1-5) | 1* | 6.37 | 0.02 | 2.46 | 0.03 | 0.68 | 3.25 | 0.19 | 27.2 | 11.9 | 153 | 56 | 261 | 55 | 593 | 101 | 1916 | 2 | 14.06 | 0.54 | 5.19 | 0.30 | 2.01 | 1.47 | 0.26 | 11.1 | 4.3 | 72 | 31 | 161 | 39 | 471 | 83 | 1068 | 3 | 0 | 0.13 | 16.24 | 0.09 | 1.19 | 3.65 | 0.44 | 23.5 | 9.1 | 119 | 45 | 212 | 45 | 493 | 82 | 1500 | 4 | 8.65 | 2.52 | 19.59 | 1.07 | 7.55 | 9.13 | 1.57 | 45.5 | 15.3 | 182 | 64 | 294 | 60 | 643 | 105 | 2172 | 5* | 9.81 | 0 | 0.99 | 0.04 | 0.93 | 3.18 | 0.17 | 20.9 | 8.1 | 113 | 46 | 226 | 47 | 522 | 93 | 1488 | 6* | 6.08 | 1.56 | 16.00 | 0.76 | 7.99 | 10.12 | 2.63 | 44.9 | 13.1 | 144 | 49 | 218 | 43 | 447 | 75 | 1621 | 7 | 8.41 | 1.37 | 22.26 | 0.72 | 5.30 | 6.96 | 1.49 | 36.3 | 12.3 | 155 | 56 | 259 | 52 | 556 | 91 | 1894 | 8 | 2.20 | 1.51 | 16.15 | 0.76 | 4.77 | 5.10 | 0.64 | 30.0 | 10.6 | 133 | 47 | 216 | 45 | 473 | 76 | 1579 | 9 | 35.72 | 0.49 | 14.50 | 0.36 | 3.12 | 5.53 | 0.82 | 29.3 | 10.3 | 130 | 46 | 213 | 45 | 489 | 76 | 1561 | 10* | 140.30 | 0.32 | 2.79 | 0.16 | 1.80 | 4.24 | 0.43 | 28.1 | 11.7 | 161 | 64 | 306 | 63 | 689 | 116 | 2137 | 11* | 7.63 | 0.13 | 0.70 | 0.10 | 1.09 | 3.09 | 0.09 | 24.7 | 10.7 | 151 | 57 | 270 | 56 | 595 | 102 | 1922 | 12* | 8.22 | 0.14 | 2.73 | 0.10 | 0.82 | 2.08 | 0.19 | 19.5 | 9.7 | 150 | 61 | 321 | 76 | 921 | 165 | 2080 | 13 | 8.78 | 0.11 | 10.48 | 0.17 | 1.69 | 3.59 | 0.53 | 21.7 | 8.4 | 111 | 42 | 205 | 44 | 500 | 82 | 1434 | 14 | 11.70 | 1.56 | 25.50 | 1.08 | 8.61 | 12.02 | 1.77 | 65.3 | 21.6 | 248 | 85 | 385 | 77 | 802 | 126 | 2923 | 15 | 3.87 | 0.60 | 24.57 | 0.60 | 4.23 | 6.21 | 1.14 | 35.1 | 13.5 | 177 | 66 | 311 | 66 | 720 | 115 | 2230 | 东部中粒黑云母二长花岗斑岩(样品TW6328-2-6) | 1 | 11.25 | 3.42 | 58.74 | 3.02 | 29.12 | 29.07 | 6.92 | 99.0 | 26.6 | 283 | 91 | 402 | 80 | 874 | 139 | 3225 | 2* | 3.92 | 0.02 | 2.85 | 0.07 | 1.96 | 5.19 | 0.31 | 41.0 | 16.9 | 237 | 94 | 464 | 94 | 1018 | 172 | 3266 | 3 | 9.50 | 7.86 | 41.55 | 3.23 | 17.78 | 7.99 | 1.88 | 24.9 | 7.6 | 92 | 33 | 158 | 33 | 369 | 61 | 1171 | 4* | 35.70 | 0.73 | 3.15 | 0.47 | 3.26 | 5.10 | 0.12 | 42.9 | 19.5 | 280 | 105 | 487 | 92 | 961 | 149 | 3881 | 5* | 0 | 0.15 | 1.89 | 0.32 | 5.49 | 14.04 | 0.28 | 101.1 | 39.1 | 524 | 198 | 906 | 174 | 1774 | 277 | 7170 | 6* | 13.35 | 0.06 | 0.59 | 0.08 | 1.17 | 4.46 | 0.07 | 36.5 | 15.2 | 205 | 77 | 358 | 73 | 793 | 127 | 2667 | 7☆ | 8.53 | 18.09 | 34.24 | 3.33 | 17.58 | 9.17 | 1.99 | 31.8 | 10.0 | 111 | 39 | 181 | 36 | 403 | 65 | 1353 | 8 | 29.49 | 8.37 | 126.28 | 4.78 | 29.19 | 22.44 | 3.63 | 86.2 | 26.4 | 297 | 100 | 427 | 80 | 811 | 123 | 3492 | 9* | 6.43 | 0.18 | 5.54 | 0.20 | 2.47 | 5.15 | 0.37 | 35.6 | 13.9 | 187 | 72 | 348 | 70 | 765 | 126 | 2524 | 10 | 9.82 | 0.08 | 23.27 | 0.34 | 4.98 | 10.86 | 4.39 | 49.5 | 15.4 | 153 | 41 | 151 | 25 | 244 | 32 | 1472 | 11* | 2.61 | 0.32 | 1.41 | 0.11 | 0.81 | 1.77 | 0.12 | 17.9 | 8.3 | 122 | 47 | 240 | 53 | 635 | 111 | 1699 | 12 | 7.84 | 6.51 | 47.09 | 1.61 | 10.10 | 6.44 | 1.55 | 27.6 | 8.5 | 106 | 39 | 180 | 36 | 394 | 66 | 1351 | 13☆ | 7.66 | 11.00 | 62.06 | 4.14 | 26.77 | 22.00 | 2.94 | 60.1 | 15.0 | 143 | 43 | 174 | 31 | 311 | 48 | 1426 | 14* | 6.69 | 0.06 | 0.72 | 0.02 | 0.73 | 3.41 | 0.05 | 34.5 | 18.7 | 264 | 87 | 346 | 60 | 581 | 86 | 3479 | 15 | 9.02 | 0.02 | 2.69 | 0.02 | 0.65 | 1.63 | 0.32 | 6.1 | 1.5 | 13 | 4 | 12 | 3 | 29 | 4 | 121 | 东部中细粒黑云母二长花岗岩(样品TW6331-1-5) | 1 | 16.80 | 8.28 | 73.48 | 5.25 | 34.10 | 16.70 | 5.13 | 51.9 | 13.3 | 151 | 52 | 230 | 46 | 475 | 75 | 1801 | 2 | 2.13 | 2.44 | 20.03 | 1.44 | 9.52 | 8.68 | 1.10 | 36.6 | 11.6 | 136 | 50 | 224 | 46 | 489 | 76 | 1625 | 3☆ | 10.39 | 57.36 | 180.78 | 23.79 | 119.54 | 37.68 | 3.57 | 67.1 | 14.4 | 131 | 39 | 154 | 28 | 276 | 45 | 1251 | 4* | 4.97 | 0.02 | 0.69 | 0.03 | 0.61 | 2.43 | 0.13 | 23.5 | 10.8 | 154 | 60 | 289 | 61 | 651 | 114 | 2050 | 5 | 10.06 | 0.08 | 35.23 | 0.36 | 4.61 | 9.59 | 1.99 | 41.3 | 14.0 | 166 | 57 | 250 | 52 | 564 | 89 | 1927 | 6* | 2.58 | 0.01 | 0.34 | 0.03 | 0.67 | 3.07 | 0.08 | 25.2 | 11.3 | 154 | 57 | 266 | 56 | 597 | 100 | 1959 | 7 | 12.08 | 3.47 | 25.28 | 1.57 | 9.26 | 7.99 | 1.10 | 36.5 | 12.4 | 145 | 53 | 247 | 50 | 528 | 88 | 1822 | 8☆ | 119.18 | 7.91 | 56.09 | 6.35 | 37.19 | 22.75 | 4.72 | 62.7 | 22.0 | 270 | 92 | 434 | 93 | 1020 | 158 | 3169 | 9* | 7.94 | 0.05 | 1.16 | 0.02 | 1.32 | 5.38 | 0.12 | 32.5 | 11.3 | 156 | 61 | 284 | 58 | 616 | 106 | 1994 | 10* | 8.49 | 0.02 | 0.60 | 0.04 | 0.74 | 3.52 | 0.14 | 32.5 | 16.0 | 237 | 95 | 480 | 105 | 1150 | 195 | 3314 | 11 | 11.65 | 0.14 | 25.17 | 0.42 | 6.38 | 10.00 | 2.57 | 43.4 | 12.2 | 136 | 44 | 195 | 37 | 389 | 63 | 1478 | 12* | 0 | 0.15 | 3.08 | 0.10 | 1.41 | 6.72 | 0.24 | 46.6 | 20.3 | 293 | 114 | 544 | 107 | 1086 | 182 | 3925 | 13 | 23.29 | 0.37 | 23.38 | 0.44 | 4.28 | 7.75 | 1.39 | 34.4 | 10.9 | 125 | 43 | 195 | 38 | 390 | 64 | 1446 | 14 | 12.17 | 0.22 | 26.61 | 0.44 | 7.05 | 12.11 | 2.64 | 55.3 | 16.7 | 192 | 66 | 291 | 57 | 584 | 93 | 2166 | 15* | 2.16 | 0.01 | 4.07 | 0.03 | 0.53 | 1.52 | 0.23 | 8.8 | 3.4 | 41 | 14 | 64 | 14 | 150 | 24 | 484 | 点号 | 谐和度 | 206Pb/238U | Ce4+/Ce3+ | (Ce/Ce*)N | (Ce/Ce*)D | (Eu/Eu*)N | T/℃ | lg(fO2)D | ΔFMQD | ΔIWD | 南部中细粒黑云二长花岗岩(样品TW5787-1-5) | 1* | 93% | 414 | 44 | 27 | 60 | 0.06 | 705 | -14.8 | 1.9 | 6.2 | 2 | 96% | 146 | 66 | 3 | 89 | 0.20 | 779 | -9.6 | 5.3 | 9.4 | 3 | 99% | 145 | 158 | 37 | 209 | 0.15 | | | | | 4 | 93% | 146 | 22 | 3 | 29 | 0.24 | 732 | -16.1 | -0.1 | 4.1 | 5* | 97% | 821 | 14 | | 19 | 0.07 | 744 | -17.1 | -1.3 | 2.9 | 6* | 97% | 175 | 12 | 4 | 16 | 0.38 | 701 | -20.0 | -3.2 | 1.1 | 7 | 98% | 146 | 39 | 5 | 51 | 0.29 | 730 | -14.1 | 1.9 | 6.1 | 8 | 98% | 146 | 34 | 4 | 45 | 0.16 | 621 | -20.9 | -1.9 | 2.6 | 9 | 96% | 146 | 43 | 8 | 57 | 0.20 | 881 | -6.9 | 6.0 | 9.9 | 10* | 99% | 754 | 21 | 3 | 28 | 0.12 | 1074 | -3.1 | 6.8 | 10.4 | 11* | 99% | 744 | 8 | 2 | 12 | 0.03 | 721 | -19.9 | -3.6 | 0.6 | 12* | 98% | 823 | 83 | 6 | 115 | 0.09 | 728 | -11.2 | 5.0 | 9.2 | 13 | 95% | 145 | 78 | 19 | 103 | 0.18 | 734 | -11.3 | 4.7 | 8.9 | 14 | 98% | 145 | 23 | 5 | 30 | 0.19 | 761 | -14.6 | 0.8 | 4.9 | 15 | 99% | 146 | 68 | 10 | 89 | 0.24 | 664 | -15.7 | 2.1 | 6.5 | 东部中粒黑云母二长花岗斑岩(样品TW6328-2-6) | 1 | 86% | 147 | 14 | 4 | 19 | 0.40 | 757 | -16.4 | -1.0 | 3.1 | 2* | 97% | 822 | 29 | 19 | 41 | 0.06 | 665 | -18.5 | -0.7 | 3.6 | 3 | 94% | 150 | 28 | 2 | 36 | 0.41 | 741 | -14.9 | 0.9 | 5.1 | 4* | 98% | 753 | 19 | 1 | 27 | 0.02 | 881 | -9.7 | 3.1 | 7.0 | 5* | 98% | 822 | 4 | | 7 | 0.02 | | | | | 6* | 98% | 754 | 8 | 2 | 12 | 0.02 | 774 | -17.3 | -2.3 | 1.8 | 7☆ | 49% | 147 | 20 | 1 | 27 | 0.36 | 731 | -16.5 | -0.4 | 3.8 | 8 | 87% | 147 | 37 | 5 | 47 | 0.25 | 859 | -8.5 | 4.8 | 8.7 | 9* | 91% | 472 | 40 | 7 | 55 | 0.08 | 706 | -15.1 | 1.5 | 5.8 | 10 | 99% | 147 | 21 | 34 | 27 | 0.58 | 744 | -15.8 | 0.0 | 4.1 | 11* | 97% | 821 | 51 | 2 | 73 | 0.07 | 634 | -18.3 | 0.3 | 4.8 | 12 | 99% | 147 | 60 | 4 | 78 | 0.36 | 723 | -12.9 | 3.3 | 7.6 | 13☆ | 60% | 150 | 10 | 2 | 13 | 0.25 | 721 | -19.6 | -3.3 | 0.9 | 14* | 99% | 823 | 14 | 5 | 20 | 0.01 | 709 | -18.7 | -2.1 | 2.2 | 15 | 92% | 148 | 15 | 31 | 20 | 0.30 | 736 | -17.4 | -1.5 | 2.7 | 东部中细粒黑云母二长花岗岩(样品TW6331-1-5) | 1 | 87% | 144 | 18 | 3 | 23 | 0.53 | 797 | -13.8 | 0.7 | 4.8 | 2 | 93% | 147 | 24 | 3 | 32 | 0.19 | 619 | -22.4 | -3.2 | 1.3 | 3☆ | 59% | 166 | 5 | 1 | 7 | 0.22 | 749 | -20.5 | -4.9 | -0.7 | 4* | 98% | 809 | 26 | 7 | 38 | 0.05 | 684 | -17.7 | -0.5 | 3.8 | 5 | 99% | 145 | 81 | 51 | 107 | 0.31 | 746 | -10.5 | 5.2 | 9.3 | 6* | 98% | 825 | 9 | 6 | 13 | 0.03 | 633 | -24.7 | -6.0 | -1.6 | 7 | 88% | 146 | 36 | 3 | 47 | 0.20 | 764 | -12.7 | 2.5 | 6.7 | 8☆ | 15% | 143 | 17 | 2 | 23 | 0.38 | 1047 | -4.7 | 5.5 | 9.2 | 9* | 96% | 816 | 12 | 9 | 18 | 0.03 | 724 | -18.3 | -2.1 | 2.1 | 10* | 98% | 823 | 21 | 5 | 31 | 0.04 | 731 | -15.9 | 0.2 | 4.4 | 11 | 98% | 145 | 32 | 26 | 42 | 0.38 | 760 | -13.3 | 2.1 | 6.2 | 12* | 99% | 816 | 39 | 6 | 55 | 0.04 | | | | | 13 | 81% | 146 | 54 | 14 | 70 | 0.26 | 832 | -8.1 | 5.7 | 9.7 | 14 | 95% | 146 | 35 | 21 | 46 | 0.31 | 765 | -12.7 | 2.5 | 6.6 | 15* | 98% | 182 | 103 | 70 | 139 | 0.19 | 620 | -16.8 | 2.3 | 6.8 |
|
Analysis data and calculation parameters of zircon trace elements of biotite monzogranite10-6
|
样品编号 | H5787-1-2 | H6328-2-3 | H6331-1-2 | H6135-1-3 | H6140-2-4 | H6143-1-3 | SiO2 | 73.24 | 72.78 | 72.42 | 73.33 | 72.37 | 73.08 | Al2O3 | 14.02 | 14.96 | 15.06 | 14.69 | 14.61 | 15.05 | Fe2O3 | 0.17 | 0.15 | 0.04 | 0.29 | 0.44 | 0.26 | FeO | 0.97 | 0.84 | 0.21 | 1.62 | 2.50 | 1.47 | MgO | 0.63 | 0.68 | 0.73 | 0.67 | 0.91 | 0.60 | CaO | 1.10 | 1.47 | 1.30 | 1.46 | 0.87 | 1.09 | Na2O | 2.70 | 2.91 | 2.61 | 2.72 | 2.04 | 2.62 | K2O | 4.16 | 4.39 | 4.84 | 4.33 | 4.62 | 4.50 | P2O5 | 0.16 | 0.12 | 0.13 | 0.11 | 0.18 | 0.10 | MnO | 0.06 | 0.04 | 0.04 | 0.04 | 0.07 | 0.03 | TiO2 | 0.35 | 0.33 | 0.34 | 0.33 | 0.38 | 0.30 | La | 24.40 | 27.50 | 25.20 | 23.60 | 13.90 | 22.50 | Ce | 50.00 | 53.90 | 47.80 | 46.40 | 30.70 | 44.10 | Pr | 5.39 | 5.54 | 5.04 | 4.84 | 3.42 | 4.51 | Nd | 18.60 | 18.10 | 16.90 | 15.90 | 12.30 | 14.60 | Sm | 3.56 | 3.21 | 2.95 | 2.79 | 2.92 | 2.63 | Eu | 0.50 | 0.52 | 0.59 | 0.50 | 0.47 | 0.47 | Gd | 3.32 | 2.42 | 2.33 | 2.79 | 3.00 | 1.97 | Tb | 0.46 | 0.29 | 0.30 | 0.34 | 0.49 | 0.24 | Dy | 2.58 | 1.44 | 1.55 | 1.56 | 2.52 | 1.15 | Ho | 0.48 | 0.24 | 0.26 | 0.28 | 0.36 | 0.19 | Er | 1.26 | 0.60 | 0.65 | 0.69 | 0.79 | 0.49 | Tm | 0.18 | 0.08 | 0.08 | 0.09 | 0.10 | 0.07 | Yb | 1.22 | 0.57 | 0.54 | 0.53 | 0.59 | 0.45 | Lu | 0.17 | 0.07 | 0.07 | 0.08 | 0.08 | 0.06 | Sc | 4.02 | 3.87 | 4.03 | 3.69 | 6.84 | 3.43 | V | 23.10 | 24.30 | 25.80 | 24.50 | 33.90 | 21.50 | Cr | 5.55 | 9.49 | 7.71 | 5.85 | 12.00 | 8.08 | Co | 3.07 | 3.22 | 3.34 | 3.03 | 5.20 | 3.16 | Ni | 2.88 | 3.46 | 3.53 | 3.38 | 10.90 | 2.75 | Cu | 5.76 | 17.00 | 40.80 | 49.30 | 32.10 | 8.10 | Zn | 43.90 | 46.60 | 36.40 | 64.60 | 47.40 | 41.50 | Ga | 17.40 | 18.00 | 17.90 | 17.30 | 13.80 | 18.40 | Rb | 232.00 | 199.00 | 224.00 | 201.00 | 188.00 | 198.00 | Sr | 94.40 | 124.00 | 132.00 | 113.00 | 44.40 | 113.00 | Y | 11.30 | 6.70 | 6.97 | 5.39 | 10.90 | 5.04 | Zr | 133.00 | 137.00 | 135.00 | 133.00 | 141.00 | 132.00 | Nb | 10.10 | 5.42 | 5.53 | 5.33 | 5.77 | 5.27 | Cs | 21.50 | 17.50 | 24.30 | 16.20 | 32.20 | 15.80 | Ba | 141.00 | 287.00 | 326.00 | 288.00 | 161.00 | 315.00 | Hf | 4.60 | 5.20 | 4.60 | 3.80 | 4.60 | 4.40 | Ta | 1.73 | 0.86 | 0.82 | 0.72 | 0.92 | 0.95 | Pb | 21.70 | 26.30 | 26.80 | 26.60 | 21.70 | 27.40 | Th | 15.10 | 17.20 | 15.20 | 15.10 | 6.45 | 15.30 | U | 5.01 | 2.68 | 2.49 | 2.62 | 2.41 | 3.21 |
|
Analysis results of biotite monzogranite main elements, rare earth and trace elements
|
|

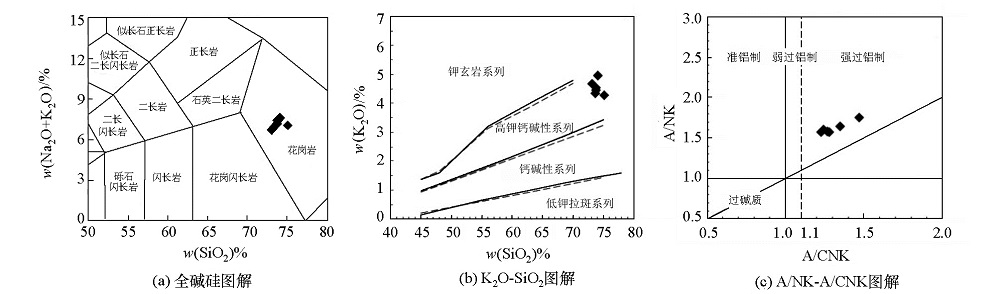

Lithochemistry classification map of biotite monzogranite
|
|
Chondrites standardized rare earth element distribution diagram of biotite monzogranite
|
9] ">
|

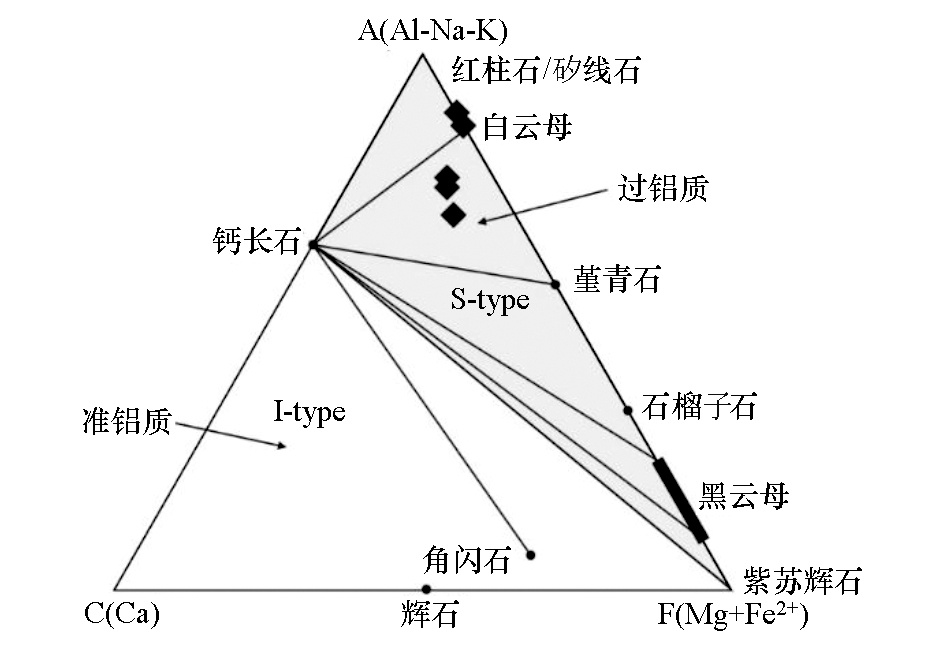

A (Al-Na-K)-C (Ca)-F (Mg+Fe2+)Genesis type discriminant illustrationof biotite monzogranite (Base image according to White and Chappell, 1977)[9]
|
|
Illustration of rocks genetic types of biotite monzogranite
|
|

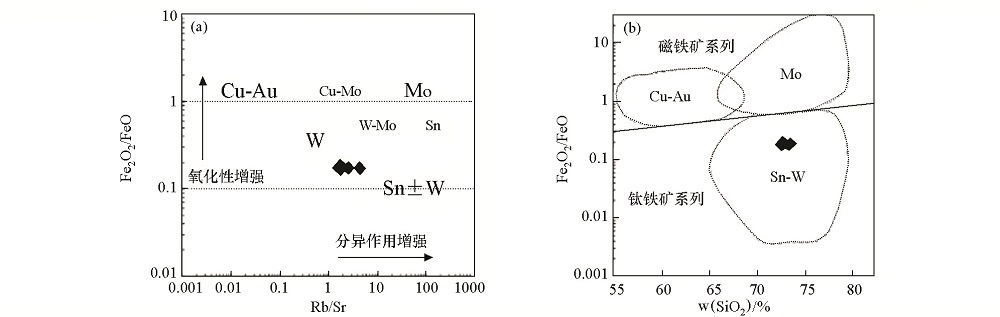

Fe2O3/FeO-Rb/Sr diagram(a) and Fe2O3/FeO-SiO2 diagram(b)
|
[1] |
黄兰椿, 蒋少涌 . 江西大湖塘富钨花岗斑岩年代学、地球化学特征及成因研究[J]. 岩石学报, 2013,29(12):4323-4335.
|
[1] |
Huang L C, Jiang S Y . Geochronology, geochemistry and petrogenesis of the tungsten-bearing porphyritic granite in the Dahutang tungsten deposit, Jiangxi Province[J]. Acta Petrologica Sinica, 2013,29(12):4323-4335.
|
[2] |
叶海敏, 张翔, 朱云鹤 . 江西石门寺钨多金属矿床花岗岩独居石 U-Pb精确定年及地质意义[J]. 大地构造与成矿学, 2016,40(1):58-70.
|
[2] |
Ye H M, Zhang X, Zhu Y H . In-situ monazite U-Pb geochronology of granitesin shimensi tungsten polymetallic deposit,Jiangxi Province and its Geological Significance[J]. Geotectonicaet Metallogenia, 2016,40(1):58-70.
|
[3] |
潘大鹏, 王迪, 王孝磊 . 赣西北大湖塘石门寺钨矿区花岗岩的成因及其对钨矿的指示意义[J]. 中国地质, 2017,44(1):118-135.
|
[3] |
Pan D P, Wang D, Wang X L . Petrogenesis of granites in Shimensi in northwestern Jiangxi Province and its implications for tungsten deposits[J]. Geology in China, 2017,44(1):118-135.
|
[4] |
Ferry J M, Watson E B . New thermodynamic models and revised calibrations for the Ti-in-zircon and Zr-in-rutile thermometers[J]. Contributions to Mineralogy and Petrology, 2007,154(4):429-437.
|
[5] |
Myers J, Eugster H P . The system Fe-Si-O: Oxygen buffer calibrations to 1,500K[J]. Contributions to Mineralogy and Petrology, 1983,82(1):75-90.
|
[6] |
O’Neill H S C . Quartz-fayalite-iron and quartz-fayalite-magnetite equilibria and the free energy of formation of fayalite (Fe2SiO4) and magnetite (Fe3O4)[J]. American Mineralogist, 1987,72(1-2):67-75.
|
[7] |
Pearce J . Sources and settings of granitic rocks[J]. Episodes, 1996,19(4):120-125.
|
[8] |
Sylvester P J . Post-collisional strongly peraluminous granites[J]. Lithos, 1998,45(1):29-44.
|
[9] |
White A J R, Chappell B W . Ultrametamorphism and granitoid genesis[J]. Tectonophysics, 1977,43(1-2):7-22.
|
[10] |
El Bouseily A, El Sokkary A . The relation between Rb, Ba and Sr in granitic rocks[J]. Chemical Geology, 1975,16(3):207-219.
|
[11] |
Whalen J B, Currie K L, Chappell B W . A-type granites: geochemical characteristics, discrimination and petrogenesis[J]. Contributions to Mineralogy and Petrology, 1987,95(4):407-419.
|
[12] |
Eby G N . The A-type granitoids: A review of their occurrence and chemical characteristics and speculations on their petrogenesis[J]. Lithos, 1990,26(1-2):115-134.
|
[13] |
张磊, 范玉华, 张世涛 , 等. 滇东南薄竹山花岗岩体西侧矽卡岩型钨锡多金属矿床地质条件及找矿预测[J].河南科学, 2014(5):846-850.
|
[13] |
Zhang L, Fan Y H, Zhang S T , et al. The geological conditions and prospecting prediction of mid west side of Bozhushan granite skarn type tungsten tin polymetallic depositsin southeast Yunnan[J]. Henan Science, 2014(5):846-850.
|
[14] |
陈骏, 王汝成, 朱金初 , 等. 南岭多时代花岗岩的钨锡成矿作用[J]. 中国科学:地球科学, 2014,44(01):111-121.
|
[14] |
Chen J, Wang R C, Zhu J C , et al. Multiple-aged granitoids and related tungsten-tin mineralization in the Nanling Range, South China[J]. Scientia Sinica(Terrae), 2014,44(1):111-121.
|
[15] |
Blevin P L . Metallogeny of granitic rocks [Z]. Australia, Canberra: Geoscience Australia: Gemoc Macquarie University, 2003: 1-4.
|
[16] |
Lehmann B . Metallogeny of tin. Lecture Notes in Earth Sciences[M]. Berlin: Springer Verlag, 1990, 1-211.
|
[17] |
Ballard J R, Palin M J, Campbell I H . Relative oxidation states of magmas inferred from Ce (IV)/Ce (III) in zircon: application to porphyry copper deposits of northern Chile[J]. Contributions to Mineralogy and Petrology, 2002,144(3):347-364.
|
[18] |
Trail D, Watson E B, Tailby N D . The oxidation state of Hadean magmas and implications for early Earth’s atmosphere[J]. Nature, 2011,480(7375):79-82.
|
[19] |
Trail D, Bruce Watson E, Tailby N D . Ce and Eu anomalies in zircon as proxies for the oxidation state of magmas[J]. Geochimica et Cosmochimica Acta, 2012,97:70-87.
|
[20] |
Blevin P L . Redox and compositional parameters for interpreting the granitoid metallogeny of eastern Australia: implications for gold-rich ore systems[J]. Resource Geology, 2004,54(03):241-252.
|
[21] |
郝义, 王显民, 王金香 . 黑龙江新城沟地区花岗岩成矿地球化学特征分析及资源潜力预测[J]. 物探与化探, 2018,42(3):461-472.
|
[21] |
Hao Y, Wang X M, Wang J X , et al. Metallogenic geochemical characteristics and potential resources prediction of granites in Xinchenggou area,Heilongjiang Province[J]. Geophysical and Geochemical Exploration, 2018,42(3):461-472.
|
[22] |
项新葵, 尹青青, 孙克克 , 等. 江南造山带中段大湖塘同构造花岗斑岩的成因——锆石U-Pb年代学、地球化学和Nd-Hf同位素制约[J]. 岩石矿物学杂志, 2015,34(05):581-600.
|
[22] |
Xiang X K, Yin Q Q, Sun K K , et al. Origin of the Dahutang syn-collisional granite-porphyryin themiddlesegment of the Jiangnan orogen:Zircon U-Pbgeochronologic,geochemical and Nd-Hf isotopic constraints[J]. Acat Petrologica Et Mineralogica, 2015,34(05):581-600.
|
[23] |
舒良树 . 华南构造演化的基本特征[J]. 地质通报, 2012,31(7):1035-1053.
|
[23] |
Shu L S . Ananalysis of principal features of tectonic evolutionin South China Block[J]. Geological Bulletin of China, 2012,31(7):1035-1053.
|
