Geochemical characteristics and indication significance of seogas survey in the Tianyu Cu-Ni deposit of Hami |
Wei HAN1,2, Hua-Zhong LIU1,2, Cheng-Wen WANG1,2, Yun-Tao SONG1,2, Qiao-Lin WANG1,2, Mu KONG1,2 |
1. Institute of Geophysical and Geochemical Exploration, CAGS, Langfang 065000, China 2. Key Laboratory of Geochemical Cycling of Carbon and Mercury in the Earth's Critical Zone,CAGS, Langfang 065000, China |
|
|
Abstract The Tianyu Cu-Ni deposit is located in the Gobi desert area. The geochemical characteristics of elements such as Ni, Co, Fe, Mg and Cu in the geogas were statistically analyzed by geogas survey at the scale of 1:10 000 in the range of 2 km 2 in the Tianyu Cu-Ni deposit. According to the indication effect of each element on mineralization and geophysical and geochemical anomalies, five comprehensive geochemical anomalies were delineated, and Ni,Co,Cu,Fe,V indicators can effectively indicate the position of the orebody, thus exhibiting good prospecting effect in the Tianyu Cu-Ni deposit. The survey work provides new ideas for mineral exploration in the Gobi desert area.
|
Received: 30 November 2018
Published: 31 May 2019
|
|
|
|
|
|

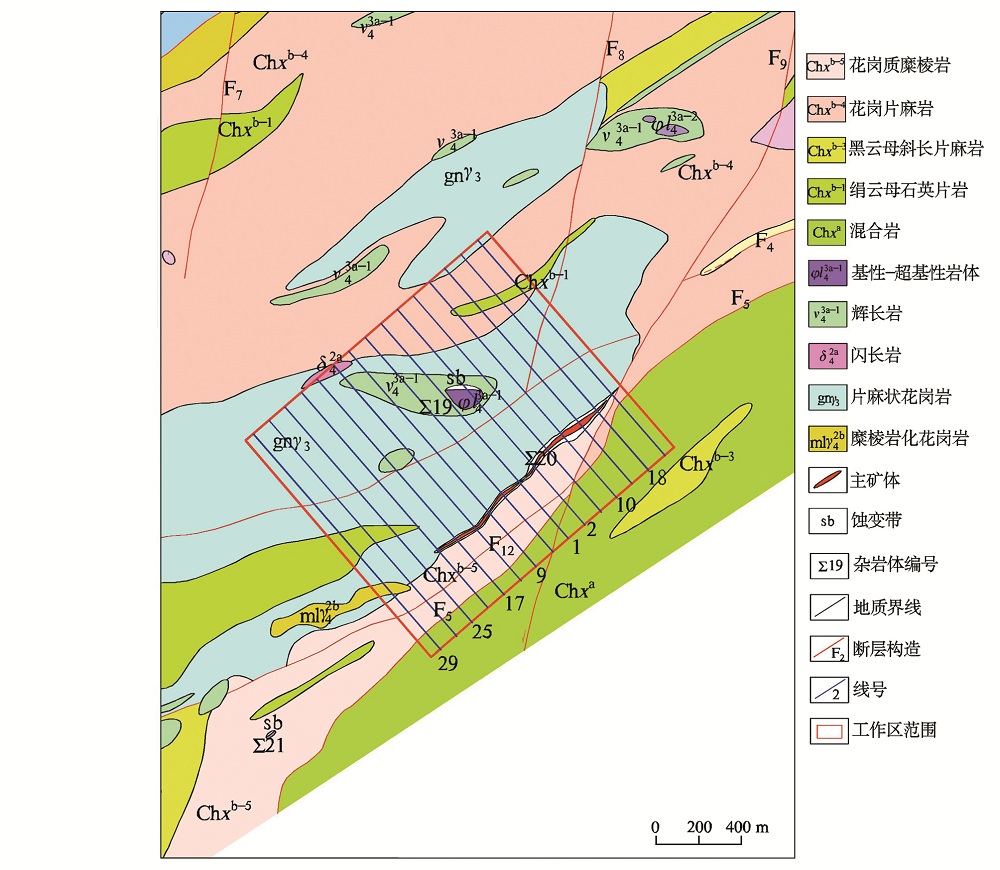

Generalized geological map of Tianyu Cu-Ni deposit and distribution of geogas samplings
|
岩体名称 | 19号基性—超基性岩体 | 20号基性—超基性岩体 | 形态 | 不规则状 | 脉状 | 长度 | 85 m | 1 140 m | 最大宽度 | 16 m | 66 m | 蚀变特征 | 强纤闪石化、绿泥石化、弱绢云母化、高岭土化 | 强纤闪石化、绢云母化、高岭土化、金云母化、滑石化、伊丁石化 | 矿化特征 | 褐铁矿化、弱孔雀石化 | 褐铁矿化、孔雀石化 |
|
Characteristics of basic-ultrabasic rock bodies of Tianyu Cu-Ni deposit
|
|

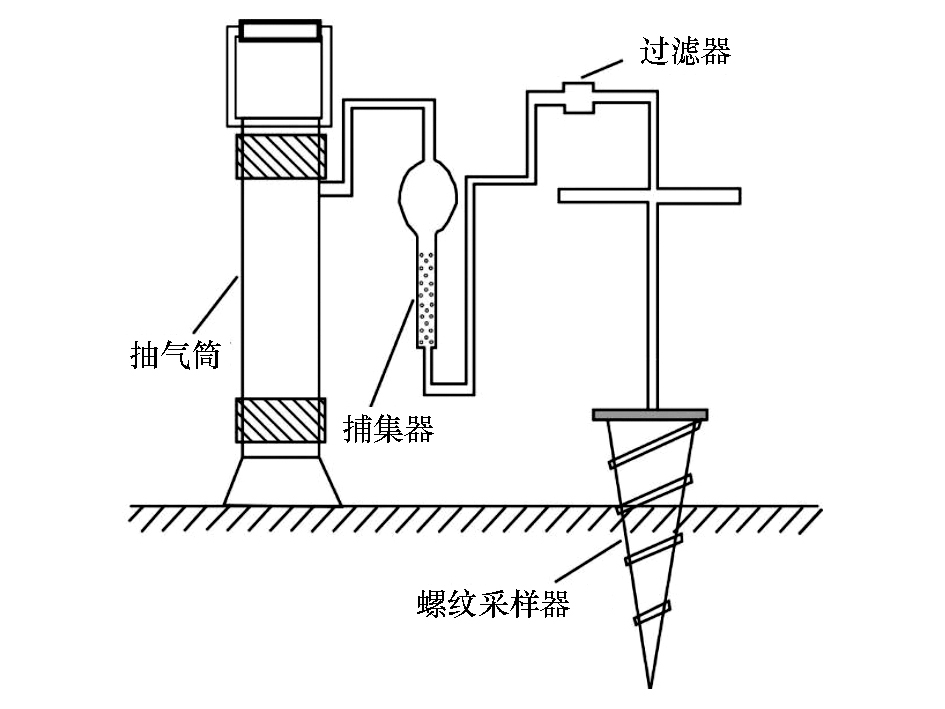

Diagram of geogas sampling device
|
元素 | 均值 | 标准差 | 变异系数 | 元素 | 均值 | 标准差 | 变异系数 | Au | 0.005 | 0.001 | 0.278 | Dy | 0.004 | 0.001 | 0.182 | Ag | 0.006 | 0.001 | 0.119 | Er | 0.005 | 0.001 | 0.214 | Bi | 0.011 | 0.001 | 0.121 | Eu | 0.004 | 0.001 | 0.23 | Co | 0.009 | 0.005 | 0.511 | Gd | 0.019 | 0.004 | 0.188 | Cu | 0.743 | 0.24 | 0.323 | La | 0.055 | 0.002 | 0.044 | Fe | 0.031 | 0.003 | 0.095 | Nd | 0.044 | 0.005 | 0.105 | Mg | 0.034 | 0.003 | 0.085 | Pr | 0.012 | 0.001 | 0.077 | Ni | 0.113 | 0.04 | 0.352 | Sm | 0.01 | 0.003 | 0.256 | Pb | 1.22 | 0.031 | 0.026 | Tb | 0.002 | 0.001 | 0.333 | V | 0.084 | 0.01 | 0.119 | Y | 0.018 | 0.001 | 0.074 | Zn | 3.48 | 3.44 | 0.989 | Yb | 0.002 | 0.001 | 0.333 | Ce | 0.099 | 0.006 | 0.064 | | | | |
|
Geochemical characteristic parameters of element contents of geogas bsorbents
|
元素 | 平均值 | 背景值 | 中位数 | 标准离差 | 变化系数 | 最大值 | 最小值 | Au | 0.011 | 0.006 | 0.006 | 0.029 | 2.62 | 0.447 | 0.001 | Ag | 0.057 | 0.021 | 0.013 | 0.251 | 4.4 | 3.6 | 0.004 | Bi | 0.014 | 0.012 | 0.012 | 0.012 | 0.862 | 0.17 | 0.009 | Co | 0.051 | 0.027 | 0.025 | 0.137 | 2.70 | 1.52 | 0.007 | Cu | 2.82 | 1.28 | 1.24 | 13.3 | 4.72 | 246 | 0.63 | Fe | 0.073 | 0.047 | 0.05 | 0.145 | 1.99 | 1.76 | 0.03 | Mg | 0.087 | 0.05 | 0.05 | 0.37 | 4.25 | 6.4 | 0.031 | Ni | 0.487 | 0.257 | 0.23 | 1.63 | 3.34 | 29.3 | 0.1 | Pb | 1.80 | 1.36 | 1.35 | 2.53 | 1.40 | 41.7 | 1.06 | V | 0.152 | 0.102 | 0.103 | 0.282 | 1.85 | 2.99 | 0.064 | Zn | 13.8 | 10.5 | 9.81 | 34.2 | 2.47 | 606 | 2.41 | Ce | 0.259 | 0.118 | 0.12 | 1.28 | 4.95 | 19.3 | 0.09 | Dy | 0.017 | 0.006 | 0.006 | 0.102 | 5.95 | 1.53 | 0.002 | Er | 0.014 | 0.005 | 0.005 | 0.081 | 5.87 | 1.21 | 0.002 | Eu | 0.015 | 0.005 | 0.006 | 0.081 | 5.34 | 1.38 | 0.002 | Gd | 0.049 | 0.022 | 0.021 | 0.247 | 5.04 | 3.77 | 0.011 | Ho | 0.004 | 0.001 | 0.001 | 0.022 | 6.31 | 0.333 | 未检出 | La | 0.151 | 0.066 | 0.066 | 0.77 | 5.11 | 11.6 | 0.052 | Lu | 0.002 | 0.001 | 0.001 | 0.015 | 8.03 | 0.226 | 未检出 | Nd | 0.124 | 0.055 | 0.054 | 0.614 | 4.94 | 9.2 | 0.037 | Pr | 0.032 | 0.014 | 0.014 | 0.162 | 5.05 | 2.45 | 0.01 | Sm | 0.026 | 0.012 | 0.012 | 0.127 | 4.93 | 1.9 | 0.004 | Tb | 0.005 | 0.002 | 0.002 | 0.025 | 5.41 | 0.39 | 0.001 | Tm | 0.002 | 0.001 | 0.001 | 0.012 | 7.47 | 0.186 | 未检出 | Y | 0.093 | 0.026 | 0.025 | 0.629 | 6.76 | 9.3 | 0.016 | Yb | 0.011 | 0.003 | 0.003 | 0.085 | 7.50 | 1.28 | 未检出 |
|
Geochemical parameters of geogas samples in Tianyu Cu-Ni deposit
|
|

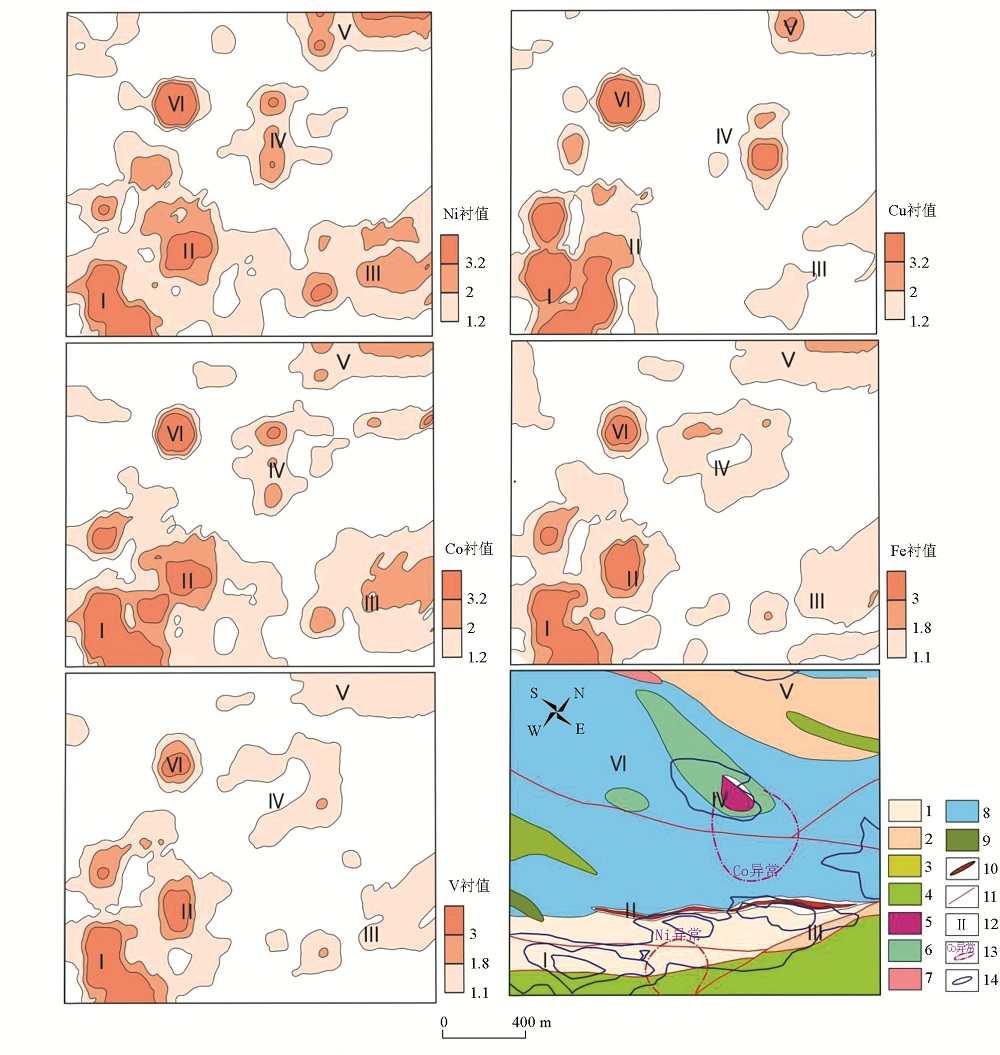

Anomaly distribution map of geogas elements in Tianyu Cu-Ni deposit 1—granitic mylonite; 2—granitic gneiss; 3—sericite-quartz schist; 4—migmatite; 5—basic-ultrabasic rock; 6—gabbro; 7—diorite; 8—gneiss granite; 9—mylonitized granite; 10—main orebody; 11—fault; 12—anomal number; 13—anomaly in 1:50 000 geochemical exploration; 14—magnetic anomalies in 1:10 000 geophysical exploration
|
