伪随机信号电法仪在河北某老矿山的应用

doi:10.11720/wtyht.2019.1372

Abstract
Figure/Table
References
Related Citation (7)

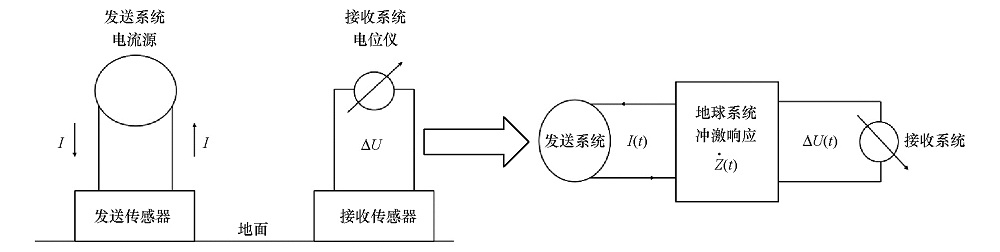

Observing system of active source electric and electromagnetic prospecting and it’s equivalent circuit

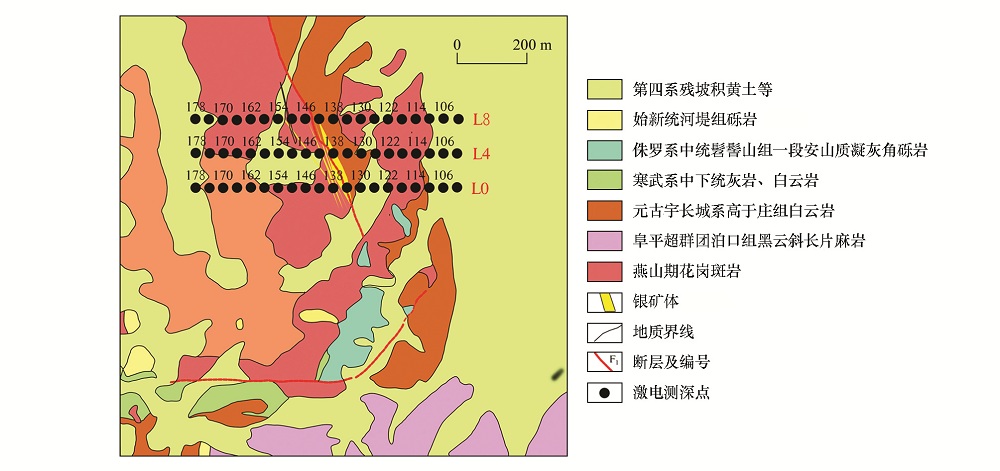

Positions of IP sounding points

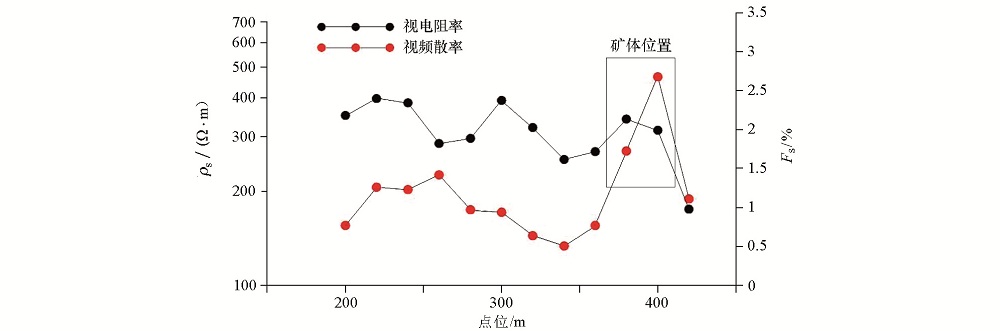

Results of gradient array on test profile

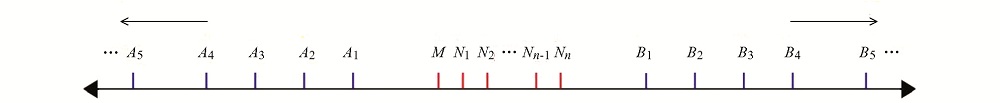

Sketch map of gradient sounding array

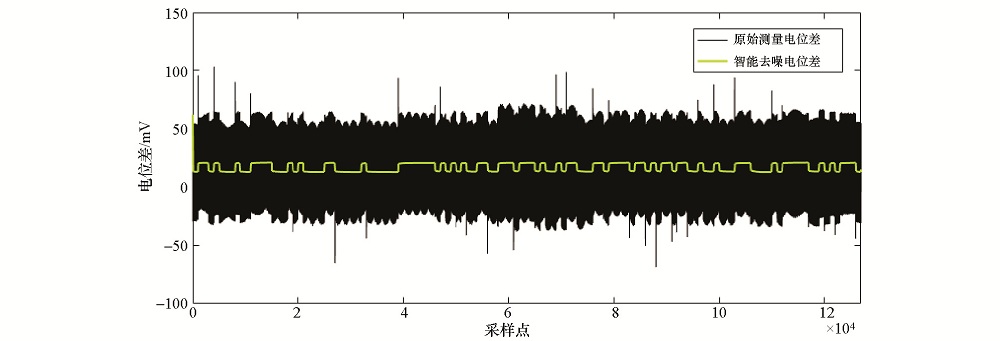

Waveform comparison of time series before and after pretreatment

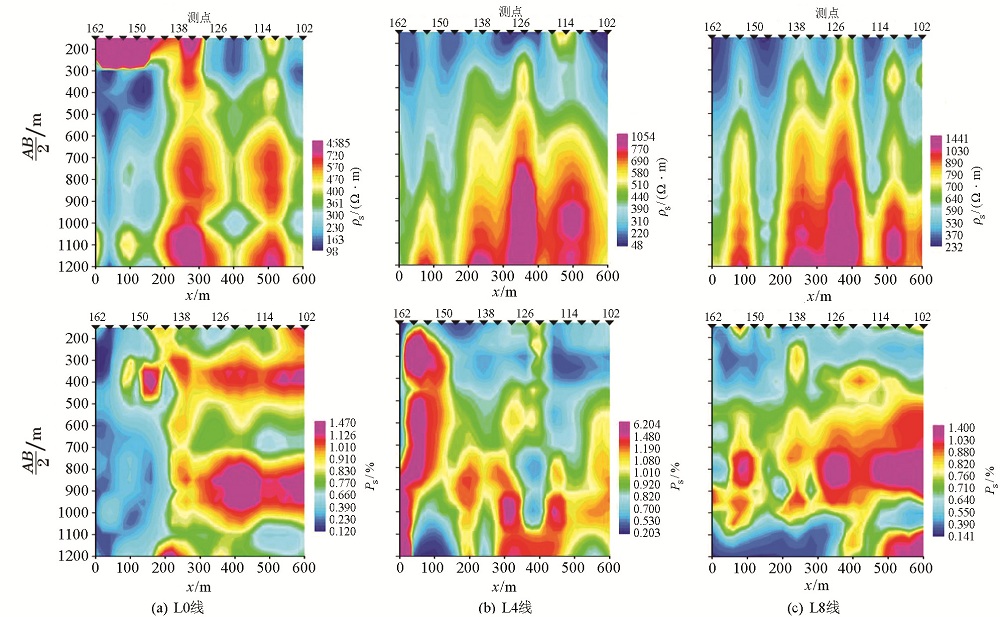

The apparent resistivity and apparent percent frequency effect pseudosection map of L0,L4,L8

Composite profile of L0

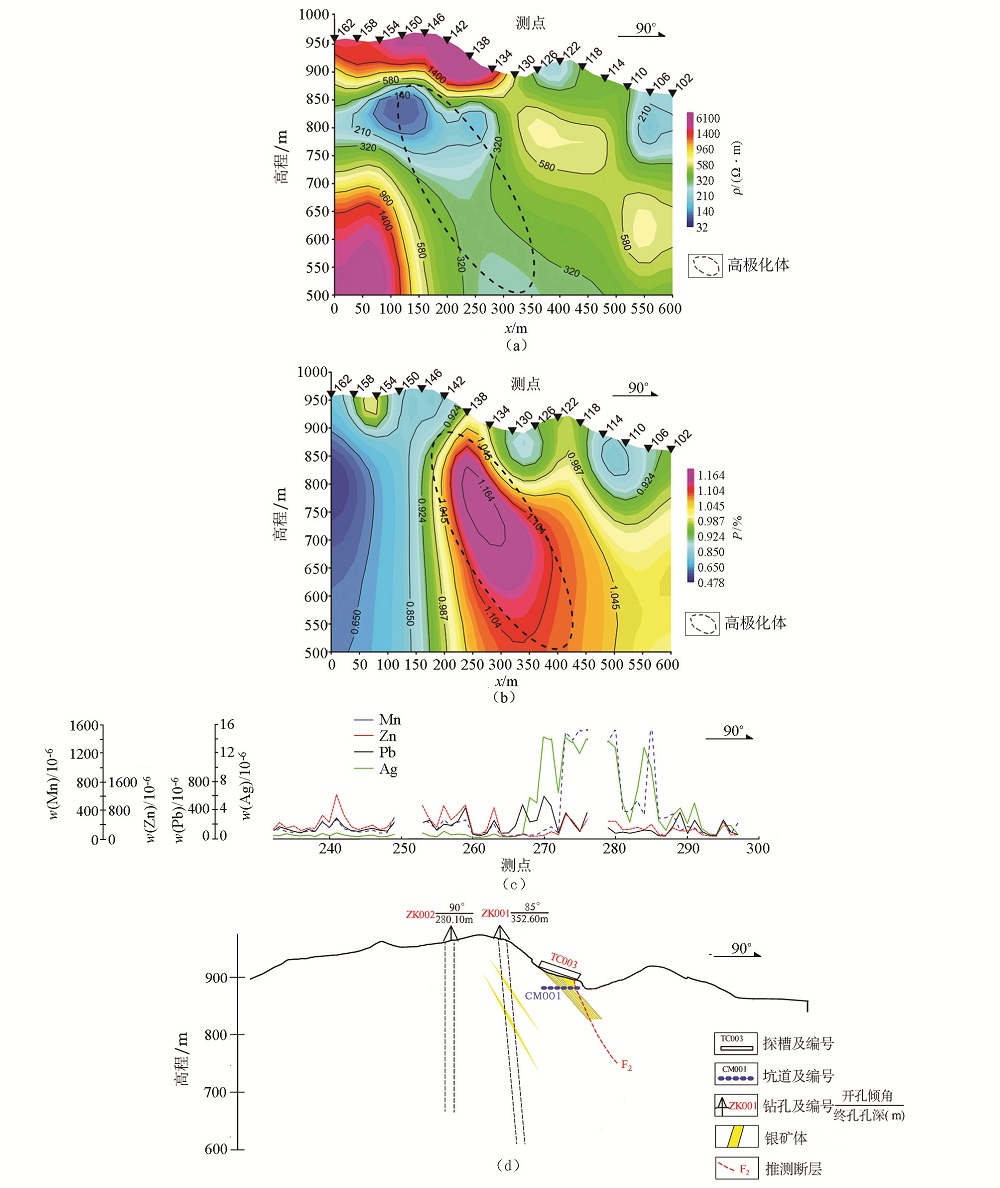

a—section map of resistivity inversion results; b—section map of percent frequency effect; c—previous geochemical curves; d—geological section

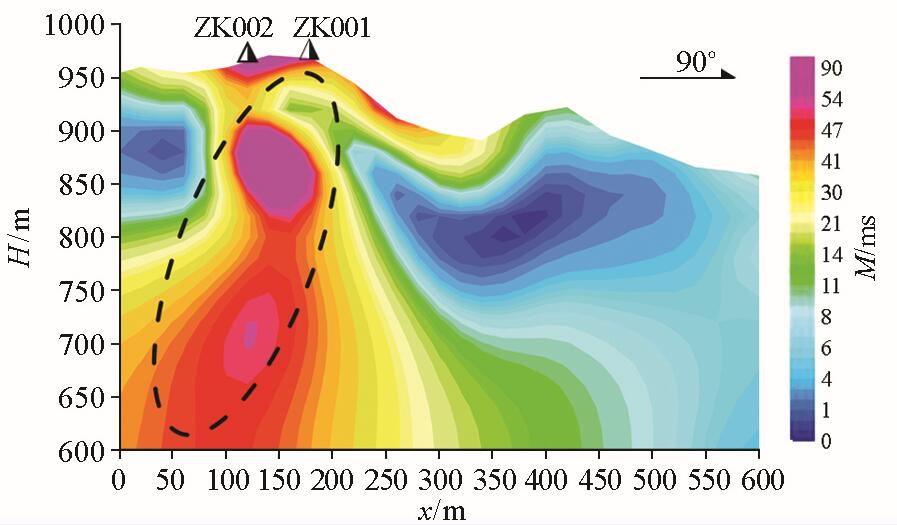

Section map of L0 chargeability inversion results by traditional IP Instruments

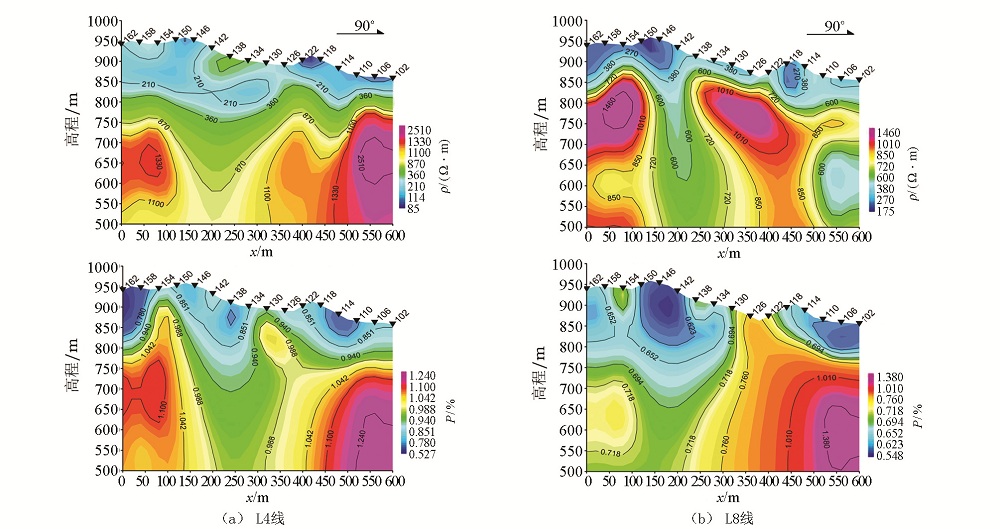

Section map of L4(a),L8(b) inversion results
