航空物探工作程度图批量定制技术研究

doi:10.11720/wtyht.2019.1322

Abstract
Figure/Table
References
Related Citation (4)

Download: PDF (5785 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

Aero geophysical survey regions maps reflect the information of aero geophysical survey work in the past, and also provide references for survey data collection and survey work planning. In order to fulfill the large demand of industrial and social users for multi-scale and cross-regional aero geophysical survey regions maps, the authors employed National Aero Geophysical Metadata Database established by AGRS to carry out studies of batch creating maps. According to the technical route of “graphic standards stored in data dictionary, drawing style managed by template files, dynamic drawing elements by user parameters”, the technique of batch customizing aero geophysical survey regions maps is realized. The technology achieved good application results in the socialized service of aero geophysical survey data and the project deployment and implementation of “Aero geophysical surveys in key ore-forming areas such as Qinling and Tianshan”.

Key words： aero geophysical survey survey regions map data driven batch customizing maps data dictionary

Received: 06 September 2018 Published: 20 February 2019

P631

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Lei FENG
	Wei ZHOU
	Yao CHEN
	Wen-Ji LI

Cite this article:

Lei FENG,Wei ZHOU,Yao CHEN, et al. Research on technology of batch customizing aero geophysical survey regions maps[J]. Geophysical and Geochemical Exploration, 2019, 43(1): 153-160.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2019.1322 OR https://www.wutanyuhuatan.com/EN/Y2019/V43/I1/153

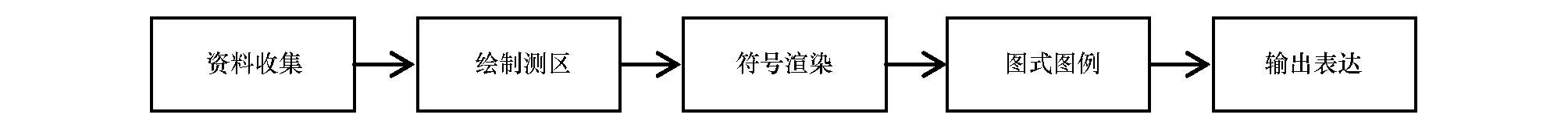

Current drawing map workflow

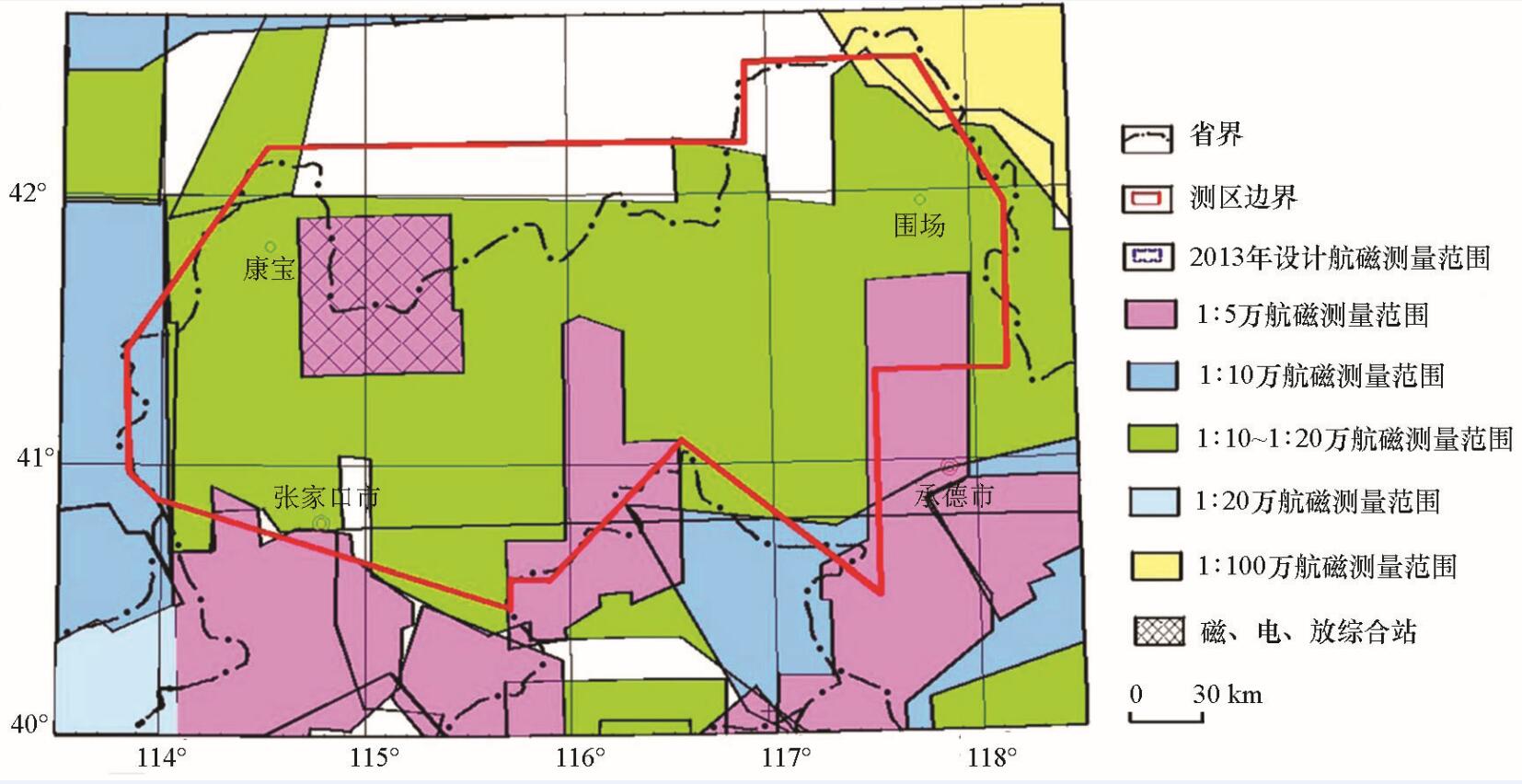

Example of aero geophysical survey regions map

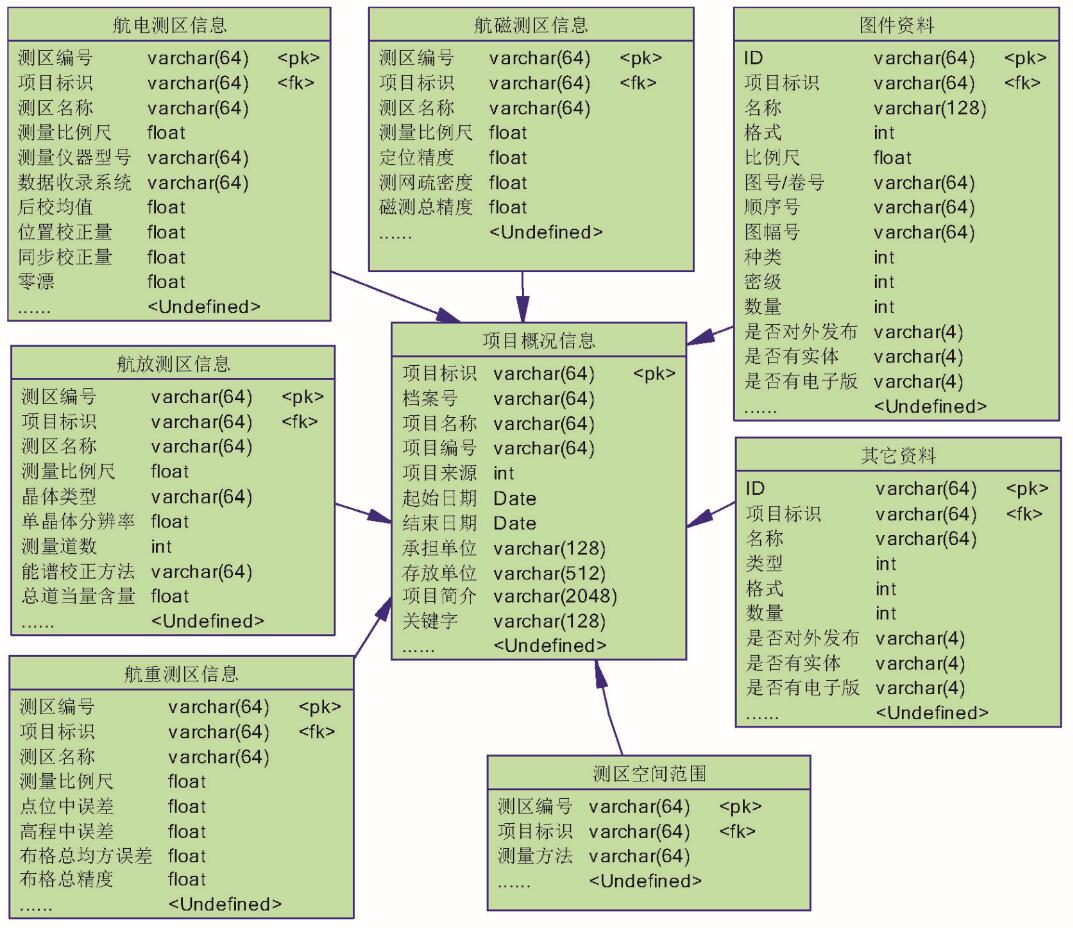

Metadata tables of aero geophysical survey regions

序号	字段名	字段描述	字段类型	备注
1	ID	序号	INT	主键ID
2	MB_NAME	模板名称	VARCHAR(100)	一套模板对应一系列参数
3	TITLE_VISIBLE	图名是否可见	BOOL	1—可见,0—不可见
4	COMPASS_VISIBLE	指北针是否可见	BOOL	1—可见,0—不可见
5	LEGEND_VISIBLE	图例是否可见	BOOL	1—可见,0—不可见
6	SCALE_VISIBLE	比例尺是否可见	BOOL	1—可见,0—不可见
7	GRID_VISIBLE	图框网格是否可见	BOOL	1—可见,0—不可见
8	TITLE_SIZE	图名字号大小	INT	字号
9	TITLE_VERTICAL	图名水平位置	INT	1—居左,2—居中,3—居右
10	TITLE_HORIZON	图名垂直位置	INT	1—居上,2—居中,3—居下
11	TITLE_TOP	图名向上偏移量	FLOAT	中心点离原位置的偏移量
12	TITLE_LEFT	图名向左偏移量	FLOAT	中心点离原位置的偏移量
13	COMPASS_SIZE	指北针大小	FLOAT	指北针默认大小,百分比
14	COMPASS_VERTICAL	指北针水平位置	INT	1—居左,2—居中,3—居右
15	COMPASS_HORIZON	指北针垂直位置	INT	1—居上,2—居中,3—居下
16	COMPASS_TOP	指北针向上偏移量	FLOAT	中心点离原位置的偏移量
17	COMPASS_LEFT	指北针向左偏移量	FLOAT	中心点离原位置的偏移量
18	LEGEND_SIZE	图例大小	FLOAT	图例默认大小,百分比
19	LEGEND_VERTICAL	图例水平位置	INT	1—居左,2—居中,3—居右
20	LEGEND_HORIZON	图例垂直位置	INT	1—居上,2—居中,3—居下
21	LEGEND_TOP	图例向上偏移量	FLOAT	中心点离原位置的偏移量
22	LEGEND_LEFT	图例向左偏移量	FLOAT	中心点离原位置的偏移量
23	SCALE_SIZE	比例尺大小	FLOAT	比例尺默认大小,百分比
24	SCALE_VERTICAL	比例尺水平位置	INT	1—居左,2—居中,3—居右
25	SCALE_HORIZON	比例尺垂直位置	INT	1—居上,2—居中,3—居下
26	SCALE_TOP	比例尺向上偏移量	FLOAT	中心点离原位置的偏移量
27	SCALE_LEFT	比例尺向左偏移量	FLOAT	中心点离原位置的偏移量
28	……	……	……	……

Data dictionary of basic infomation in maps

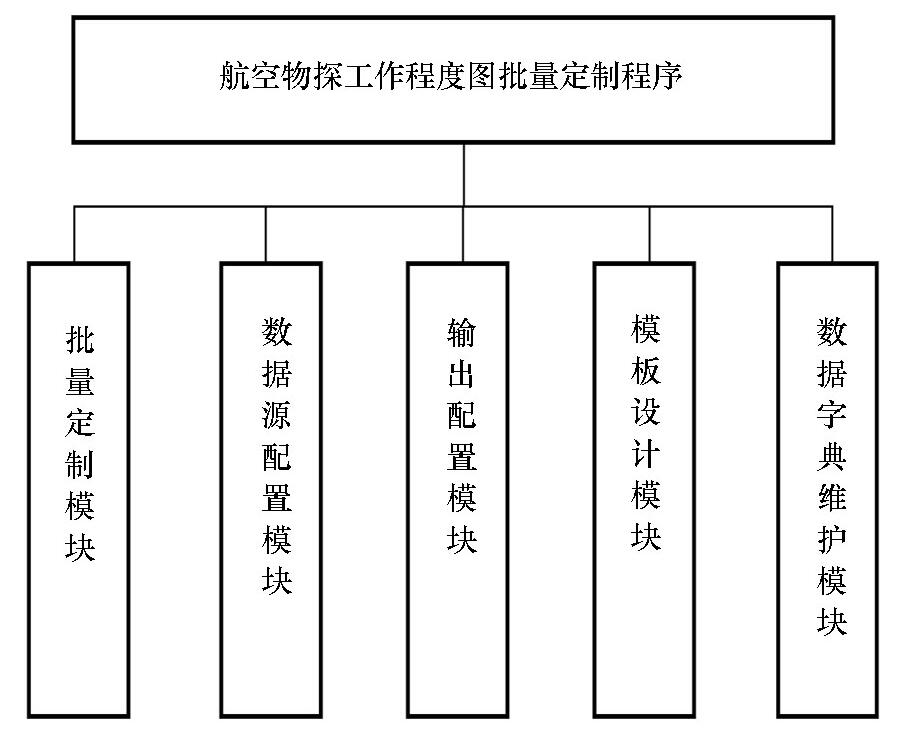

Main function modules of the program

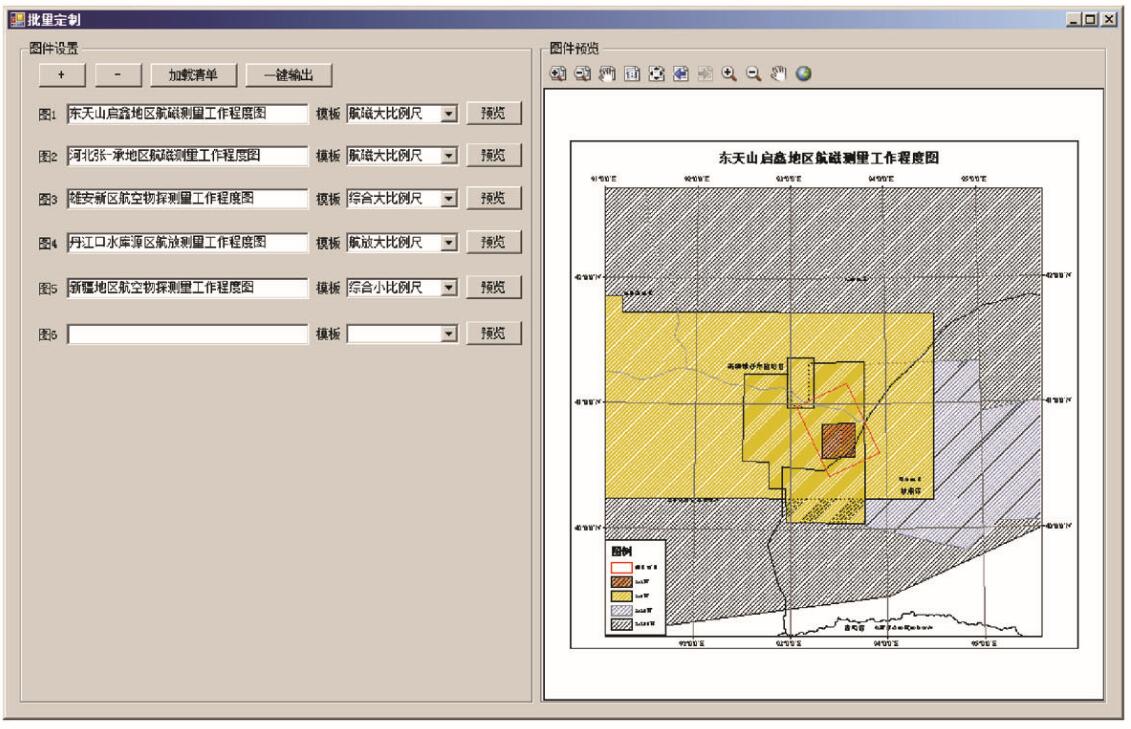

Interface of batch drawing maps

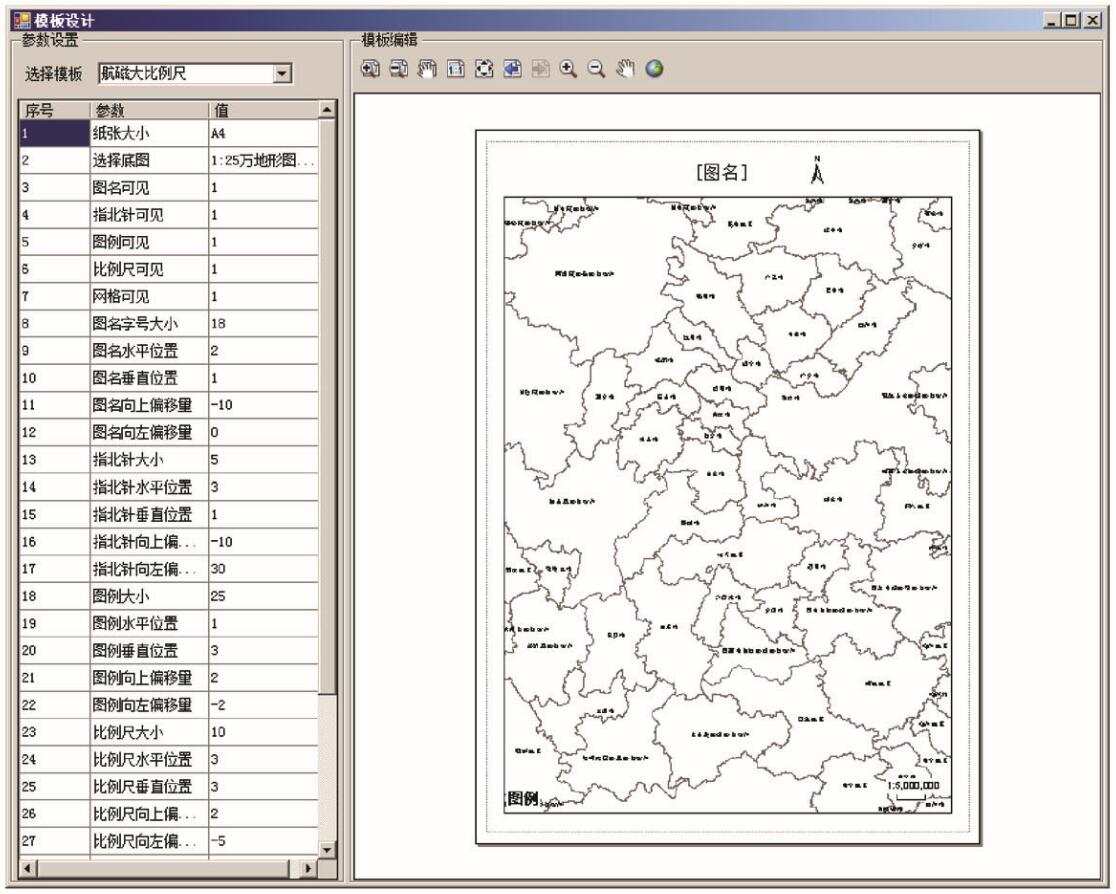

Interface of templates design

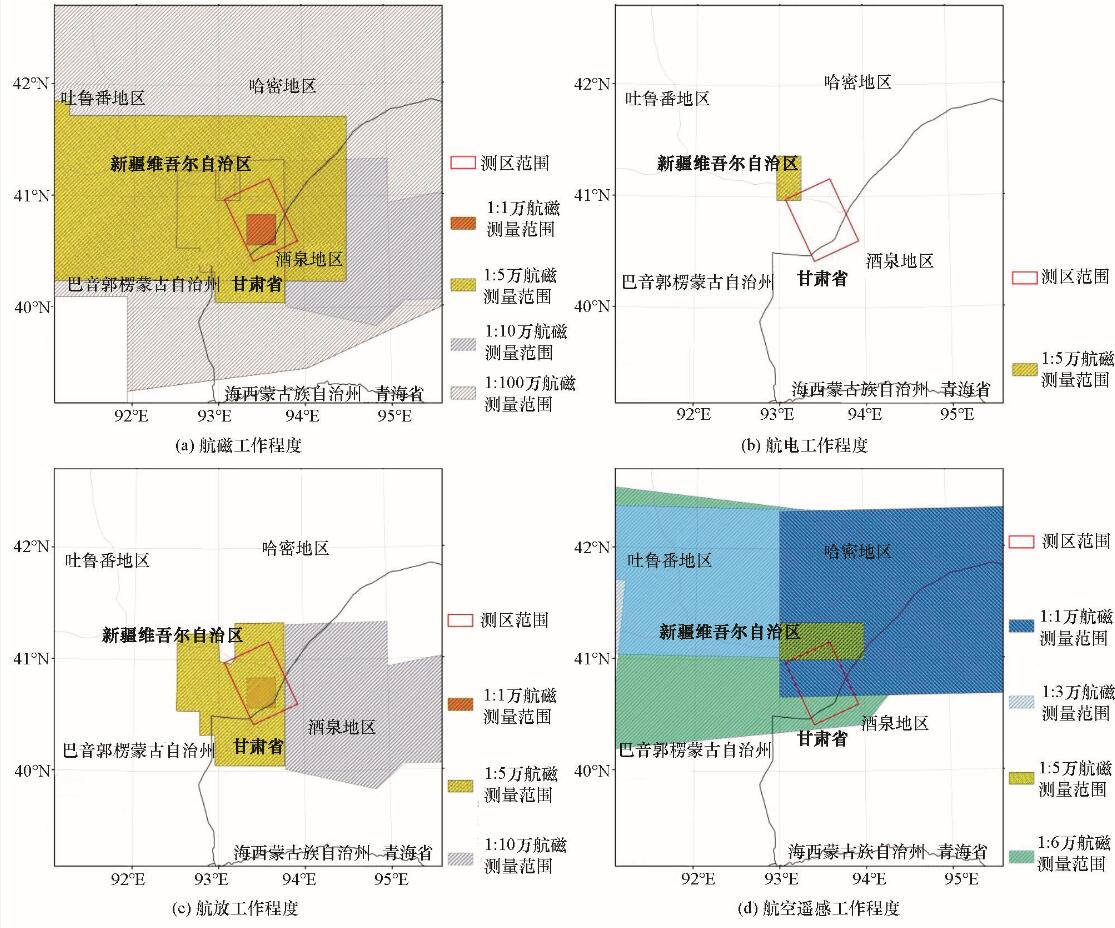

Aero magnetic, electrical, radioactive survey regions maps
a—aero magnetic survey regions map;b—aero electrical survey regions map; c—aero radioactive survey regions map;d—aero remote sensing survey regions map
