| Two-dimensional nonlinear conjugate gradient inversion of ZTEM |
| Zhi-Bo XU1, Han-Dong TAN2 |
1. Civil and Transportation College of Beihua University, Jilin 132013, China
2. School of Geophysics and Information Technology, China University of Geoscience (Beijing), Beijing 100083, China |
|
|
|
|
Abstract The ZTEM (Z-Axis Tipper Electromagnetics) is a frequency-domain airborne electromagnetic method that results from natural sources. It has the feature that the vertical component of magnetic field is measured from a moving helicopter platform and the horizontal component of magnetic field is measured at a reference station on the ground. In addition, it has the advantages of deep exploration, fast speed, low cost and large coverage area. This paper realizes the 2D finite difference forward modeling and NLCG inversion of ZTEM. The object of the study is the tipper data. The direct calculation of Jacobian matrix is avoided by solving the "quasi-forward" problem in the inversion process. The stability and reliability of the 2D NLCG inversion of ZTEM tipper data are verified by the trial calculation of synthetic data inversion of theoretical model. A comparison with the inversion result of impedance data of magnetotelluric (MT) TE mode shows that the ZTEM tipper inversion is superior to the MT impedance inversion in the constraint of the lateral boundary of the anomalous body.
|
|
Received: 10 August 2018
Published: 10 April 2019
|
|
|
|
|
|
|

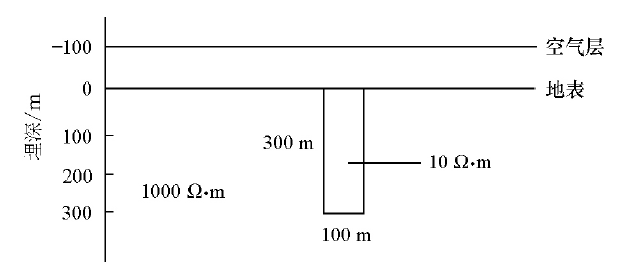

A schematic diagram of two dimensional object model
|
|

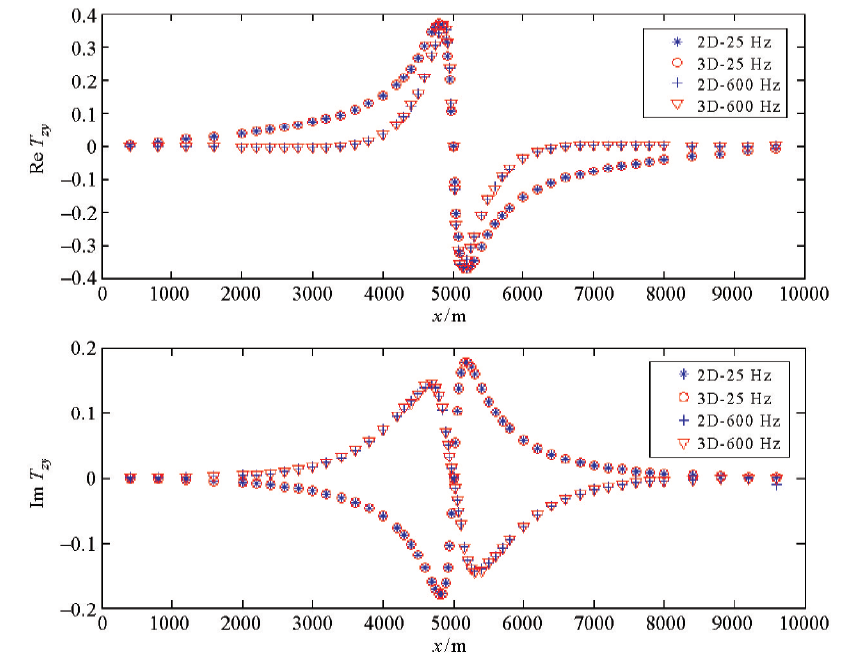

The tipper response comparison between the 2D finite difference modeling results and the 3D finite difference modeling results generated from 2D model
|
|

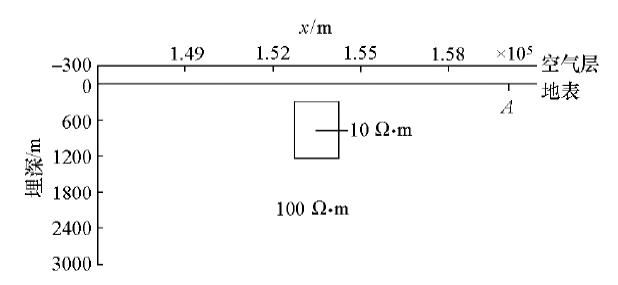

Schematic diagram of single abnormal body model
|
|

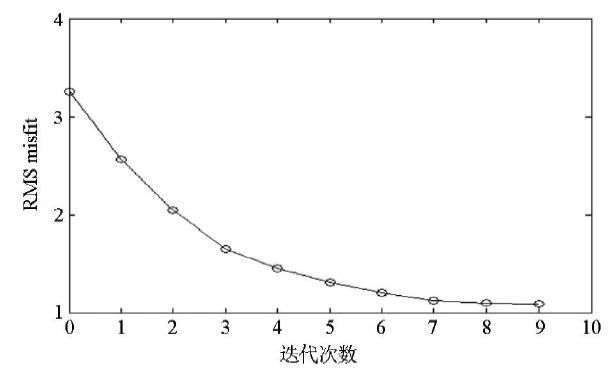

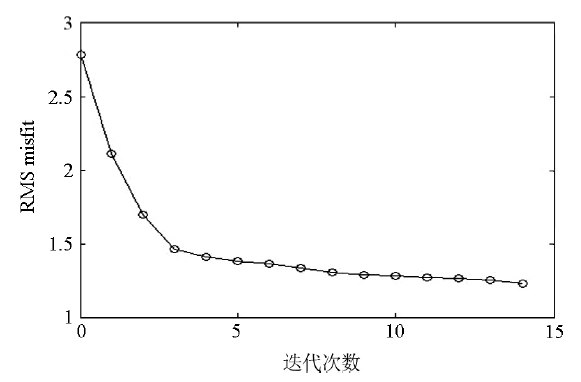

Convergence Curve of RMS misfit versus iteration number
|
|

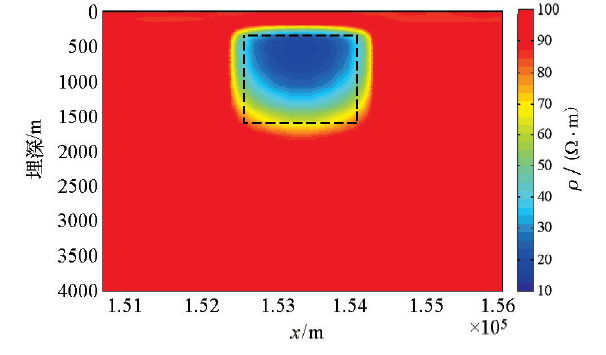

The inversion results of ZTEM tipper data generated by a single abnormal body model
|
|

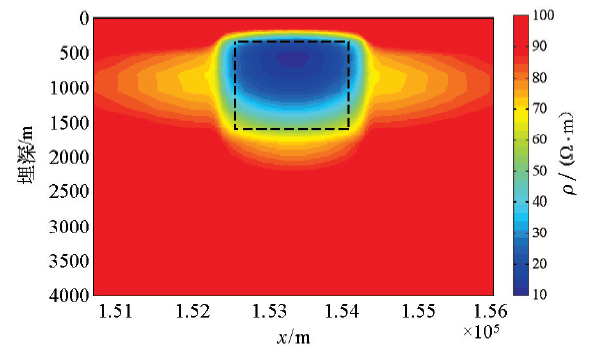

The inversion results of ZTEM tipper data generated by a single abnormal body model
|
|
Schematic diagram of two abnormal bodies model
|
|
Convergence Curve of RMS misfit versus iteration number
|
|

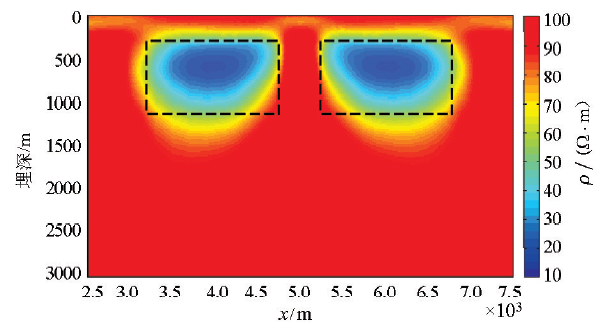

The inversion results of ZTEM tipper data generated by two abnormal bodies model
|
|

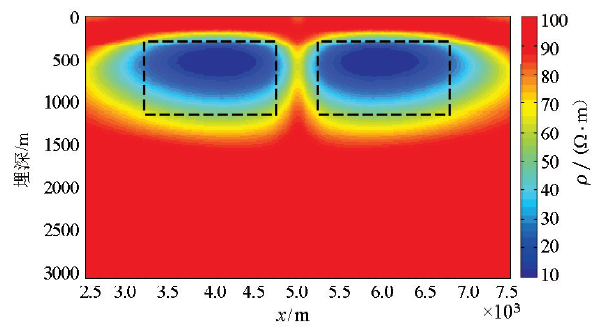

The inversion results of MT tipper data generated by two abnormal bodies model
|
