LSQR法在位场反演中的分析与评价

doi:10.11720/wtyht.2019.1261

Abstract
Figure/Table
References
Related Citation (1)

Download: PDF (2726 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

The LSQR method has the advantages of high computing efficiency and low memory requirement, and is thus suitable for solving large-scale ill-posed problems. In order to discuss its application in the stability and reliability of potential field inversion, the authors, on the basis of two synthetic models data with different noises as the object of the experiment, studied Tikhonov regularization and LSQR method, and the results show that the LSQR method can satisfy the requirement for solving potential field inversion with the regularization solution. In comparison with Tikhonov regularization, the maximum relative error of the LSQR method is only 0.36%, indicating that the use of LSQR method to solve potential field inverse problems is feasible. It was applied to 3D inversion of gravity in Ya’an area of Sichuan basin, which greatly reduced computation cost and obtained the distribution of sedimentary basins and main faults in the area, thus providing strong support for shale gas target area optimization.

Key words： iterative regularization LSQR method Tikhonov regularization potential field inversion

Received: 02 July 2018 Published: 10 April 2019

P631

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Sheng-Xian LIANG
	Qiao Wang
	Yan-Jie JIAO
	Guo-Zhong LIAO
	Jing GUO

Cite this article:

Sheng-Xian LIANG,Qiao Wang,Yan-Jie JIAO, et al. Analysis and evaluation of the potential field inversion using LSQR method[J]. Geophysical and Geochemical Exploration, 2019, 43(2): 359-366.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2019.1261 OR https://www.wutanyuhuatan.com/EN/Y2019/V43/I2/359

初始化:
β₁μ₁=d, α₁ν₁=A^Tμ₁, ω₁=ν₁
m₀=0,

ρ 1 *

=α₁,

φ 1 *

=β₁

for i=1,2,3,…
β_i₊₁μ_i₊₁=Aν_i-α_iμ_i,
α_i₊₁ν_i₊₁=A^Tu_i₊₁-β_i₊₁ν_i,
ρ_i=

ρ i * 2 + β i + 1 2

, c_i=

ρ i * ρ i

, s_i=

β i + 1 ρ i

,
θ_i₊₁=s_iα_i₊₁, φ_i=c_i

φ i *

ρ i + 1 *

=-c_iα_i₊₁,

φ i + 1 *

=s_i

φ i *

,
m_i₊₁=m_i+

φ i ρ i

ω_i, ω_i₊₁=ν_i₊₁-

θ i + 1 ρ i

ω_i
是否达到迭代终止条件。

Description of instruction in LSQR algorithm

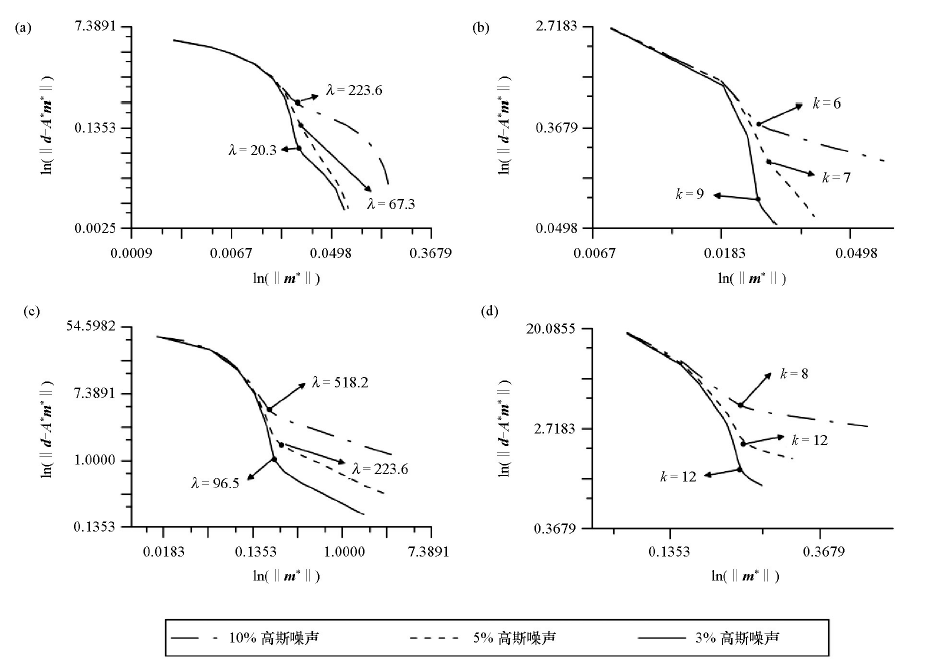

The L-curve of Tikhonov regularization and LSQR
a—single model for Tikhonov regularization;b—single model for LSQR;c—complex model for Tikhonov regularization;d—complex model for LSQR

The ruslts of synthetic models for Tikhonov and LSQR regularization

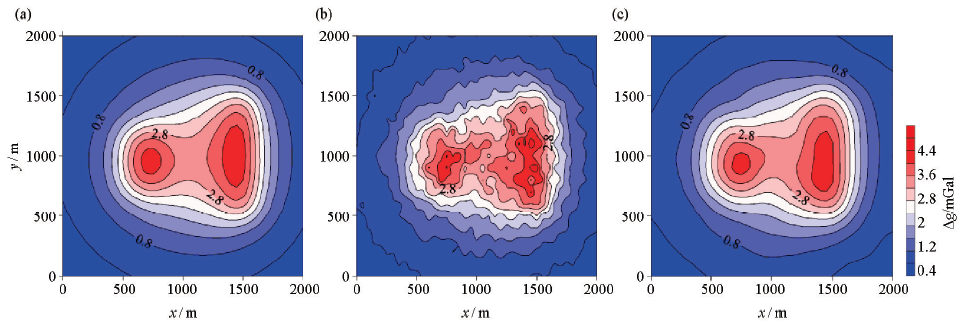

Map of composite model data contour (isoline interval:0.4mGal)
a—datas without deviation;b—datas with 10% gauss noise models;c—datas of inversion model

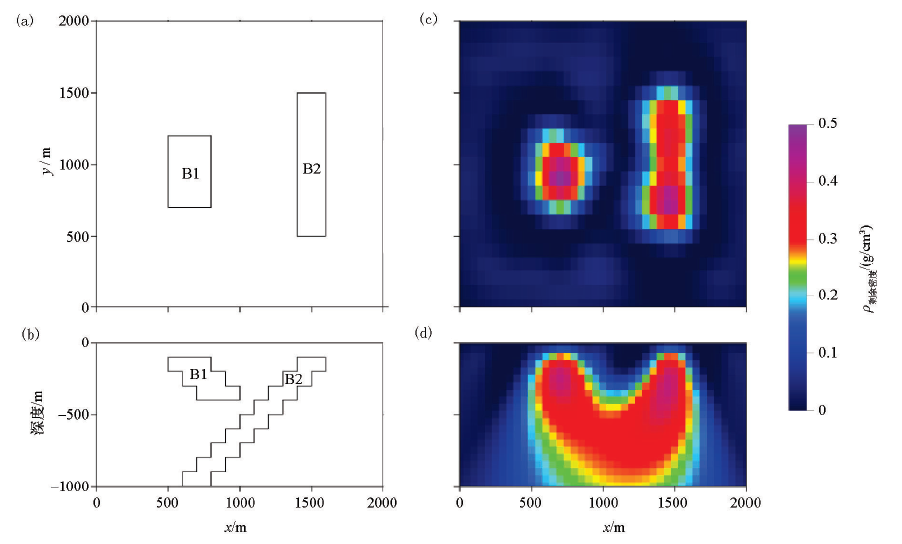

Complex of model and the inversion results
a—the plan slices of the XY-plane(depth of 100m);b—the plan slices of the XZ-profile(Y=1000 m);c—the LSQR inversion result of the plan slices of the XY-plane(depth of 100m);d—the LSQR inversion result of the plan slices of the XZ-profile(Y=1000 m)

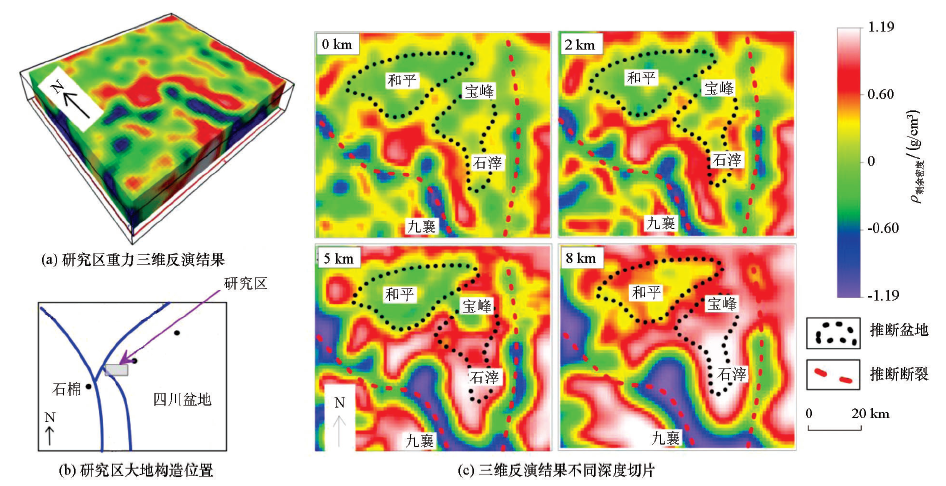

The 3D inversion of gravity in Ya’an area of Sichuan basin
