The application of integrated geophysical exploration to geothermal exploration in Haishiwan area |
Hai-Chuan SUN, Yong-Liang LIU, Cheng-Long SHAO |
Gansu Coal Geological Prospecting Institute, Lanzhou 730000, China |
|
|
Abstract Based on an analysis of the conditions of geothermal formation in Haishiwan area, the geophysical prospecting methods of CSAMT(Controlled Source Audio Magnetotelluric), MT(Magnetotelluric)and gamma ray spectrometry were used to verify each other and, as a result, cover layer thickness, the buried depth of thermal reservoir and the fracture location were found, which avoids one-side trend and blindness of a single method and provides a basis for drilling and obtaining good results in exploration. Drilling verification shows that well hole strata and water-bearing horizon are basically consistent with the results of geophysical inference, the water temperature of well mouth is 60℃,the water gushing amount is 90 m 3/h, and the thermal reservoir is a fault type banded reservoir. The result provides valuable experience and example for geothermal exploration in similar areas in the future.
|
Received: 22 June 2018
Published: 10 April 2019
|
|
|
|
|
|

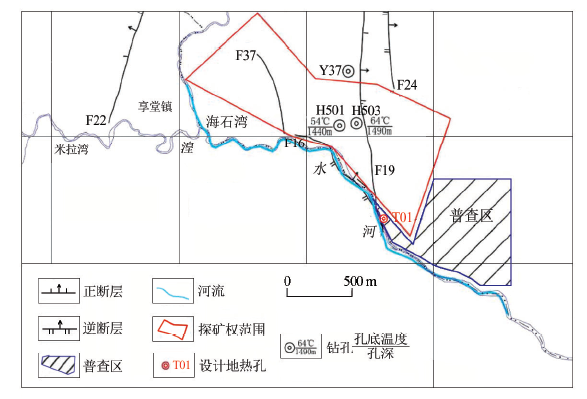

A schematic diagram of research area
|
地层 | 主要岩性 | 电阻率/(Ω·m) | 第四系 | 黄土、砂砾碎石 | 10~300 | 白垩系 | 砂岩、砂砾岩、粉砂岩、泥岩 | 15~25 | 侏罗系 | 砾岩、砂砾岩、粗砂岩、 含砾细砂岩、粉砂岩、泥岩 | 10~35 | 元古宇皋兰群 | 片岩、硅质灰岩 | 100 |
|
Resistivity of the surrounding strata in the study area
|
|

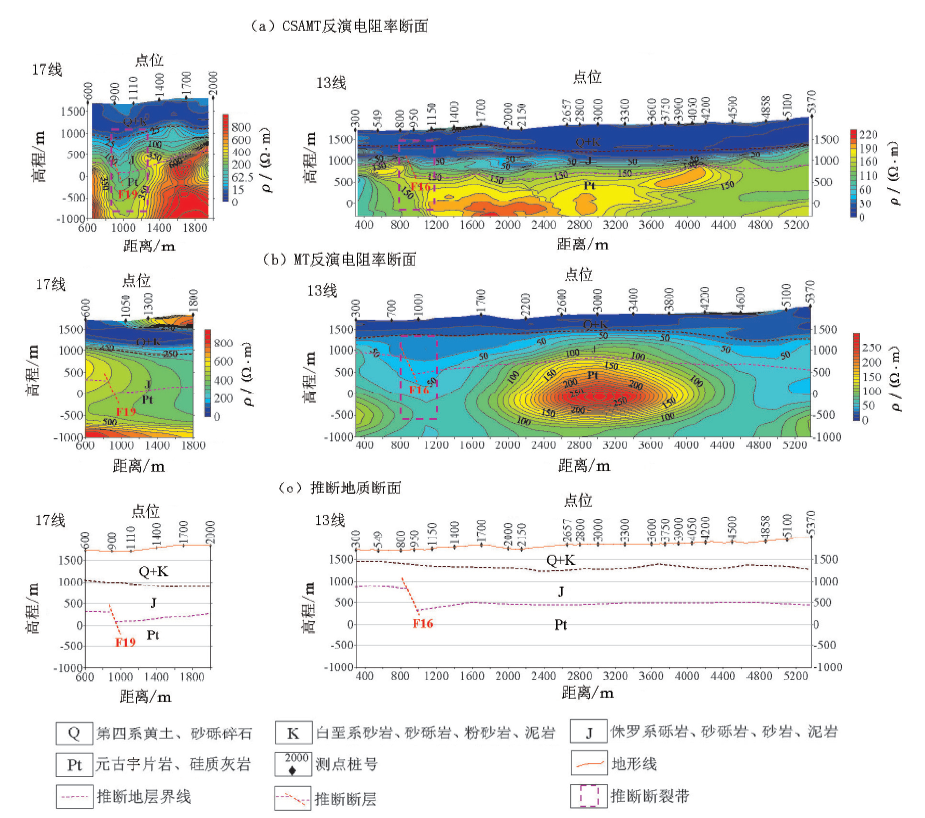

Comprehensive section of 17 and 13 lines electrical exploration
|
名称 | w(U) | w(Th) | w(U)/w(Th) | 铀异常点 | >3Xu | <XTh | >1 | 铀、钍混合异常点 | >3Xu | >XTh+2STh | 0.167~1 | 钍异常点 | <Xu | >3XTh | <0.167 |
|
Division principle of Uranium and Thorium
|
测线 | X(U)/(μg·g-1) | X(Th)/(μg·g-1) | X(K)/% | 1 | 2.718844 | 9.228455 | 1.647115 | 3 | 2.4133056 | 14.71463808 | 1.93604356 | 5 | 2.959213416 | 10.491754 | 1.738374284 | 7 | 2.898789202 | 10.613982 | 1.790099038 | 9 | 2.871994357 | 10.499963 | 1.847403817 | 11 | 2.916510956 | 13.343499 | 1.978705939 | 13 | 3.988651436 | 11.409748 | 1.662420489 | 5 | 3.767491533 | 11.331363 | 1.855697523 | 17 | 2.786647054 | 9.323948 | 1.66368940 |
|
Background values of radioactive elements from various lines in the study area
|
放射性元素 | 基性岩浆岩 | 中性岩浆岩 | 花岗岩 | Th | 0.05 | 4 | 18 | U | 0.03 | 1 | 3.5 | 放射性元素 | 页岩 | 砂岩 | 灰岩 | Th | 12 | 1.7 | 1.7 | U | 3.7 | 0.45 | 2.2 |
|
Average mass fraction of radioactive elements in magmatic and sedimentary rocks10-6
|
|

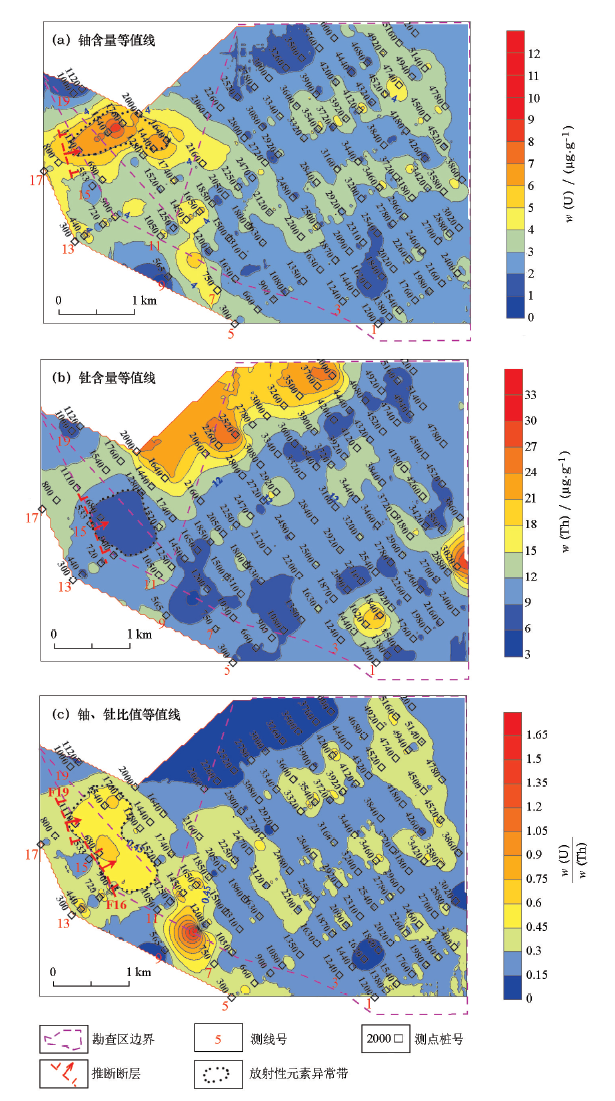

Isoline chart of Uranium and Thorium content and the ratio of Uranium and Thorium
|
|

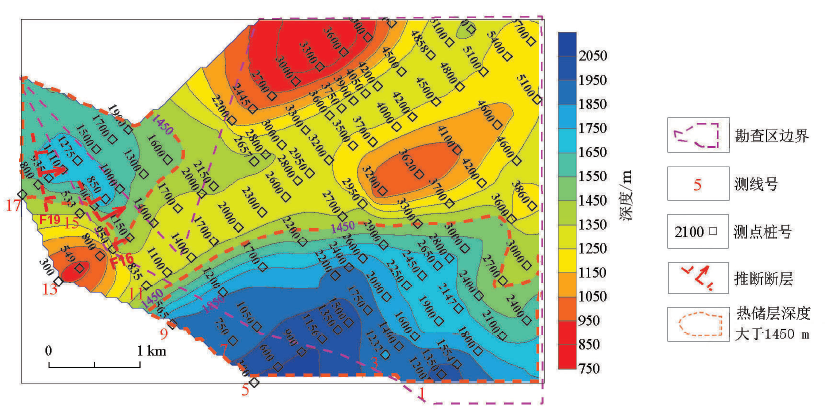

Isoline chart of thermal reservoir
|
|

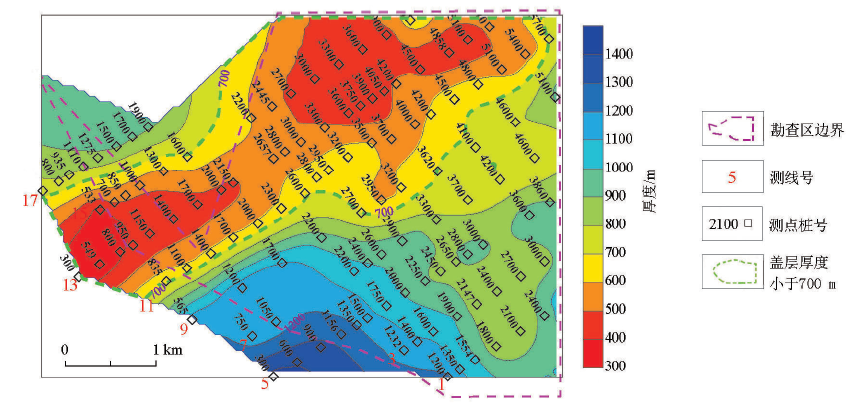

Isoline chart of cover layer thickness
|
