The anisotropic characteristics and impact of organic-rich shale:A Jiaoshiba demonstration |
Wen-Cheng LI, Zhe-Yi FU |
Exploration Branch Company of SINOPEC,Chengdu 610041,China |
|
|
Abstract Because of the particular depositional mode,black organic matter-rich shales are generally characterized by strong velocity anisotropy;however,most researches on shale are on the basis of isotropic theory,which obviously ignores the geological characteristics of shale.In this paper,anisotropic parameters of shale are calculated by combining rock mechanical measurements in the laboratory with the empirical methods from the literature.On the one hand,the parameters are used to investigate their effects on the calculation of velocity versus bedding direction and rock mechanical parameters,and the result shows that the anisotropic characteristics of shale cannot be neglected when the dip angle of the strata is large.On the other hand,little difference between AVO responses of anisotropic and isotropic methods when the incidence angle is less than 40° indicates the feasibility of isotropic pre-stack seismic inversion in predicting shale "sweet spot".
|
Received: 19 June 2018
Published: 10 April 2019
|
|
|
|
|
|
Regional location of research area
|
|
Thin section (a) and FMI image (b) of shale reservoir for JY1
|
|

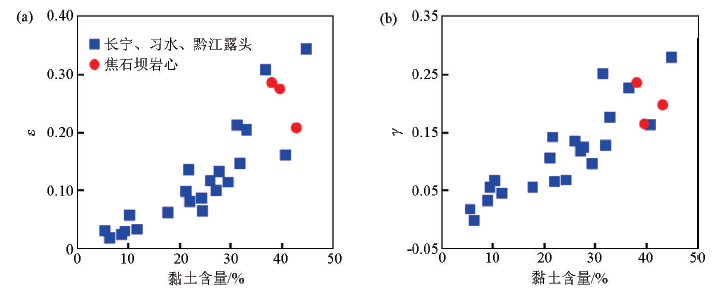

Crossplot of anisotropic parameters ε(a)、γ(b)versus clay content
|
计算方法 | ε | γ | δ | 焦石坝三轴压缩实验 | 0.209 | 0.191 | 0.067 | Deng经验公式 | 0.215 | 0.209 | 0.069 | Sone经验公式 | 0.245 | 0.274 | 0.078 | Syaers经验公式 | 0.293 | 0.515 | 0.006 |
|
Statistics of anisotropic parameters calculated by different methods
|
|

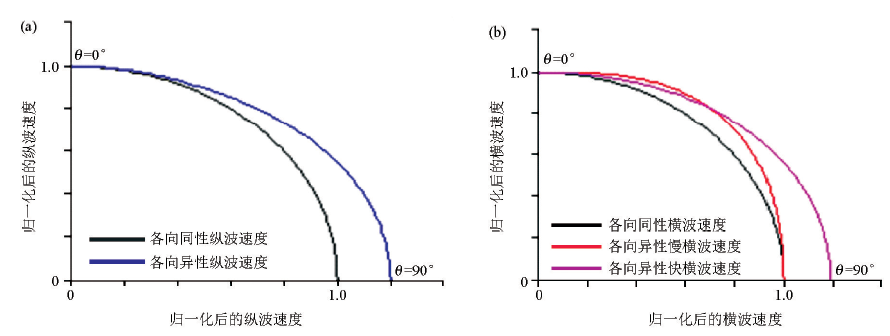

Normalized P-(a) and S-wave (b) velocity variation with dip angle of shale layers
|
序号 | 层段 | 纵波速度/(m·s-1) | 横波速度/(m·s-1) | 密度/(g·cm-3) | ε | γ | δ | ① | 龙一段页岩 | 4036 | 2373 | 2.60 | 0.234 | 0.228 | 0.075 | ② | 龙一段二亚段页岩 | 4220 | 2516 | 2.63 | 0.237 | 0.231 | 0.076 | ③ | 龙一段一亚段页岩 | 4000 | 2344 | 2.53 | 0.174 | 0.169 | 0.056 | ④ | 涧草沟组灰岩 | 6007 | 3101 | 2.72 | 0 | 0 | 0 |
|
Velocity、density and anisotropic parameters for different intervals
|
|

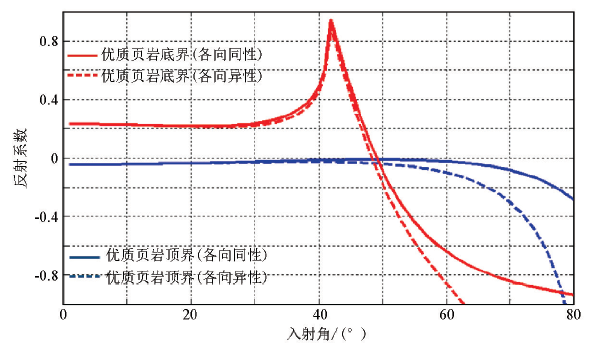

Comparison of AVA curve between isotropic and anisotropic methods
|
|

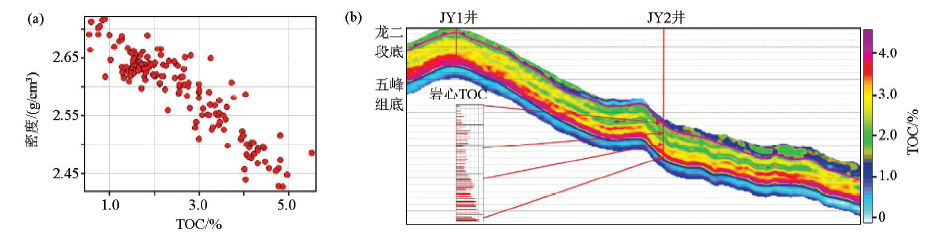

Crossplot of density and TOC (a) and inverted TOC section using isotropic method (b)
|
|

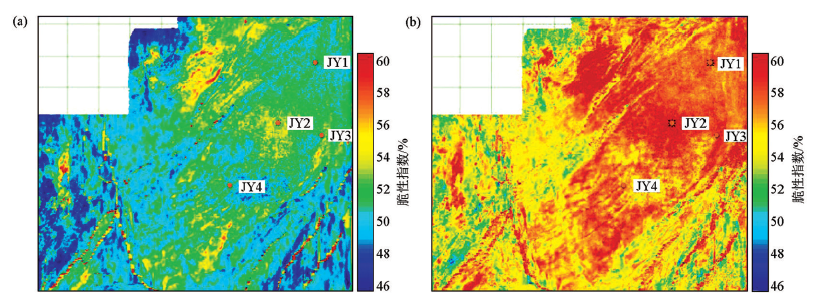

Slices of shale apparent brittleness index (a) and horizontal brittleness index (b)
|
