The processing technology of narrow azimuth Quasi three-dimensional seismic data acquisition by single source and single long streamer system in marine seismic exploration |
Gui-Lin DENG1,2, Long-Xiang DING1,2, Fu-Yuan LI1,2, Bao-Jin ZHANG1,2 |
1. MNR Key Laboratory of Marine Mineral Resources,Guangzhou 510075,China 2. Guangzhou Marine Geological Survey,Guangzhou 510075,China |
|
|
Abstract The structure of Mesozoic in Chaoshan sag in the north of the South China Sea is quite complex,so two-dimensional seismic data imaging can not accurately reveal the inside of the structure,and the environment in this area is complex and not suitable for conventional multi-cable three-dimensional seismic data acquisition system.Based on the characteristics of quasi three dimensional seismic data acquisition by single source and single long streamer system,the authors used air-gun de-bubble technology in combination with multiple suppression method,Compact Fourier Interpolation technology and three-dimensional prestack time migration technology in the seismic data processing project.It is for the first time that three-dimensional prestack time migration data were obtained in this area,and the quality of the imaging profile is greatly improved relative to that of the two-dimensional data.It can accurately reveal the inner curtain of the thrust structure and solve the problem that can not be solved by the former two-dimensional seismic exploration.
|
Received: 17 May 2018
Published: 15 August 2019
|
|
|
|
|
接收道数 | 480 | 道间距/m | 12.5 | 覆盖次数 | 120 | 炮间距/m | 25 | 采样率/ms | 2 | 滤波高切频率 | 200 Hz/-370 dB | 滤波低切频率 | 4 Hz/-3 dB | 记录长度/s | 8 | 震源容量/(cu.in.) | 5080 | 工作压力/(p.s.i.) | 2000 | 震源沉放深度/m | 8-5-5-8 | 震源阵列激发延时/ms | 2-0-0-2 | 电缆沉放深度/m | 9 | 最小偏移距/m | 175 | 原始面元大小/m | 25(纵)×100(横) | 面元重叠率 | 50% |
|
Acquisition parameters for Quasi three dimensional seismic exploration
|
|

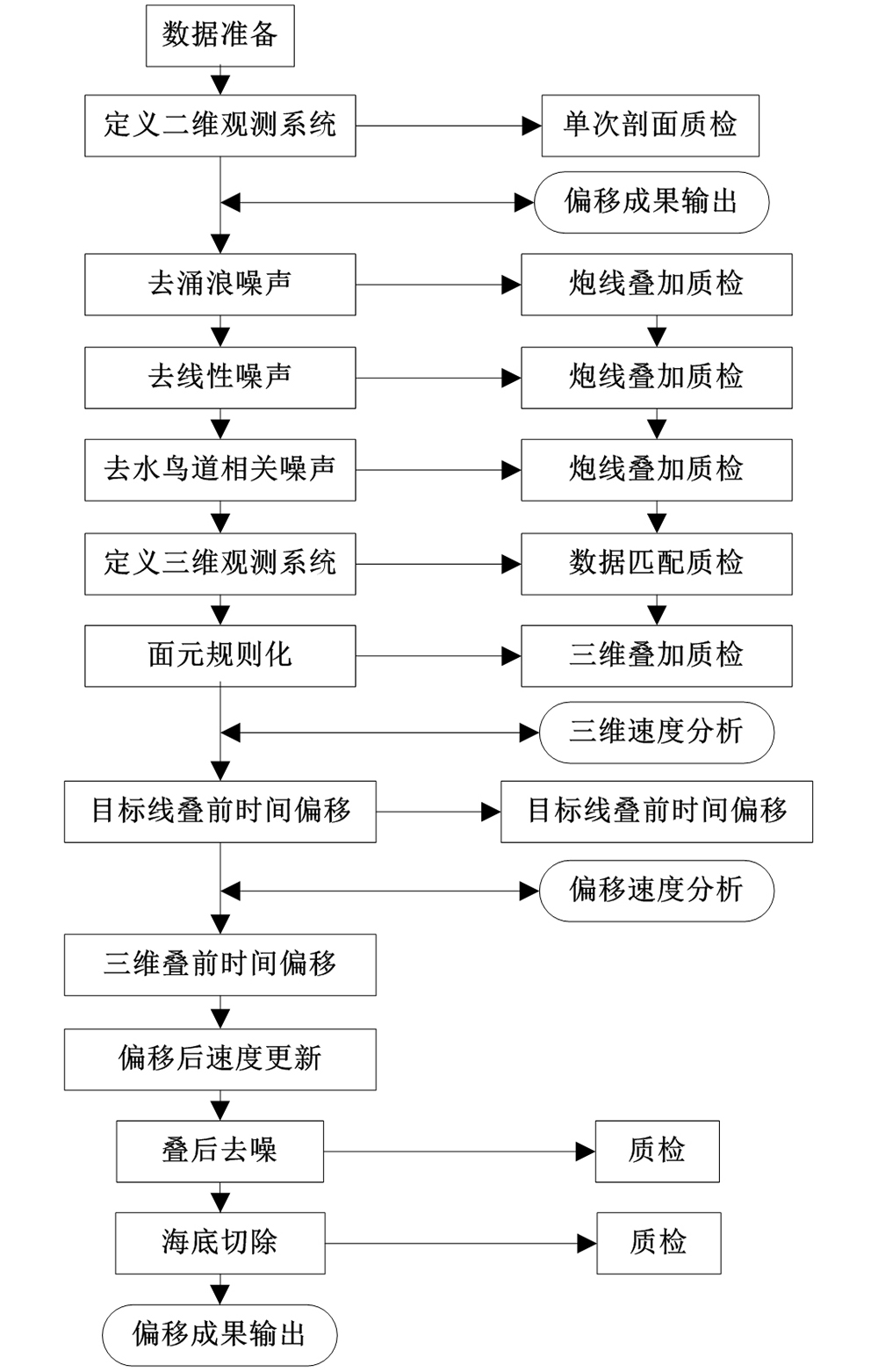

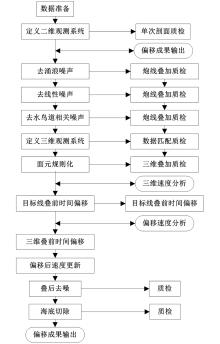

Quasi-three-dimensional seismic data processing flow
|
|

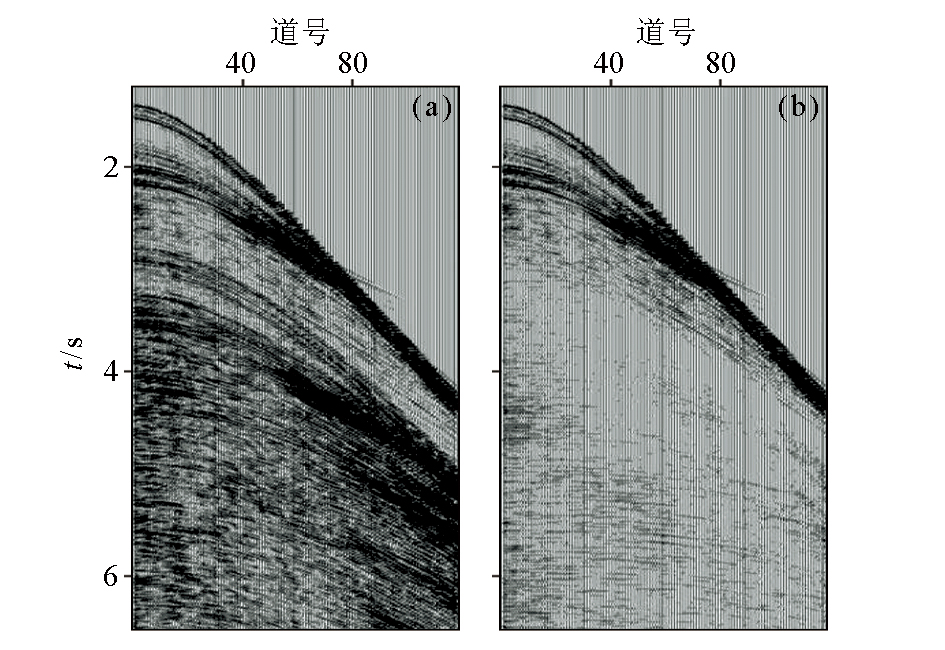

The comparison of shot gather before(a) and after(b) Bubble effect suppression
|
|

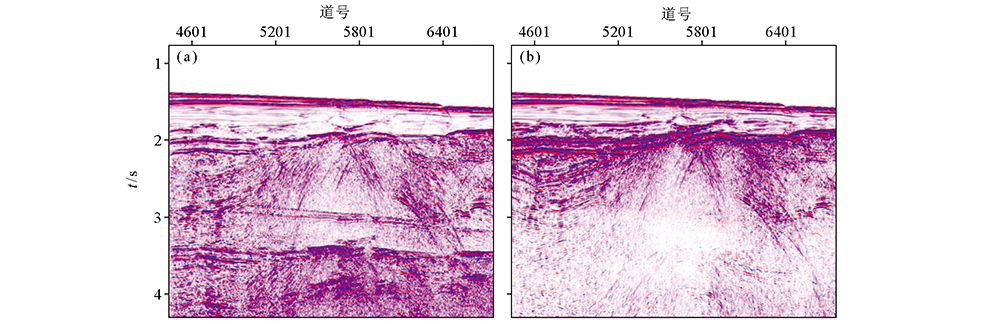

The comparison of stack profile before(a) and after(b) Bubble effect suppression
|
|

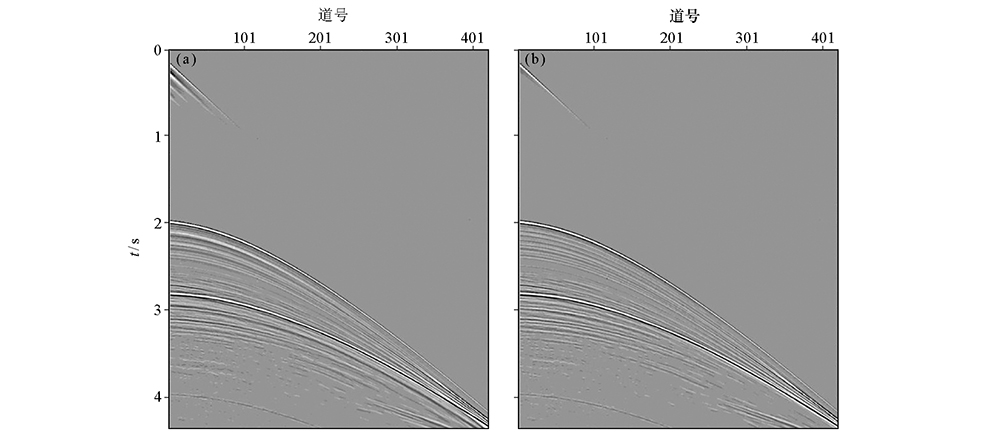

The comparison of shot gather before(a) and after(b) multiple suppression
|
|

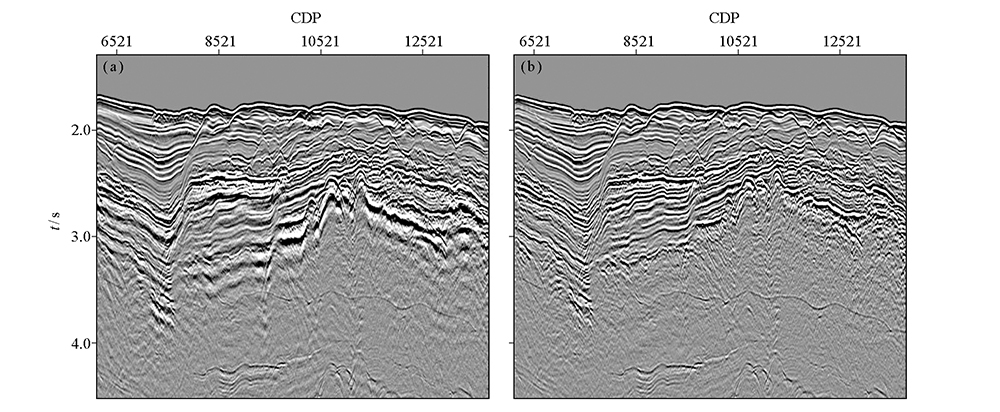

The comparison of stack profile before(a) and after(b) multiple suppression
|
|

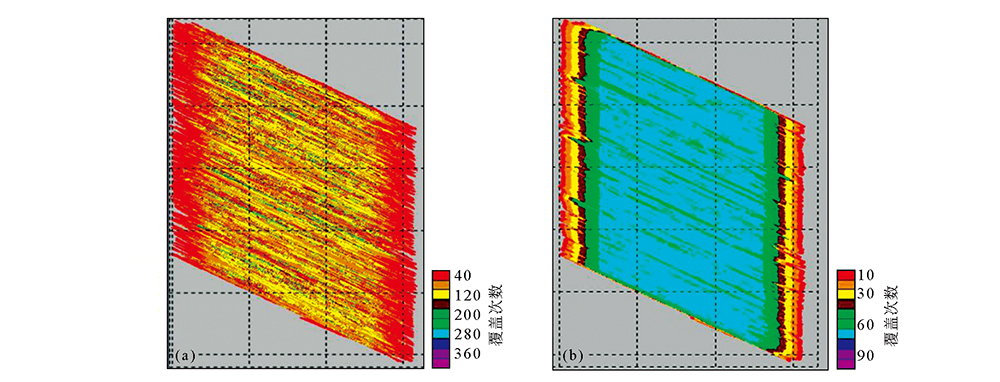

The comparison of working area coverage before(a) and after(b) regularization
|
|

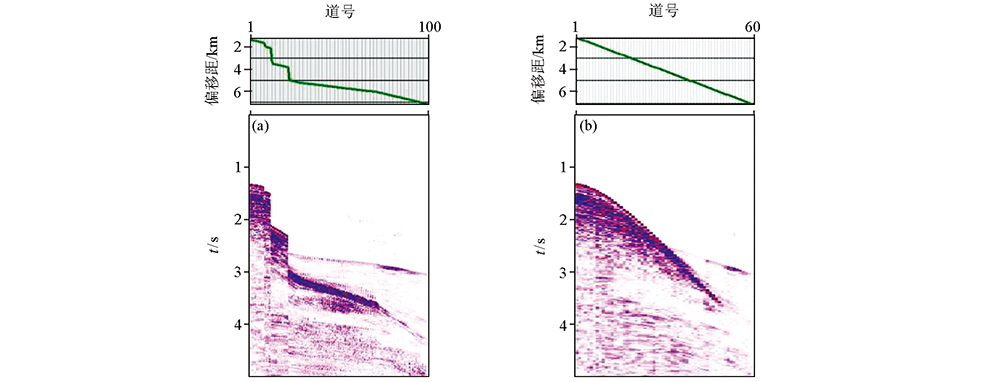

The comparison of CMP gather and offset data distribution before(a) and after(b) regularization
|
|
The comparison of stack profile before(a) and after(b) regularization
|
|

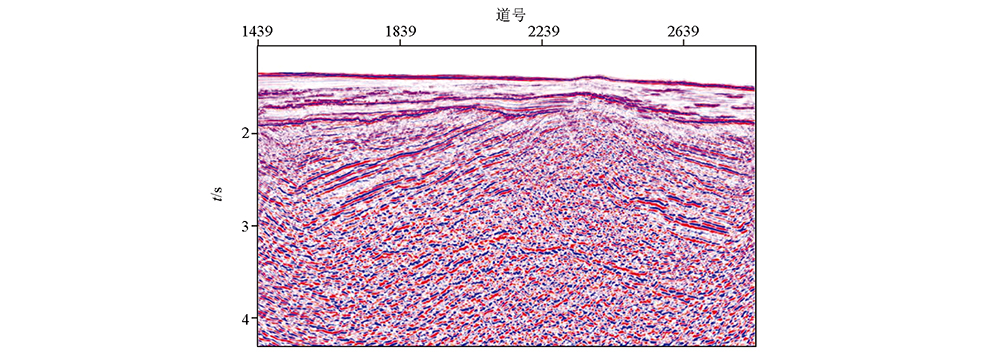

3-D prestack time migration stacking profile (inline)
|
|

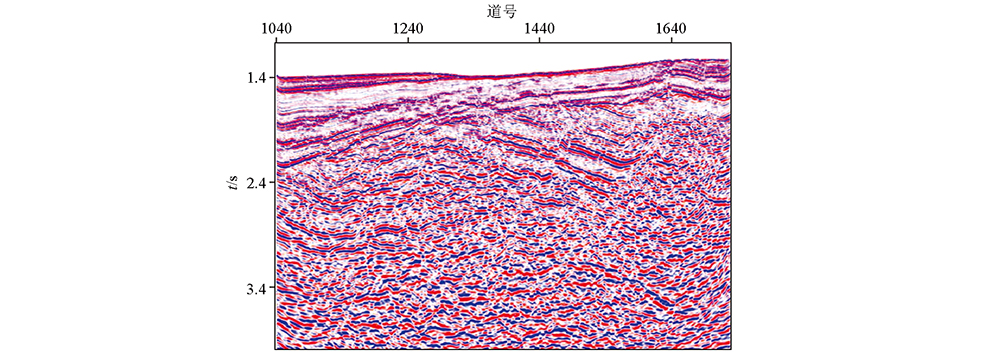

3-D prestack time migration stacking profile (xline)
|
