Analysis and solution of negative values in airborne radioactivity data processing |
De-Wei DENG1,2, Bo YANG1, Yu-Qin YANG1, Xue WU1, Hua-Shan JIA1, Xiang ZHANG1, Yan LUO1, Cheng QI1 |
1. Airborne Survey and Remote Sensing Center of Nuclear Industry, Shijiazhuang 050002,China 2. Key Laboratory of Uranium Resources Geophysical Exploration Technology, Shijiazhuang 050002, China |
|
|
Abstract In this paper, the authors processed the navigation data obtained from Alxa Left Banner in Inner Mongolia to summarize the process and main reasons for the formation of the negative value. The results are as follows: ①The nature of radioactive decay has statistical fluctuation, and this property plays an important role in the processing of revised data, especially in areas with low radionuclide; ②A slight negative value of uranium counting rate will occur after background correction and cosmic ray correction, and will increase negatively after atmospheric radon correction; both ends are prone to form high value false anomalies and continuous negative anomalies. After the peel correction, the number of negative values increases greatly, while the height correction and content conversion no longer produce new negative values, but only change the negative values. The authors found that zeroing the negative values generated by the correction process can eliminate high value false anomalies produced by atmospheric radon correction, and that continuous zero value data appear, which is inconsistent with the objective laws. Therefore, normalization method is proposed to eliminate negative values. This method can eliminate the negative value quickly and reasonably, and can control the changed value within a smaller value. In addition, it makes up for the lack and the deficiency of the negative value processing method.
|
Received: 15 March 2018
Published: 10 April 2019
|
|
|
|
|
本底及宇宙射线修正 | K | U | Th | 最大值 | 最小值 | 负值占比/% | 最大值 | 最小值 | 负值占比/% | 最大值 | 最小值 | 负值占比% | 修正前计数率/cps | 82 | 30 | 0 | 48 | 12 | 0 | 52 | 14 | 0 | 修正后计数率/cps | 18 | -20 | 50 | 12 | -12 | 52 | 14 | -11 | 50 |
|
Contrast table of background and cosmic radiation correction
|
|

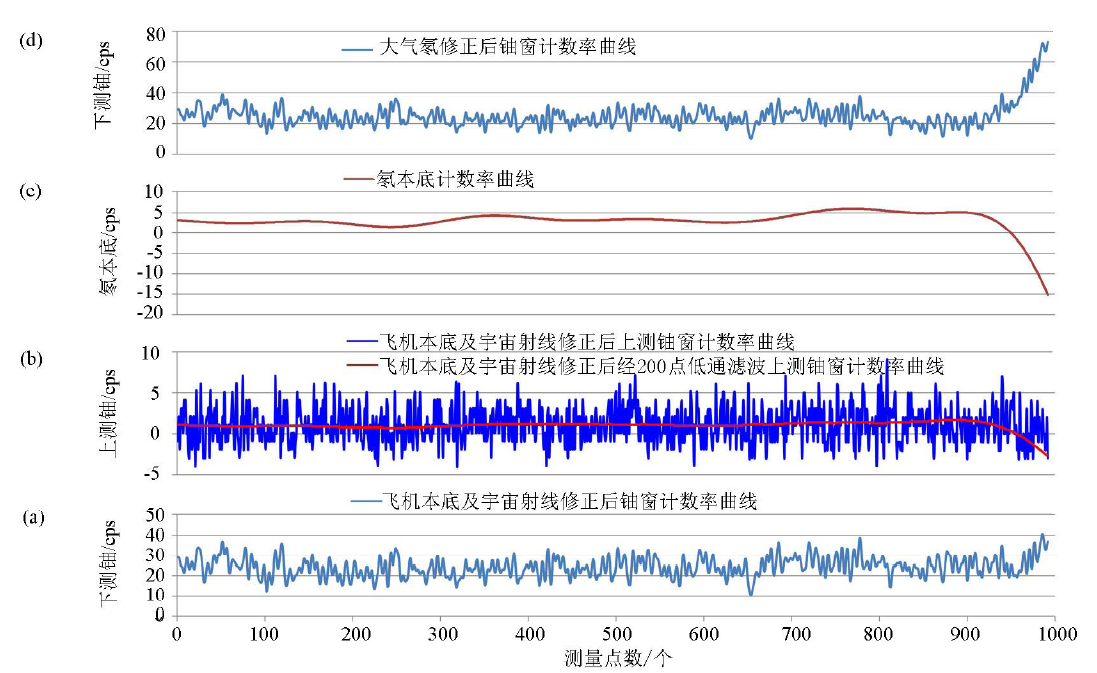

Curve of high value false anomaly after atmospheric radon correction a—curve of uranium window count after aircraft background and cosmic rays correction;b—contrast curve of the upper uranium window before and after filtering;c—curve of radon background count ;d—curve of uranium window count after atmospheric radon correction
|
|

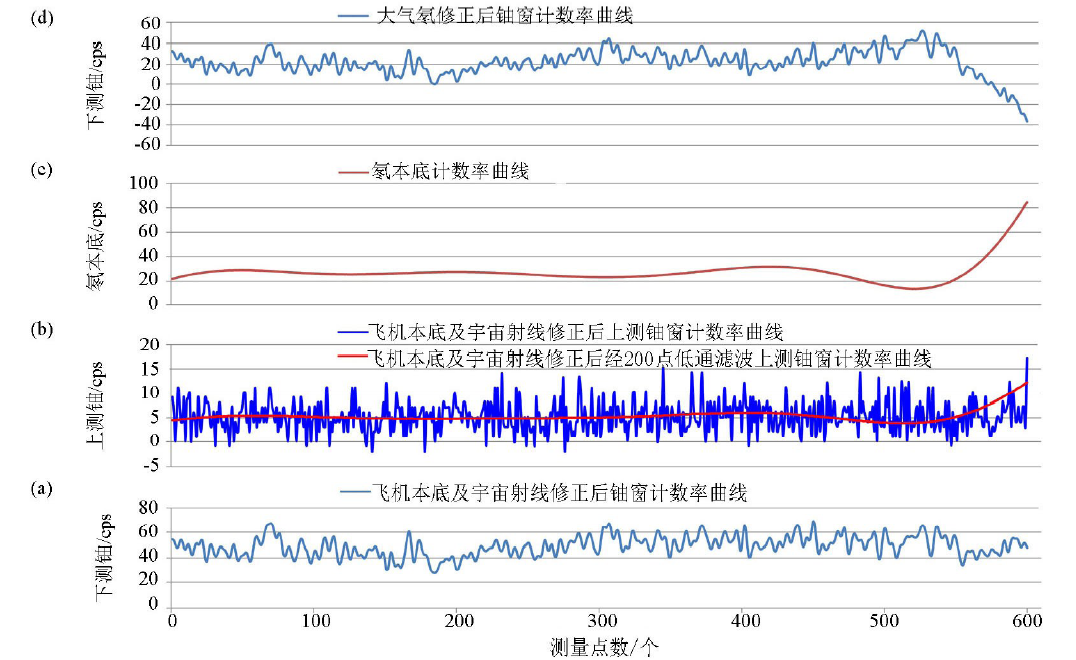

Curve of low value negative anomaly after atmospheric radon correction a—curve of uranium window count after aircraft background and cosmic rays correction;b—contrast curve of the upper uranium window before and after filtering;c—curve of radon background count ;d—curve of uranium window count after atmospheric radon correction
|
|

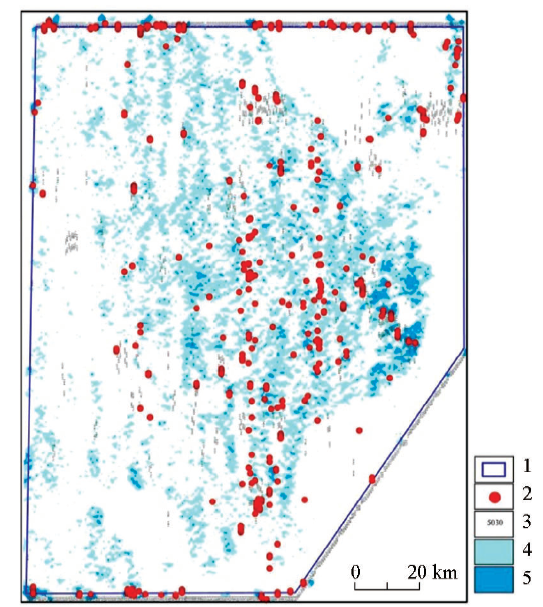

Distribution graph of negative distribution after correction of atmospheric radon 1—survey area;2—negative measurement point;3—survey line number;4—lower field of uranium content ;5—low field of uranium content
|
| 最小值 | 最大值 | 平均值 | 总测点数/个 | 负值点数/个 | 负值占比/% | 实测计数率/cps | 15 | 220 | 54 | 721227 | 0 | 0 | 本底及宇宙射线修正后/cps | -2.9 | 195.6 | 30.4 | 721227 | 7 | 0.00 | 大气氡修正后/cps | -37 | 198.6 | 22.6 | 721227 | 1210 | 0.18 | 剥离修正/cps | -49.8 | 174.5 | 13.7 | 721227 | 12794 | 1.77 | 高度衰减修正/cps | -38.3 | 129.8 | 10.6 | 721227 | 12794 | 1.77 | 地面核数含量换算/10-6 | -4.4 | 14.9 | 1.2 | 721227 | 12794 | 1.77 |
|
Statistical table of uranium window nagetive after each step correction
|
|

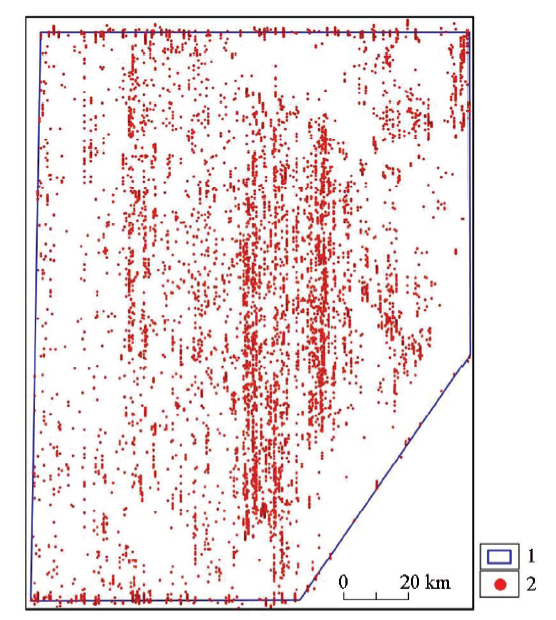

Distribution graph of negative distribution after correction of peeling 1—survey area;2—negative measurement point
|
|

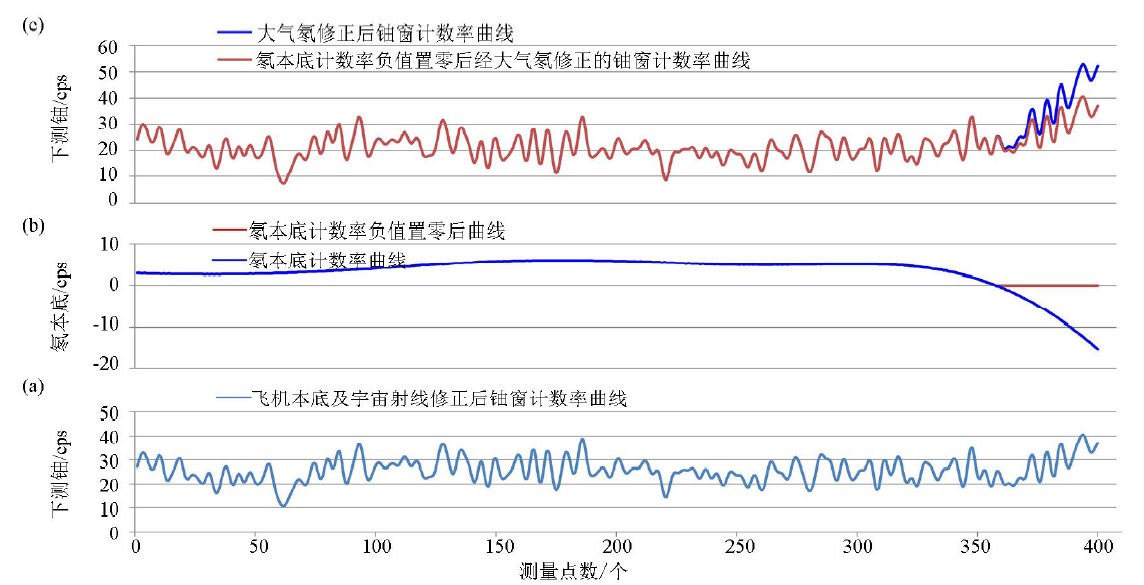

Contrast curve of atmospheric radon correction effect a—curve of uranium window count after aircraft background and cosmic rays correction;b—contrast curve of radon background count before and after turning negative to zero;c—contrast curve of uranium window count
|
|

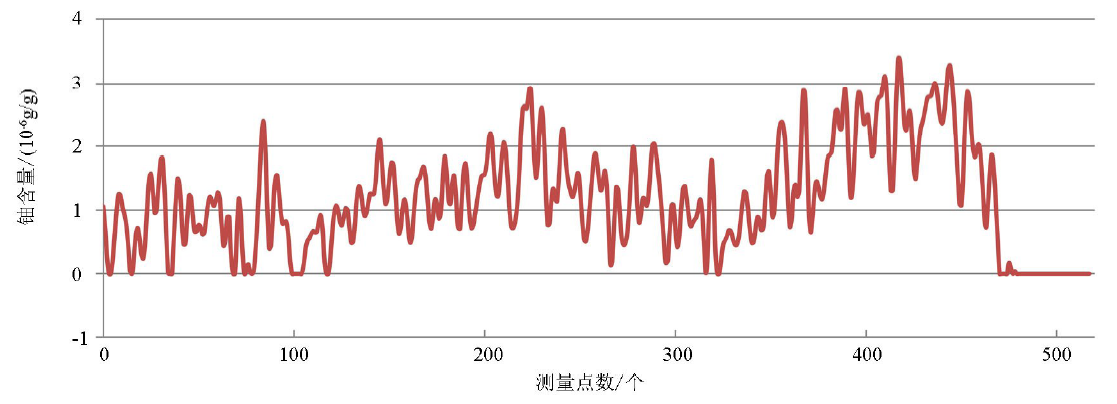

Curve of uranium content after zeroing negative value
|
|

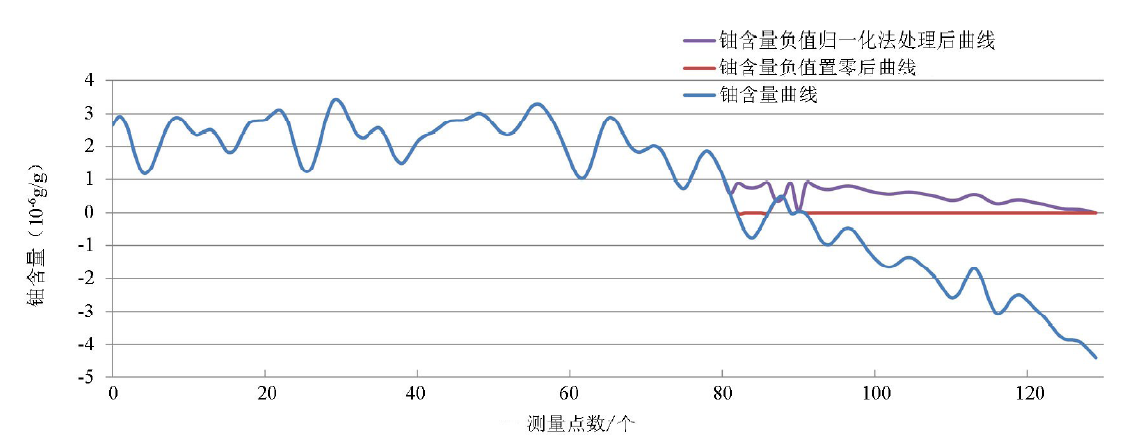

Contrast curve of uranium content
|
