Construction and application of three-dimensional geological model in Xinchang Block for high-level radioactive waste disposal |
Hui LUO1, Ju WANG1, Shi JIANG2, Hong-Gang ZHAO1, Yuan-Xin JIN1 |
1. CNNC Key Laboratory on Geological Disposal of High-level Radioactive Waste, Beijing Research Institute of Uranium Geology, Beijing 100029, China 2. China Aero Geophysical Survey and Remote Sensing Center for Natural Resources,Beijing 100083, China |
|
|
Abstract After more than 30 years of research in high-level radioactive waste disposal, China has initially identified Xinchang block as the recommended site of underground laboratory. It is necessary to make full use of the existing data to express all kinds of geological phenomena accurately and intuitively to reproduce the spatial distribution of geological units and their mutual relations. on the other hand, it is possible to mine hidden geological information to facilitate geological analysis and engineering decision-making, which is very important in the research phase of underground laboratory. Based on the comprehensive analysis and interpretation of the existing data, the three-dimensional geological model of Xinchang block has been established. The model reproduced the geologic and environmental characteristics of Xinchang block. Based on the model, we designed the drilling to expose the fault and determined the location and main structure of the underground laboratory, the effect seems good. This study can provide useful reference and technical support for the geological analysis and engineering design of the high-level radioactive waste disposal project in China.
|
Received: 05 January 2019
Published: 31 May 2019
|
|
|
|
|
|

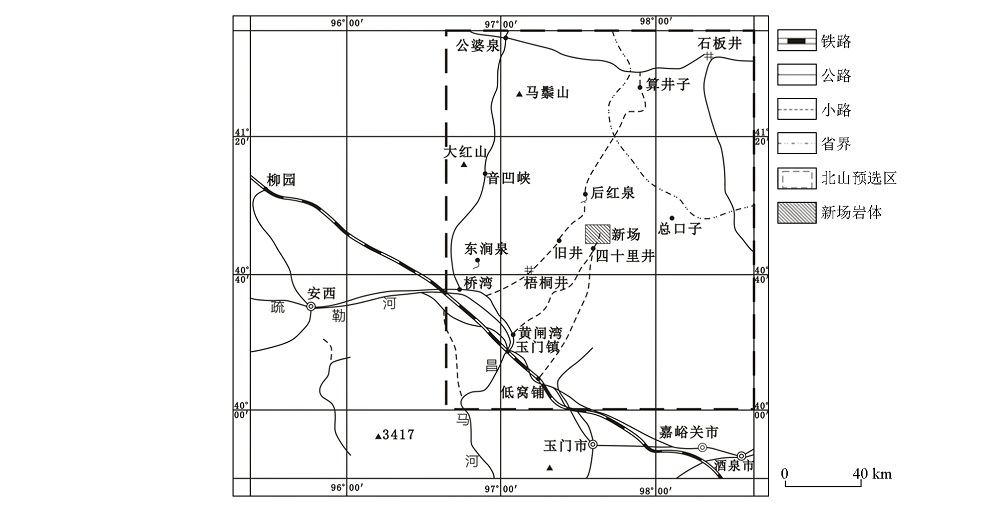

Traffic location of Xinchang block in Beishan, Gansu
|
|

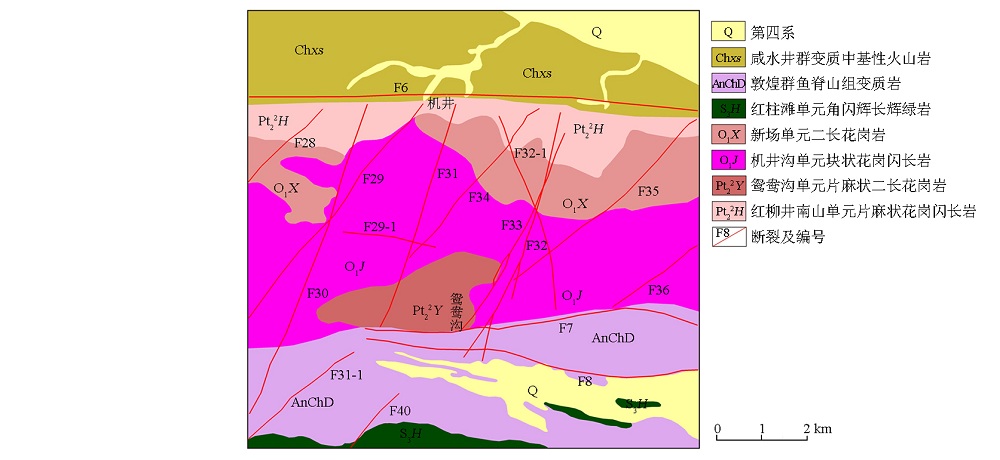

The geological map of Xinchang block
|
|

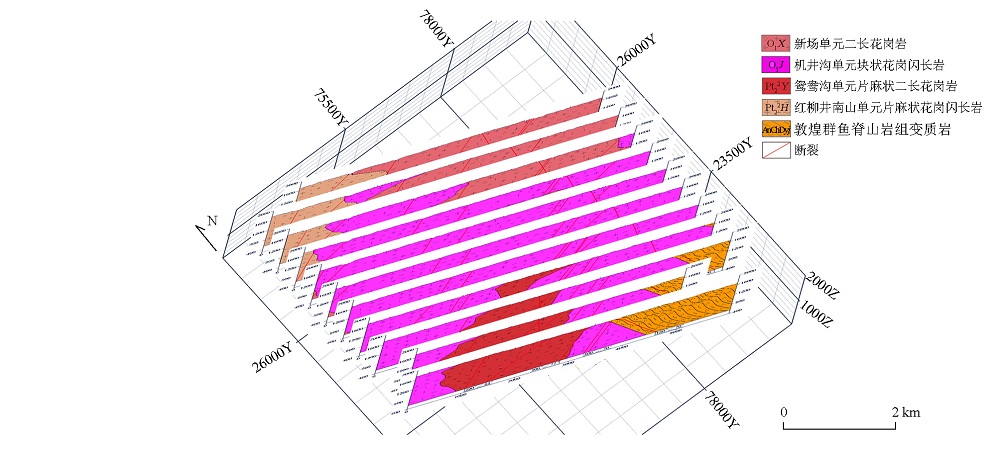

Patial distribution of well profiles
|
|

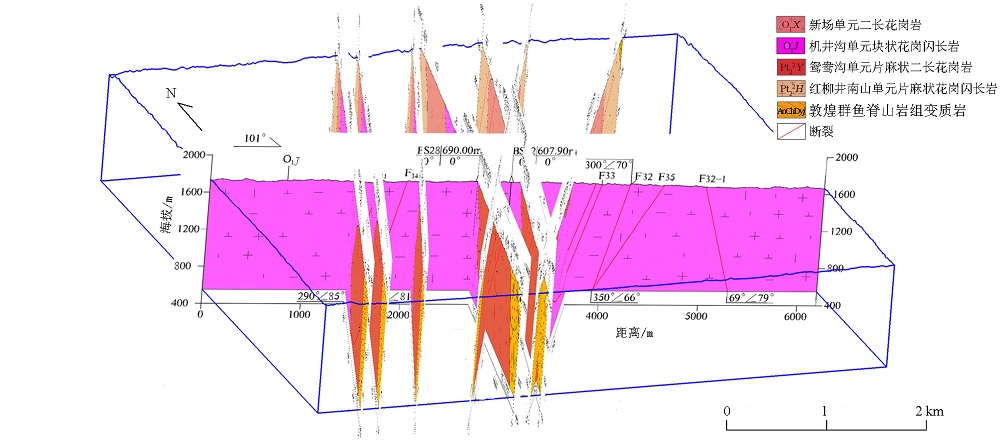

Geological section interpreted by geophysical profile
|
|

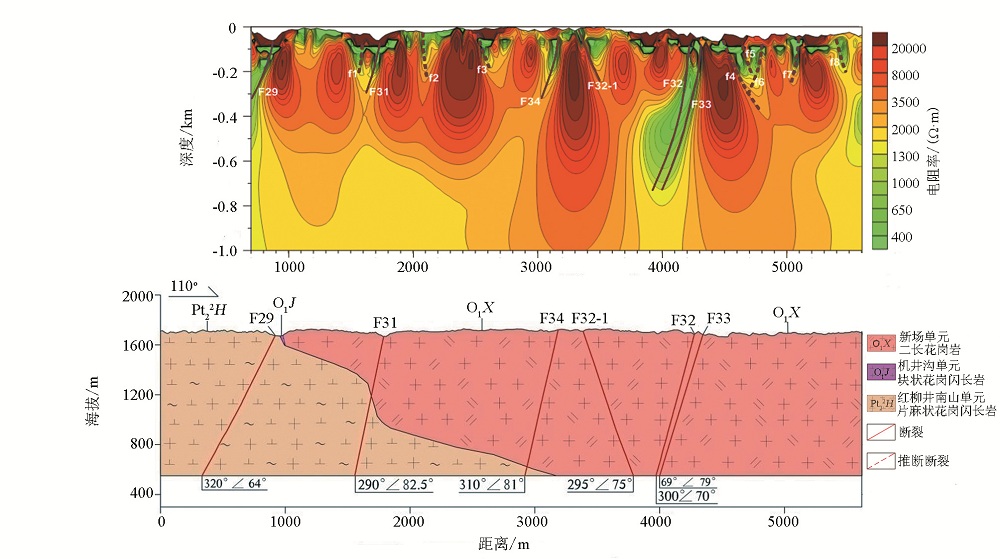

Geological interpretation of geophysical profile XC11
|
|

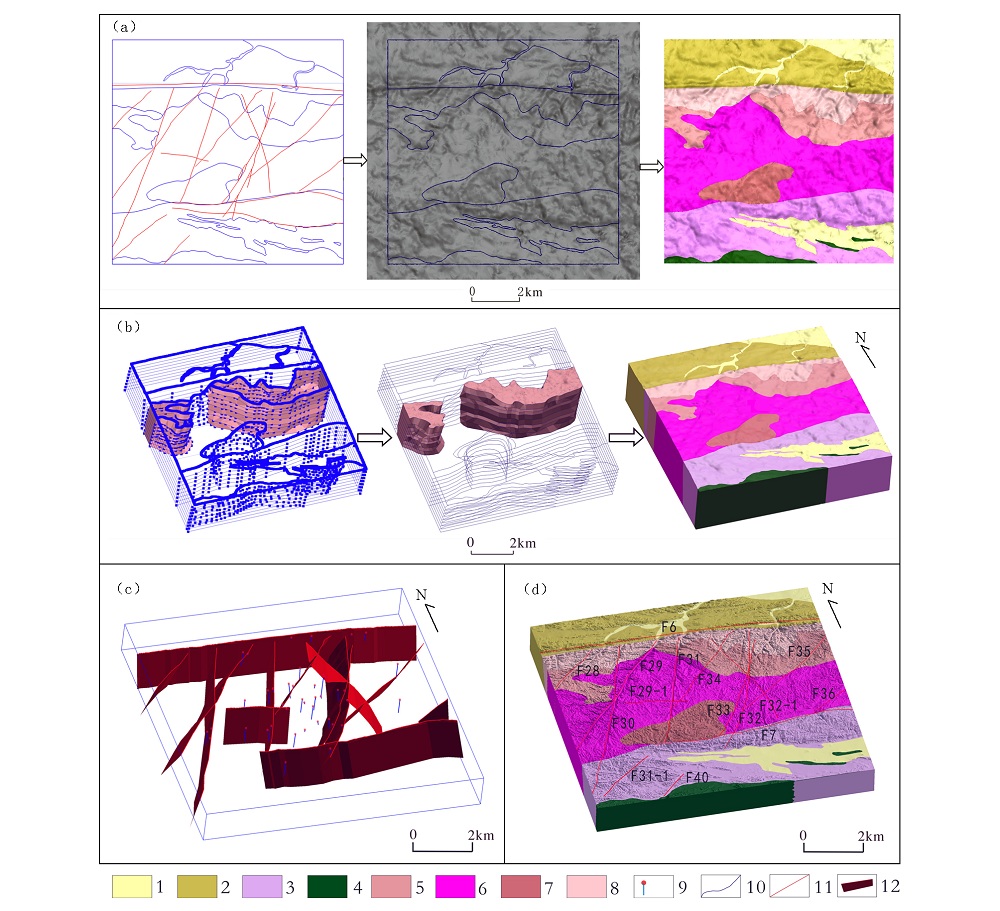

Three-dimensional geological model of Xinchang rock a—extracting geological boundaries to generate surface models; b—generate different lithology unit models;c—fracture model; d—geological model, including fracture and lithology information 1—quaternary;2—metamorphic medium volcanic rock of Xianshuiyan group;3—metamorphic rocks of Yujishan formation in Dunhuang group;4—hornblende diabase of Hongzhutan unit;5—monzonitic granite of Xinchang unit;6—massive granodiorite of Jijinggou unit;7—kemp-shaped granitic granite of Yuanyanggou unit;8—kemp-shaped granodiorite of Hongliujingnanshan unit;9—drilling;10—geological boundary;11—fault line;12—fracture surface
|
|

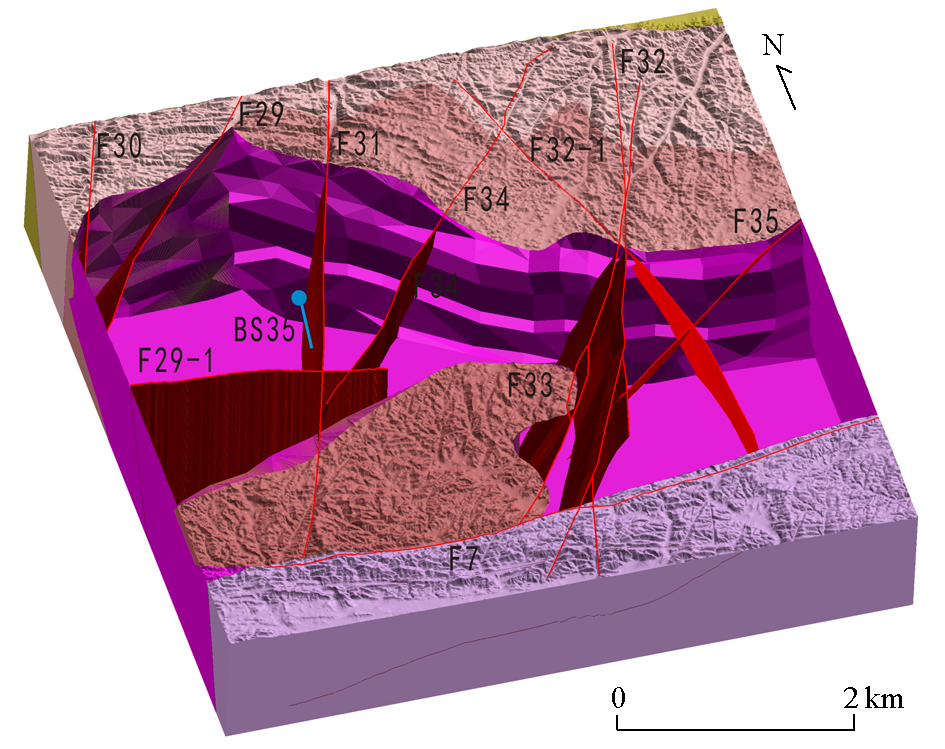

Three-dimensional design of BS35 borehole
|
钻孔编号 | 钻孔方位角/(°) | 钻孔顶角/(°) | 断层倾角/(°) | BS35 | 110 | 11 | 81~83 | 钻孔编号 | 揭露断裂 孔深/m | 平距/m | 钻孔位置和方位设计 的主要考虑因素 | BS35 | 590~600 | 197 | 研究F31断裂特征 |
|
Design parameters of BS35 drilling
|
|

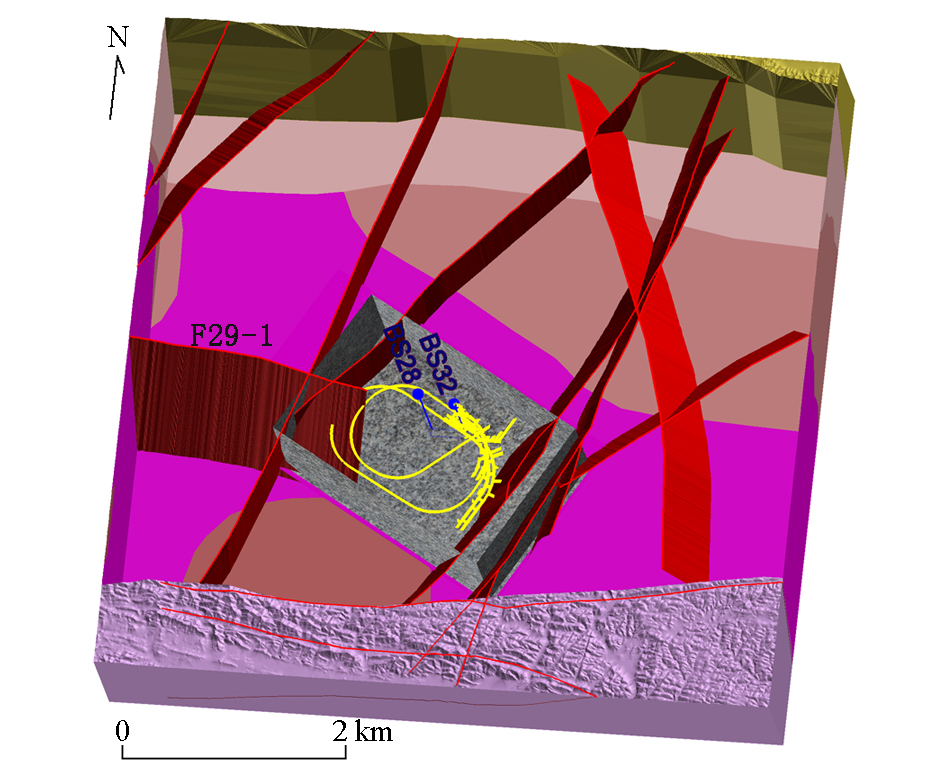

The relationship between underground laboratory field and fracture
|
|

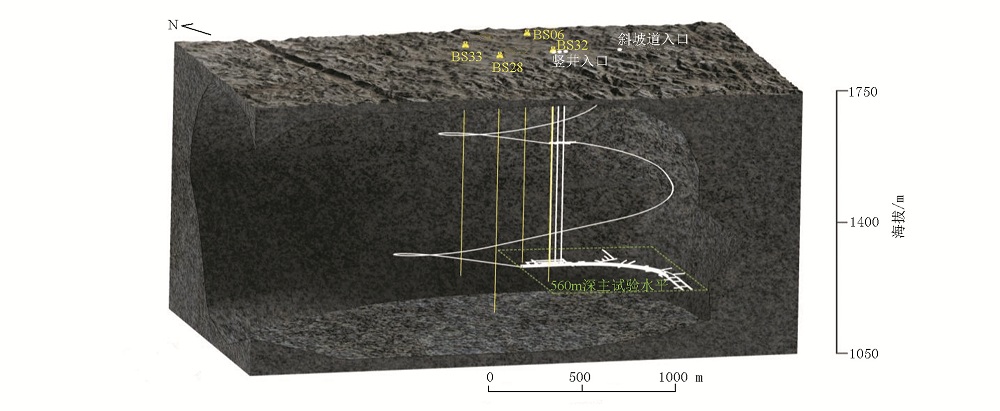

Space perspective view of the underground laboratory (draft)
|
[1] |
Savage D . The Scientific and Regulatory Basis for the Geological Disposal of Radioactive Waste[M]. Chichester: John Wiley and Sons, 1995.
|
[2] |
王驹 . 高放废物地质处置: 进展与挑战[J]. 中国工程科学, 2008,10(3):58-65.
|
[2] |
Wang J . Geological disposal of high level radio active waste:Progress and challenges[J]. Engineering Sciences, 2008,10(3):58-65.
|
[3] |
潘自强, 钱七虎 . 高放废物地质处置战略研究[M]. 北京: 原子能出版社, 2009.
|
[3] |
Pan Z Q, Qian Q H. Research on geological disposal strategy of high level radioactive waste[M]. Beijing: Atomic energy publishing house2009.
|
[4] |
PosivaOy. Okliluoto site description 2008 Part 1 and 2[R]. Posiva OY, 2009.
|
[5] |
SKB. Site description of forsmark at completion of the site investigation phase[R]. SvenskKärnbränslehantering AB, 2008.
|
[6] |
赵宏刚, Kunz Herbert , 王驹. 甘肃北山旧井地段三维地质建模及RockFlow在核素迁移模拟研究中的应用[J]. 岩石力学与工程学报, 2007,26(2):3989-3994.
|
[6] |
Zhao H G, Kunz H, Wang J . 3D geological modelling in Jiujing block,Beishan area,Gansu Province and application of rockflow to nuclides migration simulation[J]. Chinese Journal of Rock Mechanics and Engineering, 2007,26(2):3989-3994.
|
[7] |
罗辉, 王驹, 蒋实 , 等. 高放废物地质处置地下实验室新场候选场址三维地质建模[J]. 铀矿地质, 2017,34(1):53-59.
|
[7] |
Luo H, Wang J, Jiang S , et al. Study on 3D geological modeling of Xinchang potential underground laboratory site for high-level radioactive waste disposal[J]. Uranium Geology, 2017,34(1):53-59.
|
[8] |
王驹, 徐国庆, 郑华铃 , 等. 中国高放废物地质处置研究进展1985~2004[J]. 世界核地质科学, 2005,22(1):5-16.
|
[8] |
Wang J, Xu G Q, Zhen H L , et al. Geological disposal of high level radioactive waste in China:Progress during 1985~2001[J]. World Nuclear Geoscience, 2005,22(1):5-16.
|
[9] |
潘自强, 沈文权 . 2020年前我国核能发展的策略和目标研究[J]. 铀矿地质, 2004,20(5):257-259.
|
[9] |
Pan Z Q, Shen W Q . Tactics and targets for nuclear energy development in China by 2020[J]. Uranium Geology, 2004,20(5):257-259.
|
[10] |
王驹, 陈伟明, 苏锐 , 等. 高放废物地质处置及其若干关键科学问题[J]. 岩石力学与工程学报, 2006,25(4):801-812.
|
[10] |
Wang J, Chen W M, Su R , et al. Geological disposal of high-level radioactive waste and its key scientific issues[J]. Chinese Journal of Rock Mechanics and Engineering, 2006,25(4):801-812.
|
[11] |
王驹, 陈伟明, 金远新 , 等. 向阳山—新场地段1:5万地质调查报告[R]. 核工业北京地质研究院, 2006.
|
[11] |
Wang J, Chen W M, Jin Y X , et al. Geological survey report of Xiangyangshan-Xinchang section (1:50,000)[R]. Beijing Research Institute of Uranium Geology, 2006.
|
[12] |
王锡勇, 苏锐, 陈亮 , 等. 基于超声波钻孔电视的深部岩体结构面特征研究[J]. 世界核地质科学, 2014,31(1):31-44.
|
[12] |
Wang X Y, Su R, Chen L , et al. Study on structural plane characteristics of deep rock mass based on acoustic borehole TV[J]. World Nuclear Geoscience, 2014,31(1):31-44.
|
[13] |
季瑞利, 张明, 周志超 , 等. 北山预选区钻孔水文地质试验方法研究[J]. 铀矿地质, 2018,34(1):53-59.
|
[13] |
Ji R L, Zhang M, Zhou Z C , et al. Research on In-situ Hydraulic Test Method in Beishan Pre-selected Area[J]. Uranium Geology, 2018,34(1):53-59.
|
[14] |
赵星光, 王驹, 马利科 , 等. 高放废物地质处置库北山预选区新场岩体地应力场分布规律[J]. 岩石力学与工程学报, 2014,33(2):3750-375.
|
[14] |
Zhao X G, Wang J, Ma L K , et al. Distribution characteristics of geostress field in Xinchang rock block of candidate Beishan area for high level radioactive waste repository in China[J]. Chinese Journal of Rock Mechanics and Engineering, 2014,33(2):3750-375.
|
