不同源DEM数据在高山区重力中区地形改正中的适用性

doi:10.11720/wtyht.2019.0126

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (5039 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

Taking the Xiarihamu mining area in Qinghai Province as an alpine experimental area, the authors used the high-precision 1:2,000 DEM data to make a comparative analysis of the vertical accuracy of 1:50,000 DEM data, Aster DEM data and Pleiades DEM data as well as the applicability of these data in median region terrain correction of gravity under the complex terrain conditions such as high mountain areas. The results show that the accuracy of Pleiades DEM is the highest, that of 1:50,000 DEM possesses the second place, and hat of Aster DEM is the lowest under the complex terrain conditions of high mountainous area. The Pleiades DEM data have good applicability in median region terrain correction of gravity scale of 1:50,000 or less, and the 1:50,000 DEM data have good applicability at a scale of 1:200,000 or less, but the Aster DEM cannot meet the accuracy requirements at a scale of 1:200,000 or more.

Key words： high mountain areas DEM gravity median region terrain correction

Received: 12 March 2019 Published: 25 October 2019

P631

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Sheng-Rong LIU
	Peng GAO
	Tao GENG
	Wei-Li GUO
	Hui DU

Cite this article:

Sheng-Rong LIU,Peng GAO,Tao GENG, et al. The applicability of different sources DEM data in median region terrain correction of gravity in high mountain areas[J]. Geophysical and Geochemical Exploration, 2019, 43(5): 1111-1118.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2019.0126 OR https://www.wutanyuhuatan.com/EN/Y2019/V43/I5/1111

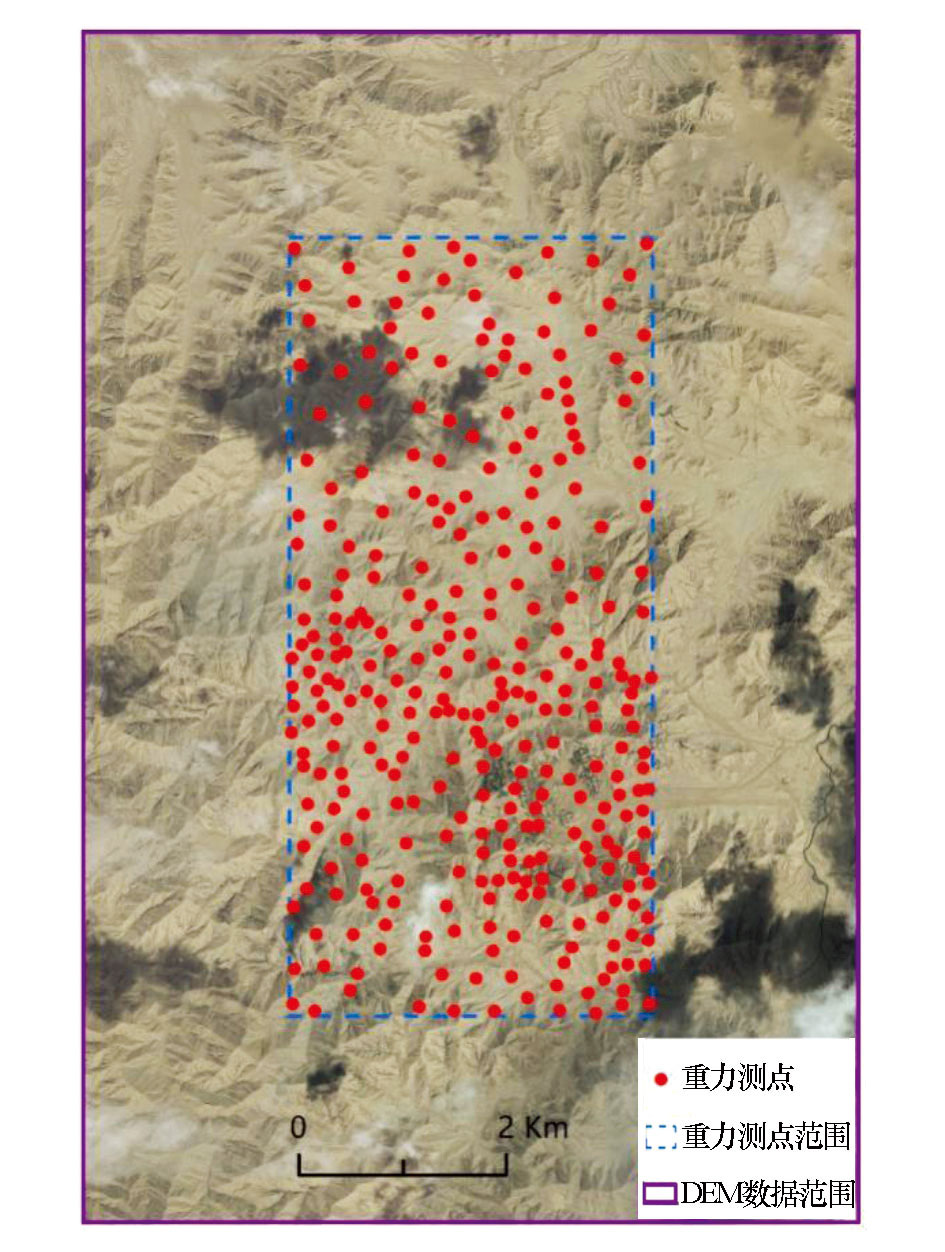

Satellite image and gravity point distribution in the experimental area

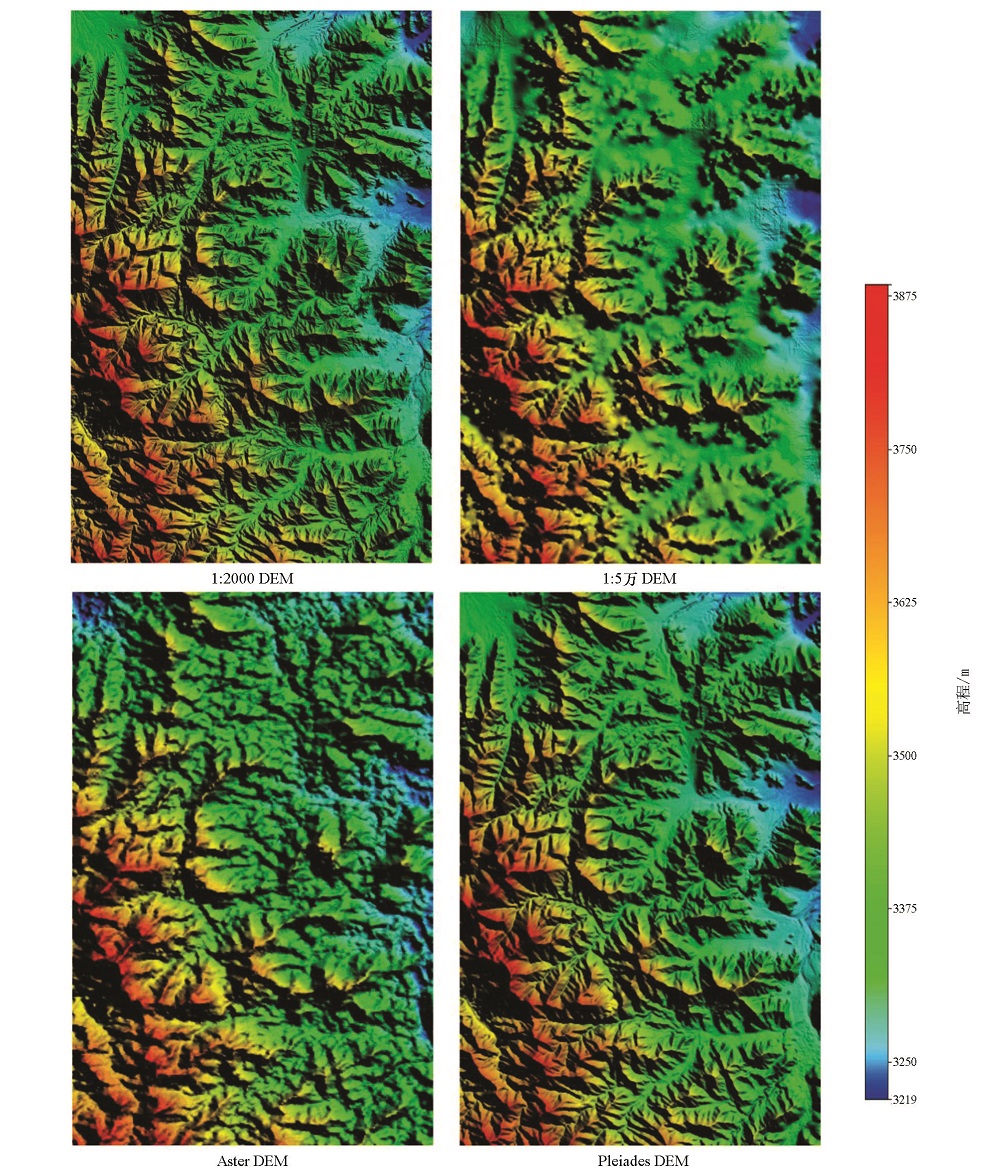

Different DEM data renderings in the experimental area

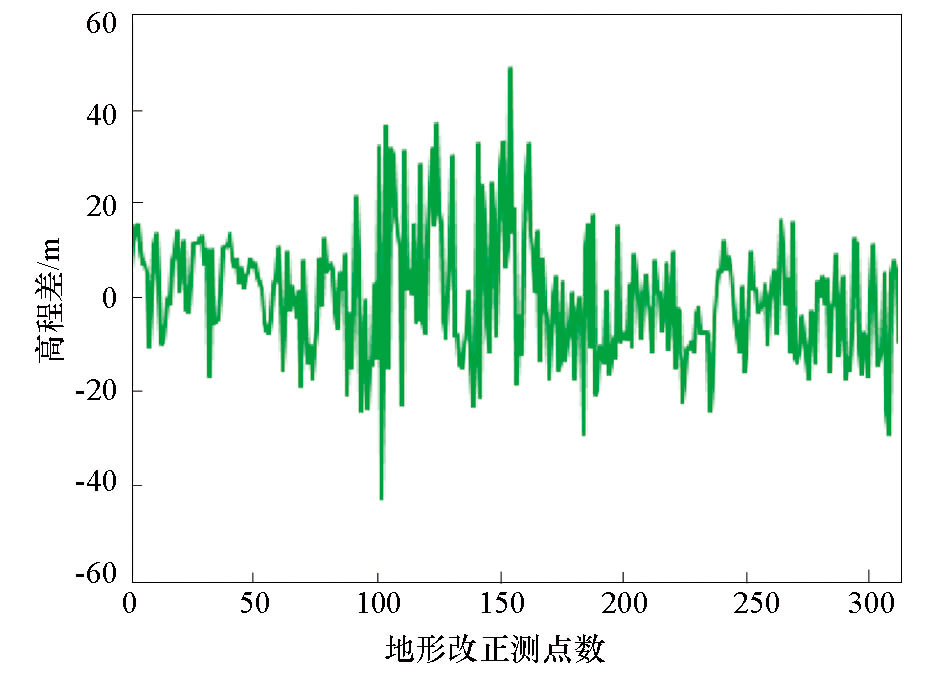

1:2 000 DEM and 1:50 000 DEM elevation difference curve

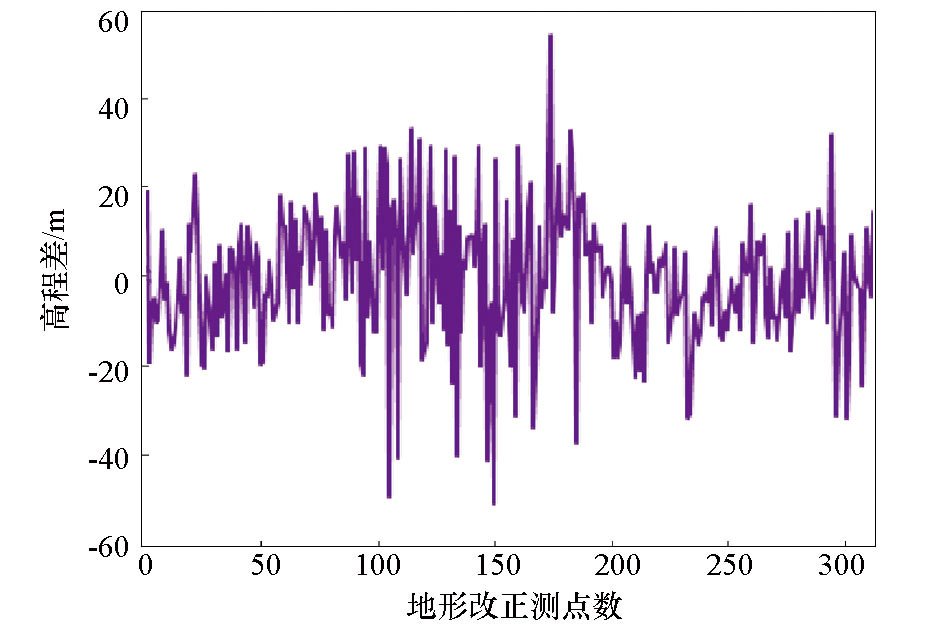

1:2 000 DEM and Aster DEM elevation difference curve

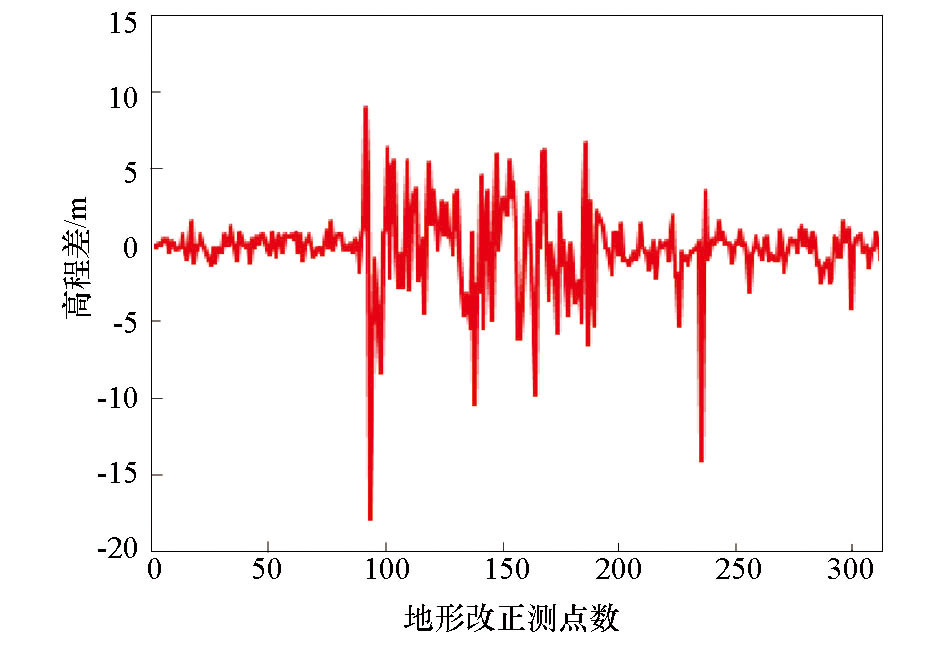

1:2 000 DEM and Pleiades DEM elevation difference curve

Vertical accuracy statistics of three DEM data

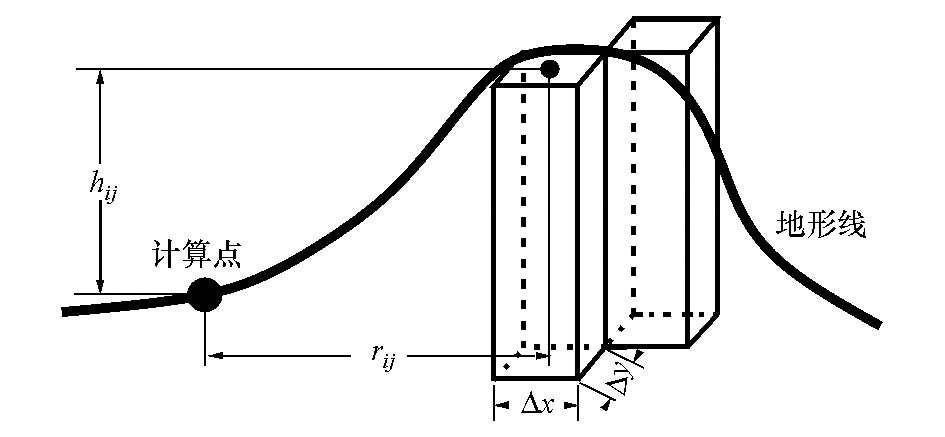

Terrain correction square domain calculation diagram

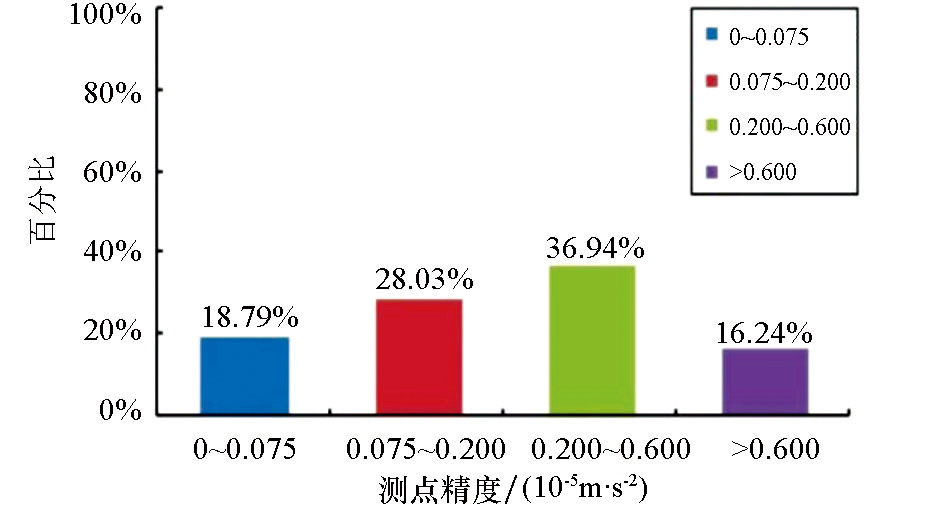

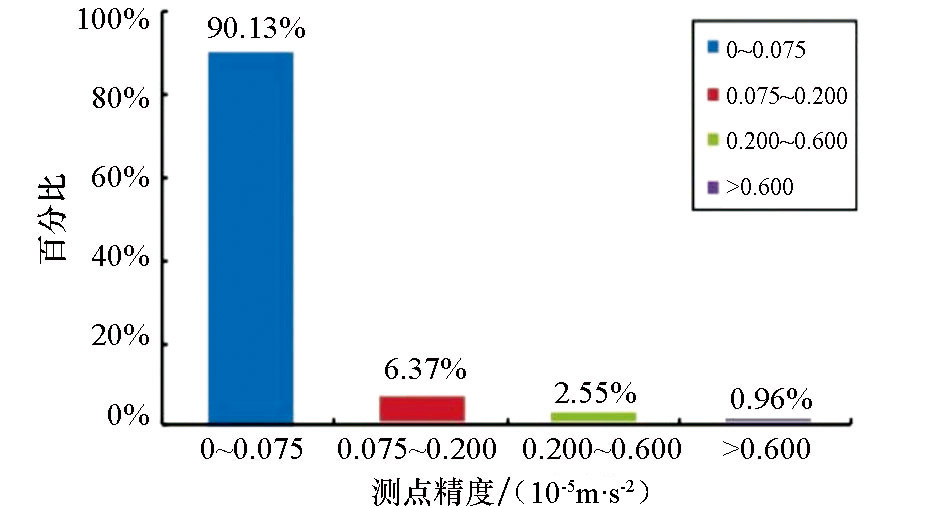

1:50 000 DEM central area terrain correction error distribution interval

Aster DEM central area terrain correction error distribution interval

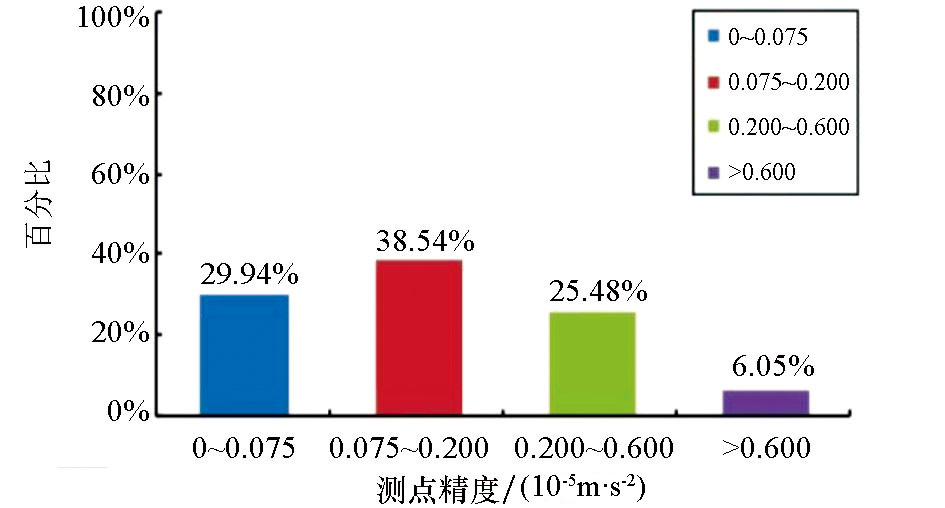

Pleiades DEM central area terrain correction error distribution interval

Central area terrain correction accuracy statistics of three DEM data (unit: 10^-5 m/s²)

[1]	张国利, 赵更新, 匡海阳 , 等. 近几年地面重力调查工作方法技术的一些进展[J]. 地球物理学进展, 2015,30(1):386-390.
[1]	Zhang G L, Zhao G X, Kuang H Y , et al. Some progress in the working methods of the ground gravity survey techniques in recent years[J]. Progress in Geophysics, 2015,30(1):386-390.
[2]	张俊, 张宝松, 邱兵叶 , 等. 高程数据网格间距对重力中区地形改正精度的影响[J]. 物探与化探, 2014,38(1):157-161.
[2]	Zhang J, Zhang B S, Qiu B Y , et al. The effect of the grid spacing of elevation on the accuracy of median region terrain correction of gravity[J]. Geophysical and Geochemical Exploration, 2014,38(1):157-161.
[3]	赵振兴, 张亚东, 白薇 . GPS快速静态技术在重力勘探中的应用[J]. 全球定位系统, 2017,42(2):110-112.
[3]	Zhao Z X, Zhang Y D, Bai W . The application of GPS rapid static technology in gravity prospection[J]. Gnss World of China, 2017,42(2):110-112.
[4]	刘宽厚, 耿涛, 杨怀英 , 等. 基于便携激光测距仪的重力测量近区地形改正系统[J]. 物探与化探, 2012,36(3):403-408.
[4]	Liu K H, Geng T, Yang H Y , et al. The gravimetry near-station terrain correction instrument system based on laser distance measurement technology[J]. Geophysical and Geochemical Exploration, 2015,30(1):386-390.
[5]	Cogbill A H . Gravity terrain corrections computed using digital terrain models[J]. Geophysics, 1990,45:109-112.
[6]	张国利, 赵更新, 王德启 , 等. 基于DEM条件下对中区地改精度的计算方法[J]. 物探与化探, 2013,37(6):1134-1140.
[6]	Zhang G L, Zhao G X, Wang D Q , et al. A tentative discussion on the precision calculation method of median region terrain correction based on digital elevation model[J]. Geophysical and Geochemical Exploration, 2013,37(6):1134-1140.
[7]	孙喜亮, 刘召芹, 刘斌 , 等. 资源三号数据在重力中区地形改正中的应用[J]. 物探与化探, 2013,37(5):822-826.
[7]	Sun X L, Liu S Q, Liu B , et al. The application of ZY-3 data to grvity intermediate area topographic correction[J]. Geophysical and Geochemical Exploration, 2013,37(5):822-826.
[8]	张品, 审重阳, 杨光亮 , 等. ASTER GDEM垂直精度评价及其在重力地形改正中的适用性[J]. 大地测量学与地球动力学, 2015,35(2):318-321.
[8]	Zhang P, Sheng C Y, Yang G L , et al. Vertical accuracy assessment of aster GDEM ant its applicability analysis in gravity terrain correction[J]. Journal of Geodesy and Geodynamics, 2015,35(2):318-321.
[9]	邓文彬, 阿力甫·努尔买买提 .高山地区地形对重力测量的影响分析[J]. 测绘科学, 2015,40(7):3-7.
[9]	Deng W B, Nu’er M M T .Influence of terrain on gravity observation in high mountain areas[J]. Science of Surveying and Mapping, 2015,40(7):3-7.
[10]	张朝忙, 刘庆生, 刘高焕 , 等. 中国地区SRTM3 DEM高程精度质量评价[J]. 测绘工程, 2014,23(4):14-19.
[10]	Zhang C M, Liu Q S, Liu G H , et al. Evaluation of SRTM3 DEM data elevation quality in China area[J]. Engineering of Surveying and Mapping, 2014,23(4):14-19.
[11]	胡加佩, 关消融, 刘学军 . 中国区域SRTM DEM与ASTER GDEM误差空间分布特征[J]. 地理与地理信息科学, 2017,33(7):28-33.
[11]	Hu J P, Guan X R, Liu X J . Spatial distribution of SRTM DEM and ASTER GDEM error in china[J]. Geography and Geo-Information Science, 2017,33(7):28-33.
[12]	黄平, 张行南, 徐涛 , 等. 常用免费DEM数据质量分析[J]. 南水北调与水利科技, 2016,14(2):75-81.
[12]	Huang P, Zhang X N, Xu T , et al. Analysis of the suitability of commonly used DEM data[J]. South-to-North Water Transfers and Water Science and Technology, 2016,14(2):75-81.
[13]	李映辰, 柯樱海, 宫辉力 , 等. DEM对PS-InSAR地面沉降监测的影响[J]. 测绘科学, 2018,43(1):124-134.
[13]	Li Y C, Ke Y H, Gong H L , et al. Influence of DEM on ground subsidence monitoring of PS-InSAR[J]. Science of Surveying and Mapping, 2018,43(1):124-134.
[14]	张精明, 闫建强, 王福民 . World DEM数据在重力近区地形改正中的应用研究[J]. 物探装备, 2018,28(2):94-98.
[14]	Zhang J M, Yan J Q, Wang F M . Application of World DEM data in terrain correction of gravity near-region[J]. Equipment for Geophysical Prospecting, 2018,28(2):94-98.
[15]	李振海, 李琼, 林旭 . 重力地形改正的计算模型研究[J]. 测绘工程, 2011,20(2):24-26.
[15]	Li Z H, Li Q, Lin X . Research on the terrain correction models in gravity survey[J]. Engineering of Surveying and Mapping, 2011,20(2):24-26.
[16]	Forsberg R . Gravity field terrain effect computations by FFT[J]. Bulletin Geodesique, 1985,59(4):342-360.
[17]	冯治汉 . 区域重力调查中的中区地形改正方法及精度[J]. 物探与化探, 2007,31(5):455-458.
[17]	Feng Z H . A tentative discussion on the median region gravity terrain correction method in regional gravity survey[J]. Geophysical and Geochemical Exploration, 2007,31(5):455-458.
[18]	DZ/T0004-2015. 重力调查技术规范(1:50000)[S]. 中华人民共和国国土资源部, 2015.
[18]	DZ/T0004-2015. The technical specification for gravity survey(1:50000)[S]. Ministry of Land and Resources of the People’s Republic of China, 2015.
[19]	DZ/T0171-2017. 大比例尺重力勘查规范[S]. 中华人民共和国自然资源部, 2017.
[19]	DZ/T0171-2017. Large-scale gravity survey specification[S]. Ministry of Natural Resources of the People’s Republic of China, 2017.
[20]	DZ/T0082-2006. 区域重力调查规范DZ/T0082-2006.区域重力调查规范[S]. 中华人民共和国自然资源部, 2006.
[20]	DZ/T0082-2006. The standard for regional gravity surveyDZ/T0082-2006.The standard for regional gravity survey[S]. Ministry of Natural Resources of the People’s Republic of China, 2006.
