Thermomagnetic component measurement: A geochemical prospecting method for transported overburden region |
Shi-Xin TANG1,2, Jian-Jun LI3, Sheng-Ming MA1,2, Shu-Qi HU1,2 |
1. Institute of Geophysical and Geochemical Exploration, CAGS, Langfang 065000, China 2. Key Laboratory for Geochemical Exploration Technology, MNR, Langfang 065000, China 3. Geological Surveying and Mapping Institute of Hebei Province, Langfang 065000, China |
|
|
Abstract Aimed at the technical problem of ore-prospecting in transported overburden region, the authors carried out experimental studies of the method of thermalmagnetic component measurement in the known mining areas, which included the Caijiaying hydrothermal type lead-zinc-silver deposit in Hebei Province, the Shaquanzi magmatic copper-nickel sulfide deposit in east Tianshan, and the skarn type iron-copper polymetallic deposit in Yemaquan area. The experimental results of Caijiaying and Shaquanzi area show that, compared with the small and weak anomalies obtained by conventional soil measurement, the surface anomalies measured by thermal-magnetic components are significant, which can well reflect the spatial location and distribution pattern of deep orebodies and have the advantages of strengthening weak anomalies and discovering new ones. The results of the experiment in Yemaquan area show that there are anomalies delineated by thermomagnetic component measurement at the known mining areas with transported sediments covering more than 100 meters. And well matched abnormal elements in space provide a new target area for prospecting in the unknown area. It has been proved by experiments that the thermomagnetic component measurement technology provides an effective method for solving the problem of ore-prospecting in the transported covered region.
|
Received: 18 January 2019
Published: 15 August 2019
|
|
|
|
|
|

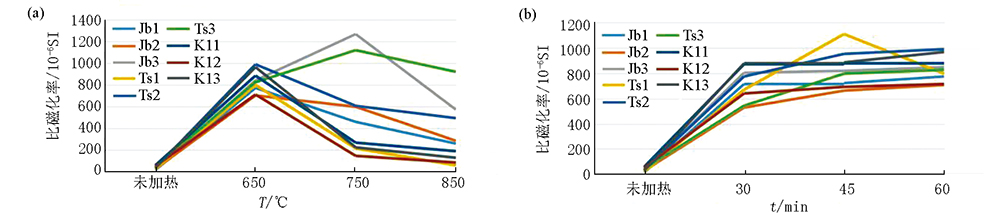

Sample test of calcination temperature and time
|
|

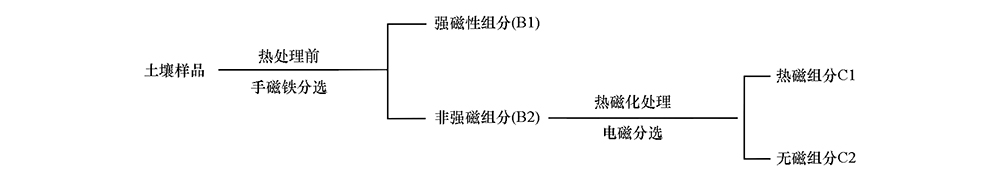

Electromagnetic sorting process of thermomagnetic component
|
|

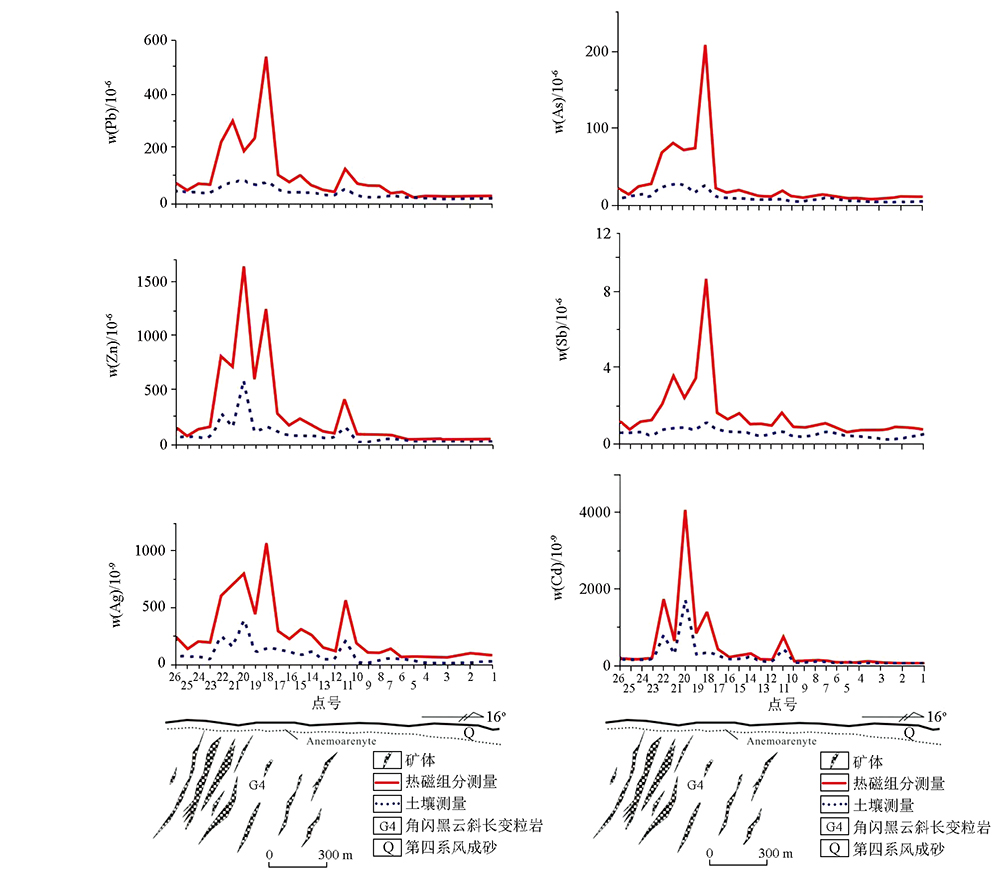

Comparison of conventional soil and thermomagnetic components of aeolian sand covered area in Caijiaying experimental area
|
|

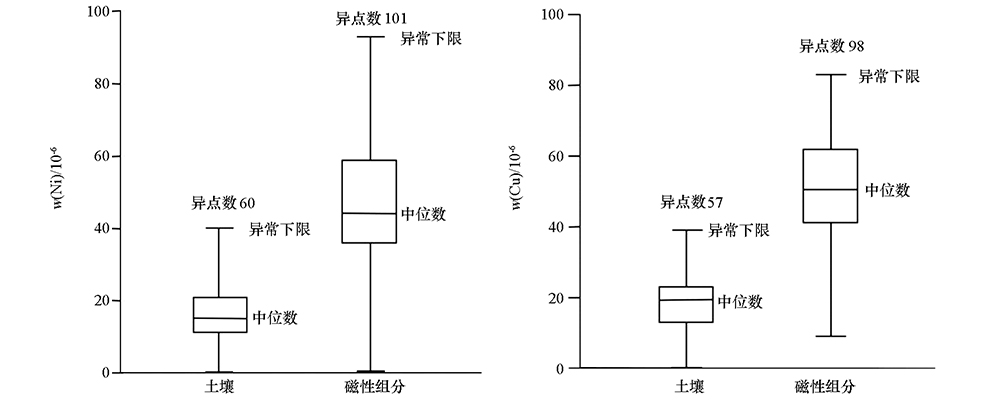

Box diagram of metallogenic elements in Shaquanzi experimental area
|
|

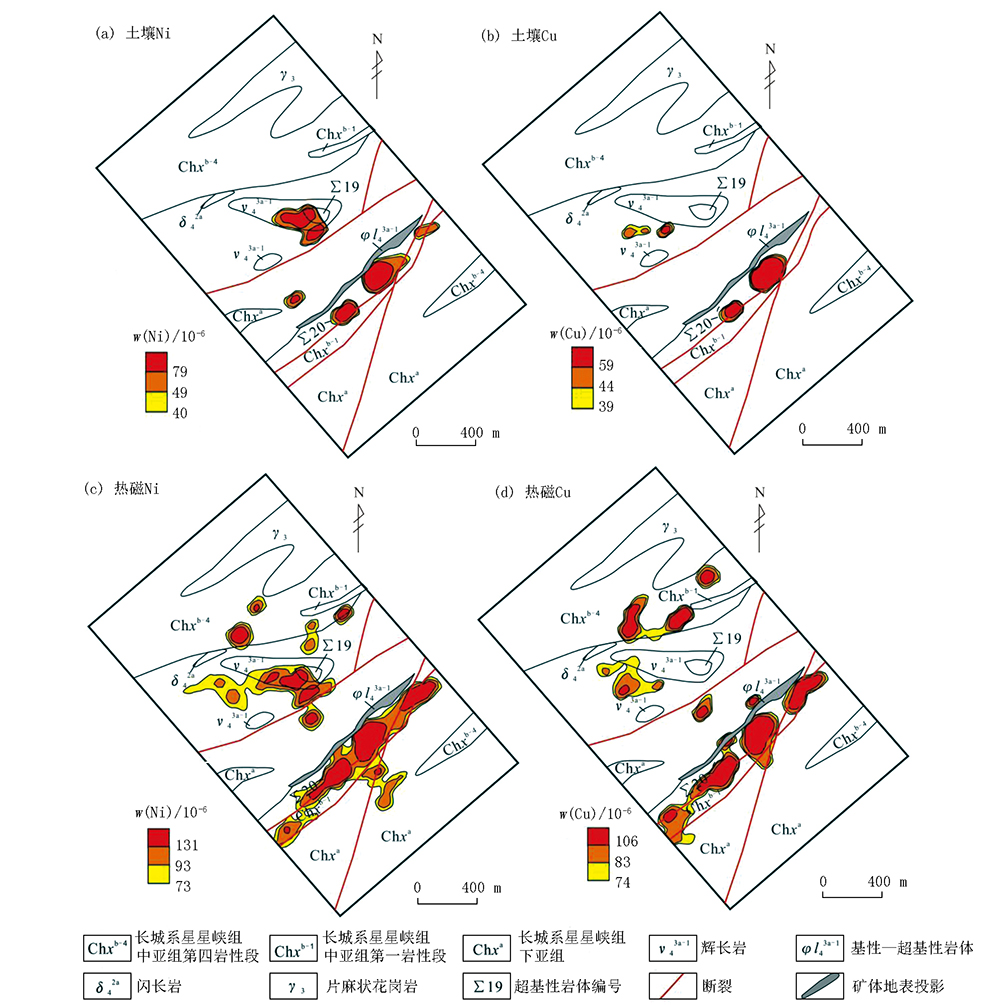

Abnormal distribution of main ore-forming elements of conventional soil and thermomagnetic components in Shaquanzi experimental area
|
|

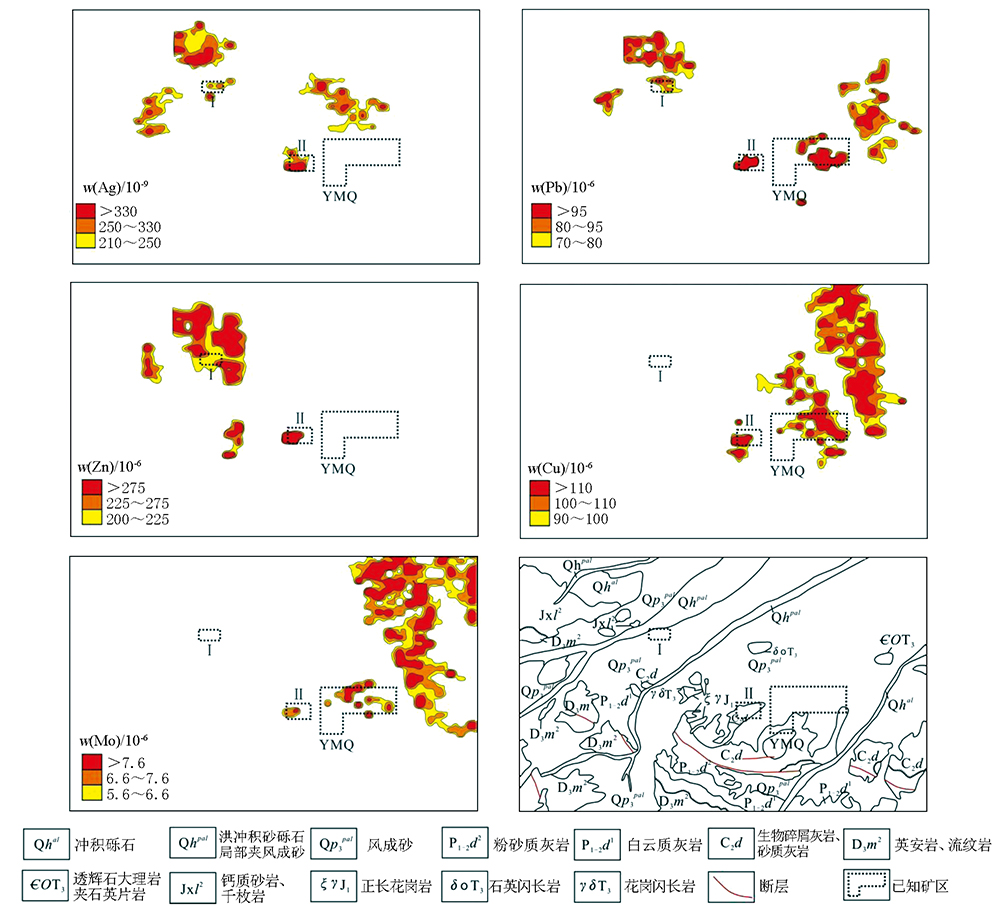

Geochemical anomaly distribution of soil thermomagnetic components in the wild horse spring area
|
[1] |
张华, 孔牧, 杨少平 . 中国主要景观区区域地球化学勘查理论与方法[M]. 北京: 地质出版社, 2017.
|
[1] |
Zhang H, Kong M, Yang S P. Theories and methods of regional geochemical exploration in major landscape areas in China [M]. Beijing: Geological Publishing House, 2017.
|
[2] |
Wang X Q, Zhang B M, Lin X , et al. Geochemical challenges of diverse regolith-covered terrains for mineral exploration in China[J]. Ore Geology Reviews, 2016,73:417-431.
|
[3] |
Zhang B, Wang X, Ye R , et al. Geochemical exploration for concealed deposits at the periphery of the Zijinshan copper-gold mine, southeastern China[J]. Journal of Geochemical Exploration, 2015,157:184-193.
|
[4] |
Zhang B, Wang X, Chi Q , et al. Three-dimensional geochemical patterns of regolith over a concealed gold deposit revealed by overburden drilling in desert terrains of northwestern China[J]. Journal of Geochemical Exploration, 2016,164:122-135.
|
[5] |
胡树起, 马生明, 刘崇民 , 等. 热磁技术方法条件实验及相关问题[J]. 物探与化探, 2011,35(2):212-217.
|
[5] |
Hu S Q, Ma S M, Liu C M , et al. Experiments on technical conditions of the Thermomagnetic technology and some related problems[J]. Geophysical and Geochemical Exploration, 2011,35(2):212-217.
|
[6] |
胡树起, 史长义, 马生明 , 等. 热磁技术在覆盖区找矿中的应用[J]. 物探与化探, 2010,34(5):622-626.
|
[6] |
Hu S Q, Shi C Y, Ma S M , et al. The application of thermomagnetic technique to ore prospecting in coverage area[J]. Geophysical and Geochemical Exploration, 2010,34(5):622-626.
|
[7] |
唐世新, 马生明, 胡树起 . 土壤磁性组分测量在干旱荒漠区找矿中的有效性探讨[J]. 矿产勘查, 2012(6):804-810.
|
[7] |
Tang S X, Ma S M, Hu S Q . Application of soil magnetic component measurement technique in mineral prospecting in arid desert areas[J]. Mineral Exploration, 2012(6):804-810.
|
[8] |
唐世新, 马生明, 李建军 , 等. 新疆东天山地区磁性组分测量有效性研究[J]. 物探化探计算技术, 2014,36(6):742-749.
|
[8] |
Tang S X, Ma S M, Li J J , et al. The availability discussion of magnetic material survey in dongtianshan, xinjiang[J]. Geophysical and Geochemical Exploration Computing Techniques, 2014,36(6):742-749.
|
[9] |
唐世新, 李建军, 马生明 . 内蒙古东部运积物覆盖区地球化学勘查方法对比[J]. 物探与化探, 2018,42(3):499-505.
|
[9] |
Tang S X, Li J J, Ma S M . Optimum selection of geochemical exploration methods in areas covered by transported overburden, eastern Inner Mongolia[J]. Geophysical and Geochemical Exploration, 2018,42(3):499-505.
|
[10] |
Cohen D R, Shen X C, Dunlop A C , et al. A comparison of selective extraction soil geochemistry and biogeochemistry in the Cobar area, New South Wales[J]. Journal of Geochemical Exploration, 1998,61(1):173-189.
|
[11] |
Alipour S, Cohen D R, Dunlop A C . Characteristics of magnetic and non-magnetic lag in the Cobar area, NSW[J]. Journal of Geochemical Exploration, 1997,58(1):15-28.
|
[12] |
Xie J, Dunlop A C . Dissolution rates of metals in Fe oxides: implications for sampling ferruginous materials with significant relict Fe oxides[J]. Journal of Geochemical Exploration, 1998,61(1):213-232.
|
[13] |
张永兴, 顾尚义 . 河北省蔡家营铅锌银矿区地质构造研究[J]. 贵州工业大学学报:自然科学版, 2003(4):1-5.
|
[13] |
Zhang Y X, Gu S Y . Geological structure study on caijiaying Pb-Zn-Ag deposit district of hebei province[J]. Journal of Guizhou University of Technology:Natural Science Edition, 2003(4):1-5.
|
[14] |
叶信栋, 孙彬彬, 周国华 , 等. 河北蔡家营铅锌多金属矿地电化学提取有效性及提取条件试验[J]. 地质与勘探, 2018(5):979-987.
|
[14] |
Ye X D, Sun B B, Zhou G H , et al. Effectiveness and conditions tests of geo-electrochemical extraction in the caijiaying Pb-Zn polymetallic mining area,hebei province[J]. Geology and Exploration, 2018(5):979-987.
|
[15] |
冯有利, 郑辙, 艾永富 , 等. 蔡家营铅锌银多金属矿床的绿泥石结构特征[J]. 矿物学报, 2001(3):554-556.
|
[15] |
Feng Y L, Zheng C, Ai Y F , et al. Strucural characteristics of chlorite in the caijiaying Pb-Zn-Ag deposit[J]. Acta Mineralogica Sinica, 2001(3):554-556.
|
[16] |
邵跃 . 矿床元素原生分带的研究及其在地球化学找矿中的应用[J]. 地质与勘探, 1984(2):47-55.
|
[16] |
Shao Y . The study of the metallogenic zoning of ore deposits and its application in geochemical prospecting[J]. Geology and Exploration, 1984(2):47-55.
|
[17] |
李文明, 任秉琛, 杨兴科 , 等. 东天山中酸性侵入岩浆作用及其地球动力学意义[J]. 西北地质, 2002(4):41-64.
|
[17] |
Li W M, Ren B C, Yang X K , et al. The intermediate-acid intrusive magmatism and its geodynamic significance in Eastern Tianshan region[J]. Northwestern Geology, 2002(4):41-64.
|
[18] |
黄小文, 漆亮, 孟郁苗 . 东天山黑峰山、双峰山及沙泉子(铜)铁矿床的矿物微量和稀土元素地球化学特征[J]. 矿床地质, 2013(6):1188-1210.
|
[18] |
Huang X W, Qi L, Meng Y M . Trace element and REE geochemistry of minerals from Heifengshan, Shuangfengshan and Shaquanzi (Cu-)Fe deposits, eastern Tianshan Mountains[J]. Mineral Deposits, 2013(6):1188-1210.
|
[19] |
方维萱, 黄转盈, 唐红峰 , 等. 东天山库姆塔格—沙泉子晚石炭世火山-沉积岩相学地质地球化学特征与构造环境[J]. 中国地质, 2006(3):529-544.
|
[19] |
Fang W X, Huang Z Y, Tang H F , et al. Lithofacies, geological and geochemical characteristics and tectonic setting of Late Carboniferous volcanic-sedimentary rocks in the Kumtag-Shaquanzi ar ea, East Tianshan[J]. Geology in China, 2006(3):529-544.
|
[20] |
徐璐璐, 柴凤梅, 李强 , 等. 东天山沙泉子铁铜矿区火山岩地球化学特征、锆石U-Pb年龄及地质意义[J]. 中国地质, 2014(6):1771-1790.
|
[20] |
Xu L L, Chai F M, Li Q , et al. Geochemistry and zircon U-Pb age of volcanic rocks from the Shaquanzi Fe-Cu deposit in East Tianshan Mountains and their geological significance[J]. Geology in China, 2014(6):1771-1790.
|
[21] |
黄小文, 漆亮, 王怡昌 , 等. 东天山沙泉子铜铁矿床磁铁矿Re-Os定年初探[J]. 中国科学:地球科学, 2014(4):605-616.
|
[21] |
Huang X W, Qi L, Wang Y C , et al. Re-Os dating of magnetite from the Shaquanzi Fe-Cu deposit, eastern TianshanNW China[J]. Science China: Earth Sciences, 2014(4):605-616.
|
[22] |
宋忠宝, 贾群子, 张占玉 , 等. 东昆仑祁漫塔格地区野马泉铁铜矿床地质特征及成因探讨[J]. 西北地质, 2010(4):209-217.
|
[22] |
Song Z B, Jia Q Z, Zhang Z Y , et al. Study on geological feature and origin of yemaquan Fe-Cu deposit in qimantage area, eastern kunlun[J]. Northwestern Geology, 2010(4):209-217.
|
[23] |
高永宝, 李文渊, 钱兵 , 等. 东昆仑野马泉铁矿相关花岗质岩体年代学、地球化学及Hf同位素特征[J]. 岩石学报, 2014(6):1647-1665.
|
[23] |
Gao Y B, Li W Y, Qian B , et al. Geochronology, geochemistry and Hf isotopic compositions of the granitic rocks related with iron mineralization in Yemaquan deposit, East Kunlun, NW China[J]. Acta Petrologica Sinica, 2014(6):1647-1665.
|
[24] |
姚磊, 吕志成, 于晓飞 , 等. 青海祁漫塔格地区矽卡岩型矿床花岗质岩石矿物学及地质意义[J]. 岩石学报, 2015(8):2294-2306.
|
[24] |
Yao L, Lv Z C, Yu X F , et al. Mineral characteristics of granitic rocks from skarn deposits, Qimantag area, Qinghai Province, East Kunlun, and its geological significance[J]. Acta Petrologica Sinica, 2015(8):2294-2306.
|
[25] |
许长坤, 刘世宝, 赵子基 , 等. 青海省东昆仑成矿带铁矿成矿规律与找矿方向研究[J]. 地质学报, 2012(10):1621-1678.
|
[25] |
Xu C K, Liu S B, Zhao Z J , et al. Metallogenic lawand and prospect direction of iron deposits in the east kunlun metallogenic belt in qinghai[J]. Acta Geological Sinica, 2012(10):1621-1678.
|
[26] |
刘建楠, 丰成友, 赵一鸣 , 等. 青海野马泉矽卡岩铁锌多金属矿区侵入岩、交代岩及矿化蚀变特征[J]. 矿床地质, 2013(1):77-93.
|
[26] |
Liu J N, Feng C Y, Zhao Y M , et al. Characteristics of intrusive rock, metasomatites, mineralization and atteration in Yemaquan skarn Fe-Zn polymetallic deposit, Qinghai Province[J]. Mineral Deposits, 2013(1):77-93.
|
|
|
|
